7-52 Vehicle care and maintenance
7
[For vehicles without high intensity discharge headlights]
[For vehicles equipped with high intensity discharge head-
lights]

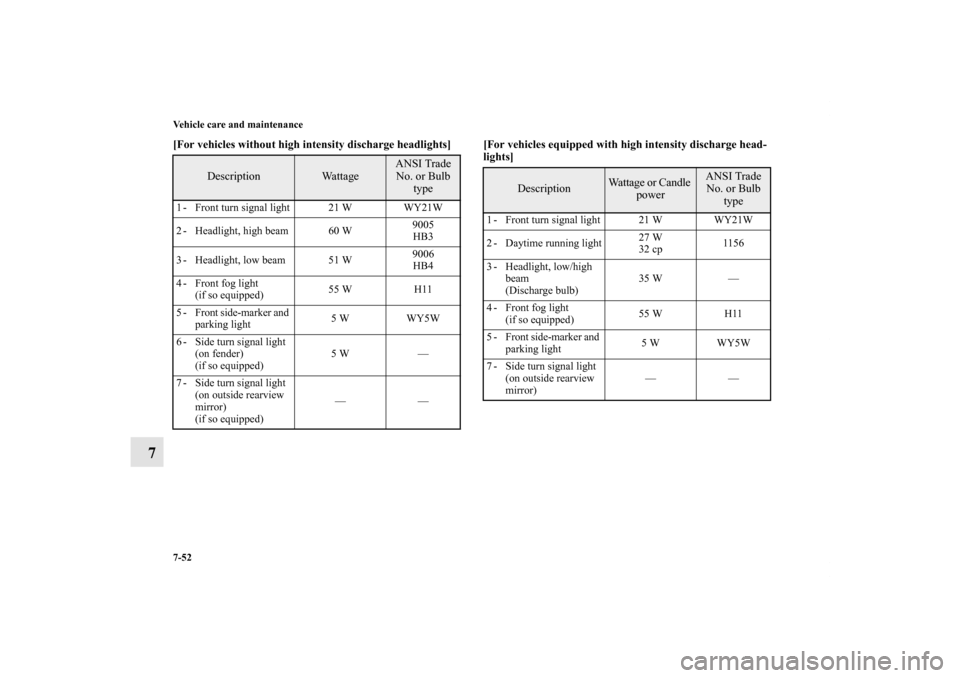

Description
Wa t t a g e
ANSI Trade
No. or Bulb
type
1 - Front turn signal light 21 W WY21W
2 - Headlight, high beam 60 W9005
HB3
3 - Headlight, low beam 51 W9006
HB4
4 - Front fog light
(if so equipped)55 W H11
5 - Front side-marker and
parking light5 W WY5W
6 - Side turn signal light
(on fender)
(if so equipped)5 W —
7 - Side turn signal light
(on outside rearview
mirror)
(if so equipped)——
Description
Wattage or Candle
power
ANSI Trade
No. or Bulb
type
1 - Front turn signal light 21 W WY21W
2 - Daytime running light27 W
32 cp11 56
3 - Headlight, low/high
beam
(Discharge bulb)35 W —
4 - Front fog light
(if so equipped)55 W H11
5 - Front side-marker and
parking light5 W WY5W
7 - Side turn signal light
(on outside rearview
mirror)——
BK0122500US.book 52 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Vehicle care and maintenance
7-53
7
NOTE
The side turn signal light (on outside rearview mirror) use
an LED instead of the bulb. Check with an authorized
Mitsubishi Motors dealer or repair facility of your choice
when either light needs to be repaired or replaced.

It is not possible to repair or replace only the bulb for the
side turn signal light (on fender).
Check with an authorized Mitsubishi Motors dealer or a
repair facility of your choice when the light needs to be
repaired or replaced.
NOTE
The tail and stop light and the high-mounted stop light use
an LED instead of the bulb. Check with an authorized
Mitsubishi Motors dealer or repair facility of your choice
when either light needs to be repaired or replaced.
WA R N I N G
!
Check with an authorized Mitsubishi Motors dealer
or a repair facility of your choice when it is neces-
sary to repair a high intensity discharge headlight or
to replace the bulb.
The power circuit, bulb and electrodes generate high
voltages that may cause a severe shock.
Item
Wa t t a g e
ANSI trade No.
or bulb type

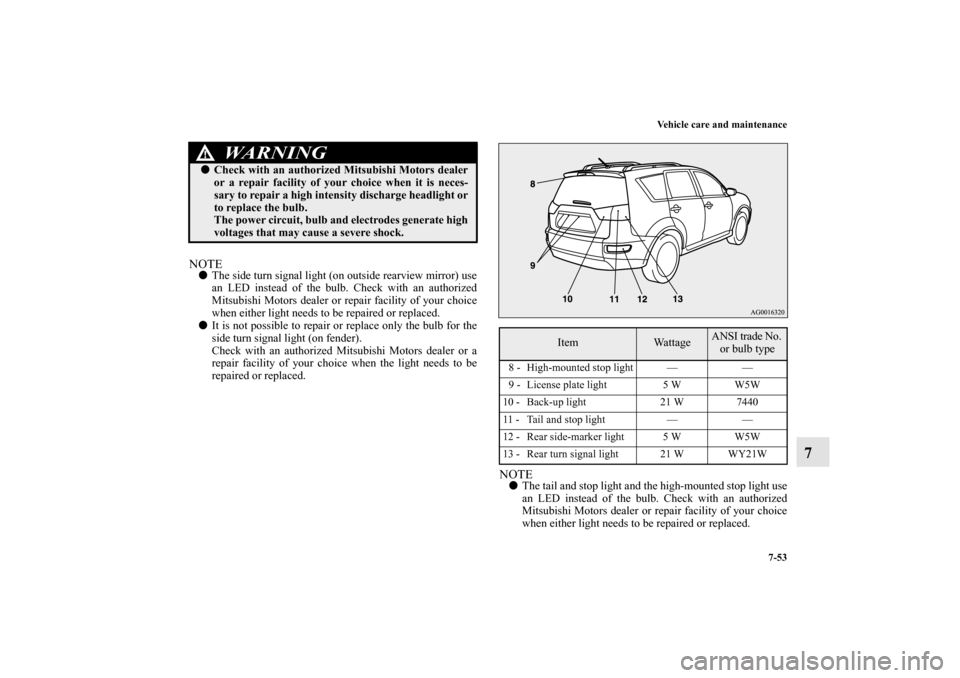

8 - High-mounted stop light — —
9 - License plate light 5 W W5W
10 - Back-up light 21 W 7440
11 - Tail and stop light — —
12 - Rear side-marker light 5 W W5W
13 - Rear turn signal light 21 W WY21W
BK0122500US.book 53 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

7-54 Vehicle care and maintenance
7
Compartment
N00950400587
NOTE
The center console down light uses an LED instead of the
bulb. Check with an authorized Mitsubishi Motors dealer
or a repair facility of your choice when the light needs to
be repaired or replaced.
Item
Wa t t a g e
1 - Cargo room light 8 W
2 - Dome light (rear) 8 W
3 - Vanity mirror lights 3 W
4 - Dome light (front)/Reading light 8 W
5 - Center console down light –
6 - Lower glove compartment light 1.4 WBK0122500US.book 54 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Vehicle care and maintenance
7-55
7
Headlights (low beam, except for vehicles
equipped with high intensity discharge head-
lights)
N00901800033

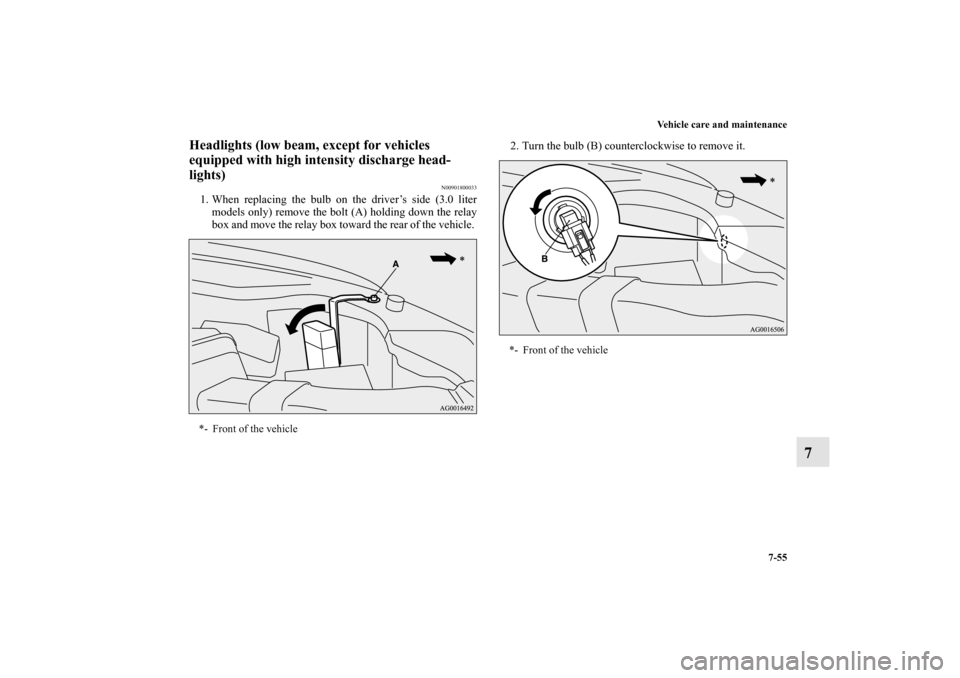

1. When replacing the bulb on the driver’s side (3.0 liter
models only) remove the bolt (A) holding down the relay
box and move the relay box toward the rear of the vehicle. 2. Turn the bulb (B) counterclockwise to remove it.*- Front of the vehicle
*- Front of the vehicle
BK0122500US.book 55 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

7-56 Vehicle care and maintenance
7

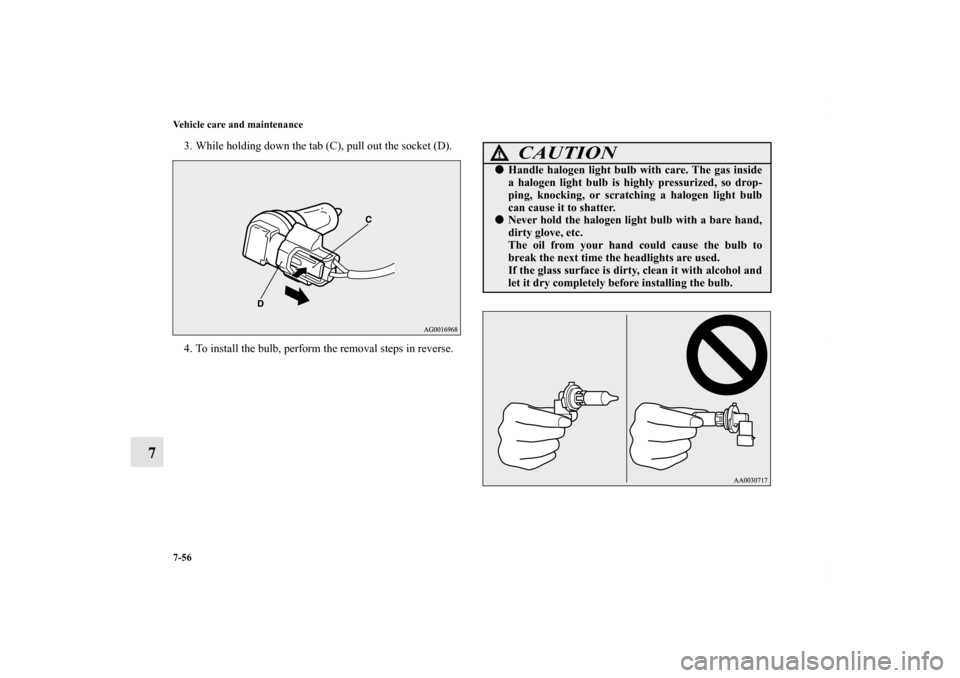

3. While holding down the tab (C), pull out the socket (D).
4. To install the bulb, perform the removal steps in reverse.
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen light bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the headlights are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
BK0122500US.book 56 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Vehicle care and maintenance
7-57
7
Headlights (high beam, except for vehicles
equipped with high intensity discharge head-
lights)
N00901900034

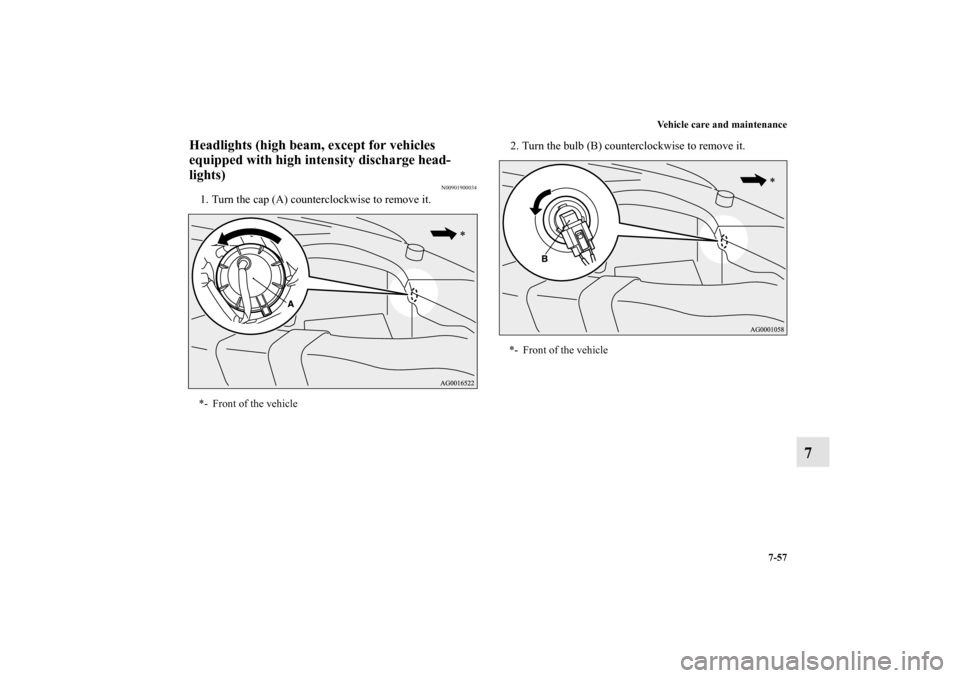

1. Turn the cap (A) counterclockwise to remove it.2. Turn the bulb (B) counterclockwise to remove it.*- Front of the vehicle
*- Front of the vehicle
BK0122500US.book 57 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

7-58 Vehicle care and maintenance
7
3. While holding down the tab (C), pull out the socket (D). 4. To install the bulb, perform the removal steps in reverse.
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen light bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the headlights are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
BK0122500US.book 58 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Vehicle care and maintenance
7-59
7
Daytime running lights (for vehicles equipped
with high intensity discharge headlights)
N00902000032

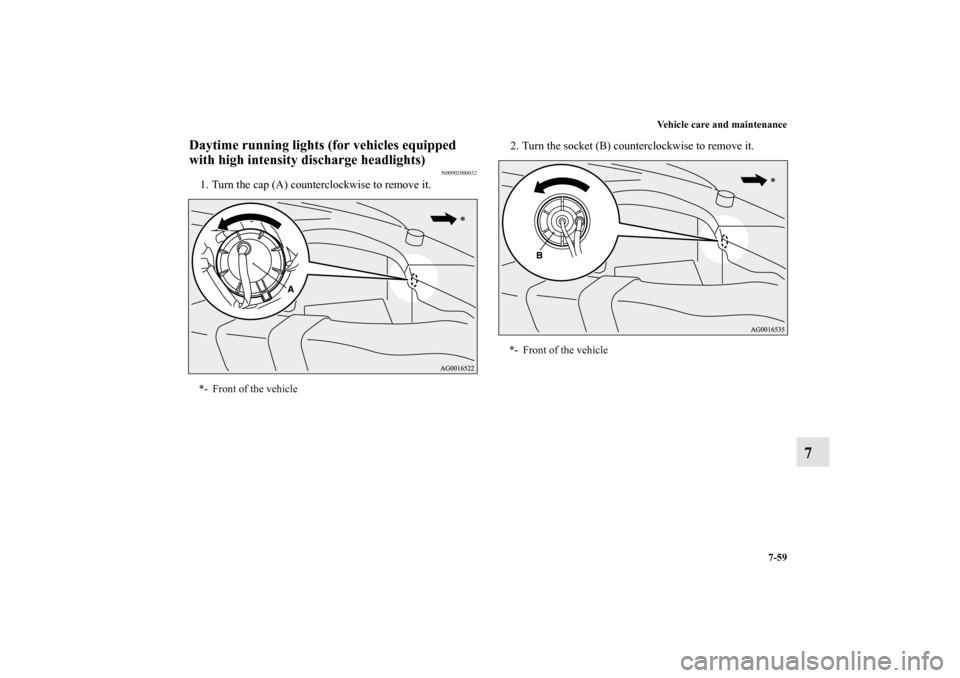

1. Turn the cap (A) counterclockwise to remove it.2. Turn the socket (B) counterclockwise to remove it.*- Front of the vehicle
*- Front of the vehicle
