2011 MITSUBISHI OUTLANDER Owners Manual

3-54 Features and controls
3

In vehicles equipped with the F.A.S.T.-key, the driver’s
door can be locked and unlocked using the emergency
key.
Refer to “Emergency key” on page 3-34.
To lock or unlock the door from the insideMove the lock knob to the lock position to lock the door.
All doors should be kept locked while driving.
The driver’s door can be unlocked without using the lock knob
by pulling on the inside door handle.1- Lock
2- Unlock
BK0122500US.book 54 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Features and controls
3-55
3

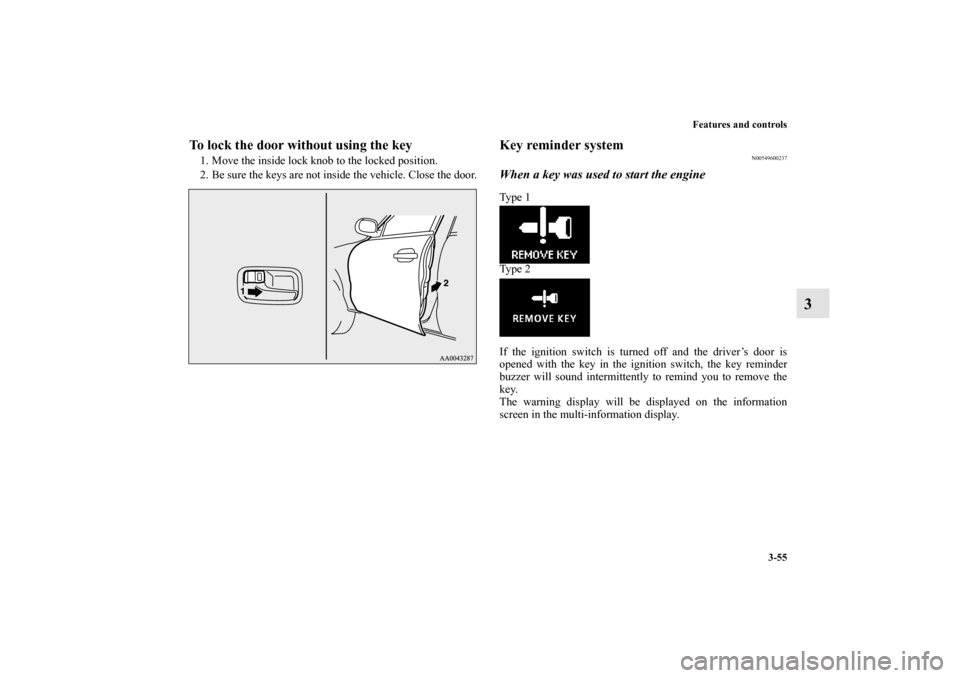

To lock the door without using the key1. Move the inside lock knob to the locked position.
2. Be sure the keys are not inside the vehicle. Close the door.
Key reminder system
N00549600237
When a key was used to start the engineTy p e 1
Ty p e 2
If the ignition switch is turned off and the driver’s door is
opened with the key in the ignition switch, the key reminder
buzzer will sound intermittently to remind you to remove the
key.
The warning display will be displayed on the information
screen in the multi-information display.
BK0122500US.book 55 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

3-56 Features and controls
3
Lock out protection
N00517300026
If the key is in the ignition switch when you push the lock knob
forward with the driver’s door or passenger’s door open, the
lock knob will automatically return to the unlocked position.
Ignition switch return reminder system
(if so
equipped)
N00503800118
When the F.A.S.T.-key was used to start the engineTy p e 1
Ty p e 2
If the driver’s door is opened while the ignition switch is in a
position other than “LOCK” (PUSH OFF), the ignition switch
return reminder buzzer will sound intermittently to remind you
to return the ignition switch to the “LOCK” (PUSH OFF) posi-
tion.
The warning display will be displayed on the information
screen in the multi-information display.
BK0122500US.book 56 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Features and controls
3-57

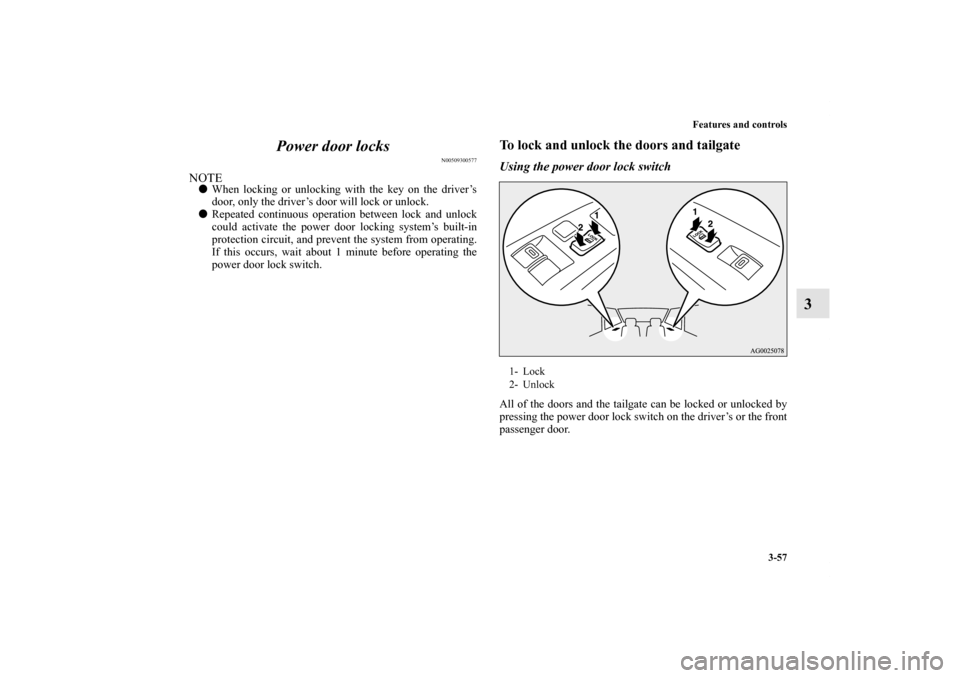

3 Power door locks
N00509300577
NOTE
When locking or unlocking with the key on the driver’s
door, only the driver’s door will lock or unlock.

Repeated continuous operation between lock and unlock
could activate the power door locking system’s built-in
protection circuit, and prevent the system from operating.
If this occurs, wait about 1 minute before operating the
power door lock switch.
To lock and unlock the doors and tailgateUsing the power door lock switchAll of the doors and the tailgate can be locked or unlocked by
pressing the power door lock switch on the driver’s or the front
passenger door.1- Lock
2- Unlock
BK0122500US.book 57 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

3-58 Features and controls
3

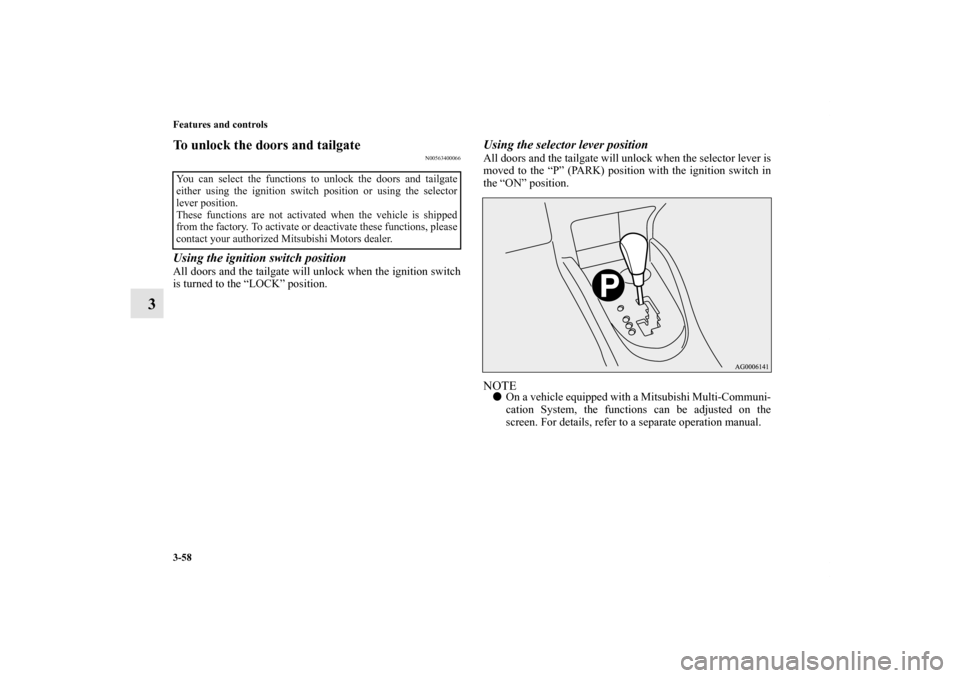

To unlock the doors and tailgate
N00563400066
Using the ignition switch positionAll doors and the tailgate will unlock when the ignition switch
is turned to the “LOCK” position.
Using the selector lever positionAll doors and the tailgate will unlock when the selector lever is
moved to the “P” (PARK) position with the ignition switch in
the “ON” position.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.
You can select the functions to unlock the doors and tailgate
either using the ignition switch position or using the selector
lever position.
These functions are not activated when the vehicle is shipped
from the factory. To activate or deactivate these functions, please
contact your authorized Mitsubishi Motors dealer.BK0122500US.book 58 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Features and controls
3-59

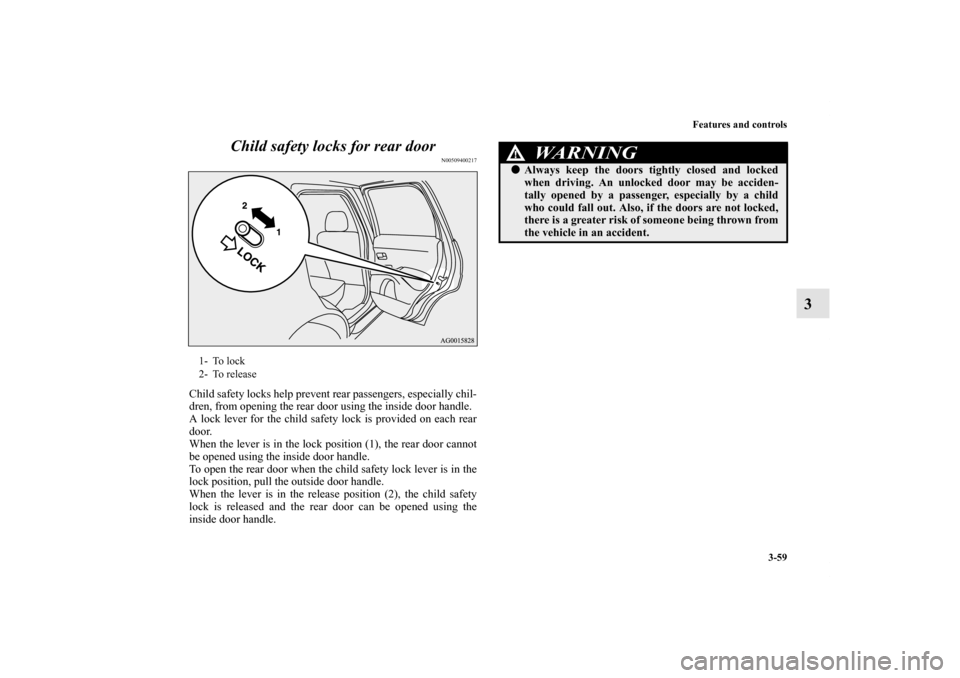

3 Child safety locks for rear door
N00509400217
Child safety locks help prevent rear passengers, especially chil-
dren, from opening the rear door using the inside door handle.
A lock lever for the child safety lock is provided on each rear
door.
When the lever is in the lock position (1), the rear door cannot
be opened using the inside door handle.
To open the rear door when the child safety lock lever is in the
lock position, pull the outside door handle.
When the lever is in the release position (2), the child safety
lock is released and the rear door can be opened using the
inside door handle.1- To lock
2- To release
WA R N I N G
!
Always keep the doors tightly closed and locked
when driving. An unlocked door may be acciden-
tally opened by a passenger, especially by a child
who could fall out. Also, if the doors are not locked,
there is a greater risk of someone being thrown from
the vehicle in an accident.
BK0122500US.book 59 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

3-60 Features and controls
3Flap-fold tailgate
N00510100227
NOTE
Locking and unlocking the doors by using power door
locks (driver and front passenger side), keyless entry sys-
tem, or F.A.S.T.-key operation (vehicles equipped with
the F.A.S.T.-key) also locks and unlocks the tailgate.
To open1. After unlocking, raise the tailgate handle.
WA R N I N G
!
It is dangerous to drive with the tailgate (upper gate
and lower gate) open since carbon monoxide (CO)
gas can enter the passenger compartment.
CO is an invisible, odorless gas that can cause
unconsciousness and even death.
When opening and closing the tailgate, make sure
that there are no people nearby and be careful not to
hit your head or pinch your hands, neck, etc.
CAUTION
!
Do not stand behind the exhaust pipe when loading
and unloading luggage. Heat from the exhaust could
lead to burns.
BK0122500US.book 60 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Features and controls
3-61
3

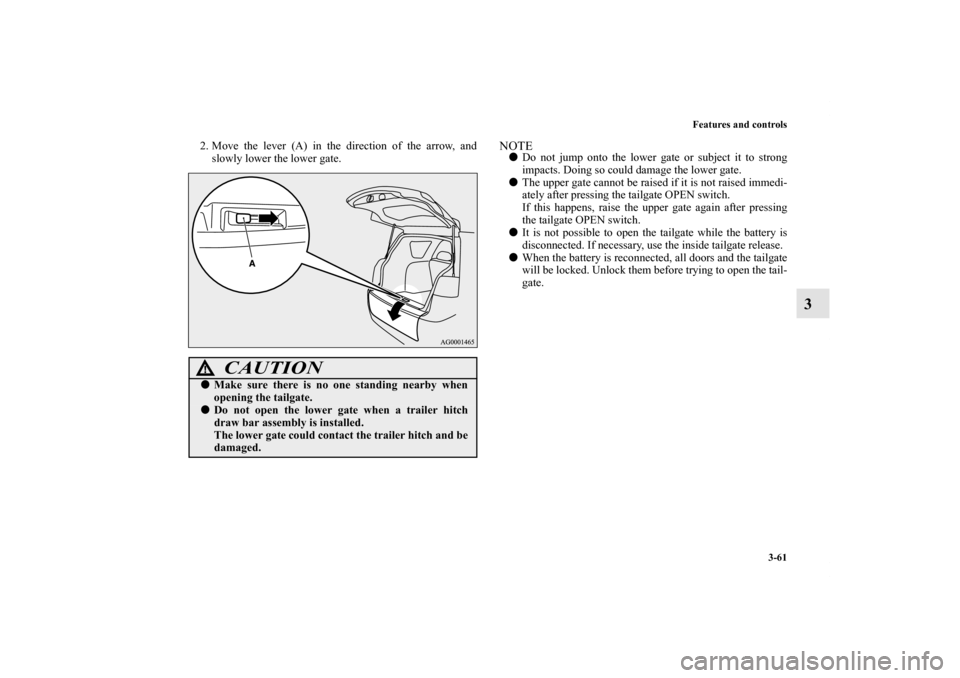

2. Move the lever (A) in the direction of the arrow, and
slowly lower the lower gate.
NOTE
Do not jump onto the lower gate or subject it to strong
impacts. Doing so could damage the lower gate.

The upper gate cannot be raised if it is not raised immedi-
ately after pressing the tailgate OPEN switch.
If this happens, raise the upper gate again after pressing
the tailgate OPEN switch.

It is not possible to open the tailgate while the battery is
disconnected. If necessary, use the inside tailgate release.

When the battery is reconnected, all doors and the tailgate
will be locked. Unlock them before trying to open the tail-
gate.
CAUTION
!
Make sure there is no one standing nearby when
opening the tailgate.
Do not open the lower gate when a trailer hitch
draw bar assembly is installed.
The lower gate could contact the trailer hitch and be
damaged.
BK0122500US.book 61 ページ ２０１０年５月１２日　水曜日　午前１１時１１分
