2011 MITSUBISHI OUTLANDER Owners Manual

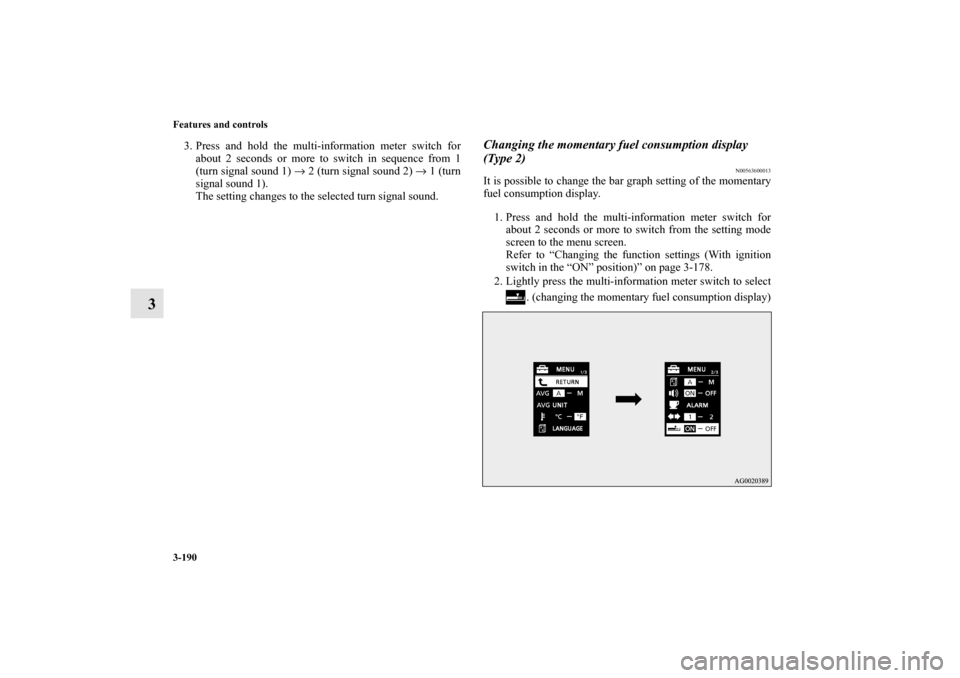

3-190 Features and controls
3
3. Press and hold the multi-information meter switch for
about 2 seconds or more to switch in sequence from 1
(turn signal sound 1) → 2 (turn signal sound 2) → 1 (turn
signal sound 1).
The setting changes to the selected turn signal sound.
Changing the momentary fuel consumption display
(Type 2)
N00563600013
It is possible to change the bar graph setting of the momentary
fuel consumption display.
1. Press and hold the multi-information meter switch for
about 2 seconds or more to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-178.
2. Lightly press the multi-information meter switch to select
. (changing the momentary fuel consumption display)
BK0122500US.book 190 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

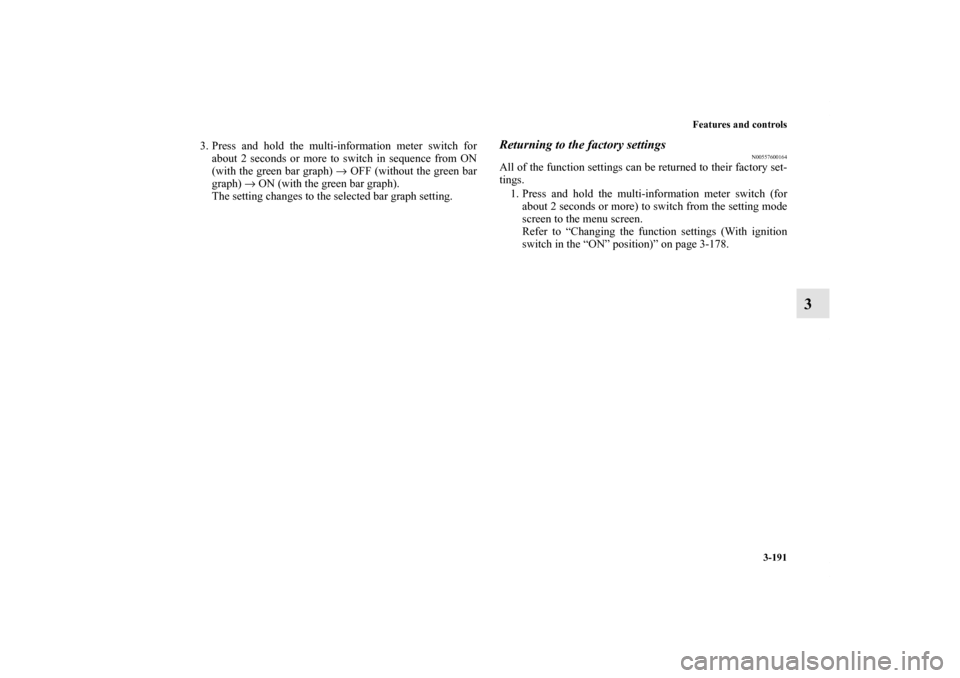

Features and controls
3-191
3
3. Press and hold the multi-information meter switch for
about 2 seconds or more to switch in sequence from ON
(with the green bar graph) → OFF (without the green bar
graph) → ON (with the green bar graph).
The setting changes to the selected bar graph setting.
Returning to the factory settings
N00557600164
All of the function settings can be returned to their factory set-
tings.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-178.
BK0122500US.book 191 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

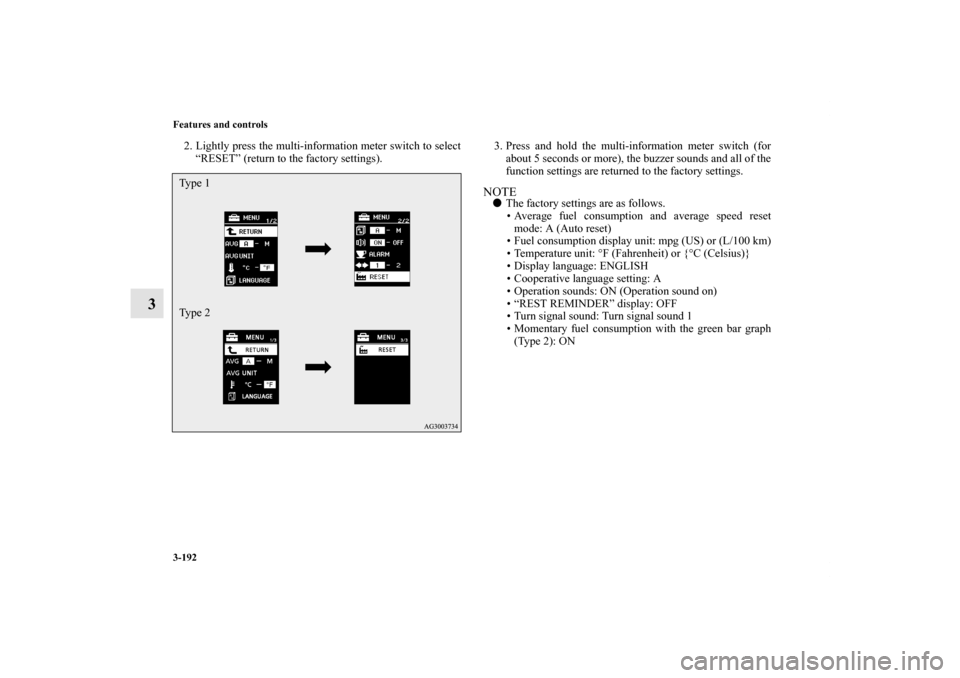

3-192 Features and controls
3
2. Lightly press the multi-information meter switch to select
“RESET” (return to the factory settings).3. Press and hold the multi-information meter switch (for
about 5 seconds or more), the buzzer sounds and all of the
function settings are returned to the factory settings.
NOTE
The factory settings are as follows.
• Average fuel consumption and average speed reset
mode: A (Auto reset)
• Fuel consumption display unit: mpg (US) or (L/100 km)
• Temperature unit: °F (Fahrenheit) or {°C (Celsius)}
• Display language: ENGLISH
• Cooperative language setting: A
• Operation sounds: ON (Operation sound on)
• “REST REMINDER” display: OFF
• Turn signal sound: Turn signal sound 1
• Momentary fuel consumption with the green bar graph
(Type 2): ON
Type 1
Type 2BK0122500US.book 192 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

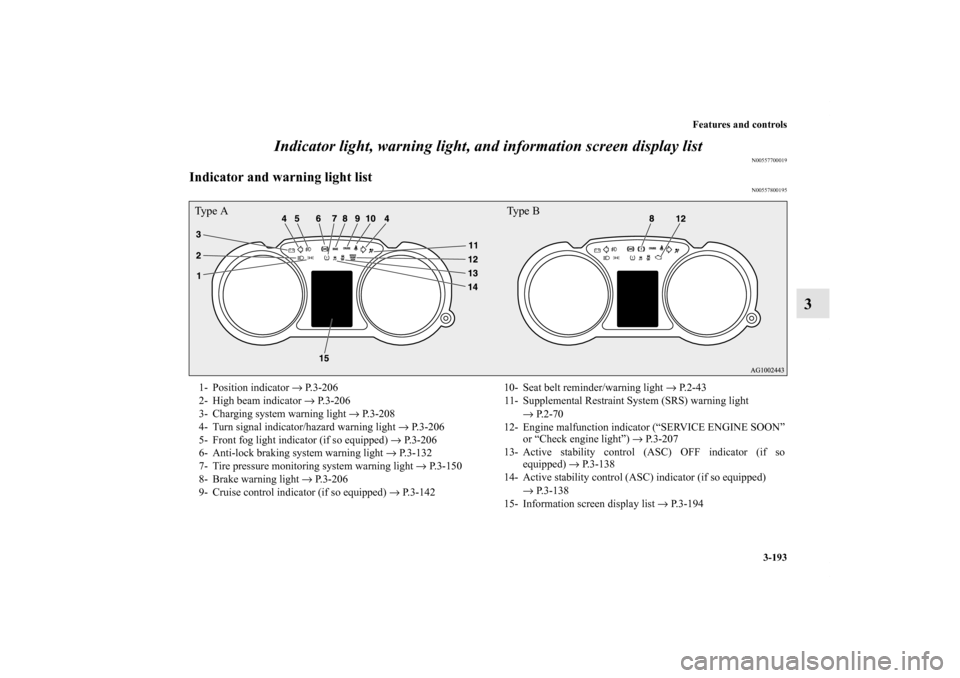

Features and controls
3-193
3 Indicator light, warning light, and information screen display list
N00557700019
Indicator and warning light list
N00557800195
Type A Type B1- Position indicator → P.3-206
2- High beam indicator → P.3-206
3- Charging system warning light → P.3-208
4- Turn signal indicator/hazard warning light → P.3-206
5- Front fog light indicator (if so equipped) → P.3-206
6- Anti-lock braking system warning light → P.3-132
7- Tire pressure monitoring system warning light → P.3-150
8- Brake warning light → P.3-206
9- Cruise control indicator (if so equipped) → P.3-14210- Seat belt reminder/warning light → P.2-43
11- Supplemental Restraint System (SRS) warning light
→ P. 2 - 7 0
12- Engine malfunction indicator (“SERVICE ENGINE SOON”
or “Check engine light”) → P.3-207
13- Active stability control (ASC) OFF indicator (if so
equipped) → P. 3 - 1 3 8
14- Active stability control (ASC) indicator (if so equipped)
→ P. 3 - 1 3 8
15- Information screen display list → P.3-194
BK0122500US.book 193 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

3-194 Features and controls
3
Information screen display list
N00557900079
When there is information to be announced, such as light reminder, the tone sounds and the screen switches to the displays shown
below. Refer to the appropriate page and take the necessary measures.
When the cause of the warning display is eliminated, the warning display goes out automatically.
Refer to Warning display list (With ignition switch in the “OFF” position) on page 3-195.
Refer to Warning display list (With ignition switch in the “ON” position) on page 3-198.
Refer to Other interrupt displays (With ignition switch in the “ON” position) on page 3-204.NOTE
In the following cases, a warning may be displayed on the information screen and the buzzer may sound for a few seconds, at
times.
This is caused by the system picking up interference such as strong electromagnetic waves or noise, and is not a functional
problem.
• An extremely strong electromagnetic wave is received from a source such as an illegal radio set, a spark from a wire, or a
radar station.
• Abnormal voltage or a static electricity discharge is generated by the operation of your vehicle’s electronics (including after-
market parts).
If the warning display has occurred a number of times, take your vehicle to an authorized Mitsubishi Motors dealer or a repair
facility of your choice and have the system checked.
BK0122500US.book 194 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Features and controls
3-195
3
Warning display list (With ignition switch in the “OFF” position)
N00558000181
Screen type 1
Screen type 2
Cause
Do this (Reference)

You have forgotten to remove the key
from the ignition switch.
Remove the key.
Refer to “Key reminder system” on
page 3-55.

You have forgotten to turn off the
lights.Refer to “Light auto-cutout function (head-
lights and other lights)” on page 3-215.

The theft-alarm system is operating. Refer to “Theft-alarm system” on page 3-65.

Immobilizer is registered. Refer to “Customer key programming
(Except for vehicles sold in Canada)” on
page 3-7.
Refer to “Customer F.A.S.T.-key program-
ming (Except for vehicles sold in Canada)”
on page 3-43.
BK0122500US.book 195 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

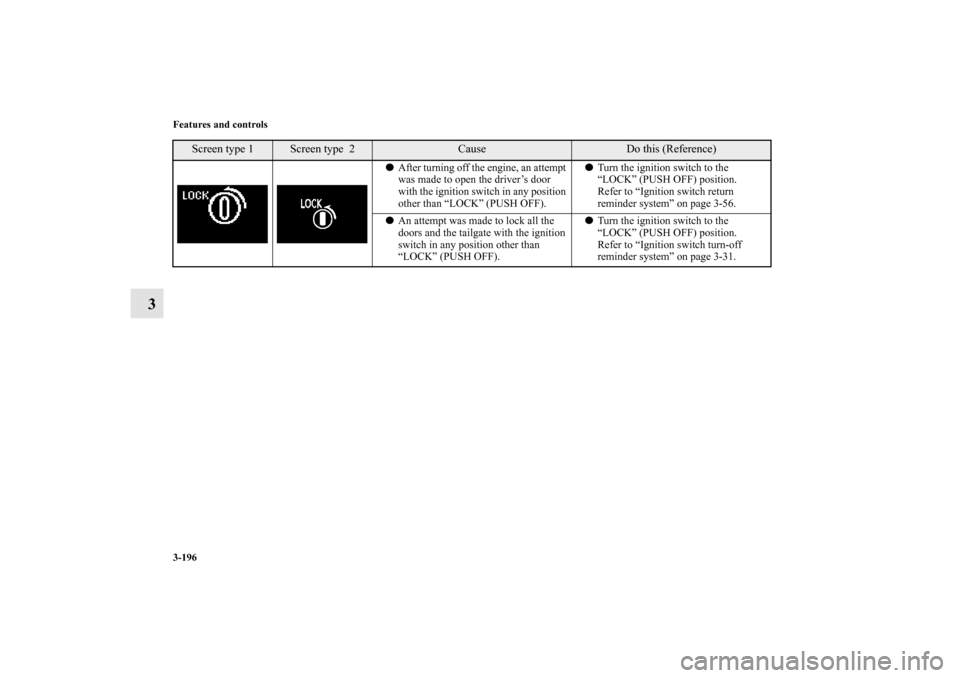

3-196 Features and controls
3

After turning off the engine, an attempt
was made to open the driver’s door
with the ignition switch in any position
other than “LOCK” (PUSH OFF).
Turn the ignition switch to the
“LOCK” (PUSH OFF) position.
Refer to “Ignition switch return
reminder system” on page 3-56.

An attempt was made to lock all the
doors and the tailgate with the ignition
switch in any position other than
“LOCK” (PUSH OFF).
Turn the ignition switch to the
“LOCK” (PUSH OFF) position.
Refer to “Ignition switch turn-off
reminder system” on page 3-31.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0122500US.book 196 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

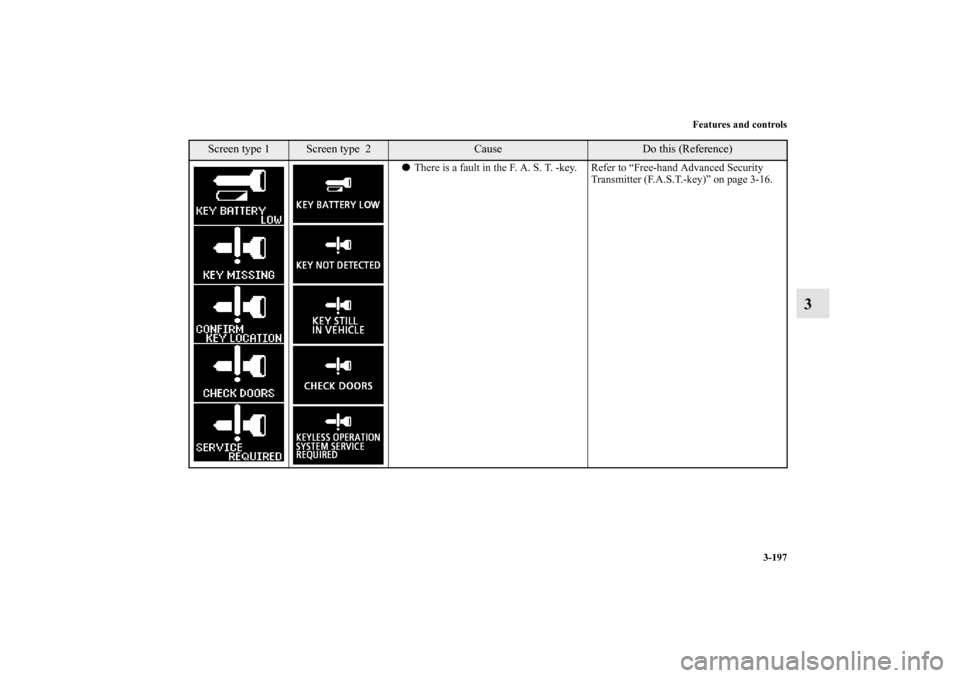

Features and controls
3-197
3

There is a fault in the F. A. S. T. -key. Refer to “Free-hand Advanced Security
Transmitter (F.A.S.T.-key)” on page 3-16.
Screen type 1
Screen type 2
Cause
Do this (Reference)
