2011 MITSUBISHI OUTLANDER Owners Manual

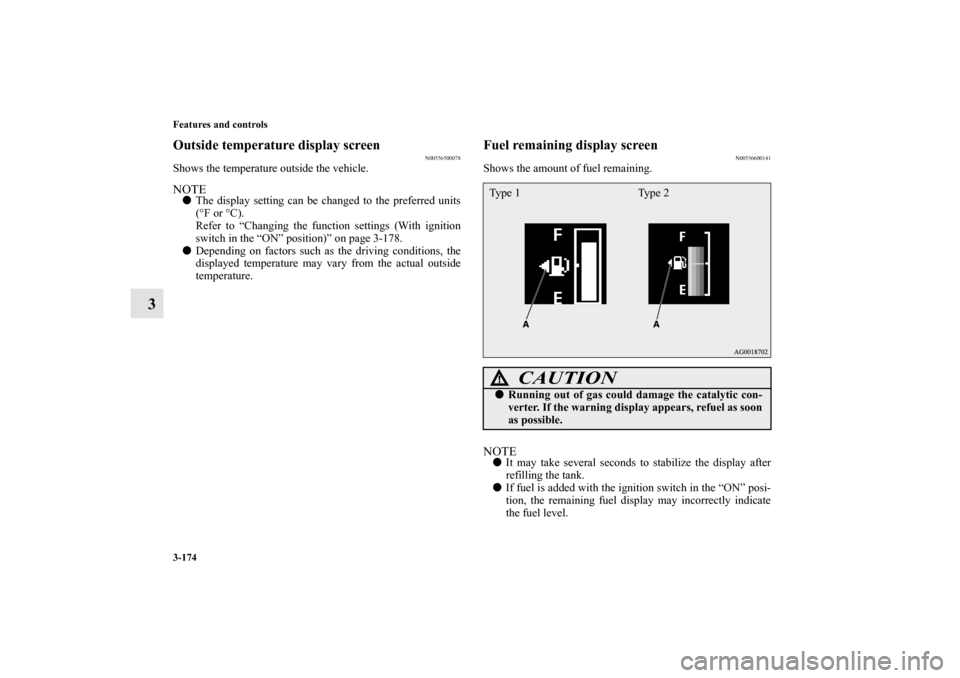

3-174 Features and controls
3
Outside temperature display screen
N00556500078
Shows the temperature outside the vehicle.NOTE
The display setting can be changed to the preferred units
(°F or °C).
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-178.

Depending on factors such as the driving conditions, the
displayed temperature may vary from the actual outside
temperature.
Fuel remaining display screen
N00556600141
Shows the amount of fuel remaining.NOTE
It may take several seconds to stabilize the display after
refilling the tank.

If fuel is added with the ignition switch in the “ON” posi-
tion, the remaining fuel display may incorrectly indicate
the fuel level.
CAUTION
!
Running out of gas could damage the catalytic con-
verter. If the warning display appears, refuel as soon
as possible.Type 1 Type 2
BK0122500US.book 174 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Features and controls
3-175
3
Fuel tank filler door markThe arrow (A) indicates that the fuel tank filler door is located
on the left side of the vehicle. (Refer to “Filling the fuel tank”
on page 1-4)Fuel remaining warning displayWhen the fuel level runs low, the information screen switches
to the interrupt display of the fuel remaining warning display
and the mark (B) on the fuel remaining display flashes. If the
warning display appears, refuel as soon as possible.
NOTE
On hills or curves, the display may be incorrect due to the
movement of fuel in the tank.Service reminder
N00556700184
Displays the approximate time until the next recommended
periodic inspection. “---” is displayed when the inspection time
has arrived.NOTE
The service reminder time can be modified by an autho-
rized Mitsubishi Motors dealer, to adjust for severe usage,
etc. Refer to “Severe maintenance schedule” in your vehi-
cle’s Warranty and Maintenance Manual. For further
information, please contact your authorized Mitsubishi
Motors dealer.
Ty p e 1
Ty p e 2
Ty p e 1
Ty p e 2
BK0122500US.book 175 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

3-176 Features and controls
3
1. Shows the time until the next periodic inspection.NOTE
Shows the distance in units of 100 miles (100 km) and the
time in units of 1 month.
2. This informs you that a periodic inspection is due. Contact
an authorized Mitsubishi Motors dealer or a repair facility
of your choice to have the system checked.
At that time, when the ignition switch is switched from
the “OFF” position to the “ON” position, the warning dis-
play is displayed for a few seconds on the information
screen.
Type 1
Type 2
3. After your vehicle is inspected at an authorized Mitsubishi
Motors dealer, it displays the time until the next periodic
inspection.
To reset The “---” display can be reset while the ignition switch is in the
“OFF” position. When the display is reset, the time until the
next periodic inspection is displayed and the warning display is
no longer displayed when the ignition switch is switched from
the “OFF” position to the “ON” position.
1. When you lightly press the multi-information meter
switch, the information screen switches to the service
reminder display screen.Ty p e 1
Ty p e 2
BK0122500US.book 176 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

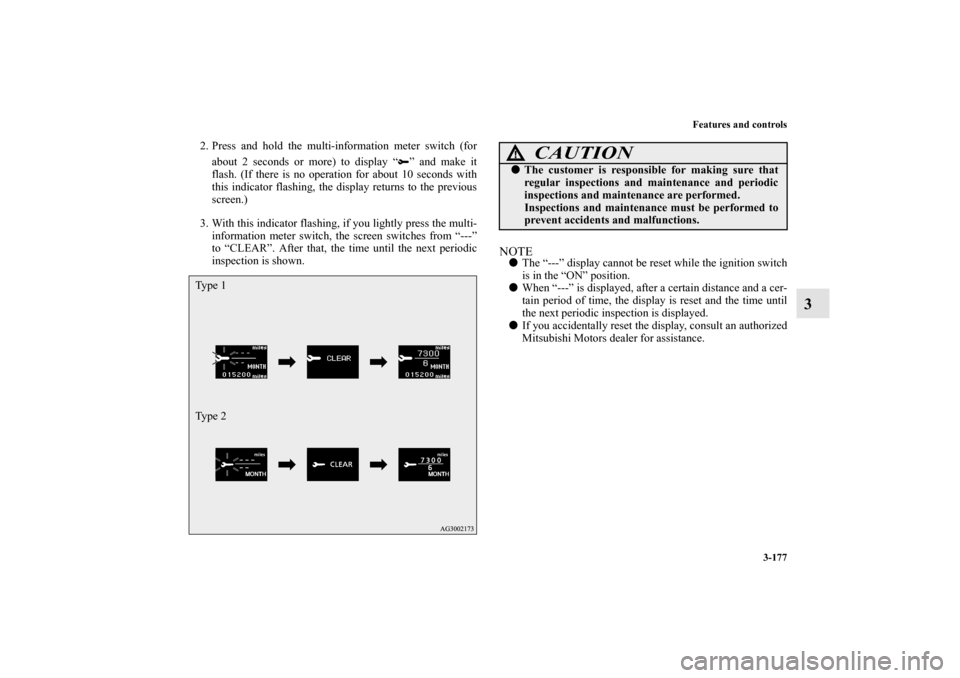

Features and controls
3-177
3
2. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “ ” and make it
flash. (If there is no operation for about 10 seconds with
this indicator flashing, the display returns to the previous
screen.)
3. With this indicator flashing, if you lightly press the multi-
information meter switch, the screen switches from “---”
to “CLEAR”. After that, the time until the next periodic
inspection is shown.
NOTE
The “---” display cannot be reset while the ignition switch
is in the “ON” position.

When “---” is displayed, after a certain distance and a cer-
tain period of time, the display is reset and the time until
the next periodic inspection is displayed.

If you accidentally reset the display, consult an authorized
Mitsubishi Motors dealer for assistance.
Ty p e 1
Ty p e 2
CAUTION
!
The customer is responsible for making sure that
regular inspections and maintenance and periodic
inspections and maintenance are performed.
Inspections and maintenance must be performed to
prevent accidents and malfunctions.
BK0122500US.book 177 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

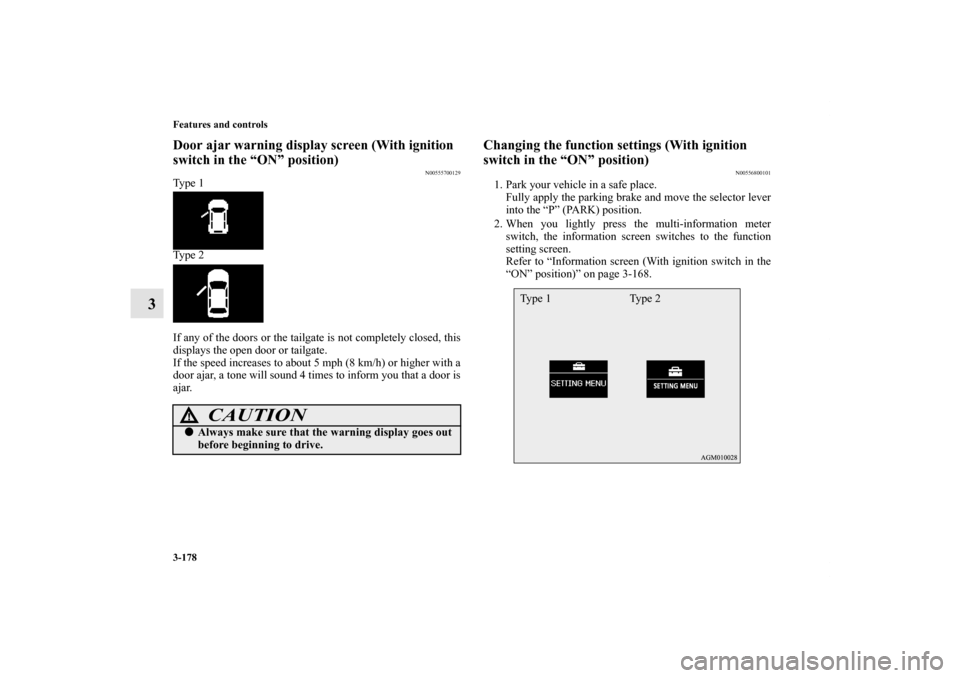

3-178 Features and controls
3
Door ajar warning display screen (With ignition
switch in the “ON” position)
N00555700129
Ty p e 1
Ty p e 2
If any of the doors or the tailgate is not completely closed, this
displays the open door or tailgate.
If the speed increases to about 5 mph (8 km/h) or higher with a
door ajar, a tone will sound 4 times to inform you that a door is
ajar.
Changing the function settings (With ignition
switch in the “ON” position)
N00556800101
1. Park your vehicle in a safe place.
Fully apply the parking brake and move the selector lever
into the “P” (PARK) position.
2. When you lightly press the multi-information meter
switch, the information screen switches to the function
setting screen.
Refer to “Information screen (With ignition switch in the
“ON” position)” on page 3-168.
CAUTION
!
Always make sure that the warning display goes out
before beginning to drive.
Ty p e 1 Ty p e 2
BK0122500US.book 178 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Features and controls
3-179
3
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
NOTE
To return the menu screen to the function setting screen,
press and hold the multi-information meter switch (for
about 2 seconds or more).

If no operations are made within about 15 seconds of the
menu screen being displayed, the display returns to the
function setting screen.
4. Select the item to change on the menu screen and change
to the desired setting. For further details on the operation
methods, refer to the following sections .
Refer to “Changing the reset mode for average fuel con-
sumption and average speed” on page 3-180.
Refer to “Changing the fuel consumption display unit” on
page 3-181.
Refer to “Changing the temperature unit” on page 3-183.
Refer to “Changing the display language” on page 3-184.
Refer to “Changing the language on Mitsubishi Multi-
Communication System or Bluetooth
® 2.0 interface to
match the multi-information display (if so equipped)” on
page 3-185.
Refer to “Operation sound setting” on page 3-187.
Refer to “Changing the time until “REST REMINDER” is
displayed” on page 3-188.
Refer to “Changing the turn signal sound” on page 3-189.
Refer to “Changing the momentary fuel consumption dis-
play (Type 2)” on page 3-190.
Refer to “Returning to the factory settings” on page 3-
191.
CAUTION
!
For safety, stop the vehicle before operating.
While driving, even if you operate the multi-infor-
mation meter switch, the function setting screen is
not displayed.Type 1
Type 2
BK0122500US.book 179 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

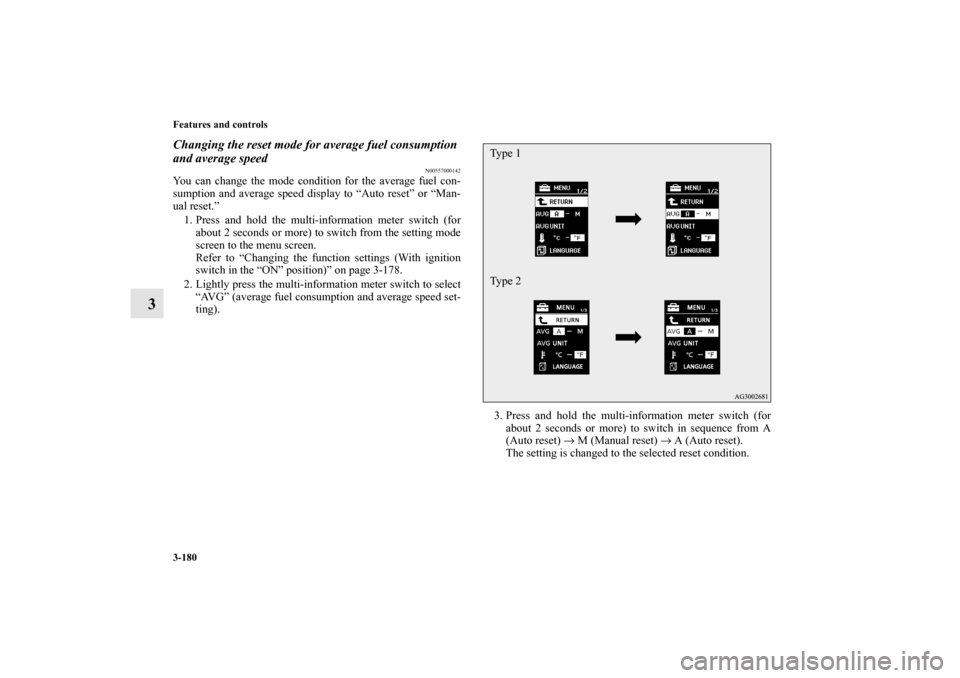

3-180 Features and controls
3
Changing the reset mode for average fuel consumption
and average speed
N00557000142
You can change the mode condition for the average fuel con-
sumption and average speed display to “Auto reset” or “Man-
ual reset.”
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-178.
2. Lightly press the multi-information meter switch to select
“AVG” (average fuel consumption and average speed set-
ting).
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch in sequence from A
(Auto reset) → M (Manual reset) → A (Auto reset).
The setting is changed to the selected reset condition.
Type 1
Type 2
BK0122500US.book 180 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

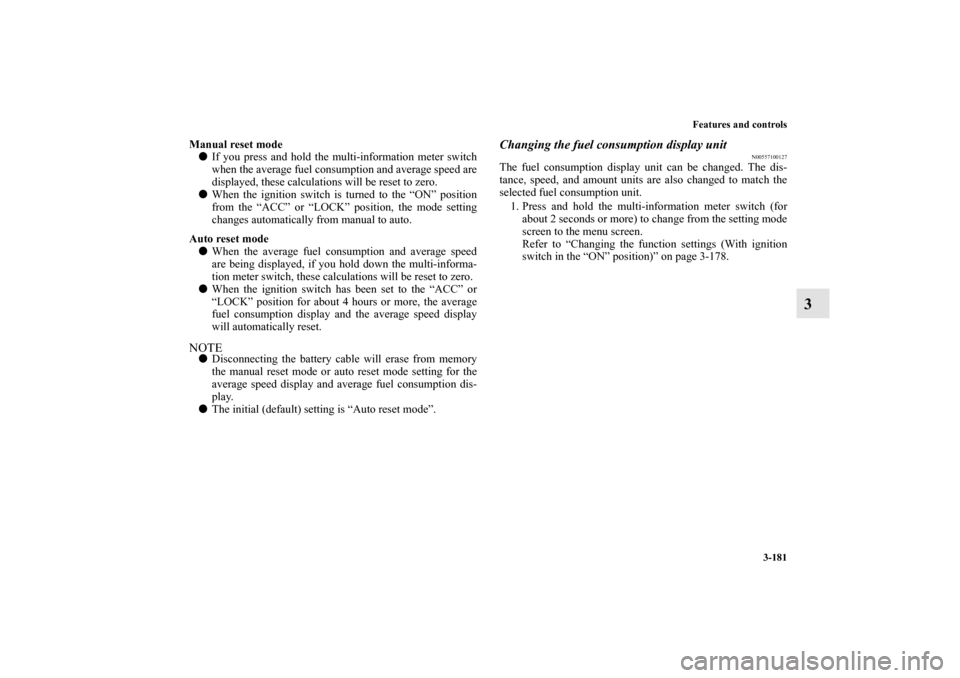

Features and controls
3-181
3
Manual reset mode

If you press and hold the multi-information meter switch
when the average fuel consumption and average speed are
displayed, these calculations will be reset to zero.

When the ignition switch is turned to the “ON” position
from the “ACC” or “LOCK” position, the mode setting
changes automatically from manual to auto.
Auto reset mode

When the average fuel consumption and average speed
are being displayed, if you hold down the multi-informa-
tion meter switch, these calculations will be reset to zero.

When the ignition switch has been set to the “ACC” or
“LOCK” position for about 4 hours or more, the average
fuel consumption display and the average speed display
will automatically reset.NOTE
Disconnecting the battery cable will erase from memory
the manual reset mode or auto reset mode setting for the
average speed display and average fuel consumption dis-
play.

The initial (default) setting is “Auto reset mode”.
Changing the fuel consumption display unit
N00557100127
The fuel consumption display unit can be changed. The dis-
tance, speed, and amount units are also changed to match the
selected fuel consumption unit.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-178.
