2011 FORD EXPLORER Owners Manual

EXCEPTIONS
In addition, there are several exceptions to the Normal Schedule. They
are listed below:
Normal vehicle axle maintenance
❑Rear axles and power take-off (PTO) units containing synthetic fluid and light duty trucks equipped with Ford-design axles
are lubricated for life. These fluids are not to be checked or changed unless a leak is suspected, service is required or the
axle assembly has been submerged in water. The axle and PTO fluids should be changed anytime the axle and PTO have
been submerged in water. During extended trailer tow operation above 70°F (21°C) ambient and wide open throttle for
extended periods above 45 mph (72 km/h), non-synthetic rear axle fluids should be changed every 3,000 miles
(4,800 km) or three months, whichever occurs first. The 3,000 mile (4,800 km) fluid change interval may be waived if
the axle was filled with 75W140 synthetic gear fluid meeting Ford specification WSL-M2C192-A, part number F1TZ-19580-B
or equivalent. Add friction modifier XL-3 (EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear axles (refer to
Maintenance product specifications and capacitiesin theMaintenance and Specificationschapter for details). The axle fluid
should be changed anytime an axle has been submerged in water.
Police/Taxi/Livery vehicle axle maintenance
❑Change rear axle fluid every 100,000 miles (160,000 km). Rear axle fluid change may be waived if the axle was filled
with 75W140 synthetic gear fluid meeting Ford specification WSL-M2C192-A, part number FITZ-19580-B or equivalent. Add
four ounces (118 mL) of friction modifier XL-3 (EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear axles.
The axle fluid should be changed anytime the axle has been submerged in water.
California fuel filter replacement
❑If the vehicle is registered in California, the California Air Resources Board has determined that the failure to perform this
maintenance item will not nullify the emission warranty or limit recall liability prior to the completion of the vehicle’s useful
life. Ford Motor Company, however, urges you to have all recommended maintenance services performed at the specified
intervals and to record all vehicle service.
Hot climate oil change intervals
❑If operating conditions are normal and you drive your vehicle under typical, everyday conditionsandyou are using an API
performance category oil of SL or later (for example SM, etc.) then you can follow the 7,500 mile (12,000 km) normal
service oil change intervals schedule. Vehicles operating in the Middle East, North Africa, Sub-Saharan Africa or locations with
similar climates must follow the oil change interval of 3,000 mile (4,800 km) if the owner is using oils defined by the
American Petroleum Institute (API) performance category of API SK or earlier (for example SJ, etc.).
Engine air filter & cabin air filter replacement
❑Engine air filter and cabin air filter life is dependent on exposure to dusty and dirty conditions. Vehicles operated in these
conditions will require frequent inspection and replacement of the engine air filter and cabin air filter.
Scheduled Maintenance Guide
440
2011 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

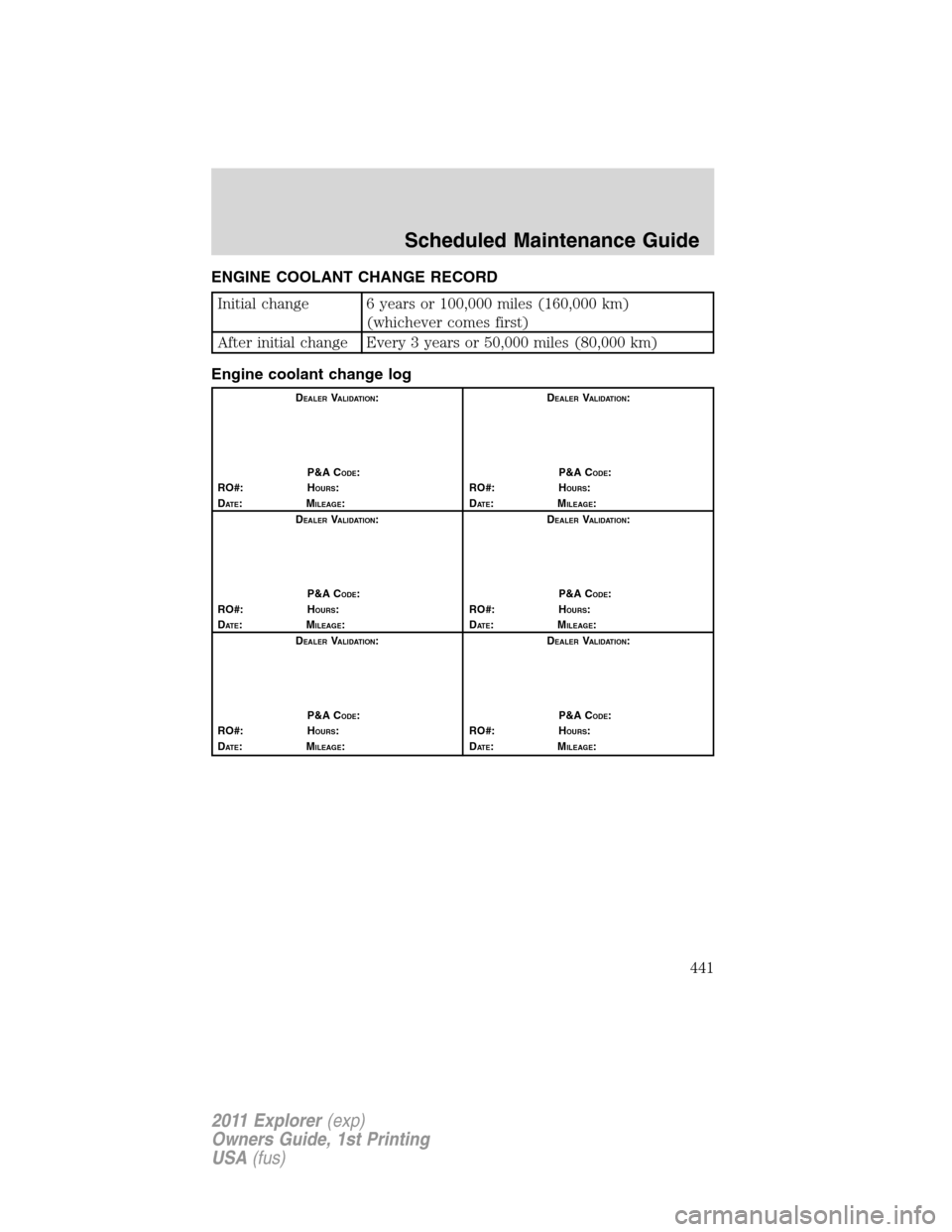

ENGINE COOLANT CHANGE RECORD
Initial change 6 years or 100,000 miles (160,000 km)
(whichever comes first)
After initial change Every 3 years or 50,000 miles (80,000 km)
Engine coolant change log
DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
Scheduled Maintenance Guide
441
2011 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

A
Accessory delay ..........................99
Active Park Assist .....................303
Adaptive Cruise Control ...........105
AdvanceTrac ..............................277
Airbag supplemental restraint
system ........................197, 206, 208
and child safety seats ............199
description ..............197, 206, 208
disposal ....................................211
driver airbag ............199, 206, 209
indicator light .................205, 210
operation .................199, 206, 209
passenger airbag .....199, 206, 209
side airbag ...............................206
Air cleaner filter .......406–407, 410
Air conditioning ..............63, 66, 68
manual heating and air
conditioning system .................63
All Wheel Drive (AWD),
driving off road .........................316
Ambulance packages ....................7
Antifreeze
(see Engine coolant) ................385
Anti-lock brake system
(see Brakes) ......................274–275
Anti-theft system ..............154, 158
arming the system ..........154, 158
disarming a triggered
system .....................................158
Automatic transmission
driving an automatic
overdrive .................................288
fluid, adding ............................404
fluid, checking ........................404
fluid, refill capacities ..............411
fluid, specification ..................411Selectshift (SST) ....................291
Auxiliary input jack (Line in) ....60
Auxiliary power point .................96
Axle
lubricant specifications ..........411
refill capacities ........................411
B
Battery .......................................382
acid, treating emergencies .....382
jumping a disabled battery ....354
maintenance-free ....................382
replacement, specifications ...410
servicing ..................................382
Belt-Minder.............................193
Blind Spot Information
System .......................................310
Blind spot mirror ......................309
Booster seats .............................228
Brakes ........................................274
anti-lock ...........................274–275
anti-lock brake system (ABS)
warning light ...........................275
fluid, checking and adding ....404
fluid, refill capacities ..............411
fluid, specifications .................411
lubricant specifications ..........411
parking ....................................276
shift interlock ..........................287
C
Capacities for refilling fluids ....411
Car2UHome Automation
System .......................................116
Cargo net ...................................122
Cell phone use ............................10
Index
442
2011 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

Changing a tire .........................336
Child safety seats ......................216
in front seat ............................217
in rear seat ..............................217
LATCH .....................................222
recommendations ...................214
tether anchorage hardware ...224
Child safety seats - booster
seats ...........................................228
Cleaning your vehicle
engine compartment ..............369
instrument panel ....................370
interior .....................................371
plastic parts ............................369
washing ....................................367
waxing .....................................368
wheels ......................................368
wiper blades ............................370
Climate control
(see Air conditioning or
Heating) ...........................63, 66, 68
Clock ............................................52
Collision Warning System .........300
Console ..................................95–96
overhead ....................................95
rear ............................................96
Controls
power seat ...............................163
steering column ......................113
Coolant
checking and adding ..............385
refill capacities ................388, 411
specifications ..........................411
Cross Traffic Alert ....................310
Cruise control
(see Speed control) ..................103
Customer Assistance ................325Ford Extended Service
Plan ..................................419, 422
Getting assistance outside
the U.S. and Canada ..............363
Getting roadside assistance ...325
Getting the service you
need .........................................359
Ordering additional owner’s
literature .................................365
Utilizing the
Mediation/Arbitration
Program ...................................363
D
Daytime running lamps
(see Lamps) ................................79
Defrost
rear window ..............................75
Dipstick
automatic transmission
fluid ..........................................404
engine oil .................................380
Driving under special
conditions ..................293, 317, 320
sand .........................................319
snow and ice ...........................321
through water .................319, 324
E
Electronic message center ...23, 34
Emergencies, roadside
jump-starting ..........................354
running out of fuel .........353, 396
Emission control system ..........401
Engine ........................................414
cleaning ...................................369
coolant .....................................385
fail-safe cooling .......................390
Index
443
2011 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

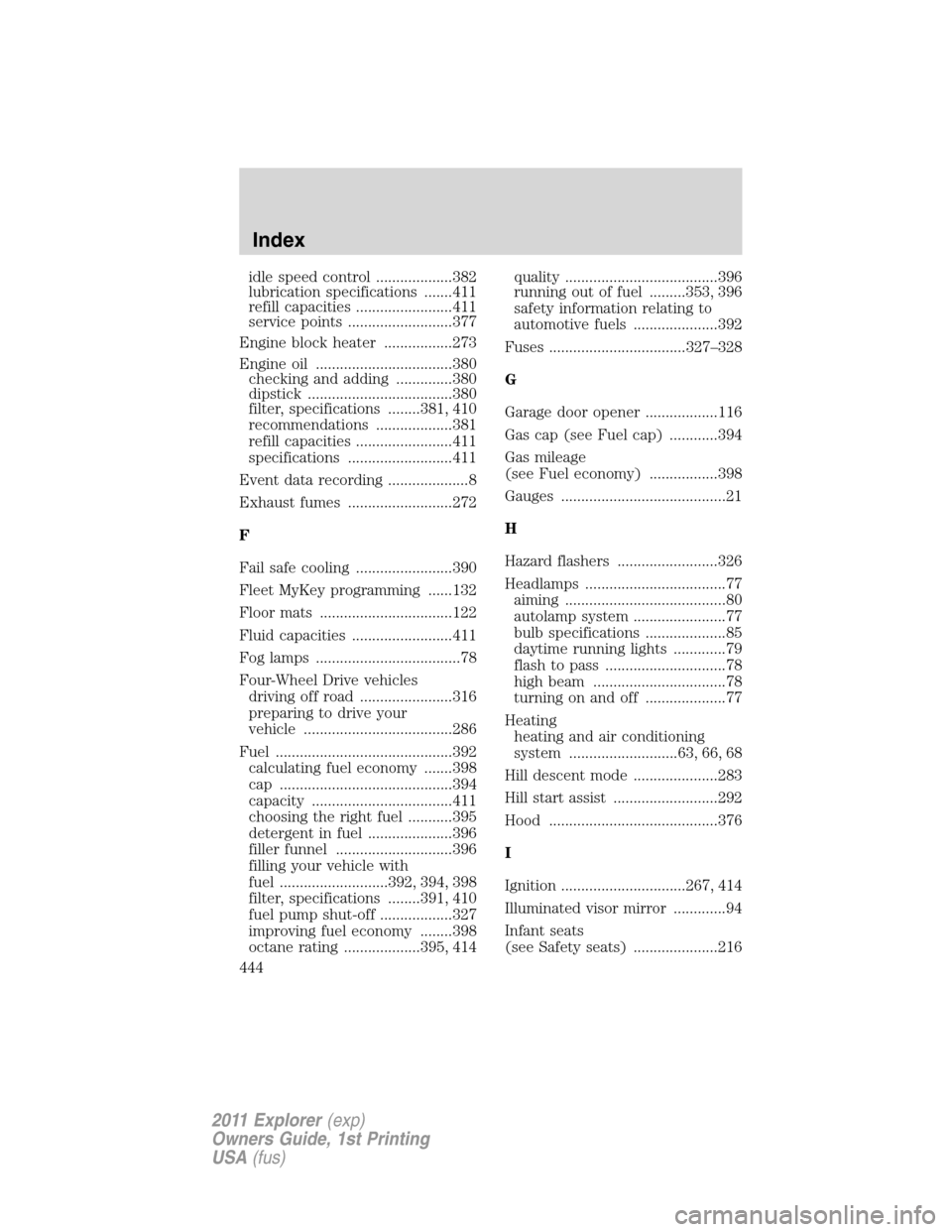

idle speed control ...................382
lubrication specifications .......411
refill capacities ........................411
service points ..........................377
Engine block heater .................273
Engine oil ..................................380
checking and adding ..............380
dipstick ....................................380
filter, specifications ........381, 410
recommendations ...................381
refill capacities ........................411
specifications ..........................411
Event data recording ....................8
Exhaust fumes ..........................272
F
Fail safe cooling ........................390
Fleet MyKey programming ......132
Floor mats .................................122
Fluid capacities .........................411
Fog lamps ....................................78
Four-Wheel Drive vehicles
driving off road .......................316
preparing to drive your
vehicle .....................................286
Fuel ............................................392
calculating fuel economy .......398
cap ...........................................394
capacity ...................................411
choosing the right fuel ...........395
detergent in fuel .....................396
filler funnel .............................396
filling your vehicle with
fuel ...........................392, 394, 398
filter, specifications ........391, 410
fuel pump shut-off ..................327
improving fuel economy ........398
octane rating ...................395, 414quality ......................................396
running out of fuel .........353, 396
safety information relating to
automotive fuels .....................392
Fuses ..................................327–328
G
Garage door opener ..................116
Gas cap (see Fuel cap) ............394
Gas mileage
(see Fuel economy) .................398
Gauges .........................................21
H
Hazard flashers .........................326
Headlamps ...................................77
aiming ........................................80
autolamp system .......................77
bulb specifications ....................85
daytime running lights .............79
flash to pass ..............................78
high beam .................................78
turning on and off ....................77
Heating
heating and air conditioning
system ...........................63, 66, 68
Hill descent mode .....................283
Hill start assist ..........................292
Hood ..........................................376
I
Ignition ...............................267, 414
Illuminated visor mirror .............94
Infant seats
(see Safety seats) .....................216
Index
444
2011 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

Inspection/maintenance (I/M)
testing ........................................403
Instrument panel
cleaning ...................................370
cluster ........................................14
lighting up panel and
interior .......................................79
Intelligent Access Key ..............131
Intelligent Access with push
button start ...............................143
J
Jack ............................................336
positioning ...............................336
storage .....................................336
Jump-starting your vehicle ......354
K
Keyless entry system
autolock ...................................139
keypad .....................................152
locking and unlocking doors ..153
programming entry code .......152
Keys ...................................130, 155
positions of the ignition .........267
L
Lamps
autolamp system .......................77
bulb replacement
specifications chart ............84–85
daytime running light ...............79
fog lamps ...................................78
headlamps .................................77
headlamps, flash to pass ..........78
instrument panel, dimming .....79
interior lamps ...........................83
LATCH anchors .........................222Liftgate ......................123–124, 145
Lights, warning and indicator ....14
anti-lock brakes (ABS) ..........275
Loading instructions .................261
Load limits .................................255
Locks
autolock ...................................139
childproof ................................142
doors ........................................138
Lubricant specifications ...........411
Luggage rack .............................128
Lug nuts ....................................352
Lumbar support, seats .....163, 165
M
Message center .....................23, 34
warning messages ...............27, 43
Mirrors ...............................100–101
automatic dimming rearview
mirror ......................................100
fold away .................................102
heated ......................................101
programmable memory ..........145
side view mirrors (power) .....101
signal .......................................102
Moon roof ..................................114
Motorcraftparts ..............374, 410
MyFord Connect™ system ........62
MyFord Touch™ system ............62
MyFord™ system ..................51, 62
MyKey ........................................132
O
Octane rating ............................395
Oil (see Engine oil) ..................380

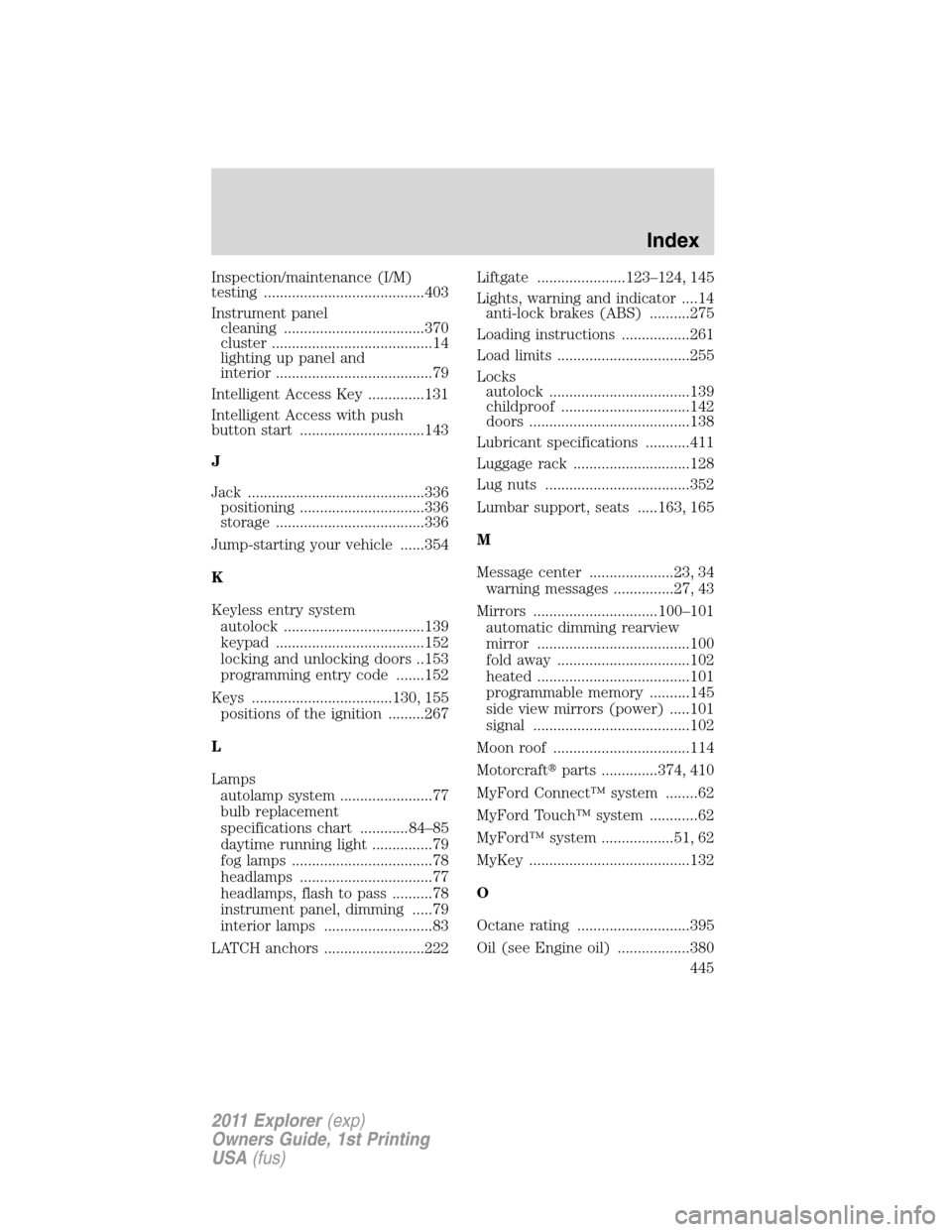

Index
445
2011 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

Overdrive ...................................288
P
Parental MyKey
programming .............................132
Park Assist ................................303
Parking brake ............................276
Parts
(see Motorcraftparts) ...........410
Passenger Occupant
Classification Sensor .................182
Pedals (see Power adjustable
foot pedals) ...............................103
Power adjustable foot pedals ...103
Power distribution box
(see Fuses) ...............................332
Power door locks ......................138
Power liftgate ............................124
Power mirrors ...........................101
Power point .................................96
Power steering ..........................284
fluid, refill capacity ................411
fluid, specifications .................411
Power Windows ...........................98
Preparing to drive your
vehicle ........................................286
Push button start system .........270
R
Rear-view camera system .........296
Rear window defroster ...............75
Recommendations for
attaching safety restraints for
children ......................................214Relays ........................................327
Remote entry system .......142–143
illuminated entry ............148–149
locking/unlocking doors .........144
opening the trunk ...................145
Remote start ...........................149
replacement/additional
transmitters .............................148
replacing the batteries ...........147
Remote start .............................149
Remote start climate
operation .....................................75
Reverse sensing system ...........294
Roadside assistance ..................325
Roof rack ...................................128
S
Safety belts (see Safety
restraints) ..........184–186, 191–192
Safety Canopy ...................206, 208
Safety defects, reporting ..........366
Safety restraints 184–186, 191–192
Belt-Minder...........................193
extension assembly ................191
for adults .................185–186, 191
for children .............................211
inflatable safety belt ...............189
Occupant Classification
Sensor ......................................182
warning light and chime ........192
Safety restraints - LATCH
anchors ......................................222
Safety seats for children ..........216
Safety Compliance
Certification Label ....................414
Satellite Radio Information ........57
Index
446
2011 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............429
Seats ..........................................160
child safety seats ....................216
cleaning ...................................373
climate control ........................167
easy access/easyout feature ..169
front seats .......................162, 166
heated ......................................165
memory seat ...................145, 168
second row seats ............171, 174
third row seats ........174, 176–177
Second-row power fold seat ....174
SecuriCode keyless entry
system ........................................152
SecuriLock passive anti-theft
system ........................................154
Setting the clock .........................52
Snowplowing .................................7
SOS Post Crash Alert ...............211
Spare tire
(see Changing the Tire) ...........339
Spark plugs,
specifications .....................410, 414
Special notice
ambulance conversions ..............7
utility-type vehicles ....................7
Specification chart,
lubricants ...................................411
Speed control ............................103
Starting your vehicle ........267–269
jump starting ..........................354
push button start system .......270
Steering wheel
controls ....................................113
tilting .........................................94T
Temporary mobility kit .............344
Third-row power fold seat .......179
Tilt steering wheel ......................94
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....250
Tires ...........................235–236, 336
alignment ................................243
care ..........................................239
changing ..................336, 339, 341
checking the pressure ............239
inflating ...................................237
label .........................................249
replacing ..................................241
rotating ....................................244
safety practices .......................243
sidewall information ...............244
snow tires and chains ............254
spare tire .................................337
Temporary mobility kit ..........344
terminology .............................236
tire grades ...............................236
treadwear ........................235, 240
Touchscreen features
(climate) ......................................71
Towing .......................................262
recreational towing .................265
trailer towing ..........................262
wrecker ....................................357
Transmission .............................288
brake-shift interlock (BSI) ....287
fluid, checking and adding
(automatic) .............................404
fluid, refill capacities ..............411
lubricant specifications ..........411
Turn signal ..................................82
Index
447
2011 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)
