2011 FORD EXPLORER Owners Manual

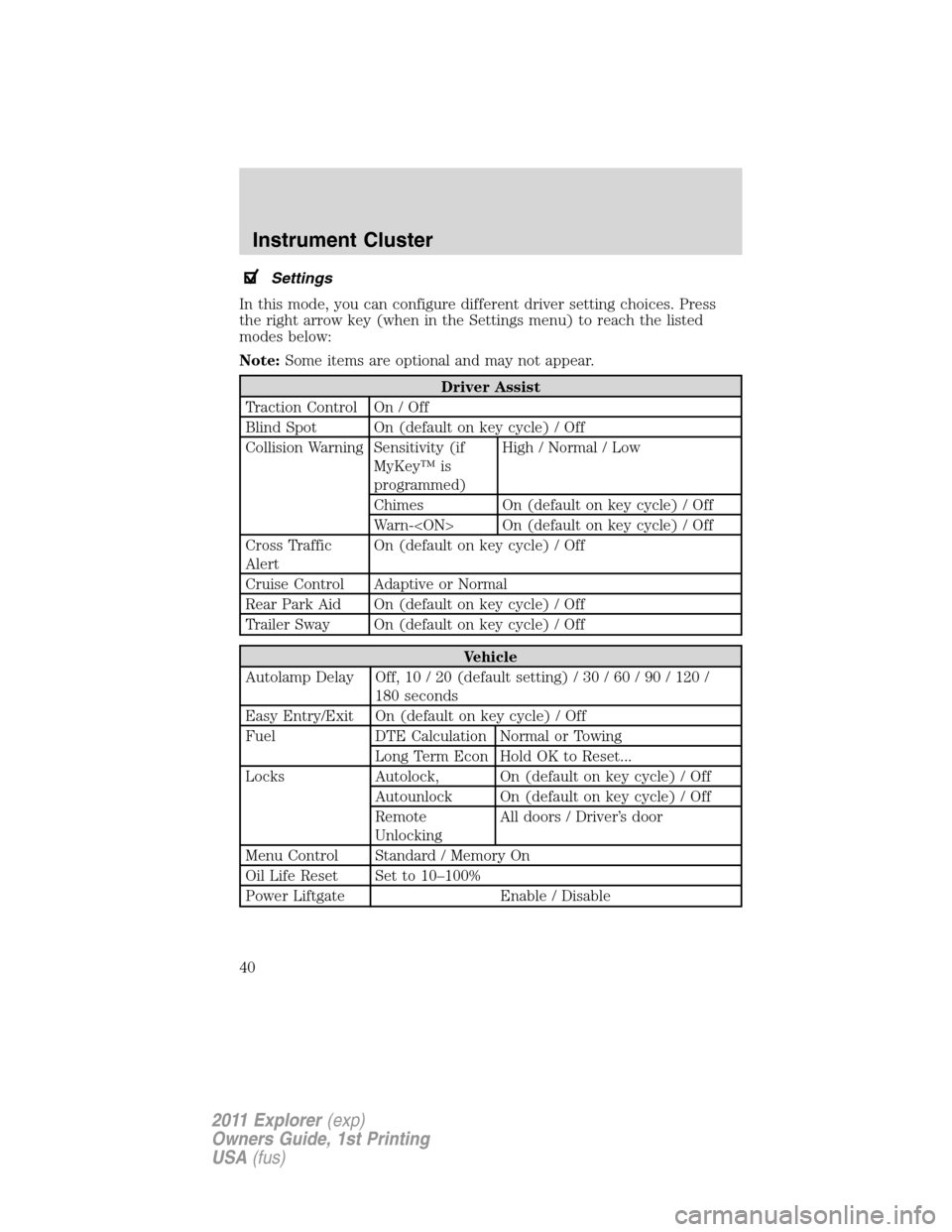

Settings
In this mode, you can configure different driver setting choices. Press
the right arrow key (when in the Settings menu) to reach the listed
modes below:
Note:Some items are optional and may not appear.
Driver Assist
Traction Control On / Off
Blind Spot On (default on key cycle) / Off
Collision Warning Sensitivity (if
MyKey™ is
programmed)High / Normal / Low
Chimes On (default on key cycle) / Off
Warn- On (default on key cycle) / Off
Cross Traffic
AlertOn (default on key cycle) / Off
Cruise Control Adaptive or Normal
Rear Park Aid On (default on key cycle) / Off
Trailer Sway On (default on key cycle) / Off
Vehicle
Autolamp Delay Off, 10 / 20 (default setting) / 30 / 60 / 90 / 120 /
180 seconds
Easy Entry/Exit On (default on key cycle) / Off
Fuel DTE Calculation Normal or Towing
Long Term Econ Hold OK to Reset...
Locks Autolock, On (default on key cycle) / Off
Autounlock On (default on key cycle) / Off
Remote
UnlockingAll doors / Driver’s door
Menu Control Standard / Memory On
Oil Life Reset Set to 10–100%
Power Liftgate Enable / Disable
Instrument Cluster
40
2011 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

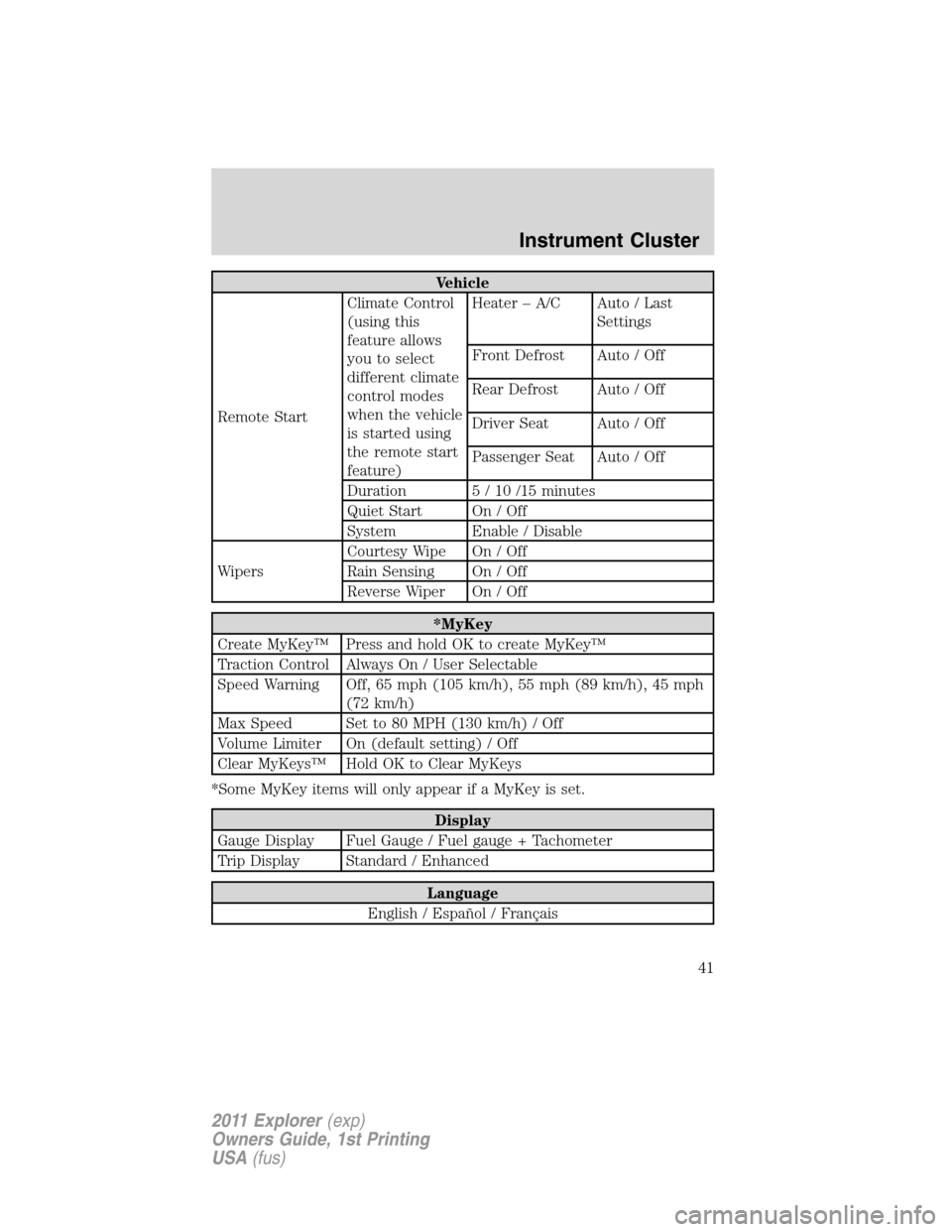

Vehicle
Remote StartClimate Control
(using this
feature allows
you to select
different climate
control modes
when the vehicle
is started using
the remote start
feature)Heater – A/C Auto / Last
Settings
Front Defrost Auto / Off
Rear Defrost Auto / Off
Driver Seat Auto / Off
Passenger Seat Auto / Off
Duration 5 / 10 /15 minutes
Quiet Start On / Off
System Enable / Disable
WipersCourtesy Wipe On / Off
Rain Sensing On / Off
Reverse Wiper On / Off
*MyKey
Create MyKey™ Press and hold OK to create MyKey™
Traction Control Always On / User Selectable
Speed Warning Off, 65 mph (105 km/h), 55 mph (89 km/h), 45 mph
(72 km/h)
Max Speed Set to 80 MPH (130 km/h) / Off
Volume Limiter On (default setting) / Off
Clear MyKeys™ Hold OK to Clear MyKeys
*Some MyKey items will only appear if a MyKey is set.
Display
Gauge Display Fuel Gauge / Fuel gauge + Tachometer
Trip Display Standard / Enhanced
Language
English / Español / Français
Instrument Cluster
41
2011 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

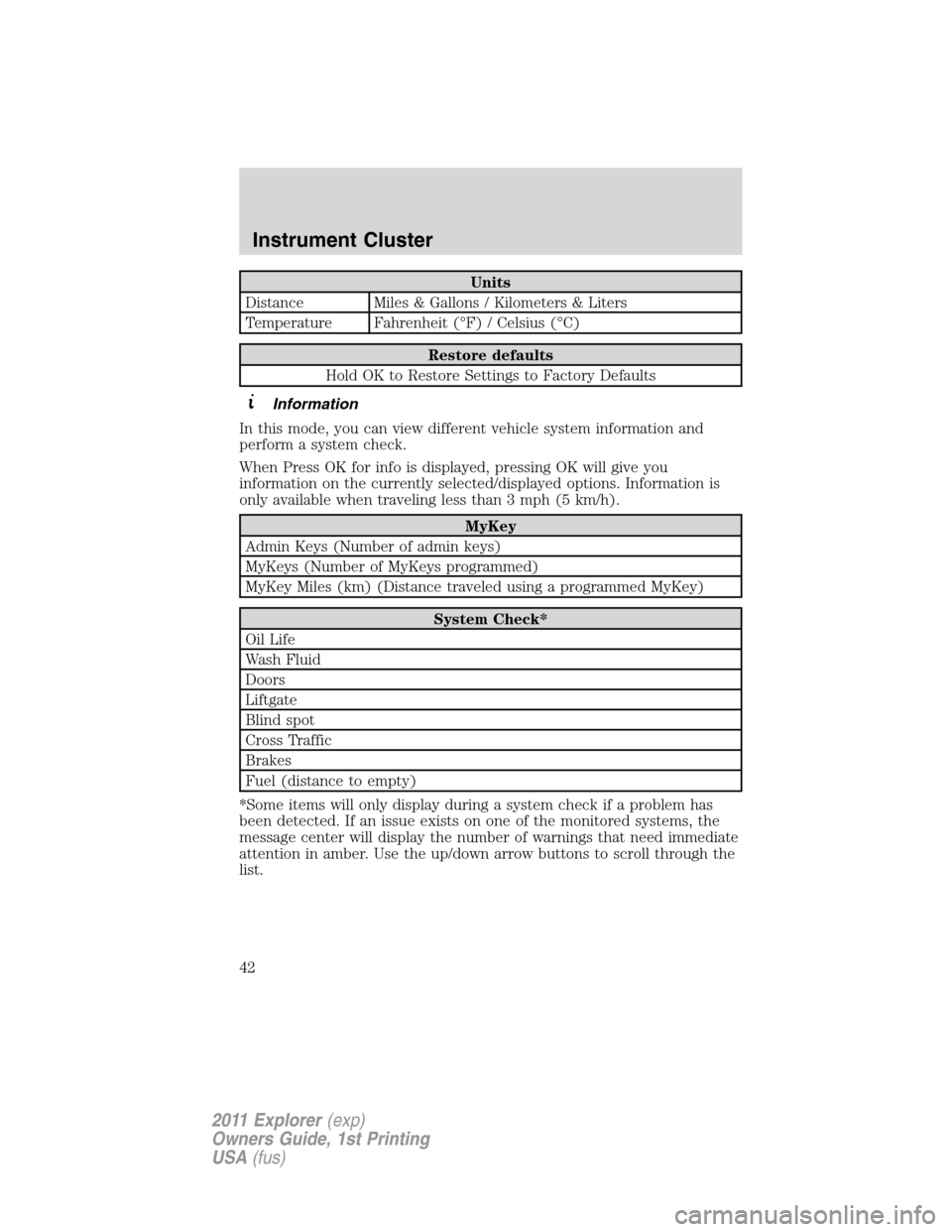

Units
Distance Miles & Gallons / Kilometers & Liters
Temperature Fahrenheit (°F) / Celsius (°C)
Restore defaults
Hold OK to Restore Settings to Factory Defaults
Information
In this mode, you can view different vehicle system information and
perform a system check.
When Press OK for info is displayed, pressing OK will give you
information on the currently selected/displayed options. Information is
only available when traveling less than 3 mph (5 km/h).
MyKey
Admin Keys (Number of admin keys)
MyKeys (Number of MyKeys programmed)
MyKey Miles (km) (Distance traveled using a programmed MyKey)
System Check*
Oil Life
Wash Fluid
Doors
Liftgate
Blind spot
Cross Traffic
Brakes
Fuel (distance to empty)
*Some items will only display during a system check if a problem has
been detected. If an issue exists on one of the monitored systems, the
message center will display the number of warnings that need immediate
attention in amber. Use the up/down arrow buttons to scroll through the
list.
Instrument Cluster
42
2011 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

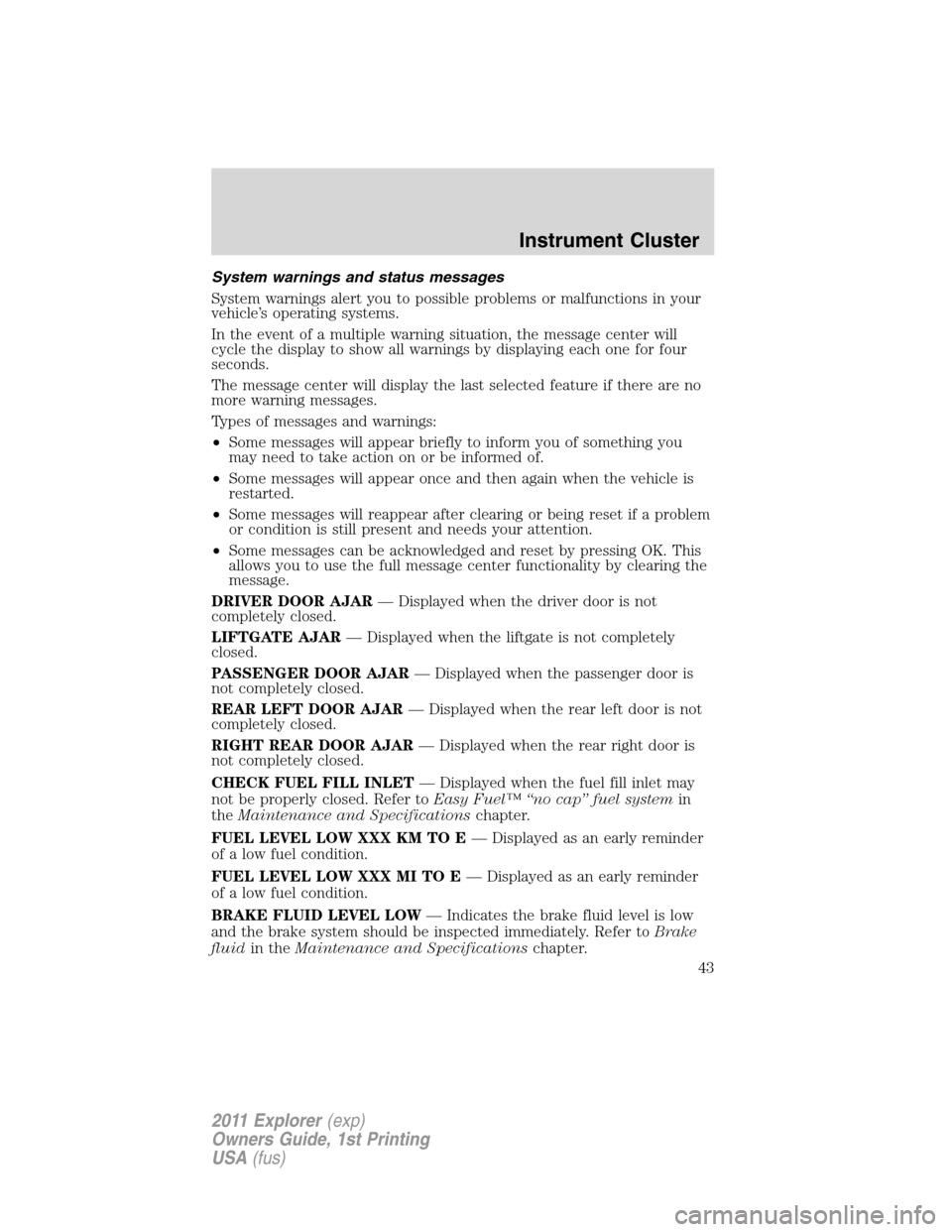

System warnings and status messages
System warnings alert you to possible problems or malfunctions in your
vehicle’s operating systems.
In the event of a multiple warning situation, the message center will
cycle the display to show all warnings by displaying each one for four
seconds.
The message center will display the last selected feature if there are no
more warning messages.
Types of messages and warnings:
•Some messages will appear briefly to inform you of something you
may need to take action on or be informed of.
•Some messages will appear once and then again when the vehicle is
restarted.
•Some messages will reappear after clearing or being reset if a problem
or condition is still present and needs your attention.
•Some messages can be acknowledged and reset by pressing OK. This
allows you to use the full message center functionality by clearing the
message.
DRIVER DOOR AJAR— Displayed when the driver door is not
completely closed.
LIFTGATE AJAR— Displayed when the liftgate is not completely
closed.
PASSENGER DOOR AJAR— Displayed when the passenger door is
not completely closed.
REAR LEFT DOOR AJAR— Displayed when the rear left door is not
completely closed.
RIGHT REAR DOOR AJAR— Displayed when the rear right door is
not completely closed.
CHECK FUEL FILL INLET— Displayed when the fuel fill inlet may
not be properly closed. Refer toEasy Fuel™ “no cap” fuel systemin
theMaintenance and Specificationschapter.
FUEL LEVEL LOW XXX KM TO E— Displayed as an early reminder
of a low fuel condition.
FUEL LEVEL LOW XXX MI TO E— Displayed as an early reminder
of a low fuel condition.
BRAKE FLUID LEVEL LOW— Indicates the brake fluid level is low
and the brake system should be inspected immediately. Refer toBrake
fluidin theMaintenance and Specificationschapter.
Instrument Cluster
43
2011 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

CHECK BRAKE SYSTEM— Displayed when the brake system needs
servicing. If the warning stays on or continues to come on, contact your
authorized dealer as soon as possible.
PARK BRAKE ENGAGED— Displayed when the parking brake is set,
the engine is running and the vehicle is driven more than 3 mph
(5 km/h). If the warning stays on after the parking brake is released,
contact your authorized dealer as soon as possible.
CHECK CHARGING SYSTEM— Displayed when the charging system
needs servicing. If the warning stays on or continues to come on, contact
your authorized dealer as soon as possible.
TURN POWER OFF TO SAVE BATTERY (if equipped)— Displayed
when the electrical system determines that the battery is at a low level.
Turn off as many of the electrical loads as soon as possible to prevent
automatic shutdown of certain vehicle accessories.
LOW BATTERY FEATURES TEMPORARILY TURNED OFF (if
equipped)— Displayed when the electrical system determines that the
battery is at a low level. Various vehicle features will be disabled to help
preserve the battery. When the vehicle is started or if the battery power
has recovered, the accessories will operate again as normal.
SERVICE ADVANCETRAC— Displayed when the AdvanceTrac
system has detected a condition that requires service. Contact your
authorized dealer as soon as possible.
SHIFT TO PARK— Displayed when the start/stop button is pressed to
shut off the engine with the shift select lever in any position other than
P (Park). Refer toFast restart featureinPush button start systemin
theDrivingchapter for more information.
CHANGE ENGINE OIL SOON— Displayed when the engine oil life
remaining is 10% or less.
ENGINE COOLANT OVER TEMP— Displayed when the engine
coolant temperature is excessively high.
LOW ENGINE OIL PRESSURE— Stop the vehicle as soon as safely
possible, turn off the engine. Check the oil level. SeeChecking the
engine oilin theMaintenance and Specificationschapter. If the
warning stays on or continues to come on with your engine running,
contact your authorized dealer as soon as possible.
OIL CHANGE REQUIRED— Displayed when the oil life left reaches
0%.
Instrument Cluster
44
2011 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

WASHER FLUID LEVEL LOW— Indicates the washer fluid reservoir
is less than one quarter full. Check the washer fluid level. Refer to
Windshield washer fluidin theMaintenance and Specifications
chapter.
LOW TIRE PRESSURE— Displayed when one or more tires on your
vehicle have low tire pressure. Refer toInflating your tiresin theTires,
Wheels and Loadingchapter.
TIRE PRESSURE MONITOR FAULT— Displayed when the tire
pressure monitoring system is malfunctioning. If the warning stays on or
continues to come on, have the system inspected by your authorized
dealer.
TIRE PRESSURE SENSOR FAULT— Displayed when a tire pressure
sensor is malfunctioning, or your spare tire is in use. For more
information on how the system operates under these conditions, refer to
Understanding your tire pressure monitoring system (TPMS)in the
Tires, Wheels and Loadingchapter. If the warning stays on or
continues to come on, contact your authorized dealer as soon as
possible.
POWER STEERING ASSIST FAULT— The power steering system
has disabled power steering assist due to a system error, service is
required.
SERVICE POWER STEERING— The power steering system has
detected a condition that requires service.
SERVICE POWER STEERING NOW— The power steering system
has detected a condition within the power steering system that requires
service immediately.
BUCKLE UP TO UNMUTE AUDIO— Displayed when a MyKey™ is in
use and Belt-Minderis activated. Refer toMyKey™in theLocks and
Securitychapter for more information.
REMOVE OBJECTS NEAR PASS SEAT— Displayed when objects
are by the passenger seat. After the objects are moved away from the
seat, if the warning stays on or continues to come on contact your
authorized dealer as soon as possible.
CRUISE CONTROL AUTOMATIC BRAKING TURNED OFF (if
equipped)— Displayed when adaptive cruise control automatic braking
is turned off.
Instrument Cluster
45
2011 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

AWD OFF (if equipped)— Displayed when the 4WD system has been
automatically disabled to protect itself. This is caused by operating the
vehicle with the compact spare tire installed or if the system is
overheating. The 4WD system will resume normal function and clear this
message after driving a short distance with the road tire re-installed or
after the system is allowed to cool.
CHECK AWD (if equipped)— Displayed in conjunction with the
throttle control/transmission/4WD
light when the 4WD system is
not operating properly. If the warning stays on or continues to come on,
contact your authorized dealer as soon as possible.
EXITING OFF ROAD MODE (if equipped)— Displayed when off
road mode becomes inactive.
FOR HILL DESCENT REDUCE SPEED 20 MPH OR LESS (if
equipped)— Displayed when hill descent speed exceeds 20 MPH.
FOR HILL DESCENT REDUCE SPEED 32 KM/H OR LESS (if
equipped)— Displayed when hill descent speed exceeds 32 KM/H.
FOR HILL DESCENT SELECT GEAR (if equipped)— Displayed
when hill descent control mode requires driver shift transmission into
gear.
FOR OFF ROAD SLOW TO 5 MPH (if equipped)— Displayed when
the vehicle speed requirement for off road mode entry has not been met.
DRIVER RESUME CONTROL (if equipped)— Displayed when the
hill control and off road mode require the driver to resume control.
HILL DESCENT CONTROL ACTIVE (if equipped)— Displayed
when hill descent control mode becomes active.
HILL DESCENT CONTROL FAULT (if equipped)— Displayed when
a hill descent system fault is present.
HILL DESCENT CONTROL OFF (if equipped)— Displayed when hill
descent control mode becomes inactive.
HILL DESCENT CONTROL OFF SYSTEM COOLING (if equipped)
— Displayed when hill descent control mode is disabled to cool the
brake system.
HILL DESCENT CONTROL READY (if equipped)— Displayed
when hill descent control mode is ready.
Instrument Cluster
46
2011 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

MODE CHANGE NOT ACCEPTED, RETRY (if equipped)—
Displayed when hill descent control mode cannot be changed at time of
driver request.
OFF ROAD MODE ENABLED (if equipped)— Displayed when off
road mode becomes active.
TERRAIN MANAGEMENT MUD, RUT MODE (if equipped)—
Displays driver selected terrain management mode.
TERRAIN MANAGEMENT NORMAL MODE (if equipped)—
Displays driver selected terrain management mode.
TERRAIN MANAGEMENT SAND MODE (if equipped)— Displays
driver selected terrain management mode.
TERRAIN MANAGEMENT SNOW MODE (if equipped)— Displays
driver selected terrain management mode.
TERRAIN MANAGEMENT SYSTEM FAULT (if equipped)—
Displays when the terrain management system detects an error.
ACCESSORY POWER ACTIVE (if equipped)— Displayed when the
vehicle is in the accessory ignition state for keyless vehicles.
CHECK SPEED DRIVE SAFELY— Displayed when a MyKey™ is in
use and the optional setting is on and the vehicle exceeds a preselected
speed. Refer toMyKey™in theLocks and Securitychapter for more
information.
COULD NOT PROGRAM KEY— Displayed when an attempt is made
to program a spare key using two existing MyKeys. Refer toMyKey™in
theLocks and Securitychapter for more information.
KEY PROGRAMMED 3 KEYS TOTAL— Displayed during spare key
programming, when a third Intelligent Access Key is programmed to the
system.
KEY PROGRAMMED 4 KEYS TOTAL— Displayed during spare key
programming, when a fourth Intelligent Access Key is programmed to
the system.
MAX NUMBER OF KEYS PROGRAMMED— Displayed during spare
key programming when the maximum number of keys have been
programmed.
MYKEY ACTIVE DRIVE SAFELY— Displayed when MyKey™ is
active.
Instrument Cluster
47
2011 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)
