2011 FORD EXPLORER Owners Manual

The message center is also used to program/configure the different
features of your vehicle. The message center display is located in the
instrument cluster.
Use the left steering wheel controls to navigate through the message center.
•Press the up/down arrow buttons
to move up/down through the
message center choices.
•Press the left/right arrow buttons
to move left/right through the
message center choices.
•Press the OK button to select
highlighted options and confirm
choices/messages.
Main menu
Scroll up/down to highlight one of the options, then press the right arrow
key or OK to enter into that menu option. Press the left arrow key as
needed to exit back to the main menu.
Trip1or2
Trip Odometer — shows the accumulated trip distance.
Trip Timer — shows the elapsed trip time. This timer will stop when
the vehicle is turned off and will restart when the vehicle is restarted.
Distance to E — shows the approximate distance the vehicle can travel
before running out of fuel.
Inst Fuel Econ — shows instantaneous fuel usage.
Average Fuel — shows the average distance traveled per unit of fuel
used for a given trip.
Fuel Used — shows the amount of fuel used for a given trip.
Press and hold OK to reset the current trip, distance time, average MPG,
and fuel used.
km/hF
E
MPH
Instrument Cluster
24
2011 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

Scroll up/down to highlight one of the options, then press the right arrow
key or OK to enter into that menu option.
Information
4WD Gauge (if equipped)
MyKey™ Distance (if MyKey™ is programmed)
MyKey™ Information (number of MyKeys™ and admin keys programmed)
Coolant Temperature
In this mode, you can view vehicle information and configure different
vehicle settings. Press the right arrow key (when in the Settings menu)
to reach the different menus.
Settings
Driver Assist Traction Control
Blind Spot
Collision Warning Sensitivity
(if MyKey is
programmed)High, Normal or
Low
Chimes
Warning
Cross Traffic
Rear Park Aid
Trailer Sway
Display Language English, Español or Français
Units Distance Miles and
Gallons or Km
and Liters
Temperature Fahrenheit (°F)
or Celsius (°C)
Convenience Autolamp Delay Off or number of seconds
DTE Calculation Normal or Towing
Instrument Cluster
25
2011 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

Settings (cont’d)
Convenience
(cont’d)Easy Entry/Exit
Locks Autolock or
AutounlockOn or Off
Remote Unlock All Doors or
Driver First
Oil life Reset Set 10-100%
Power Liftgate Switch Enabled or Disabled
Remote Start Climate Control Heater – A/C
Auto or Last
Setting
Climate Control Front Defrost
AutoorOff
Climate Control Rear Defrost
AutoorOff
Climate Control Driver Seat
AutoorOff
Climate Control Passenger Seat
AutoorOff
Duration (5, 10 or
15 minutes)
Quiet Start
System
Wipers Courtesy Wipe
Rain Sensing
Reverse Wiper
Instrument Cluster
26
2011 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

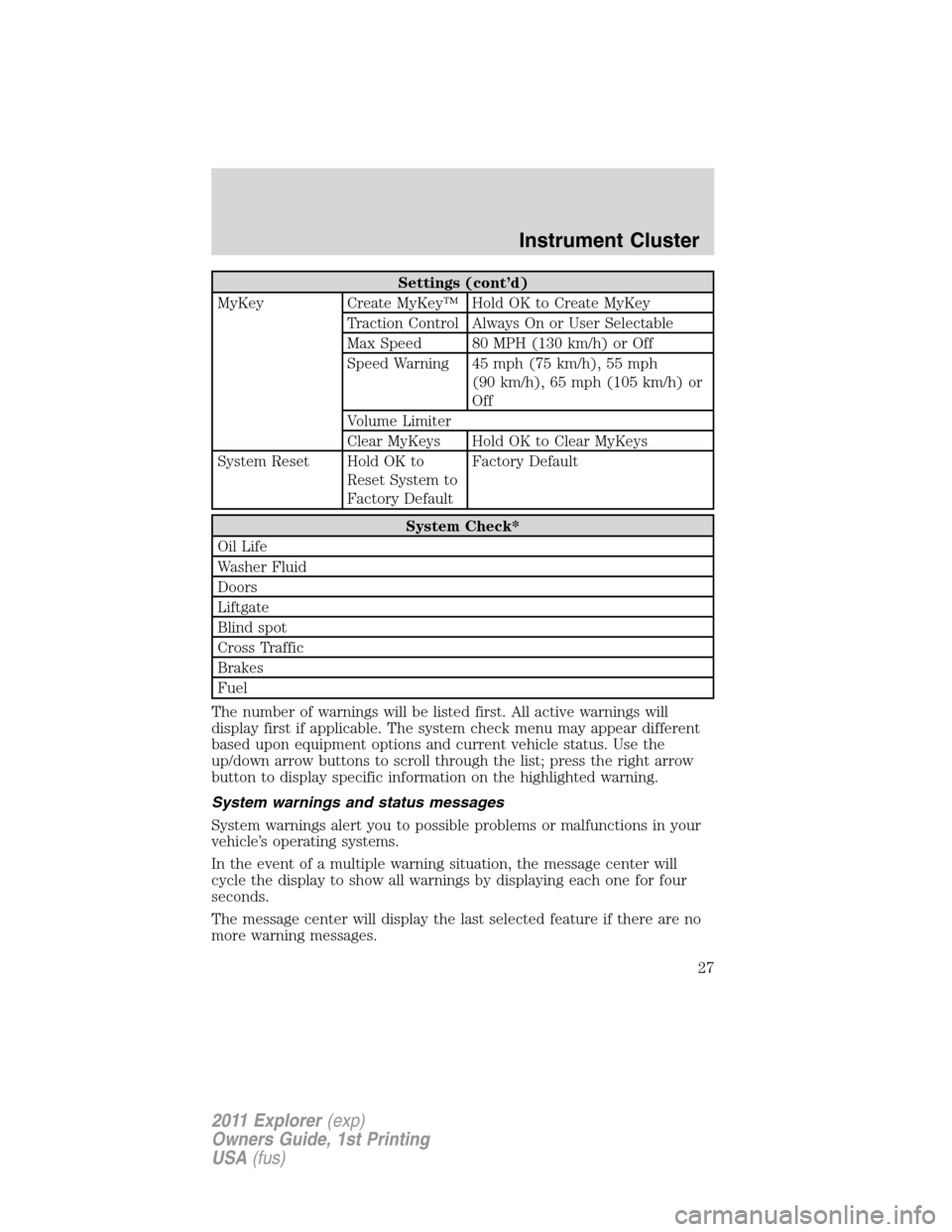

Settings (cont’d)
MyKey Create MyKey™ Hold OK to Create MyKey
Traction Control Always On or User Selectable
Max Speed 80 MPH (130 km/h) or Off
Speed Warning 45 mph (75 km/h), 55 mph
(90 km/h), 65 mph (105 km/h) or
Off
Volume Limiter
Clear MyKeys Hold OK to Clear MyKeys
System Reset Hold OK to
Reset System to
Factory DefaultFactory Default
System Check*
Oil Life
Washer Fluid
Doors
Liftgate
Blind spot
Cross Traffic
Brakes
Fuel
The number of warnings will be listed first. All active warnings will
display first if applicable. The system check menu may appear different
based upon equipment options and current vehicle status. Use the
up/down arrow buttons to scroll through the list; press the right arrow
button to display specific information on the highlighted warning.
System warnings and status messages
System warnings alert you to possible problems or malfunctions in your
vehicle’s operating systems.
In the event of a multiple warning situation, the message center will
cycle the display to show all warnings by displaying each one for four
seconds.
The message center will display the last selected feature if there are no
more warning messages.
Instrument Cluster
27
2011 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

Types of messages and warnings:
•Some messages will appear briefly to inform you of something you
may need to take action on or be informed of.
•Some messages will appear once and then again when the vehicle is
restarted.
•Some messages will reappear after clearing or being reset if a problem
or condition is still present and needs your attention.
•Some messages can be acknowledged and reset by pressing OK. This
allows you to use the full message center functionality by clearing the
message.
DRIVER DOOR AJAR— Displayed when the driver door is not
completely closed.
LIFTGATE AJAR— Displayed when the liftgate is not completely closed.
PASSENGER DOOR AJAR— Displayed when the passenger door is
not completely closed.
REAR LEFT DOOR AJAR— Displayed when the rear left door is not
completely closed.
REAR RIGHT DOOR AJAR— Displayed when the rear right door is
not completely closed.
CHECK FUEL FILL INLET— Displayed when the fuel fill inlet may
not be properly closed. Refer toEasy Fuel™ “no cap” fuel systemin
theMaintenance and Specificationschapter.
FUEL LEVEL LOW XXX KM TO E— Displayed as an early reminder
of a low fuel condition.
FUEL LEVEL LOW XXX MI TO E— Displayed as an early reminder
of a low fuel condition.
BRAKE FLUID LEVEL LOW— Indicates the brake fluid level is low
and the brake system should be inspected immediately. Refer toBrake
fluidin theMaintenance and Specificationschapter.
CHECK BRAKE SYSTEM— Displayed when the brake system needs
servicing. If the warning stays on or continues to come on, contact your
authorized dealer as soon as possible.
CHECK CHARGING SYSTEM— Displayed when the charging system
needs servicing. If the warning stays on or continues to come on, contact
your authorized dealer as soon as possible.
PARK BRAKE ENGAGED— Displayed when the parking brake is set,
the engine is running and the vehicle is driven more than 3mph
(5 km/h). If the warning stays on after the parking brake is released,
contact your authorized dealer as soon as possible.
Instrument Cluster
28
2011 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

SERVICE ADVANCETRAC— Displayed when the AdvanceTrac
system has detected a condition that requires service. Contact your
authorized dealer as soon as possible.
SHIFT TO PARK— Displayed when the start/stop button is pressed to
shut off the engine with the shift select lever in any position other than
P (Park). Refer toFast restart featureinPush button start systemin
theDrivingchapter for more information.
LOW ENGINE OIL PRESSURE— Stop the vehicle as soon as safely
possible, turn off the engine. Check the oil level. SeeChecking the
engine oilin theMaintenance and Specificationschapter. If the
warning stays on or continues to come on with your engine running,
contact your authorized dealer as soon as possible.
CHANGE ENGINE OIL SOON— Displayed when the engine oil life
remaining is 10% or less.
OIL CHANGE REQUIRED— Displayed when the oil life left reaches 0%.
ENGINE COOLANT OVER TEMP— Displayed when the engine
coolant temperature is excessively high.
WASHER FLUID LEVEL LOW— Indicates the washer fluid reservoir is
less than one quarter full. Check the washer fluid level. Refer to
Windshield washer fluidin theMaintenance and Specificationschapter.
TURN POWER OFF TO SAVE BATTERY (if equipped)— Displayed
when the electrical system determines that the battery is at a low level.
Turn off as many of the electrical loads as soon as possible to prevent
automatic shutdown of certain vehicle accessories.
LOW BATTERY FEATURES TEMPORARILY TURNED OFF (if
equipped)— Displayed when the electrical system determines that the
battery is at a low level. Various vehicle features will be disabled to help
preserve the battery. When the vehicle is started or if the battery power
has recovered, the accessories will operate again as normal.
TIRE PRESSURE MONITOR FAULT— Displayed when the tire pressure
monitoring system is malfunctioning. If the warning stays on or continues to
come on, have the system inspected by your authorized dealer.
TIRE PRESSURE SENSOR FAULT— Displayed when a tire pressure
sensor is malfunctioning, or your spare tire is in use. For more information
on how the system operates under these conditions, refer to
Understanding Your Tire Pressure Monitoring System (TPMS)in the
Tires, Wheels and Loadingchapter. If the warning stays on or continues
to come on, contact your authorized dealer as soon as possible.
BUCKLE UP TO UNMUTE AUDIO— Displayed when a MyKey™ is in
use and Belt-Minderis activated. Refer toMyKey™in theLocks and
Securitychapter for more information.
Instrument Cluster
29
2011 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

REMOVE OBJECTS NEAR PASS SEAT— Displayed when objects
are by the passenger seat. After the objects are moved away from the
seat, if the warning stays on or continues to come on contact your
authorized dealer as soon as possible.
TRACTION CONTROL OFF— Displayed when the traction control
has been disabled by the driver. Refer to theDrivingchapter for more
information.
AUTOMATIC BRAKING TURNED OFF (if equipped)— Displayed
when adaptive cruise control automatic braking is turned off.
AWD OFF (if equipped)— Displayed when the 4WD system has been
automatically disabled to protect itself. This is caused by operating the
vehicle with the compact spare tire installed or if the system is
overheating. The 4WD system will resume normal function and clear this
message after driving a short distance with the road tire re-installed or
after the system is allowed to cool.
CHECK AWD (if equipped)— Displayed in conjunction with the
throttle control/transmission/4WD
light when the 4WD system is
not operating properly. If the warning stays on or continues to come on,
contact your authorized dealer as soon as possible.
POWER STEERING ASSIST FAULT— The power steering system has
disabled power steering assist due to a system error, service is required.
SERVICE POWER STEERING— The power steering system has
detected a condition that requires service.
SERVICE POWER STEERING NOW— The power steering system
has detected a condition within the power steering system that requires
service immediately.
ACCESSORY POWER ACTIVE (if equipped)— Displayed when the
vehicle is in the accessory ignition state on keyless vehicles.
COULD NOT PROGRAM INTEGRATED KEY— Displayed when an
attempt is made to program a spare key using two existing MyKeys.
Refer toMyKey™in theLocks and Securitychapter for more
information.
KEY PROGRAMMED 3 KEYS TOTAL— Displayed during spare key
programming, when a third Intelligent Access Key is programmed to the
system.
KEY PROGRAMMED 4 KEYS TOTAL— Displayed during spare key
programming, when a fourth Intelligent Access Key is programmed to
the system.
Instrument Cluster
30
2011 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

MAX NUMBER OF KEYS PROGRAMMED— Displayed during spare key
programming when the maximum number of keys have been programmed.
MYKEY ACTIVE DRIVE SAFELY— Displayed when MyKey™ is active.
MYKEY NOT CREATED— Displayed during key programming when
MyKey™ cannot be programmed.
NO KEY DETECTED (if equipped)— Displayed if the Intelligent
Access Key is not detected by the system in the following three scenarios:
•When the start/stop button is pressed in an attempt to either start the
engine or cycle through the ignition states.
•When the engine is running and a door is opened then closed.
•When the vehicle’s speed exceeds 10 mph (16 km/h) for the first time
after starting. Refer toPush button start systemin theDrivingchapter
for more information.
PRESS BRAKE TO START (if equipped)— Displayed when the
start/stop button is pressed without the brake pedal being applied. This
is a reminder that the brake pedal must be applied when the start/stop
button is pressed in order to start the engine.
RESTART NOW OR KEY IS NEEDED (if equipped)— Displayed
when the start/stop button is pressed to shut off the engine and a
Intelligent Access Key is not detected inside the vehicle. Refer toPush
button start systemin theDrivingchapter for more information.
SPEED LIMITED TO 130 KM/H— Displayed when starting the
vehicle and MyKey™ is in use and the MyKey speed limit is on. Refer to
MyKey™in theLocks and Securitychapter for more information.
SPEED LIMITED TO 80 MPH— Displayed when starting the vehicle
and MyKey™ is in use and the MyKey speed limit is on. Refer to
MyKey™in theLocks and Securitychapter for more information.
STARTING SYSTEM FAULT— This message is displayed when there
is a problem with your vehicle’s starting security system; your vehicle
will not be able to start. See your authorized dealer for service.
VEHICLE AT TOP SPEED OF MYKEY SETTING— Displayed when
a MyKey™ is in use and the MyKey speed limit is on and the vehicle
speed is 80 mph (130 km/h). Refer toMyKey™in theLocks and
Securitychapter for more information.
VEHICLE NEAR TOP SPEED— Displayed when a MyKey™ is in use
and the MyKey speed limit is on and the vehicle speed is approaching
80 mph (130 km/h). Refer toMyKey™in theLocks and Security
chapter for more information.
Instrument Cluster
31
2011 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)
