2010 JAGUAR XFR Engine

12.
13.


















CAUTIONS:

Be prepared to collect escaping fluids.

Make sure that all openings are sealed. Use new blanking caps.














14. WARNING: Do not work on or under a vehicle supported only by a jack. Always
support the vehicle on safety stands.
Raise and support the vehicle.

15. Refer to: Engine Mount RH (303-01D Engine - V8 S/C 5.0L Petrol, Removal and Installation).

16. Refer to: Generator - V8 5.0L Petrol (414-02C Generator and Regulator - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
Left-hand drive vehicles
17.

18.











All vehicles
19.



















20. NOTE: Engine shown removed for clarity. www.JagDocs.com

21.
























22. NOTE: Engine shown removed for clarity.























CAUTIONS:

Remove and discard the high-pressure fuel supply lines.

Be prepared to collect escaping fluids.

Make sure that all openings are sealed. Use new blanking caps.

NOTE: Engine shown removed for clarity.

Installation
All vehicles


1. NOTE: Lubricate the fuel rail high-pressure fuel pump bucket with
clean engine oil.
















2. CAUTION: Tighten on both sides simultaneously. Torque: 12 Nm














3. Loosen the Torx screws half a turn each. 4.

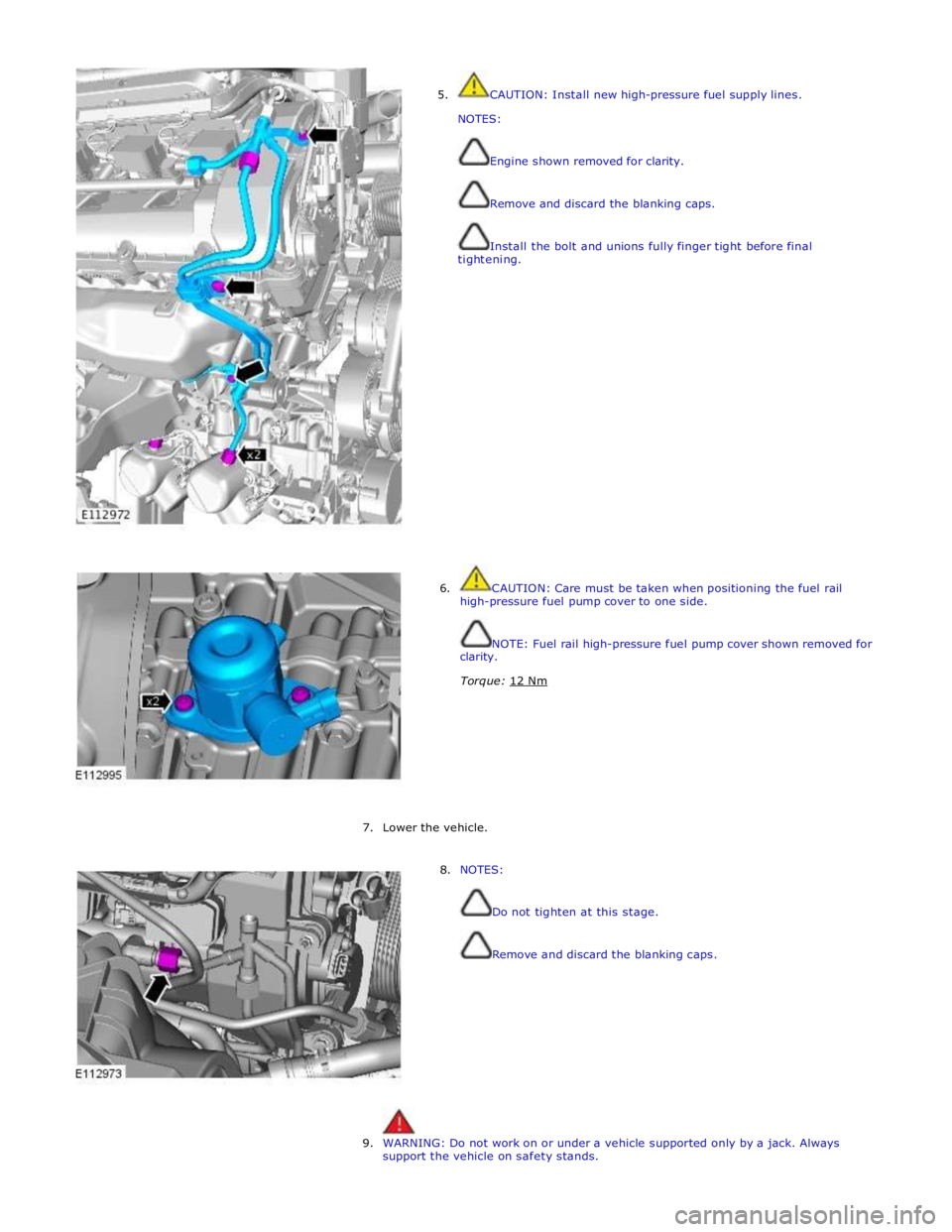

5. CAUTION: Install new high-pressure fuel supply lines.
NOTES:
Engine shown removed for clarity.

Remove and discard the blanking caps.

Install the bolt and unions fully finger tight before final
tightening.






















6. CAUTION: Care must be taken when positioning the fuel rail
high-pressure fuel pump cover to one side.

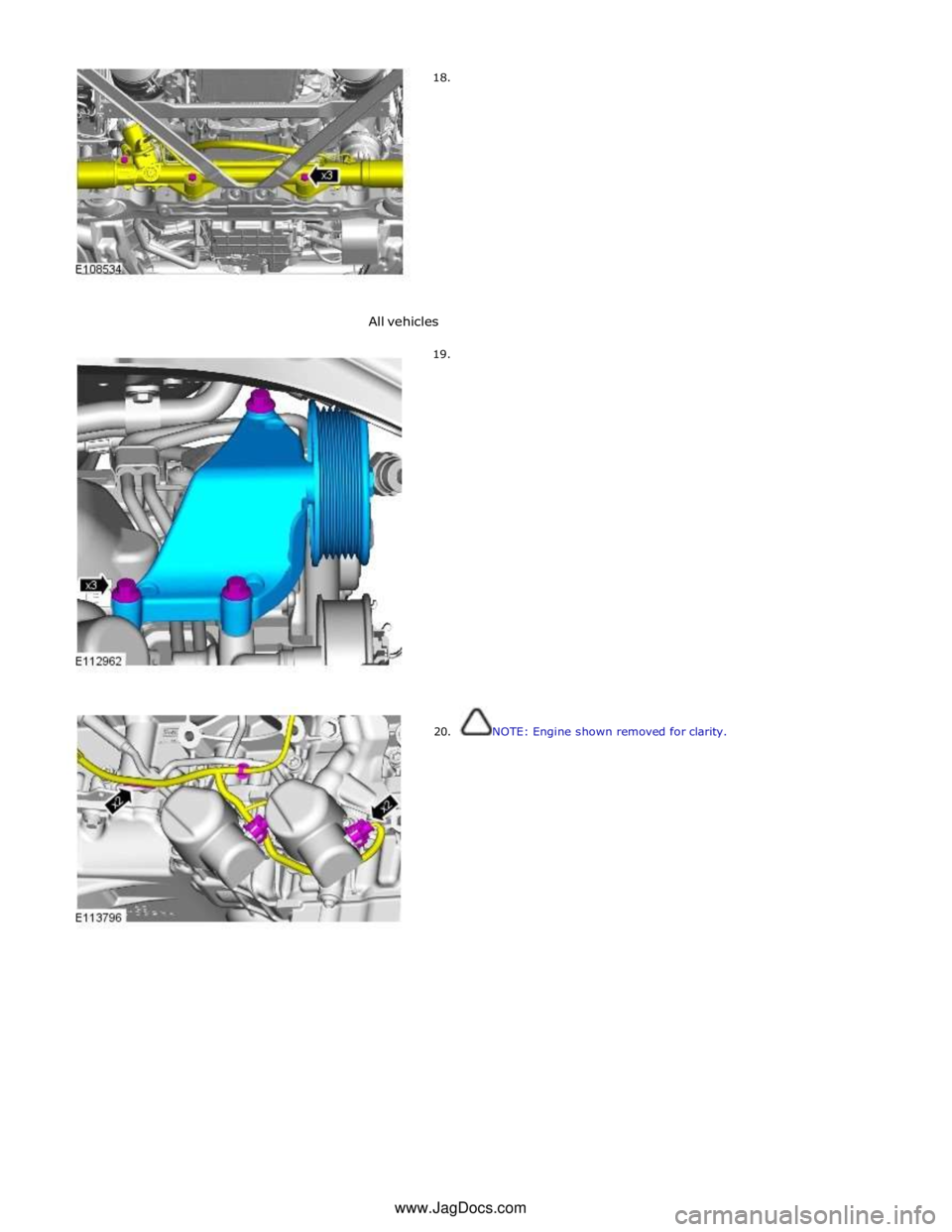

NOTE: Fuel rail high-pressure fuel pump cover shown removed for
clarity.
Torque: 12 Nm





7. Lower the vehicle.
8. NOTES:

Do not tighten at this stage.

Remove and discard the blanking caps.








9. WARNING: Do not work on or under a vehicle supported only by a jack. Always
support the vehicle on safety stands.

Raise and support the vehicle.


10.

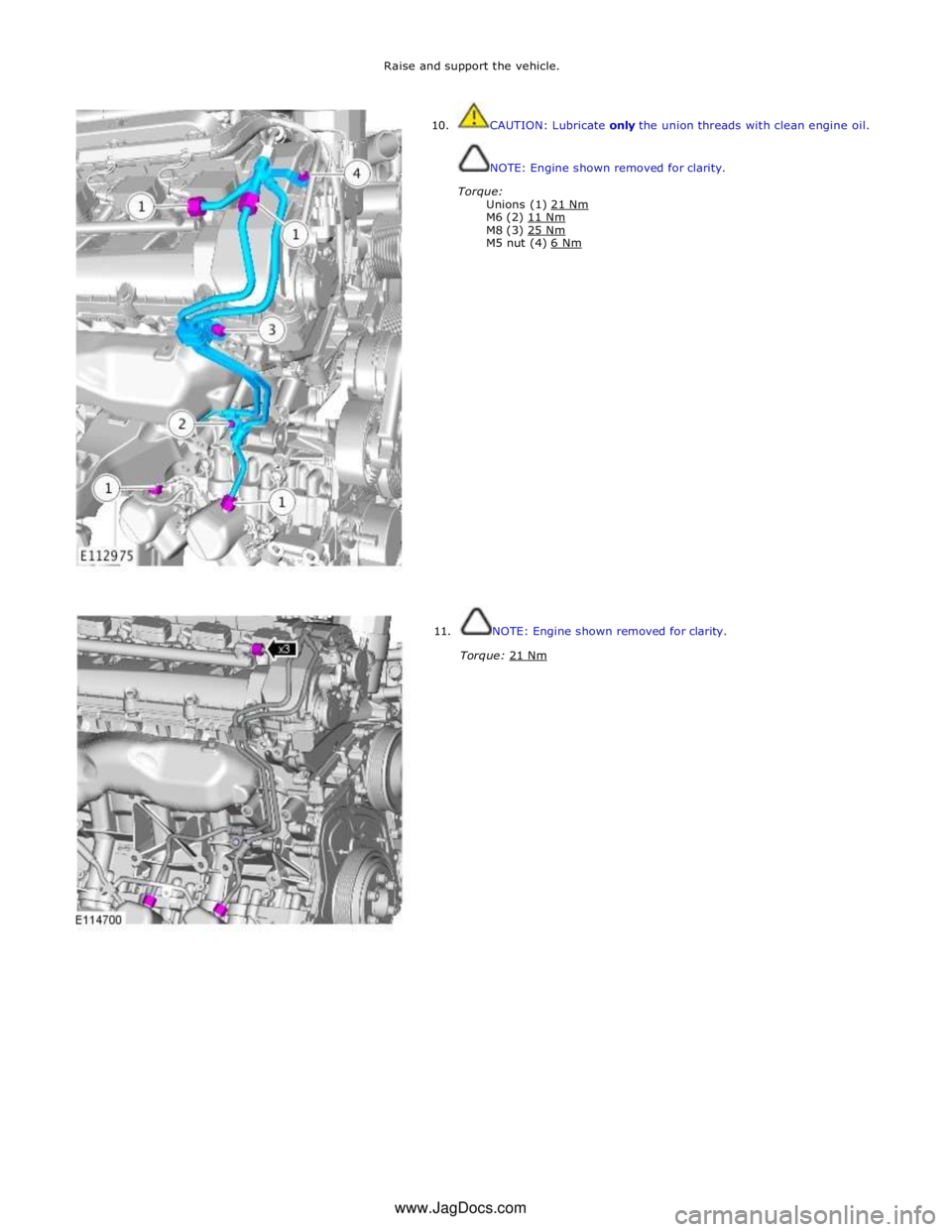

11. CAUTION: Lubricate only the union threads with clean engine oil.

NOTE: Engine shown removed for clarity.
Torque: Unions (1) 21 Nm M6 (2) 11 Nm M8 (3) 25 Nm M5 nut (4) 6 Nm


























NOTE: Engine shown removed for clarity.
Torque: 21 Nm www.JagDocs.com

12.
13.

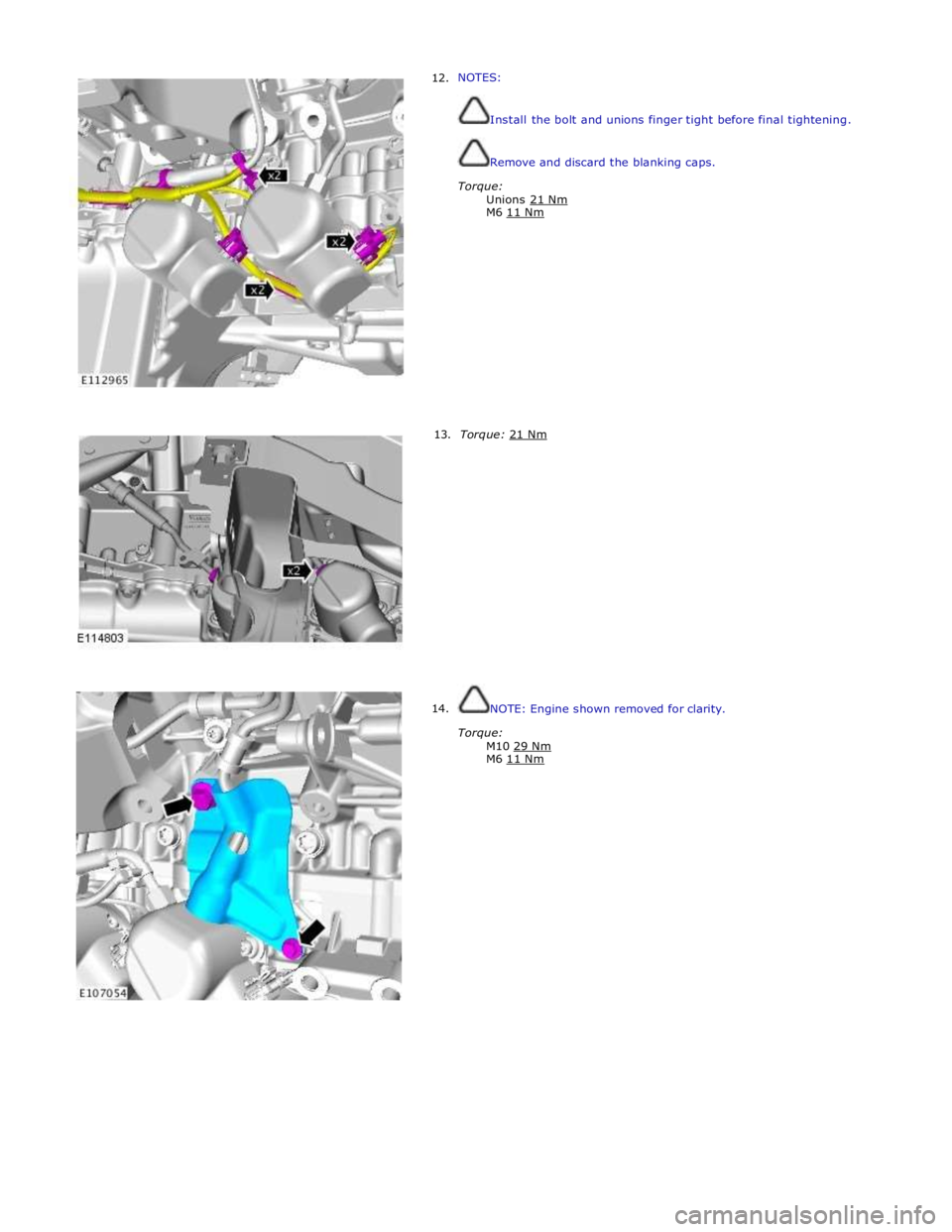

14. NOTES:

Install the bolt and unions finger tight before final tightening.

Remove and discard the blanking caps.
Torque: Unions 21 Nm M6 11 Nm














Torque: 21 Nm


















NOTE: Engine shown removed for clarity.
Torque: M10 29 Nm M6 11 Nm

15.

















16. NOTE: Engine shown removed for clarity.
















Torque: 25 Nm
















Left-hand drive vehicles

17. Torque: 100 Nm
