2010 JAGUAR XFR Engine

14.
















15.
16. NOTE: Engine shown removed for clarity.

















NOTE: Engine shown removed for clarity.























CAUTIONS:


Be prepared to collect escaping fluids.


Make sure that all openings are sealed. Use new blanking caps.


NOTE: Engine shown removed for clarity.


















17. Lower the vehicle.

5. CAUTION: If a new cylinder head has been installed then the special tool
310-200-02 without the thread must be used to install the fuel rail.

Special Tool(s): 310-200-01, 310-200-02












6. CAUTIONS:


Make sure that the area around the open fuel injector ports are clean
and free of foreign material and lubricant prior to installing the fuel injector.


When Installing the fuel injector(s), make sure that the Teflon seal is
clean and free of foreign material and lubricant.









7. CAUTIONS:


If new fuel injectors are installed, a new injector clamp must be
installed


Make sure that the fuel injector is aligned and installed into the fuel
rail correctly, as noted in the removal step.


Tighten the fuel rail retaining bolts a turn at a time until the correct
torque is achieved.


NOTE: Lubricate the fuel injector O-ring seals with clean engine oil.

Torque: 20 Nm







8. NOTE: LH shown RH similar.
Special Tool(s): 310-200-01, 310-200-02

13.
















14.
15. NOTE: LH shown RH similar.

Torque: 7 Nm















NOTE: LH shown RH similar.

















CAUTION: Lubricate only the union threads with clean engine oil.

NOTES:


Engine shown removed for clarity.


Install the bolt and unions finger tight before final tightening.


Remove and discard the blanking caps.
















16. Lower the vehicle. www.JagDocs.com

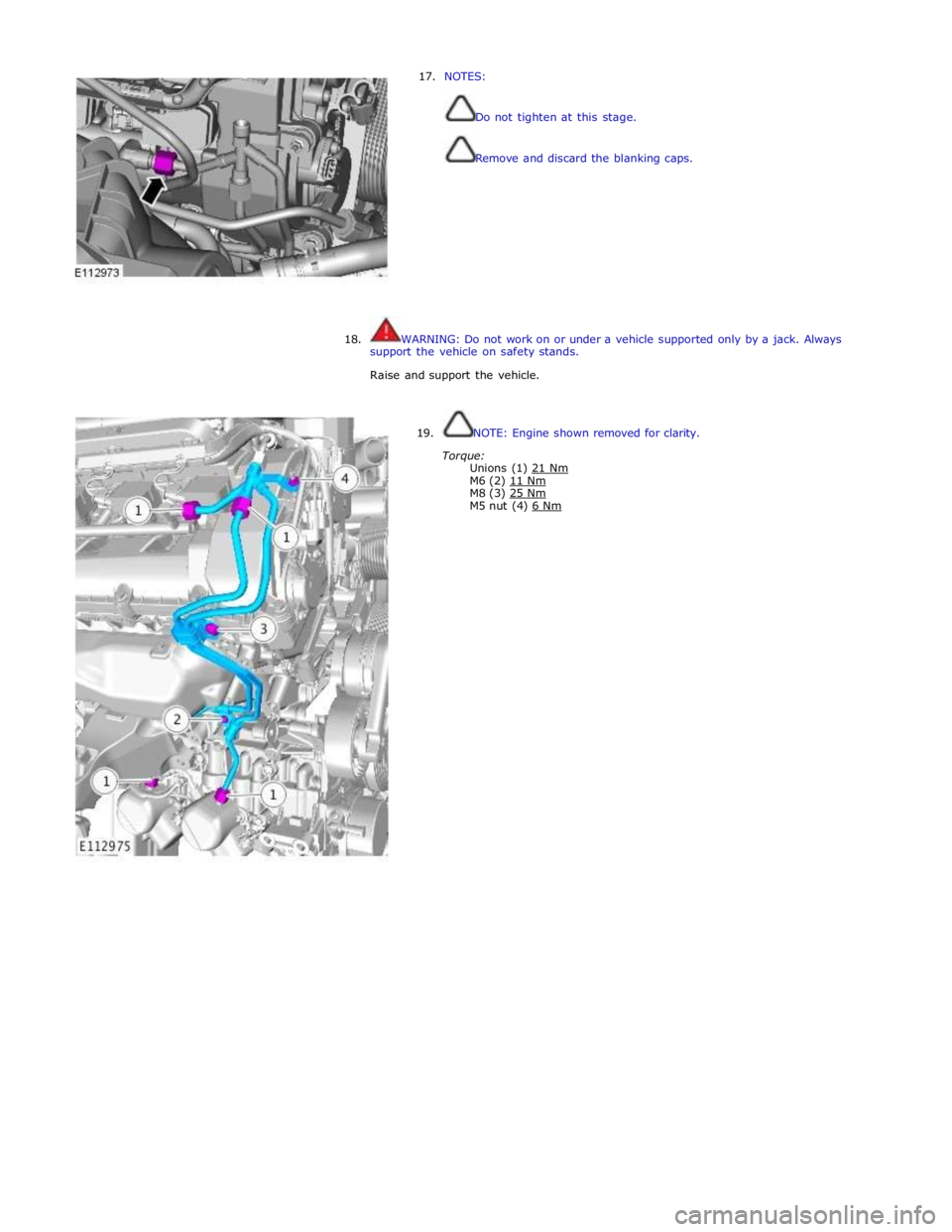

17. NOTES:


Do not tighten at this stage.


Remove and discard the blanking caps.









18.
WARNING: Do not work on or under a vehicle supported only by a jack. Always
support the vehicle on safety stands.

Raise and support the vehicle.


19. NOTE: Engine shown removed for clarity.

Torque:
Unions (1) 21 Nm M6 (2) 11 Nm M8 (3) 25 Nm M5 nut (4) 6 Nm

20.
























21.

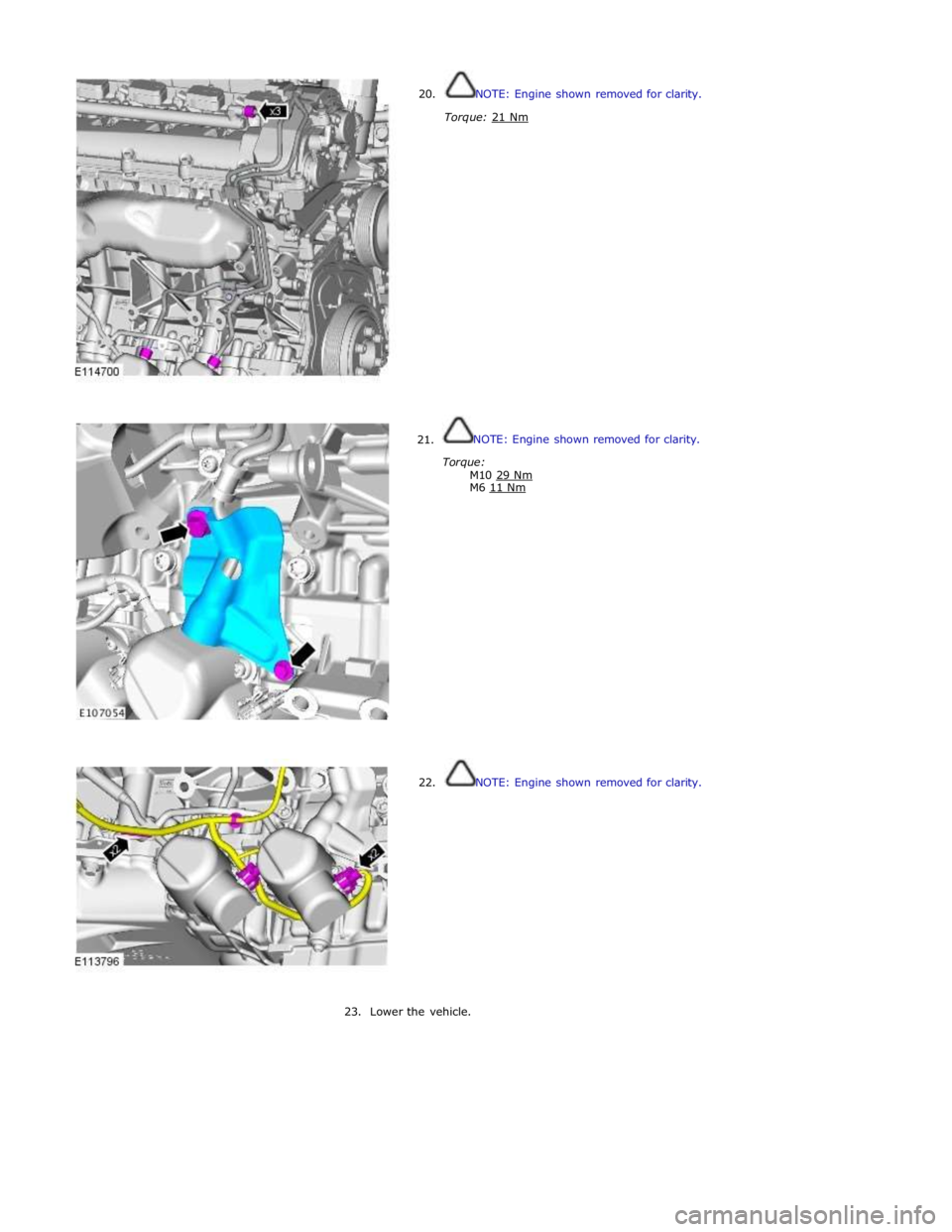

22. NOTE: Engine shown removed for clarity.

Torque: 21 Nm






















NOTE: Engine shown removed for clarity.

Torque:
M10 29 Nm M6 11 Nm




















NOTE: Engine shown removed for clarity.











23. Lower the vehicle.

24.


















25.

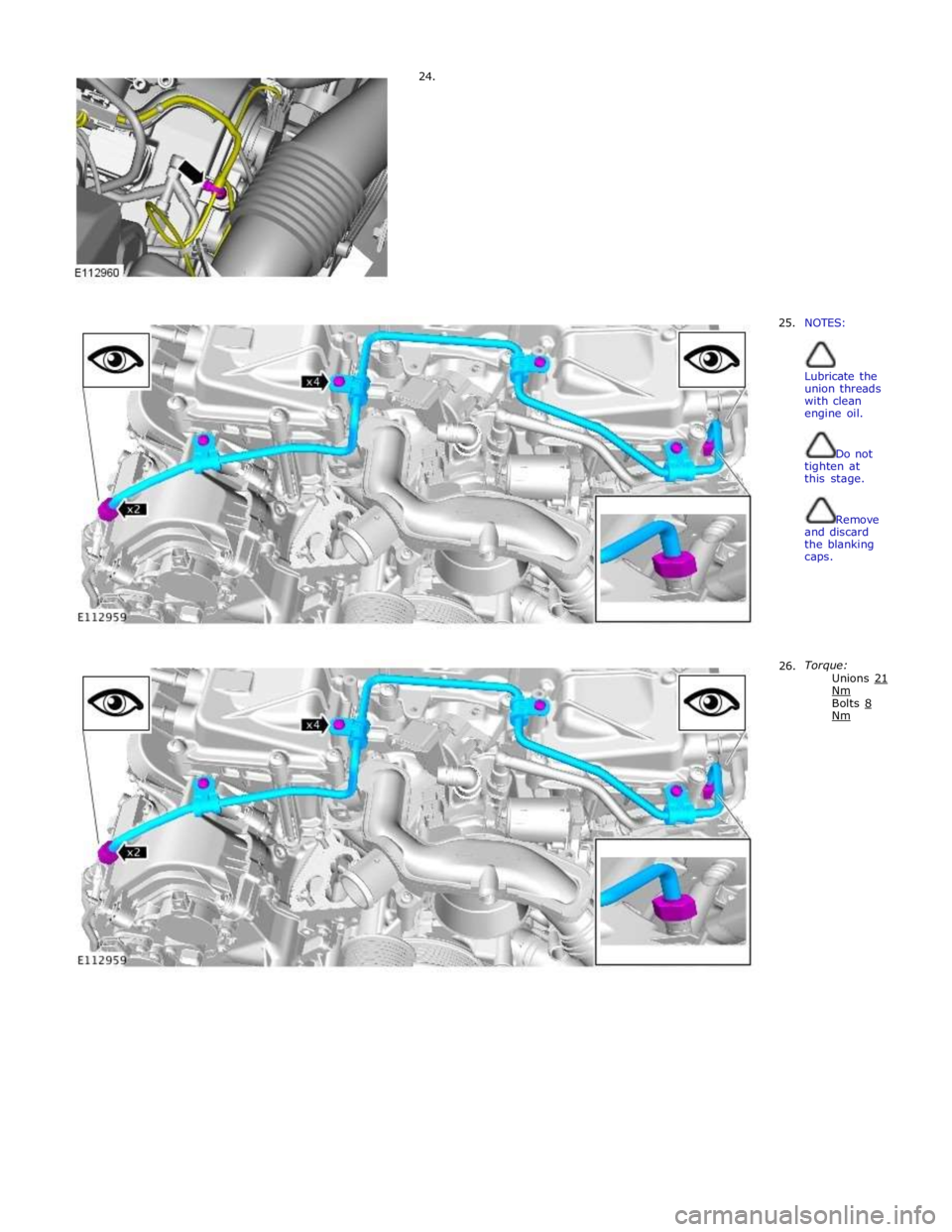

NOTES:


Lubricate the
union threads
with clean
engine oil.


Do not
tighten at
this stage.


Remove
and discard
the blanking
caps.





26. Torque:
Unions 21 Nm Bolts 8 Nm

Published: 11-May-2011
Fuel Charging and Controls - V8 S/C 5.0L Petrol - Left-Hand Fuel Rail High-Pressure
Fuel Pump Removal and Installation

Removal

CAUTION: Make sure that tools and equipment are clean, free of foreign material and lubricant.
NOTES:

Removal steps in this procedure may contain installation details.

Some variation in the illustrations may occur, but the essential information is always correct.
1. Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions (100-00 General Information, Description and Operation).
2. Refer to: Fuel System Pressure Release - V8 5.0L Petrol/V8 S/C 5.0L Petrol (310-00 Fuel System - General Information, General Procedures).
3. Refer to: Secondary Bulkhead Panel LH - TDV6 3.0L Diesel /V8 5.0L Petrol/V8 S/C 5.0L Petrol (501-02 Front End Body Panels, Removal and Installation). 4. Refer to: Secondary Bulkhead Panel RH - TDV6 3.0L Diesel /V8 5.0L Petrol/V8 S/C 5.0L Petrol (501-02 Front End Body Panels, Removal and Installation). 5. Refer to: Engine Cover - V8 5.0L Petrol/V8 S/C 5.0L Petrol (501-05 Interior Trim and Ornamentation, Removal and Installation).
6. Refer to: Fuel Injection Component Cleaning (303-04E Fuel Charging and Controls - V8 S/C 5.0L Petrol, General Procedures).

7. CAUTION: Be prepared to collect escaping fluids.
















8. www.JagDocs.com

13. CAUTIONS:

Be prepared to collect escaping fluids.

Make sure that all openings are sealed. Use new blanking caps.














14. WARNING: Do not work on or under a vehicle supported only by a jack. Always
support the vehicle on safety stands.
Raise and support the vehicle.

15. Refer to: Engine Mount RH (303-01D Engine - V8 S/C 5.0L Petrol, Removal and Installation).

16. Refer to: Generator - V8 5.0L Petrol (414-02C Generator and Regulator - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
17.
