2010.5 PEUGEOT 4007 Owners Manual

2
COMFORT

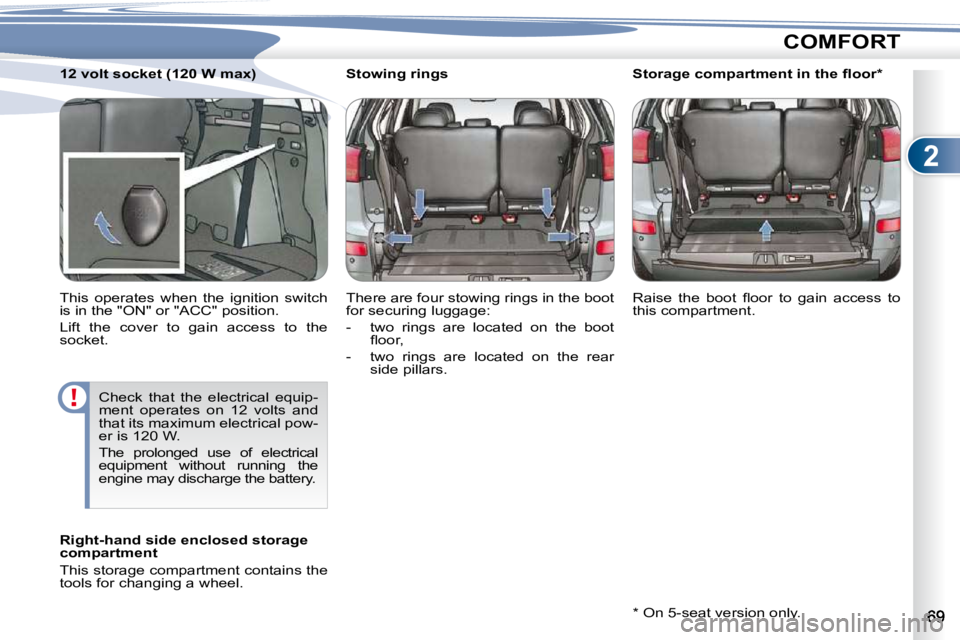

Stowing rings
There are four stowing rings in the boot
for securing luggage:
- two rings are located on the boot
fl oor,
- two rings are located on the rear side pillars.
* On 5-seat version only.
Raise the boot fl oor to gain access to
this compartment.
Right-hand side enclosed storage
compartment
This storage compartment contains the
tools for changing a wheel. Storage compartment in the fl oor *
12 volt socket (120 W max)
This operates when the ignition switch
is in the "ON" or "ACC" position.
Lift the cover to gain access to the
socket.
Check that the electrical equip-
ment operates on 12 volts and
that its maximum electrical pow-
er is 120 W.
The prolonged use of electrical
equipment without running the
engine may discharge the battery.

2
COMFORT

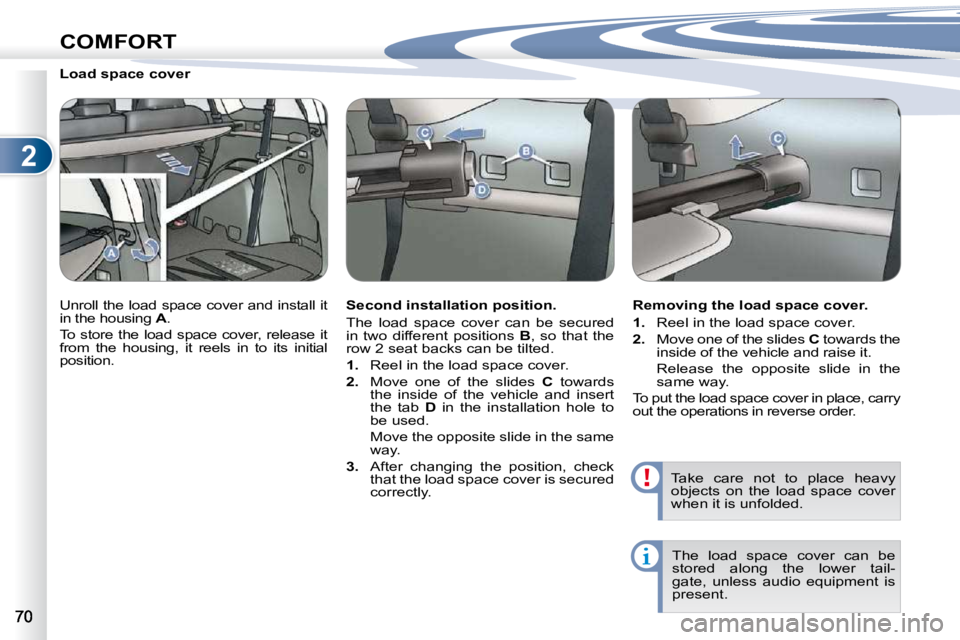

Load space cover
Unroll the load space cover and install it
in the housing A .
To store the load space cover, release it
from the housing, it reels in to its initial
position. Second installation position.
The load space cover can be secured
in two different positions
B , so that the
row 2 seat backs can be tilted.

1. Reel in the load space cover.

2. Move one of the slides C towards
the inside of the vehicle and insert
the tab D in the installation hole to
be used.
Move the opposite slide in the same way.

3. After changing the position, check
that the load space cover is secured
correctly. Removing the load space cover.

1. Reel in the load space cover.

2. Move one of the slides C towards the
inside of the vehicle and raise it.
Release the opposite slide in the same way.
To put the load space cover in place, carry
out the operations in reverse order.
Take care not to place heavy
objects on the load space cover
when it is unfolded. The load space cover can be
stored along the lower tail-
gate, unless audio equipment is
present.

3
ACCESS

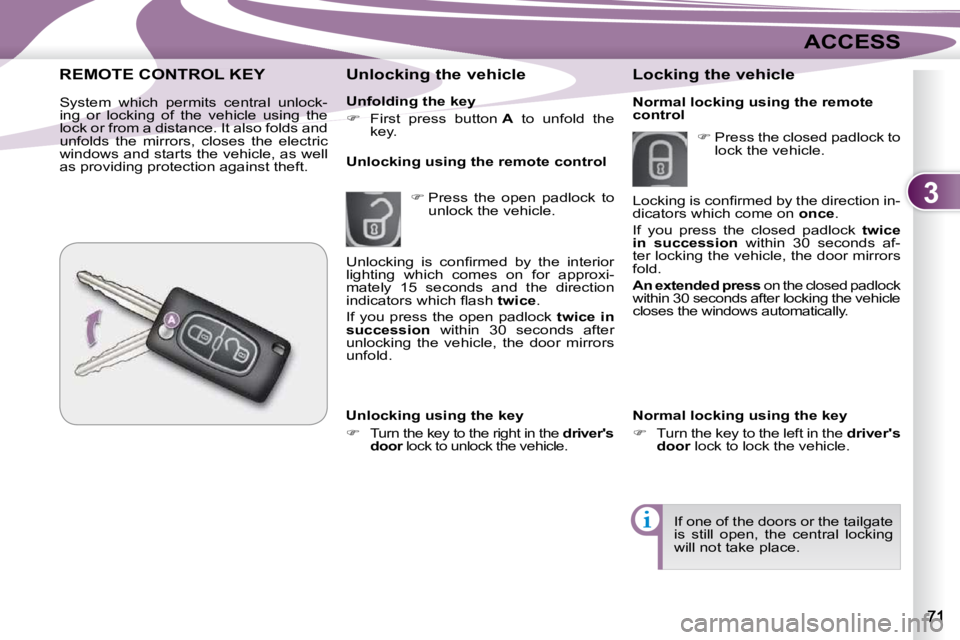

Unfolding the key

 First press button A to unfold the
key.
Unlocking the vehicle

 Press the open padlock to
unlock the vehicle.
Unlocking using the remote control
REMOTE CONTROLREMOTE CONTROL KEY
System which permits central unlock-
ing or locking of the vehicle using the
lock or from a distance. It also folds and
unfolds the mirrors, closes the electric
windows and starts the vehicle, as well
as providing protection against theft. Locking the vehicle
Unlocking using the key

 Turn the key to the right in the driver's
door lock to unlock the vehicle.
 Press the closed padlock to
lock the vehicle.
If one of the doors or the tailgate
is still open, the central locking
will not take place.
Unlocking is confi rmed by the interior
lighting which comes on for approxi-
mately 15 seconds and the direction
indicators which fl ash
twice .
If you press the open padlock twice in
succession within 30 seconds after
unlocking the vehicle, the door mirrors
unfold.
Normal locking using the key

 Turn the key to the left in the driver's
door lock to lock the vehicle.
Locking is confi rmed by the direction in-
dicators which come on
once .
If you press the closed padlock twice
in succession within 30 seconds af-
ter locking the vehicle, the door mirrors
fold.

An extended press on the closed padlock
within 30 seconds after locking the vehicle
closes the windows automatically.
Normal locking using the remote
control

3
ACCESS
The vehicle will relock automati-
cally after thirty seconds unless
a door or the tailgate is opened.
This function prevents inadvert-
ent unlocking.
The duration which precedes
the automatic relocking of the
vehicle can be confi gured via
the colour screen "Equipment"
menu.

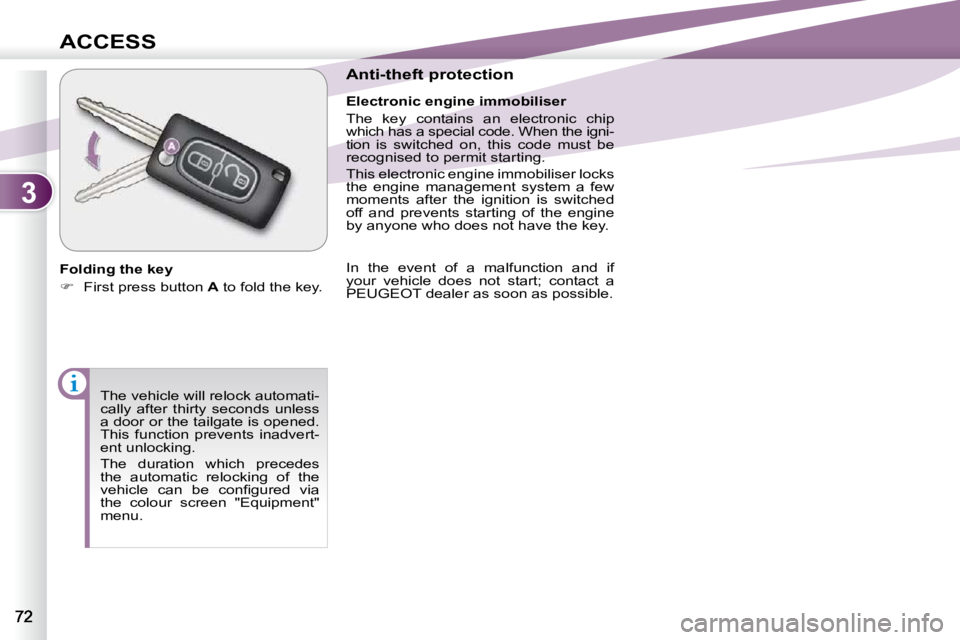

Folding the key

 First press button A to fold the key. Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the igni-
tion is switched on, this code must be
recognised to permit starting.
This electronic engine immobiliser locks
the engine management system a few
moments after the ignition is switched
off and prevents starting of the engine
by anyone who does not have the key.
Anti-theft protection
In the event of a malfunction and if
your vehicle does not start; contact a
PEUGEOT dealer as soon as possible.

3
ACCESS

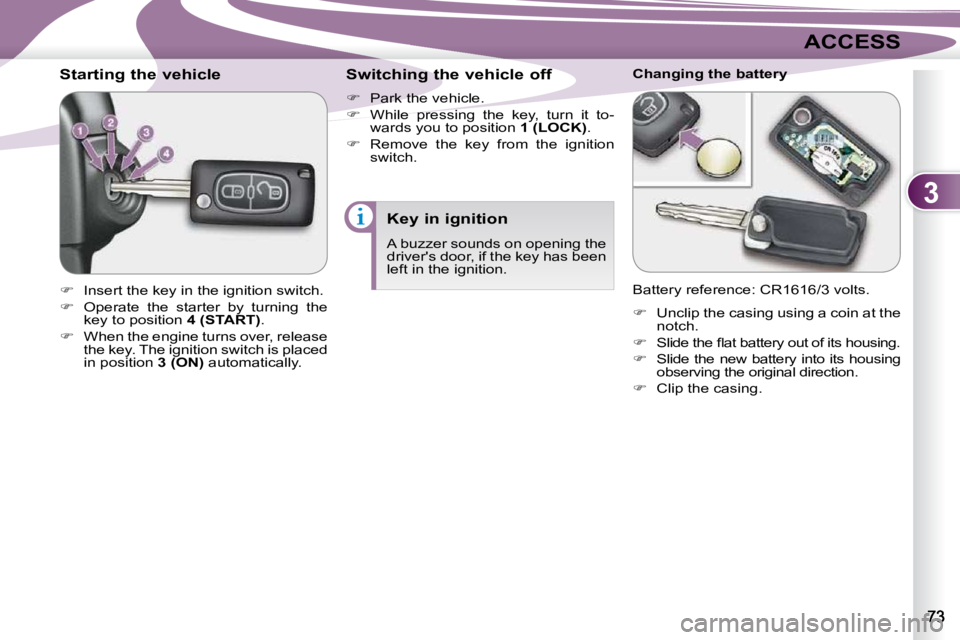

Starting the vehicle

 Insert the key in the ignition switch.

 Operate the starter by turning the
key to position 4 (START) .

 When the engine turns over, release
the key. The ignition switch is placed
in position 3 (ON) automatically. Switching the vehicle off

 Park the vehicle.

 While pressing the key, turn it to-
wards you to position 1 (LOCK) .

 Remove the key from the ignition
switch. Changing the battery
Battery reference: CR1616/3 volts.

 Unclip the casing using a coin at the
notch.

 Slide the fl at battery out of its housing.

 Slide the new battery into its housing
observing the original direction.

 Clip the casing.
Key in ignition
A buzzer sounds on opening the
driver's door, if the key has been
left in the ignition.

3
ACCESS

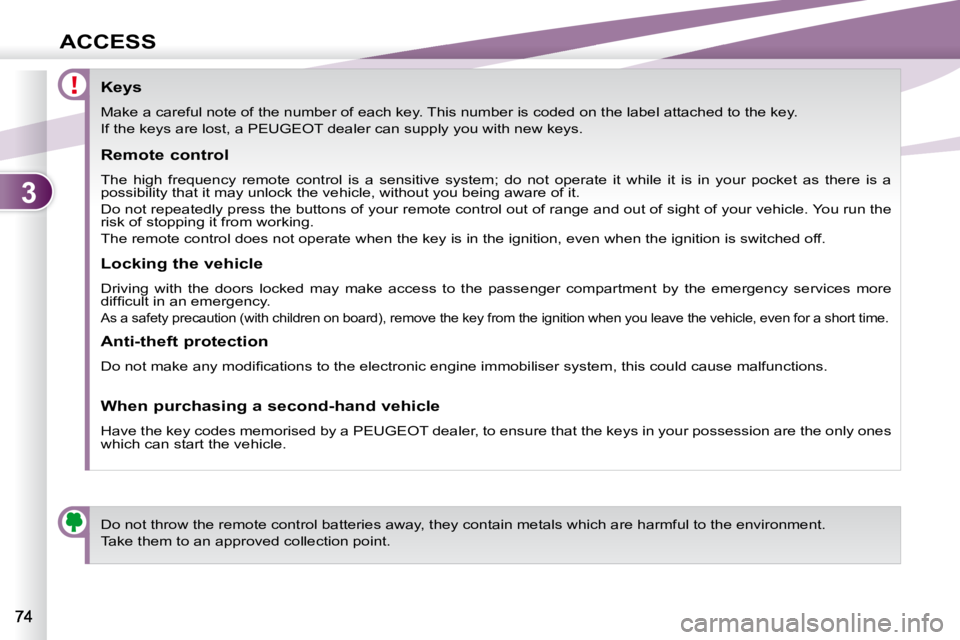

Keys
Make a careful note of the number of each key. This number is coded on the label attached to the key.
If the keys are lost, a PEUGEOT dealer can supply you with new keys.
Do not throw the remote control batteries away, t hey contain metals which are harmful to the environment.
Take them to an approved collection point.
Remote control
The high frequency remote control is a sensitive system; do not o
perate it while it is in your pocket as there is a
possibility that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the
risk of stopping it from working.
The remote control does not operate when the key is in the ignition, even when the ignition is switched off.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart ment by the emergency services more
diffi cult in an emergency.
As a safety precaution (with children on board), r emove the key from the ignition when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobi liser system, this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones
which can start the vehicle.

3
ACCESS
The vehicle will relock automati-
cally after thirty seconds unless
a door or the tailgate is opened.
This function prevents inadvert-
ent unlocking.
The duration which precedes
the automatic relocking of the
vehicle can be confi gured via
the colour screen "Equipment"
menu.
Folding the key

 First press button A to fold the key. Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the igni-
tion is switched on, this code must be
recognised to permit starting.
This electronic engine immobiliser locks
the engine management system a few
moments after the ignition is switched
off and prevents starting of the engine
by anyone who does not have the key.
Anti-theft protection
In the event of a malfunction and if
your vehicle does not start; contact a
PEUGEOT dealer as soon as possible.

3
ACCESS
Keys
Make a careful note of the number of each key. This number is coded on the label attached to the key.
If the keys are lost, a PEUGEOT dealer can supply you with new keys.
Do not throw the remote control batteries away, t hey contain metals which are harmful to the environment.
Take them to an approved collection point.
Remote control
The high frequency remote control is a sensitive system; do not o
perate it while it is in your pocket as there is a
possibility that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the
risk of stopping it from working.
The remote control does not operate when the key is in the ignition, even when the ignition is switched off.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart ment by the emergency services more
diffi cult in an emergency.
As a safety precaution (with children on board), r emove the key from the ignition when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobi liser system, this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones
which can start the vehicle.
