2010.5 PEUGEOT 4007 Owners Manual

3
ACCESS

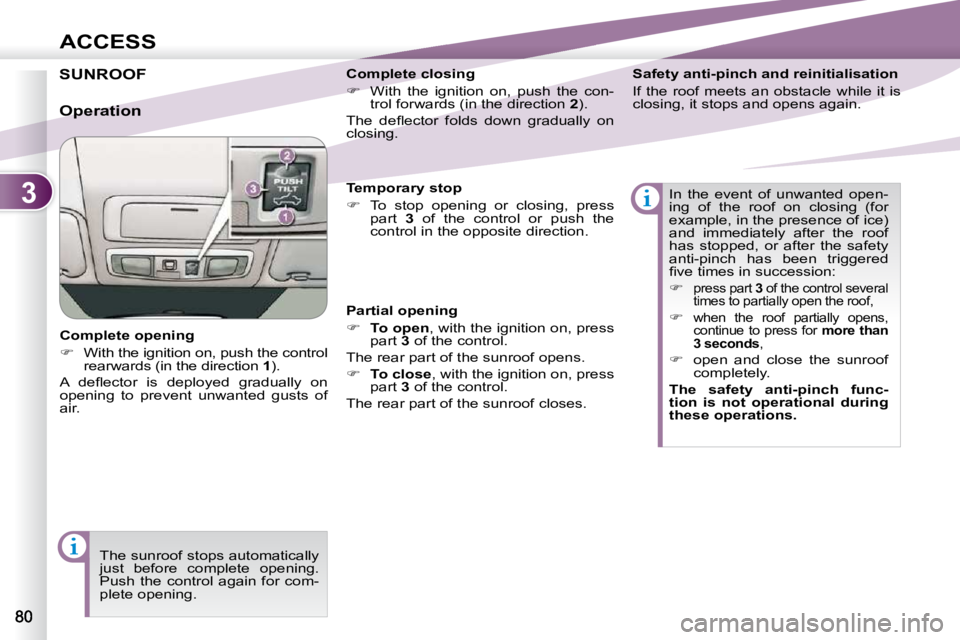

SUNROOF
Complete opening

 With the ignition on, push the control
rearwards (in the direction 1 ).
A defl ector is deployed gradually on
opening to prevent unwanted gusts of
air.
Operation
Complete closing

 With the ignition on, push the con-
trol forwards (in the direction 2 ).
The defl ector folds down gradually on
closing.
Partial opening

 To open , with the ignition on, press
part 3 of the control.
The rear part of the sunroof opens.

 To close , with the ignition on, press
part 3 of the control.
The rear part of the sunroof closes. In the event of unwanted open-
ing of the roof on closing (for
example, in the presence of ice)
and immediately after the roof
has stopped, or after the safety
anti-pinch has been triggered
fi ve times in succession:


press part 3 of the control several
times to partially open the roof,

 when the roof partially opens,
continue to press for more than
3 seconds ,

 open and close the sunroof
completely.

The
safety
anti
-
pinch

func-
tion is not
operational during

t
hese operations.
The sunroof stops automatically
just before complete opening.
Push the control again for com-
plete opening. Temporary stop

 To stop opening or closing, press
part 3 of the control or push the
control in the opposite direction. Safety anti-pinch and reinitialisation
If the roof meets an obstacle while it is
closing, it stops and opens again.

3
ACCESS

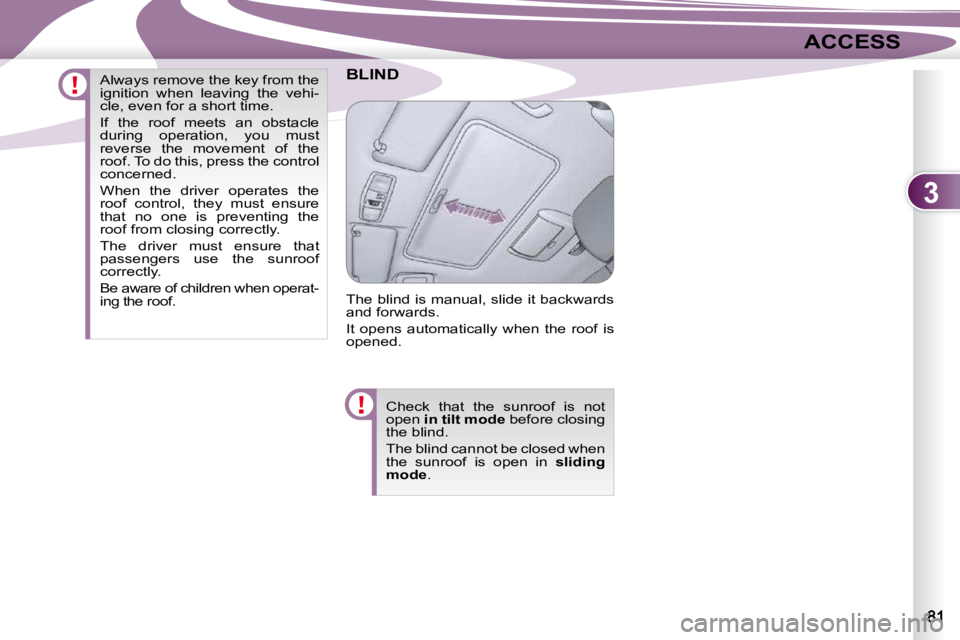

BLIND
The blind is manual, slide it backwards
and forwards.
It opens automatically when the roof is
opened. Check that the sunroof is not
open in tilt mode before closing
the blind.
The blind cannot be closed when
the sunroof is open in sliding
mode .
Always remove the key from the
ignition when leaving the vehi-
cle, even for a short time.
If the roof meets an obstacle
during operation, you must
reverse the movement of the
roof. To do this, press the control
concerned.
When the driver operates the
roof control, they must ensure
that no one is preventing the
roof from closing correctly.
The driver must ensure that
passengers use the sunroof
correctly.
Be aware of children when operat-
ing the roof.

3
ACCESS
BLIND
The blind is manual, slide it backwards
and forwards.
It opens automatically when the roof is
opened. Check that the sunroof is not
open in tilt mode before closing
the blind.
The blind cannot be closed when
the sunroof is open in sliding
mode .
Always remove the key from the
ignition when leaving the vehi-
cle, even for a short time.
If the roof meets an obstacle
during operation, you must
reverse the movement of the
roof. To do this, press the control
concerned.
When the driver operates the
roof control, they must ensure
that no one is preventing the
roof from closing correctly.
The driver must ensure that
passengers use the sunroof
correctly.
Be aware of children when operat-
ing the roof.

3
ACCESS

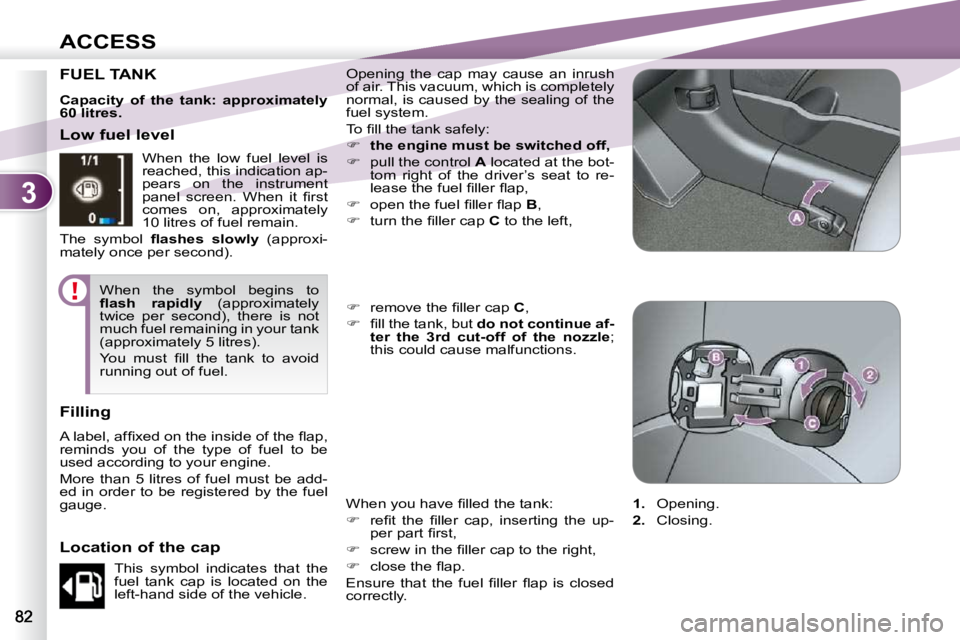

FUEL TANK Opening the cap may cause an inrush
of air. This vacuum, which is completely
normal, is caused by the sealing of the
fuel system.
To fi ll the tank safely:

 the engine
must be
switched off,

 pull the control A located at the bot-
tom right of the driver’s seat to re-
lease the fuel fi ller fl ap,

 open the fuel fi ller fl ap B ,

 turn the fi ller cap C to the left,
When you have fi lled the tank:

 refi t the fi ller cap, inserting the up-
per part fi rst,

 screw in the fi ller cap to the right,

 close the fl ap.
Ensure that the fuel fi ller fl ap is closed
correctly.
 remove the fi ller cap C ,

 fi ll the tank, but do not continue af-
ter the 3rd cut-off of the nozzle ;
this could cause malfunctions.
Low fuel level
Filling
A label, affi xed on the inside of the fl ap,
reminds you of the type of fuel to be
used according to your engine.
More than 5 litres of fuel must be add-
ed in order to be registered by the fuel
gauge. When the low fuel level is
reached, this indication ap-
pears on the instrument
panel screen. When it fi rst
comes on, approximately
10 litres of fuel remain.
The symbol fl ashes slowly (approxi-
mately once per second).
When the symbol begins to

fl ash rapidly (approximately
twice per second), there is not
much fuel remaining in your tank
(approximately 5 litres).
You must fi ll the tank to avoid
running out of fuel.
This symbol indicates that the
fuel tank cap is located on the
left-hand side of the vehicle.
Location of the cap

1. Opening.

2. Closing.

Capacity of the tank: approximately
60 litres.

3
ACCESS

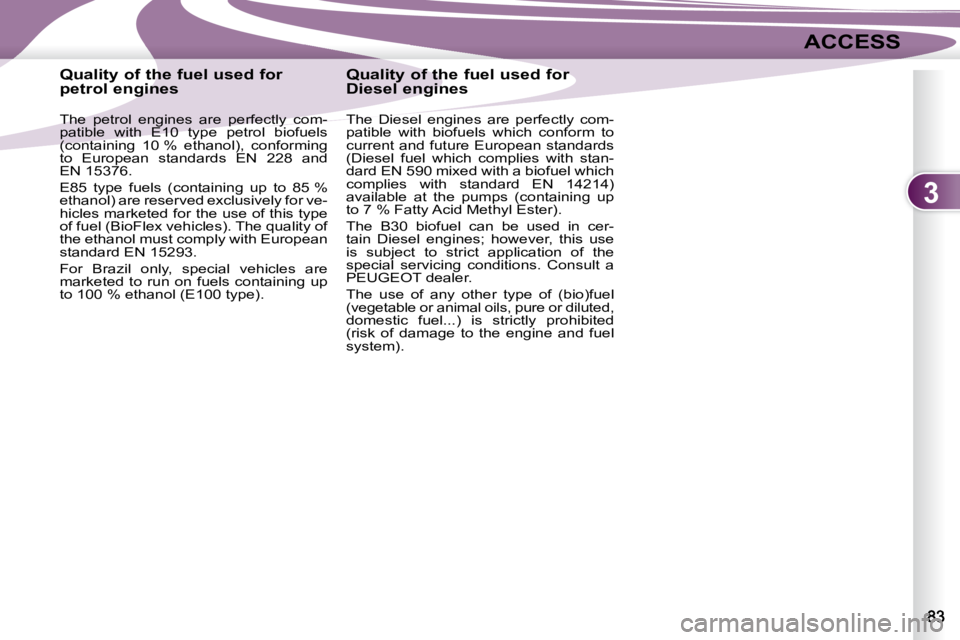

Quality of the fuel used for
petrol engines
The petrol engines are perfectly com-
patible with E10 type petrol biofuels
(containing 10 % ethanol), conforming
to European standards EN 228 and
EN 15376.
E85 type fuels (containing up to 85 %
ethanol) are reserved exclusively for ve-
hicles marketed for the use of this type
of fuel (BioFlex vehicles). The quality of
the ethanol must comply with European
standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100 % ethanol (E100 type). Quality of the fuel used for
Diesel engines
The Diesel engines are perfectly com-
patible with biofuels which conform to
current and future European standards
(Diesel fuel which complies with stan-
dard EN 590 mixed with a biofuel which
complies with standard EN 14214)
available at the pumps (containing up
to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer-
tain Diesel engines; however, this use
is subject to strict application of the
special servicing conditions. Consult a
PEUGEOT dealer.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or diluted,
domestic fuel...) is strictly prohibited
(risk of damage to the engine and fuel
system).

4
VISIBILITY

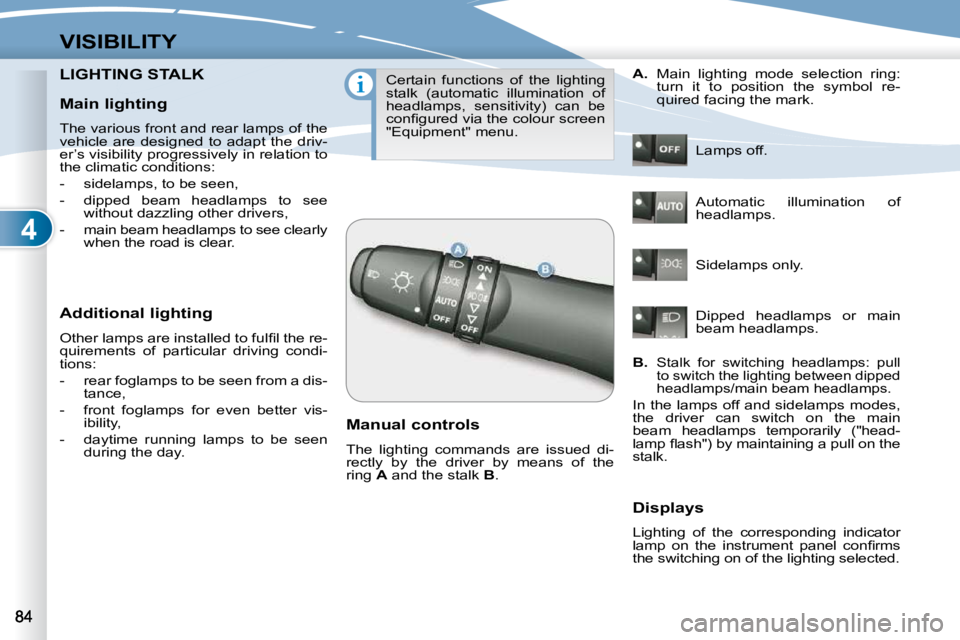

LIGHTING STALK LIGHTING STALK
Additional lighting
Other lamps are installed to fulfi l the re-
quirements of particular driving condi-
tions:
- rear foglamps to be seen from a dis-tance,
- front foglamps for even better vis- ibility,
- daytime running lamps to be seen during the day. Certain functions of the lighting
stalk (automatic illumination of
headlamps, sensitivity) can be
confi gured via the colour screen
"Equipment" menu.
Manual controls
The lighting commands are issued di-
rectly by the driver by means of the
ring A and the stalk B . Lamps off.
Automatic illumination of
headlamps.
Sidelamps only.

B.
Stalk for switching headlamps: pull
to switch the lighting between dipped
headlamps/main beam headlamps.
In the lamps off and sidelamps modes,
the driver can switch on the main
beam headlamps temporarily ("head-
lamp fl ash") by maintaining a pull on the
stalk.
Displays
Lighting of the corresponding indicator
lamp on the instrument panel confi rms
the switching on of the lighting selected.

A. Main lighting mode selection ring:
turn it to position the symbol re-
quired facing the mark.
Dipped headlamps or main
beam headlamps.
Main lighting
The various front and rear lamps of the
vehicle are designed to adapt the driv-
er’s visibility progressively in relation to
the climatic conditions:
- sidelamps, to be seen,
- dipped beam headlamps to see
without dazzling other drivers,
- main beam headlamps to see clearly when the road is clear.

4
VISIBILITY

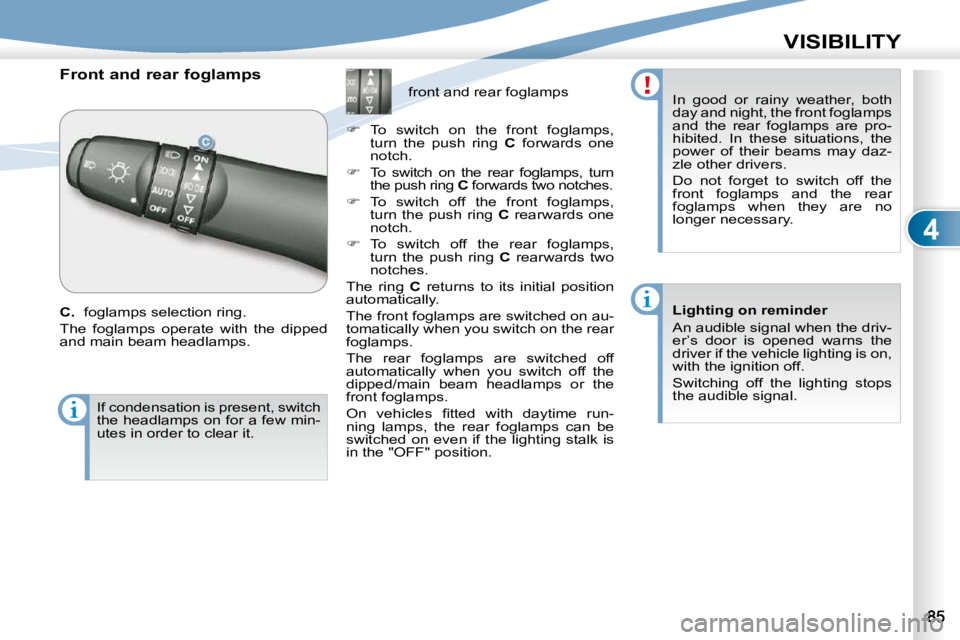

Front and rear foglamps

C. foglamps selection ring.
The foglamps operate with the dipped
and main beam headlamps. front and rear foglamps

 To switch on the front foglamps,
turn the push ring C forwards one
notch.

 To switch on the rear foglamps, turn
the push ring C forwards two notches.

 To switch off the front foglamps,
turn the push ring C rearwards one
notch.

 To switch off the rear foglamps,
turn the push ring C rearwards two
notches.
The ring C returns to its initial position
automatically.
The front foglamps are switched on au-
tomatically when you switch on the rear
foglamps.
The rear foglamps are switched off
automatically when you switch off the
dipped/main beam headlamps or the
front foglamps.
On vehicles fi tted with daytime run-
ning lamps, the rear foglamps can be
switched on even if the lighting stalk is
in the "OFF" position.
In good or rainy weather, both
day and night, the front foglamps
and the rear foglamps are pro-
hibited. In these situations, the
power of their beams may daz-
zle other drivers.
Do not forget to switch off the
front foglamps and the rear
foglamps when they are no
longer necessary.
Lighting on reminder
An audible signal when the driv-
er’s door is opened warns the
driver if the vehicle lighting is on,
with the ignition off.
Switching off the lighting stops
the audible signal.
If condensation is present, switch
the headlamps on for a few min-
utes in order to clear it.

4
VISIBILITY
In foggy weather or in snow, the
sunshine sensor may detect suf-
fi cient light. The lighting will not
come on automatically.
Do not cover the sunshine sen-
sor, the associated functions will
no longer be controlled.

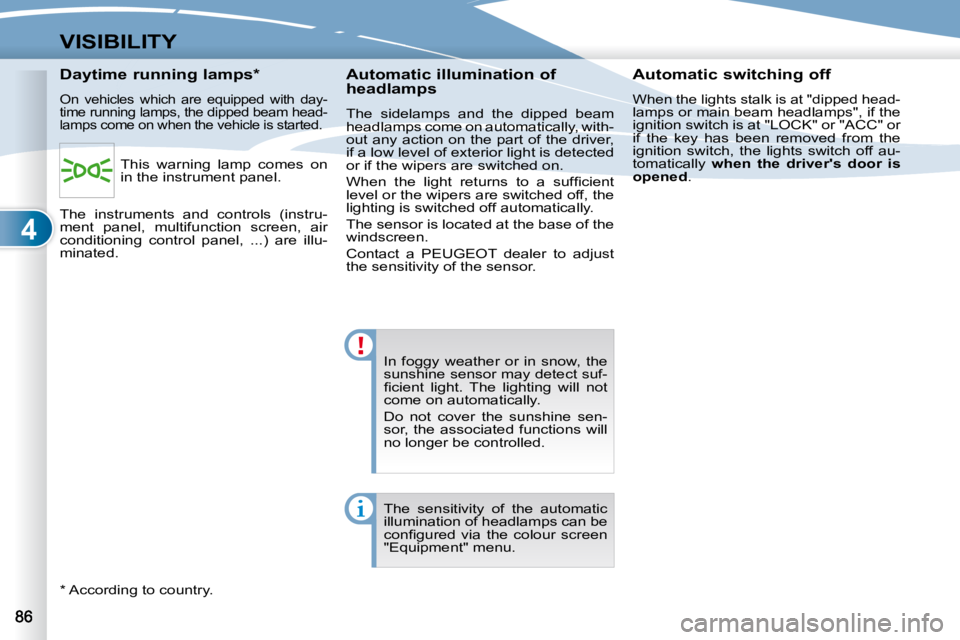

Daytime running lamps *
On vehicles which are equipped with day-
time running lamps, the dipped beam head-
lamps come on when the vehicle is started.
* According to country. Automatic switching off
When the lights stalk is at "dipped head-lamps or main beam headlamps", if the
ignition switch is at "LOCK" or "ACC" or
if the key has been removed from the
ignition switch, the lights switch off au-
tomatically
when the driver's door is
opened .
Automatic illumination of
headlamps
The sidelamps and the dipped beam
headlamps come on automatically, with-
out any action on the part of the driver,
if a low level of exterior light is detected
or if the wipers are switched on.
When the light returns to a suffi cient
level or the wipers are switched off, the
lighting is switched off automatically.
The sensor is located at the base of the
windscreen.
Contact a PEUGEOT dealer to adjust
the sensitivity of the sensor.
The sensitivity of the automatic
illumination of headlamps can be
confi gured via the colour screen
"Equipment" menu.
This warning lamp comes on
in the instrument panel.
The instruments and controls (instru-
ment panel, multifunction screen, air
conditioning control panel, ...) are illu-
minated.
