Page 17 of 215
1
INSTRUMENTS and CONTROLS
When the vehicle is
s t a t i o n a r y , i t a l l o w s
the user to change the
following settings:
- resetting average fuel consumption and av-
e r a g e s p e e d ,
- t h e f u e l c o n s u m p t i o n u n i t s ,
- t h e t e m p e r a t u r e d i s p l a y u n i t s ,
- t h e d i s p l a y l a n g u a g e ,
- activation/deactivation of the INFO
b u t t o n s o u n d ,
- the break (rest) reminder display in- t e r v a l ,
- restore factory settings.
SETTING MENU SETTING MENU
System which provides access to the
settings of certain functions.
The various menus may differ for the
type 1 instrument panel and the type 2
instrument panel.
With the ignition on , p r e s s t h e INFO
b u t t o n o n t h e d a s h b o a r d , t o t h e r i g h t o f
t h e i n s t r u m e n t p a n e l , s e v e r a l t i m e s i n
succession until the "SETTING MENU"
screen is displayed.
T o c h a n g e t h e s e t t i n g s , y o u
must stop the vehicle and switch
on the ignition.
Apply the parking brake and
place the gear lever in neutral.
When the vehicle is moving ,
the setting menu screen is not
displayed when you press the
INFO button.
Operation
press and hold the INFO button for
a few seconds to display the menu
screen.
Press and hold the INFO button
for a few seconds to return to
the previous screen.
When the menus screen is
d i s p l a y e d , i f n o o p e r a t i o n i s
c a r r i e d o u t w i t h i n 1 5 s e c o n d s ,
the setting menu screen is
displayed.
o n t h e m e n u s c r e e n , p r e s s t h e INFO
button to select a function from the
list:
MENU
2/3:
- a/b (option of displaying a different
language in the instrument panel
s c r e e n a n d t h e n a v i g a t i o n s c r e e n ) ,
- a c t i v a t i o n / d e a c t i v a t i o n o f t h e
INFO
button sound ,
- ALARM
(changing the "BREAK
R E M I N D E R " d i s p l a y i n t e r v a l ) ,
- choice of the direction indicators s o u n d ,
- a c t i v a t i o n / d e a c t i v a t i o n o f
current
f u e l c o n s u m p t i o n ,
MENU
1/3
:
- 1 - 2 (options for resetting aver-
age fuel consumption and average
s p e e d ) ,
- UNIT (choice of the fuel consumption
u n i t s ) ,
- choice of the t e m p e r a t u r e d i s p l a y
unit
s ,
- LANGUAGE (choice of display lan-
g u a g e ) ,
MENU 3/3:
- RESET
(restore factory settings).
Page 18 of 215
1
INSTRUMENTS and CONTROLS
C h o i c e o f f u e l c o n s u m p t i o n
units
You can choose between different units
for displaying fuel consumption. On the menu screen:
press the INFO button to select
"UNIT" .
press and hold the INFO button for
a few seconds to display the "UNIT"
screen.
press the INFO button to scroll the units
( k m / L , L / 1 0 0 k m , m p g ( U S ) , m p g ( U K )
and RETURN) in succession.
press and hold the INFO button
f o r a f e w s e c o n d s t o c o n fi r m y o u r
selection.
I n t h i s c a s e , t h e d i s t a n c e , s p e e d a n d
q u a n t i t y o f f u e l u n i t s w i l l a l s o b e c h a n g e d
in accordance with your choice of fuel
consumption unit.
I f t h e b a t t e r y i s d i s c o n n e c t e d ,
the settings memory is cleared
and the default unit (km/L) is
restored automatically.
C h o i c e o f t e m p e r a t u r e d i s p l a y
units
You can choose between different units
for displaying the temperature.
On the menu screen:
press the INFO button to se-
lect the temperature unit set-
ting symbol (thermometer).
press and hold the INFO button for
a few seconds to alternate between
the units (°C and °F).
T h e m o d e s e l e c t e d i s c o n fi r m e d .
I f t h e b a t t e r y i s d i s c o n n e c t e d , t h e
settings memory is cleared and
the default unit (°C) is restored
automatically.

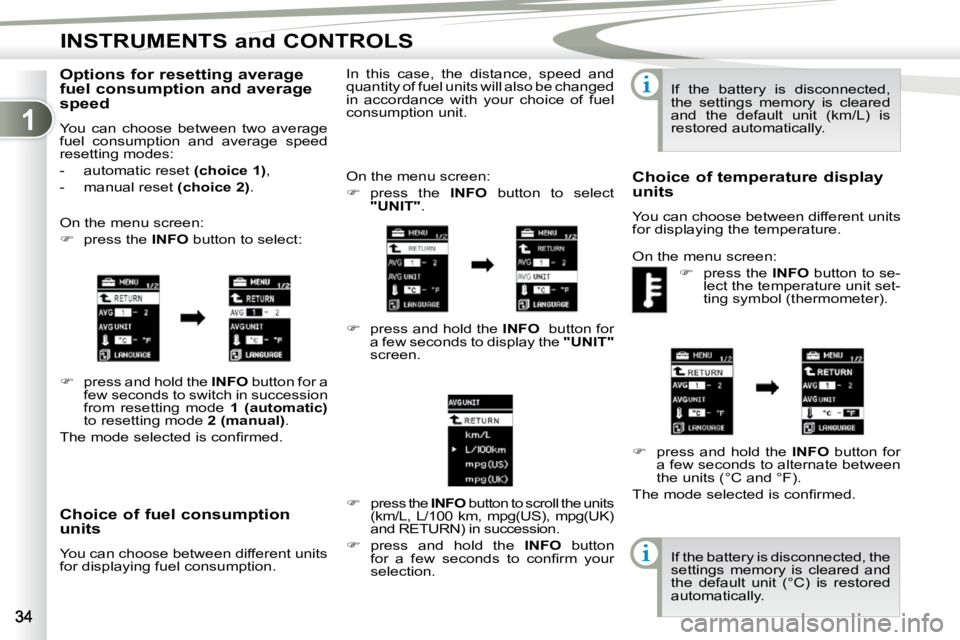

O p t i o n s f o r r e s e t t i n g a v e r a g e
f u e l c o n s u m p t i o n a n d a v e r a g e
speed
You can choose between two average
fuel consumption and average speed
resetting modes:
- automatic reset ( choice 1) ,
- manual reset (choice 2) .
On the menu screen:
press the INFO button to select:
press and hold the INFO button for a
few seconds to switch in succession
from resetting mode 1
(automatic)
to resetting mode 2 (manual) .
T h e m o d e s e l e c t e d i s c o n fi r m e d .
Page 19 of 215
1
INSTRUMENTS and CONTROLS
C h o i c e o f d i s p l a y l a n g u a g e
(LANGUAGE)
On the menus screen:
press the INFO button to select
"LANGUAGE" .
press and hold the INFO button
for a few seconds to display the
"LANGUAGE" screen.
press the INFO button to scroll
t h r o u g h t h e l a n g u a g e s ( J a p o n a i s ,
E n g l i s h , D e u t s c h , F r a n ç a i s , E s p a n o l ,
I t a l i a n o , " - - - " a n d R E T U R N ) i n
succession.
press and hold the INFO button for
a f e w s e c o n d s t o c o n fi r m y o u r s e -
lection.
I f y o u s e l e c t t h e " - - - " s e t t i n g , n o
message will be displayed in
message display situations. I f t h e b a t t e r y i s d i s c o n n e c t e d , t h e
settings memory is cleared and
the default language (ENGLISH)
is restored automatically.
A c t i v a t i o n / d e a c t i v a t i o n o f t h e
"INFO" button sound
You can activate or deactivate the INFO
button sound.
On the menus screen:
press the INFO button to se-
lect the INFO button sound
activation/deactivation sym-
bol (located on menu 2/3) .
press and hold the INFO button for
a few seconds to alternate between
t h e c h o i c e s ( O N , O F F ) .
T h e m o d e s e l e c t e d i s c o n fi r m e d .
I f t h e b a t t e r y i s d i s c o n n e c t e d ,
the settings memory is cleared
and the default choice (ON) is
restored automatically. C h a n g i n g t h e d i s p l a y i n t e r v a l
o f t h e " B R E A K R E M I N D E R "
message
On the menu screen:
press the INFO button to select
"
ALARM
" (located on menu 2/3) .
press and hold the INFO button
for a few seconds to display the
"
ALARM
" screen.
press the INFO button to select
the display interval of the "BREAK
REMINDER" message.
press and hold the INFO button for
a f e w s e c o n d s t o c o n fi r m .
I f t h e b a t t e r y i s d i s c o n n e c t e d ,
the settings memory is cleared
and the default value (OFF) is
restored automatically.
You can choose between different
languages for the screen. You can change the display interval of
the
"BREAK REMINDER" message.
Page 20 of 215
1
INSTRUMENTS and CONTROLS
C h o i c e o f t h e d i r e c t i o n
indicators sound
You can choose the sound of the
d i r e c t i o n i n d i c a t o r s , o n t h e t y p e 2
instrument panel only.
On the menus screen:
press the INFO button to select sound 1
or 2 (located on menu 2/3) .
A c t i v a t i o n / d e a c t i v a t i o n o f t h e
c u r r e n t f u e l c o n s u m p t i o n
You can activate or deactivate the
c u r r e n t f u e l c o n s u m p t i o n , o n t h e t y p e 2
instrument panel only.
On the menu screen:
press the INFO button to select the
current fuel consumption activation/
deactivation symbol (located on
menu 2/3) . R e s t o r i n g f a c t o r y s e t t i n g s
(RESET)
You can restore all of the factory settings
for all of the functions.
Functions F a c t o r y
setting
Resetting average fuel consumption and average speed
1 (automatic)
Fuel consumption units
L/100 km
Temperature display unit
°C
Display language ENGLISH
INFO button sound
ON (activated)
Display of
the "BREAK
REMINDER" message
OFF (deactivated)
On the menu screen:
press the INFO button to select
"
RESET
"
(located on menu 2/2 or
3/3 depending on the instrument
panel) .
press and hold the INFO button for
at least 5 seconds .
An audible signal is heard and all of the
factory settings are restored for all of
the functions.
press the INFO button for a few
seconds to alternate between the
c h o i c e s ( O N , O F F ) . The factory settings are:
Page 21 of 215
1
INSTRUMENTS and CONTROLS
MONOCHROME SCREEN MONOCHROME SCREEN
This provides the following information:
- t h e t i m e ,
- audio system information (refer to the "Audio and Telematics" section). Setting the time
The digital clock can be set in
auto-
matic mode or in manual mode . Selecting the Setting
Select the
automatic mode or the
manual mode as follows:
Press button A "PWR" to switch on
the audio system.
Access the setting mode by pressing
button B "TUNE" for approximately
2 seconds.
Press button B "TUNE" several
times to scroll through the various
menus and select the CT menu
(clock time).
The order of the menus is the
following: AF/CT/REG/TP-S/PTY
display language/SCV/PHONE/
Functions setting mode OFF.
Automatic mode
This mode permits automatic setting
of the local time using the signal from
RDS stations.
The symbol
"CT" appears on the
screen.
Manual mode
This mode permits manual setting of
t h e t i m e u s i n g t h e a u d i o e q u i p m e n t
buttons.
It can also be used when the "Automatic
m o d e " d i s p l a y s a n i n a c c u r a t e t i m e , w h e n
the local RDS stations are broadcasting
from a different time zone.
Page 22 of 215
1
INSTRUMENTS and CONTROLS

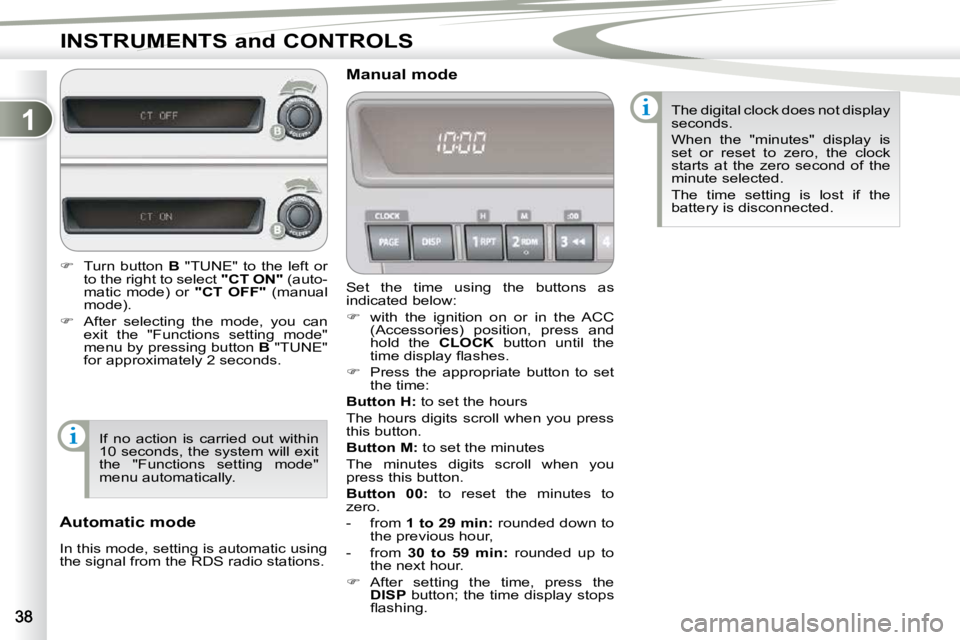

Set the time using the buttons as
indicated below:
with the ignition on or in the ACC
( A c c e s s o r i e s ) p o s i t i o n , p r e s s a n d
hold the CLOCK button until the
t i m e d i s p l a y fl a s h e s .
Press the appropriate button to set
the time:
Button
H: to set the hours
The hours digits scroll when you press
this button.
Button M: to set the minutes
The minutes digits scroll when you
press this button.
Button 00: to reset the minutes to
zero.
- from 1 to 29 min
: rounded down to
t h e p r e v i o u s h o u r ,
- from 30 to 59 min: rounded up to
the next hour.
A f t e r s e t t i n g t h e t i m e , p r e s s t h e
DISP button; the time display stops
fl a s h i n g .
Manual mode
Automatic mode
I n t h i s m o d e , s e t t i n g i s a u t o m a t i c u s i n g
the signal from the RDS radio stations. The digital clock does not display
seconds.
When the "minutes" display is
s e t o r r e s e t t o z e r o , t h e c l o c k
starts at the zero second of the
minute selected.
The time setting is lost if the
battery is disconnected.
Turn button B "TUNE" to the left or
to the right to select "CT ON" (auto-
matic mode) or "CT OFF" (manual
mode).
A f t e r s e l e c t i n g t h e m o d e , y o u c a n
exit the "Functions setting mode"
menu by pressing button B "TUNE"
for approximately 2 seconds.
If no action is carried out within
1 0 s e c o n d s , t h e s y s t e m w i l l e x i t
the "Functions setting mode"
menu automatically.
Page 23 of 215
1
INSTRUMENTS and CONTROLS

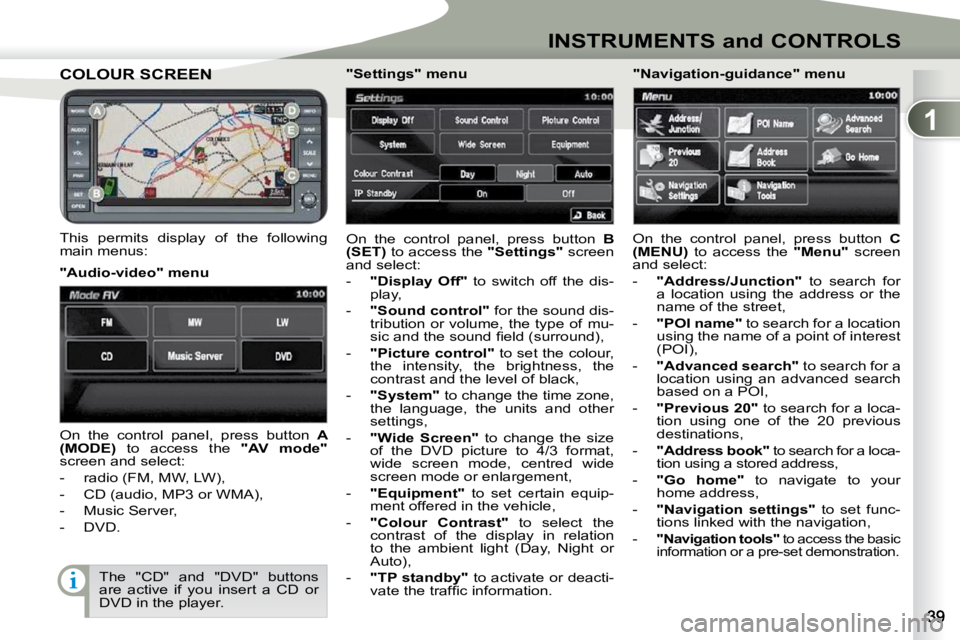

COLOUR SCREEN COLOUR SCREEN
This permits display of the following
main menus: O n t h e c o n t r o l p a n e l , p r e s s b u t t o n
B
(SET) to access the "Settings" screen
and select:
- " D i s p l a y
O f f
" to switch off the dis-
p l a y ,
- "Sound control" for the sound dis-
t r i b u t i o n o r v o l u m e , t h e t y p e o f m u -
s i c a n d t h e s o u n d fi e l d ( s u r r o u n d ) ,
- "Picture control" t o s e t t h e c o l o u r ,
t h e i n t e n s i t y , t h e b r i g h t n e s s , t h e
c o n t r a s t a n d t h e l e v e l o f b l a c k ,
- " S y s t e m " t o c h a n g e t h e t i m e z o n e ,
t h e l a n g u a g e , t h e u n i t s a n d o t h e r
s e t t i n g s ,
- "Wide Screen" to change the size
o f t h e D V D p i c t u r e t o 4 / 3 f o r m a t ,
w i d e s c r e e n m o d e , c e n t r e d w i d e
s c r e e n m o d e o r e n l a r g e m e n t ,
- "Equipment" t o s e t c e r t a i n e q u i p -
m e n t o f f e r e d i n t h e v e h i c l e ,
- "
Colour
Contrast" to select the
contrast of the display in relation
t o t h e a m b i e n t l i g h t ( D a y , N i g h t o r
A u t o ) ,
- " T P s t a n d b y " to activate or deacti-
v a t e t h e t r a f fi c i n f o r m a t i o n .
"Audio-video" menu
"Navigation-guidance" menu
O n t h e c o n t r o l p a n e l , p r e s s b u t t o n A
(MODE) to access the "AV mode"
screen and select:
- r a d i o ( F M , M W , L W ) ,
- C D ( a u d i o , M P 3 o r W M A ) ,
- M u s i c S e r v e r ,
- DVD. "Settings" menu
O n t h e c o n t r o l p a n e l , p r e s s b u t t o n C
(MENU) to access the "Menu" screen
and select:
- "Address/Junction" to search for
a location using the address or the
n a m e o f t h e s t r e e t ,
- "POI name" to search for a location
using the name of a point of interest
( P O I ) ,
- "Advanced search" to search for a
location using an advanced search
b a s e d o n a P O I ,
- "
Previous
20
" to search for a loca-
tion using one of the 20 previous
d e s t i n a t i o n s ,
- "Address book" to search for a loca-
t i o n u s i n g a s t o r e d a d d r e s s ,
- "
Go home
" to navigate to your
h o m e a d d r e s s ,
- "Navigation settings" to set func-
t i o n s l i n k e d w i t h t h e n a v i g a t i o n ,
-
"Navigation tools" to access the basic
information or a pre-set demonstration.
The "CD" and "DVD" buttons
are active if you insert a CD or
DVD in the player.
Page 24 of 215
1
INSTRUMENTS and CONTROLS
Setting the time
The digital clock is set a u t o m a t i c a l l y .
This mode enables the system to set
the local time automatically using the
signal from the RDS stations.
O n t h e c o n t r o l p a n e l , p r e s s b u t t o n
B
(SET) to access the "Settings"
menu.
O n t h e t o u c h s c r e e n , p r e s s b u t t o n B
to access the " S y s t e m " menu.
The system settings screen is
displayed.
" I n f o " m e n u
O n t h e c o n t r o l p a n e l , p r e s s b u t t o n
D
(INFO) to access the " I n f o " screen and
consult:
- " S u p p o r t i n f o " to display the soft-
w a r e a n d d a t a v e r s i o n s ,
- "Vehicle position" to display the
G P S l o c a t i o n o f t h e v e h i c l e ,
- "Calendar" to make a note of
e v e n t s , b i r t h d a y s , e t c . ,
- " J o u r n e y " to display the average
s p e e d , f u e l c o n s u m p t i o n , d i s t a n c e s
a n d d r i v i n g t i m e ,
- "Environment" to display the alti-
t u d e , t h e a t m o s p h e r i c p r e s s u r e , t h e
exterior temperature (the ice symbol
i s d i s p l a y e d i f t h e r e i s a r i s k o f i c e ) ,
- "Air conditioning" to display the
information relating to the air condi-
t i o n i n g ,
- "Mobile
phone
" t o e n t e r a n u m b e r ,
d e l e t e a c h a r a c t e r , m a k e o r r e c e i v e
a call. "Route" menu
O n t h e c o n t r o l p a n e l , p r e s s b u t t o n
E
(NAVI) to access the "Route Menu"
screen and select:
- "Detour" to make a detour through
a s p e c i fi e d r e g i o n ,
- "
I t i n e r a r y
" t o c h a n g e t h e r o u t e ,
- "
V i e w
route" to display a route in
d i f f e r e n t w a y s ,
- "Delete
route" t o d e l e t e a r o u t e ,
- "
N e a r b y
POI" to search for the
POIs in the surrounding area.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
