2010.5 PEUGEOT 4007 Owners Manual

9
PRACTICAL INFORMATION

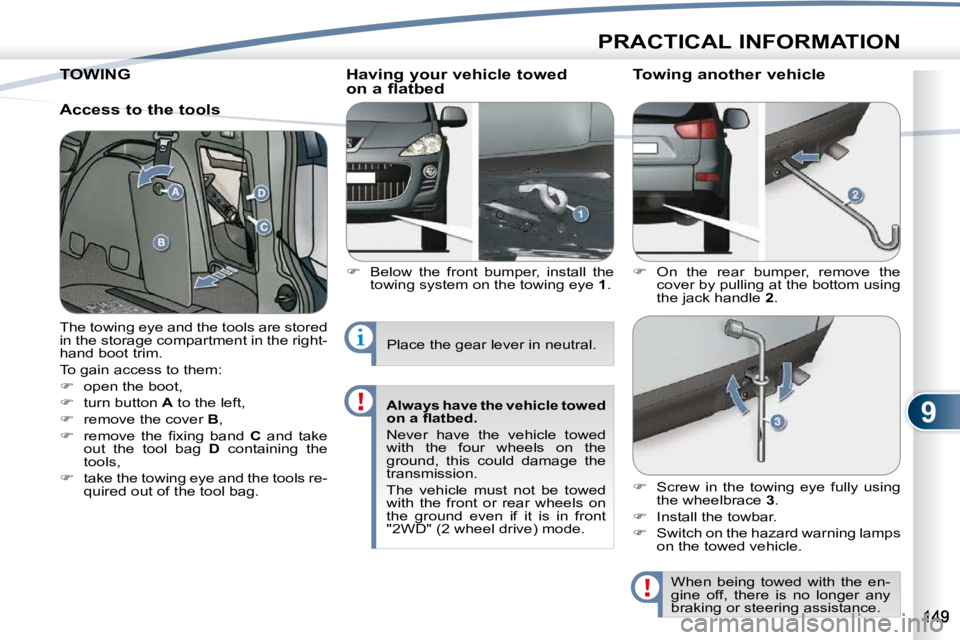

TOWING TOWING
Access to the tools Having your vehicle towed
on a flatbed

 Below the front bumper, install the
towing system on the towing eye 1 .
The towing eye and the tools are stored
in the storage compartment in the right-
hand boot trim.
To gain access to them:

 open the boot,

 turn button A to the left,

 remove the cover B ,

 remove the fi xing band C and take
out the tool bag D containing the
tools,

 take the towing eye and the tools re-
quired out of the tool bag. Place the gear lever in neutral.

Always have the vehicle towed
on a fl atbed.
Never have the vehicle towed
with the four wheels on the
ground, this could damage the
transmission.
The vehicle must not be towed
with the front or rear wheels on
the ground even if it is in front
"2WD" (2 wheel drive) mode. Towing another vehicle

 On the rear bumper, remove the
cover by pulling at the bottom using
the jack handle 2 .

 Screw in the towing eye fully using
the wheelbrace 3 .

 Install the towbar.

 Switch on the hazard warning lamps
on the towed vehicle.
When being towed with the en-
gine off, there is no longer any
braking or steering assistance.

9
PRACTICAL INFORMATION

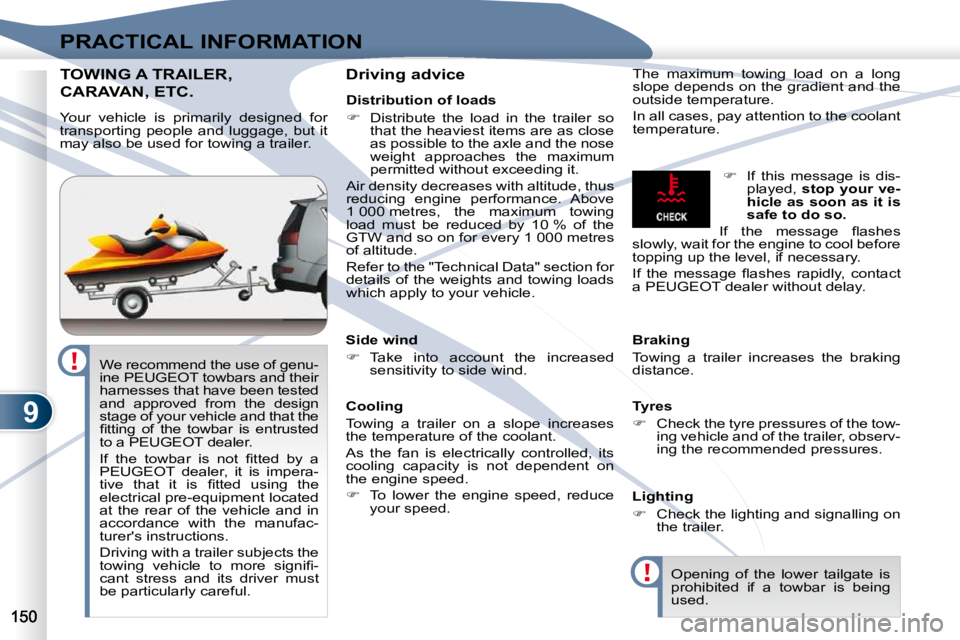

TOWING TOWING A TRAILER,
CARAVAN, ETC. CARAVAN, ETC.
Driving advice The maximum towing load on a long
slope depends on the gradient and the
outside temperature.
In all cases, pay attention to the coolant
temperature.
Side wind

 Take into account the increased
sensitivity to side wind.
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.

 To lower the engine speed, reduce
your speed. Braking
Towing a trailer increases the braking
distance.
Tyres

 Check the tyre pressures of the tow-
ing vehicle and of the trailer, observ-
ing the recommended pressures.
Lighting

 Check the lighting and signalling on
the trailer.
 If this message is dis-
played, stop your ve-
hicle as soon as it is
safe to do so.
If the message fl ashes
slowly, wait for the engine to cool before
topping up the level, if necessary.
If the message fl ashes rapidly, contact
a PEUGEOT dealer without delay.
Opening of the lower tailgate is
prohibited if a towbar is being
used.
We recommend the use of genu-
ine PEUGEOT towbars and their
harnesses that have been tested
and approved from the design
stage of your vehicle and that the
fi tting of the towbar is entrusted
to a PEUGEOT dealer.
If the towbar is not fi tted by a
PEUGEOT dealer, it is impera-
tive that it is fi tted using the
electrical pre-equipment located
at the rear of the vehicle and in
accordance with the manufac-
turer's instructions.
Driving with a trailer subjects the
towing vehicle to more signifi -
cant stress and its driver must
be particularly careful.
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer.
Distribution of loads

 Distribute the load in the trailer so
that the heaviest items are as close
as possible to the axle and the nose
weight approaches the maximum
permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towing
load must be reduced by 10 % of the
GTW and so on for every 1 000 metres
of altitude.
Refer to the "Technical Data" section for
details of the weights and towing loads
which apply to your vehicle.

9
PRACTICAL INFORMATION

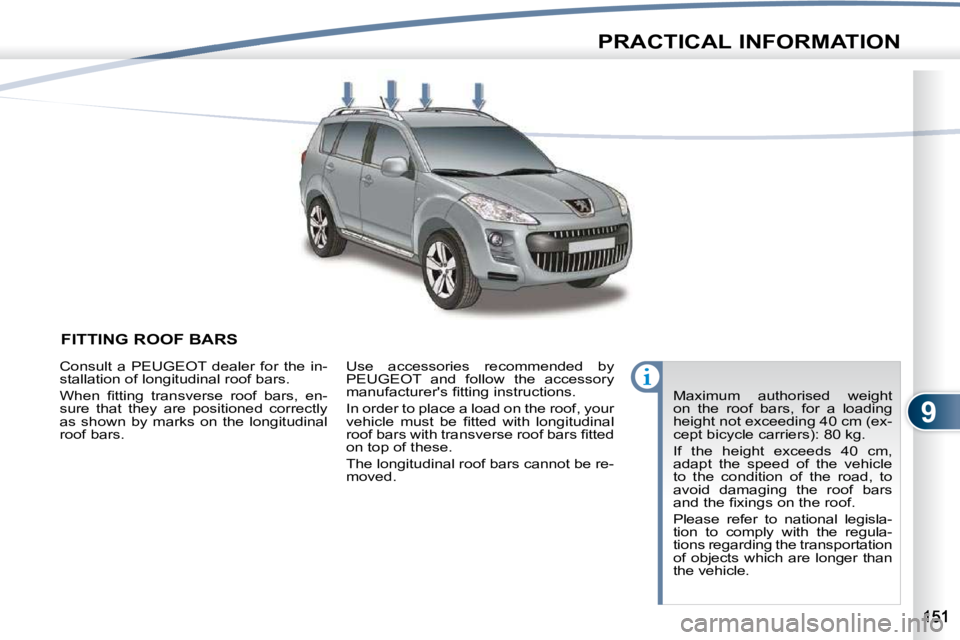

FITTING ROOF BARS
Maximum authorised weight
on the roof bars, for a loading
height not exceeding 40 cm (ex-
cept bicycle carriers): 80 kg.
If the height exceeds 40 cm,
adapt the speed of the vehicle
to the condition of the road, to
avoid damaging the roof bars
and the fi xings on the roof.
Please refer to national legisla-
tion to comply with the regula-
tions regarding the transportation
of objects which are longer than
the vehicle.
Consult a PEUGEOT dealer for the in-
stallation of longitudinal roof bars.
When fi tting transverse roof bars, en-
sure that they are positioned correctly
as shown by marks on the longitudinal
roof bars.
Use accessories recommended by
PEUGEOT and follow the accessory
manufacturer's fi tting instructions.
In order to place a load on the roof, your
vehicle must be fi tted with longitudinal
roof bars with transverse roof bars fi tted
on top of these.
The longitudinal roof bars cannot be re-
moved.

9
PRACTICAL INFORMATION
The fi tting of electrical equip-
ment or accessories which are
not recommended by PEUGEOT
may result in a failure of your
vehicle's electronic system.
Please note this specifi c warn-
ing. You are advised to contact
a your dealer to be shown the
range of recommended equip-
ment and accessories.
ACCESSORIES ACCESSORIES
"Protection": "Touring":
"In-car technology":
"Styling":
"Universal":
* To prevent any risk of jamming of the pedals:
- ensure that the mat is positioned and secured correctly,
- never fi t one mat on top of another. Depending on the country in
which the vehicle is sold, it is
compulsory to have a high vis-
ibility jacket, warning triangle
and spare bulbs available in the
vehicle.
anti-theft alarm, window etch-
ing, wheel security bolts, fi rst
aid kit, warning triangle, high
visibility jacket, stolen vehicle
tracking system, anti-skid cov-
ers, tyre under-infl ation detec-
tion, rear parking sensors. mats * , boot tray, dog guard,
PVC door sills, cool box.
For leisure pursuits: roof bars,
bicycle carrier on roof bars,
ski carrier, roof box, booster
seats and child seats, side
blinds.
Trailer towbar which must be fi tted by
the PEUGEOT network.
MP3/USB audio systems,
audio-telephone, amplifi ers,
satellite navigation systems,
hands-free kit, speakers, DVD
player, connection kit for MP3
player or portable CD player,
rear parking sensors, alarm. door defl ectors, rear styling
strips, 18 inch alloy wheels,
chromed exterior mirror shells,
chromed door handle shells,
diffuser on rear bumper, side
protection mouldings, aluminium
boot sill.
screenwash, interior and ex-
terior maintenance and clean-
ing products.
It is advisable to contact a
PEUGEOT dealer before install-
ing accessory radio communica-
tion transmitters with an external
aerial on your vehicle.
The PEUGEOT network will pro-
vide the specifi cations (frequency
band, maximum output power,
aerial position, special installa-
tion conditions) of the transmitters
which can be fi tted, in accordance
with the Motor Vehicle Electro-
magnetic Compatibility Directive
(2004/104/EC).
You can obtain a wide range of
accessories and original parts from the
PEUGEOT network.
These accessories and parts have
been tested and approved for reliability
and safety.
They are all adapted to your vehicle
and benefi t from PEUGEOT's recom-
mendation and warranty.
The product range offered by PEUGEOTAccessories is structured around 5 categories: PROTECTION - TOURING - IN-CAR TECHNOLOGY - STYLING -
UNIVERSAL.

10
TECHNICAL DATA

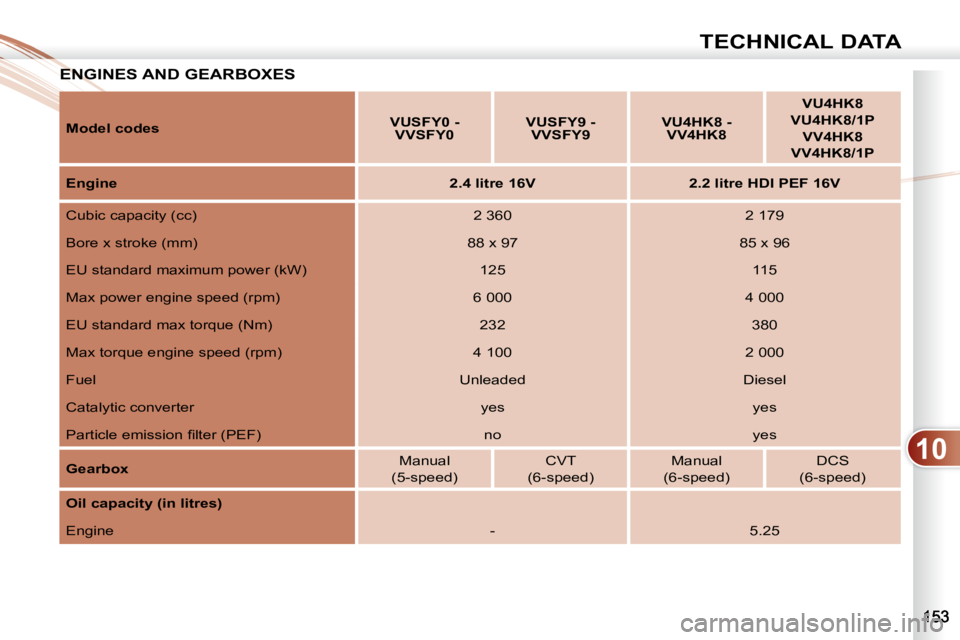

ENGINES AND GEARBOXES ENGINES

Model codes
VUSFY0 -
VVSFY0
VUSFY9 -
VVSFY9
V
U4HK8 -
VV4HK8
VU4HK8

VU4HK8/1P

VV4HK8

VV4HK8/
1P

Engine
2.4 litre 16V 2.2 litre HDI PEF 16V
Cubic capacity (cc) 2 360 2 179
Bore x stroke (mm) 88 x 97 85 x 96
EU standard maximum power (kW) 125 115
Max power engine speed (rpm) 6 000 4 000
EU standard max torque (Nm) 232 380
Max torque engine speed (rpm) 4 100 2 000
Fuel Unleaded Diesel
Catalytic converter yes yes
Particle emission fi lter (PEF) no yes

Gearbox Manual
(5-speed) CVT
(6-speed) Manual
(6-speed) DCS
(6-speed)

Oil capacity (in litres)

Engine - 5.25

10
TECHNICAL DATA

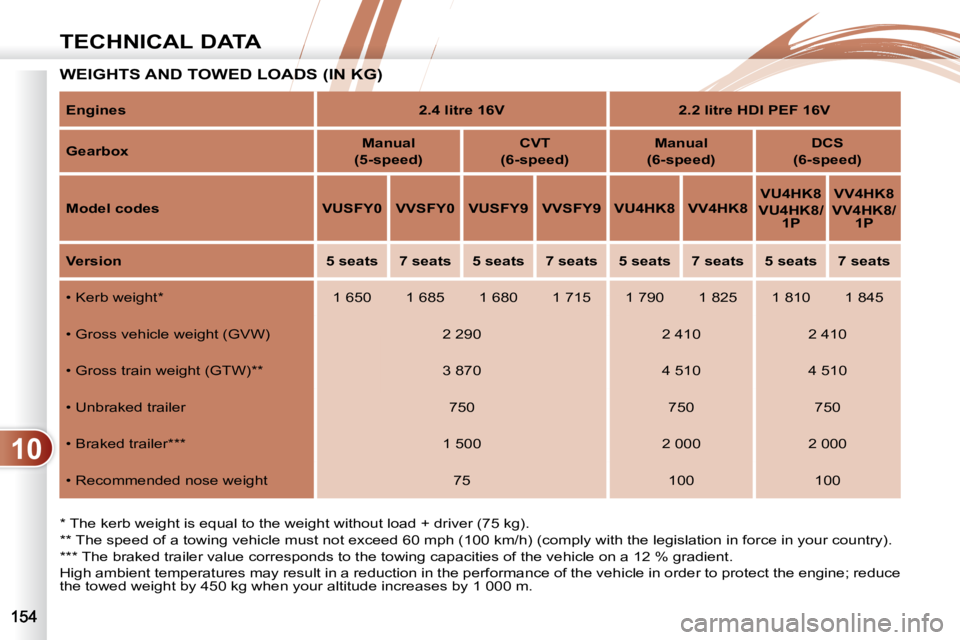

WEIGHTS AND TOWED LOADS (IN KG) OWED LOADS (IN KG)
* The kerb weight is equal to the weight without load + driver (75 kg).
** The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
*** The braked trailer value corresponds to the towing cap acities of the vehicle on a 12 % gradient.
High ambient temperatures may result in a reduction in the pe rformance of the vehicle in order to protect the engine; reduce
the towed weight by 450 kg when your altitude increases by 1 000 m.

Engines
2.4 litre 16V 2.2 litre HDI PEF 16V

Gearbox
Manual
(5-speed)
CVT
(6-speed)
Manual

(6-speed)
DCS
(6-speed)

Model codes VUSFY0 VVSFY0 VUSFY9 VVSFY9 VU4HK8 VV4HK8
VU4HK8

VU4HK8/
1P
VV4HK8

VV4HK8/
1P

Version 5 seats 7 seats 5 seats 7 seats 5 seats 7 seats 5 seats 7 seats

10
TECHNICAL DATA

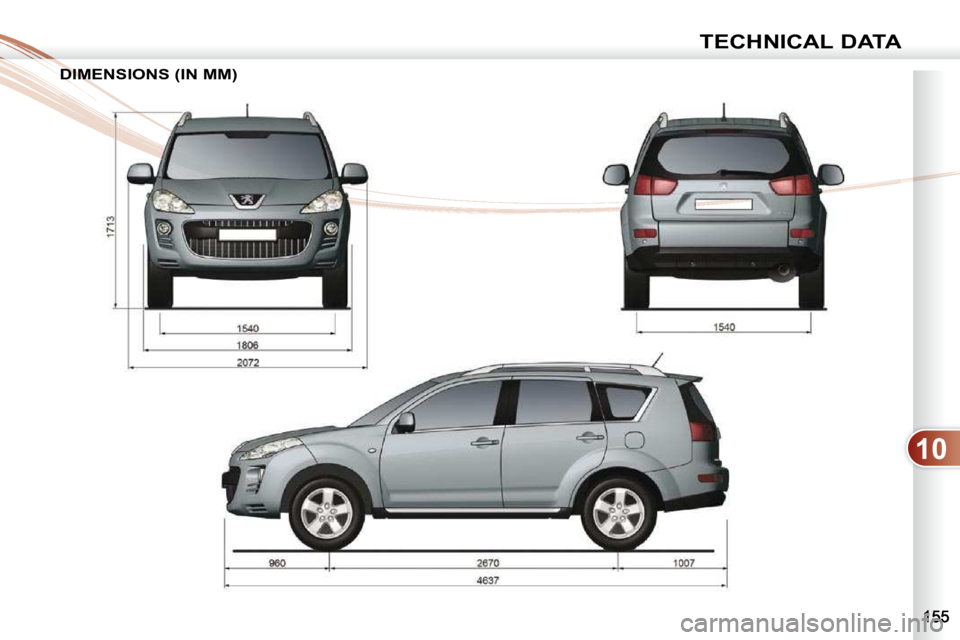

DIMENSIONS (IN MM) DIMENSIONS (IN MM)

10
TECHNICAL DATA

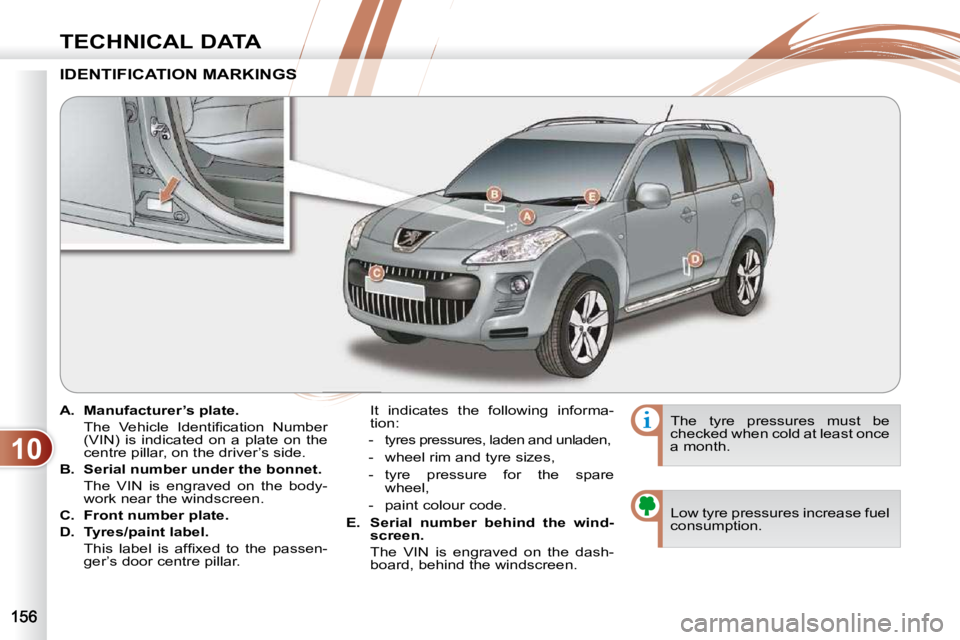

A. Manufacturer’s plate.
The Vehicle Identifi cation Number (VIN) is indicated on a plate on the
centre pillar, on the driver’s side.

B. Serial number under the bonnet.
The VIN is engraved on the body- work near the windscreen.

C. Front number plate.

D. Tyres/paint label.
This label is affi xed to the passen- ger’s door centre pillar. It indicates the following informa-
tion:
-
tyres pressures, laden and unladen,
- wheel rim and tyre sizes,
- tyre pressure for the spare wheel,
- paint colour code.

E. Serial number behind the wind-
screen.
The VIN is engraved on the dash- board, behind the windscreen. The tyre pressures must be
checked when cold at least once
a month.
IDENTIFICATION MARKINGS TION MARKINGS
Low tyre pressures increase fuel
consumption.
