1
INSTRUMENTS and CONTROLS

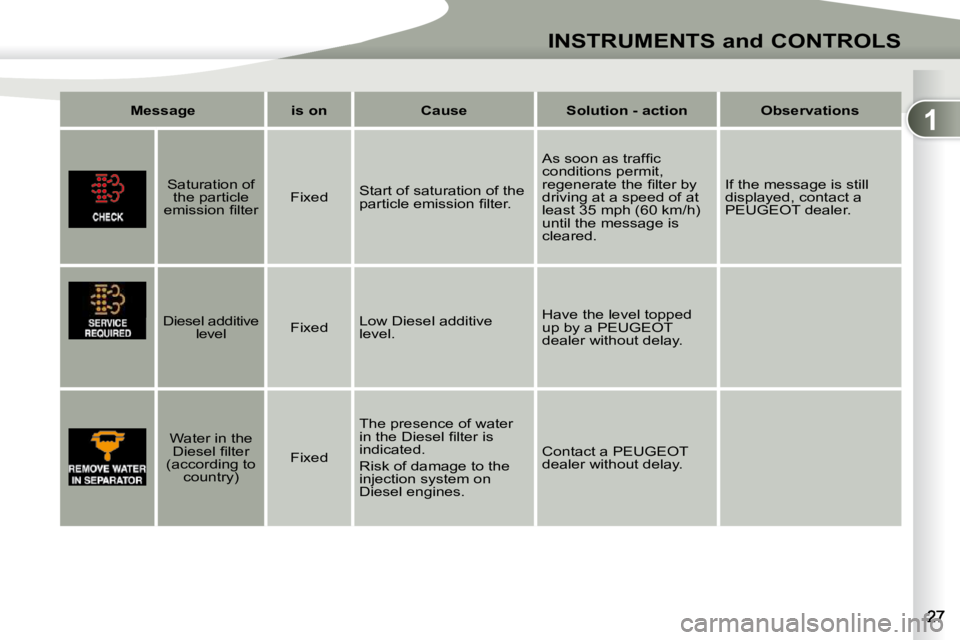

Message is on Cause Solution - action Observations
Saturation of
the particle
e m i s s i o n fi l t e r Fixed
Start of saturation of the
p a r t i c l e e m i s s i o n fi l t e r . A s s o o n a s t r a f fi c
c o n d i t i o n s p e r m i t ,
r e g e n e r a t e t h e fi l t e r b y
driving at a speed of at
least 35 mph (60 km/h)
until the message is
cleared. If the message is still
d i s p l a y e d , c o n t a c t a
PEUGEOT dealer.
Diesel additive
level Fixed Low Diesel additive
level. Have the level topped
up by a PEUGEOT
dealer without delay.
Water in the D i e s e l fi l t e r
(according to country) Fixed The presence of water
i n t h e D i e s e l fi l t e r i s
indicated.
Risk of damage to the
injection system on
Diesel engines. Contact a PEUGEOT
dealer without delay.
Page 10 of 215
1
INSTRUMENTS and CONTROLS

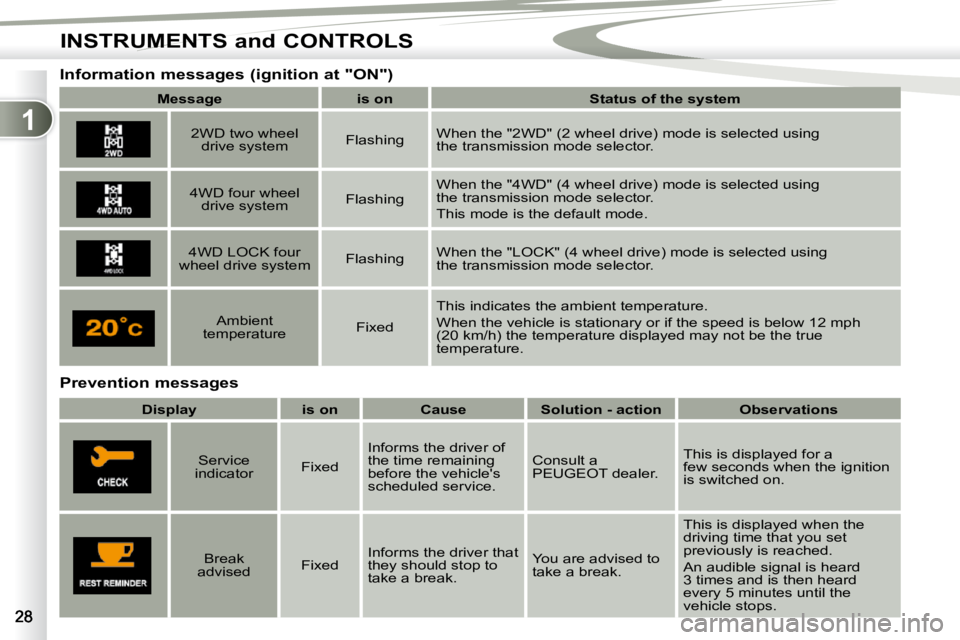

Prevention messages
I n f o r m a t i o n m e s s a g e s ( i g n i t i o n a t " O N " )
Message is on S t a t u s o f t h e s y s t e m
2WD two wheel
drive system Flashing When the "2WD" (2 wheel drive) mode is selected using
the transmission mode selector.
4WD four wheel
drive system Flashing When the "4WD" (4 wheel drive) mode is selected using
the transmission mode selector.
This mode is the default mode.
4WD LOCK four
wheel drive system Flashing When the "LOCK" (4 wheel drive) mode is selected using
the transmission mode selector.
Ambient
temperature Fixed This indicates the ambient temperature.
When the vehicle is stationary or if the speed is below 12 mp
h
(20 km/h) the temperature displayed may not be the true
temperature.
D i s p l a y is on Cause Solution - action Observations
Service
indicator Fixed Informs the driver of
the time remaining
before the vehicle's
scheduled service. Consult a
PEUGEOT dealer.
This is displayed for a
few seconds when the ignition
is switched on.
Break
advised Fixed Informs the driver that
they should stop to
take a break. You are advised to
take a break. This is displayed when the
driving time that you set
previously is reached.
An audible signal is heard
3 times and is then heard
every 5 minutes until the
vehicle stops.
Page 11 of 215
1
INSTRUMENTS and CONTROLS
The total distance is
displayed in zone 1
of the screen and the
trip distance in zone 2
(refer to the "Distance
recorders" section).
Distance recorder (A and B)

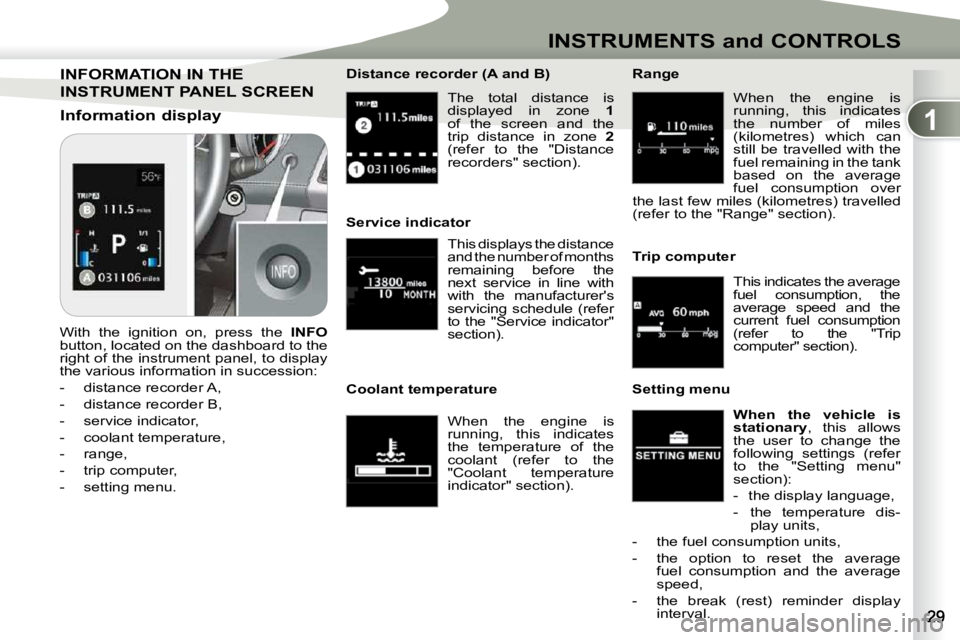

INFORMATION IN THE INFORMATION IN THE
INSTRUMENT PANEL SCREEN
I n f o r m a t i o n d i s p l a y
W i t h t h e i g n i t i o n o n , p r e s s t h e INFO
b u t t o n , l o c a t e d o n t h e d a s h b o a r d t o t h e
r i g h t o f t h e i n s t r u m e n t p a n e l , t o d i s p l a y
the various information in succession:
- d i s t a n c e r e c o r d e r A ,
- d i s t a n c e r e c o r d e r B ,
- s e r v i c e i n d i c a t o r ,
- c o o l a n t t e m p e r a t u r e ,
- r a n g e ,
- t r i p c o m p u t e r ,
- setting menu. This displays the distance
and the number of months
remaining before the
next service in line with
with the manufacturer's
servicing schedule (refer
to the "Service indicator"
section).
Service indicator
When the engine is
r u n n i n g , t h i s i n d i c a t e s
the temperature of the
coolant (refer to the
"Coolant temperature
indicator" section).
Coolant temperature When the engine is
r u n n i n g , t h i s i n d i c a t e s
the number of miles
(kilometres) which can
still be travelled with the
fuel remaining in the tank
based on the average
fuel consumption over
the last few miles (kilometres) travelled
(refer to the "Range" section).
Range
This indicates the average
f u e l c o n s u m p t i o n , t h e
average speed and the
current fuel consumption
(refer to the "Trip
computer" section).
Trip computer
When the vehicle is
s t a t i o n a r y , t h i s a l l o w s
the user to change the
following settings (refer
to the "Setting menu"
section):
- t h e d i s p l a y l a n g u a g e ,
- the temperature dis- p l a y u n i t s ,
- t h e f u e l c o n s u m p t i o n u n i t s ,
- the option to reset the average fuel consumption and the average
s p e e d ,
- the break (rest) reminder display interval.
Setting menu
Page 12 of 215
1
INSTRUMENTS and CONTROLS
The total distance is
displayed in zone 1 of
the screen and the trip
distance in zone 2 .

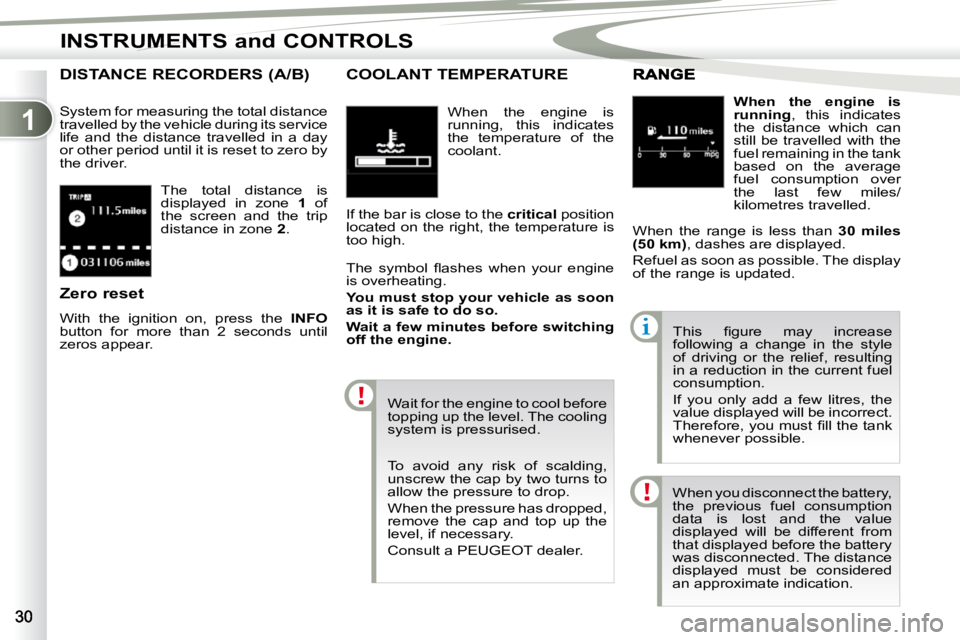

DISTANCE RECORDERS (A/B)
System for measuring the total distance
travelled by the vehicle during its service
life and the distance travelled in a day
or other period until it is reset to zero by
the driver.
Zero reset
W i t h t h e i g n i t i o n o n , p r e s s t h e INFO
button for more than 2 seconds until
zeros appear. When the engine is
r u n n i n g , t h i s i n d i c a t e s
the temperature of the
coolant.
COOLANT TEMPERATURE
If the bar is close to the
critical position
l o c a t e d o n t h e r i g h t , t h e t e m p e r a t u r e i s
too high.
T h e s y m b o l fl a s h e s w h e n y o u r e n g i n e
is overheating.
You must
s t o p y o u r v e h i c l e
as soon
as it
is
s a f e t o d o s o
.
W a i t a f e w m i n u t e s b e f o r e s w i t c h i n g
o f f t h e e n g i n e .
Wait for the engine to cool before
topping up the level. The cooling
system is pressurised.
When the engine is
running , t h i s i n d i c a t e s
the distance which can
still be travelled with the
fuel remaining in the tank
based on the average
fuel consumption over
the last few miles/
kilometres travelled.
RANGE
When the range is less than 30 miles
(50 km) , d a s h e s a r e d i s p l a y e d .
Refuel as soon as possible. The display
of the range is updated.
T o a v o i d a n y r i s k o f s c a l d i n g ,
unscrew the cap by two turns to
allow the pressure to drop.
W h e n t h e p r e s s u r e h a s d r o p p e d ,
remove the cap and top up the
l e v e l , i f n e c e s s a r y .
Consult a PEUGEOT dealer. T h i s fi g u r e m a y i n c r e a s e
following a change in the style
o f d r i v i n g o r t h e r e l i e f , r e s u l t i n g
in a reduction in the current fuel
consumption.
I f y o u o n l y a d d a f e w l i t r e s , t h e
value displayed will be incorrect.
T h e r e f o r e , y o u m u s t fi l l t h e t a n k
whenever possible.
W h e n y o u d i s c o n n e c t t h e b a t t e r y ,
the previous fuel consumption
data is lost and the value
displayed will be different from
that displayed before the battery
was disconnected. The distance
displayed must be considered
an approximate indication.
Page 13 of 215
1
INSTRUMENTS and CONTROLS

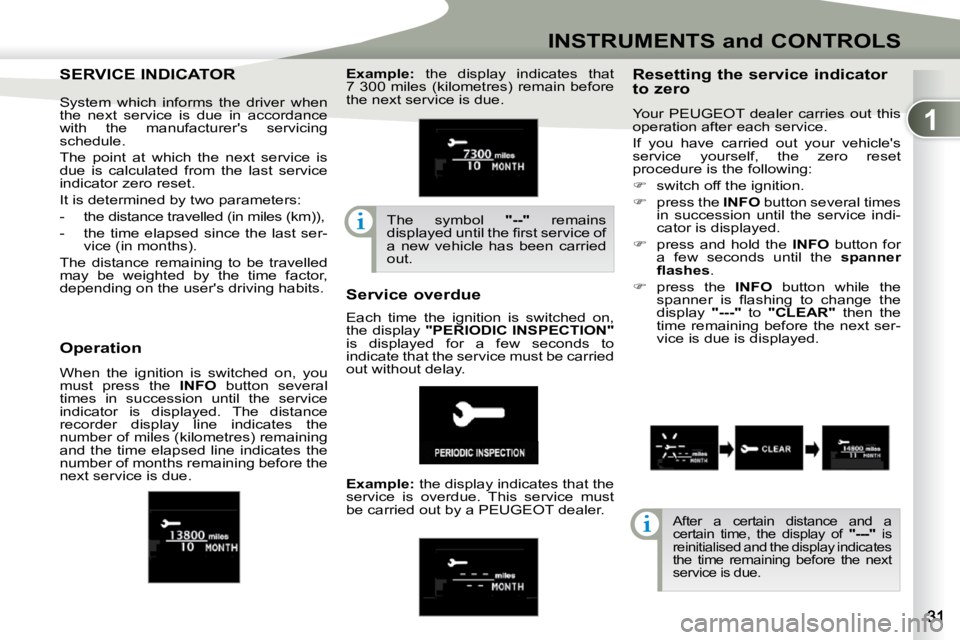

SERVICE INDICATOR SERVICE INDICATOR Resetting the service indicator
to zero
Your PEUGEOT dealer carries out this
operation after each service.
If you have carried out your vehicle's
s e r v i c e y o u r s e l f , t h e z e r o r e s e t
procedure is the following:
switch off the ignition.
press the INFO button several times
in succession until the service indi-
cator is displayed.
press and hold the INFO button for
a few seconds until the spanner
fl a s h e s .
press the INFO button while the
s p a n n e r i s fl a s h i n g t o c h a n g e t h e
display "---" to "CLEAR" then the
time remaining before the next ser-
vice is due is displayed.
Service overdue
Operation
W h e n t h e i g n i t i o n i s s w i t c h e d o n , y o u
must press the INFO button several
times in succession until the service
indicator is displayed. The distance
recorder display line indicates the
number of miles (kilometres) remaining
and the time elapsed line indicates the
number of months remaining before the
next service is due.
After a certain distance and a
c e r t a i n t i m e , t h e d i s p l a y o f "---" is
reinitialised and the display indicates
the time remaining before the next
service is due.
System which informs the driver when
the next service is due in accordance
with the manufacturer's servicing
schedule.
The point at which the next service is
due is calculated from the last service
indicator zero reset.
It is determined by two parameters:
- t h e d i s t a n c e t r a v e l l e d ( i n m i l e s ( k m ) ) ,
- the time elapsed since the last ser- vice (in months).
The distance remaining to be travelled
m a y b e w e i g h t e d b y t h e t i m e f a c t o r ,
depending on the user's driving habits.
Example: the display indicates that
7 300 miles (kilometres) remain before
the next service is due.
The symbol "--" remains
d i s p l a y e d u n t i l t h e fi r s t s e r v i c e o f
a new vehicle has been carried
out.
Example: the display indicates that the
service is overdue. This service must
be carried out by a PEUGEOT dealer.
E a c h t i m e t h e i g n i t i o n i s s w i t c h e d o n ,
the display
"
PERIODIC INSPECTION
"
is displayed for a few seconds to
indicate that the service must be carried
out without delay.
Page 14 of 215
1
INSTRUMENTS and CONTROLS
The total distance is
displayed in zone 1 of
the screen and the trip
distance in zone 2 .
DISTANCE RECORDERS (A/B)
System for measuring the total distance
travelled by the vehicle during its service
life and the distance travelled in a day
or other period until it is reset to zero by
the driver.
Zero reset
W i t h t h e i g n i t i o n o n , p r e s s t h e INFO
button for more than 2 seconds until
zeros appear. When the engine is
r u n n i n g , t h i s i n d i c a t e s
the temperature of the
coolant.
COOLANT TEMPERATURE
If the bar is close to the
critical position
l o c a t e d o n t h e r i g h t , t h e t e m p e r a t u r e i s
too high.
T h e s y m b o l fl a s h e s w h e n y o u r e n g i n e
is overheating.
You must
s t o p y o u r v e h i c l e
as soon
as it
is
s a f e t o d o s o
.
W a i t a f e w m i n u t e s b e f o r e s w i t c h i n g
o f f t h e e n g i n e .
Wait for the engine to cool before
topping up the level. The cooling
system is pressurised.
When the engine is
running , t h i s i n d i c a t e s
the distance which can
still be travelled with the
fuel remaining in the tank
based on the average
fuel consumption over
the last few miles/
kilometres travelled.
RANGE
When the range is less than 30 miles
(50 km) , d a s h e s a r e d i s p l a y e d .
Refuel as soon as possible. The display
of the range is updated.
T o a v o i d a n y r i s k o f s c a l d i n g ,
unscrew the cap by two turns to
allow the pressure to drop.
W h e n t h e p r e s s u r e h a s d r o p p e d ,
remove the cap and top up the
l e v e l , i f n e c e s s a r y .
Consult a PEUGEOT dealer. T h i s fi g u r e m a y i n c r e a s e
following a change in the style
o f d r i v i n g o r t h e r e l i e f , r e s u l t i n g
in a reduction in the current fuel
consumption.
I f y o u o n l y a d d a f e w l i t r e s , t h e
value displayed will be incorrect.
T h e r e f o r e , y o u m u s t fi l l t h e t a n k
whenever possible.
W h e n y o u d i s c o n n e c t t h e b a t t e r y ,
the previous fuel consumption
data is lost and the value
displayed will be different from
that displayed before the battery
was disconnected. The distance
displayed must be considered
an approximate indication.
Page 15 of 215
1
INSTRUMENTS and CONTROLS
SERVICE INDICATOR SERVICE INDICATOR Resetting the service indicator
to zero
Your PEUGEOT dealer carries out this
operation after each service.
If you have carried out your vehicle's
s e r v i c e y o u r s e l f , t h e z e r o r e s e t
procedure is the following:
switch off the ignition.
press the INFO button several times
in succession until the service indi-
cator is displayed.
press and hold the INFO button for
a few seconds until the spanner
fl a s h e s .
press the INFO button while the
s p a n n e r i s fl a s h i n g t o c h a n g e t h e
display "---" to "CLEAR" then the
time remaining before the next ser-
vice is due is displayed.
Service overdue
Operation
W h e n t h e i g n i t i o n i s s w i t c h e d o n , y o u
must press the INFO button several
times in succession until the service
indicator is displayed. The distance
recorder display line indicates the
number of miles (kilometres) remaining
and the time elapsed line indicates the
number of months remaining before the
next service is due.
After a certain distance and a
c e r t a i n t i m e , t h e d i s p l a y o f "---" is
reinitialised and the display indicates
the time remaining before the next
service is due.
System which informs the driver when
the next service is due in accordance
with the manufacturer's servicing
schedule.
The point at which the next service is
due is calculated from the last service
indicator zero reset.
It is determined by two parameters:
- t h e d i s t a n c e t r a v e l l e d ( i n m i l e s ( k m ) ) ,
- the time elapsed since the last ser- vice (in months).
The distance remaining to be travelled
m a y b e w e i g h t e d b y t h e t i m e f a c t o r ,
depending on the user's driving habits.
Example: the display indicates that
7 300 miles (kilometres) remain before
the next service is due.
The symbol "--" remains
d i s p l a y e d u n t i l t h e fi r s t s e r v i c e o f
a new vehicle has been carried
out.
Example: the display indicates that the
service is overdue. This service must
be carried out by a PEUGEOT dealer.
E a c h t i m e t h e i g n i t i o n i s s w i t c h e d o n ,
the display
"
PERIODIC INSPECTION
"
is displayed for a few seconds to
indicate that the service must be carried
out without delay.
Page 16 of 215
1
INSTRUMENTS and CONTROLS

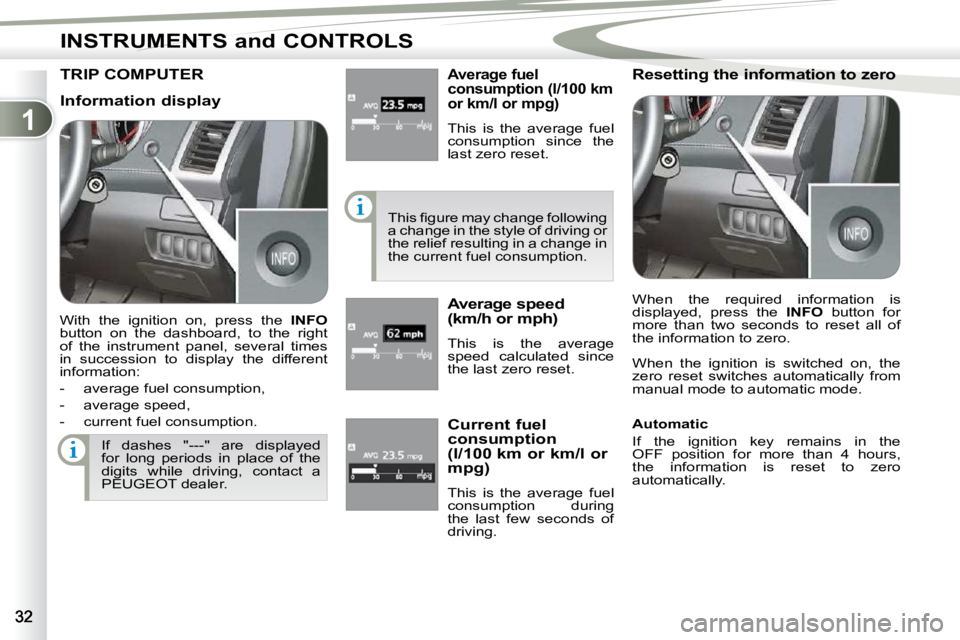

TRIP COMPUTER A v e r a g e f u e l
consumption (l/100 km
or km/l or mpg)
This is the average fuel
consumption since the
last zero reset.
T h i s fi g u r e m a y c h a n g e f o l l o w i n g
a change in the style of driving or
the relief resulting in a change in
the current fuel consumption. Average speed
(km/h or mph)
This is the average
speed calculated since
the last zero reset. R e s e t t i n g t h e i n f o r m a t i o n t o z e r o
W h e n t h e i g n i t i o n i s s w i t c h e d o n , t h e
zero reset switches automatically from
manual mode to automatic mode.
If dashes "---" are displayed
for long periods in place of the
d i g i t s w h i l e d r i v i n g , c o n t a c t a
PEUGEOT dealer. C u r r e n t f u e l
consumption
(l/100 km or km/l or
mpg)
This is the average fuel
consumption during
the last few seconds of
driving.
I n f o r m a t i o n d i s p l a y
W i t h t h e i g n i t i o n o n , p r e s s t h e INFO
b u t t o n o n t h e d a s h b o a r d , t o t h e r i g h t
o f t h e i n s t r u m e n t p a n e l , s e v e r a l t i m e s
in succession to display the different
information:
- a v e r a g e f u e l c o n s u m p t i o n ,
- a v e r a g e s p e e d ,
- current fuel consumption. W h e n t h e r e q u i r e d i n f o r m a t i o n i s
d i s p l a y e d , p r e s s t h e
INFO button for
more than two seconds to reset all of
the information to zero.
Automatic
If the ignition key remains in the
O F F p o s i t i o n f o r m o r e t h a n 4 h o u r s ,
the information is reset to zero
automatically.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
