PRACTICAL INFORMATION

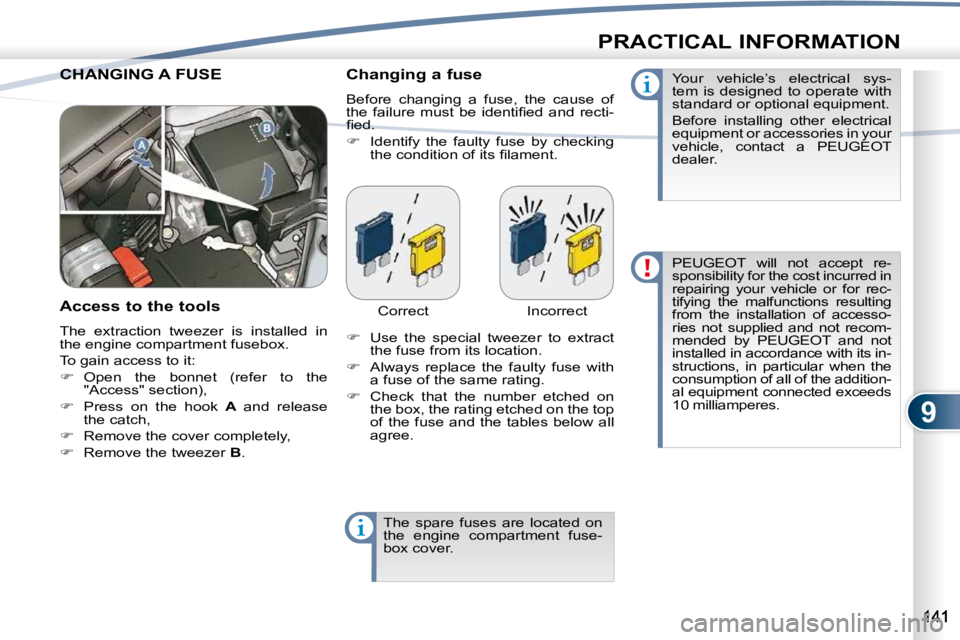

CHANGING A FUSE CHANGING Changing a fuse
Before changing a fuse, the cause of
the failure must be identifi ed and recti-
fi ed.

 Identify the faulty fuse by checking
the condition of its fi lament.
Access to the tools
The extraction tweezer is installed in
the engine compartment fusebox.
To gain access to it:

 Open the bonnet (refer to the
"Access" section),

 Press on the hook A and release
the catch,

 Remove the cover completely,

 Remove the tweezer B . Correct Incorrect

 Use the special tweezer to extract
the fuse from its location.

 Always replace the faulty fuse with
a fuse of the same rating.

 Check that the number etched on
the box, the rating etched on the top
of the fuse and the tables below all
agree.
The spare fuses are located on
the engine compartment fuse-
box cover. Your vehicle’s electrical sys-
tem is designed to operate with
standard or optional equipment.
Before installing other electrical
equipment or accessories in your
vehicle, contact a PEUGEOT
dealer.
PEUGEOT will not accept re-
sponsibility for the cost incurred in
repairing your vehicle or for rec-
tifying the malfunctions resulting
from the installation of accesso-
ries not supplied and not recom-
mended by PEUGEOT and not
installed in accordance with its in-
structions, in particular when the
consumption of all of the addition-
al equipment connected exceeds
10 milliamperes.

9
PRACTICAL INFORMATION

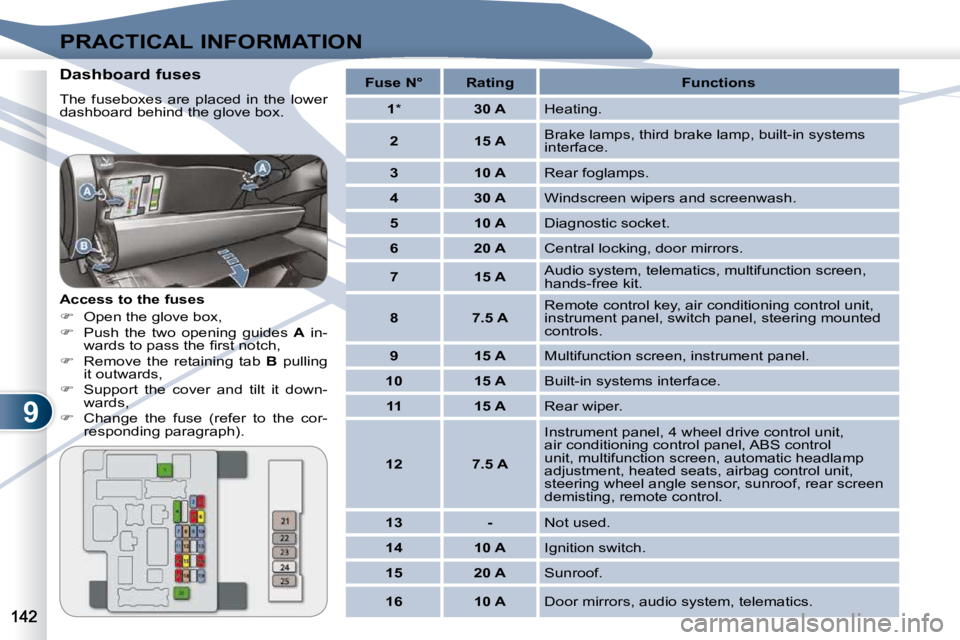

Dashboard fuses
The fuseboxes are placed in the lower
dashboard behind the glove box.
Access to the fuses

 Open the glove box,

 Push the two opening guides A in-
wards to pass the fi rst notch,

 Remove the retaining tab B pulling
it outwards,

 Support the cover and tilt it down-
wards,

 Change the fuse (refer to the cor-
responding paragraph).
Fuse N° Rating Functions

1 * 30 A Heating.

2 15 A Brake lamps, third brake lamp, built-in systems
interface.

3 10 A Rear foglamps.

4 30 A Windscreen wipers and screenwash.

5 10 A Diagnostic socket.

6 20 A Central locking, door mirrors.

7 15 A Audio system, telematics, multifunction screen,
hands-free kit.

8 7.5 A Remote control key, air conditioning control unit,
instrument panel, switch panel, steering mounted
controls.

9 15 A Multifunction screen, instrument panel.

10 15 A Built-in systems interface.

11 15 A Rear wiper.

12 7.5 A Instrument panel, 4 wheel drive control unit,
air conditioning control panel, ABS control
unit, multifunction screen, automatic headlamp
adjustment, heated seats, airbag control unit,
steering wheel angle sensor, sunroof, rear screen
demisting, remote control.

13 - Not used.

14 10 A Ignition switch.

15 20 A Sunroof.

16 10 A Door mirrors, audio system, telematics.

9
PRACTICAL INFORMATION

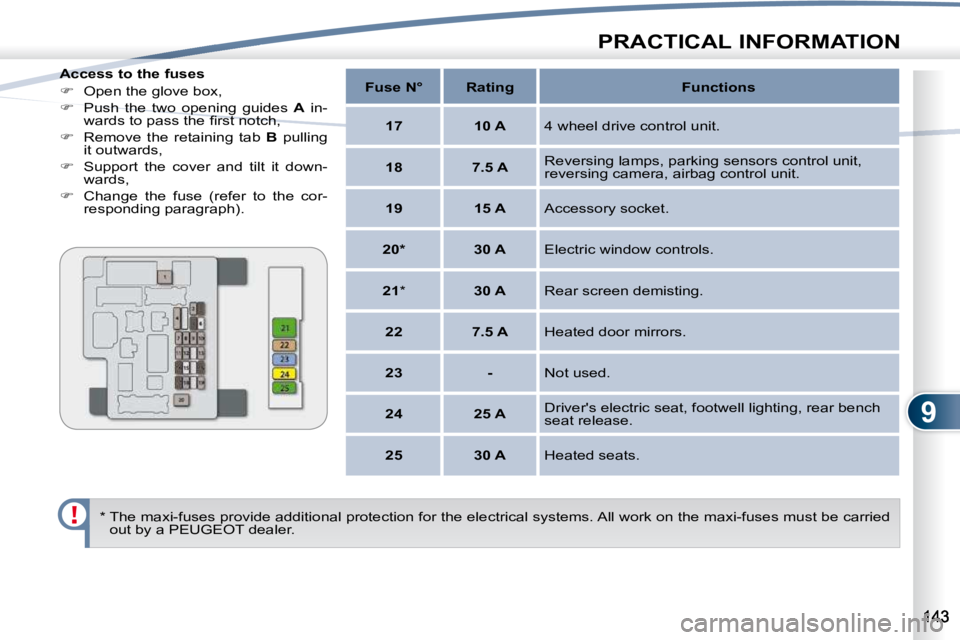

Access to the fuses

 Open the glove box,

 Push the two opening guides A in-
wards to pass the fi rst notch,

 Remove the retaining tab B pulling
it outwards,

 Support the cover and tilt it down-
wards,

 Change the fuse (refer to the cor-
responding paragraph).
* The maxi-fuses provide additional protection for the elect rical systems. All work on the maxi-fuses must be carried
out by a PEUGEOT dealer.
Fuse N° Rating Functions

17 10 A 4 wheel drive control unit.

18 7.5 A Reversing lamps, parking sensors control unit,
reversing camera, airbag control unit.

19 15 A Accessory socket.

20* 30 A Electric window controls.

21 * 30 A Rear screen demisting.

22 7.5 A Heated door mirrors.

23 - Not used.

24 25 A Driver's electric seat, footwell lighting, rear bench
seat release.

25 30 A Heated seats.

9
PRACTICAL INFORMATION

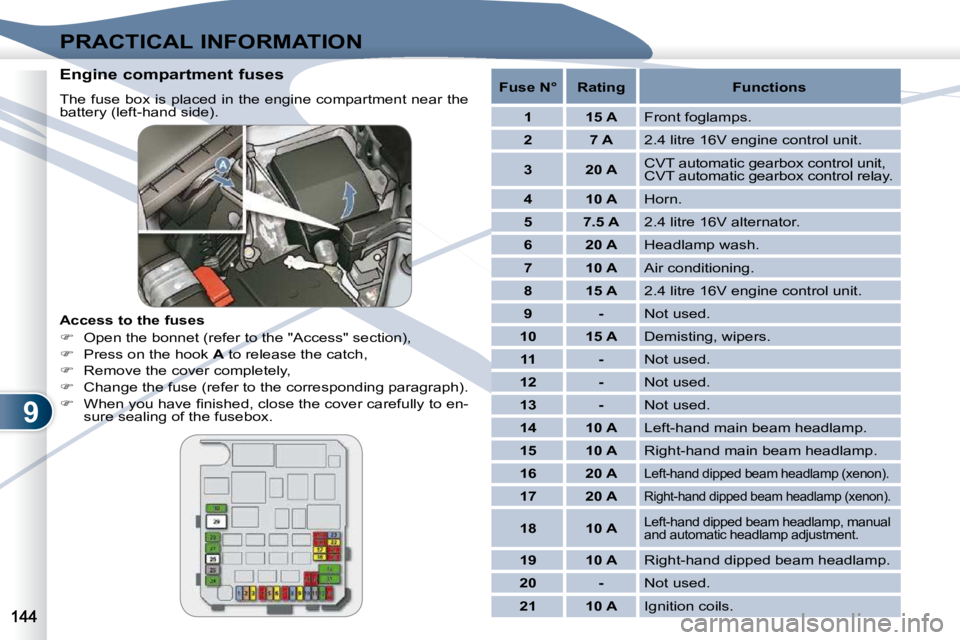

Engine compartment fuses
The fuse box is placed in the engine compartment near the
battery (left-hand side).
Access to the fuses

 Open the bonnet (refer to the "Access" section),

 Press on the hook A to release the catch,

 Remove the cover completely,

 Change the fuse (refer to the corresponding paragraph).

 When you have fi nished, close the cover carefully to en-
sure sealing of the fusebox.
Fuse N° Rating Functions

1 15 A Front foglamps.

2 7 A 2.4 litre 16V engine control unit.

3 20 A CVT automatic gearbox control unit,
CVT automatic gearbox control relay.

4 10 A Horn.

5 7.5 A 2.4 litre 16V alternator.

6 20 A Headlamp wash.

7 10 A Air conditioning.

8 15 A 2.4 litre 16V engine control unit.

9 - Not used.

10 15 A Demisting, wipers.

11 - Not used.

12 - Not used.

13 - Not used.

14 10 A Left-hand main beam headlamp.

15 10 A Right-hand main beam headlamp.

16 20 A
Left-hand dipped beam headlamp (xenon).

17 20 A Right-hand dipped beam headlamp (xenon).

18 10 A Left-hand dipped beam headlamp, manual
and automatic headlamp adjustment.

19 10 A Right-hand dipped beam headlamp.

20 - Not used.

21 10 A Ignition coils.

9
PRACTICAL INFORMATION
Spare fuses
The spare fuses are located under the engine compartment
fuse box cover. The cover does not contain spare fuses with an am-
perage of 7.5 A, 25 A or 30 A. If one of the fuses with
these amperages develops a fault, replace it with the
following fuse:
A 7.5 A fuse must be replaced with the 10 A spare
fuse , a 25 A fuse with a 20 A spare fuse and a 30 A
fuse with the audio system fuse (N° 31) .
* The maxi-fuses provide additional protection for the elect
rical systems. All work on the maxi-fuses must be carried
out by a PEUGEOT dealer.

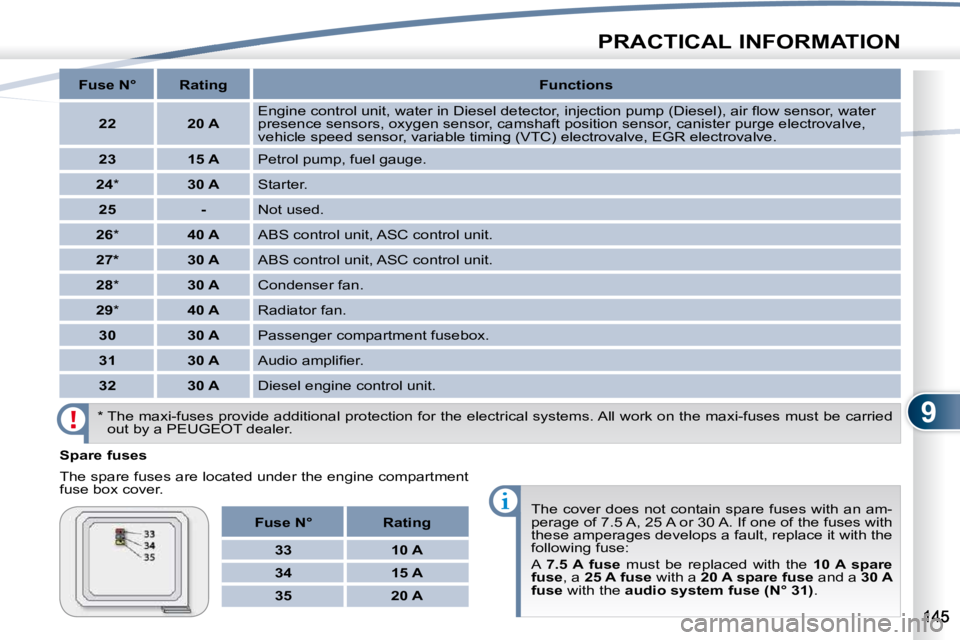

Fuse N° Rating
Functions

22 20 A Engine control unit, water in Diesel detector, injection
pump (Diesel), air fl ow sensor, water
presence sensors, oxygen sensor, camshaft position sensor, canister purg e electrovalve,
vehicle speed sensor, variable timing (VTC) electrovalve, EGR electro valve.

23 15 A Petrol pump, fuel gauge.

24 * 30 A Starter.

25 - Not used.

26 * 40 A ABS control unit, ASC control unit.

27* 30 A ABS control unit, ASC control unit.

28 * 30 A Condenser fan.

29 * 40 A Radiator fan.

30 30 A Passenger compartment fusebox.

31 30 A Audio amplifi er.

32 30 A Diesel engine control unit.

Fuse N° Rating

33 10 A

34 15 A

35 20 A

9
PRACTICAL INFORMATION

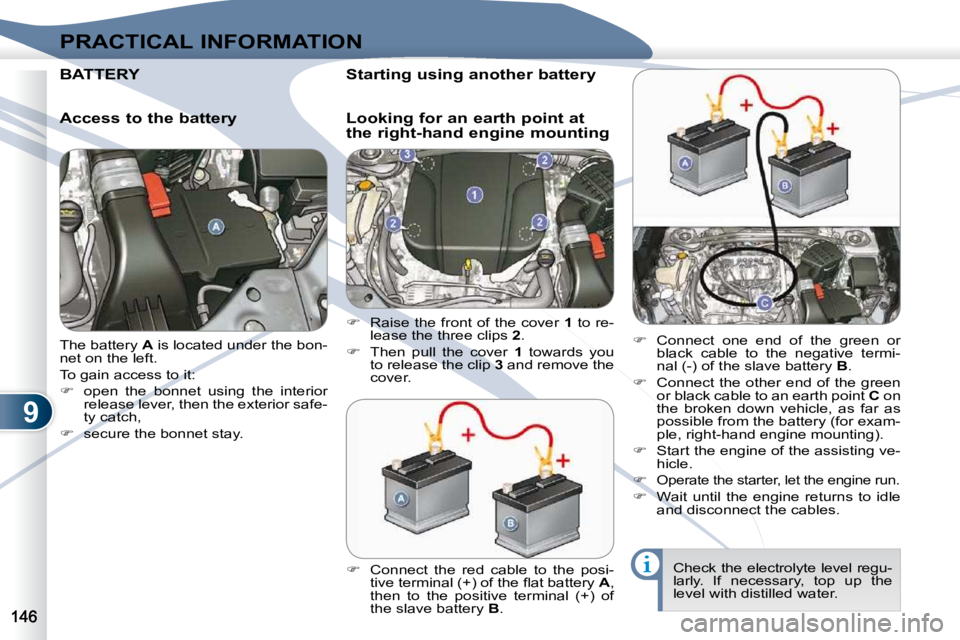

The battery A is located under the bon-
net on the left.
To gain access to it:

 open the bonnet using the interior
release lever, then the exterior safe-
ty catch,

 secure the bonnet stay.
BATTER BATTERY
Access to the battery

 Connect the red cable to the posi-
tive terminal (+) of the fl at battery A ,
then to the positive terminal (+) of
the slave battery B .
 Connect one end of the green or
black cable to the negative termi-
nal (-) of the slave battery B .

 Connect the other end of the green
or black cable to an earth point C on
the broken down vehicle, as far as
possible from the battery (for exam-
ple, right-hand engine mounting).

 Start the engine of the assisting ve-
hicle.


Operate the starter, let the engine run.

 Wait until the engine returns to idle
and disconnect the cables.

 Raise the front of the cover 1 to re-
lease the three clips 2 .

 Then pull the cover 1 towards you
to release the clip 3 and remove the
cover.
Check the electrolyte level regu-
larly. If necessary, top up the
level with distilled water.
Starting using another battery
Looking for an earth point at
the right-hand engine mounting

9
PRACTICAL INFORMATION
The batteries contain harmful
substances such as sulphuric
acid and lead. They must be
disposed of in accordance with
regulations and must not, in any
circumstances, be discarded
with household waste.
Take used remote control bat-
teries and vehicle batteries to a
special collection point.

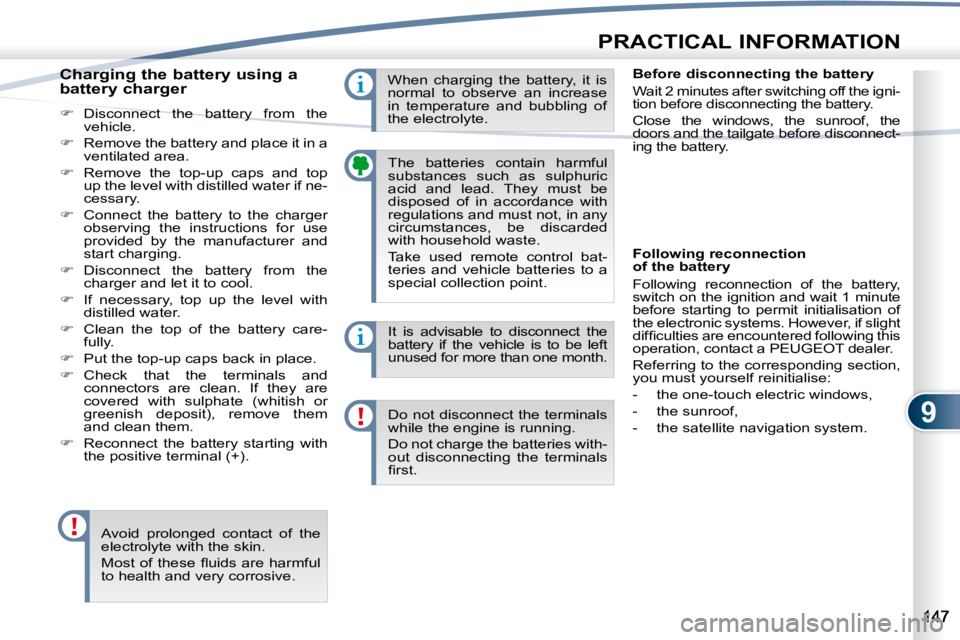

Charging the battery using a
battery charger

 Disconnect the battery from the
vehicle.

 Remove the battery and place it in a
ventilated area.

 Remove the top-up caps and top
up the level with distilled water if ne-
cessary.

 Connect the battery to the charger
observing the instructions for use
provided by the manufacturer and
start charging.

 Disconnect the battery from the
charger and let it to cool.

 If necessary, top up the level with
distilled water.

 Clean the top of the battery care-
fully.

 Put the top-up caps back in place.

 Check that the terminals and
connectors are clean. If they are
covered with sulphate (whitish or
greenish deposit), remove them
and clean them.

 Reconnect the battery starting with
the positive terminal (+). It is advisable to disconnect the
battery if the vehicle is to be left
unused for more than one month.
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries with-
out disconnecting the terminals
fi rst.
Avoid prolonged contact of the
electrolyte with the skin.
Most of these fl uids are harmful
to health and very corrosive. When charging the battery, it is
normal to observe an increase
in temperature and bubbling of
the electrolyte.
Before disconnecting the battery
Wait 2 minutes after switching off the igni-
tion before disconnecting the battery.
Close the windows, the sunroof, the
doors and the tailgate before disconnect-
ing the battery.
Following reconnection
of the battery
Following reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to permit initialisation of
the electronic systems. However, if slight
diffi culties are encountered following this
operation, contact a PEUGEOT dealer.
Referring to the corresponding section,
you must yourself reinitialise:
- the one-touch electric windows,
- the sunroof,
- the satellite navigation system.

9
PRACTICAL INFORMATION

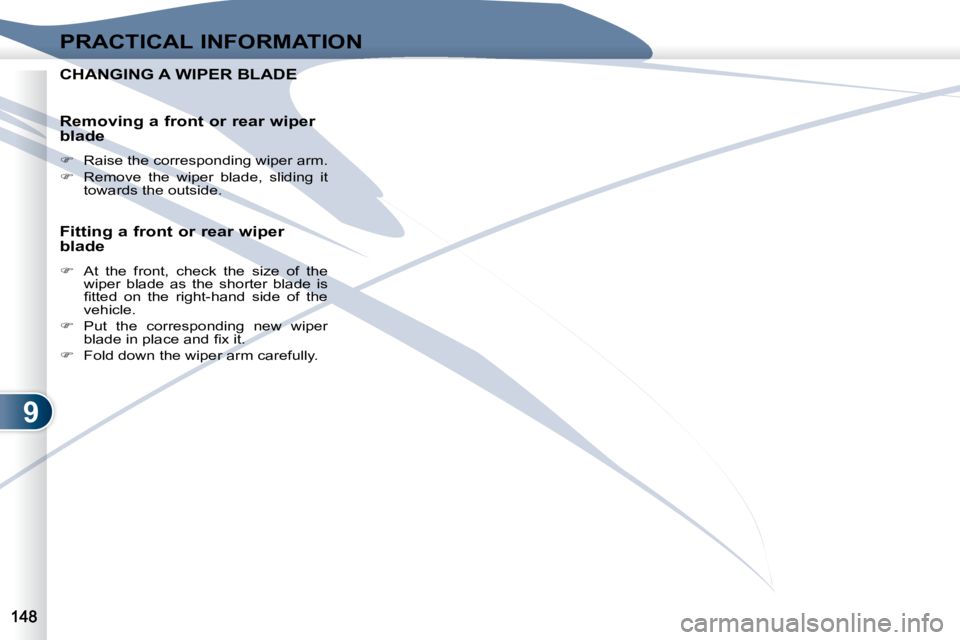

CHANGING A WIPER BLADE CHANGING A WIPER BLADE
Removing a front or rear wiper
blade

 Raise the corresponding wiper arm.

 Remove the wiper blade, sliding it
towards the outside.
Fitting a front or rear wiper
blade

 At the front, check the size of the
wiper blade as the shorter blade is
fi tted on the right-hand side of the
vehicle.

 Put the corresponding new wiper
blade in place and fi x it.

 Fold down the wiper arm carefully.
