2010.5 PEUGEOT 4007 Owners Manual

1
INSTRUMENTS and CONTROLS

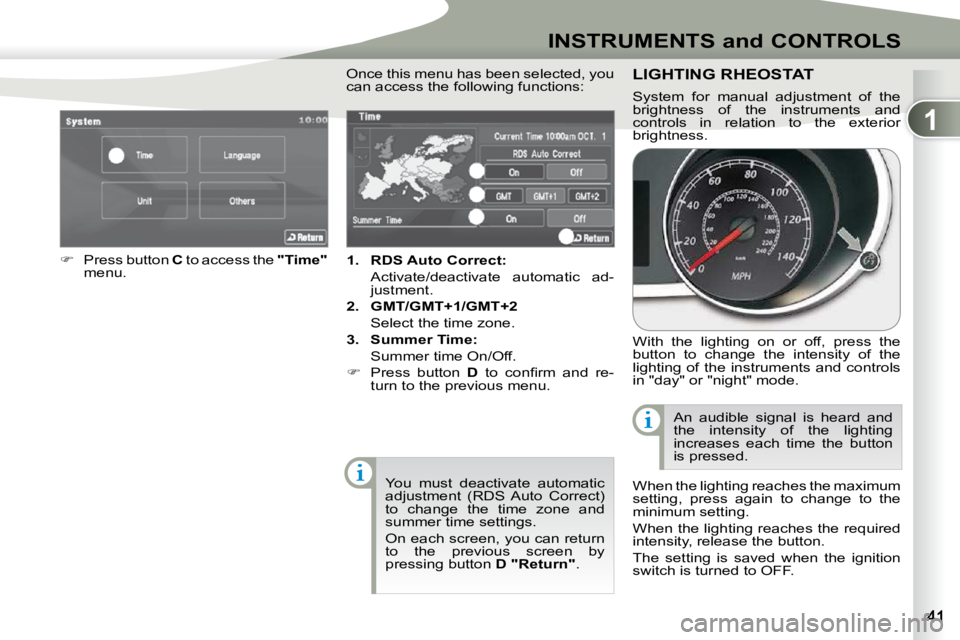

1. RDS Auto
Correct
:
Activate/deactivate automatic ad- justment.

2. GMT/GMT+1/GMT+2
Select the time zone.

3. Summer Time:
Summer time On/Off.

 Press button D to confi rm and re-
turn to the previous menu.

 Press button C to access the "Time"
menu .
You must deactivate automatic
adjustment (RDS Auto Correct)
to change the time zone and
summer time settings.
On each screen, you can return
to the previous screen by
pressing button D "Return" .
Once this menu has been selected, you
can access the following functions: LIGHTING RHEOSTAT
With the lighting on or off, press the
button to change the intensity of the
lighting of the instruments and controls
in "day" or "night" mode.
When the lighting reaches the maximum
setting, press again to change to the
minimum setting.
When the lighting reaches the required
intensity, release the button.
The setting is saved when the ignition
switch is turned to OFF. An audible signal is heard and
the intensity of the lighting
increases each time the button
is pressed.
System for manual adjustment of the
brightness of the instruments and
controls in relation to the exterior
brightness.

1
INSTRUMENTS and CONTROLS

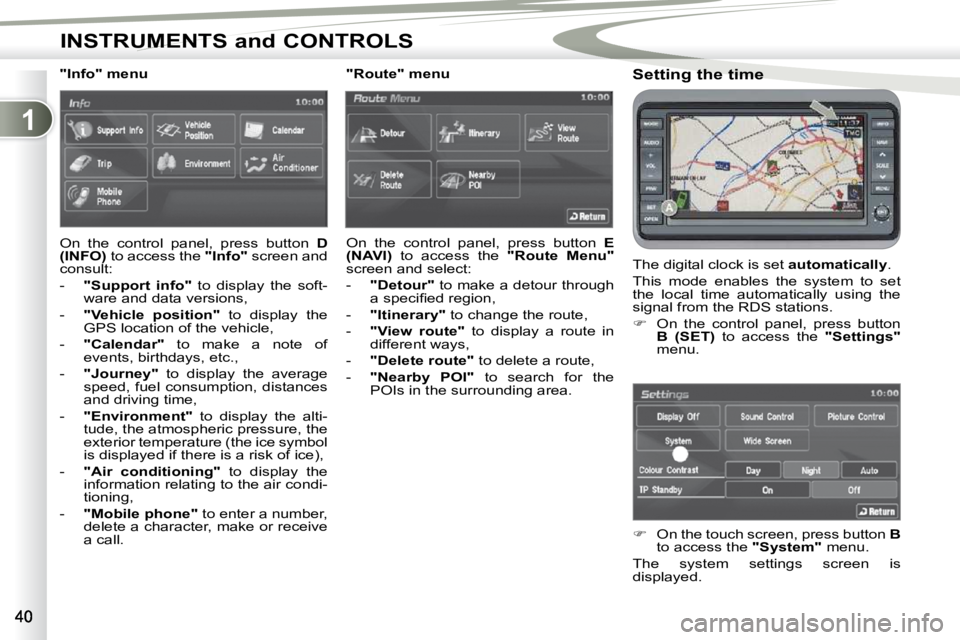

Setting the time
The digital clock is set automatically .
This mode enables the system to set
the local time automatically using the
signal from the RDS stations.

 On the control panel, press button

B

(SET) to access the "Settings"
menu.

 On the touch screen, press button B
to access the "System" menu.
The system settings screen is
displayed.
"Info" menu
On the control panel, press button
D
(INFO) to access the "Info" screen and
consult:
- "Support info" to display the soft-
ware and data versions,
- "Vehicle position" to display the
GPS location of the vehicle,
- "Calendar" to make a note of
events, birthdays, etc.,
- "Journey" to display the average
speed, fuel consumption, distances
and driving time,
- "Environment" to display the alti-
tude, the atmospheric pressure, the
exterior temperature (the ice symbol
is displayed if there is a risk of ice),
- "Air conditioning" to display the
information relating to the air condi-
tioning,
- "Mobile
phone
" to enter a number,
delete a character, make or receive
a call. "Route" menu
On the control panel, press button
E
(NAVI) to access the "Route Menu"
screen and select:
- "Detour" to make a detour through
a specifi ed region,
- "
Itinerary
" to change the route,
- "
View
route" to display a route in
different ways,
- "Delete
route" to delete a route,
- "
Nearby
POI" to search for the
POIs in the surrounding area.

1
INSTRUMENTS and CONTROLS

1. RDS Auto
Correct
:
Activate/deactivate automatic ad- justment.

2. GMT/GMT+1/GMT+2
Select the time zone.

3. Summer Time:
Summer time On/Off.

 Press button D to confi rm and re-
turn to the previous menu.

 Press button C to access the "Time"
menu .
You must deactivate automatic
adjustment (RDS Auto Correct)
to change the time zone and
summer time settings.
On each screen, you can return
to the previous screen by
pressing button D "Return" .
Once this menu has been selected, you
can access the following functions: LIGHTING RHEOSTAT
With the lighting on or off, press the
button to change the intensity of the
lighting of the instruments and controls
in "day" or "night" mode.
When the lighting reaches the maximum
setting, press again to change to the
minimum setting.
When the lighting reaches the required
intensity, release the button.
The setting is saved when the ignition
switch is turned to OFF. An audible signal is heard and
the intensity of the lighting
increases each time the button
is pressed.
System for manual adjustment of the
brightness of the instruments and
controls in relation to the exterior
brightness.

1
INSTRUMENTS and CONTROLS

1. RDS Auto
Correct
:
Activate/deactivate automatic ad- justment.

2. GMT/GMT+1/GMT+2
Select the time zone.

3. Summer Time:
Summer time On/Off.

 Press button D to confi rm and re-
turn to the previous menu.

 Press button C to access the "Time"
menu .
You must deactivate automatic
adjustment (RDS Auto Correct)
to change the time zone and
summer time settings.
On each screen, you can return
to the previous screen by
pressing button D "Return" .
Once this menu has been selected, you
can access the following functions: LIGHTING RHEOSTAT
With the lighting on or off, press the
button to change the intensity of the
lighting of the instruments and controls
in "day" or "night" mode.
When the lighting reaches the maximum
setting, press again to change to the
minimum setting.
When the lighting reaches the required
intensity, release the button.
The setting is saved when the ignition
switch is turned to OFF. An audible signal is heard and
the intensity of the lighting
increases each time the button
is pressed.
System for manual adjustment of the
brightness of the instruments and
controls in relation to the exterior
brightness.

2
COMFORT
For even air distribution, take care not
to obstruct the exterior air intake grille
located at the bottom of the windscreen,
the vents, the air outlets under the front
seats and the air extractor located be-
hind the fl aps in the boot. The water formed by the air conditioning
condensation is discharged via an open-
ing provided for this purpose. Therefore,
a puddle of water may form underneath
the vehicle when stationary.
If the system does not produce cold air,
do not use it and have it checked by a

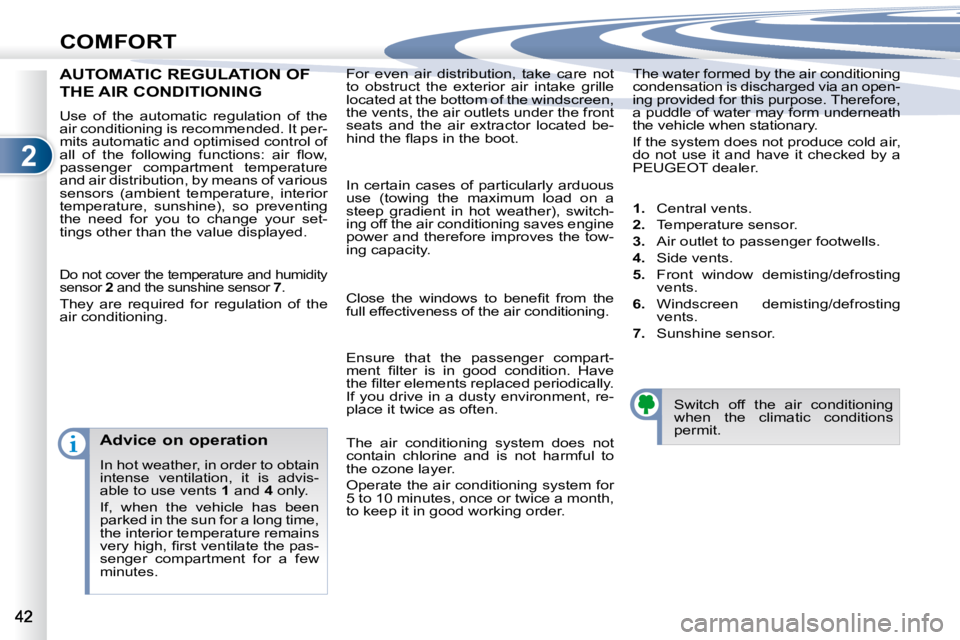

PEUGEOT dealer. AUTOMATIC REGULATION OF TIC REGULATION OF
THE AIR CONDITIONING
Do not cover the temperature and humidity
sensor
2 and the sunshine sensor 7 .
They are required for regulation of the
air conditioning.
Advice on operation
In hot weather, in order to obtain
intense ventilation, it is advis-
able to use vents 1 and 4 only.
If, when the vehicle has been
parked in the sun for a long time,
the interior temperature remains
very high, fi rst ventilate the pas-
senger compartment for a few
minutes. Switch off the air conditioning
when the climatic conditions
permit.
Use of the automatic regulation of the
air conditioning is recommended. It per-
mits automatic and optimised control of
all of the following functions: air fl ow,
passenger compartment temperature
and air distribution, by means of various
sensors (ambient temperature, interior
temperature, sunshine), so preventing
the need for you to change your set-
tings other than the value displayed.
In certain cases of particularly arduous
use (towing the maximum load on a
steep gradient in hot weather), switch-
ing off the air conditioning saves engine
power and therefore improves the tow-
ing capacity.
Close the windows to benefi t from the
full effectiveness of the air conditioning.
Ensure that the passenger compart-
ment fi lter is in good condition. Have
the fi lter elements replaced periodically.
If you drive in a dusty environment, re-
place it twice as often.
The air conditioning system does not
contain chlorine and is not harmful to
the ozone layer.
Operate the air conditioning system for
5 to 10 minutes, once or twice a month,
to keep it in good working order.

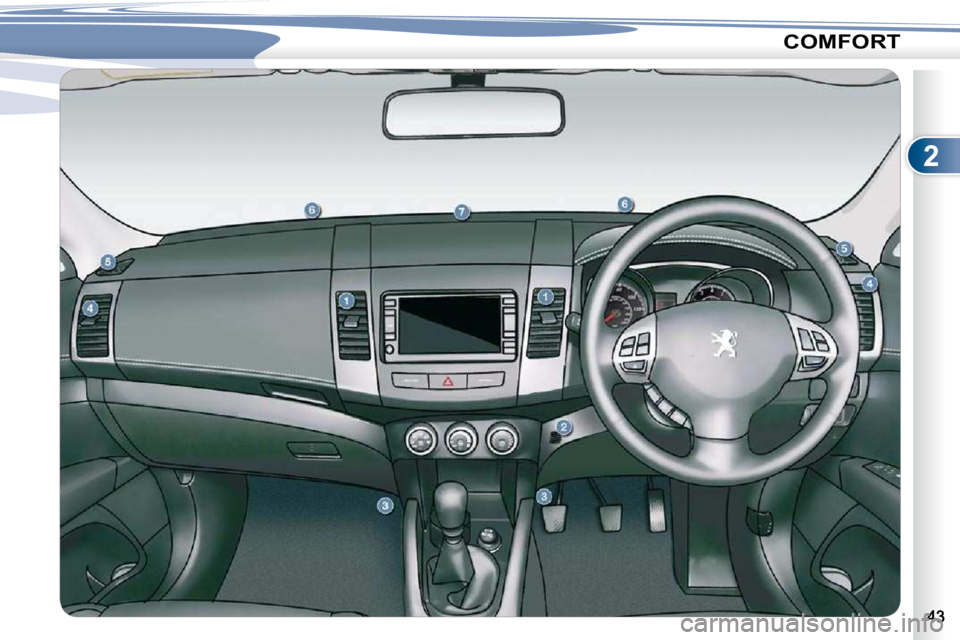

1. Central vents.

2. Temperature sensor.

3. Air outlet to passenger footwells.

4. Side vents.

5. Front window demisting/defrosting
vents.

6. Windscreen demisting/defrosting
vents.

7. Sunshine sensor.

2
COMFORT

2
COMFORT

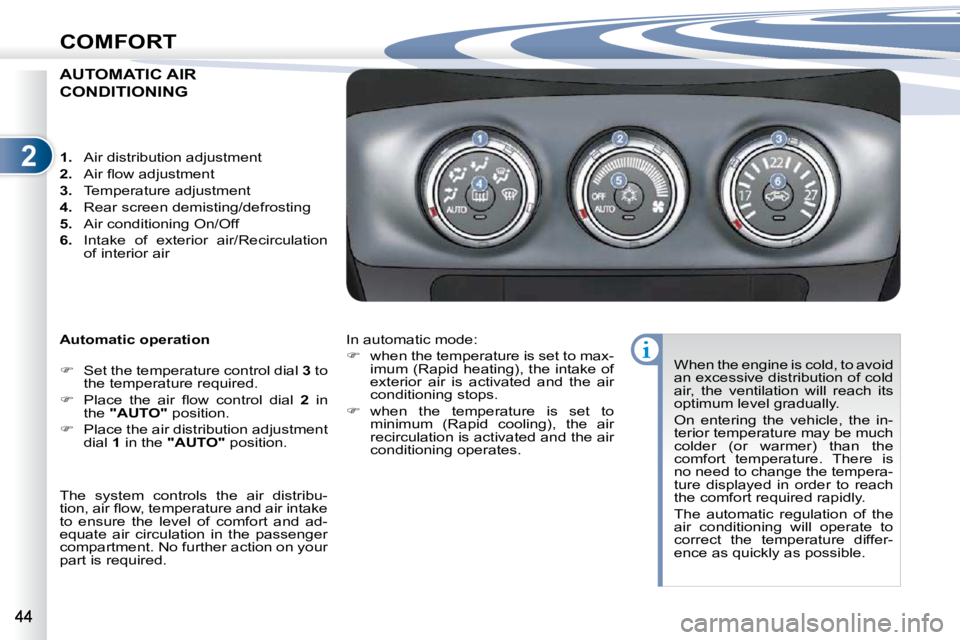

AUTOMATIC AIR
CONDITIONING
Automatic operation

 Set the temperature control dial 3 to
the temperature required.

 Place the air fl ow control dial 2 in
the "AUTO" position.

 Place the air distribution adjustment
dial 1 in the "AUTO" position. When the engine is cold, to avoid
an excessive distribution of cold
air, the ventilation will reach its
optimum level gradually.
On entering the vehicle, the in-
terior temperature may be much
colder (or warmer) than the
comfort temperature. There is
no need to change the tempera-
ture displayed in order to reach
the comfort required rapidly.
The automatic regulation of the
air conditioning will operate to
correct the temperature differ-
ence as quickly as possible.

1. Air distribution adjustment

2. Air fl ow adjustment

3. Temperature adjustment

4. Rear screen demisting/defrosting

5. Air conditioning On/Off

6. Intake of exterior air/Recirculation
of interior air
In automatic mode:

 when the temperature is set to max-
imum (Rapid heating), the intake of
exterior air is activated and the air
conditioning stops.

 when the temperature is set to
minimum (Rapid cooling), the air
recirculation is activated and the air
conditioning operates.
The system controls the air distribu-
tion, air fl ow, temperature and air intake
to ensure the level of comfort and ad-
equate air circulation in the passenger
compartment. No further action on your
part is required.

2
COMFORT

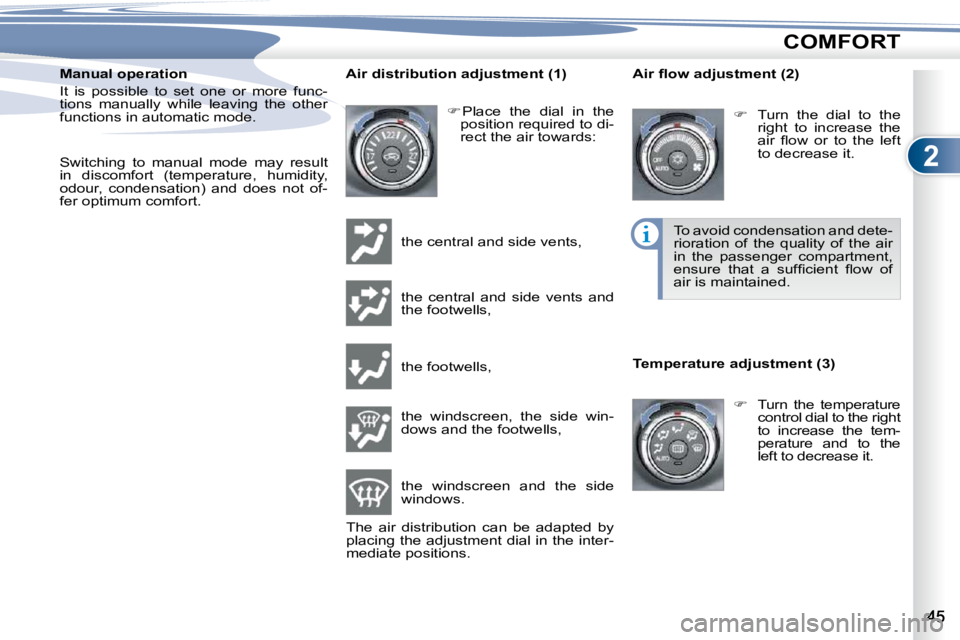

Manual operation
It is possible to set one or more func-
tions manually while leaving the other
functions in automatic mode.

Switching to manual mode may result
in discomfort (temperature, humidity,
odour, condensation) and does not of-
fer optimum comfort. Air distribution adjustment (1)
Air fl ow adjustment (2)

 Turn the dial to the
right to increase the
air fl ow or to the left
to decrease it.

 Place the dial in the
position required to di-
rect the air towards:

 Turn the temperature
control dial to the right
to increase the tem-
perature and to the
left to decrease it.
To avoid condensation and dete-
rioration of the quality of the air
in the passenger compartment,
ensure that a suffi cient fl ow of
air is maintained.
the central and side vents,
the central and side vents and
the footwells,
the footwells,
the windscreen, the side win-
dows and the footwells,
the windscreen and the side
windows.
The air distribution can be adapted by
placing the adjustment dial in the inter-
mediate positions. Temperature adjustment (3)
