2010.5 PEUGEOT 4007 Owners Manual

6
SAFETY

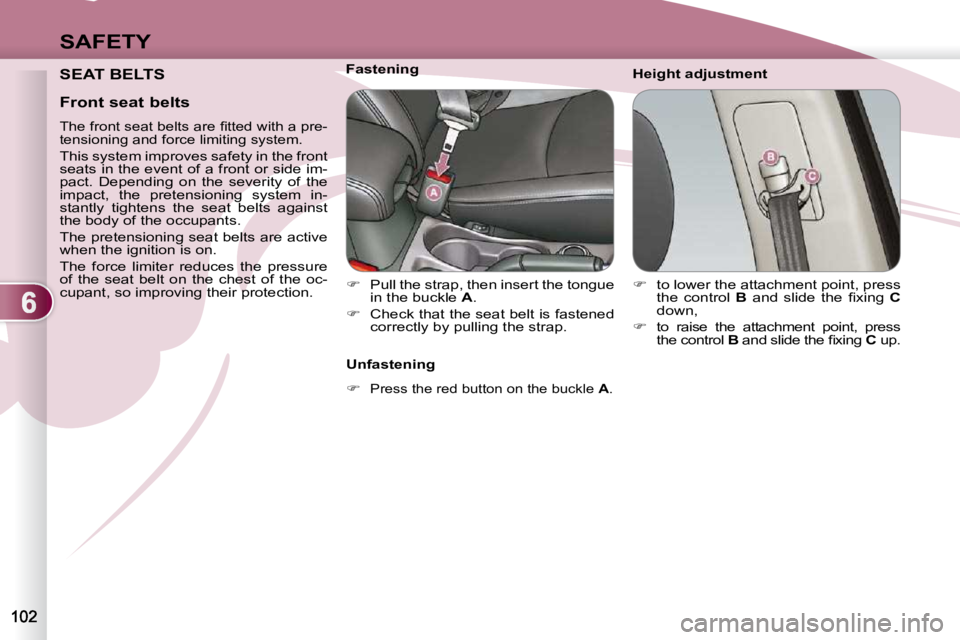

SEAT BELTS Height adjustment
Fastening

 Pull the strap, then insert the tongue
in the buckle A .

 Check that the seat belt is fastened
correctly by pulling the strap.
 to lower the attachment point, press
the control B and slide the fi xing C
down,

 to raise the attachment point, press
the control B and slide the fi xing C up.
Unfastening


Press the red button on the buckle A .
Front seat belts
The front seat belts are fi tted with a pre-
tensioning and force limiting system.
This system improves safety in the front
seats in the event of a front or side im-
pact. Depending on the severity of the
impact, the pretensioning system in-
stantly tightens the seat belts against
the body of the occupants.
The pretensioning seat belts are active
when the ignition is on.
The force limiter reduces the pressure
of the seat belt on the chest of the oc-
cupant, so improving their protection.

6
SAFETY

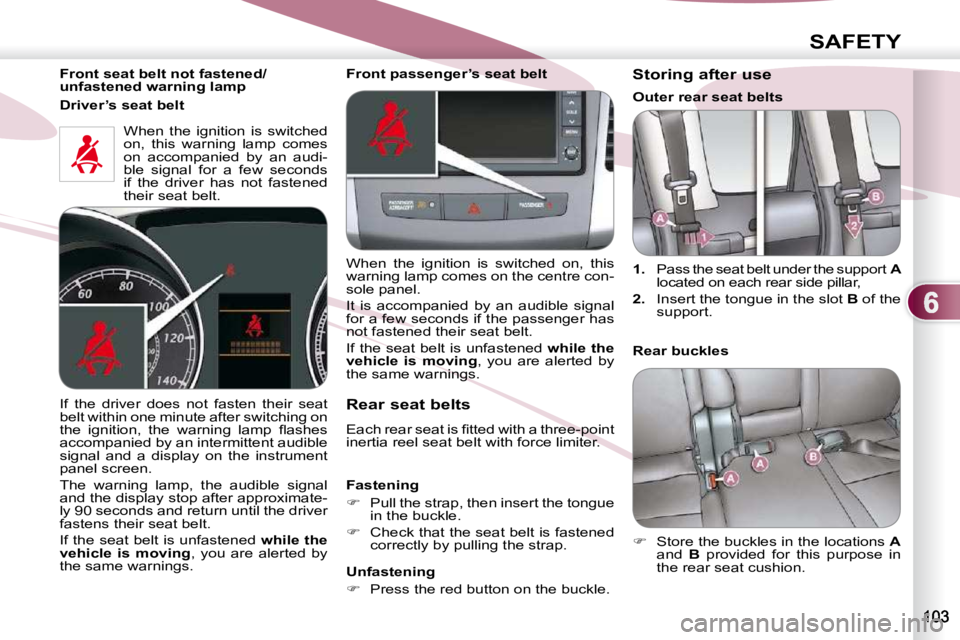

Front seat belt not fastened/
unfastened warning lamp When the ignition is switched
on, this warning lamp comes
on accompanied by an audi-
ble signal for a few seconds
if the driver has not fastened
their seat belt.
Rear seat belts
Each rear seat is fi tted with a three-point
inertia reel seat belt with force limiter.
Fastening

 Pull the strap, then insert the tongue
in the buckle.

 Check that the seat belt is fastened
correctly by pulling the strap.
Unfastening

 Press the red button on the buckle.
If the driver does not fasten their seat
belt within one minute after switching on
the ignition, the warning lamp fl ashes
accompanied by an intermittent audible
signal and a display on the instrument
panel screen.
The warning lamp, the audible signal
and the display stop after approximate-
ly 90 seconds and return until the driver
fastens their seat belt.
If the seat belt is unfastened
while the
vehicle is moving , you are alerted by
the same warnings. Storing after use

1. Pass the seat belt under the support A
located on each rear side pillar,

2. Insert the tongue in the slot B of the
support.
Rear buckles

 Store the buckles in the locations A
and B provided for this purpose in
the rear seat cushion.
Driver’s seat belt
Outer rear seat belts
Front passenger’s seat belt
When the ignition is switched on, this
warning lamp comes on the centre con-
sole panel.
It is accompanied by an audible signal
for a few seconds if the passenger has
not fastened their seat belt.
If the seat belt is unfastened
while the
vehicle is moving , you are alerted by
the same warnings.

6
SAFETY

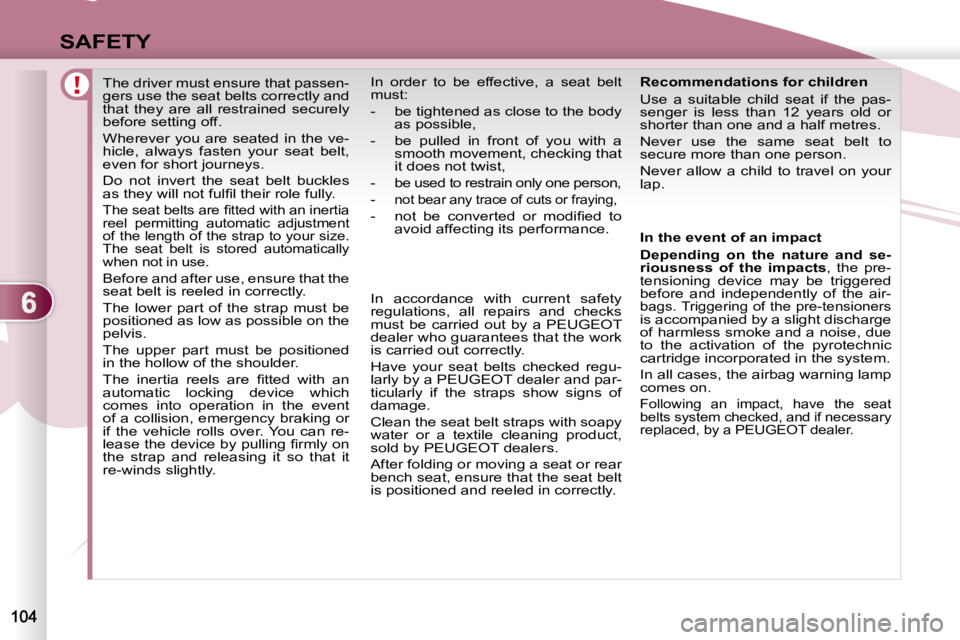

The driver must ensure that passen-
gers use the seat belts correctly and
that they are all restrained securely
before setting off.
Wherever you are seated in the ve-
hicle, always fasten your seat belt,
even for short journeys.
Do not invert the seat belt buckles
as they will not fulfi l their role fully.
The seat belts are fi tted with an inertia
reel permitting automatic adjustment
of the length of the strap to your size.
The seat belt is stored automatically
when not in use.
Before and after use, ensure that the
seat belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned
in the hollow of the shoulder.
The inertia reels are fi tted with an
automatic locking device which
comes into operation in the event
of a collision, emergency braking or
if the vehicle rolls over. You can re-
lease the device by pulling fi rmly on
the strap and releasing it so that it
re-winds slightly. Recommendations for children
Use a suitable child seat if the pas-
senger is less than 12 years old or
shorter than one and a half metres.
Never use the same seat belt to
secure more than one person.
Never allow a child to travel on your
lap.
In order to be effective, a seat belt
must:
- be tightened as close to the body
as possible,
- be pulled in front of you with a smooth movement, checking that
it does not twist,
-
be used to restrain only one person,
-
not bear any trace of cuts or fraying,
- not be converted or modifi ed to avoid affecting its performance.
In accordance with current safety
regulations, all repairs and checks
must be carried out by a PEUGEOT
dealer who guarantees that the work
is carried out correctly.
Have your seat belts checked regu-
larly by a PEUGEOT dealer and par-
ticularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
water or a textile cleaning product,
sold by PEUGEOT dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt
is positioned and reeled in correctly. In the event of an impact

Depending on the nature and se-
riousness of the impacts , the pre-
tensioning device may be triggered
before and independently of the air-
bags. Triggering of the pre-tensioners is accompanied by a slight discharge
of harmless smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat
belts system checked, and if necessary
replaced, by a PEUGEOT dealer.

6
SAFETY

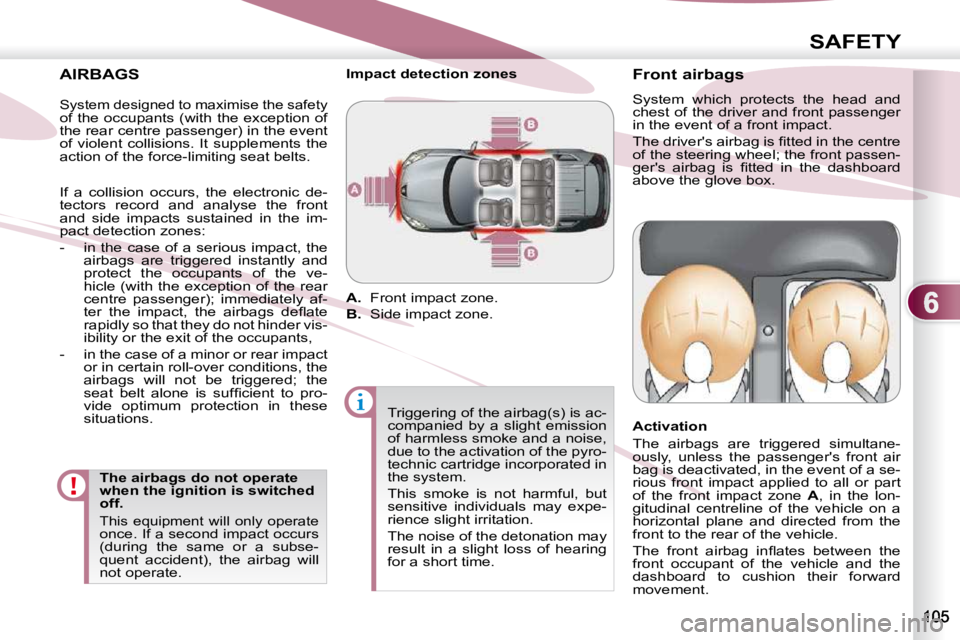

AIRBAGS The airbags do not operate
when the ignition is switched
off.
This equipment will only operate once. If a second impact occurs
(during the same or a subse-
quent accident), the airbag will
not operate. Front airbags
System which protects the head and
chest of the driver and front passenger
in the event of a front impact.
The driver's airbag is fi tted in the centre
of the steering wheel; the front passen-
ger's airbag is fi tted in the dashboard
above the glove box.
Activation
The airbags are triggered simultane-
ously, unless the passenger's front air
bag is deactivated, in the event of a se-
rious front impact applied to all or part
of the front impact zone
A , in the lon-
gitudinal centreline of the vehicle on a
horizontal plane and directed from the
front to the rear of the vehicle.
The front airbag infl ates between the
front occupant of the vehicle and the
dashboard to cushion their forward
movement.
Impact detection zones

A. Front impact zone.

B. Side impact zone.
Triggering of the airbag(s) is ac-
companied by a slight emission
of harmless smoke and a noise,
due to the activation of the pyro-
technic cartridge incorporated in
the system.
This smoke is not harmful, but
sensitive individuals may expe-
rience slight irritation.
The noise of the detonation may
result in a slight loss of hearing
for a short time.
System designed to maximise the safety of the occupants (with the exception of
the rear centre passenger) in the event
of violent collisions. It supplements the
action of the force-limiting seat belts.
If a collision occurs, the electronic de-
tectors record and analyse the front
and side impacts sustained in the im-
pact detection zones:
- in the case of a serious impact, the airbags are triggered instantly and
protect the occupants of the ve-
hicle (with the exception of the rear
centre passenger); immediately af-
ter the impact, the airbags defl ate
rapidly so that they do not hinder vis-
ibility or the exit of the occupants,
- in the case of a minor or rear impact or in certain roll-over conditions, the
airbags will not be triggered; the
seat belt alone is suffi cient to pro-
vide optimum protection in these
situations.

6
SAFETY

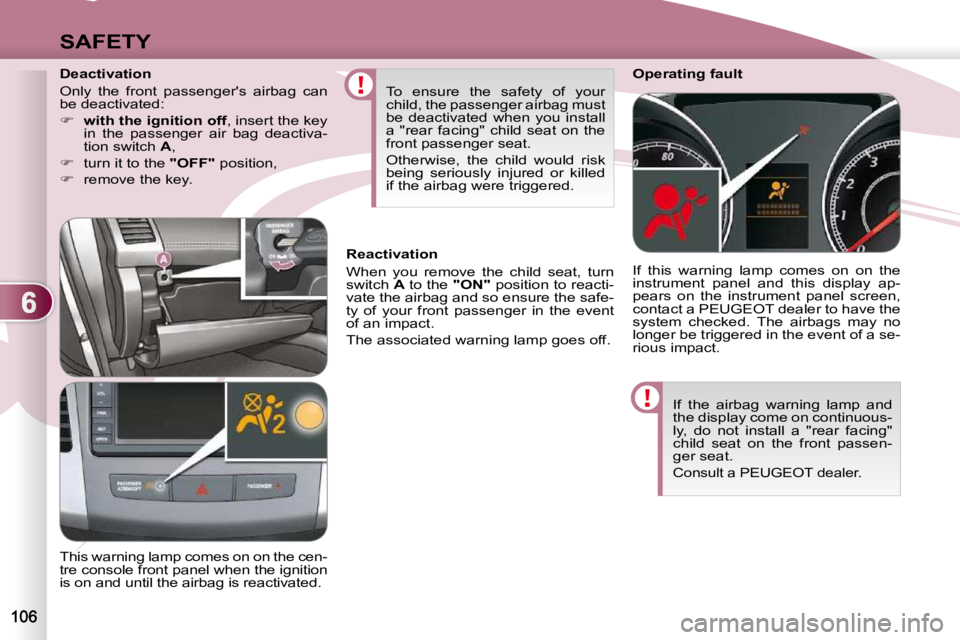

If the airbag warning lamp and
the display come on continuous-
ly, do not install a "rear facing"
child seat on the front passen-
ger seat.
Consult a PEUGEOT dealer.
Operating fault
If this warning lamp comes on on the
instrument panel and this display ap-
pears on the instrument panel screen,
contact a PEUGEOT dealer to have the
system checked. The airbags may no
longer be triggered in the event of a se-
rious impact.
To ensure the safety of your
child, the passenger airbag must
be deactivated when you install
a "rear facing" child seat on the
front passenger seat.
Otherwise, the child would risk
being seriously injured or killed
if the airbag were triggered.
This warning lamp comes on on the cen-
tre console front panel when the ignition
is on and until the airbag is reactivated. Reactivation
When you remove the child seat, turn
switch
A to the "ON" position to reacti-
vate the airbag and so ensure the safe-
ty of your front passenger in the event
of an impact.
The associated warning lamp goes off.
Deactivation
Only the front passenger's airbag can
be deactivated:

 with the ignition off , insert the key
in the passenger air bag deactiva-
tion switch A ,

 turn it to the "OFF" position,

 remove the key.

6
SAFETY

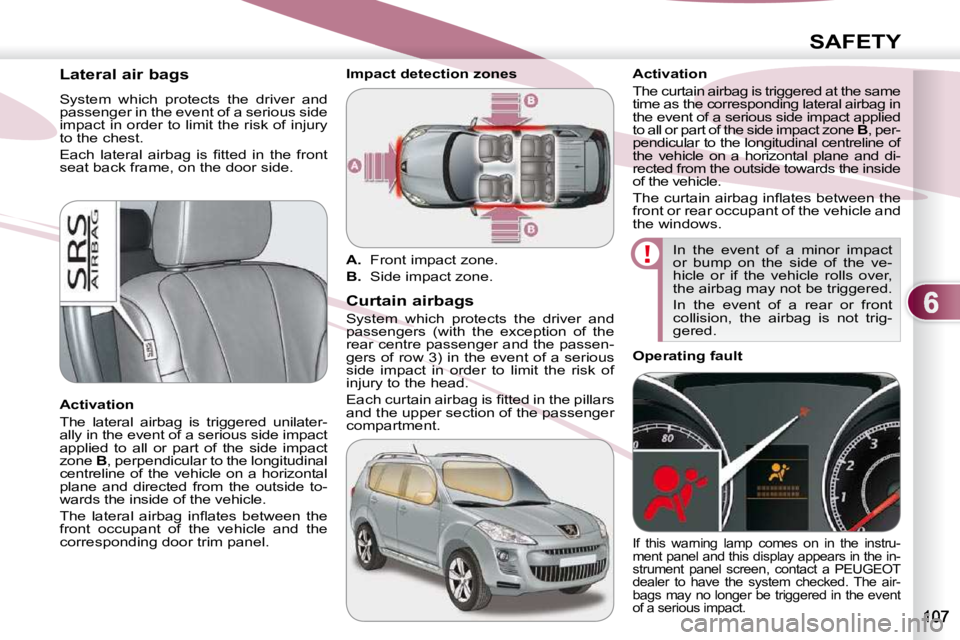

Lateral air bags
System which protects the driver and
passenger in the event of a serious side
impact in order to limit the risk of injury
to the chest.
Each lateral airbag is fi tted in the front
seat back frame, on the door side.
Activation
The lateral airbag is triggered unilater-
ally in the event of a serious side impact
applied to all or part of the side impact
zone B , perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside to-
wards the inside of the vehicle.
The lateral airbag infl ates between the
front occupant of the vehicle and the
corresponding door trim panel. Curtain airbags
System which protects the driver and
passengers (with the exception of the
rear centre passenger and the passen-
gers of row 3) in the event of a serious
side impact in order to limit the risk of
injury to the head.
Each curtain airbag is fi tted in the pillars
and the upper section of the passenger
compartment. Activation
The curtain airbag is triggered at the same
time as the corresponding lateral airbag in
the event of a serious side impact applied
to all or part of the side impact zone
B , per-
pendicular to the longitudinal centreline of
the vehicle on a horizontal plane and di-
rected from the outside towards the inside
of the vehicle.
The curtain airbag infl ates between the
front or rear occupant of the vehicle and
the windows.
In the event of a minor impact
or bump on the side of the ve-
hicle or if the vehicle rolls over,
the airbag may not be triggered.
In the event of a rear or front
collision, the airbag is not trig-
gered.
Impact detection zones

A. Front impact zone.

B. Side impact zone.
Operating fault
If this warning lamp comes on in the instru-
ment panel and this display appears in the in-
strument panel screen, contact a PEUGEOT
dealer to have the system checked. The air-
bags may no longer be triggered in the event
of a serious impact.

6
SAFETY

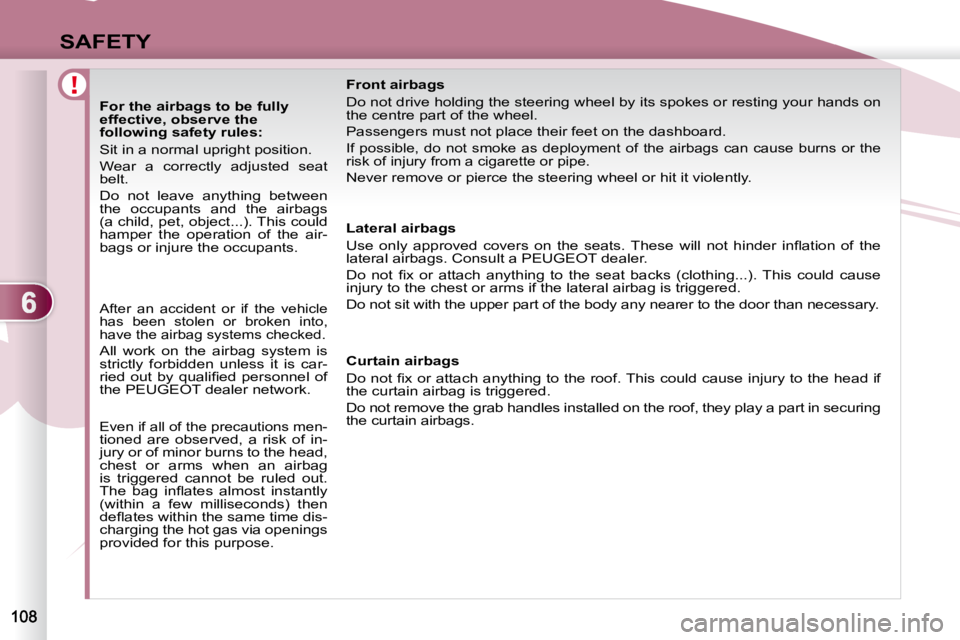

For the airbags to be fully
effective, observe the
following safety rules:
Sit in a normal upright position.
Wear a correctly adjusted seat
belt.
Do not leave anything between
the occupants and the airbags
(a child, pet, object...). This could
hamper the operation of the air-
bags or injure the occupants. Lateral airbags
Use only approved covers on the seats. These will not hinder i
nfl ation of the
lateral airbags. Consult a PEUGEOT dealer.
Do not fi x or attach anything to the seat backs (clothing... ). This could cause
injury to the chest or arms if the lateral airbag is triggered.
Do not sit with the upper part of the body any nea rer to the door than necessary.
After an accident or if the vehicle
has been stolen or broken into,
have the airbag systems checked.
All work on the airbag system is
strictly forbidden unless it is car-
ried out by qualifi ed personnel of
the PEUGEOT dealer network.
Even if all of the precautions men-tioned are observed, a risk of in-
jury or of minor burns to the head,
chest or arms when an airbag
is triggered cannot be ruled out.
The bag infl ates almost instantly
(within a few milliseconds) then
defl ates within the same time dis-
charging the hot gas via openings
provided for this purpose. Curtain airbags
Do not fi x or attach anything to the roof. This could cause
injury to the head if
the curtain airbag is triggered.
Do not remove the grab handles installed on the ro of, they play a part in securing
the curtain airbags. Front airbags
Do not drive holding the steering wheel by its spokes or resti
ng your hands on
the centre part of the wheel.
Passengers must not place their feet on the dashboard.
If possible, do not smoke as deployment of the airbags can cau se burns or the
risk of injury from a cigarette or pipe.
Never remove or pierce the steering wheel or hit it violently.

7
DRIVING
When the vehicle is being
driven, the display of this
message indicates that
the parking brake is still on
or has not been properly
released.
PARKING BRAKE PARKING BRAKE
Releasing

 Pull the lever up and press the but-
ton A to release the parking brake.
5-SPEED MANUAL GEARBOX 5-SPEED MANUAL GEARBOX 5-SPEED MANUAL GEARBOX
Reverse
To change to reverse gear, lift the ring
under the gear lever knob and push the
gear lever to the left then to the front.

Reverse gear can only be engaged
when the vehicle is stationary with
the engine idling. Applying

 Pull the parking brake lever up to
immobilise your vehicle.
When parking on a slope, direct your
wheels towards the pavement and
apply the parking brake.
6-SPEED MANUAL 6-SPEED MANUAL GEARBOX
