2010.5 PEUGEOT 4007 Owners Manual

2
COMFORT

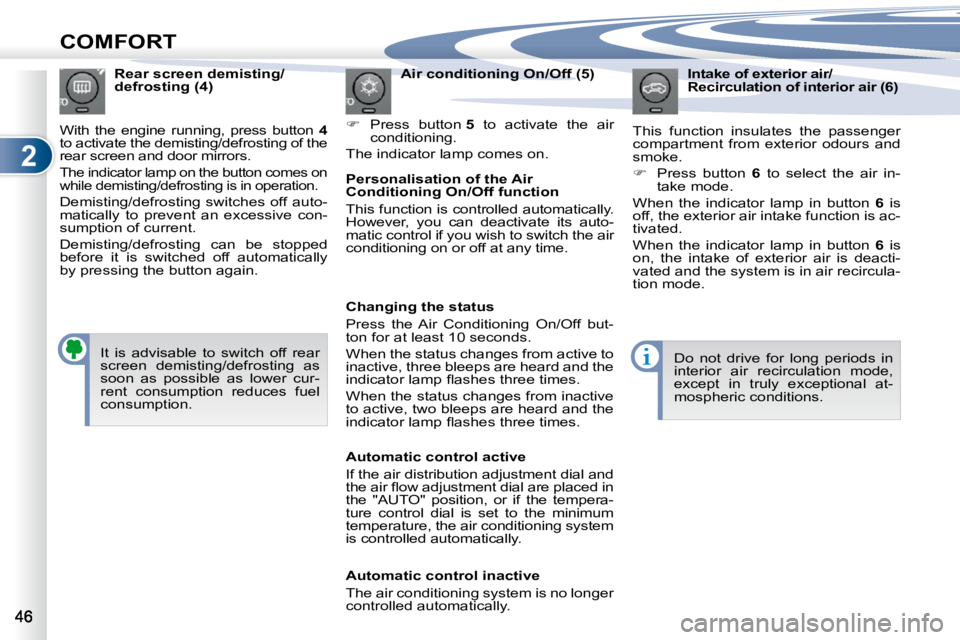

Air conditioning On/Off (5)

 Press button 5 to activate the air
conditioning.
The indicator lamp comes on. Intake of exterior air/
Recirculation of interior air (6)
This function insulates the passenger
compartment from exterior odours and
smoke.

 Press button 6 to select the air in-
take mode.
When the indicator lamp in button 6 is
off, the exterior air intake function is ac-
tivated.
When the indicator lamp in button 6 is
on, the intake of exterior air is deacti-
vated and the system is in air recircula-
tion mode.
Do not drive for long periods in
interior air recirculation mode,
except in truly exceptional at-
mospheric conditions.
Personalisation of the Air
Conditioning On/Off function
This function is controlled automatically.
However, you can deactivate its auto-
matic control if you wish to switch the air
conditioning on or off at any time.
Changing the status
Press the Air Conditioning On/Off but-
ton for at least 10 seconds.
When the status changes from active to
inactive, three bleeps are heard and the
indicator lamp fl ashes three times.
When the status changes from inactive
to active, two bleeps are heard and the
indicator lamp fl ashes three times.
Automatic control active
If the air distribution adjustment dial and
the air fl ow adjustment dial are placed in
the "AUTO" position, or if the tempera-
ture control dial is set to the minimum
temperature, the air conditioning system
is controlled automatically.
Automatic control inactive
The air conditioning system is no longer
controlled automatically.
Rear screen demisting/
defrosting (4)
With the engine running, press button 4
to activate the demisting/defrosting of the
rear screen and door mirrors.
The indicator lamp on the button comes on
while demisting/defrosting is in operation.
Demisting/defrosting switches off auto-
matically to prevent an excessive con-
sumption of current.
Demisting/defrosting can be stopped
before it is switched off automatically
by pressing the button again.
It is advisable to switch off rear
screen demisting/defrosting as
soon as possible as lower cur-
rent consumption reduces fuel
consumption.

2
COMFORT

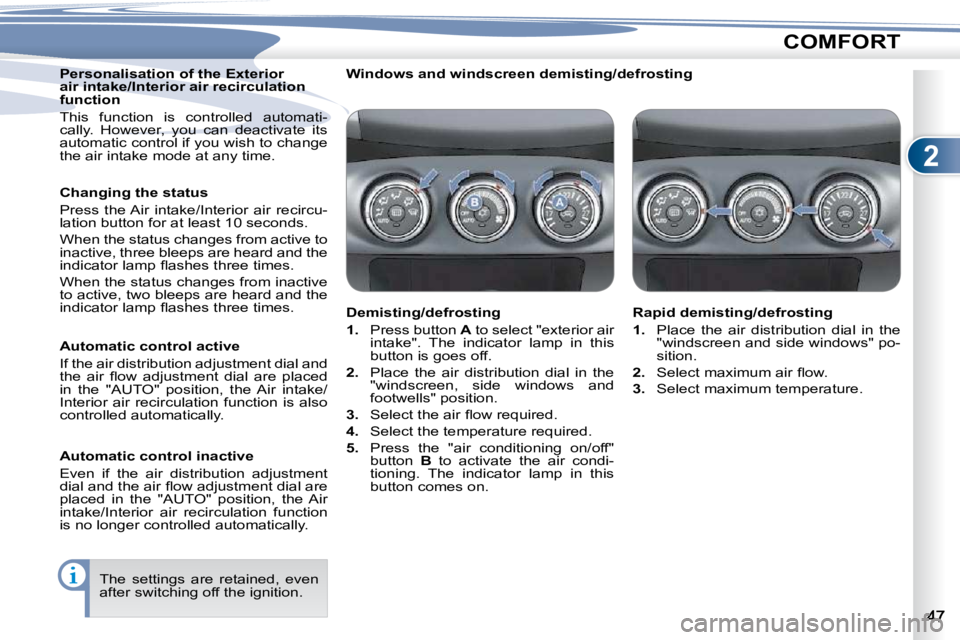

Personalisation of the Exterior
air intake/Interior air recirculation
function
This function is controlled automati-
cally. However, you can deactivate its
automatic control if you wish to change
the air intake mode at any time. The settings are retained, even
after switching off the ignition.
Changing the status
Press the Air intake/Interior air recircu-
lation button for at least 10 seconds.
When the status changes from active to
inactive, three bleeps are heard and the
indicator lamp fl ashes three times.
When the status changes from inactive
to active, two bleeps are heard and the
indicator lamp fl ashes three times.
Automatic control active
If the air distribution adjustment dial and
the air fl ow adjustment dial are placed
in the "AUTO" position, the Air intake/
Interior air recirculation function is also
controlled automatically.
Automatic control inactive
Even if the air distribution adjustment
dial and the air fl ow adjustment dial are
placed in the "AUTO" position, the Air
intake/Interior air recirculation function
is no longer controlled automatically. Windows and windscreen demisting/defrosting
Demisting/defrosting

1. Press button A to select "exterior air
intake". The indicator lamp in this
button is goes off.

2. Place the air distribution dial in the
"windscreen, side windows and
footwells" position.

3. Select the air fl ow required.

4. Select the temperature required.

5. Press the "air conditioning on/off"
button B to activate the air condi-
tioning. The indicator lamp in this
button comes on. Rapid demisting/defrosting

1. Place the air distribution dial in the
"windscreen and side windows" po-
sition.

2. Select maximum air fl ow.

3. Select maximum temperature.

2
COMFORT
Personalisation of the Exterior
air intake/Interior air recirculation
function
This function is controlled automati-
cally. However, you can deactivate its
automatic control if you wish to change
the air intake mode at any time. The settings are retained, even
after switching off the ignition.
Changing the status
Press the Air intake/Interior air recircu-
lation button for at least 10 seconds.
When the status changes from active to
inactive, three bleeps are heard and the
indicator lamp fl ashes three times.
When the status changes from inactive
to active, two bleeps are heard and the
indicator lamp fl ashes three times.
Automatic control active
If the air distribution adjustment dial and
the air fl ow adjustment dial are placed
in the "AUTO" position, the Air intake/
Interior air recirculation function is also
controlled automatically.
Automatic control inactive
Even if the air distribution adjustment
dial and the air fl ow adjustment dial are
placed in the "AUTO" position, the Air
intake/Interior air recirculation function
is no longer controlled automatically. Windows and windscreen demisting/defrosting
Demisting/defrosting

1. Press button A to select "exterior air
intake". The indicator lamp in this
button is goes off.

2. Place the air distribution dial in the
"windscreen, side windows and
footwells" position.

3. Select the air fl ow required.

4. Select the temperature required.

5. Press the "air conditioning on/off"
button B to activate the air condi-
tioning. The indicator lamp in this
button comes on. Rapid demisting/defrosting

1. Place the air distribution dial in the
"windscreen and side windows" po-
sition.

2. Select maximum air fl ow.

3. Select maximum temperature.

2
COMFORT

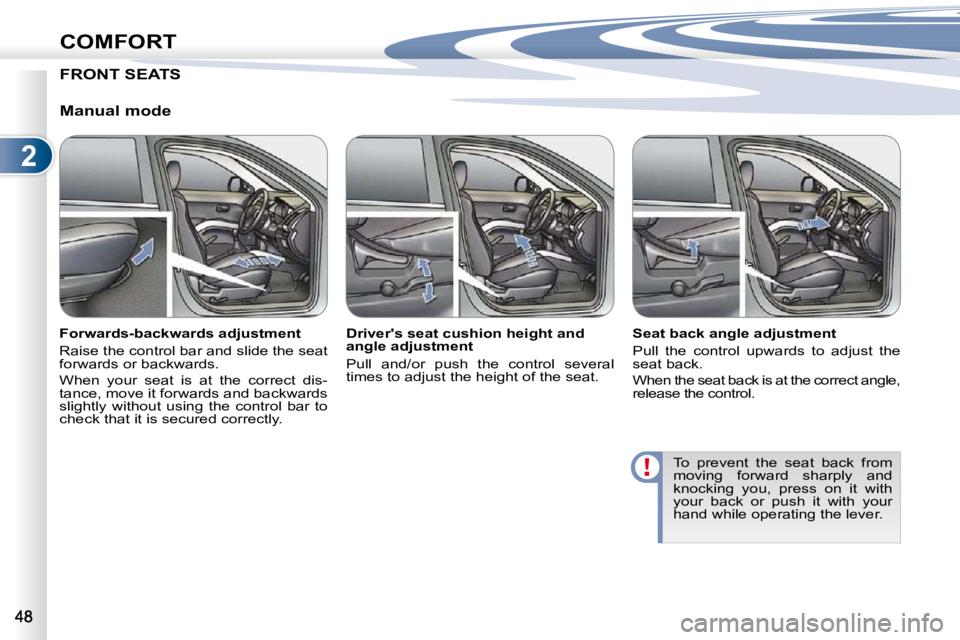

FRONT SEATS
Manual mode
Forwards-backwards adjustment
Raise the control bar and slide the seat
forwards or backwards.
When your seat is at the correct dis-
tance, move it forwards and backwards
slightly without using the control bar to
check that it is secured correctly. Seat back angle adjustment
Pull the control upwards to adjust the
seat back.
When the seat back is at the correct angle,
release the control.
To prevent the seat back from
moving forward sharply and
knocking you, press on it with
your back or push it with your
hand while operating the lever.
Driver's seat cushion height and
angle adjustment
Pull and/or push the control several
times to adjust the height of the seat.

2
COMFORT

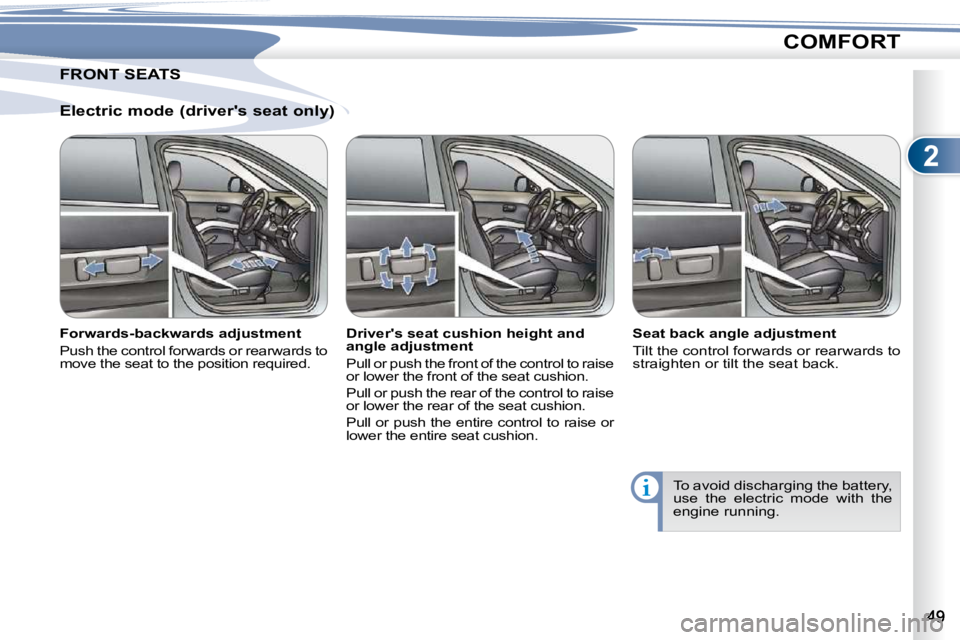

Electric mode (driver's seat only)
Forwards-backwards adjustment
Push the control forwards or rearwards to
move the seat to the position required. Driver's seat cushion height and
angle adjustment
Pull or push the front of the control to raise
or lower the front of the seat cushion.
Pull or push the rear of the control to raise
or lower the rear of the seat cushion.
Pull or push the entire control to raise or
lower the entire seat cushion. Seat back angle adjustment
Tilt the control forwards or rearwards to
straighten or tilt the seat back.
FRONT SEATS FRONT SEATS
To avoid discharging the battery,
use the electric mode with the
engine running.

2
COMFORT

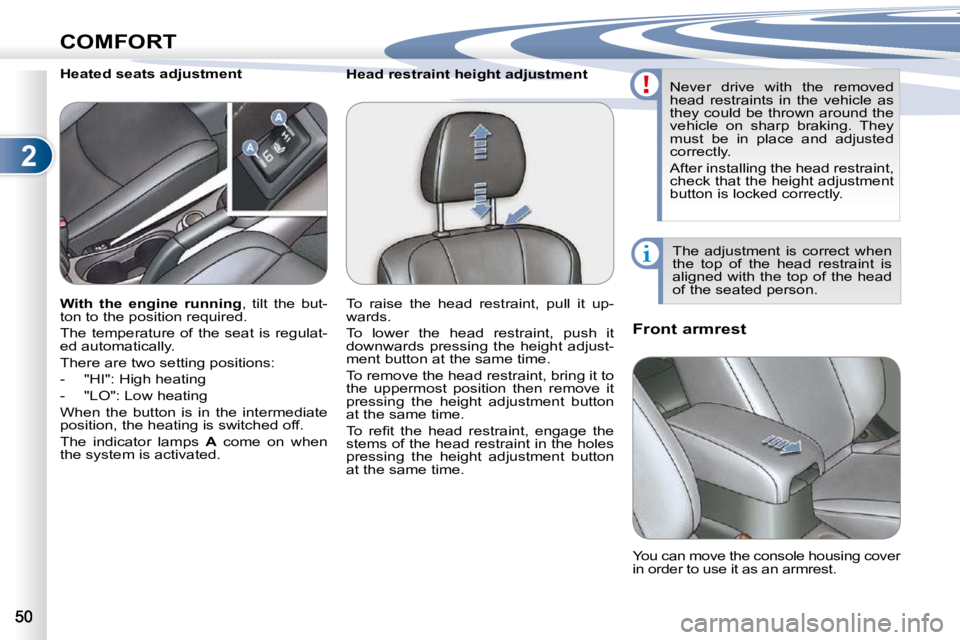

Head restraint height adjustment Front armrest
Heated seats adjustment
The adjustment is correct when
the top of the head restraint is
aligned with the top of the head
of the seated person.
Never drive with the removed
head restraints in the vehicle as
they could be thrown around the
vehicle on sharp braking. They
must be in place and adjusted
correctly.
After installing the head restraint,
check that the height adjustment
button is locked correctly.
You can move the console housing cover
in order to use it as an armrest.

With the engine running , tilt the but-
ton to the position required.
The temperature of the seat is regulat-
ed automatically.
There are two setting positions:
- "HI": High heating
- "LO": Low heating
When the button is in the intermediate
position, the heating is switched off.
The indicator lamps A come on when
the system is activated. To raise the head restraint, pull it up-
wards.
To lower the head restraint, push it
downwards pressing the height adjust-
ment button at the same time.
To remove the head restraint, bring it to
the uppermost position then remove it
pressing the height adjustment button
at the same time.
To refi t the head restraint, engage the
stems of the head restraint in the holes
pressing the height adjustment button
at the same time.

2
COMFORT

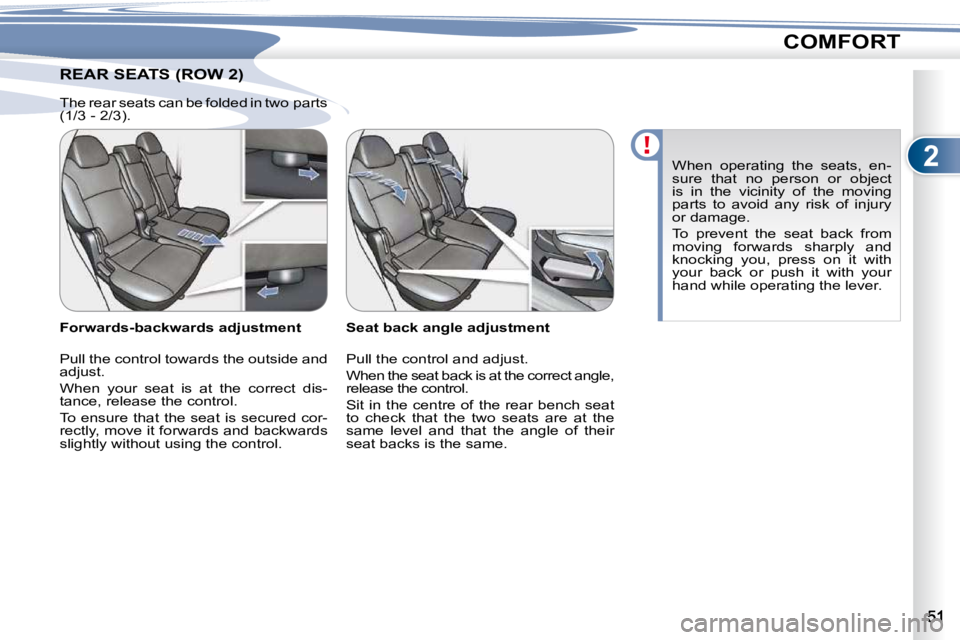

REAR SEATS (ROW 2) REAR SEATS (ROW 2)
Seat back angle adjustment
Pull the control and adjust.
When the seat back is at the correct angle,
release the control.
Sit in the centre of the rear bench seat
to check that the two seats are at the
same level and that the angle of their
seat backs is the same.
Forwards-backwards adjustment
Pull the control towards the outside and
adjust.
When your seat is at the correct dis-
tance, release the control.
To ensure that the seat is secured cor-
rectly, move it forwards and backwards
slightly without using the control. When operating the seats, en-
sure that no person or object
is in the vicinity of the moving
parts to avoid any risk of injury
or damage.
To prevent the seat back from
moving forwards sharply and
knocking you, press on it with
your back or push it with your
hand while operating the lever.
The rear seats can be folded in two parts
(1/3 - 2/3).

2
COMFORT

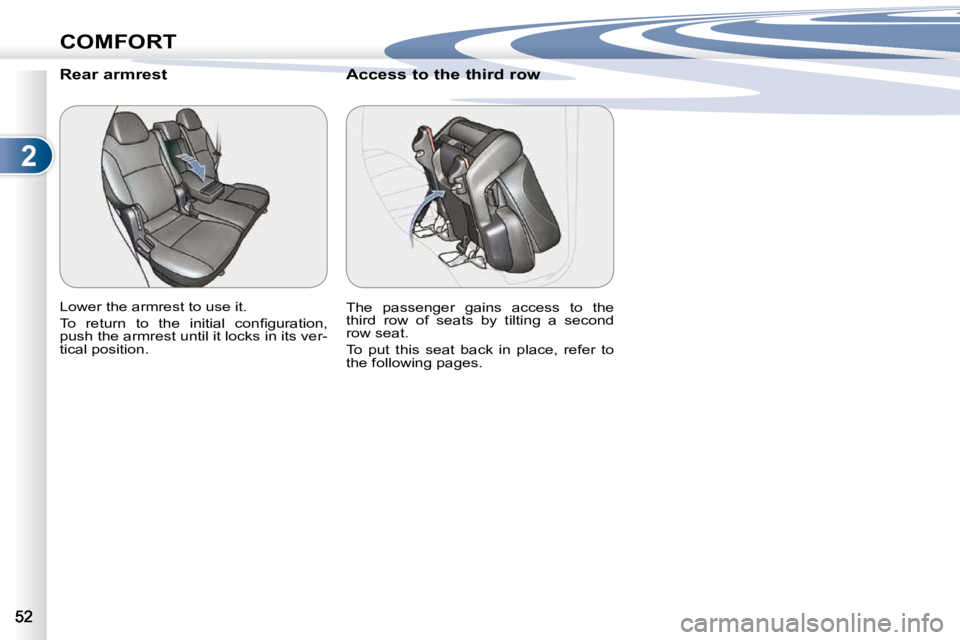

Rear armrest
Lower the armrest to use it.
To return to the initial confi guration,
push the armrest until it locks in its ver-
tical position.
Access to the third row
The passenger gains access to the
third row of seats by tilting a second
row seat.
To put this seat back in place, refer to
the following pages.
