After changing a wheel
When using the "space-saver"
spare wheel, do not exceed a
speed of 50 mph (80 km/h).
Have the tightening of the bolts
and the pressure of the spare
wheel checked by a PEUGEOT
dealer without delay.
Have the punctured wheel
repaired and replace it on the
vehicle as soon as possible.

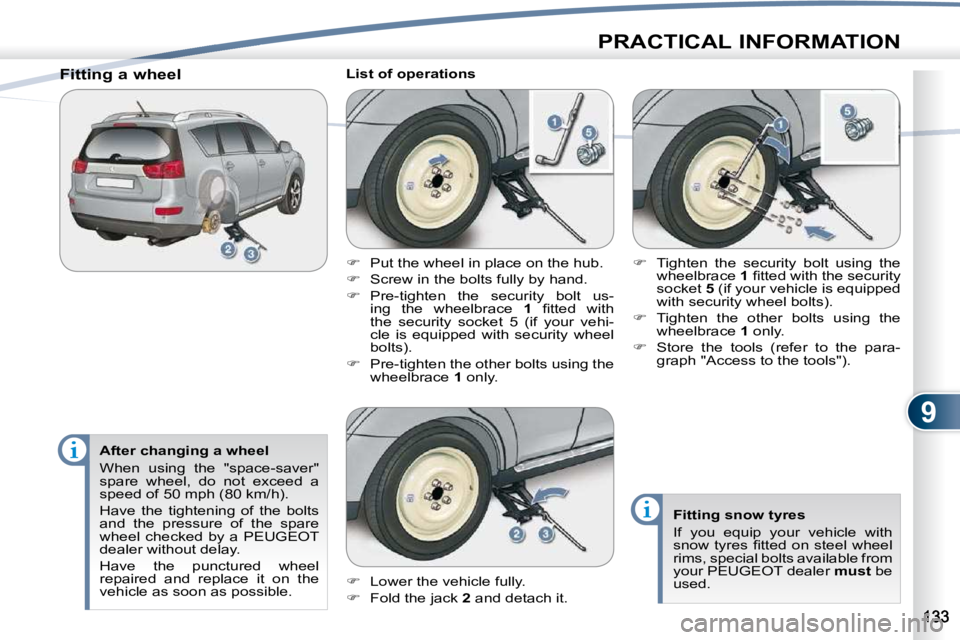

Fitting a wheel
List of operations

 Lower the vehicle fully.

 Fold the jack 2 and detach it.
 Tighten the security bolt using the
wheelbrace 1 fi tted with the security
socket 5 (if your vehicle is equipped
with security wheel bolts).

 Tighten the other bolts using the
wheelbrace 1 only.

 Store the tools (refer to the para-
graph "Access to the tools").
Fitting snow tyres
If you equip your vehicle with
snow tyres fi tted on steel wheel
rims, special bolts available from
your PEUGEOT dealer must be
used.

 Put the wheel in place on the hub.

 Screw in the bolts fully by hand.

 Pre-tighten the security bolt us-
ing the wheelbrace 1 fi tted with
the security socket 5 (if your vehi-
cle is equipped with security wheel
bolts).

 Pre-tighten the other bolts using the
wheelbrace 1 only.

9
PRACTICAL INFORMATION
CHANGING CHANGING A BULB
Handle the bulbs using a dry
cloth.

Do not clean the headlamps
using a dry or abrasive cloth,
or using detergent or solvent
products, use a sponge and
soapy water. In some weather conditions (e.g.
low temperature or humidity),
the presence of misting on the
internal surface of the glass of
the headlamps and rear lamps
is normal; it disappears after the
lamps have been on for a few
minutes.

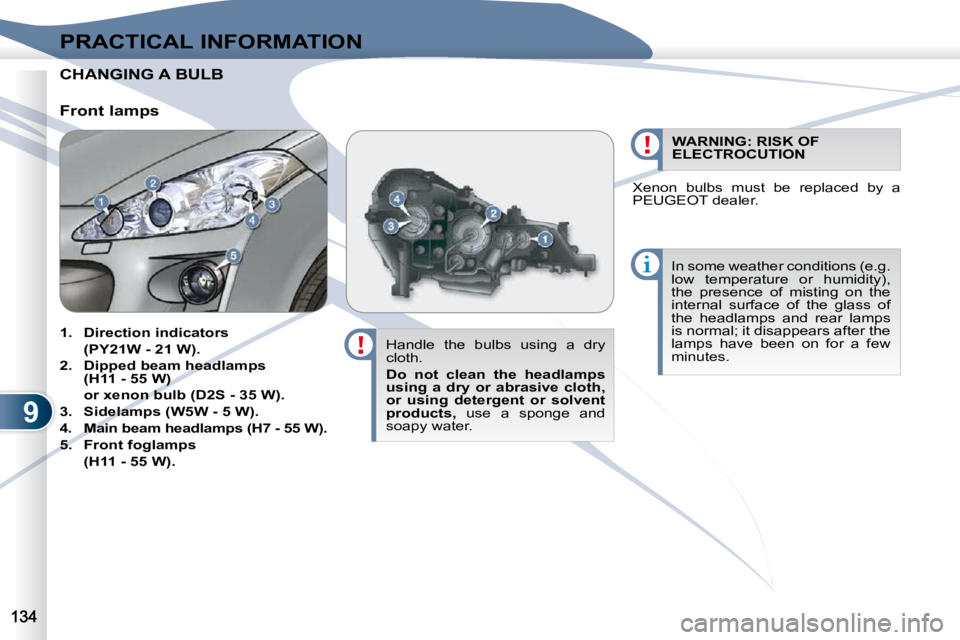

Front lamps

1. Direction indicators

(PY21W - 21 W).

2. Dipped
beam
headlamps
(H11 - 55 W)

or xenon bulb (D2S - 35 W).

3. Sidelamps
(W5W - 5 W).

4. Main beam headlamps (H7 - 55 W).

5. Front
foglamps

(H11 - 55 W). WARNING: RISK OF
ELECTROCUTION
Xenon bulbs must be replaced by a
PEUGEOT dealer.

9
PRACTICAL INFORMATION

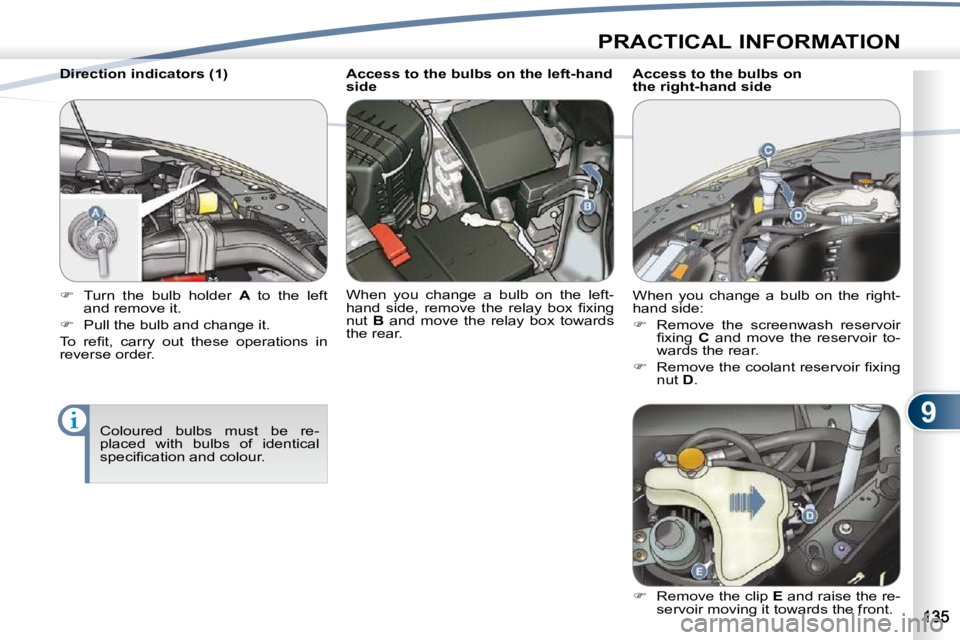

Direction indicators (1) Coloured bulbs must be re-
placed with bulbs of identical
specifi cation and colour.

 Turn the bulb holder A to the left
and remove it.

 Pull the bulb and change it.
To refi t, carry out these operations in
reverse order. Access to the bulbs on the left-hand
side
When you change a bulb on the left-
hand side, remove the relay box fi xing
nut
B and move the relay box towards
the rear. Access to the bulbs on
the right-hand side
When you change a bulb on the right-
hand side:

 Remove the screenwash reservoir
fi xing C and move the reservoir to-
wards the rear.

 Remove the coolant reservoir fi xing
nut D .

 Remove the clip E and raise the re-
servoir moving it towards the front.

9
PRACTICAL INFORMATION
Changing sidelamp bulbs (3)

 Unscrew the cover H .

 Disconnect the connector.

 Turn the bulb holder I a quarter of a
turn and remove it.

 Pull the bulb and change it.
To refi t, carry out these operations in
reverse order.

 Unscrew the cover F .

 Disconnect the connector.

 Turn the bulb G to the left and re-
move it.
To refi t, carry out these operations in
reverse order.

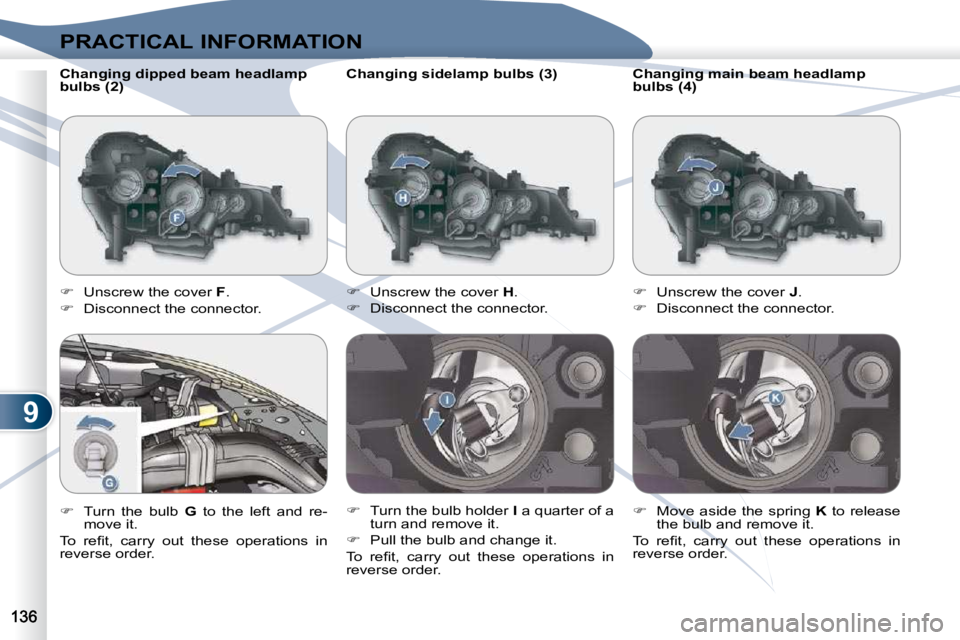

Changing dipped beam headlamp
bulbs (2)
Changing main beam headlamp
bulbs (4)

 Unscrew the cover J .

 Disconnect the connector.

 Move aside the spring K to release
the bulb and remove it.
To refi t, carry out these operations in
reverse order.

9
PRACTICAL INFORMATION

 Push the repeater A towards the
rear and detach it.

 Unclip the repeater.

 Disconnect the repeater connector
and change the repeater.
To refi t, carry out these operations in
reverse order.
To obtain repeaters, contact a PEUGEOT
dealer.

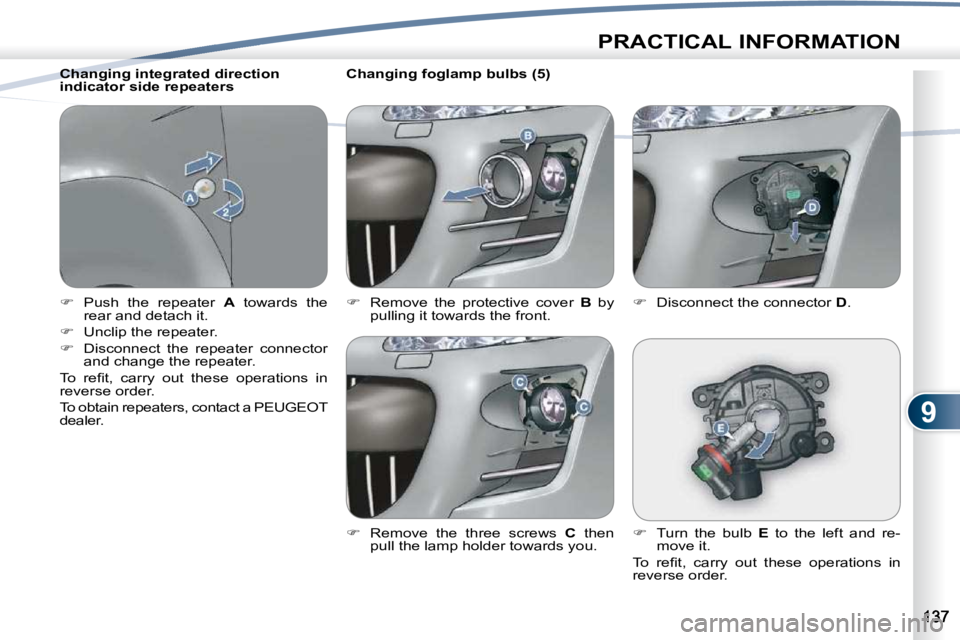

Changing integrated direction
indicator side repeaters

 Remove the protective cover B by
pulling it towards the front.
Changing foglamp bulbs (5)

 Remove the three screws C then
pull the lamp holder towards you.
 Disconnect the connector D .

 Turn the bulb E to the left and re-
move it.
To refi t, carry out these operations in
reverse order.

9
PRACTICAL INFORMATION

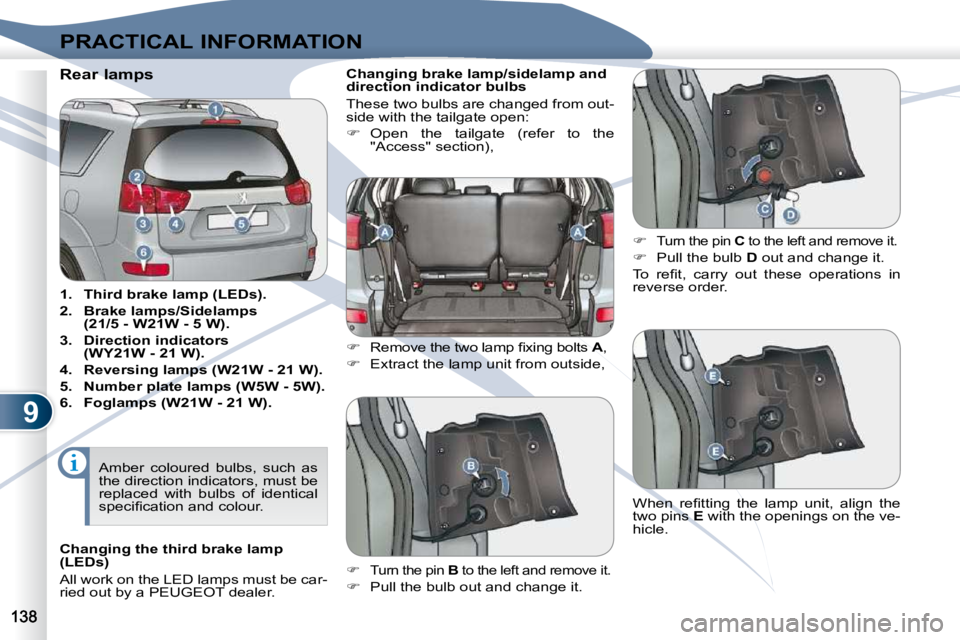

Rear lamps

1. Third brake
lamp
(
LEDs
).

2. Brake
lamps
/
Sidelamps

(21/5 - W21W - 5 W).

3. Direction indicators
(WY21W - 21 W).

4. Reversing
lamps
(W21W - 21 W).

5. Number plate
lamps
(W5W - 5W).

6. Foglamps
(W21W - 21 W). Changing brake lamp/sidelamp and
direction indicator bulbs
These two bulbs are changed from out-
side with the tailgate open:

 Open the tailgate (refer to the
"Access" section),

 Remove the two lamp fi xing bolts A ,

 Extract the lamp unit from outside,

Turn the pin C to the left and remove it.

 Pull the bulb D out and change it.
To refi t, carry out these operations in
reverse order.

 Turn the pin B to the left and remove it.

 Pull the bulb out and change it. When refi tting the lamp unit, align the
two pins
E with the openings on the ve-
hicle.
Amber coloured bulbs, such as
the direction indicators, must be
replaced with bulbs of identical
specifi cation and colour.
Changing the third brake lamp
(LEDs)
All work on the LED lamps must be car-
ried out by a PEUGEOT dealer.

9
PRACTICAL INFORMATION

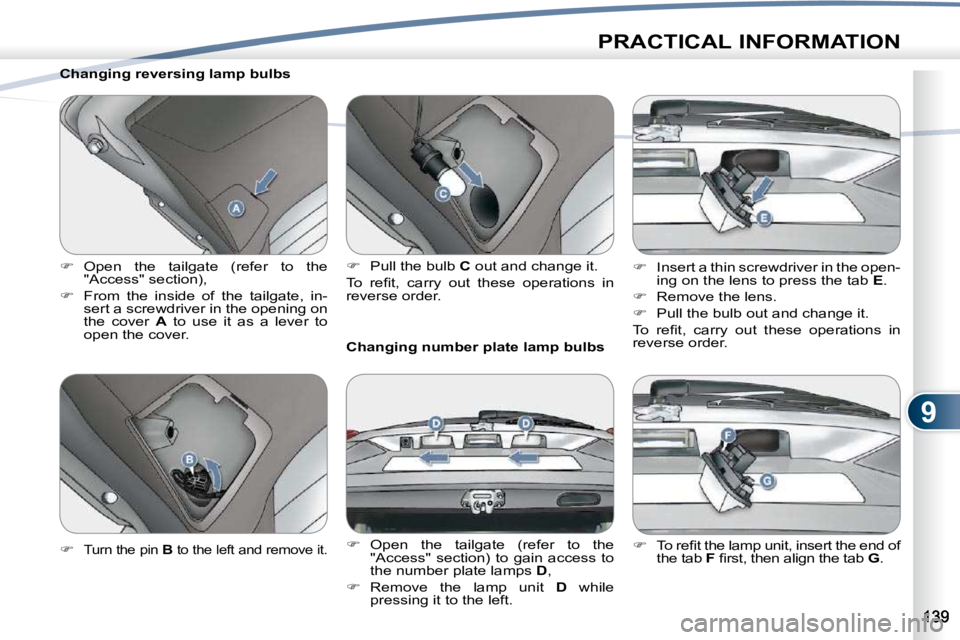

Changing reversing lamp bulbs

 Open the tailgate (refer to the
"Access" section),

 From the inside of the tailgate, in-
sert a screwdriver in the opening on
the cover A to use it as a lever to
open the cover. Changing number plate lamp bulbs

 Open the tailgate (refer to the
"Access" section) to gain access to
the number plate lamps D ,

 Remove the lamp unit D while
pressing it to the left.


Turn the pin B to the left and remove it.

 Pull the bulb C out and change it.
To refi t, carry out these operations in
reverse order.
 Insert a thin screwdriver in the open-
ing on the lens to press the tab E .

 Remove the lens.

 Pull the bulb out and change it.
To refi t, carry out these operations in
reverse order.

 To refi t the lamp unit, insert the end of
the tab F fi rst, then align the tab G .

9
PRACTICAL INFORMATION

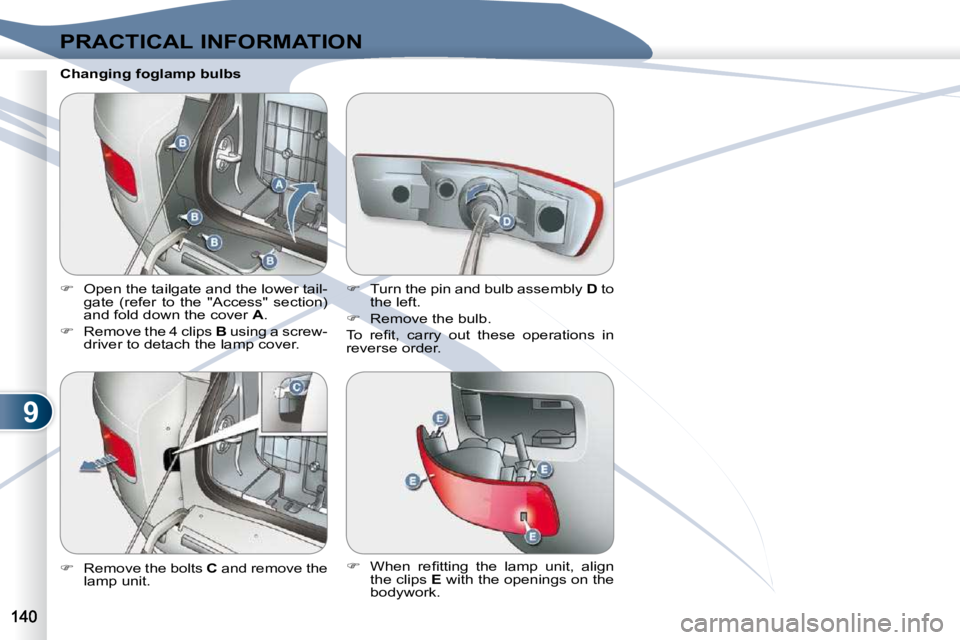

Changing foglamp bulbs

 Open the tailgate and the lower tail-
gate (refer to the "Access" section)
and fold down the cover A .

 Remove the 4 clips B using a screw-
driver to detach the lamp cover.

 Remove the bolts C and remove the
lamp unit.
 Turn the pin and bulb assembly D to
the left.

 Remove the bulb.
To refi t, carry out these operations in
reverse order.

 When refi tting the lamp unit, align
the clips E with the openings on the
bodywork.
