GD(H6DO)-203
Diagnostic Trouble Code (DTC) Detecting Criteria
GENERAL DESCRIPTION
ED:DTC P2102 THROTTLE ACTUATOR CONTROL MOTOR CIRCUIT LOW
1. OUTLINE OF DIAGNOSIS
Judge as NG when the electronic throttle control power is not supplied even when ECM sets the electric con-
trol throttle relay to ON.
2. COMPONENT DESCRIPTION
3. ENABLE CONDITIONS
4. GENERAL DRIVING CYCLE
Always perform the diagnosis continuously.
5. DIAGNOSTIC METHOD
Judge as OK and clear the NG when the malfunction criteria below are met.
Time Needed for Diagnosis:
•400 milliseconds (For NG)
•2000 milliseconds (For OK)
Malfunction Indicator Light: Illuminates as soon as a malfunction occurs.
(1) Engine control module (ECM) (3) Drive circuit (5) Motor
(2) Voltage detection circuit (4) Electronic throttle control relay
Secondary Parameters Enable Conditions
Electronic control throttle relay output ON
Judgment Value
Malfunction Criteria Threshold Value
Motor power voltage≥ 5 V
EN-01868
(2)
(3)
(1)
(4)
(5)
12V 12V

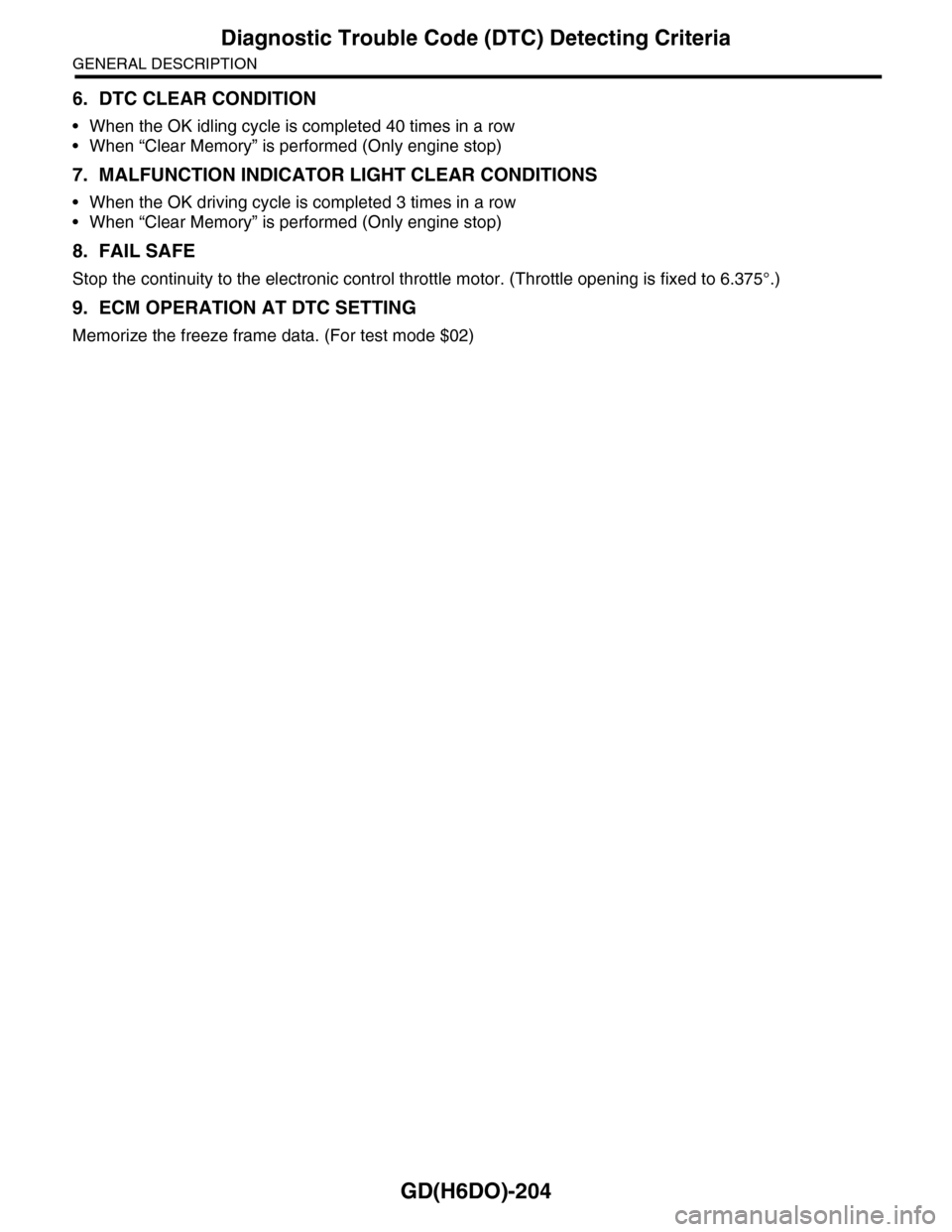

GD(H6DO)-204
Diagnostic Trouble Code (DTC) Detecting Criteria
GENERAL DESCRIPTION
6. DTC CLEAR CONDITION
•When the OK idling cycle is completed 40 times in a row
•When “Clear Memory” is performed (Only engine stop)
7. MALFUNCTION INDICATOR LIGHT CLEAR CONDITIONS
•When the OK driving cycle is completed 3 times in a row
•When “Clear Memory” is performed (Only engine stop)
8. FAIL SAFE
Stop the continuity to the electronic control throttle motor. (Throttle opening is fixed to 6.375°.)
9. ECM OPERATION AT DTC SETTING
Memorize the freeze frame data. (For test mode $02)

GD(H6DO)-205
Diagnostic Trouble Code (DTC) Detecting Criteria
GENERAL DESCRIPTION
EE:DTC P2103 THROTTLE ACTUATOR CONTROL MOTOR CIRCUIT HIGH
1. OUTLINE OF DIAGNOSIS
Judge as NG when the electronic throttle control power is not supplied even when ECM sets the electric throt-
tle control relay to OFF.
2. COMPONENT DESCRIPTION
3. ENABLE CONDITIONS
4. GENERAL DRIVING CYCLE
•When ignition switch ON → OFF
•Ignition switch OFF → ON (Only after clearing memory)
5. DIAGNOSTIC METHOD
Judge as OK and clear the NG when the malfunction criteria below are met.
(1) Engine control module (ECM) (3) Drive circuit (5) Motor
(2) Voltage detection circuit (4) Electronic throttle control relay
Secondary Parameters Enable Conditions
Electronic control throttle relay output OFF
Judgment Value
Malfunction Criteria Threshold Value
Motor power voltage≤ 5 V
EN-01868
(2)
(3)
(1)
(4)
(5)
12V 12V

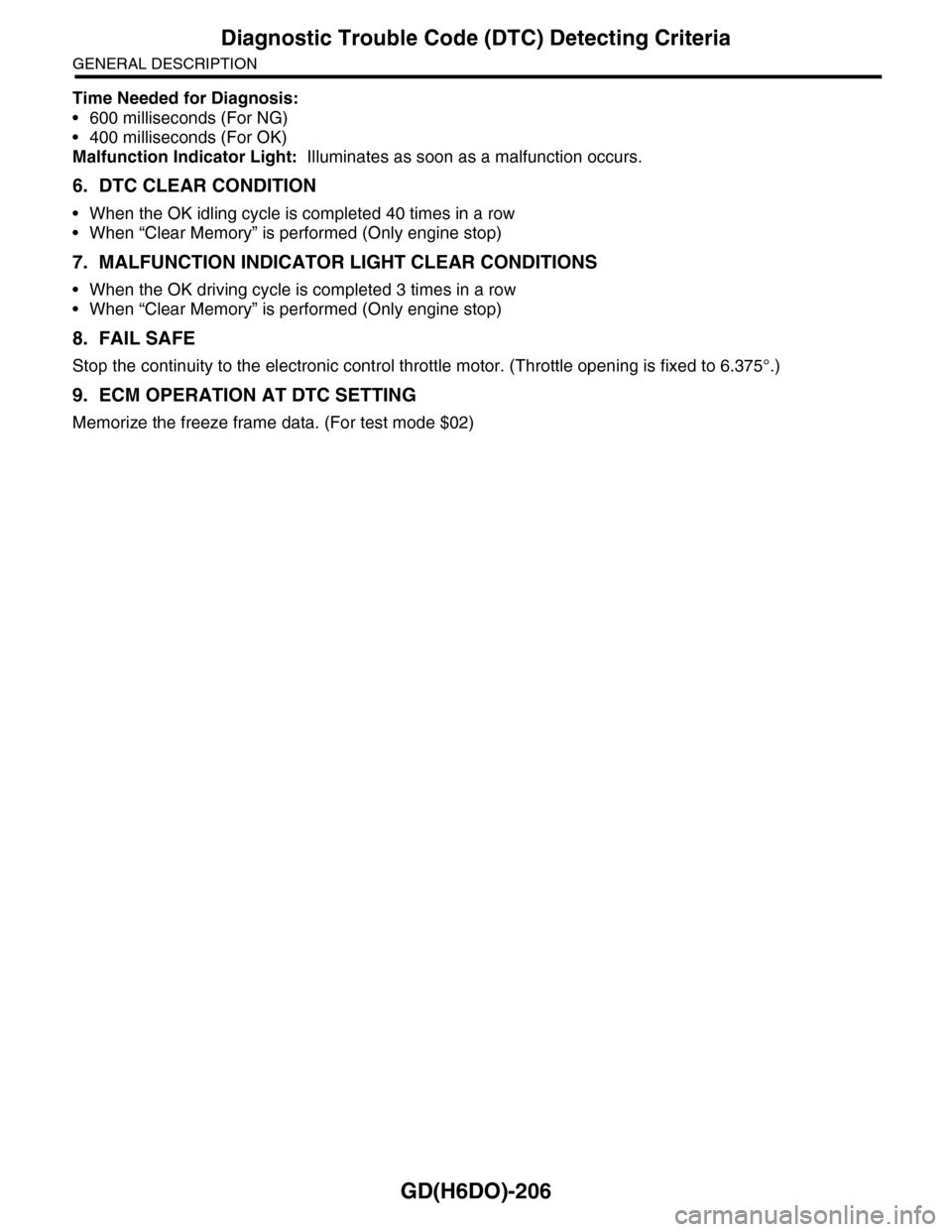

GD(H6DO)-206
Diagnostic Trouble Code (DTC) Detecting Criteria
GENERAL DESCRIPTION
Time Needed for Diagnosis:
•600 milliseconds (For NG)
•400 milliseconds (For OK)
Malfunction Indicator Light: Illuminates as soon as a malfunction occurs.
6. DTC CLEAR CONDITION
•When the OK idling cycle is completed 40 times in a row
•When “Clear Memory” is performed (Only engine stop)
7. MALFUNCTION INDICATOR LIGHT CLEAR CONDITIONS
•When the OK driving cycle is completed 3 times in a row
•When “Clear Memory” is performed (Only engine stop)
8. FAIL SAFE
Stop the continuity to the electronic control throttle motor. (Throttle opening is fixed to 6.375°.)
9. ECM OPERATION AT DTC SETTING
Memorize the freeze frame data. (For test mode $02)

GD(H6DO)-207
Diagnostic Trouble Code (DTC) Detecting Criteria
GENERAL DESCRIPTION
EF:DTC P2109 THROTTLE/PEDAL POSITION SENSOR A MINIMUM STOP PER-
FORMANCE
1. OUTLINE OF DIAGNOSIS
Judge as NG when fully close point learning cannot conducted or abnormal value is detected.
2. COMPONENT DESCRIPTION
3. ENABLE CONDITIONS
4. GENERAL DRIVING CYCLE
Perform the diagnosis at all close point learning.
5. DIAGNOSTIC METHOD
Judge as OK and clear the NG when the malfunction criteria below are met.
Time Needed for Diagnosis: 8 milliseconds
Malfunction Indicator Light: Illuminates as soon as a malfunction occurs.
(1) Engine control module (ECM) (3) Motor (4) Throttle position sensor
(2) Drive circuit
Secondary Parameters Enable Conditions
Ignition switch ON → OFF
Ignition switch (after clear memory only) OFF → ON
Judgement Value 1
Malfunction Criteria Threshold Value
Main throttle full closed point learning
position when IG is ON
10.127° — 19.872°
Main throttle full closed point learning
position when IG is OFF
10.127° — 19.872°
Judgement Value 2
Malfunction Criteria Threshold Value
Throttle opening angle when IG is ON –
Throttle full closed position
≥ 1.683°
EN-01869
(1)
(2)
(3)
(4)

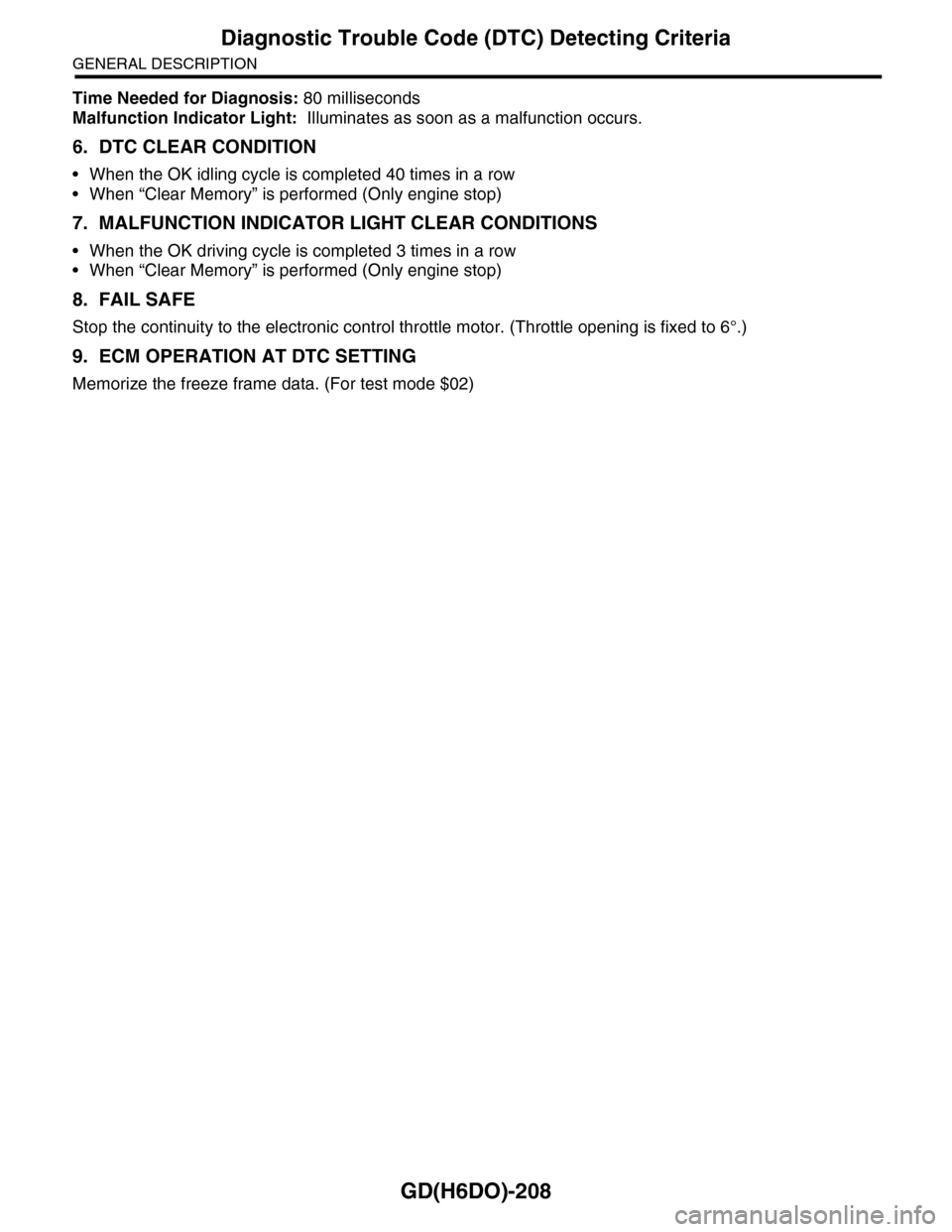

GD(H6DO)-208
Diagnostic Trouble Code (DTC) Detecting Criteria
GENERAL DESCRIPTION
Time Needed for Diagnosis: 80 milliseconds
Malfunction Indicator Light: Illuminates as soon as a malfunction occurs.
6. DTC CLEAR CONDITION
•When the OK idling cycle is completed 40 times in a row
•When “Clear Memory” is performed (Only engine stop)
7. MALFUNCTION INDICATOR LIGHT CLEAR CONDITIONS
•When the OK driving cycle is completed 3 times in a row
•When “Clear Memory” is performed (Only engine stop)
8. FAIL SAFE
Stop the continuity to the electronic control throttle motor. (Throttle opening is fixed to 6°.)
9. ECM OPERATION AT DTC SETTING
Memorize the freeze frame data. (For test mode $02)

GD(H6DO)-209
Diagnostic Trouble Code (DTC) Detecting Criteria
GENERAL DESCRIPTION
EG:DTC P2122 THROTTLE/PEDAL POSITION SENSOR/ SWITCH “D” CIRCUIT
LOW INPUT
1. OUTLINE OF DIAGNOSIS
Detect the open or short circuit of accelerator pedal position sensor 1.
Judge as NG if it is out of specification.
2. COMPONENT DESCRIPTION
3. ENABLE CONDITIONS
4. GENERAL DRIVING CYCLE
Always perform the diagnosis continuously.
5. DIAGNOSTIC METHOD
Judge as OK and clear the NG when the malfunction criteria below are met.
Time Needed for Diagnosis: 100 milliseconds
Malfunction Indicator Light: Illuminates as soon as a malfunction occurs.
6. DTC CLEAR CONDITION
•When the OK idling cycle is completed 40 times in a row
•When “Clear Memory” is performed (Only engine stop)
(1) Engine control module (ECM) (3) Accelerator pedal position sensor
2 signal
(4) Accelerator pedal position sensor
(2) Accelerator pedal position sensor
1 signal

Secondary Parameters Enable Conditions
Ignition switch ON
Judgment Value
Malfunction Criteria Threshold Value
Sensor 1 input voltage≥ 0.219 V
EN-01861
(2)
(3)
(4)(1)

GD(H6DO)-210
Diagnostic Trouble Code (DTC) Detecting Criteria
GENERAL DESCRIPTION
7. MALFUNCTION INDICATOR LIGHT CLEAR CONDITIONS
•When the OK driving cycle is completed 3 times in a row
•When “Clear Memory” is performed (Only engine stop)
8. FAIL SAFE
•Single malfunction: Control with normal sensor
•Simultaneous failure: Throttle opening is fixed to 6.375°.
9. ECM OPERATION AT DTC SETTING
Memorize the freeze frame data. (For test mode $02)
