2009 SUBARU TRIBECA ecm

GD(H6DO)-155
Diagnostic Trouble Code (DTC) Detecting Criteria
GENERAL DESCRIPTION
CO:DTC P0463 FUEL LEVEL SENSOR CIRCUIT HIGH INPUT
1. OUTLINE OF DIAGNOSIS
Detect the open or short circuit of fuel level sensor. Judge as NG if it is out of specification.
2. COMPONENT DESCRIPTION
3. ENABLE CONDITIONS
4. GENERAL DRIVING CYCLE
Always perform the diagnosis continuously.
5. DIAGNOSTIC METHOD
Abnormality Judgment
Judge as NG when the continuous time of completing the malfunction criteria below exceeds the time re-
quired for diagnosis (1 second).
Time Needed for Diagnosis: 1 second
Malfunction Indicator Light Illumination: Illuminates when malfunctions occur in 2 continuous driving cy-
cles.
(1) Engine control module (ECM) (3) Fuel sub level sensor (4) Detecting circuit
(2) Fuel level sensor
Secondary Parameters Enable Conditions
None
Judgment Value
Malfunction Criteria Threshold Value
Ignition switch ON
Battery voltage≥ 10.9 V
After engine starting 3 seconds or more
Output voltage≥ 7.212 V
EN-01735
(4)
(1)
(2) (3)

GD(H6DO)-156
Diagnostic Trouble Code (DTC) Detecting Criteria
GENERAL DESCRIPTION
Normality Judgment
Judge as OK and clear the NG when the malfunction criteria below are met.
6. DTC CLEAR CONDITION
•When the OK idling cycle is completed 40 times in a row
•When “Clear Memory” is performed
7. MALFUNCTION INDICATOR LIGHT CLEAR CONDITIONS
•When the OK driving cycle is completed 3 times in a row
•When “Clear Memory” is performed
8. FAIL SAFE
None
9. ECM OPERATION AT DTC SETTING
Memorize the freeze frame data. (For test mode $02)
Judgment Value
Malfunction Criteria Threshold Value
Ignition switch ON
Battery voltage≥ 10.9 V
After engine starting 3 seconds or more
Output voltage < 7.212 V

GD(H6DO)-159
Diagnostic Trouble Code (DTC) Detecting Criteria
GENERAL DESCRIPTION
The diagnosis counter does not count up when the following conditions are completed within 12.2 seconds.
Time Needed for Diagnosis: 12.2 seconds × 4 times
Malfunction Indicator Light Illumination: Illuminates when malfunctions occur in 2 continuous driving cy-
cles.
Normality Judgment
Judge as OK and clear the NG when the malfunction criteria below are met.
5. DTC CLEAR CONDITION
•When the OK idling cycle is completed 40 times in a row
•When “Clear Memory” is performed
6. MALFUNCTION INDICATOR LIGHT CLEAR CONDITIONS
•When the OK driving cycle is completed 3 times in a row
•When “Clear Memory” is performed
7. FAIL SAFE
None
8. ECM OPERATION AT DTC SETTING
Memorize the freeze frame data. (For test mode $02)
Maximum value – minimum value of
change of tank pressure during 12.2 sec-
onds
≥ 0.05 kPa (0.375
mmHg, 0.02 inHg)
Maximum value – minimum value of bat-
tery voltage during 12.2 seconds
≥ 0.609 V
Judgment Value
Malfunction Criteria Threshold Value
DELFLMAX 0.27 ←→ 0.894 V
SUMFL < 25.92 V
At that time, DELFLMAX: Maximum dif-
ference of sensor output for 12.2 sec-
onds; SUMFL: Integrated value of the
sensor output deviation for 12.2 seconds

GD(H6DO)-160
Diagnostic Trouble Code (DTC) Detecting Criteria
GENERAL DESCRIPTION
CQ:DTC P0483 COOLING FAN RATIONALITY CHECK
1. OUTLINE OF DIAGNOSIS
Detect the function abnormality of the radiator fan.
Judge as NG when the engine coolant temperature slowly decreases even when the radiator fan is rotating.
2. ENABLE CONDITIONS
Diagnostic enable condition is established if the radiator fan changes from OFF → ON when all of the con-
ditions below are met.
When one of the conditions below is not met, the diagnostic enable condition is not established.
3. GENERAL DRIVING CYCLE
Perform the diagnosis continuously when the radiator fan changes from OFF → ON when idling.
4. DIAGNOSTIC METHOD
Abnormality Judgment
Judge as NG when the continuous time of completing the malfunction criteria below becomes more than 5
minutes.
Time Needed for Diagnosis: 5 minutes
Malfunction Indicator Light Illumination: Illuminates when malfunctions occur in 2 continuous driving cy-
cles.
Normality Judgment
Judge as OK and clear the NG when the malfunction criteria below are met.
5. DTC CLEAR CONDITION
•When the OK idling cycle is completed 40 times in a row
•When “Clear Memory” is performed
6. MALFUNCTION INDICATOR LIGHT CLEAR CONDITIONS
•When the OK driving cycle is completed 3 times in a row
•When “Clear Memory” is performed
7. FAIL SAFE
None
8. ECM OPERATION AT DTC SETTING
Memorize the freeze frame data. (For test mode $02)
Secondary Parameters Enable Conditions
Engine speed 500 — 900 rpm
Idle switch ON
Ve h i c l e s p e e d < 2 k m / h ( 1 M P H )
Battery voltage≥ 10.9 V
Judgment Value
Malfunction Criteria Threshold Value
Engine coolant temperature≥ 102°C (216°F)
Engine coolant temperature Does not decrease
Judgment Value
Malfunction Criteria Threshold Value
Engine coolant temperature Decreases

GD(H6DO)-162
Diagnostic Trouble Code (DTC) Detecting Criteria
GENERAL DESCRIPTION
8. FAIL SAFE
•ABS wheel speed sensor signal process: Vehicle speed = 10 km/h (6 MPH)
•ISC control: ISC feedback amount calculation prohibited
•Radiator fan control: Send the duty signal 50% to the controller.
9. ECM OPERATION AT DTC SETTING
Memorize the freeze frame data. (For test mode $02)

GD(H6DO)-164
Diagnostic Trouble Code (DTC) Detecting Criteria
GENERAL DESCRIPTION
6. MALFUNCTION INDICATOR LIGHT CLEAR CONDITIONS
•When the OK driving cycle is completed 3 times in a row
•When “Clear Memory” is performed
7. FAIL SAFE
Judgment of heavy fuel: Not allowed to make the judgment of heavy fuel
8. ECM OPERATION AT DTC SETTING
Memorize the freeze frame data. (For test mode $02)

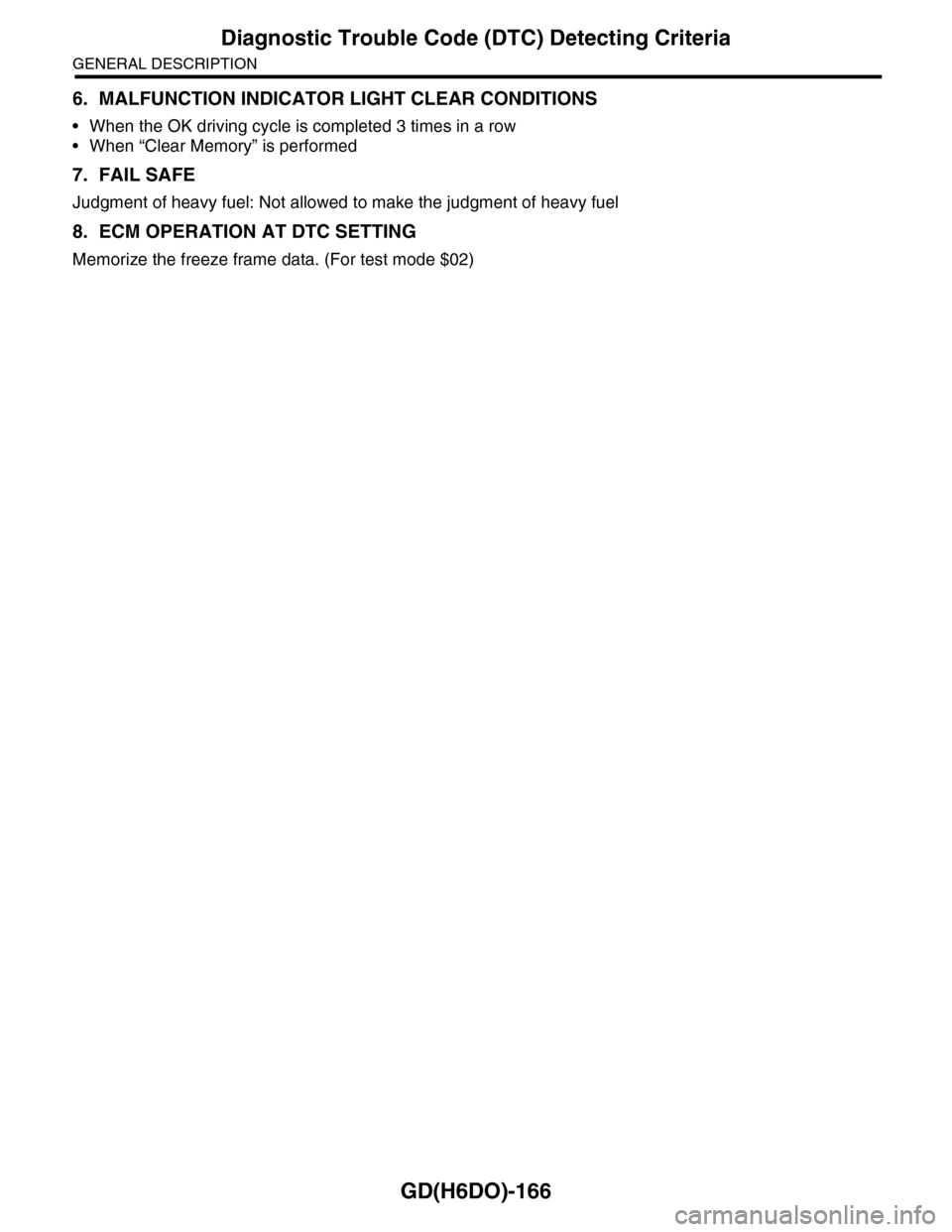

GD(H6DO)-166
Diagnostic Trouble Code (DTC) Detecting Criteria
GENERAL DESCRIPTION
6. MALFUNCTION INDICATOR LIGHT CLEAR CONDITIONS
•When the OK driving cycle is completed 3 times in a row
•When “Clear Memory” is performed
7. FAIL SAFE
Judgment of heavy fuel: Not allowed to make the judgment of heavy fuel
8. ECM OPERATION AT DTC SETTING
Memorize the freeze frame data. (For test mode $02)

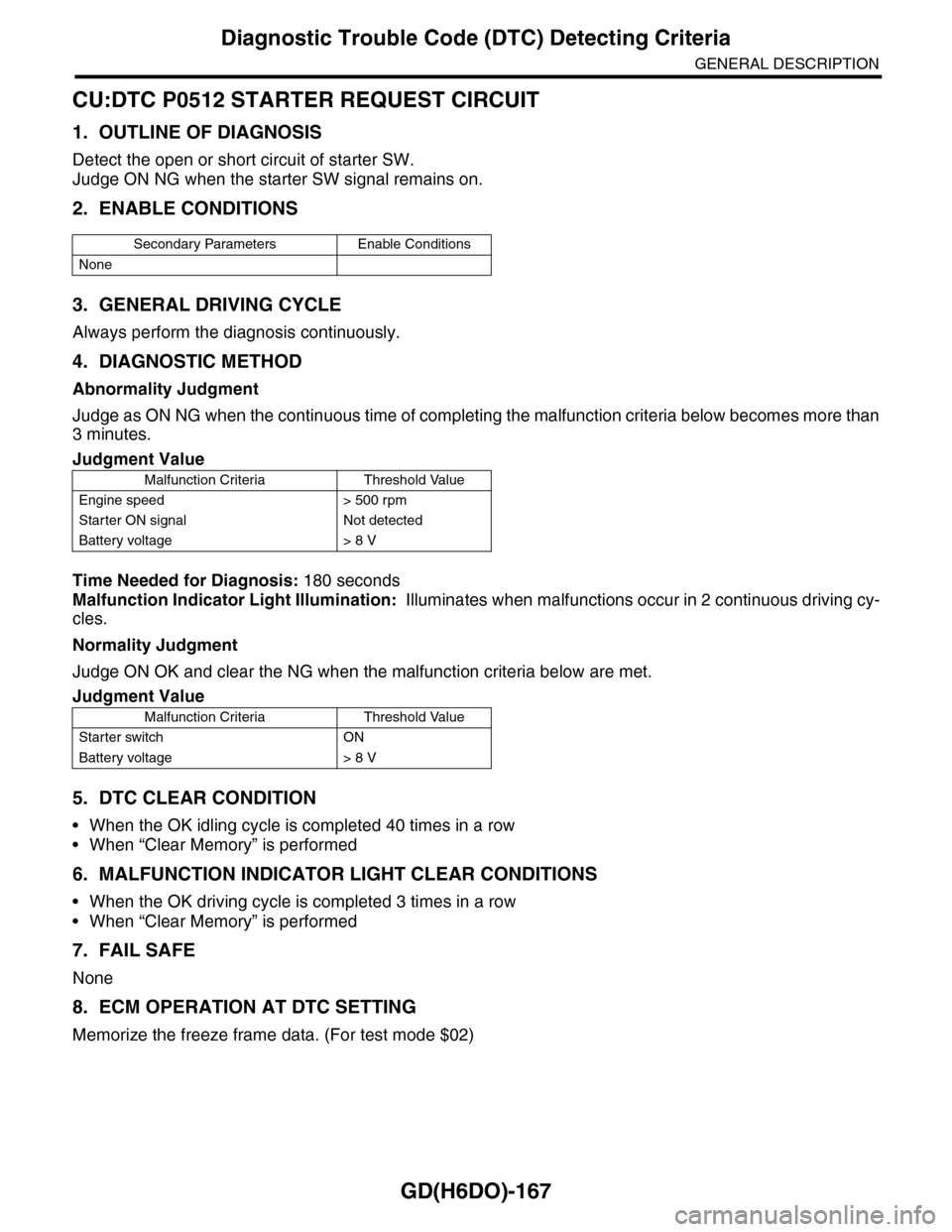

GD(H6DO)-167
Diagnostic Trouble Code (DTC) Detecting Criteria
GENERAL DESCRIPTION
CU:DTC P0512 STARTER REQUEST CIRCUIT
1. OUTLINE OF DIAGNOSIS
Detect the open or short circuit of starter SW.
Judge ON NG when the starter SW signal remains on.
2. ENABLE CONDITIONS
3. GENERAL DRIVING CYCLE
Always perform the diagnosis continuously.
4. DIAGNOSTIC METHOD
Abnormality Judgment
Judge as ON NG when the continuous time of completing the malfunction criteria below becomes more than
3 minutes.
Time Needed for Diagnosis: 180 seconds
Malfunction Indicator Light Illumination: Illuminates when malfunctions occur in 2 continuous driving cy-
cles.
Normality Judgment
Judge ON OK and clear the NG when the malfunction criteria below are met.
5. DTC CLEAR CONDITION
•When the OK idling cycle is completed 40 times in a row
•When “Clear Memory” is performed
6. MALFUNCTION INDICATOR LIGHT CLEAR CONDITIONS
•When the OK driving cycle is completed 3 times in a row
•When “Clear Memory” is performed
7. FAIL SAFE
None
8. ECM OPERATION AT DTC SETTING
Memorize the freeze frame data. (For test mode $02)
Secondary Parameters Enable Conditions
None
Judgment Value
Malfunction Criteria Threshold Value
Engine speed > 500 rpm
Starter ON signal Not detected
Battery voltage > 8 V
Judgment Value
Malfunction Criteria Threshold Value
Starter switch ON
Battery voltage > 8 V
