2009 SUBARU TRIBECA ecm

WI-20
Power Supply Circuit
WIRING SYSTEM
No. Load
MB-1 Fail safe relay
MB-2 VDC control module
MB-5 Mirror heater relay
Rear defogger
MB-6 Body integrated unit
MB-8 PWM controller
MB-9 ECM
MB-14 OP connector
Lighting switch
MB-15 Combination meter
MB-16 Headlight RH
MB-17 Headlight LH
MB-18 OP connector
Daytime running light control module
MB-19 Horn
MB-20 Horn
MB-21 Body integrated unit
MB-22 Ignition relay
Main relay
MB-23 Main relay
MB-24 Electronic throttle control relay
MB-25 Fuel pump relay
MB-26 TCM
MB-27 ECM
Data link connector
MB-28 Key warning switch
Tu r n s i g n a l & h a z a r d u n i t
Body integrated unit
MB-29 Auto A/C control module
Spot map light
Va n i t y m i r r o r i l l u m i n a t i o n l i g h t R H
Handle light LH
Handle light RH
Foot light (Driver’s seat)
Foot light (Passenger’s seat)
Home link
Body integrated unit
MB-30 Power window circuit breaker
MB-31 F/B fuse No. 16
MB-32 ALT-1
ECM
Par king light switch
MB-33 Blower fan relay
MB-34 Accessory relay 2
Va c u u m p u m p r e l ay
ALT-1 ECM
FB-1 Trailer connector
FB-3 Stop light & brake switch
Stop light switch
FB-4 Mirror heater relay
Wiper deicer relay
FB-5 Seat heater relay
FB-6 Body integrated unit
FB-8 Rear cooler relay
FB-9 Front fog light relay
FB-10 MFD
Impact sensor
Audio
Keyless entr y control module
Second-row seat foot light RH
TV monitor
Navigation module
Fr o n t s te p li gh t LH
Fr o n t s te p li gh t RH
Rear seat entertainment
Rear step light RH
FB-11 Second-row seat foot light LH
Luggage room light
Rear gate light
Rear step light LH
FB-13 Navigation module
FB-17 TPM control module
War ning box (Passenger’s side)
Combination meter
FB-18 Auto A/C control module
Body integrated unit
FB-19 Remote control mirror switch
FB-20 Accessory relay 2
Seat heater relay
Shade mirror
FB-21 Body integrated unit
Rear accessory power supply socket
FB-23 Rear wiper motor
FB-24 Body integrated unit
Rear washer motor
FB-25 MFD
Audio
TV monitor
Navigation module
Rear seat entertainment
FB-27 Front wiper switch
Fr o n t wi p er mo t or
Wiper relay unit
FB-28 Key warning switch
Key illumination
Body integrated unit
FB-29 TCM
FB-32 Open/Close switch
Sunroof control unit
Stop light & brake switch
Stop light switch
Tilt switch
Data link connector
Wiper deicer relay
FB-34 Turn signal & hazard unit
FB-35 Stop light relay
Daytime running light control module
Daytime running light relay
Back-up light relay
Rearview mirror
FB-36 MFD
War ning box (Passenger’s side)
Combination meter
No. Load

WI-21
Power Supply Circuit
WIRING SYSTEM
FB-37 Body integrated unit
FB-38 ECM
TCM
Fuel pump relay
FB-39 Airbag control module
FB-41 Airbag control module
FB-42 Power window relay
FB-44 VDC control module
Steering angle sensor
Ya w r a t e s e n s o r
FB-45 A/C control panel
Rear cooler relay
FB-46 A/C relay
FRESH/RECIRC actuator
Auto A/C control module
Pressure switch
Blower fan relay
FB-47 Occupant detection control module
FB-48 TPM control module
FB-49 Impact sensor
TV monitor
ACC -1 Front washer motor
ST-1 ECM
Starter relay
No. Load

WI-30
Ground Circuit
WIRING SYSTEM
WI-08038
GND-09GND-09
BL A5B D26B
D6
R 54
BW
LR 37
LR
BL 36
BL
BW 35
BW
BP 34
BPBB21
E2
E452
LR D3BP D1BW A3BW
D2
(BLACK)
(GREEN)
(GREEN)
B134A:
B137D:ECM
BW
E332
BRE322
BRE312
IGNITION COILNO.1IGNITION COILNO.2IGNITION COILNO.3IGNITION COILNO.5
E57
ELECTRONICTHROTTLECONTROL
46
OrWE10
CRANKSHAFTPOSITIONSENSOR
12
WBE14
KNOCKSENSOR 1
2
WE482
B
12
D: A:B137
85610 11 12 13 14 157213416
3019 20 2228 29
91718 2521 23 243126 27
B134
85610 11 12 13 14 157213416
3019 20 2228 29
91718252123 24323126 2733 34
RBLBWBPLRLRBRBR
REF. TO ENGINE ELECTRICAL SYSTEM[E/G(H6)-08]
E33
E31E34
E32
E48
E10
E14
B21
12345678910 1112 13 14 15 16 17 18 19 20 21 2223 24 25 26 27 28 29 30 31 32 33
34 3542 4336 3738 39
48 4950 5152 5354
40 41444546 47123
E57
123456
GE
BWBWBRBWBW
BW
E462
BW
E342
R
R
52
R
R D7
IGNITION COIL NO.4IGNITION COIL NO.6
KNOCKSENSOR 2
(LIGHT GRAY) (BLACK)
(BLACK) (BLACK)
(BLACK)
E45
E46

WI-32
Engine Electrical System
WIRING SYSTEM
5. Engine Electrical System
A: WIRING DIAGRAM
WI-08039
678
1
2
3
4
5
C20
C32
C31
B5B19
B33
A33
C10
ECMC1B25C8A27
C21C23A7
D29
B2
BATTERY
M/B FUSE NO. 11SBF-7
SBF
SBF-5
SBF-8
SBF-6
STARTERRELAY
IG 2RELAY
IGNITION SWITCHOFF+B
ACC
IG2
IG1
ACCONST
ST
STARTER MOTOR
MAINRELAY 1
ELECTRONICTHROTTLECONTROLRELAY
FUEL PUMP RELAY
FUEL PUMP
FUEL PUMPCONTROL UNIT
MAINRELAY 2RELAYHOLDER
A21
A11A22
B34
B35
B7B6
B11B10
B9B8
C2
B26AIR FLOW SENSOR
CAMSHAFT POSITION SENSOR LH
CPC SOLENOID
B1
C3C5B15
B4C4
POWER STEERING OIL PRESSURE SWITCH
C12
MAIN FUSE BOX (M/B)GENERATOR
B18
TCM
D8FUEL INJECTOR NO.1D9D10D11
PWM CONTROLLORAUTO A/C CONTROL MODULE
A/C RELAY
BODY INTEGRATED UNIT (CAN COMMUNICATION)
FUEL TEMPERATURE SENSOR
VACUUM PUMP RELAY
BODY INTEGRATED UNIT (IMMOBILIZER)
C18C29C24C33
C27
B24B12
B20B28
C26C34
C35B17
CRUISE CONTROL SWITCH
FUEL INJECTOR NO.2FUEL INJECTOR NO.3
C17DRAIN VALVE
FUEL INJECTOR NO.4D12D13FUEL INJECTOR NO.5FUEL INJECTOR NO.6
FRONT OXYGEN (A/F) SENSOR RH
REAR OXYGEN SENSOR RH
REAR OXYGEN SENSOR LH
FRONT OXYGEN (A/F) SENSOR LH
A/C PRESSURE SWITCH
M/V PRESSURE SENSOR
RADIATOR FAN RELAY 1
STOP LIGHT & BRAKE SWITCH(CRUISE CONTROL)
C9
FUEL TANK PRESSURE SENSORB32
M/B FUSE NO. 13F/B FUSE NO. 7F/B FUSE NO. 4F/B FUSE NO. 5F/B FUSE NO. 12F/B FUSE NO. 21
CAMSHAFT POSITION SENSOR RH
9

WI-33
Engine Electrical System
WIRING SYSTEM
WI-08040
A3D2
D22D23
POWERCIRCUIT
COMBINATION METER
C16B27D18D19D20D21
C11C22
C6
B23B29B31B21
1
2
3
4
5
6
ACCELERATORPEDAL POSITIONSENSOR
JOINT CONNECTOR A
JOINT CONNECTOR
MALFUNCTION INDICATOR LIGHTOIL PRESSUREWARNING LIGHT
I/F
I/F
I/F
VDC CONTROL MODULE
IGNITION COIL NO.1
BODY INTEGRATED UNIT(CAN COMMUNICATION LINE)
OILPRESSURESWITCH
CRANKSHAFT POSITION SENSORA13A14
ENGINE GROUND
ECM
A18A28
D4D5
A19B22A6A29A34
D15B30
D14D17D16D31D30
ELECTRONIC THROTTLE CONTROL
A24
A25A16
A15
A32
D1
MANIFOLD ABSOLUTE PRESSURE SENSOR
ENGINE COOLANT TEMPRERATURE SENSOR
VVL DIAGNOSIS OIL PRESSURE SWITCH RH
D25D24
KNOCK SENSOR 2
D6D26D7
A5
MICRO COMPUTER
CAN TRANSCEIVER &RECEIVER
OIL SWITCHING SOLENOID VALVE RH
TA C H O -METER
SPEEDMETER
ENGINECOOLANTTEM-PERATUREGAUGE
DATA LINK CONNECTOR
TEST MODECONNECTOR
OIL TEMPERATURE SENSORA23
A31D3
VVL DIAGNOSIS OIL PRESSURE SWITCH LH
KNOCK SENSOR 1
OIL SWITCHING SOLENOID VALVE LH
INTAKE OIL FLOW CONTROL SOLENOID VALVE RH
INTAKE OIL FLOW CONTROL SOLENOID VALVE LH
IGNITION COIL NO.2 IGNITION COIL NO.3 IGNITION COIL NO.4 IGNITION COIL NO.5 IGNITION COIL NO.6
789

WI-34
Engine Electrical System
WIRING SYSTEM
WI-08041
E/G-01E/G-01
R15
R60
B98
R1
MB-25M/B FUSE NO. 11(B)
FB-38F/B FUSE NO. 12(IG)
ALT-1GENERATOR
TO POWER SUPPLY CIRCUIT
WGGRBR
C10
ECMB135B:B136C:
BR
C12
Lg
B19
GR
B33
LgB
B17B32
E/G-10A
E/G-07B
E/G-04C
R47R58
123214365
91011
YL
13
RL
1
BrLYR4723
LgBYL
R143
B
WGGR24B3RB1
B362
FUEL PUMP RELAY
RBLg108LgR9GR6GY7B5
R122
FUEL PUMPCONTROLUNIT
DRAIN VALVEFUEL TANKPRESSURE SENSOR
WB 16YG
20
LgB
5
Br
18
RB
23
Lg
8
LgR
21
LY
19
LgBBrLY
LgB
2
YG
RLBrLY
YL
YL
7
BGLgLgBRB
R122
12345678910
12
R143
21
WBBrW
C17
Or
WBYGOrBrWLY
REF. TOGND-03
B
REF. TOGND-07
C:B136
16101112131415252430
9871718192028212223293231
123456
2726333435
B135B:
5672134
29
101112131415252416
30
98171819202821222332312627333435
B362
12
78
3456
235641
WBRLGYGR
WBGYGR
BL
R58
12
WB
1
FUEL PUMP ASSY
FUEL PUMPFUEL
TEMPERATURE SENSOR
FUEL GAUGE MAIN UNIT
7
REF. TO FUELGAUGE SYSTEM[F/G-01]
GRGY
RL
JOINTCONNECTOR
R233
RL
B98(BLACK)
(BLACK)
R253
123456789121011
(GRAY)
R252(GRAY)(BLACK)(GRAY)(BLACK)(GRAY)
123456 78910 1112 13 16 1714 15 18 19 2021222324
R60
12
10115634897131412
R233
1234
*1
*1*1
*1: TERMINAL NO. OPTIONAL ARRANGEMENT
JOINTCONNECTORR252
R2532*
2*
: TERMINAL NO. OPTIONAL ARRANGEMENT AMONG 1, 2, 3, 4, 5 AND 6
2*

WI-35
Engine Electrical System
WIRING SYSTEM
WI-08042

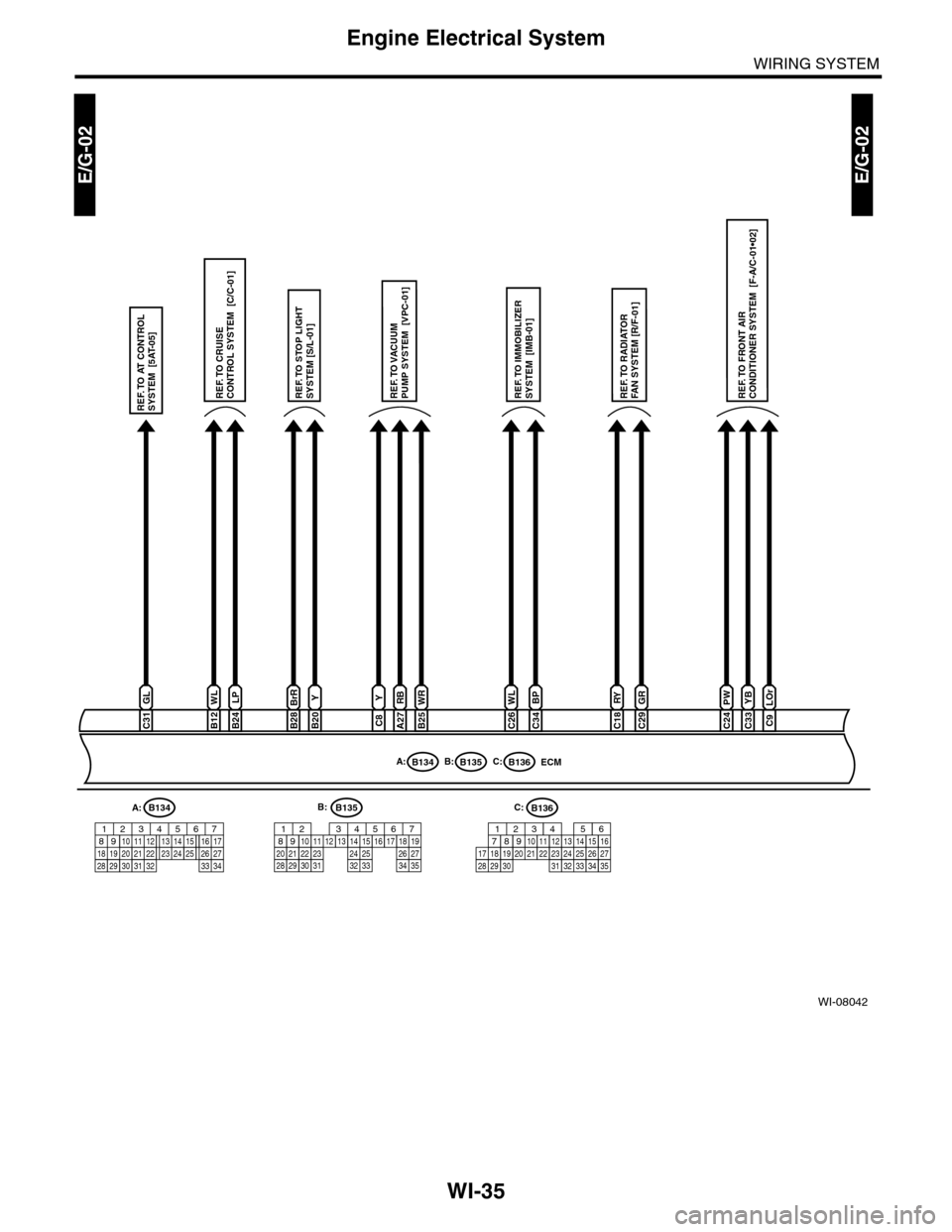

E/G-02E/G-02
ECM
WL
C26
BP
C34
REF. TO AT CONTROLSYSTEM [5AT-05] REF. TO CRUISECONTROL SYSTEM [C/C-01] REF. TO STOP LIGHTSYSTEM [S/L-01]REF. TO IMMOBILIZER SYSTEM [IMB-01] REF. TO RADIATOR FAN SYSTEM [R/F-01] REF. TO FRONT AIR CONDITIONER SYSTEM [F-A/C-01•02]
GL
C31
C:B136B:B135A:B134
WL
B12
LP
B24
BrR
B28
Y
B20
PW
C24
YB
C33
LOr
C9
REF. TO VACUUMPUMP SYSTEM [VPC-01]
Y
C8
RB
A27
WR
B25
RY
C18
GR
C29
C:B136B135B:
5672134
29
101112131415252416
30
98171819202821222332312627333435
16101112131415252430
9871718192028212223293231
123456
2726333435
A:B134
85610 11 12 13 14 157213416
3019 20 2228 29
91718252123 24323126 2733 34

WI-36
Engine Electrical System
WIRING SYSTEM
WI-08043

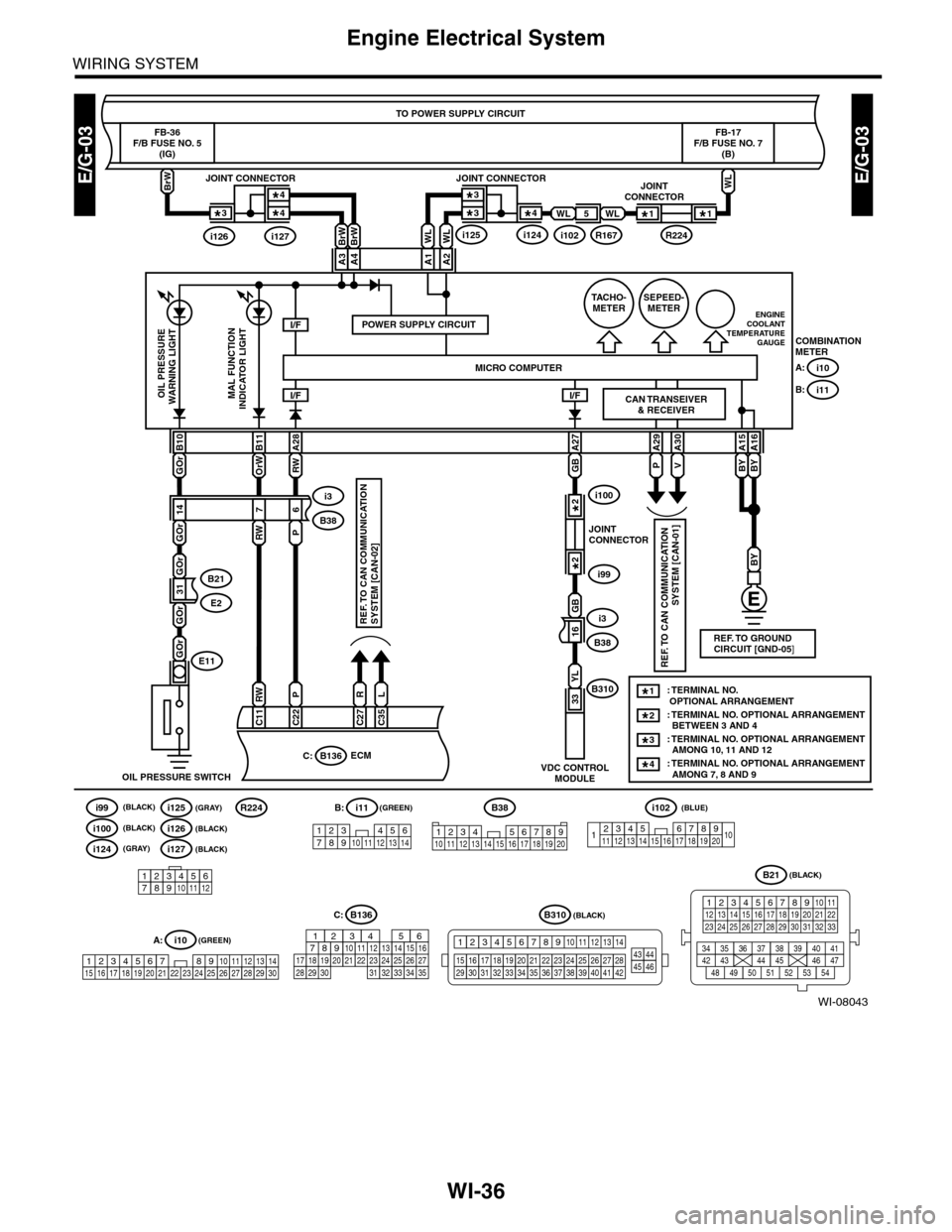

E/G-03E/G-03
TO POWER SUPPLY CIRCUIT
FB-36F/B FUSE NO. 5(IG)
BrW
COMBINATIONMETER
i10A:
i11B:
BrWBrW
GOr
B10
OrW B11RW
A28
GB
GB A27
P
A29
V
A30
BY
A15
BY
A16
I/F
GOr
GOr
GOr
14
RWP
76
16
FB-17F/B FUSE NO. 7(B)
A2A1
B38
i3
B38
i3
POWER SUPPLY CIRCUITI/F
B21
E231
A3A4
ECM
OIL PRESSURE SWITCH
RW
C11
P
C22
R
C27
L
C35
C:B136
OIL PRESSUREWARNING LIGHTMAL FUNCTIONINDICATOR LIGHTI/F
MICRO COMPUTER
SEPEED-METERENGINECOOLANTTEMPERATUREGAUGE
TACHO-METER
B310YL
33
VDC CONTROLMODULE
BY
CAN TRANSEIVER& RECEIVER
E11GOr
B38
12345678910 11 12 13 14 15 16 17 18 19 20
B21
12345678910 1112 13 14 15 16 17 18 19 20 21 2223 24 25 26 27 28 29 30 31 32 33
34 3542 4336 3738 39
48 4950 5152 5354
40 41444546 47
REF. TO CAN COMMUNICATION
SYSTEM [CAN-01]
REF. TO CAN COMMUNICATION SYSTEM [CAN-02]
REF. TO GROUND CIRCUIT [GND-05]
JOINTCONNECTOR
i99
i1002*
2*
: TERMINAL NO. OPTIONAL ARRANGEMENT: TERMINAL NO. OPTIONAL ARRANGEMENT BETWEEN 3 AND 4
1*
2*
: TERMINAL NO. OPTIONAL ARRANGEMENT AMONG 10, 11 AND 123*
: TERMINAL NO. OPTIONAL ARRANGEMENT AMONG 7, 8 AND 94*
WL
WLWL
WLWL5
i102R167
JOINTCONNECTOR
R224
1*1*
JOINT CONNECTOR
i125i124
3*3*4*
JOINT CONNECTOR
i127i126
4*4*3*
1234567891413121110151617181920
i102(BLUE)(GREEN)
(GREEN)
(BLACK)
(BLACK)
i11
123 45678910 11 12 13 14
B:
i10
19 20 2115 16 17 182223242526272829301234568910 11 12 13 147
A:
C: B136
16101112131415252430
9871718192028212223293231
123456
2726333435
B310
1234
1516171819202122232425262728293031323334353637383940414245464344568910 11 12 13 147
123456789101112
i126(BLACK)
i124(GRAY)
i100(BLACK)
R224
i127(BLACK)
i99(BLACK)i125(GRAY)
