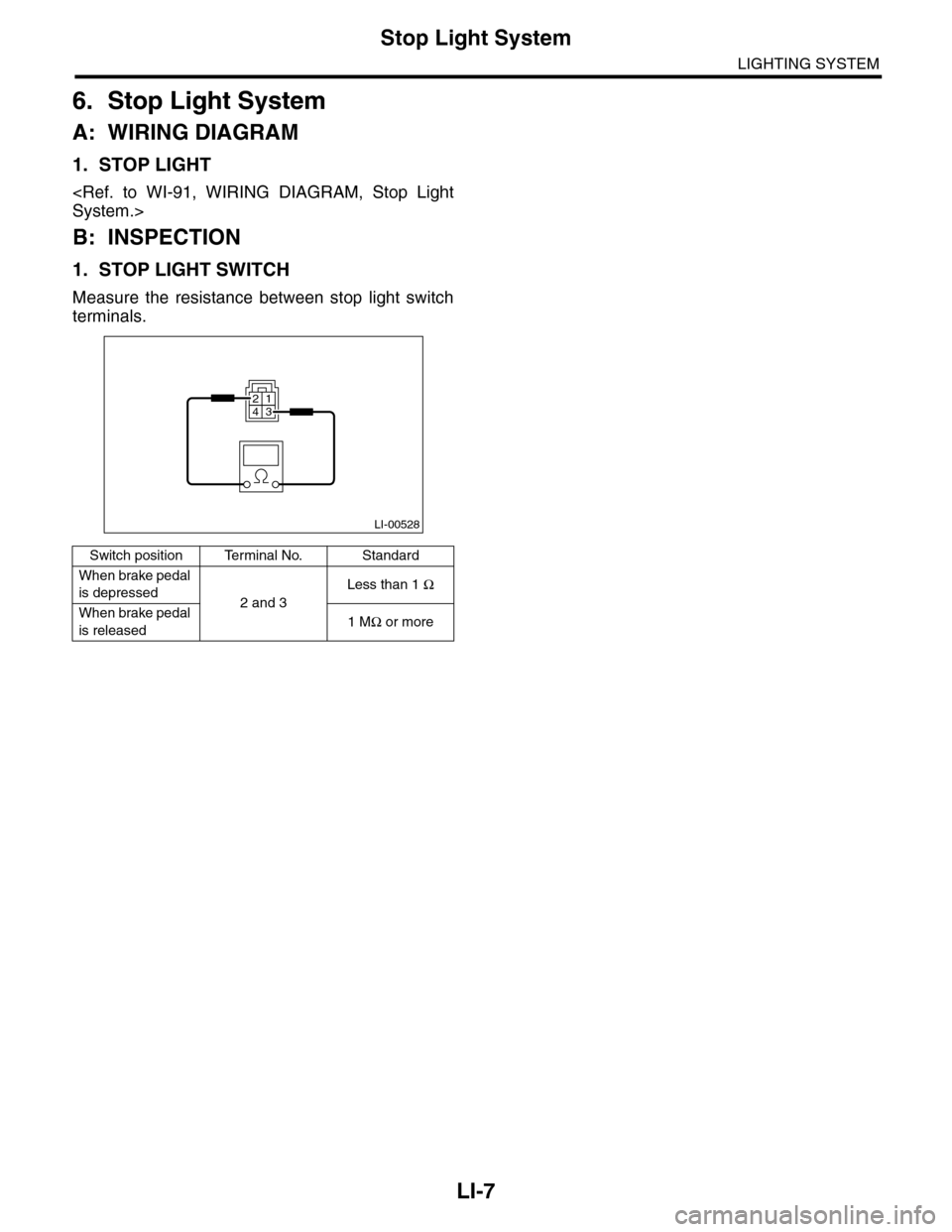

2009 SUBARU TRIBECA diagram

LI-7
Stop Light System
LIGHTING SYSTEM
6. Stop Light System
A: WIRING DIAGRAM
1. STOP LIGHT
System.>
B: INSPECTION
1. STOP LIGHT SWITCH
Measure the resistance between stop light switch
terminals.
Switch position Terminal No. Standard
When brake pedal
is depressed2 and 3
Less than 1 Ω
When brake pedal
is released1 MΩ or more
LI-00528
3412

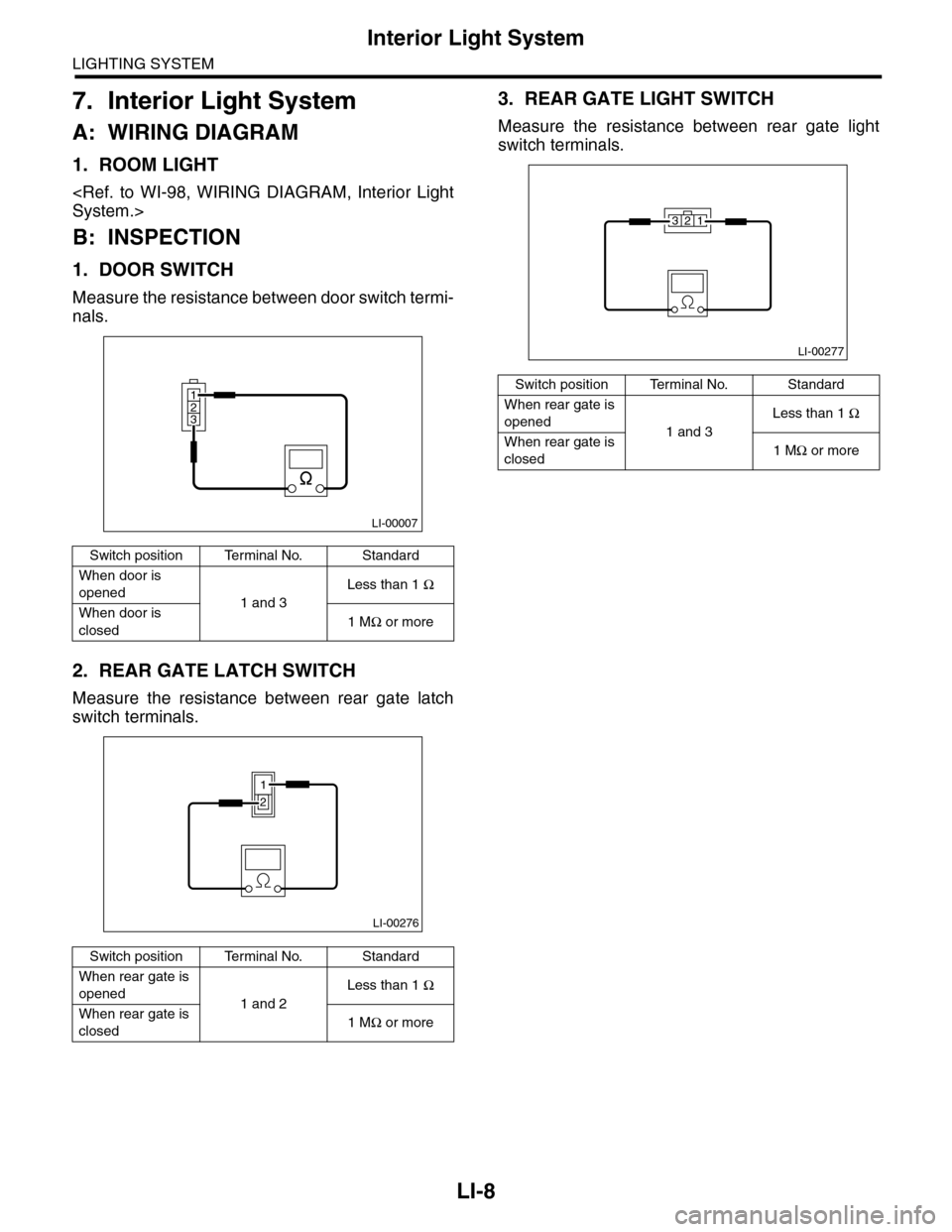

LI-8
Interior Light System
LIGHTING SYSTEM
7. Interior Light System
A: WIRING DIAGRAM
1. ROOM LIGHT
System.>
B: INSPECTION
1. DOOR SWITCH
Measure the resistance between door switch termi-
nals.
2. REAR GATE LATCH SWITCH
Measure the resistance between rear gate latch
switch terminals.
3. REAR GATE LIGHT SWITCH
Measure the resistance between rear gate light
switch terminals.
Switch position Terminal No. Standard
When door is
opened1 and 3
Less than 1 Ω
When door is
closed1 MΩ or more
Switch position Terminal No. Standard
When rear gate is
opened1 and 2
Less than 1 Ω
When rear gate is
closed1 MΩ or more
123
LI-00007
LI-00276
1
2
Switch position Terminal No. Standard
When rear gate is
opened1 and 3
Less than 1 Ω
When rear gate is
closed1 MΩ or more
LI-00277
123

OD(diag)-16
Control Module I/O Signal
OCCUPANT DETECTION SYSTEM (DIAGNOSTICS)
6. Control Module I/O Signal
A: ELECTRICAL SPECIFICATION
CAUTION:
Never remove the occupant detection control module, occupant detection sensor or seat frame be-
cause they are integrated into one unit.
B: WIRING DIAGRAM
Refer to the electrical wiring diagrams.
Te r m i n a l N a m eTe r m i n a l
No.Input/Output value Remarks
IG – power supply 9 9 — 16 V When ignition switch ON
Airbag control module com-
munication(COM) 10 Open collector terminal Communication line
Airbag control module com-
munication(GND) 5 0 V Ground
Belt tension sensor
(Vcc) 5 0 — 5 V Belt tension sensor power supply
(Vout) 16 0.5 — 4.5 V Sensor output voltage
(GND) 14 0 V Sensor ground
Occupant detection sensor
(Vcc) 6 0 — 5 V Pressure sensor power supply
(Vout) 7 0.5 — 4.5 V Sensor output voltage
(GND) 15 0 V Sensor ground
Buckle switch 1 0 — IG voltage Ignition voltage when switch ON
Buckle switch (GND) 2 0 V Switch ground

OD(diag)-27
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
OCCUPANT DETECTION SYSTEM (DIAGNOSTICS)
C: DTC 2C BELT TENSION SENSOR FAILURE
DTC DETECTING CONDITION:
•Passenger's seat belt tension sensor is faulty.
•Airbag main harness circuit is open or shorted.
•Occupant detection control module is faulty.
WIRING DIAGRAM:
OD-00022
GOr
FB-47F/B FUSE No.25 (IG)
TO POWER SUPPLY ROUTING
OCCUPANT SENSINGCONTROL MODULE
BELT TENSION SENSOR
3
R
R
5
LW
W
6
LR
RB
4
LY
BW
123
WRBBW
AB61
AB59
AB56
123456
AB61(GRAY)
AB56(BROWN)
123
2
GOr
R
AB55
AB57
Step Check Yes No
1 CHECK POOR CONTACT OF CONNEC-
TORS.
Check for poor contact of the connectors
between the occupant detection control mod-
ule and belt tension sensor.
Is there poor contact? Reconnect the
connector. If the
fault is not fixed,
replace the airbag
harness.
Go to step 2.
2CHECK THE BELT TENSION SENSOR.
1) Turn the ignition switch to OFF, disconnect
the battery ground cable, and wait more than
20 seconds.
2) Disconnect the belt tension sensor connec-
tor (AB56) from the airbag harness.
3) Connect the test harness AC to the con-
nector (AB56).
4) Connect the battery ground terminal and
turn the ignition switch to ON.
Does the airbag warning light
illuminate for approximately 6
seconds and go off?
Replace the seat
belt outer. SB-10, REMOVAL,
Front Seat Belt.>
Go to step 3.

OD(diag)-30
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
OCCUPANT DETECTION SYSTEM (DIAGNOSTICS)
F: DTC 37 BUCKLE SWITCH RH FAILURE
DTC DETECTING CONDITION:
•Passenger's seat buckle switch circuit is open, shorted or shorted to ground.
•Seat harness circuit is open, shorted or shorted to ground.
•Occupant detection control module is faulty.
WIRING DIAGRAM:
OD-00024
AB60
12
OCCUPANT SENSINGCONTROL MODULE
RONT SEAT BELT SWITCH RH
12
WBr
AB60
Step Check Yes No
1 CHECK POOR CONTACT OF CONNEC-
TORS.
Check for poor contact of the connectors
between the occupant detection control mod-
ule and buckle switch.
Is there poor contact? Reconnect the
connector. If the
fault is not fixed,
replace the airbag
harness.
Go to step 2.
2 CHECK THE BUCKLE SWITCH.
1) Turn the ignition switch to OFF, disconnect
the battery ground terminal, and wait for 20
seconds.
2) Disconnect the buckle switch connector
(AB60).
3) Connect the test harness AE1 and test har-
ness connector Y to the buckle switch connec-
tor (AB60).
4) Connect the battery ground terminal and
turn the ignition switch to ON.
Does the airbag warning light
illuminate for 6 seconds and go
off?
Replace the
buckle switch.
REMOVAL, Front
Seat Belt.>
Check the seat
harness, and if any
fault is found,
replace the seat
harness. If the
fault is not fixed,
replace the occu-
pant detection sys-
tem.

SB-8
Seat Belt Warning System
SEAT BELT SYSTEM
4. Seat Belt Warning System
A: WIRING DIAGRAM

B: INSPECTION
TROUBLE SYMPTOM:
•Driver’s side seat belt warning light does not turn on or off.
•Warning buzzer does not beep.
Step Check Yes No
1CHECK BODY INTEGRATED MODULE.
1) Connect the Subaru Select Monitor to the
data link connector.
2) Turn the ignition switch to ON. (engine
OFF)
3) Turn the Subaru Select Monitor power to
ON.
4) Read the data of the driver’s seat belt
switch using the Subaru Select Monitor. to LAN(diag)-12, OPERATION, Subaru Select
Monitor.>
Is the seat belt switch display
OFF?
Go to step 2.Go to step 6.
2CHECK SEAT BELT WARNING LIGHT.
Read the data of driver’s seat belt warning light
using the Subaru Select Monitor.
Is the seat belt warning light
display ON?
Go to step 3.Check the harness
between combina-
tion meter and
body integrated
unit.
3CHECK BODY INTEGRATED MODULE.
1) Connect the driver’s seat belt.
2) Read the data of driver’s seat belt switch
using Subaru Select Monitor.
Is the seat belt switch display
ON?
Go to step 4.Go to step 6.
4CHECK SEAT BELT WARNING LIGHT.
Read the data of driver’s seat belt warning light
using the Subaru Select Monitor.
Is the seat belt warning light
display OFF? Also, is the seat
belt warning light in the combi-
nation meter gone off?
Go to step 5.Check the harness
between ignition
switch and body
integrated unit.
5CHECK SEAT BELT WARNING BUZZER.
1) Connect the driver’s seat belt.
2) Turn the ignition switch to ON.
Does the buzzer beep? Go to step 6.Replace the body
integrated unit.
6CHECK DRIVER’S SEAT BELT BUCKLE
SWITCH.
1) Insert the tongue plate to the driver’s seat
belt buckle.
2) Measure the voltage between connector
(R8) and chassis ground.
Connector & terminal
(R8) No. 1 (+) — Chassis ground (–):
Is the voltage more than 10 V? Go to step 7.Repair the har-
ness between
driver’s seat
buckle switch and
chassis ground.
7CHECK DRIVER’S SEAT BELT BUCKLE
SWITCH.
1) Disconnect the connector (R8) from driver’s
seat inner seat belt assembly.
2) Measure the resistance between connector
(R8) terminals and chassis ground.
Connector & terminal
(R8) No. 1 — Chassis ground:
(R8) No. 3 — Chassis ground:
Is the resistance more than 1
MΩ?
Go to step 8.Replace the
driver’s seat inner
belt. 10, Front Seat
Belt.>
8CHECK BODY HARNESS.
Measure the voltage between connector
(R167) and chassis ground.
Connector & terminal
(R167) No. 11 (+) — Chassis ground (–):
Is the voltage more than 10 V?
Also, does the seat belt warn-
ing light come on?
Go to step 9.Repair or replace
the driver’s seat
inner belt and
body harness.

SL-8
Door Lock Control System
SECURITY AND LOCKS
2. Door Lock Control System
A: WIRING DIAGRAM
1. DOOR LOCK CONTROL

B: INSPECTION
1. SYMPTOM CHART
2. CHECK FUSE
3. CHECK POWER SUPPLY & GROUND CIRCUIT
Symptom Repair order Reference
The door lock control system does
not operate.
1. Check the fuse. TION, Door Lock Control System.>
2. Check the power supply and ground cir-
cuit for body integrated unit.
GROUND CIRCUIT, INSPECTION, Door
Lock Control System.>
3. Check the door lock switch and the circuit. SWITCH., INSPECTION, Door Lock Con-
trol System.>
4. Check the door lock actuator and the cir-
cuit.
ACTUATOR & CIRCUIT, INSPECTION,
Door Lock Control System.>
The door lock switch does not oper-
ate.
Check the door lock switch. SWITCH., INSPECTION, Door Lock Con-
trol System.>
A specific door lock actuator does
not operate.
Check the door lock actuator and circuit. ACTUATOR & CIRCUIT, INSPECTION,
Door Lock Control System.>
Step Check Yes No
1CHECK FUSE.
Remove and visually check the fuse No. 3 (in
the fuse and relay box) and No. 7 (in the fuse
and relay box).
Is the fuse blown out? Replace the fuse
with a new one.
Check the power
supply and ground
circuit. SL-8, CHECK
POWER SUPPLY
& GROUND CIR-
CUIT, INSPEC-
TION, Door Lock
Control System.>
Step Check Yes No
1CHECK POWER SUPPLY.
1) Disconnect the harness connector of body
integrated unit.
2) Measure the voltage between harness con-
nector terminal and chassis ground.
Connector & terminal
(i84) No. 34 (+) — Chassis ground (–):
(B281) No. 2 (+) — Chassis ground (– ):
Is the voltage more than 10 V? Go to step 2.Check the harness
for open or shor t
circuit between
body integrated
unit and fuse.
2CHECK GROUND CIRCUIT.
Measure the resistance between harness con-
nector terminal and chassis ground.
Connector & terminal
(B280) No. 22 — Chassis ground:
(B281) No. 8, 9 — Chassis ground:
Is the resistance less than 10
Ω?
The power supply
and ground circuit
are OK.
Repair the har-
ness.

SL-11
Keyless Entry System
SECURITY AND LOCKS
3. Keyless Entry System
A: WIRING DIAGRAM
1. KEYLESS ENTRY

B: ELECTRICAL SPECIFICATION
1. KEYLESS ENTRY CONTROL MODULE
2. BODY INTEGRATED UNIT
SL-00228
43218765
i96To
Description Terminal No. Measuring condition
Body integrated unit 3 (OUTPUT) Battery voltage cannot be measured because of digital signal.
Pow er s up p ly ( B a cku p ) 4 B at t e r y vol t ag e i s c on s ta n tl y p r e se nt .
Ground 7 0 V is constantly present.
CS-00273
71928
61827
51741626152514241312231122
3102921
1820
B281side
72030
619291828
51741627152614132512241123
3102922
1821
B280side
82335
722342162033
51932183117301615291428
41327
312261121025
1924
i84side
