2009 FIAT SEDICI Owners Manual

136

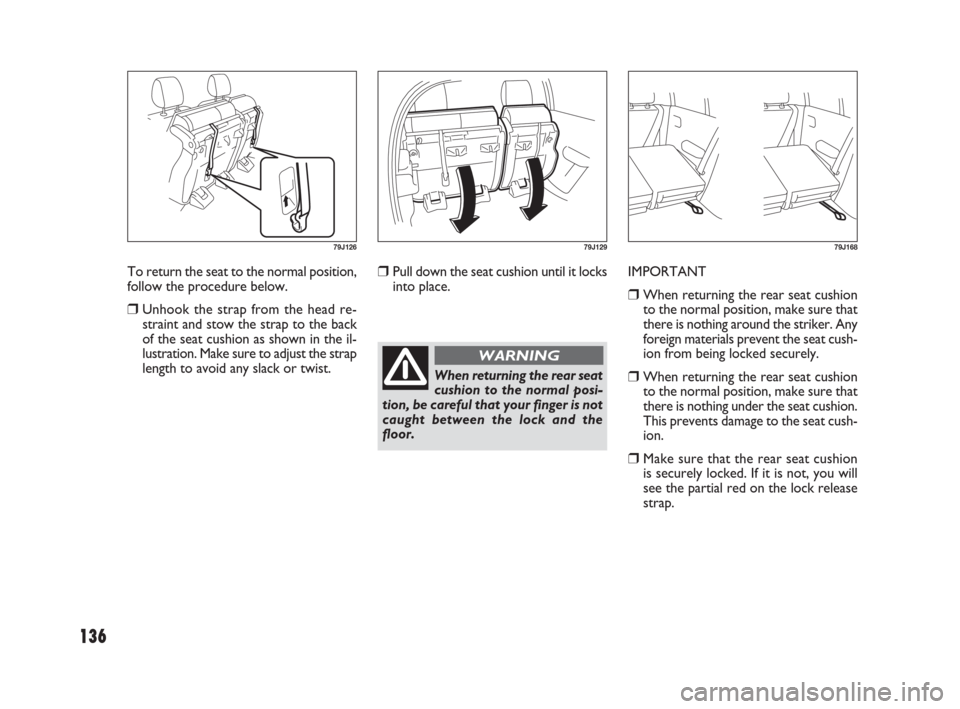

Pull down the seat cushion until it locks
into place.IMPORTANT
When returning the rear seat cushion
to the normal position, make sure that
there is nothing around the striker. Any
foreign materials prevent the seat cush-
ion from being locked securely.
When returning the rear seat cushion
to the normal position, make sure that
there is nothing under the seat cushion.
This prevents damage to the seat cush-
ion.
Make sure that the rear seat cushion
is securely locked. If it is not, you will
see the partial red on the lock release
strap. To return the seat to the normal position,
follow the procedure below.
Unhook the strap from the head re-
straint and stow the strap to the back
of the seat cushion as shown in the il-
lustration. Make sure to adjust the strap
length to avoid any slack or twist.
79J12679J12979J168
When returning the rear seat
cushion to the normal posi-
tion, be careful that your finger is not
caught between the lock and the
floor.
WARNING
129-148 SEDICI LUM FL GB 1E 19-06-2009 13:31 Pagina 136

137

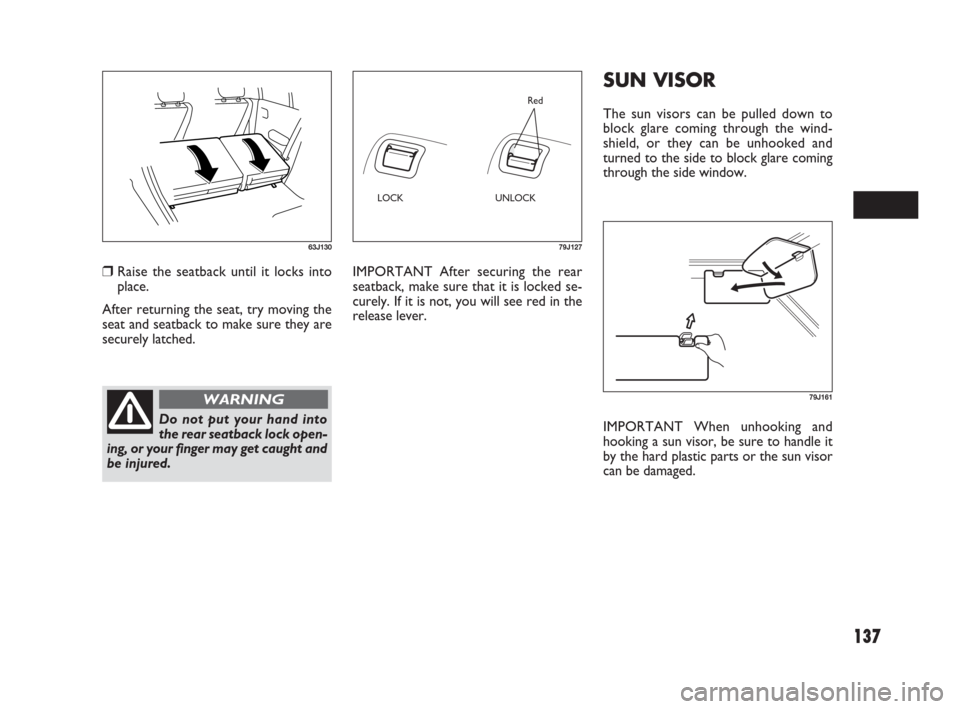

SUN VISOR
The sun visors can be pulled down to
block glare coming through the wind-
shield, or they can be unhooked and
turned to the side to block glare coming
through the side window.
IMPORTANT After securing the rear
seatback, make sure that it is locked se-
curely. If it is not, you will see red in the
release lever.
Do not put your hand into
the rear seatback lock open-
ing, or your finger may get caught and
be injured.
WARNING79J161
79J12763J130
LOCK UNLOCKRed
IMPORTANT When unhooking and
hooking a sun visor, be sure to handle it
by the hard plastic parts or the sun visor
can be damaged.
Raise the seatback until it locks into
place.
After returning the seat, try moving the
seat and seatback to make sure they are
securely latched.
129-148 SEDICI LUM FL GB 1E 19-06-2009 13:31 Pagina 137

138
NOTE The number of doors involved in
the lighting operation of the interior light
depends on the vehicle specification. If
there is a switch (rubber projection) at the
door opening as shown, the door is in-
volved in the lighting operation.
SPOT LIGHT
(for versions/markets, where provided)
Push the switch to turn on the light and
push it again to turn off the light.
INTERIOR LIGHT
SWITCH
This light switch has three positions which
function as described below:
ON (1)
The light comes on and stays on regard-
less of whether the door is open or
closed.
DOOR (2)
The light comes on when the door is
opened.
After closing all doors, the light will remain
on for about 15 seconds and then fade
out. If you insert the key into the ignition
switch during that time, the light will start
to fade out immediately.
After removing the key from the ignition
switch, the light will turn on for about 15
seconds and then fade out.
OFF (3)
The light remains off even when the door
is opened.
(1) (2) (3)
64J104
79J075
79J074
129-148 SEDICI LUM FL GB 1E 19-06-2009 13:31 Pagina 138

139

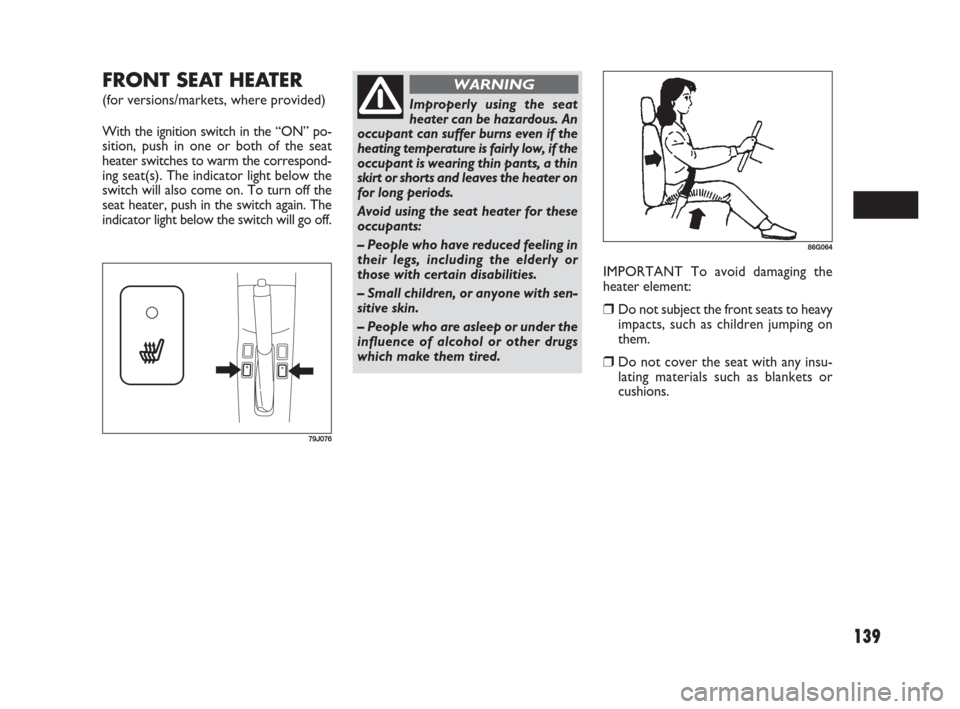

FRONT SEAT HEATER
(for versions/markets, where provided)
With the ignition switch in the “ON” po-
sition, push in one or both of the seat
heater switches to warm the correspond-
ing seat(s). The indicator light below the
switch will also come on. To turn off the
seat heater, push in the switch again. The
indicator light below the switch will go off.
IMPORTANT To avoid damaging the
heater element:
Do not subject the front seats to heavy
impacts, such as children jumping on
them.
Do not cover the seat with any insu-
lating materials such as blankets or
cushions.
79J076
Improperly using the seat
heater can be hazardous. An
occupant can suffer burns even if the
heating temperature is fairly low, if the
occupant is wearing thin pants, a thin
skirt or shorts and leaves the heater on
for long periods.
Avoid using the seat heater for these
occupants:
– People who have reduced feeling in
their legs, including the elderly or
those with certain disabilities.
– Small children, or anyone with sen-
sitive skin.
– People who are asleep or under the
influence of alcohol or other drugs
which make them tired.
WARNING
86G064
129-148 SEDICI LUM FL GB 1E 19-06-2009 13:31 Pagina 139

❒Push the under-hood release lever
sideways with your finger, as shown
in the illustration. While pushing the
lever, lift up the engine hood.

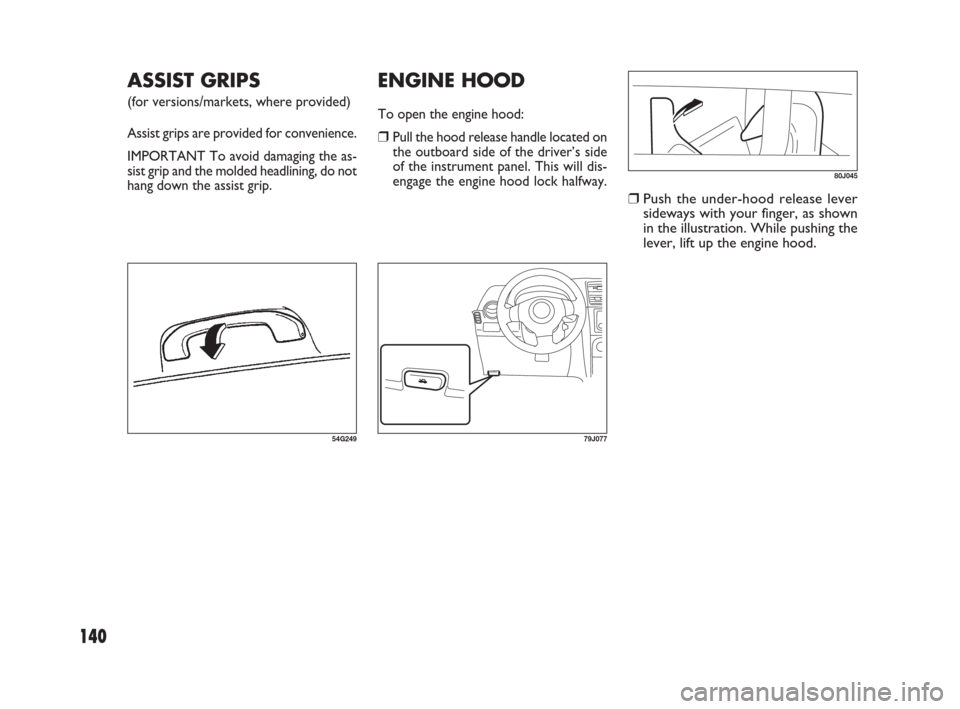

ENGINE HOOD
To open the engine hood:
❒Pull the hood release handle located on
the outboard side of the driver’s side
of the instrument panel. This will dis-
engage the engine hood lock halfway.
140
ASSIST GRIPS
(for versions/markets, where provided)
Assist grips are provided for convenience.
IMPORTANT To avoid damaging the as-
sist grip and the molded headlining, do not
hang down the assist grip.
54G24979J077
80J045
129-148 SEDICI LUM FL GB 1E 23-06-2009 9:11 Pagina 140

141
Continue to lift up the hood until it is
high enough to support with the prop
rod.
79JM022
If the supporting rod is not
positioned correctly the bon-
net may fall violently.
WARNING
To close the engine hood:
Lift the hood up slightly and remove the
prop rod from the hole. Put the prop
rod back to the holding clip.
Lower the hood close to the bumper,
then let it drop down. Make sure the
hood is securely latched after closing.
For safety reasons the bon-
net must be closed properly
to avoid its opening while the vehi-
cle is travelling. Therefore, always
check it is properly closed and the
catch engaged. Should you notice
that the catch is not perfectly en-
gaged when travelling, stop the vehi-
cle immediately and close the bonnet.
WARNING
129-148 SEDICI LUM FL GB 1E 19-06-2009 13:31 Pagina 141

142

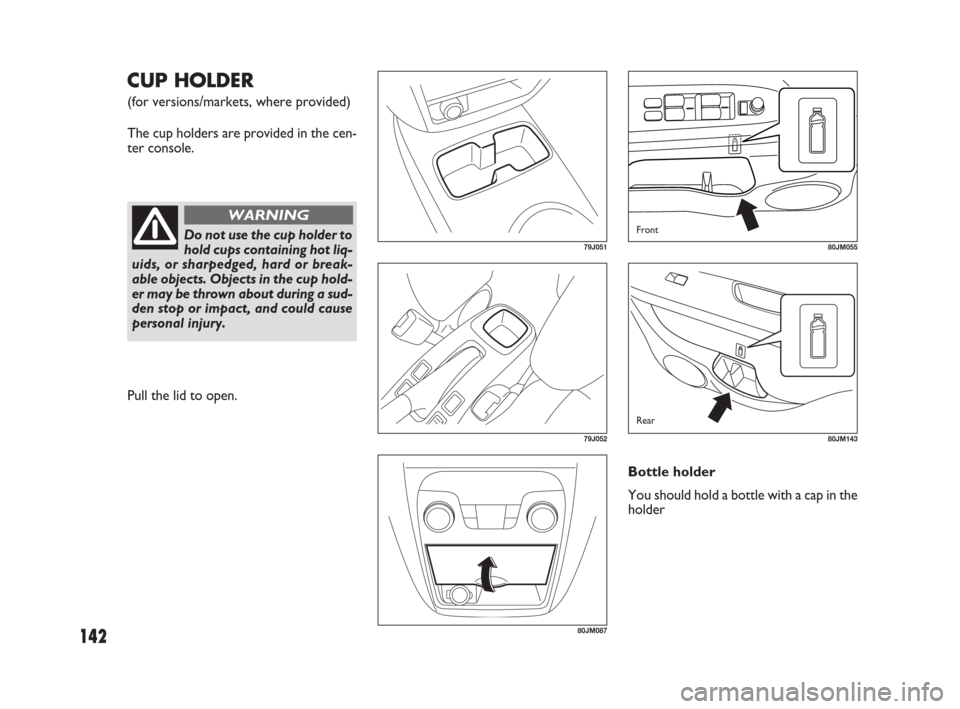

CUP HOLDER
(for versions/markets, where provided)
The cup holders are provided in the cen-
ter console.
79J051
79J052
80JM087
80JM055
80JM143
Do not use the cup holder to
hold cups containing hot liq-
uids, or sharpedged, hard or break-
able objects. Objects in the cup hold-
er may be thrown about during a sud-
den stop or impact, and could cause
personal injury.
WARNING
Pull the lid to open.
Bottle holder
You should hold a bottle with a cap in the
holder
Front
Rear
129-148 SEDICI LUM FL GB 1E 19-06-2009 13:31 Pagina 142

143
IMPORTANT Never use the hooks (1)
and (2) for trailer/train shipping purpos-
es to prevent damage to the vehicle.

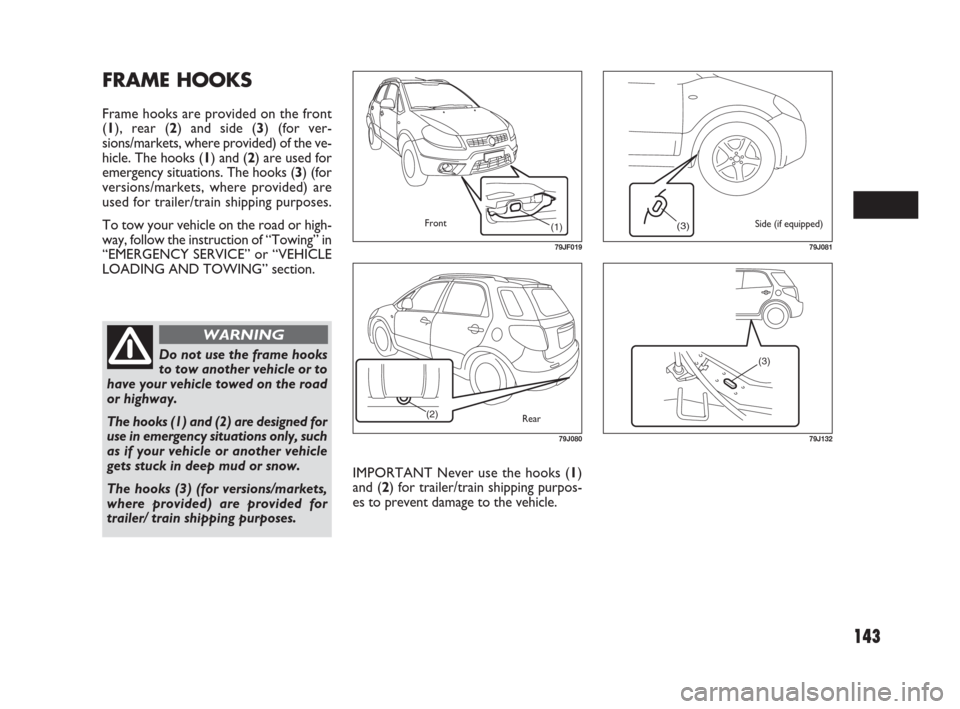

FRAME HOOKS
Frame hooks are provided on the front
(1), rear (2) and side (3) (for ver-
sions/markets, where provided) of the ve-
hicle. The hooks (1) and (2) are used for
emergency situations. The hooks (3) (for
versions/markets, where provided) are
used for trailer/train shipping purposes.
To tow your vehicle on the road or high-
way, follow the instruction of “Towing” in
“EMERGENCY SERVICE” or “VEHICLE
LOADING AND TOWING” section.
(1)
79JF019
(2)
79J080
Front
RearSide (if equipped)
Do not use the frame hooks
to tow another vehicle or to
have your vehicle towed on the road
or highway.
The hooks (1) and (2) are designed for
use in emergency situations only, such
as if your vehicle or another vehicle
gets stuck in deep mud or snow.
The hooks (3) (for versions/markets,
where provided) are provided for
trailer/ train shipping purposes.
WARNING
(3)
79J081
(3)
79J132
129-148 SEDICI LUM FL GB 1E 19-06-2009 13:31 Pagina 143
