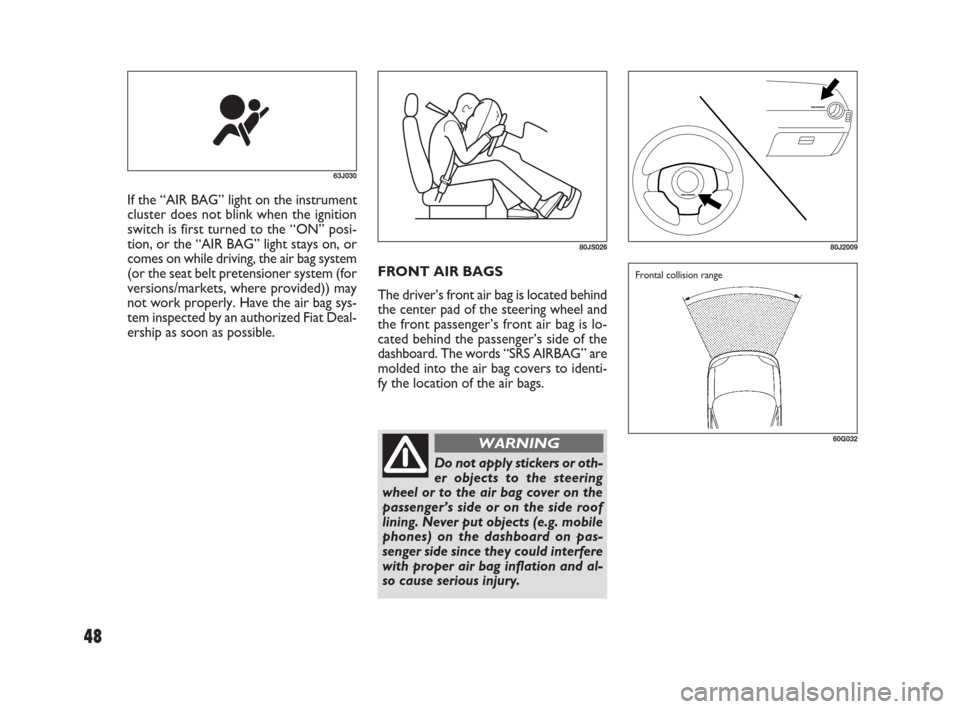

FRONT AIR BAGS
The driver’s front air bag is located behind
the center pad of the steering wheel and
the front passenger’s front air bag is lo-
cated behind the passenger’s side of the
dashboard. The words “SRS AIRBAG” are
molded into the air bag covers to identi-
fy the location of the air bags. If the “AIR BAG” light on the instrument
cluster does not blink when the ignition
switch is first turned to the “ON” posi-
tion, or the “AIR BAG” light stays on, or
comes on while driving, the air bag system
(or the seat belt pretensioner system (for
versions/markets, where provided)) may
not work properly. Have the air bag sys-
tem inspected by an authorized Fiat Deal-
ership as soon as possible.
63J030
80JS02680J2009
60G032
Frontal collision range
Do not apply stickers or oth-
er objects to the steering
wheel or to the air bag cover on the
passenger’s side or on the side roof
lining. Never put objects (e.g. mobile
phones) on the dashboard on pas-
senger side since they could interfere
with proper air bag inflation and al-
so cause serious injury.
WARNING
48
009-056 SEDICI LUM FL GB 1E 19-06-2009 14:11 Pagina 48

49

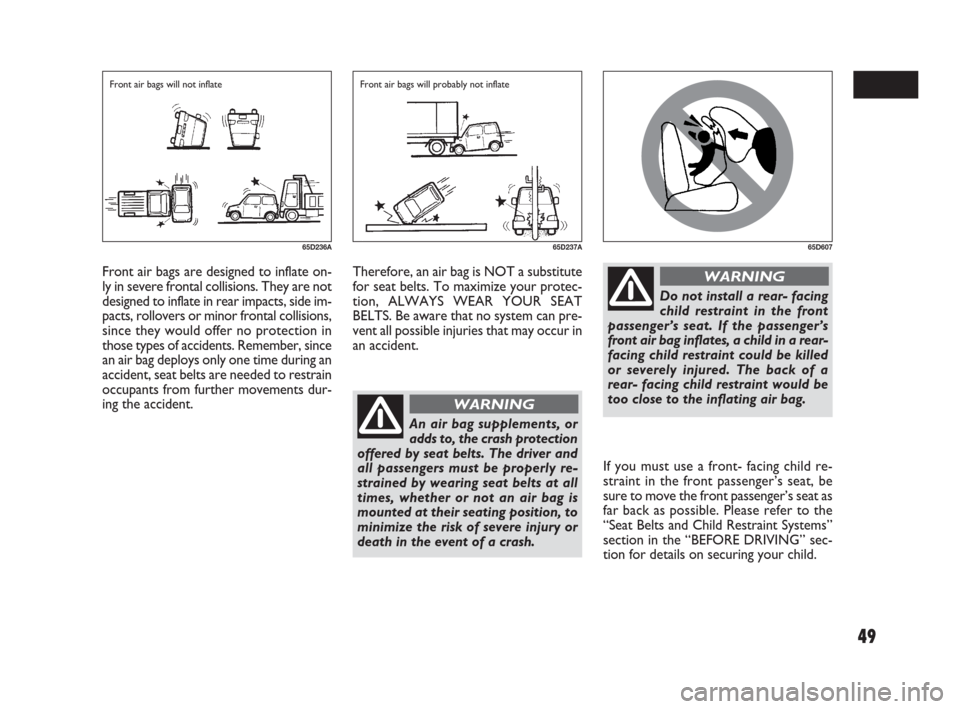

If you must use a front- facing child re-
straint in the front passenger’s seat, be
sure to move the front passenger’s seat as
far back as possible. Please refer to the
“Seat Belts and Child Restraint Systems”
section in the “BEFORE DRIVING” sec-
tion for details on securing your child. Front air bags are designed to inflate on-
ly in severe frontal collisions. They are not
designed to inflate in rear impacts, side im-
pacts, rollovers or minor frontal collisions,
since they would offer no protection in
those types of accidents. Remember, since
an air bag deploys only one time during an
accident, seat belts are needed to restrain
occupants from further movements dur-
ing the accident.
65D236A65D237A
Therefore, an air bag is NOT a substitute
for seat belts. To maximize your protec-
tion, ALWAYS WEAR YOUR SEAT
BELTS. Be aware that no system can pre-
vent all possible injuries that may occur in
an accident.
An air bag supplements, or
adds to, the crash protection
offered by seat belts. The driver and
all passengers must be properly re-
strained by wearing seat belts at all
times, whether or not an air bag is
mounted at their seating position, to
minimize the risk of severe injury or
death in the event of a crash.
WARNING
Do not install a rear- facing
child restraint in the front
passenger’s seat. If the passenger’s
front air bag inflates, a child in a rear-
facing child restraint could be killed
or severely injured. The back of a
rear- facing child restraint would be
too close to the inflating air bag.
WARNING
65D607
Front air bags will not inflate Front air bags will probably not inflate
009-056 SEDICI LUM FL GB 1E 19-06-2009 14:11 Pagina 49

SIDE AIR BAGS AND SIDE
CURTAIN AIR BAGS
(for versions/markets, where provided)
Side air bags (for versions/markets, where
provided) are located in the part of the
front seatbacks closest to the doors. The
words “SRS AIRBAG” are molded into the
side air bag cover to identify the location
of the side air bags.

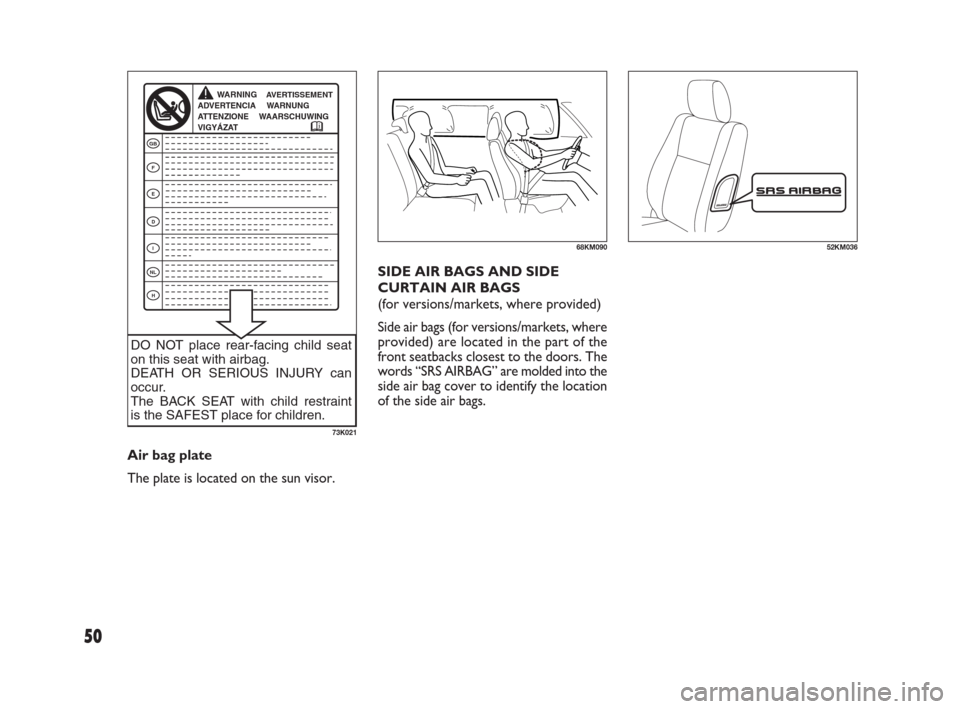

Air bag plate
The plate is located on the sun visor.
68KM09052KM036
AVERTISSEMENTWARNINGADVERTENCIA WARNUNG
ATTENZIONE WAARSCHUWING
VIGYÁZAT
GB
F
E
D
I
NL
H
DO NOT place rear-facing child seat
on this seat with airbag.
DEATH OR SERIOUS INJURY can
occur.
The BACK SEAT with child restraint
is the SAFEST place for children.
73K021
50
009-056 SEDICI LUM FL GB 1E 19-06-2009 14:11 Pagina 50

51

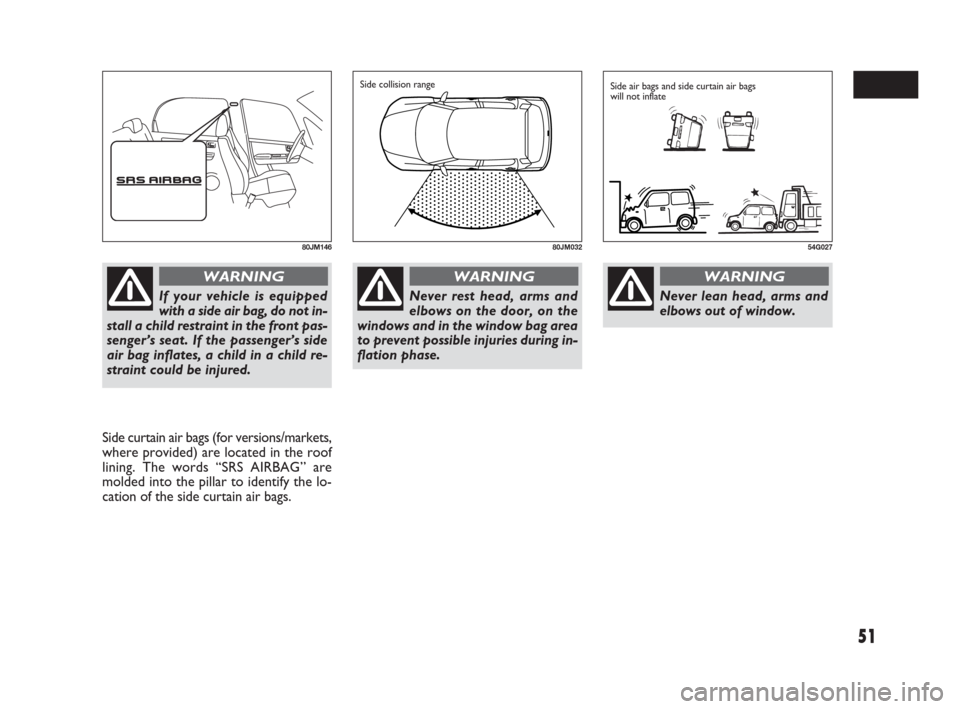

Side curtain air bags (for versions/markets,
where provided) are located in the roof
lining. The words “SRS AIRBAG” are
molded into the pillar to identify the lo-
cation of the side curtain air bags.
80JM146
If your vehicle is equipped
with a side air bag, do not in-
stall a child restraint in the front pas-
senger’s seat. If the passenger’s side
air bag inflates, a child in a child re-
straint could be injured.
WARNING
80JM032
Side collision range
54G027
Side air bags and side curtain air bags
will not inflate
Never rest head, arms and
elbows on the door, on the
windows and in the window bag area
to prevent possible injuries during in-
flation phase.
WARNING
Never lean head, arms and
elbows out of window.
WARNING
009-056 SEDICI LUM FL GB 1E 19-06-2009 14:11 Pagina 51

Side air bags and side curtain air bags are
designed to inflate only in severe side im-
pact collisions. They are not designed to
inflate in frontal or rear collisions,
rollovers or minor side collisions, since
they would offer no protection in those
types of accidents. Remember, since an air
bag deploys only one time during an acci-
dent, seat belts are needed to restrain oc-
cupants from further movements during
the accident.
54G028
Side air bags and side curtain air bags will
probably not inflate

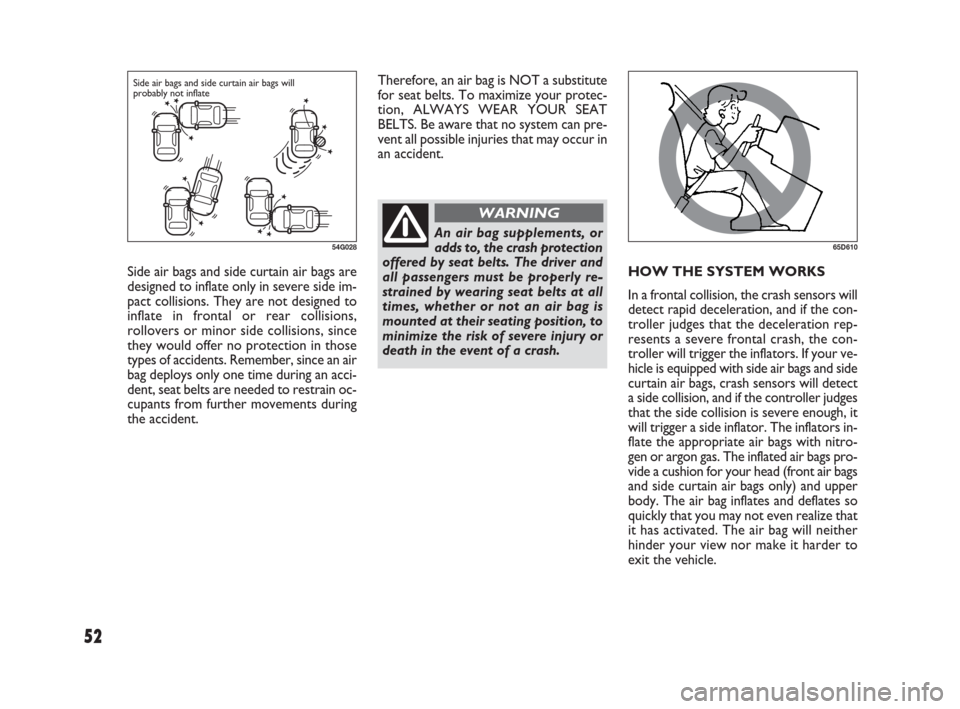

HOW THE SYSTEM WORKS
In a frontal collision, the crash sensors will
detect rapid deceleration, and if the con-
troller judges that the deceleration rep-
resents a severe frontal crash, the con-
troller will trigger the inflators. If your ve-
hicle is equipped with side air bags and side
curtain air bags, crash sensors will detect
a side collision, and if the controller judges
that the side collision is severe enough, it
will trigger a side inflator. The inflators in-
flate the appropriate air bags with nitro-
gen or argon gas. The inflated air bags pro-
vide a cushion for your head (front air bags
and side curtain air bags only) and upper
body. The air bag inflates and deflates so
quickly that you may not even realize that
it has activated. The air bag will neither
hinder your view nor make it harder to
exit the vehicle. Therefore, an air bag is NOT a substitute
for seat belts. To maximize your protec-
tion, ALWAYS WEAR YOUR SEAT
BELTS. Be aware that no system can pre-
vent all possible injuries that may occur in
an accident.
An air bag supplements, or
adds to, the crash protection
offered by seat belts. The driver and
all passengers must be properly re-
strained by wearing seat belts at all
times, whether or not an air bag is
mounted at their seating position, to
minimize the risk of severe injury or
death in the event of a crash.
WARNING
65D610
52
009-056 SEDICI LUM FL GB 1E 19-06-2009 14:11 Pagina 52

53
54G582
Air bags must inflate quickly and forceful-
ly in order to reduce the chance of seri-
ous or fatal injuries. However, an un-
avoidable consequence of the quick infla-
tion is that the air bag may irritate bare
skin, such as the facial area against a front
air bag. Also, upon inflation, a loud noise
will occur and some powder and smoke
will be released. These conditions are not
harmful and do not indicate a fire in the
car. Be aware, however, that some air bag
components may be hot for a while after
inflation.

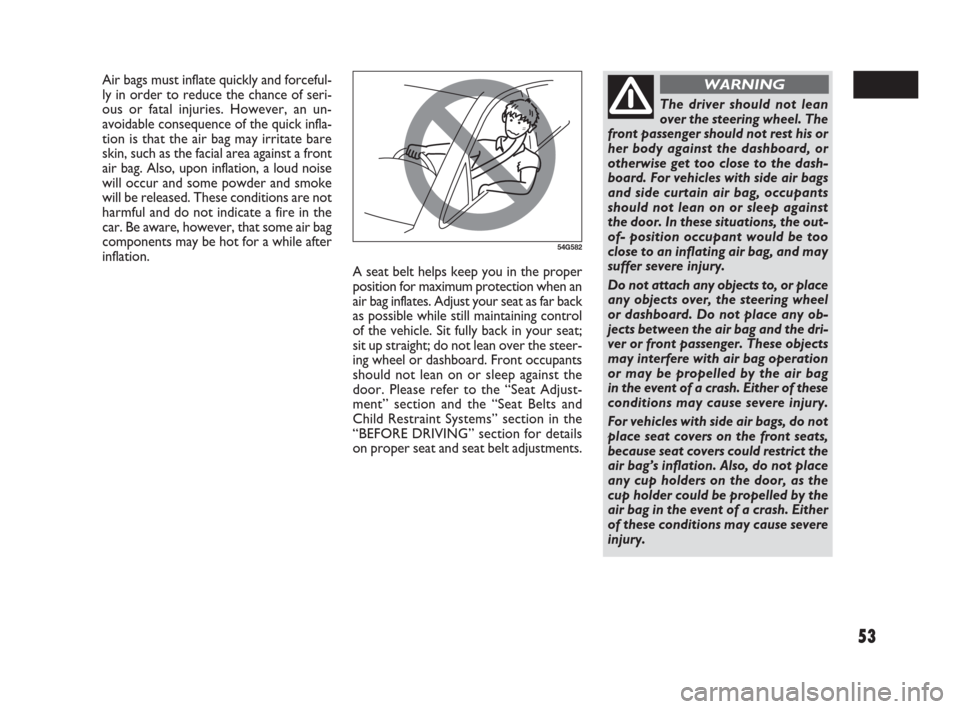

The driver should not lean
over the steering wheel. The
front passenger should not rest his or
her body against the dashboard, or
otherwise get too close to the dash-
board. For vehicles with side air bags
and side curtain air bag, occupants
should not lean on or sleep against
the door. In these situations, the out-
of- position occupant would be too
close to an inflating air bag, and may
suffer severe injury.
Do not attach any objects to, or place
any objects over, the steering wheel
or dashboard. Do not place any ob-
jects between the air bag and the dri-
ver or front passenger. These objects
may interfere with air bag operation
or may be propelled by the air bag
in the event of a crash. Either of these
conditions may cause severe injury.
For vehicles with side air bags, do not
place seat covers on the front seats,
because seat covers could restrict the
air bag’s inflation. Also, do not place
any cup holders on the door, as the
cup holder could be propelled by the
air bag in the event of a crash. Either
of these conditions may cause severe
injury.
WARNING
A seat belt helps keep you in the proper
position for maximum protection when an
air bag inflates. Adjust your seat as far back
as possible while still maintaining control
of the vehicle. Sit fully back in your seat;
sit up straight; do not lean over the steer-
ing wheel or dashboard. Front occupants
should not lean on or sleep against the
door. Please refer to the “Seat Adjust-
ment” section and the “Seat Belts and
Child Restraint Systems” section in the
“BEFORE DRIVING” section for details
on proper seat and seat belt adjustments.
009-056 SEDICI LUM FL GB 1E 19-06-2009 14:11 Pagina 53

Note that even though your vehicle may
be moderately damaged in a collision, the
collision may not have been severe enough
to trigger the front or side air bags to in-
flate. If your vehicle sustains ANY front-
end or side damage, have the air bag sys-
tem inspected by an authorized Fiat Deal-
ership to ensure it is in proper working
order.
Your vehicle is equipped with a diagnostic
module which records information about
the air bag system if the air bags deploy
in a crash. The module records informa-
tion about overall system status, which
sensors activated the deployment.SERVICING THE AIR BAG
SYSTEM
If the air bags inflate, have the air bags and
related components replaced by an au-
thorized Fiat Dealership as soon as pos-
sible.
If your vehicle ever gets in deep water and
the driver’s floor is submerged, the air bag
controller could be damaged. If it does,
have the air bag system inspected by the
Fiat Dealership as soon as possible.
Special procedures are required for ser-
vicing or replacing an air bag. For that rea-
son, only an authorized Fiat Dealership
should be allowed to service or replace
your air bags. Please remind anyone who
services your Fiat that it has air bags.Service on or around air bag components
or wiring must be performed only by an
authorized Fiat Dealership. Improper ser-
vice could result in unintended air bag de-
ployment or could render the air bag in-
operative. Either of these two conditions
may result in severe injury.
To prevent damage or unintended infla-
tion of the air bag system, be sure the bat-
tery is disconnected and the ignition
switch has been in the “LOCK” position
for at least 90 seconds before perform-
ing any electrical service work on your Fi-
at. Do not touch air bag system compo-
nents or wires. The wires are wrapped
with yellow tape or yellow tubing, and the
couplers are yellow for easy identification.
Scrapping a vehicle that has an uninflated
air bag can be hazardous. Ask your Fiat
Dealership, body repair shop or scrap
yard for help with disposal.
54
009-056 SEDICI LUM FL GB 1E 19-06-2009 14:11 Pagina 54

55
GENERAL WARNINGS
Never travel with objects on
your lap, in front of your
chest or with a pipe, pencil, etc. be-
tween your lips; injury may result in
the event of the air bag being trig-
gered.
WARNING
Remember that with the key
engaged and at ON, even if
the engine is not running, the air bags
may be triggered on a stationary ve-
hicle if it is bumped by another mov-
ing car. Therefore, never seat children
on the front seat even when the ve-
hicle is stationary. On the other hand
remember that if the key is at LOCK,
no safety system (air bags or preten-
sioners) is triggered in the event of an
impact; in this case, failure to come
into action cannot be considered as a
sign that the system is not working
properly.
WARNING
If the vehicle has been stolen
or an attempt to steal it has
been made, if it has been subjected to
vandals or floods, have the air bag
system checked by Fiat Dealership.
WARNING
Do not wash the seat back
rest with pressurised water
or steam (by hand or at automatic
seat washing stations).
WARNING
The front air bag is triggered
for shocks greater in magni-
tude that the pretensioners. For im-
pacts between these two thresholds,
it is therefore normal that only the
pretensioners are triggered.
WARNING
Do not hook rigid objects to
the coat hooks and to the
support handles.
WARNING
009-056 SEDICI LUM FL GB 1E 19-06-2009 14:11 Pagina 55
