2009 FIAT SEDICI Owners Manual

144

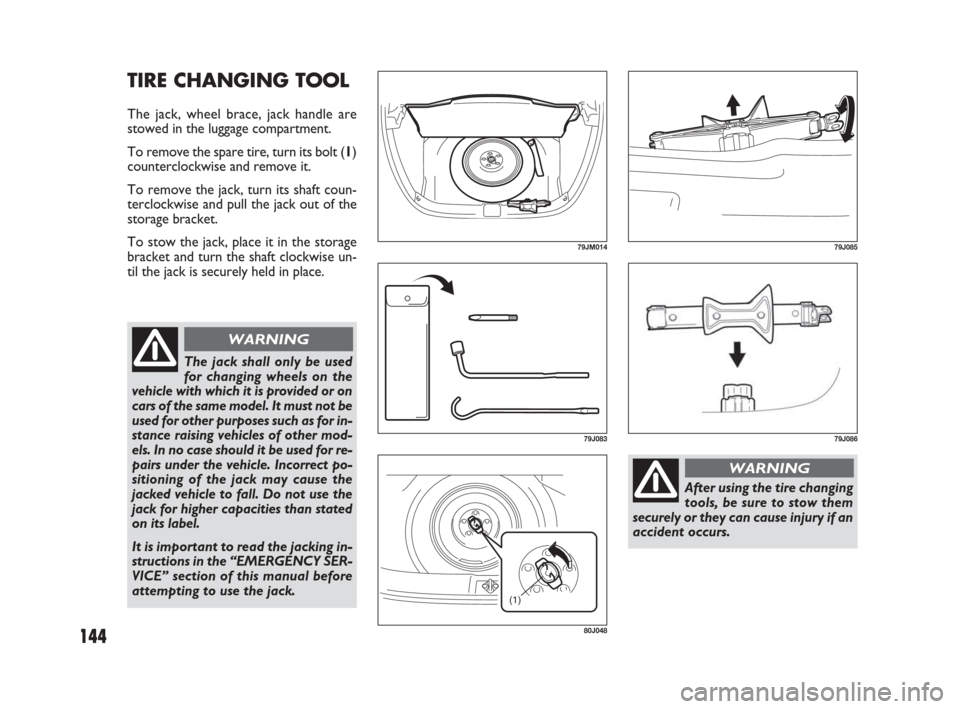

TIRE CHANGING TOOL
The jack, wheel brace, jack handle are
stowed in the luggage compartment.
To remove the spare tire, turn its bolt (1)
counterclockwise and remove it.
To remove the jack, turn its shaft coun-
terclockwise and pull the jack out of the
storage bracket.
To stow the jack, place it in the storage
bracket and turn the shaft clockwise un-
til the jack is securely held in place.
79JM014
79J083
(1)
80J048
79J085
The jack shall only be used
for changing wheels on the
vehicle with which it is provided or on
cars of the same model. It must not be
used for other purposes such as for in-
stance raising vehicles of other mod-
els. In no case should it be used for re-
pairs under the vehicle. Incorrect po-
sitioning of the jack may cause the
jacked vehicle to fall. Do not use the
jack for higher capacities than stated
on its label.
It is important to read the jacking in-
structions in the “EMERGENCY SER-
VICE” section of this manual before
attempting to use the jack.
WARNING
After using the tire changing
tools, be sure to stow them
securely or they can cause injury if an
accident occurs.
WARNING
79J086
129-148 SEDICI LUM FL GB 1E 19-06-2009 13:31 Pagina 144

145

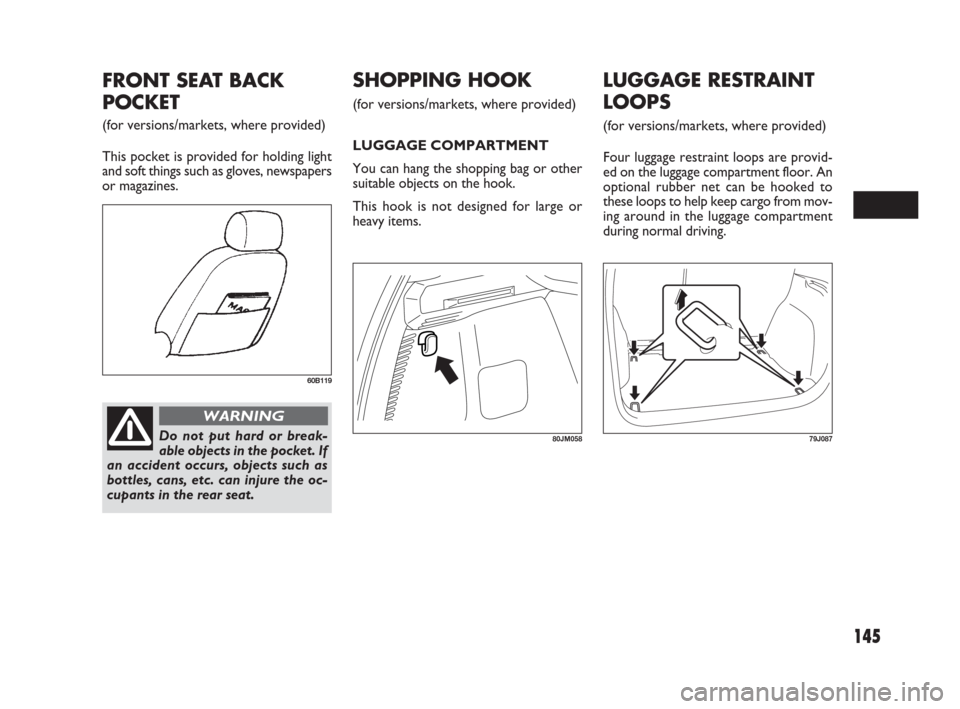

LUGGAGE RESTRAINT
LOOPS
(for versions/markets, where provided)
Four luggage restraint loops are provid-
ed on the luggage compartment floor. An
optional rubber net can be hooked to
these loops to help keep cargo from mov-
ing around in the luggage compartment
during normal driving.
FRONT SEAT BACK
POCKET
(for versions/markets, where provided)
This pocket is provided for holding light
and soft things such as gloves, newspapers
or magazines.
60B119
Do not put hard or break-
able objects in the pocket. If
an accident occurs, objects such as
bottles, cans, etc. can injure the oc-
cupants in the rear seat.
WARNING
80JM05879J087
SHOPPING HOOK
(for versions/markets, where provided)
LUGGAGE COMPARTMENT
You can hang the shopping bag or other
suitable objects on the hook.
This hook is not designed for large or
heavy items.
129-148 SEDICI LUM FL GB 1E 19-06-2009 13:31 Pagina 145

146

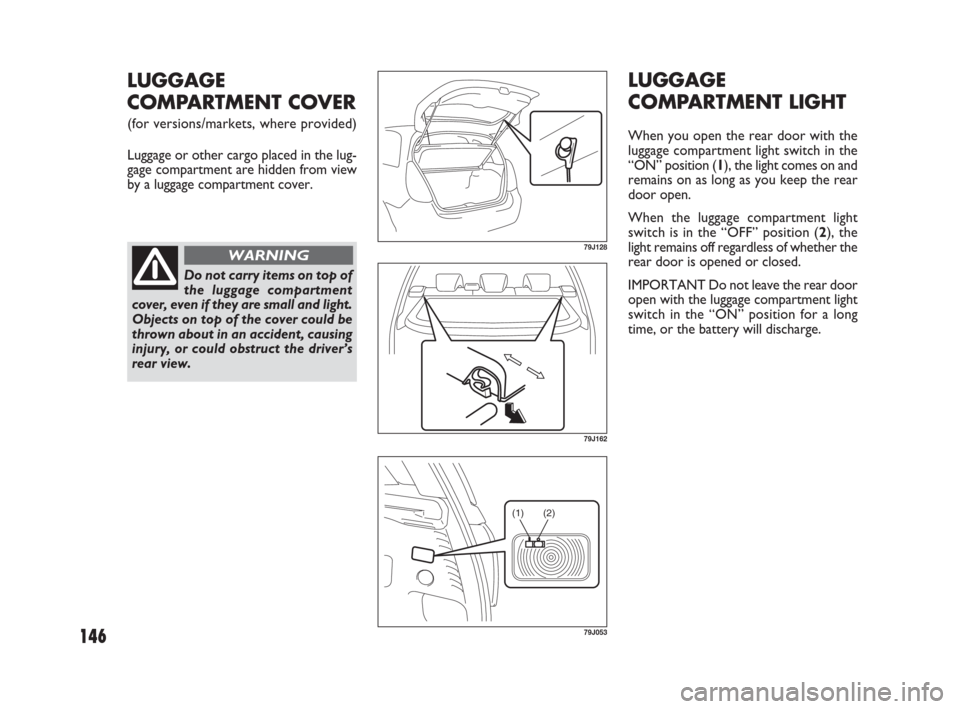

LUGGAGE
COMPARTMENT LIGHT
When you open the rear door with the
luggage compartment light switch in the
“ON” position (1), the light comes on and
remains on as long as you keep the rear
door open.
When the luggage compartment light
switch is in the “OFF” position (2), the
light remains off regardless of whether the
rear door is opened or closed.
IMPORTANT Do not leave the rear door
open with the luggage compartment light
switch in the “ON” position for a long
time, or the battery will discharge.
LUGGAGE
COMPARTMENT COVER
(for versions/markets, where provided)
Luggage or other cargo placed in the lug-
gage compartment are hidden from view
by a luggage compartment cover.
79J128
79J162
(1) (2)
79J053
Do not carry items on top of
the luggage compartment
cover, even if they are small and light.
Objects on top of the cover could be
thrown about in an accident, causing
injury, or could obstruct the driver’s
rear view.
WARNING
129-148 SEDICI LUM FL GB 1E 19-06-2009 13:31 Pagina 146

147

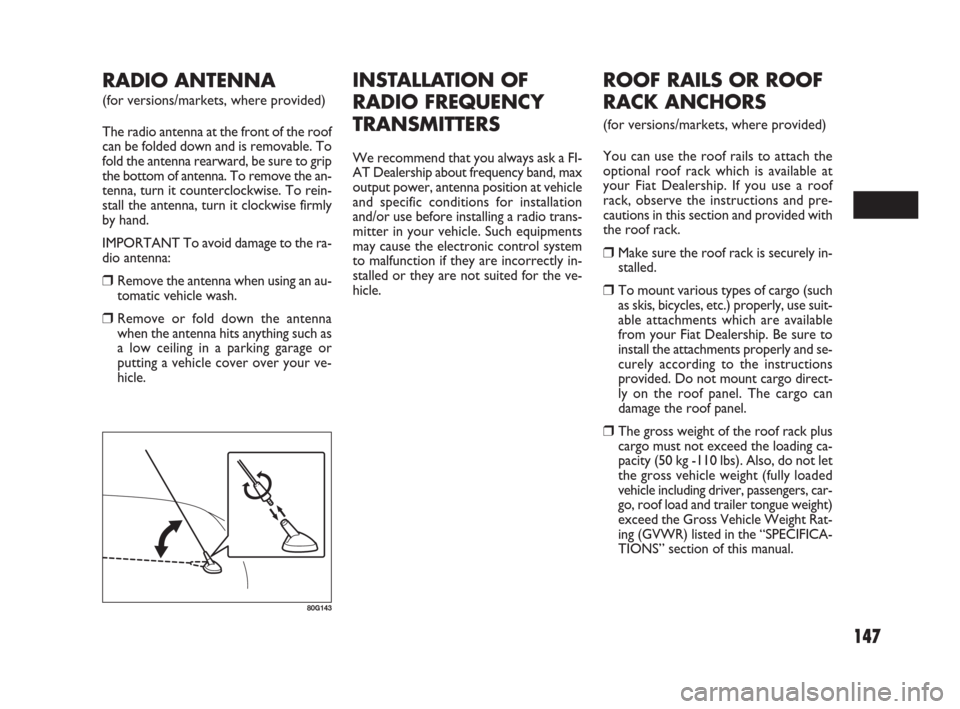

INSTALLATION OF
RADIO FREQUENCY
TRANSMITTERS
We recommend that you always ask a FI-
AT Dealership about frequency band, max
output power, antenna position at vehicle
and specific conditions for installation
and/or use before installing a radio trans-
mitter in your vehicle. Such equipments
may cause the electronic control system
to malfunction if they are incorrectly in-
stalled or they are not suited for the ve-
hicle.
RADIO ANTENNA
(for versions/markets, where provided)
The radio antenna at the front of the roof
can be folded down and is removable. To
fold the antenna rearward, be sure to grip
the bottom of antenna. To remove the an-
tenna, turn it counterclockwise. To rein-
stall the antenna, turn it clockwise firmly
by hand.
IMPORTANT To avoid damage to the ra-
dio antenna:
Remove the antenna when using an au-
tomatic vehicle wash.
Remove or fold down the antenna
when the antenna hits anything such as
a low ceiling in a parking garage or
putting a vehicle cover over your ve-
hicle.
80G143
ROOF RAILS OR ROOF
RACK ANCHORS
(for versions/markets, where provided)
You can use the roof rails to attach the
optional roof rack which is available at
your Fiat Dealership. If you use a roof
rack, observe the instructions and pre-
cautions in this section and provided with
the roof rack.
Make sure the roof rack is securely in-
stalled.
To mount various types of cargo (such
as skis, bicycles, etc.) properly, use suit-
able attachments which are available
from your Fiat Dealership. Be sure to
install the attachments properly and se-
curely according to the instructions
provided. Do not mount cargo direct-
ly on the roof panel. The cargo can
damage the roof panel.
The gross weight of the roof rack plus
cargo must not exceed the loading ca-
pacity (50 kg -110 lbs). Also, do not let
the gross vehicle weight (fully loaded
vehicle including driver, passengers, car-
go, roof load and trailer tongue weight)
exceed the Gross Vehicle Weight Rat-
ing (GVWR) listed in the “SPECIFICA-
TIONS” section of this manual.
129-148 SEDICI LUM FL GB 1E 19-06-2009 13:31 Pagina 147

148

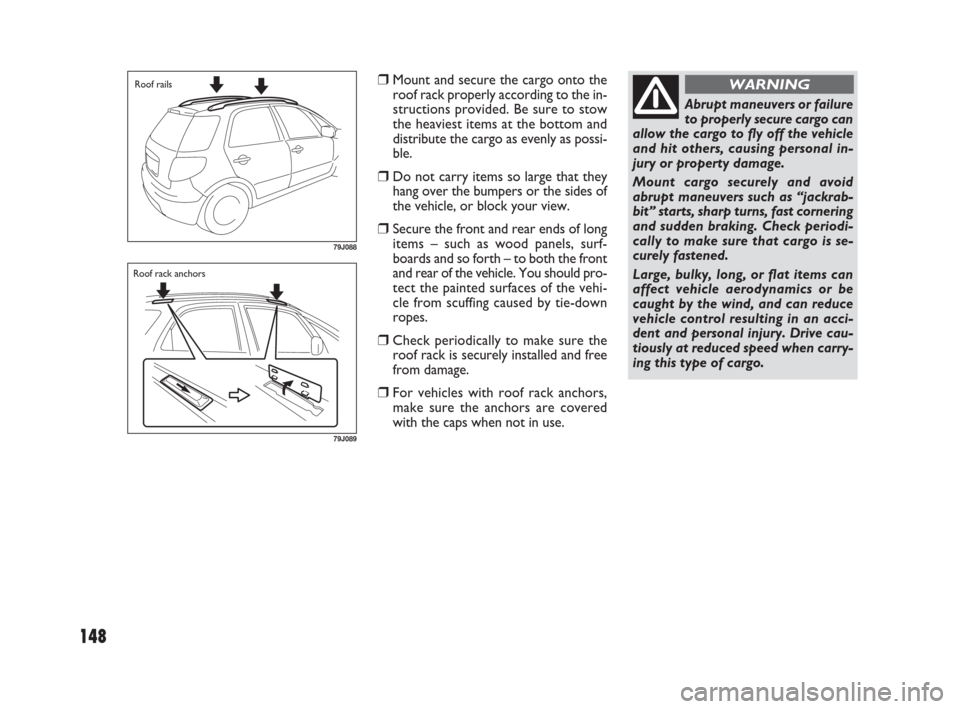

Mount and secure the cargo onto the
roof rack properly according to the in-
structions provided. Be sure to stow
the heaviest items at the bottom and
distribute the cargo as evenly as possi-
ble.
Do not carry items so large that they
hang over the bumpers or the sides of
the vehicle, or block your view.
Secure the front and rear ends of long
items – such as wood panels, surf-
boards and so forth – to both the front
and rear of the vehicle. You should pro-
tect the painted surfaces of the vehi-
cle from scuffing caused by tie-down
ropes.
Check periodically to make sure the
roof rack is securely installed and free
from damage.
For vehicles with roof rack anchors,
make sure the anchors are covered
with the caps when not in use.
79J088
79J089
Roof rails
Roof rack anchors
Abrupt maneuvers or failure
to properly secure cargo can
allow the cargo to fly off the vehicle
and hit others, causing personal in-
jury or property damage.
Mount cargo securely and avoid
abrupt maneuvers such as “jackrab-
bit” starts, sharp turns, fast cornering
and sudden braking. Check periodi-
cally to make sure that cargo is se-
curely fastened.
Large, bulky, long, or flat items can
affect vehicle aerodynamics or be
caught by the wind, and can reduce
vehicle control resulting in an acci-
dent and personal injury. Drive cau-
tiously at reduced speed when carry-
ing this type of cargo.
WARNING
129-148 SEDICI LUM FL GB 1E 19-06-2009 13:31 Pagina 148

149
O O
P P
E E
R R
A A
T T
I I
N N
G G
Y Y
O O
U U
R R
V V
E E
H H
I I
C C
L L
E E
60G408
EXHAUST GAS WARNING ............................................. 150
DAILY INSPECTION CHECKLIST ................................... 150
ENGINE OIL CONSUMPTION......................................... 151
STARTING THE ENGINE................................................... 152
USING THE TRANSAXLE .................................................. 156
USING THE 2WD/4WD SWITCH
(for versions/markets, where provided)........................... 159
BRAKING................................................................................ 161
ELECTRONIC STABILITY PROGRAM (ESP
®)
(for versions/markets, where provided)........................... 164
RUNNING-IN........................................................................ 167
CATALYTIC CONVERTER
(for versions/markets, where provided)........................... 167
IMPROVING FUEL ECONOMY........................................ 168
5
149-168 SEDICI LUM FL GB 1E 19-06-2009 13:33 Pagina 149

150
DAILY INSPECTION
CHECKLIST
BEFORE DRIVING
Make sure that windows, mirrors,
lights, and reflectors are clean and un-
obstructed.
Visually check the tires for the fol-
lowing points:
– the depth of the tread groove
– abnormal wear, cracks and damage
– loose wheel bolts
– existence of foreign material such as
nails, stones, etc.
Refer to “Tires” in “INSPECTION AND
MAINTENANCE” section for details.
Look for fluid and oil leaks.
NOTE It is normal for water to drip from
the air conditioning system after use.
Make sure the hood is fully closed and
latched.
Check the headlights, turn signal lights,
brake lights and horn for proper oper-
ation.
EXHAUST GAS
WARNING
52D334
Avoid breathing exhaust gas-
es. Exhaust gases contain
carbon monoxide, a potentially lethal
gas that is colorless and odorless.
Since carbon monoxide is difficult to
detect by itself, be sure to take the
following precautions to help prevent
carbon monoxide from entering your
vehicle.
– Do not leave the engine running in
garages or other confined areas.
– Do not park with the engine run-
ning for a long period of time, even in
an open area. If it is necessary to sit
for a short time in a parked vehicle
with the engine running, make sure
the air intake selector is set to
“FRESH AIR” and the fan is at high
speed.
– Avoid operating the vehicle with the
tail gate or trunk open. If it is neces-
sary to operate the vehicle with the
tail gate or trunk open, make sure the
sunroof (for versions/markets, where
provided) and all windows are closed,
and the blower is at high speed with
the air intake selector set to “FRESH
AIR”.
WARNING
– To allow proper operation
of your vehicle’s ventilation
system, keep the air inlet grille in
front of the windshield clear of snow,
leaves, or other obstructions at all
times.
– Keep the exhaust tailpipe area
clear of snow and other material to
help reduce the buildup of exhaust
gases under the vehicle. This is par-
ticularly important when parked in
blizzard conditions.
– Have the exhaust system inspect-
ed periodically for damage and leaks.
Any damage or leaks should be re-
paired immediately.
WARNING
149-168 SEDICI LUM FL GB 1E 19-06-2009 13:33 Pagina 150

151
Brake fluid level
Power steering (for versions/markets,
where provided) fluid level
Windshield washer fluid level
Battery solution level
Hood latch operation
Pull the hood release handle inside the
vehicle. Make sure that you cannot
open the hood all the way without re-
leasing the secondary latch. Be sure to
close the hood securely after check-
ing for proper latch operation. See “All
latches, hinges & locks” of “CHASSIS
AND BODY” in the “Periodic Main-
tenance Schedule” in the “INSPEC-
TION AND MAINTENANCE” section
for lubrication schedule.
Once a month, or each time you fill your
fuel tank, check the tire pressure using a
tire pressure gauge. Also check the tire
pressure of the spare tire.
Adjust the seat and adjustable head re-
straint (for versions/markets, where
provided).
Check the brake pedal and the park-
ing brake lever.
Adjust the mirrors.
Make sure that you and all passengers
have properly fastened your seat belts.
Make sure that all warning lights come
on as the key is turned to the “ON” or
“START” position.
Check all gauges.
Make sure that the BRAKE SYSTEM
WARNING light turns off when the
parking brake is released.
Once a week, or each time you fill your
fuel tank, perform the following under-
hood checks:
Engine oil level
Coolant level
60A187S
Make sure the hood is fully
closed and latched before
driving. If it is not, it can fly up un-
expectedly during driving, obstructing
your view and resulting in an acci-
dent.
WARNING
ENGINE OIL
CONSUMPTION
It is normal for the engine to consume
some engine oil during normal vehicle op-
eration.
The amount of engine oil consumed de-
pends on the viscosity of the oil, the qual-
ity of the oil and the conditions the vehi-
cle is driven under.
More oil is consumed during high- speed
driving and when there is frequent accel-
eration and deceleration. Under high
loads, your engine also will consume more
oil.
A new engine also consumes more oil,
since its pistons, piston rings and cylinder
walls have not yet become conditioned.
New engines reach the normal level of oil
consumption only after approximately
5000 km (3000 miles) driving.
149-168 SEDICI LUM FL GB 1E 19-06-2009 13:33 Pagina 151
