2009 FIAT SEDICI headlight bulb

221
BULB REPLACEMENT
The fuses are also located under the dri-
ver’s side of the dashboard. Remove the
fuse box cover by pulling it off. The am-
perage of each fuse is shown on the top
of the fuse box cover.
Always be sure to replace a
blown fuse with a fuse of the
correct amperage. Never use a sub-
stitute such as aluminum foil or wire
to replace a blown fuse. If you re-
place a fuse and the new one blows
in a short period of time, you may
have a major electrical problem.
Have your vehicle inspected imme-
diately by your Fiat Dealership.
WARNING
65D046
OK
BLOWN
– Light bulbs can be hot
enough to burn your finger
right after being turned off. This is
true especially for halogen headlight
bulbs. Replace the bulbs after they
become cool enough.
– The headlight bulbs are filled with
pressurized halogen gas. They can
burst and injure you if they are hit or
dropped. Handle them carefully.
WARNING
IMPORTANT The oils from your skin may
cause a halogen bulb to overheat and burst
when the lights are on. Grasp a new bulb
with a clean cloth.
IMPORTANT Frequent replacement of a
bulb indicates the need for an inspection
of the electrical system. This should be
carried out by your Fiat Dealership.CENTER INTERIOR LIGHT
(for versions/markets, where provided)
Pull down the lens by using a plane screw
driver covered with a soft cloth as shown.
To install it, simply push it back in.
The bulb can be removed by simply pulling
it out. When replacing the bulb, make sure
that the contact springs are holding the
bulb securely.
60G115
183-230 SEDICI LUM FL GB 1E 19-06-2009 11:00 Pagina 221

222

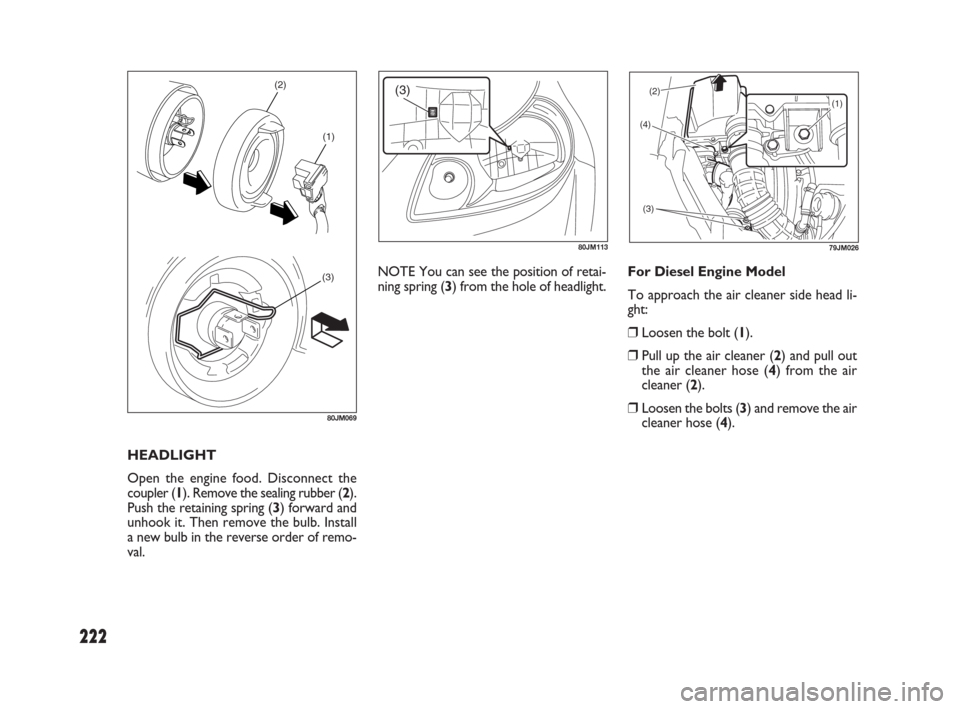

HEADLIGHT
Open the engine food. Disconnect the
coupler (1). Remove the sealing rubber (2).
Push the retaining spring (3) forward and
unhook it. Then remove the bulb. Install
a new bulb in the reverse order of remo-
val.
(2)
(1)
(3)
80JM069
(3)
80JM113
(2)
(4)
(3)
(1)
79JM026
NOTE You can see the position of retai-
ning spring (3) from the hole of headlight.For Diesel Engine Model
To approach the air cleaner side head li-
ght:
❒ Loosen the bolt (1).
❒ Pull up the air cleaner (2) and pull out
the air cleaner hose (4) from the air
cleaner (2).
❒ Loosen the bolts (3) and remove the air
cleaner hose (4).
183-230 SEDICI LUM FL GB 1E 19-06-2009 11:00 Pagina 222

251
12V – 60/55W
12V – 55W
12V – 21W
12V – 21W
12V – 5W
12V – 21/5W
12V – 5W
12V – 21W
12V – 10W
12V – 5W
12V – 21W
12V – 8W
12V – 5WH4
H11
PY21W
P21W
W5W
P21/5W
W5W
P21W
–
–
P21W
W5W (8W)
W5W
BULBS Power Type
Main beam/dipped beam headlights
Front fog lights
Front direction indicators
Rear direction indicators
Parking lights
Brake lights / taillights
License plate lights
Reversing lights
Passenger compartment light
Luggage compartment light
Rear fog lights
Spot lights
Third brake light (additional brake light)
ELECTRICAL COMPONENTS 1.6 16V2.0 Multijet
Battery
Spark plugs Iridium
Nickel
Fuses12V 36Ah
NGK SILFR6A11
DENSO K16HPR-U1112V 60Ah
–
–
See “INSPECTION AND MAINTENANCE” section
249-254 SEDICI LUM FL GB 1E 19-06-2009 11:10 Pagina 251

261
– Fluid level check............................. 196
– Gearshift lever............................... 132
– If you cannot shift lever out
of “P” (Park)................................... 238
– Selector position indicator .......... 89
– Specific fluid.................................... 196
– Using the transaxle........................ 156
Battery ................................................. 213
– Replacement ................................... 214
Before driving....................................... 9
Bodywork care..................................... 239
Brakes
– ABS................................................... 162
– Brake fluid....................................... 205
– Brake pedal ..................................... 206
– Brakes.............................................. 205
– Braking ............................................. 161
– Parking brake lever.................130-207
– Technical specifications ................ 252
– Vacuum brake ................................ 161
Bulbs
– Replacement ................................... 221
– Type.................................................. 251
Capacities ............................................ 254
Catalytic converter.............................. 167Children
– Child-proof locks........................... 22
– Child restraint systems ................ 37
– Installation with Isofix type
anchorages...................................41-42
– Installation with lap-shoulder
seat belts......................................... 42
Cigar lighter .......................................... 95
Clock ...................................................... 90
Clutch..............................................131-208
– Pedal................................................. 208
Corrosion prevention......................... 240
CO
2emissions...................................... 27
Cruise Control ..................................... 69
Cup holder ............................................ 142
Daily inspection checklist ................ 150
Declaration of conformity ................. 256
Dimensions........................................... 253
Dipped beam headlights
– Bulb replacement........................... 222
– Control ............................................ 63
Doors
– Central door locking system....... 13
– Child-proof locks........................... 22
– Dead lock ........................................ 14
– Door locks ...................................... 12
ABS ...................................................... 162
Air bags ................................................. 47
– Front................................................ 48
– General warnings........................... 55
– How the system works ................ 52
– Servicing........................................... 54
– Side................................................... 50
Air cleaner............................................. 201
Air conditioning.............................100-104
Ashtray................................................... 95
Assist grips............................................ 140
Audio systems...................................... 110
– Antenna ........................................... 113
– Anti-theft system (SEC) ............... 122
– Cautions on handling .................... 111
– CD Changer................................... 118
– CD player........................................ 117
– Error display messages................. 125
– FM/MW/LW CD Player with
CD Changer control .................... 110
– General ............................................ 113
– Listening to a CD .......................... 112
– MP3/WMA Player.......................... 120
– Radio................................................ 114
– RDS (Radio Data System)............ 115
– Remote audio controls ................ 126
– Troubleshooting ............................ 124
Automatic Transaxle (AT) Fluid ....... 196
– Changing oil .................................... 197
I I
N N
D D
E E
X X
14
261-268 SEDICI LUM FL GB 1E 19-06-2009 11:12 Pagina 261

262
– Level check ..................................... 192
– Oil life monitoring......................... 89
– Specifications.................................. 191
Engine oil filter (change)..................... 194
Engine oil life monitoring ................... 89
ESP (Electronic Stability
Program)......................................92-164
Exhaust gas............................................ 150
External lights................................63-222
Fiat CODE (Immobilizer system) .... 11
Frame hooks........................................... 143
Front fog lights ........................................ 91
Fuel
– Average fuel consumption
(gauge)................................................ 87
– Capacities/refuelling...................10-254
– Consumption.................................... 247
– Driving range .................................... 88
– Fuel filter ............................................ 204
– Fuel filler cap ..................................... 132
– Fuel gauge .......................................... 84
– Fuel recommendation.................... 10
– Improving fuel economy ................ 168
– Instantaneous fuel consumption
(gauge).................................................... 85
Fuses.......................................................... 215
Gear oil
– Changing .......................................... 196– Level check ..................................... 195
– Specifications.................................. 195
Gearshift lever...................................... 132
General information............................ 245
Glove box.............................................. 94
Hazard warning lights ....................... 91
Head restraints..................................... 30
Headlight levelling switch ................... 94
Headlights
– Bulb replacement........................... 222
– Headlight levelling switch............. 94
Heated rear window........................... 93
Heating and air conditioning system .. 96
– Air outlet......................................... 96
– Automatic heating and air
conditioning system
(Climate Control).......................... 104
– Heating system............................... 97
– Maintenance.............................110-230
– Manual heating and air
conditioning system...................... 100
Horn ....................................................... 68
Identification data .............................. 246
Ignition switch ...................................... 58
Information display.............................. 85
Inspection and maintenance .............. 183
– Maintenance schedule................... 185
– Severe driving conditions............. 190 – Keyless Start system..................... 15
– Opening/closing............................. 12
Drive belt (servicing).......................... 191
Driving tips............................................ 169
– Driving on hills ............................... 170
– Driving on slippery roads ............ 171
– Highway driving.............................. 170
Emergency service ............................ 231
Engine
– Air cleaner ...................................... 201
– Engine coolant ................................ 198
– Engine oil and filter........................ 191
– If the engine is flooded................. 236
– If the engine overheats ................. 236
– If the starter does not operate... 236
– Jump starting................................... 233
– Oil consumption ............................ 151
– Serial number................................. 246
– Spark plugs...................................... 202
– Starting............................................. 152
– Technical specifications ................ 249
– Temperature gauge ....................... 85
Engine coolant ...................................... 198
Engine coolant temperature gauge .. 85
Engine hood .......................................... 140
Engine oil
– Changing oil and filter................... 193
– Consumption.................................. 151
261-268 SEDICI LUM FL GB 1E 19-06-2009 11:12 Pagina 262

263
Mirrors
– Defroster......................................... 93
– Electric mirrors.............................. 28
– Inside rearview mirror ................. 27
– Outside rearview mirror ............. 27
MP3/WMA Player ................................ 119
Odometer ........................................... 87
Operating your vehicle....................... 149
Original spare parts............................. 2
Other controls and equipment......... 129
Parking brake lever ........................... 130
Parking lights ......................................... 63
Pedals..................................................... 131
Performance ......................................... 254
Pretensioners for seat belts .............. 45
Radio antenna...................................... 147
Rear door.............................................. 23
Rear fog light......................................... 64
Rear window washer
– Switch............................................... 66
Rear window wiper
– Blades............................................... 229
– Control ............................................ 66
Recirculated air.............................100-104
Refuelling/Capacities....................10-254
Remote audio controls....................... 126
Roof rails or roof rack anchors ........ 147
Running-in.............................................. 167
Seat back pocket ................................ 145
Seat belts............................................... 31
– Height adjuster............................... 36
– Pretensioners................................. 45
– Seat belt hangers............................ 36
– Seat belt inspection....................... 37
– Seat belt reminder (S.B.R.) .......... 35
– Use.................................................... 33
– Warnings......................................... 31
Seats
– Front (adjustment) ........................ 29
– Front seat heater........................... 139
– Seat back pocket............................ 145
Service station guide........................... 3
Shopping hook...................................... 145
Snow chains .......................................... 171
Spare tire........................................144-211
Spark plugs............................................ 202
Speedometer........................................ 84
Spot light................................................ 138
Starting the engine............................... 152
– If the engine is flooded................. 236
– If the starter does not operate... 236
– Jump starting................................... 233
Steering.................................................. 207
Steering column controls................... 57
Sun visors .............................................. 137
Supplement (declaration
of conformity).................................... 255 Instrument cluster............................... 73
– Meter illumination (control) ....... 90
Instrument panel.............................71-72
Interior light.......................................... 138
Isofix type child restraint system
(installation)..................................41-42
Jack ......................................................... 144
Jacking instructions.............................. 232
Jump starting instructions .................. 233
Keys ....................................................... 11
– Battery replacement..................... 20
– Keyless Entry.................................. 18
Keyless Entry System.......................... 18
Keyless Start System........................... 15
Luggage compartment
– Luggage compartment cover....... 146
– Luggage compartment light ......... 146
– Luggage restraint loops ................ 145
Main beam headlights ........................ 63
– Bulb replacement........................... 222
Maintenance (programmed) .............. 183
– Maintenance schedule................... 185
– Severe driving conditions............. 190
Manual heating and air conditioning
system.................................................. 100
– Maintenance............................108-230
261-268 SEDICI LUM FL GB 1E 19-06-2009 11:12 Pagina 263
