KEYLESS ENTRY SYSTEM
(for versions/markets, where provided)
(1) “LOCK” button
(2) “UNLOCK” button
There are two ways to lock or unlock all
doors simultaneously by operating the
transmitter/remote controller near the
vehicle. If the remote controller is left in the ve-
hicle and you lock the door in the follow-
ing manner, the driver’s door or the front
passenger’s door will be automatically un-
locked.
❒You open the driver’s door and lock
the door by turning the lock knob for-
ward or pushing the power door lock-
ing switch, the driver’s door will be au-
tomatically unlocked.
❒You open the door (s) except the dri-
ver’s door and lock the front passen-
ger’s door by turning the lock knob for-
ward or pushing the power door lock-
ing switch, the front passenger’s door
will be automatically unlocked.
NOTE
❒The reminder will not operate when
the remote controller is on the instru-
ment panel, in the glove box, in the
door pocket, in the sun visor or on the
floor etc.
❒Be sure that the driver always carries
the remote controller.
❒Do not leave the remote controller in
the vehicle when departing from the ve-
hicle.
(1)
(2)
81A184
Type 1
Reminder function
If the remote controller is not in the vehi-
cle under the following condition, a buzzer
sounds intermittently for about 2 seconds
and the keyless start system indicator light
on the instrument cluster blinks in red:
❒When the vehicle speed is over 10 km/h.
❒When the door (s) has (have) opened
and later all doors are closed with the
ignition switch in a position other than
LOCK.
The red indicator light will turn off within
several seconds after the remote controller
is returned in the vehicle except in the rear
luggage area.
79JF001
009-056 SEDICI LUM FL GB 1E 19-06-2009 14:11 Pagina 18

28
ELECTRIC MIRRORS
(for versions/markets, where provided)
The switch to control the electric mirrors
is located on the driver’s door panel. You
can adjust the mirrors when the ignition
switch is in the “ACC” or “ON” position.
To adjust the mirrors:
❒Move the selector switch to the left or
right to select the mirror you wish to
adjust.
❒Press the outer part of the switch that
corresponds to the direction in which
you wish to move the mirror.
❒Return the selector switch to the cen-
ter position to help prevent unintend-
ed adjustment.
SEAT ADJUSTMENT
(2)
(4)(3) (1)(1)
(3) (2)
(4)
79J034
Only make adjustments when
the vehicle is stationary.
WARNING
To avoid excessive seat belt
slack, which reduces the ef-
fectiveness of the seat belts as a safe-
ty device, make sure that the seats
are adjusted before the seat belts are
fastened.
WARNING
Check that the seat is firmly
locked in the runners by try-
ing to move it back and forth. Failure
to lock the seat in place could result
in the seat moving suddenly and the
driver losing control of the vehicle.
WARNING
NOTE If your vehicle is equipped with the
heated outside rearview mirrors, refer to
“Heated Rear Window and Heated Out-
side Rearview Mirrors (for versions/
markets, where provided) Switch” in the
“INSTRUMENT PANEL” section.
009-056 SEDICI LUM FL GB 1E 19-06-2009 14:11 Pagina 28

60
❒If the keyless start system red indicator
light illuminates, the remote controller
may not be in the vehicle or the battery
of the remote controller may be unre-
liable. The red indicator light will turn
off within several seconds after the re-
mote controller is returned in the ve-
hicle except in the rear luggage area.
When the remote controller is in the ve-
hicle except the rear luggage area, you can
turn the ignition switch without using an
ignition key.
NOTE
❒If the battery of the remote controller
runs down or there are strong radio
waves or noise, the operating range
may be narrower or the remote con-
troller may be inoperative.
❒If the remote controller is too close to
the door glass, it may not operate.
❒The ignition switch may not turn when
the remote controller is on the instru-
ment panel, in the glove box, in the
door pocket, in the sun visor or on the
floor. VEHICLE WITH KEYLESS

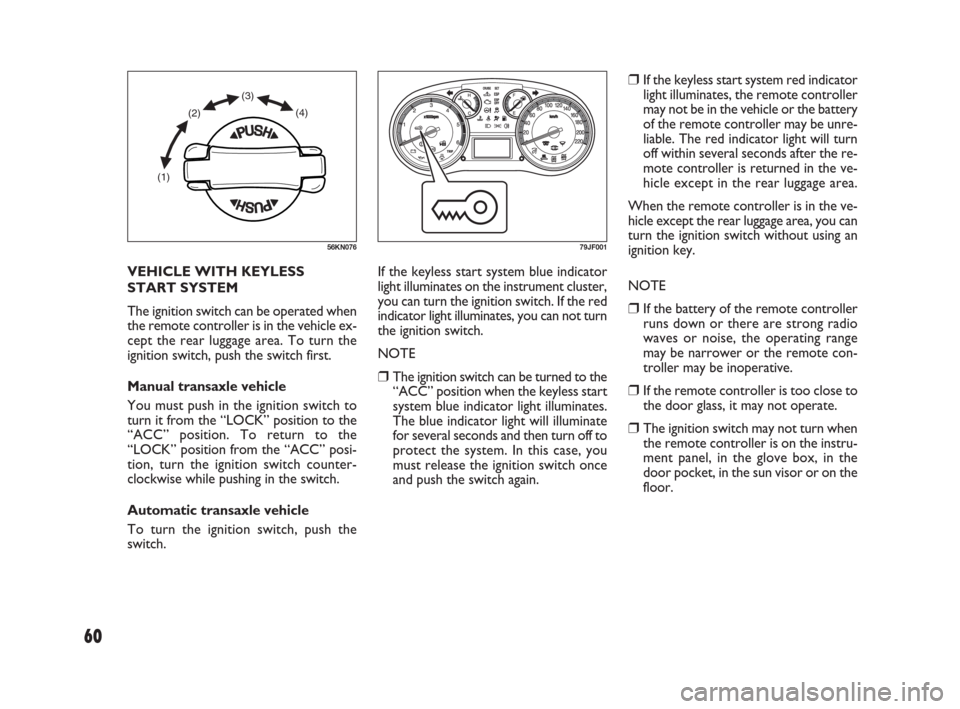

START SYSTEM
The ignition switch can be operated when
the remote controller is in the vehicle ex-
cept the rear luggage area. To turn the
ignition switch, push the switch first.
Manual transaxle vehicle
You must push in the ignition switch to
turn it from the “LOCK” position to the
“ACC” position. To return to the
“LOCK” position from the “ACC” posi-
tion, turn the ignition switch counter-
clockwise while pushing in the switch.
Automatic transaxle vehicle
To turn the ignition switch, push the
switch.If the keyless start system blue indicator
light illuminates on the instrument cluster,
you can turn the ignition switch. If the red
indicator light illuminates, you can not turn
the ignition switch.
NOTE
❒The ignition switch can be turned to the
“ACC” position when the keyless start
system blue indicator light illuminates.
The blue indicator light will illuminate
for several seconds and then turn off to
protect the system. In this case, you
must release the ignition switch once
and push the switch again.
(1)(2)(3)
(4)
56KN07679JF001
057-070 SEDICI LUM FL GB 1E 19-06-2009 10:32 Pagina 60

63
Lights “On” reminder
(for versions/markets, where provided)
A buzzer/chime sounds to remind you to
turn off the lights if they are left on when
the ignition key is removed and the dri-
ver’s door is opened.Day time running light control
(for versions/markets, where provided)
When the engine is started, this system
turns on all lights. But this control is can-
celed when the light control lever is
turned to any position other than “OFF”.

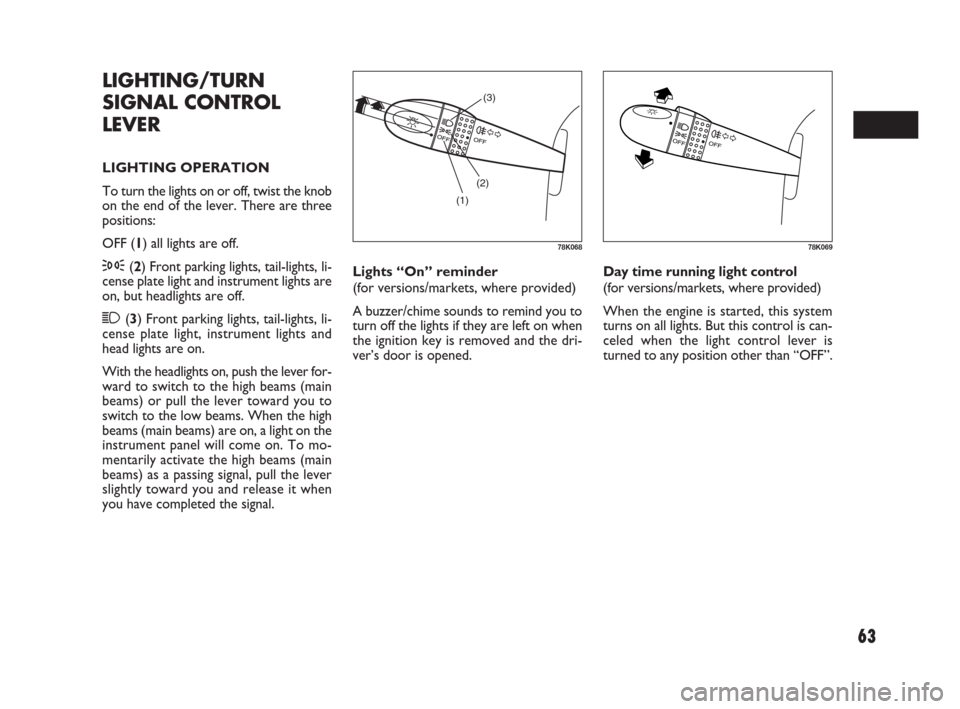

LIGHTING/TURN
SIGNAL CONTROL
LEVER
LIGHTING OPERATION
To turn the lights on or off, twist the knob
on the end of the lever. There are three
positions:
OFF (1) all lights are off.
3(2) Front parking lights, tail-lights, li-
cense plate light and instrument lights are
on, but headlights are off.
1(3) Front parking lights, tail-lights, li-
cense plate light, instrument lights and
head lights are on.
With the headlights on, push the lever for-
ward to switch to the high beams (main
beams) or pull the lever toward you to
switch to the low beams. When the high
beams (main beams) are on, a light on the
instrument panel will come on. To mo-
mentarily activate the high beams (main
beams) as a passing signal, pull the lever
slightly toward you and release it when
you have completed the signal.
(1)(2)(3)
78K06878K069
057-070 SEDICI LUM FL GB 1E 19-06-2009 10:32 Pagina 63

68
HORN
Press the horn button of the steering
wheel to sound the horn. The horn will
sound with the ignition switch in any po-
sition.
63J307
REMOTE AUDIO
CONTROLS
(for versions/markets, where provided)
You can control basic functions of the au-
dio system with the switches on the steer-
ing wheel.
For details, refer to “Audio Systems” in
the “INSTRUMENT PANEL” section.
80JM014
057-070 SEDICI LUM FL GB 1E 19-06-2009 17:04 Pagina 68

71
I I
N N
S S
T T
R R
U U
M M
E E
N N
T T
P P
A A
N N
E E
L L
60G406

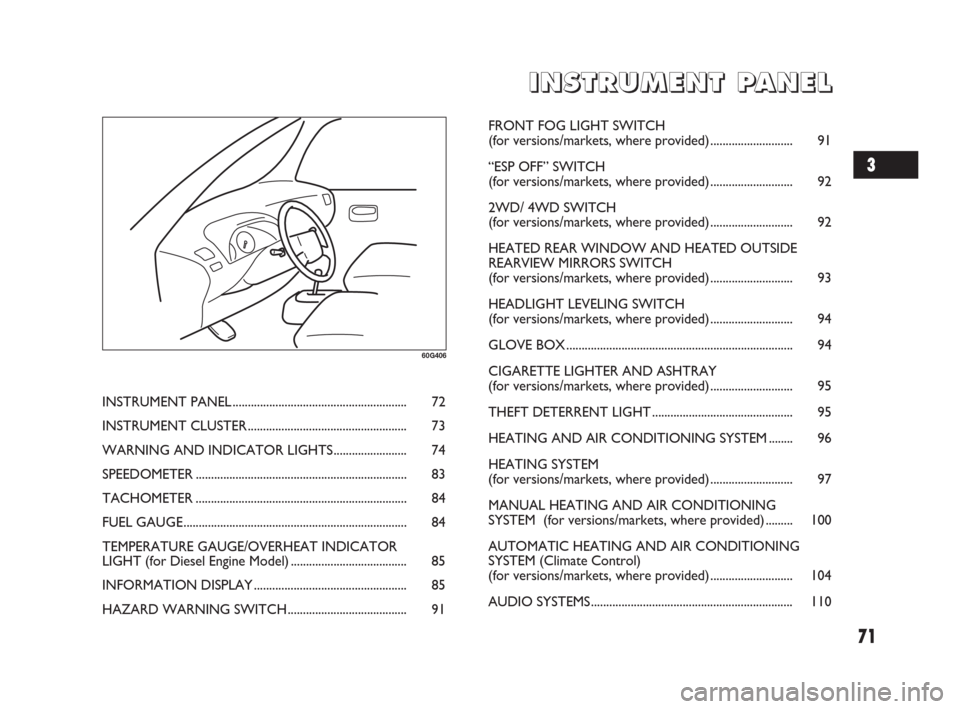

INSTRUMENT PANEL......................................................... 72
INSTRUMENT CLUSTER.................................................... 73
WARNING AND INDICATOR LIGHTS........................ 74
SPEEDOMETER..................................................................... 83
TACHOMETER ..................................................................... 84
FUEL GAUGE......................................................................... 84
TEMPERATURE GAUGE/OVERHEAT INDICATOR
LIGHT (for Diesel Engine Model) ...................................... 85
INFORMATION DISPLAY.................................................. 85
HAZARD WARNING SWITCH ....................................... 91FRONT FOG LIGHT SWITCH
(for versions/markets, where provided)........................... 91
“ESP OFF” SWITCH
(for versions/markets, where provided)........................... 92
2WD/ 4WD SWITCH
(for versions/markets, where provided)........................... 92
HEATED REAR WINDOW AND HEATED OUTSIDE
REARVIEW MIRRORS SWITCH
(for versions/markets, where provided)........................... 93
HEADLIGHT LEVELING SWITCH
(for versions/markets, where provided)........................... 94
GLOVE BOX.......................................................................... 94
CIGARETTE LIGHTER AND ASHTRAY
(for versions/markets, where provided)........................... 95
THEFT DETERRENT LIGHT.............................................. 95
HEATING AND AIR CONDITIONING SYSTEM ........ 96
HEATING SYSTEM
(for versions/markets, where provided)........................... 97
MANUAL HEATING AND AIR CONDITIONING
SYSTEM (for versions/markets, where provided) ......... 100
AUTOMATIC HEATING AND AIR CONDITIONING
SYSTEM (Climate Control)
(for versions/markets, where provided)........................... 104
AUDIO SYSTEMS.................................................................. 110
3
071-128 SEDICI LUM FL GB 1E 19-06-2009 12:05 Pagina 71

72
INSTRUMENT PANEL
1.Instrument cluster
2.Ignition switch
3.Lighting switch/Turn signal and
dimmer switch
4.Windshield wiper and washer
switch/ Rear window wiper and
washer switch (for versions/
markets, where provided)
5.Hazard warning switch
6.Other switches (for versions/
markets, where provided)
7.Heater control panel
8.Audio (for versions/markets, where
provided)
9.Cigarette lighter
10.Hood release
11.Center ventilator
12.Side ventilator
13.Side defroster
14.Glove box
15.Fuse box
16.Air bag (for versions/markets,
where provided)
3
1516145 11 816
27914106
4
1016318511 16
131312131312
131312131312
7 141526 9
79JM021
Right-hand drive
Left-hand drive
