ELECTRIC WINDOW
CONTROLS
(for versions/markets, where provided)
The electric windows can only be oper-
ated when the ignition switch is in the
“ON” position.
Driver’s side (type A)

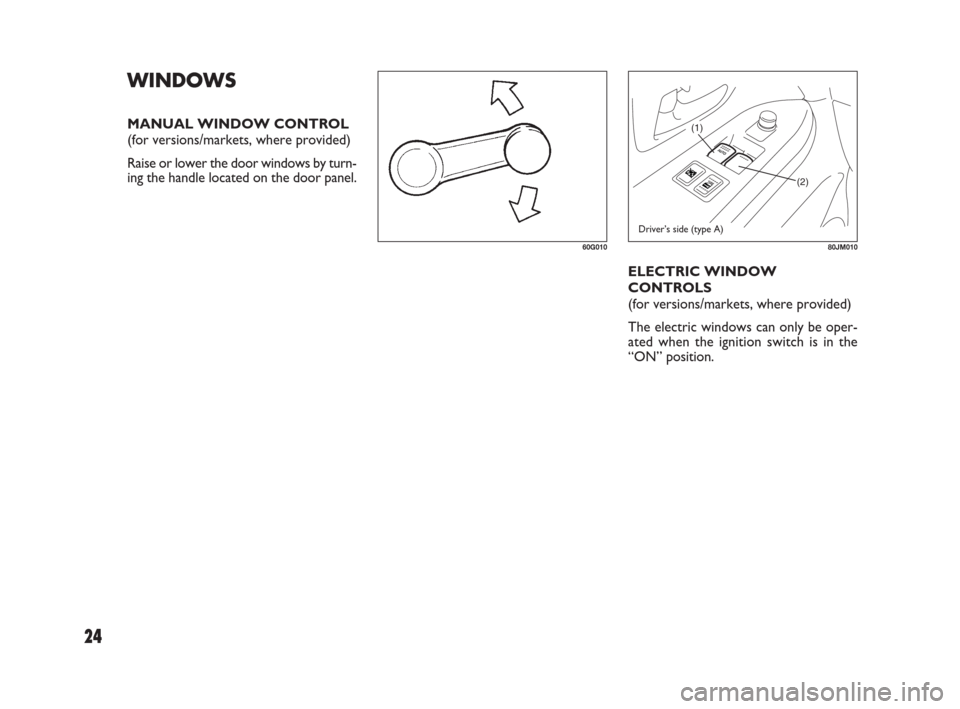

WINDOWS
MANUAL WINDOW CONTROL
(for versions/markets, where provided)
Raise or lower the door windows by turn-
ing the handle located on the door panel.
60G010
009-056 SEDICI LUM FL GB 1E 19-06-2009 14:11 Pagina 24

25
Passenger’s door
The passenger’s door has a switch (3) to
operate the passenger’s window. Driver’s side
The driver’s door has a switch (1) to op-
erate the driver’s window, and a switch
(2) to operate the front passenger’s win-
dow or there are switches (4), (5), to op-
erate the rear left and right passenger win-
dows, respectively.
(1)
(2)
(4)
(5)
80JC095
(3)
79J029
Driver’s side (type B)Passenger’s door
To open a window, push the top part of
the switch and to close the window lift up
the top part of the switch.
The driver’s window has an “auto-down”
feature for added convenience (at toll
booths or drive-through restaurants, for
example). This means you can open the
window without holding the window
switch in the “Down” position. Press the
driver’s window switch completely down
and release it. To stop the window before
it reaches the bottom, pull the switch up
briefly.
81A009
CLOSE
OPEN
009-056 SEDICI LUM FL GB 1E 19-06-2009 14:11 Pagina 25

26
NOTE The rear side door windows are
not designed to open fully. They can be
opened about 2/3 of the way down.
NOTE If you drive with one of the rear
windows open, you may hear a loud sound
caused by air vibration. To reduce the
sound, open the driver’s or front passen-
ger’s window, or narrow the rear window
opening.
79J207
The driver’s door also has a lock switch
for the passenger’s window (s). When you
push in the lock switch, the passenger’s
window (s) can not be raised or lowered
by operating any of the switches (2), (3),
(4) or (5). To restore normal operation,
release the lock switch by pushing again.
80JM01180JC097
Lock switch (type A)Lock switch (type B)
You should always lock the
passenger’s window opera-
tion when there are children in the ve-
hicle. Children can be seriously in-
jured if they get part of their body
caught by the window during opera-
tion.
To avoid injuring an occupant by win-
dow entrapment, be sure no part of
the occupant’s body such as hands or
head is in the path of the electric win-
dows when closing them.
Always remove the ignition key when
leaving the vehicle even if a short
time. Also do not leave children alone
in a parked vehicle. Unattended chil-
dren could use the electric window
switches and get trapped by the win-
dow.
WARNING
009-056 SEDICI LUM FL GB 1E 19-06-2009 14:11 Pagina 26

27

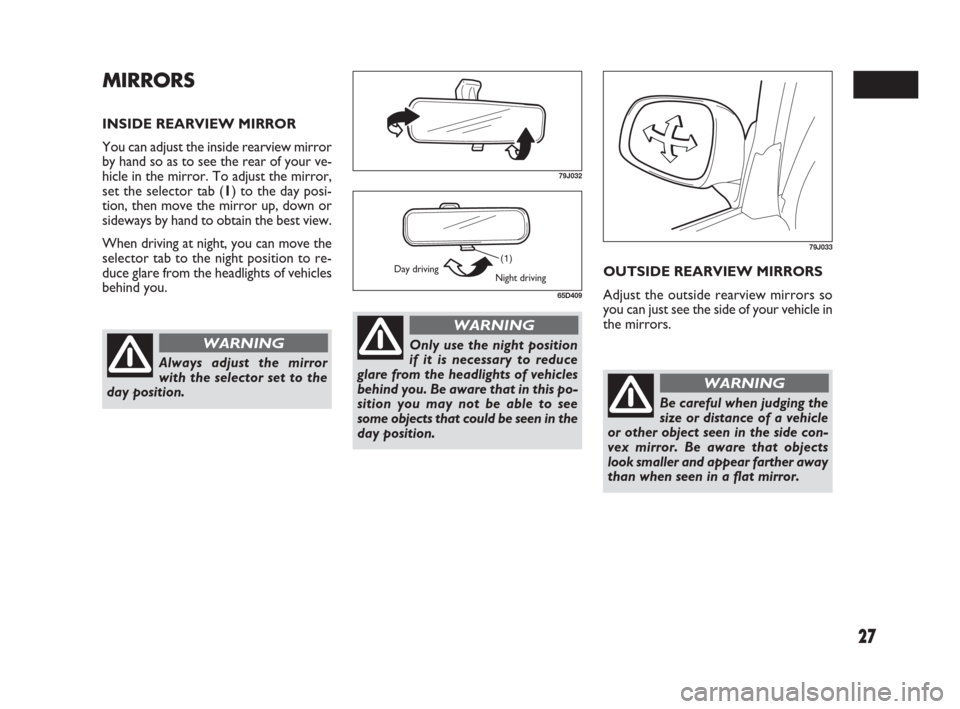

MIRRORS
INSIDE REARVIEW MIRROR
You can adjust the inside rearview mirror
by hand so as to see the rear of your ve-
hicle in the mirror. To adjust the mirror,
set the selector tab (1) to the day posi-
tion, then move the mirror up, down or
sideways by hand to obtain the best view.
When driving at night, you can move the
selector tab to the night position to re-
duce glare from the headlights of vehicles
behind you.
79J032
(1)
65D409
Day driving
Night driving
Always adjust the mirror
with the selector set to the
day position.
WARNINGOnly use the night position
if it is necessary to reduce
glare from the headlights of vehicles
behind you. Be aware that in this po-
sition you may not be able to see
some objects that could be seen in the
day position.
WARNING
OUTSIDE REARVIEW MIRRORS
Adjust the outside rearview mirrors so
you can just see the side of your vehicle in
the mirrors.
79J033
Be careful when judging the
size or distance of a vehicle
or other object seen in the side con-
vex mirror. Be aware that objects
look smaller and appear farther away
than when seen in a flat mirror.
WARNING
009-056 SEDICI LUM FL GB 1E 19-06-2009 14:11 Pagina 27

28
ELECTRIC MIRRORS
(for versions/markets, where provided)
The switch to control the electric mirrors
is located on the driver’s door panel. You
can adjust the mirrors when the ignition
switch is in the “ACC” or “ON” position.
To adjust the mirrors:
❒Move the selector switch to the left or
right to select the mirror you wish to
adjust.
❒Press the outer part of the switch that
corresponds to the direction in which
you wish to move the mirror.
❒Return the selector switch to the cen-
ter position to help prevent unintend-
ed adjustment.
SEAT ADJUSTMENT
(2)
(4)(3) (1)(1)
(3) (2)
(4)
79J034
Only make adjustments when
the vehicle is stationary.
WARNING
To avoid excessive seat belt
slack, which reduces the ef-
fectiveness of the seat belts as a safe-
ty device, make sure that the seats
are adjusted before the seat belts are
fastened.
WARNING
Check that the seat is firmly
locked in the runners by try-
ing to move it back and forth. Failure
to lock the seat in place could result
in the seat moving suddenly and the
driver losing control of the vehicle.
WARNING
NOTE If your vehicle is equipped with the
heated outside rearview mirrors, refer to
“Heated Rear Window and Heated Out-
side Rearview Mirrors (for versions/
markets, where provided) Switch” in the
“INSTRUMENT PANEL” section.
009-056 SEDICI LUM FL GB 1E 19-06-2009 14:11 Pagina 28

29
If the driver’s seat is equipped with a seat
height adjuster lever on the outboard side
of the seat, raise or lower the seat by

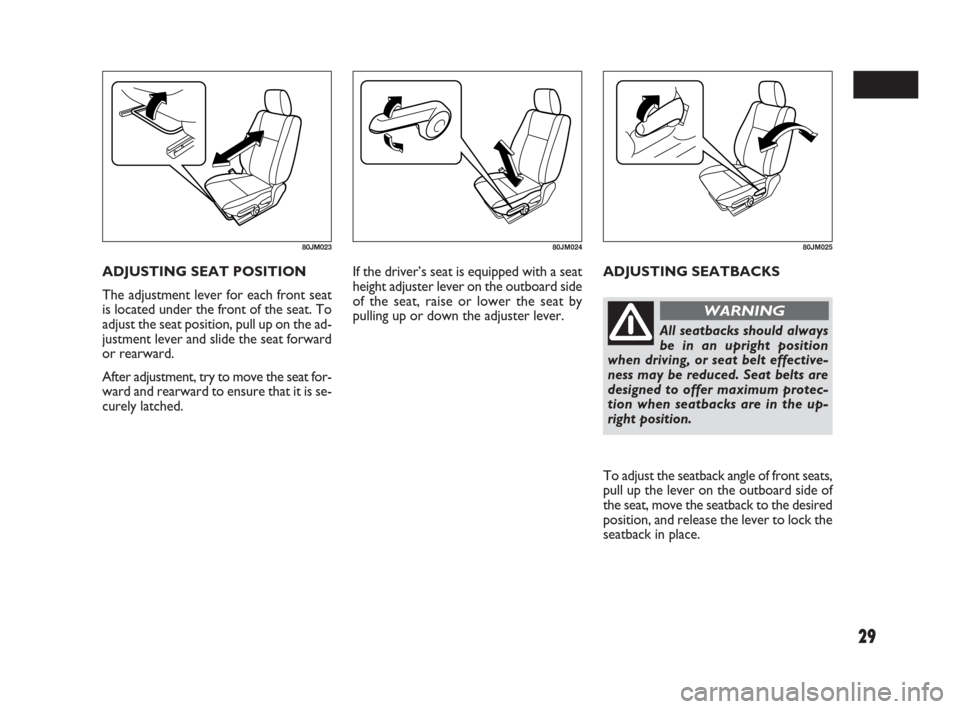

pulling up or down the adjuster lever.ADJUSTING SEATBACKS ADJUSTING SEAT POSITION
The adjustment lever for each front seat
is located under the front of the seat. To
adjust the seat position, pull up on the ad-
justment lever and slide the seat forward
or rearward.
After adjustment, try to move the seat for-
ward and rearward to ensure that it is se-
curely latched.
80JM02380JM02480JM025
All seatbacks should always
be in an upright position
when driving, or seat belt effective-
ness may be reduced. Seat belts are
designed to offer maximum protec-
tion when seatbacks are in the up-
right position.
WARNING
To adjust the seatback angle of front seats,
pull up the lever on the outboard side of
the seat, move the seatback to the desired
position, and release the lever to lock the
seatback in place.
009-056 SEDICI LUM FL GB 1E 19-06-2009 14:11 Pagina 29

30
NOTE It may be necessary to recline the
seatback to provide enough overhead
clearance to remove the head restraint. Front
To raise the front head restraint, pull up-
ward on the restraint until it clicks. To
lower the restraint, push down on the re-
straint while holding in the lock lever. If a
head restraint must be removed (for
cleaning, replacement, etc.), push in the
lock lever and pull the head restraint all
the way out.

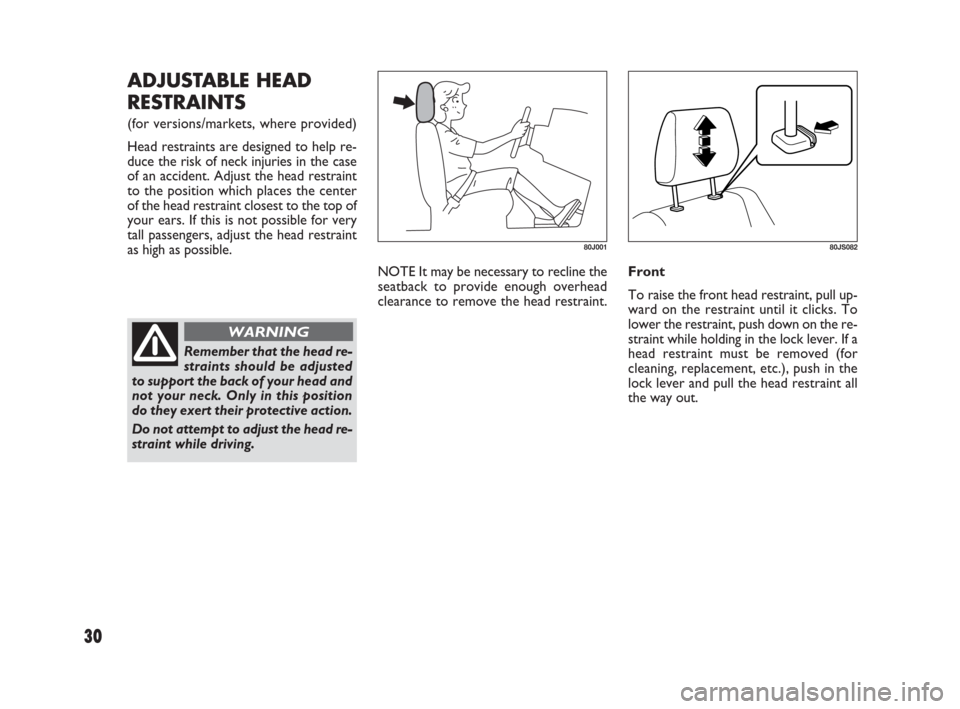

ADJUSTABLE HEAD
RESTRAINTS
(for versions/markets, where provided)
Head restraints are designed to help re-
duce the risk of neck injuries in the case
of an accident. Adjust the head restraint
to the position which places the center
of the head restraint closest to the top of
your ears. If this is not possible for very
tall passengers, adjust the head restraint
as high as possible.
80J00180JS082
Remember that the head re-
straints should be adjusted
to support the back of your head and
not your neck. Only in this position
do they exert their protective action.
Do not attempt to adjust the head re-
straint while driving.
WARNING
009-056 SEDICI LUM FL GB 1E 19-06-2009 14:11 Pagina 30

31

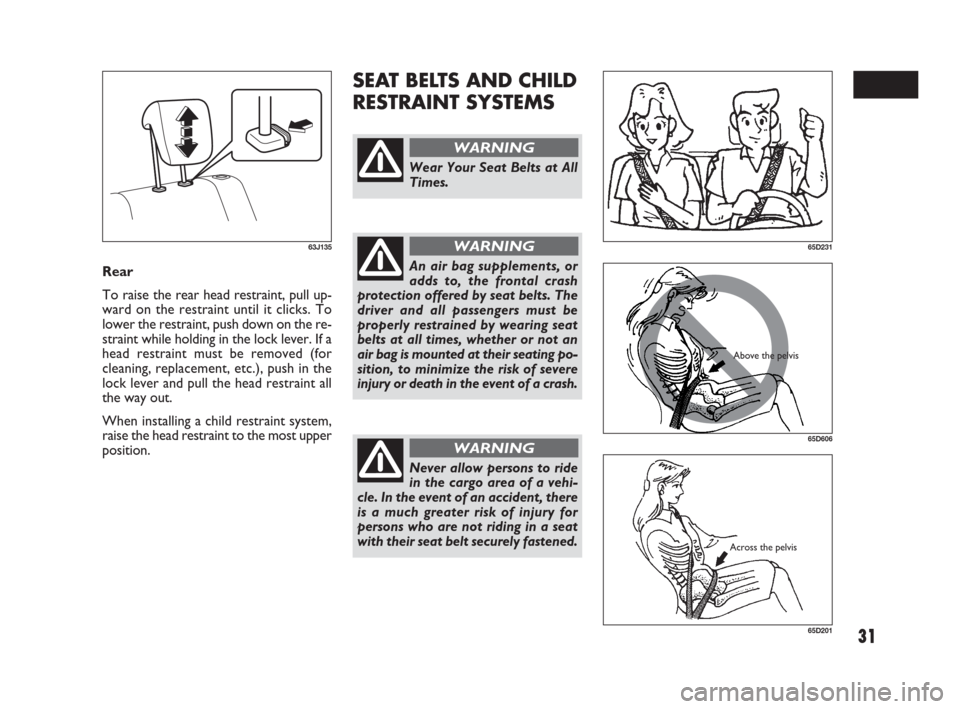

SEAT BELTS AND CHILD
RESTRAINT SYSTEMS
Rear
To raise the rear head restraint, pull up-
ward on the restraint until it clicks. To
lower the restraint, push down on the re-
straint while holding in the lock lever. If a
head restraint must be removed (for
cleaning, replacement, etc.), push in the
lock lever and pull the head restraint all
the way out.
When installing a child restraint system,
raise the head restraint to the most upper
position.
63J135
Wear Your Seat Belts at All
Times.
WARNING
An air bag supplements, or
adds to, the frontal crash
protection offered by seat belts. The
driver and all passengers must be
properly restrained by wearing seat
belts at all times, whether or not an
air bag is mounted at their seating po-
sition, to minimize the risk of severe
injury or death in the event of a crash.
WARNING65D231
65D606
Above the pelvis
Never allow persons to ride
in the cargo area of a vehi-
cle. In the event of an accident, there
is a much greater risk of injury for
persons who are not riding in a seat
with their seat belt securely fastened.
WARNING
65D201
