2009 FIAT SEDICI Owners Manual

Page left blank voluntarily.
009-056 SEDICI LUM FL GB 1E 19-06-2009 14:11 Pagina 56

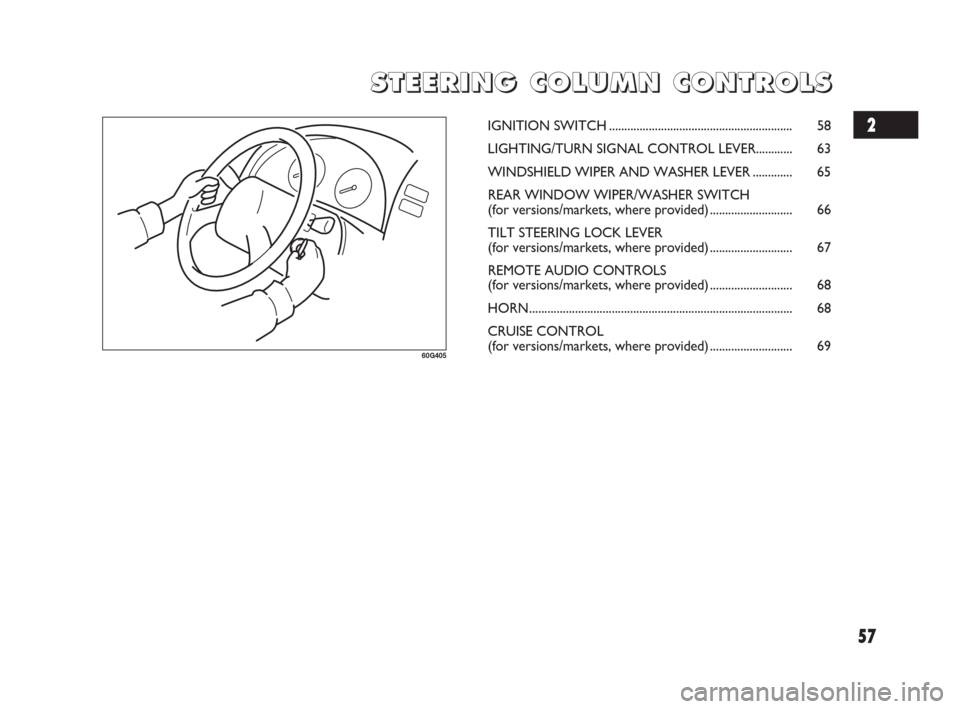

57
S S
T T
E E
E E
R R
I I
N N
G G
C C
O O
L L
U U
M M
N N
C C
O O
N N
T T
R R
O O
L L
S S
60G405
IGNITION SWITCH ............................................................ 58
LIGHTING/TURN SIGNAL CONTROL LEVER............ 63
WINDSHIELD WIPER AND WASHER LEVER............. 65
REAR WINDOW WIPER/WASHER SWITCH
(for versions/markets, where provided)........................... 66
TILT STEERING LOCK LEVER
(for versions/markets, where provided)........................... 67
REMOTE AUDIO CONTROLS
(for versions/markets, where provided)........................... 68
HORN...................................................................................... 68
CRUISE CONTROL
(for versions/markets, where provided)........................... 692
057-070 SEDICI LUM FL GB 1E 19-06-2009 10:32 Pagina 57

58

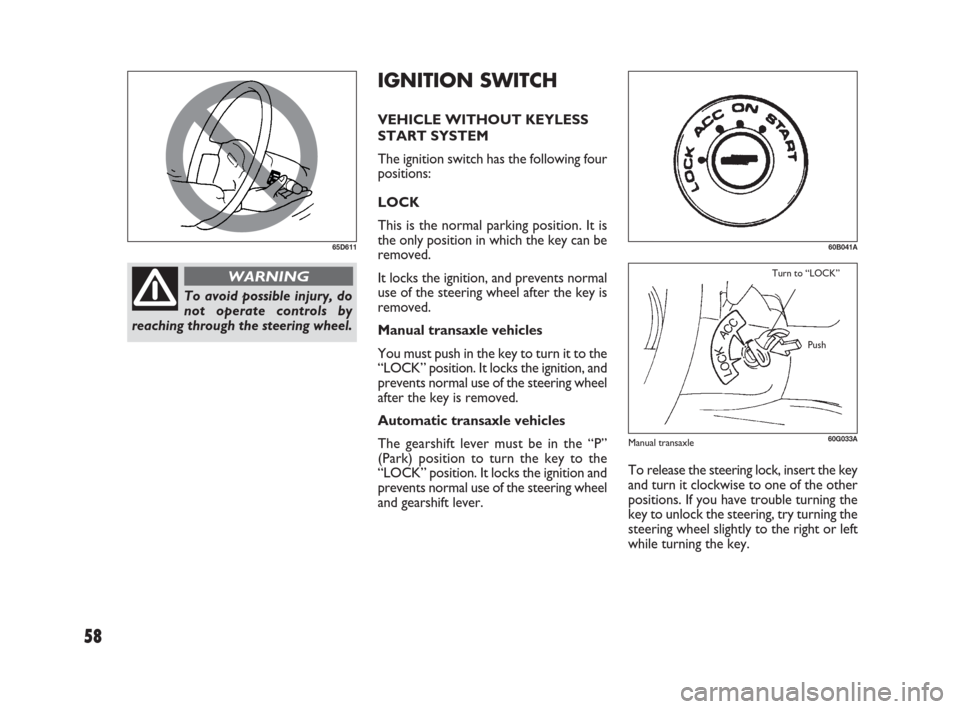

IGNITION SWITCH
VEHICLE WITHOUT KEYLESS
START SYSTEM
The ignition switch has the following four
positions:
LOCK
This is the normal parking position. It is
the only position in which the key can be
removed.
It locks the ignition, and prevents normal
use of the steering wheel after the key is
removed.
Manual transaxle vehicles
You must push in the key to turn it to the
“LOCK” position. It locks the ignition, and
prevents normal use of the steering wheel
after the key is removed.
Automatic transaxle vehicles
The gearshift lever must be in the “P”
(Park) position to turn the key to the
“LOCK” position. It locks the ignition and
prevents normal use of the steering wheel
and gearshift lever.
65D611
To avoid possible injury, do
not operate controls by
reaching through the steering wheel.
WARNING
60G033A
Turn to “LOCK”
Push
60B041A
To release the steering lock, insert the key
and turn it clockwise to one of the other
positions. If you have trouble turning the
key to unlock the steering, try turning the
steering wheel slightly to the right or left
while turning the key.
Manual transaxle
057-070 SEDICI LUM FL GB 1E 19-06-2009 10:32 Pagina 58

59
ACC
Accessories such as the radio can oper-
ate, but the engine is off.
ON
This is the normal operating position.
All electrical systems are on.
START
This is the position for starting the engine
using the starter motor. The key should
be released from this position as soon as
the engine starts.
Ignition key reminder
(for versions/markets, where provided)
A buzzer sounds intermittently to remind
you to remove the ignition key if it is in
the ignition switch when the driver’s door
is opened.
If the ignition device is tam-
pered with (e.g.: attempted
theft), have it checked over by a Fiat
Dealership as soon as possible.
WARNING
When getting out of the ve-
hicle, always remove the key
to prevent any occupants from acci-
dentally activating the controls. Re-
member to engage the handbrake
and if the vehicle is parked on uphill
slope to engage the first gear. If the
vehicle is facing downhill, engage the
reverse gear. Never leave unsuper-
vised children in the vehicle.
WARNING
Never remove the ignition
key while the vehicle is mov-
ing. The steering wheel would auto-
matically lock as soon as you try to
turn it. This also applies when the ve-
hicle is being towed.
WARNING
It is absolutely forbidden to
carry out whatever after-
market operation involving steering
system or steering column modifica-
tions (e.g.: installation of anti-theft
device) that could badly affect per-
formance and safety, cause the lapse
of warranty and also result in non-
compliance of the vehicle with ho-
mologation requirements.
WARNING
057-070 SEDICI LUM FL GB 1E 19-06-2009 10:32 Pagina 59

60
❒If the keyless start system red indicator
light illuminates, the remote controller
may not be in the vehicle or the battery
of the remote controller may be unre-
liable. The red indicator light will turn
off within several seconds after the re-
mote controller is returned in the ve-
hicle except in the rear luggage area.
When the remote controller is in the ve-
hicle except the rear luggage area, you can
turn the ignition switch without using an
ignition key.
NOTE
❒If the battery of the remote controller
runs down or there are strong radio
waves or noise, the operating range
may be narrower or the remote con-
troller may be inoperative.
❒If the remote controller is too close to
the door glass, it may not operate.
❒The ignition switch may not turn when
the remote controller is on the instru-
ment panel, in the glove box, in the
door pocket, in the sun visor or on the
floor. VEHICLE WITH KEYLESS
START SYSTEM
The ignition switch can be operated when
the remote controller is in the vehicle ex-
cept the rear luggage area. To turn the
ignition switch, push the switch first.
Manual transaxle vehicle
You must push in the ignition switch to
turn it from the “LOCK” position to the
“ACC” position. To return to the
“LOCK” position from the “ACC” posi-
tion, turn the ignition switch counter-
clockwise while pushing in the switch.
Automatic transaxle vehicle
To turn the ignition switch, push the
switch.If the keyless start system blue indicator
light illuminates on the instrument cluster,
you can turn the ignition switch. If the red
indicator light illuminates, you can not turn
the ignition switch.
NOTE
❒The ignition switch can be turned to the
“ACC” position when the keyless start
system blue indicator light illuminates.
The blue indicator light will illuminate
for several seconds and then turn off to
protect the system. In this case, you
must release the ignition switch once
and push the switch again.
(1)(2)(3)
(4)
56KN07679JF001
057-070 SEDICI LUM FL GB 1E 19-06-2009 10:32 Pagina 60

61
IMPORTANT The remote controller is
a sensitive electronic instrument. To avoid
damaging the remote controller:
❒Do not expose it to impacts, moisture
or high temperature such as on the
dashboard under direct sunlight.
❒Keep the remote controller away from
magnetic objects such as a television.
You can also turn the ignition switch by
inserting the ignition key into the slot.
If you leave any of the doors open with the
ignition switch in the “ACC” position for
a while (and no key inserted), the engine
may not start when you turn the ignition
switch to “START”. If the engine does not
start, close all doors completely or turn
the ignition switch back to the “LOCK”
position, then start the engine.
The ignition switch has the following four
positions:ACC (2)
Accessories such as the radio can oper-
ate, but the engine is off.
ON (3)
This is the normal operating position. All
electrical systems are on.
START (4)
This is the position for starting the engine
using the starter motor. The switch should
be released from this position as soon as
the engine starts.
Ignition switch reminder
(When using the keyless start system)
A buzzer sounds intermittently to remind
you to return the ignition switch to the
“LOCK” position if it is in the “ACC” po-
sition when the driver’s door is opened. LOCK (1)
This is the normal parking position. It is
the only position in which the key can be
removed. It locks the ignition, and pre-
vents normal use of the steering wheel.
If your vehicle is equipped with the auto-
matic transaxle key inter lock system, the
ignition switch can be turned to the
“LOCK” position only when the gearshift
lever is in the “P” (Park) position.
To release the steering lock, turn the ig-
nition switch clockwise to one of the oth-
er positions. If you have trouble turning
the ignition switch to unlock the steer-
ing, try turning the steering wheel slightly
to the right or left while turning the
switch.
Manual transaxle vehicle
You must push in the ignition switch to
turn it from the “LOCK” position to the
“ACC” position. To return to the
“LOCK” position from the “ACC” posi-
tion, turn the ignition switch counter-
clockwise while pushing in the switch.
Automatic transaxle vehicle
To turn the ignition switch, push the
switch.
057-070 SEDICI LUM FL GB 1E 19-06-2009 10:32 Pagina 61

62
81A297S
(1)
80JM139
Never return the ignition
switch to the “LOCK” posi-
tion and remove the ignition key
while the vehicle is moving. The steer-
ing wheel will lock and you will not be
able to steer the vehicle.
Always return the ignition switch to
the “LOCK” position and remove the
ignition key when leaving the vehicle
even if a short time. Also do not leave
children alone in a parked vehicle.
Unattended children could cause ac-
cidental movement of the vehicle or
could tamper with power windows or
power sunroof. They also could suf-
fer from heat stroke in warm or hot
weather. These could result in severe
injury or even death.
WARNING
IMPORTANT
❒Do not use the starter motor for more
than 15 seconds at a time. For diesel
engine model, do not use the starter
motor for more than 30 seconds at a
time. If the engine does not start, wait
15 seconds before trying again. If the
engine does not start after several at-
tempts, check the fuel and ignition sys-
tems or consult your Fiat Dealership.
❒Do not leave the ignition switch in the
“ON” position if the engine is not run-
ning as the battery will discharge. You can also turn the ignition switch by
inserting the ignition key into the slot.
The ignition switch cap (1) is installed to
make the ignition switch turn easily.
If you use the ignition key to turn the ig-
nition switch, remove the cap (1) by pinch-
ing both side of the cap and pull it out.
NOTE If you remove the cap, be careful
not to lose it.
Ignition key reminder
(When using the ignition key)
A buzzer sounds intermittently to remind
you to remove the ignition key if it is in
the ignition switch when the driver’s door
is opened.
057-070 SEDICI LUM FL GB 1E 19-06-2009 10:32 Pagina 62

63
Lights “On” reminder
(for versions/markets, where provided)
A buzzer/chime sounds to remind you to
turn off the lights if they are left on when
the ignition key is removed and the dri-
ver’s door is opened.Day time running light control
(for versions/markets, where provided)
When the engine is started, this system
turns on all lights. But this control is can-
celed when the light control lever is
turned to any position other than “OFF”.
LIGHTING/TURN
SIGNAL CONTROL
LEVER
LIGHTING OPERATION
To turn the lights on or off, twist the knob
on the end of the lever. There are three
positions:
OFF (1) all lights are off.
3(2) Front parking lights, tail-lights, li-
cense plate light and instrument lights are
on, but headlights are off.
1(3) Front parking lights, tail-lights, li-
cense plate light, instrument lights and
head lights are on.
With the headlights on, push the lever for-
ward to switch to the high beams (main
beams) or pull the lever toward you to
switch to the low beams. When the high
beams (main beams) are on, a light on the
instrument panel will come on. To mo-
mentarily activate the high beams (main
beams) as a passing signal, pull the lever
slightly toward you and release it when
you have completed the signal.
(1)(2)(3)
78K06878K069
057-070 SEDICI LUM FL GB 1E 19-06-2009 10:32 Pagina 63
