2009 FIAT SEDICI Owners Manual

224
(1)(2)
80JM123
(1)
(2)
80JM11480JM071
(3)
79JM025

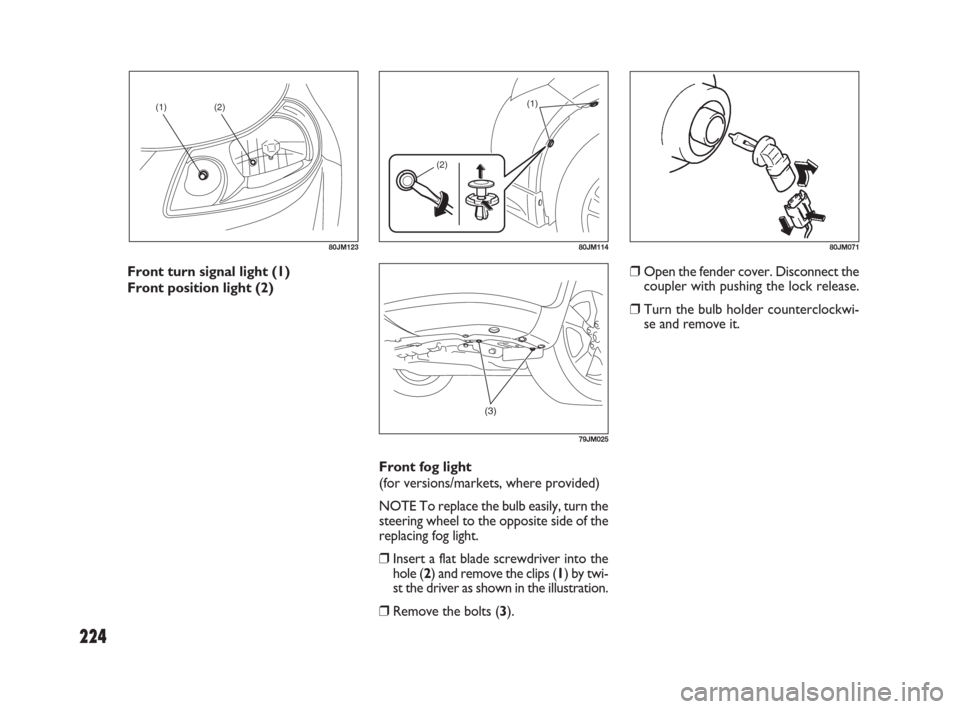

Front turn signal light (1)
Front position light (2)
Front fog light
(for versions/markets, where provided)
NOTE To replace the bulb easily, turn the
steering wheel to the opposite side of the
replacing fog light.
❒ Insert a flat blade screwdriver into the
hole (2) and remove the clips (1) by twi-
st the driver as shown in the illustration.
❒ Remove the bolts (3).❒ Open the fender cover. Disconnect the
coupler with pushing the lock release.
❒ Turn the bulb holder counterclockwi-
se and remove it.
183-230 SEDICI LUM FL GB 1E 19-06-2009 11:00 Pagina 224

225
80JM13180JM068

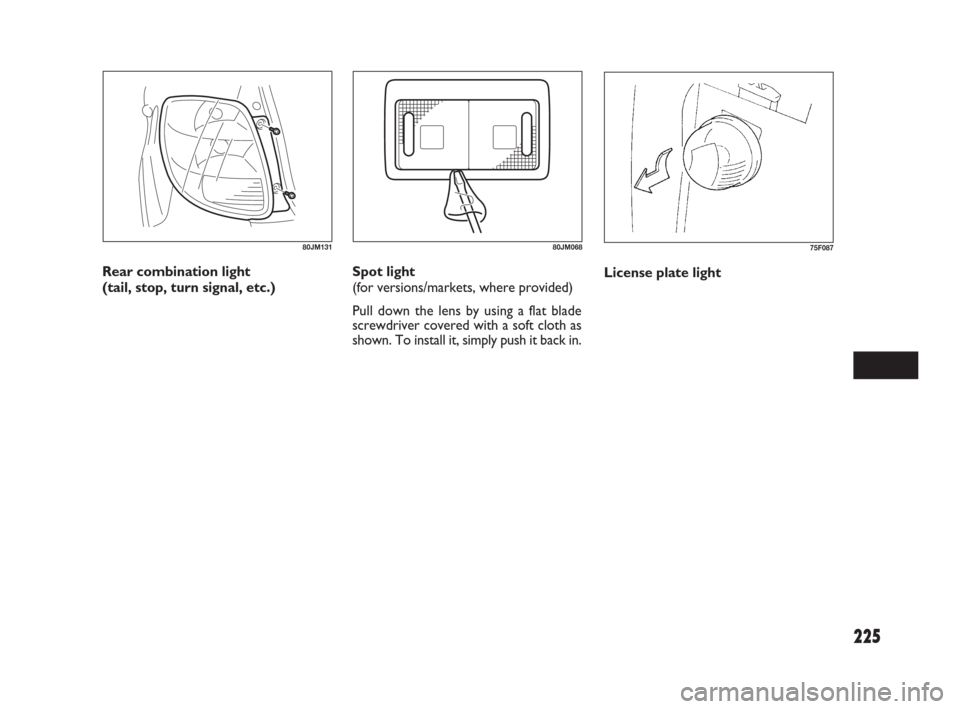

Rear combination light
(tail, stop, turn signal, etc.)Spot light
(for versions/markets, where provided)
Pull down the lens by using a flat blade
screwdriver covered with a soft cloth as
shown. To install it, simply push it back in.
75F087
License plate light
183-230 SEDICI LUM FL GB 1E 19-06-2009 11:00 Pagina 225

226
(2)
63J127
(1)
63J106
(3) (3)(4)
80JM076

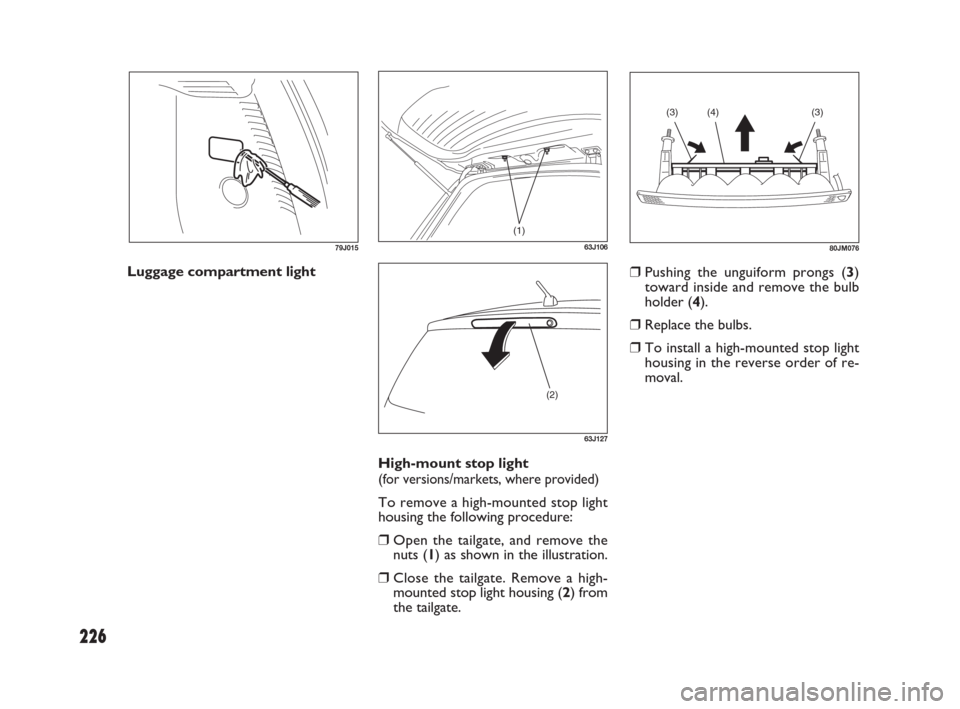

High-mount stop light
(for versions/markets, where provided)
To remove a high-mounted stop light
housing the following procedure:
❒ Open the tailgate, and remove the
nuts (
1) as shown in the illustration.
❒ Close the tailgate. Remove a high-
mounted stop light housing (2) from
the tailgate.❒ Pushing the unguiform prongs (3)
toward inside and remove the bulb
holder (4).
❒ Replace the bulbs.
❒ To install a high-mounted stop light
housing in the reverse order of re-
moval.
79J015
Luggage compartment light
183-230 SEDICI LUM FL GB 1E 19-06-2009 11:00 Pagina 226

227
❒Squeeze lock (1) towards wiper arm (2)
and remove the wiper frame from the
arm as shown.
❒Unlock the lock end of the wiper
blade and slide the blade out as
shown.
54G130
WIPER BLADES
If the wiper blades become brittle or dam-
aged, or make streaks when wiping, re-
place the wiper blades.
To install new wiper blades, follow the
procedures below.
IMPORTANT To avoid scratching or
breaking the window, do not let the wiper
arm strike the window while replacing the
wiper blade.
NOTE Some wiper blades may be differ-
ent from the ones described here de-
pending on vehicle specifications. If so,
consult your Fiat Dealership for proper
replacement method.
FOR WINDSCREEN WIPERS
❒Hold the wiper arm away from the win-
dow.
NOTE When raising both of the front
wiper arms, pull the driver’s side wiper
arm up first. When returning the wiper
arms, lower the passenger’s side wiper
arm first. Otherwise, the wiper arms may
interfere with each other.
54G129
Driving with worn wiper
blades is a serious hazard,
because visibility is reduced in bad
weather.
WARNING70G119
183-230 SEDICI LUM FL GB 1E 19-06-2009 11:00 Pagina 227

228
60A260
54G132
54G13365D151
54G134

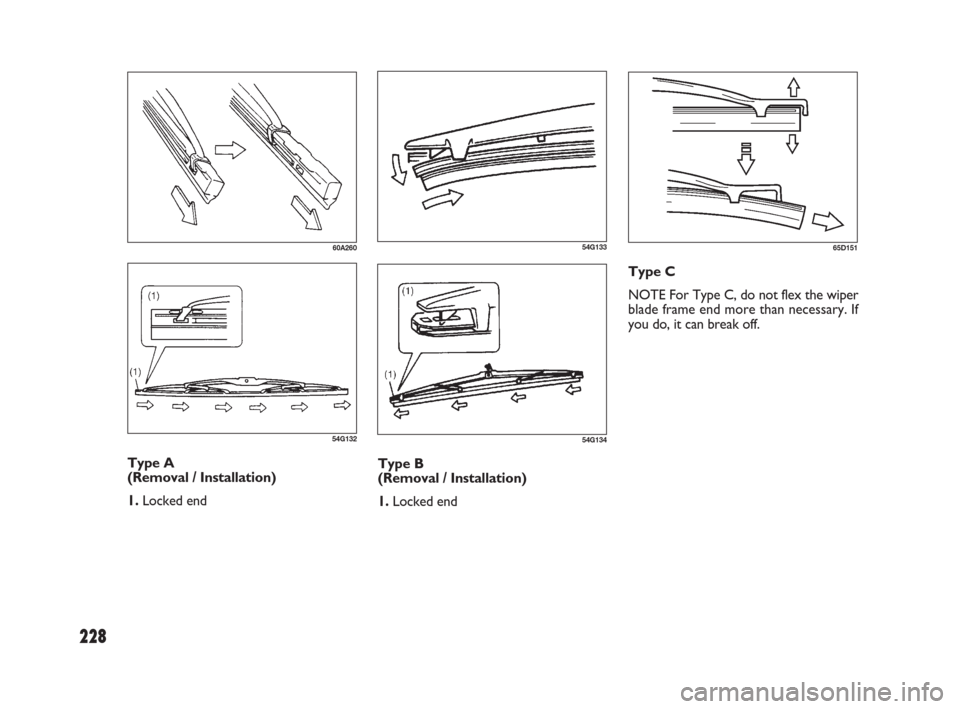

Type A
(Removal / Installation)
1. Locked endType B
(Removal / Installation)
1. Locked endType C
NOTE For Type C, do not flex the wiper
blade frame end more than necessary. If
you do, it can break off.
183-230 SEDICI LUM FL GB 1E 19-06-2009 11:00 Pagina 228

229
54G13565D151
80G146
1. Retainer
❒ If the new blade is provided without the
two metal retainers, move them from
the old blade to the new one.
❒ Install the new blade in the reverse or-
der of removal, with the locked end po-
sitioned toward the wiper arm (except
Type C).
IMPORTANT Make sure the blade is pro-
perly retained by all the hooks. Lock the
blade end into place.
❒ Reinstall wiper frame to arm, making su-
re that the lock lever is snapped secu-
rely into the arm.FOR REAR WIPERS
❒ Hold the wiper arm away from the win-
dow.
❒ Remove the wiper frame from the arm
as shown.
❒ Slide the blade out as shown.NOTE Do not flex the wiper blade frame
end more than necessary. If you do, it can
break off.
183-230 SEDICI LUM FL GB 1E 19-06-2009 11:00 Pagina 229

230

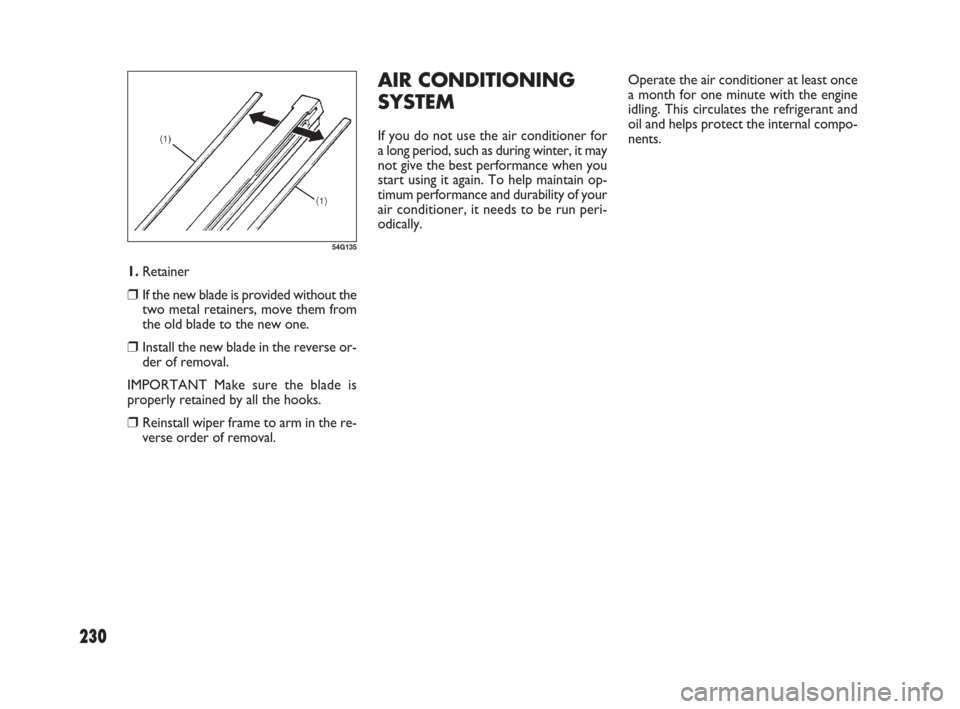

1.Retainer
❒If the new blade is provided without the
two metal retainers, move them from
the old blade to the new one.
❒Install the new blade in the reverse or-
der of removal.
IMPORTANT Make sure the blade is
properly retained by all the hooks.
❒Reinstall wiper frame to arm in the re-
verse order of removal.
AIR CONDITIONING
SYSTEM
If you do not use the air conditioner for
a long period, such as during winter, it may
not give the best performance when you
start using it again. To help maintain op-
timum performance and durability of your
air conditioner, it needs to be run peri-
odically.Operate the air conditioner at least once
a month for one minute with the engine
idling. This circulates the refrigerant and
oil and helps protect the internal compo-
nents.
54G135
183-230 SEDICI LUM FL GB 1E 19-06-2009 11:00 Pagina 230

231
E E
M M
E E
R R
G G
E E
N N
C C
Y Y
S S
E E
R R
V V
I I
C C
E E
60G411
JACKING INSTRUCTIONS................................................ 232
JUMP STARTING INSTRUCTIONS ................................. 233
TOWING................................................................................ 235
IF THE STARTER DOES NOT OPERATE ...................... 236
IF THE ENGINE IS FLOODED.......................................... 236
IF THE ENGINE OVERHEATS........................................... 236
IF YOU CAN NOT SHIFT AUTOMATIC TRANSAXLE
GEARSHIFT LEVER OUT OF “P” (PARK)...................... 238
9
