2008 PEUGEOT 4007 Owners Manual

2
COMFORT

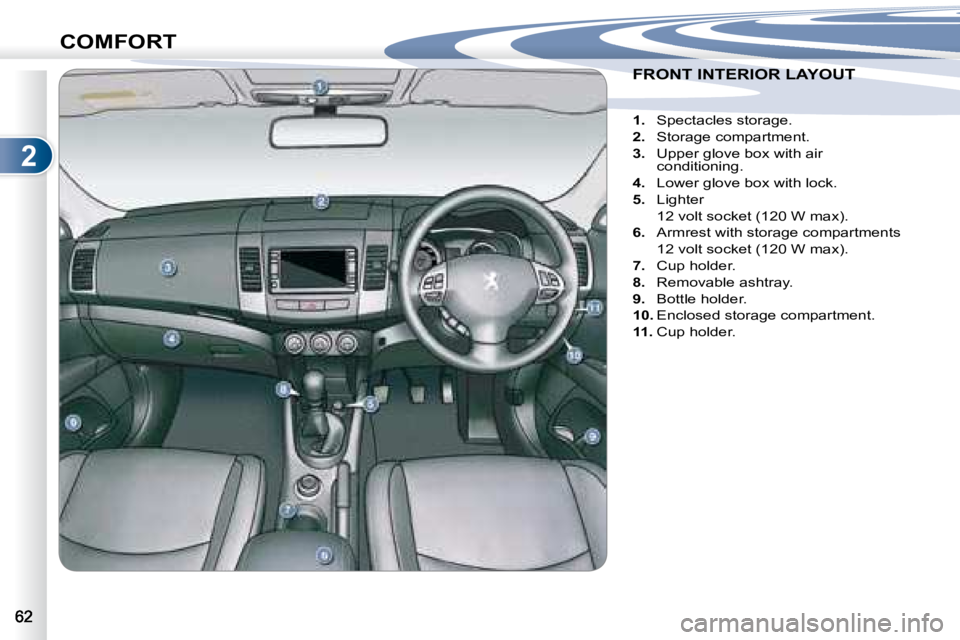

FRONT INTERIOR LAYOUT FRONT INTERIOR LAYOUT

1. Spectacles storage.

2. Storage compartment.

3. Upper glove box with air
conditioning.

4. Lower glove box with lock.

5. Lighter
12 volt socket (120 W max).

6. Armrest with storage compartments
12 volt socket (120 W max).

7. Cup holder.

8. Removable ashtray.

9. Bottle holder.

10. Enclosed storage compartment.

11. Cup holder.

2
COMFORT

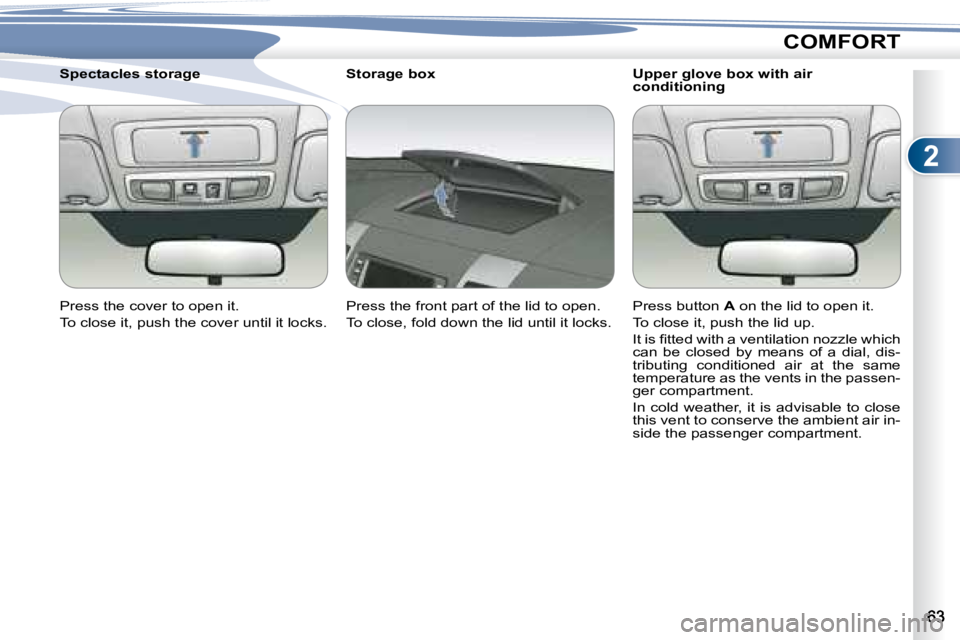

Upper glove box with air
conditioning
Storage box
Press the front part of the lid to open.
To close, fold down the lid until it locks. Press button
A on the lid to open it.
To close it, push the lid up.
It is fi tted with a ventilation nozzle which
can be closed by means of a dial, dis-
tributing conditioned air at the same
temperature as the vents in the passen-
ger compartment.
In cold weather, it is advisable to close
this vent to conserve the ambient air in-
side the passenger compartment.
Spectacles storage
Press the cover to open it.
To close it, push the cover until it locks.

2
COMFORT

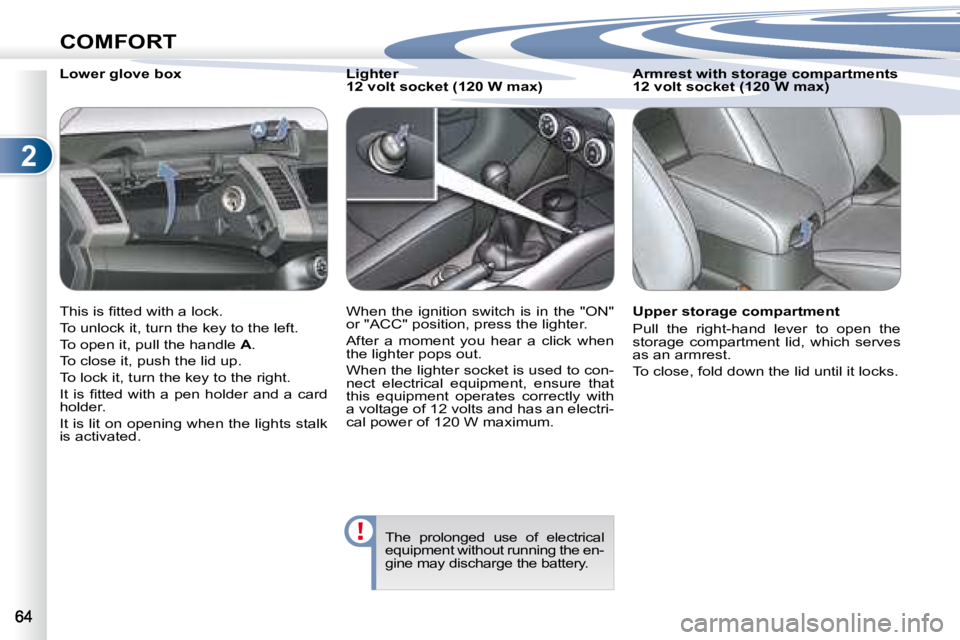

Lower glove box
This is fi tted with a lock.
To unlock it, turn the key to the left.
To open it, pull the handle A .
To close it, push the lid up.
To lock it, turn the key to the right.
It is fi tted with a pen holder and a card
holder.
It is lit on opening when the lights stalk
is activated. Lighter
12 volt socket (120 W max)
When the ignition switch is in the "ON"
or "ACC" position, press the lighter.
After a moment you hear a click when
the lighter pops out.
When the lighter socket is used to con-
nect electrical equipment, ensure that
this equipment operates correctly with
a voltage of 12 volts and has an electri-
cal power of 120 W maximum.

The prolonged use of electrical
equipment without running the en-
gine may discharge the battery.
Armrest with storage compartments
12 volt socket (120 W max)
Upper storage compartment
Pull the right-hand lever to open the
storage compartment lid, which serves
as an armrest.
To close, fold down the lid until it locks.

2
COMFORT

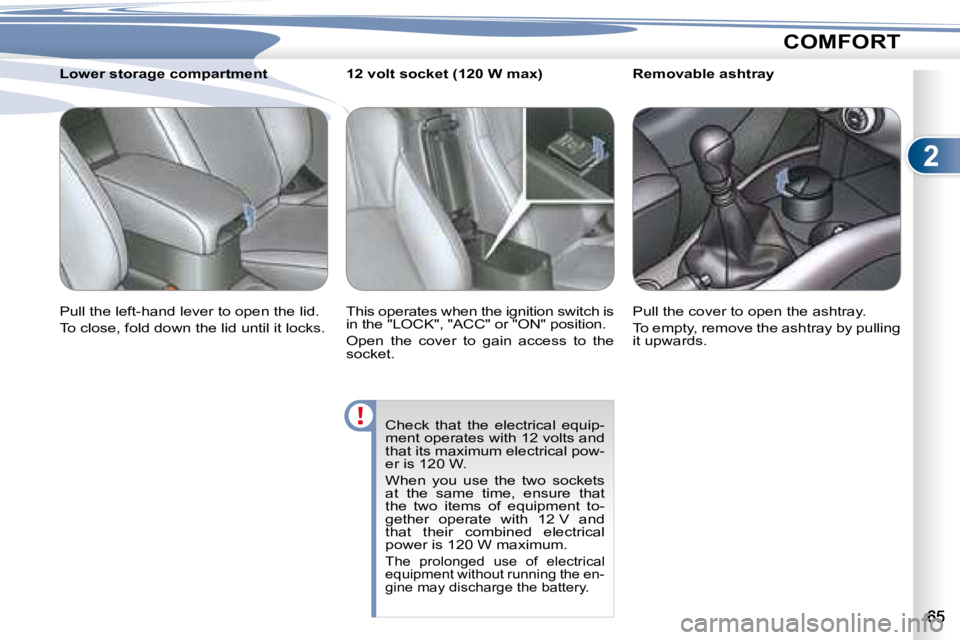

Removable ashtray
Pull the cover to open the ashtray.
To empty, remove the ashtray by pulling
it upwards.
Lower storage compartment
Pull the left-hand lever to open the lid.
To close, fold down the lid until it locks.
12 volt socket (120 W max)
This operates when the ignition switch is
in the "LOCK", "ACC" or "ON" position.
Open the cover to gain access to the
socket.
Check that the electrical equip-
ment operates with 12 volts and
that its maximum electrical pow-
er is 120 W.
When you use the two sockets
at the same time, ensure that
the two items of equipment to-
gether operate with 12 V and
that their combined electrical
power is 120 W maximum.
The prolonged use of electrical
equipment without running the en-
gine may discharge the battery.

2
COMFORT

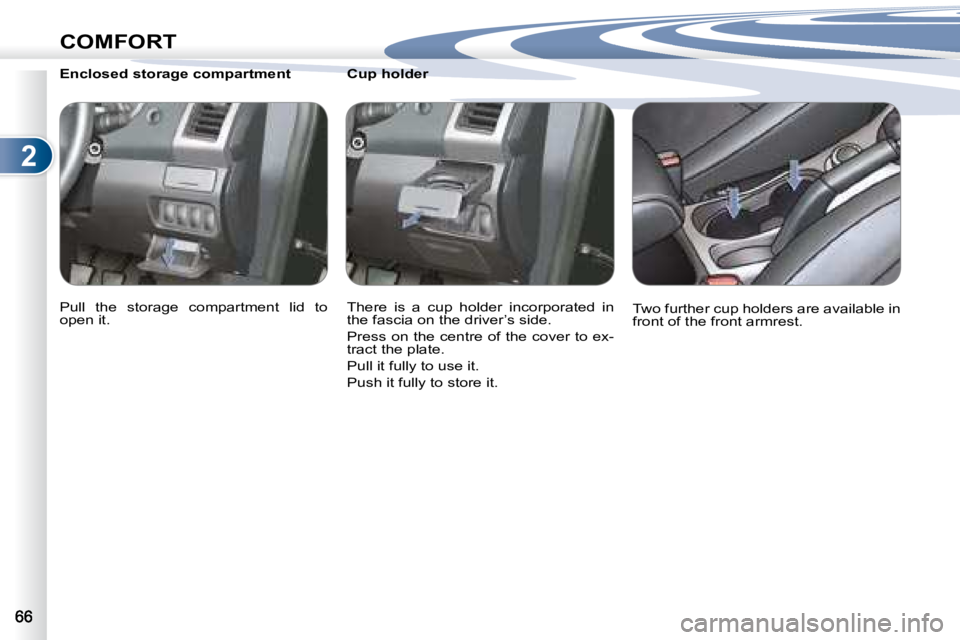

Enclosed storage compartment
Pull the storage compartment lid to
open it. Cup holder
There is a cup holder incorporated in
the fascia on the driver’s side.
Press on the centre of the cover to ex-
tract the plate.
Pull it fully to use it.
Push it fully to store it.
Two further cup holders are available in
front of the front armrest.

2
COMFORT

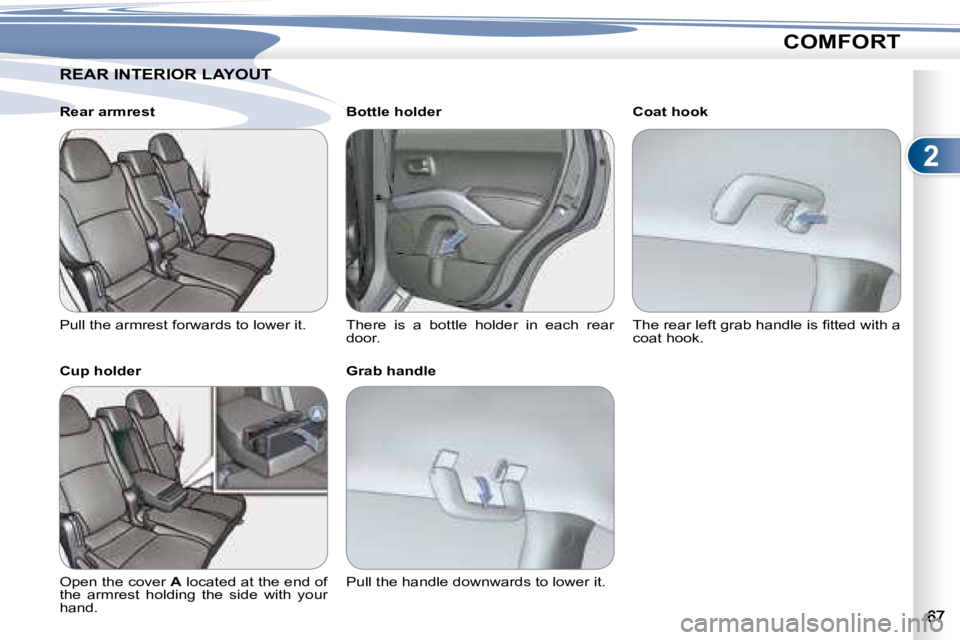

REAR INTERIOR LAYOUT REAR INTERIOR LAYOUT
Rear armrest
Pull the armrest forwards to lower it.
Cup holder
Open the cover A located at the end of
the armrest holding the side with your
hand. Bottle holder
There is a bottle holder in each rear
door.
Grab handle
Pull the handle downwards to lower it.
Coat hook
The rear left grab handle is fi tted with a
coat hook.

2
COMFORT

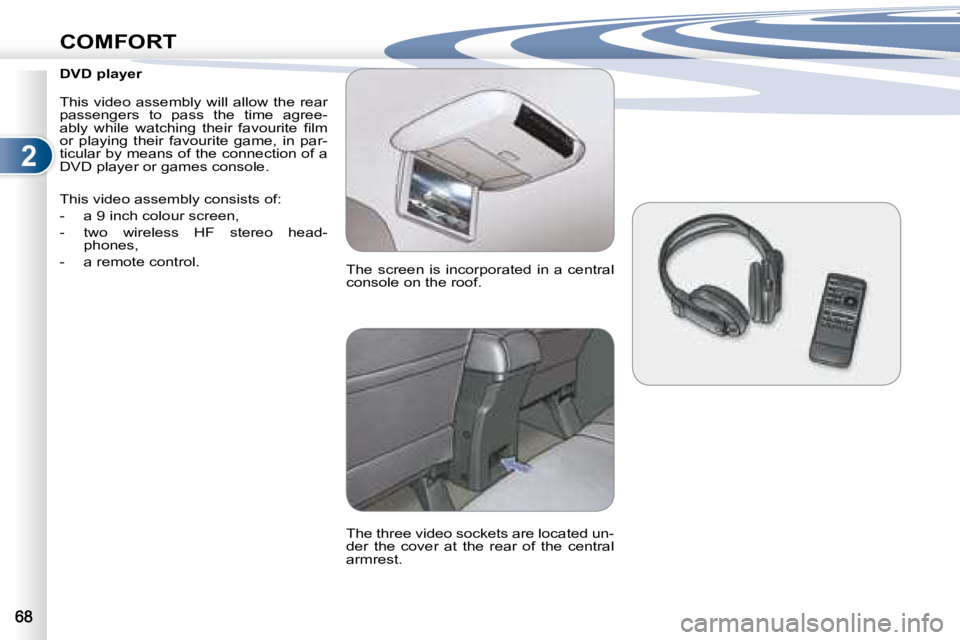

DVD player
This video assembly will allow the rear
passengers to pass the time agree-
ably while watching their favourite fi lm
or playing their favourite game, in par-
ticular by means of the connection of a
DVD player or games console. The screen is incorporated in a central
console on the roof.
The three video sockets are located un-
der the cover at the rear of the central
armrest.
This video assembly consists of:
- a 9 inch colour screen,
- two wireless HF stereo head-
phones,
- a remote control.

2
COMFORT

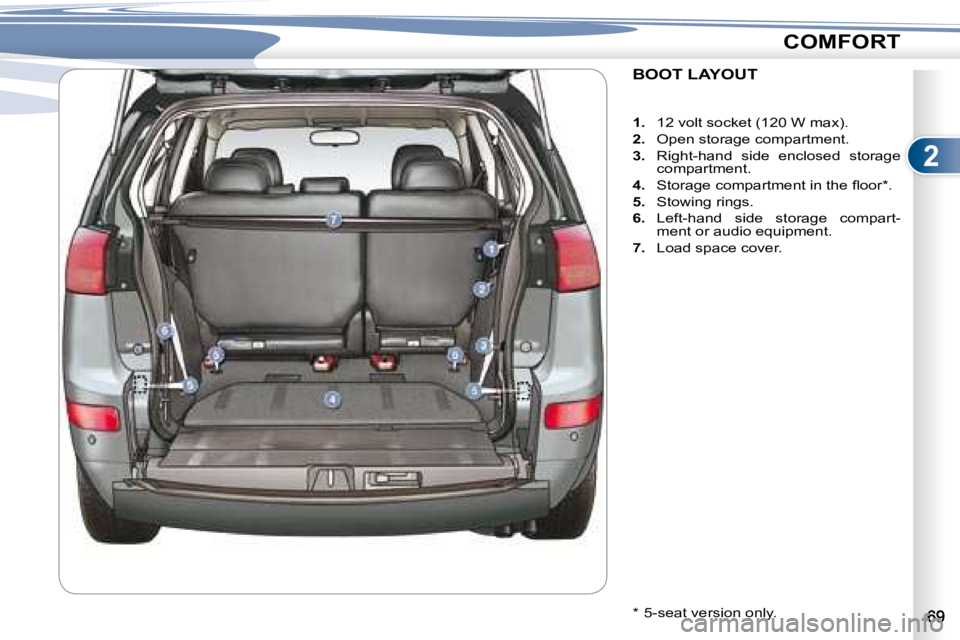

BOOT LAYOUT

1. 12 volt socket (120 W max).

2. Open storage compartment.

3. Right-hand side enclosed storage
compartment.

4. Storage compartment in the fl oor * .

5. Stowing rings.

6. Left-hand side storage compart-
ment or audio equipment.

7. Load space cover.
* 5-seat version only.
