2008 PEUGEOT 4007 Owners Manual

9
PRACTICAL INFORMATION

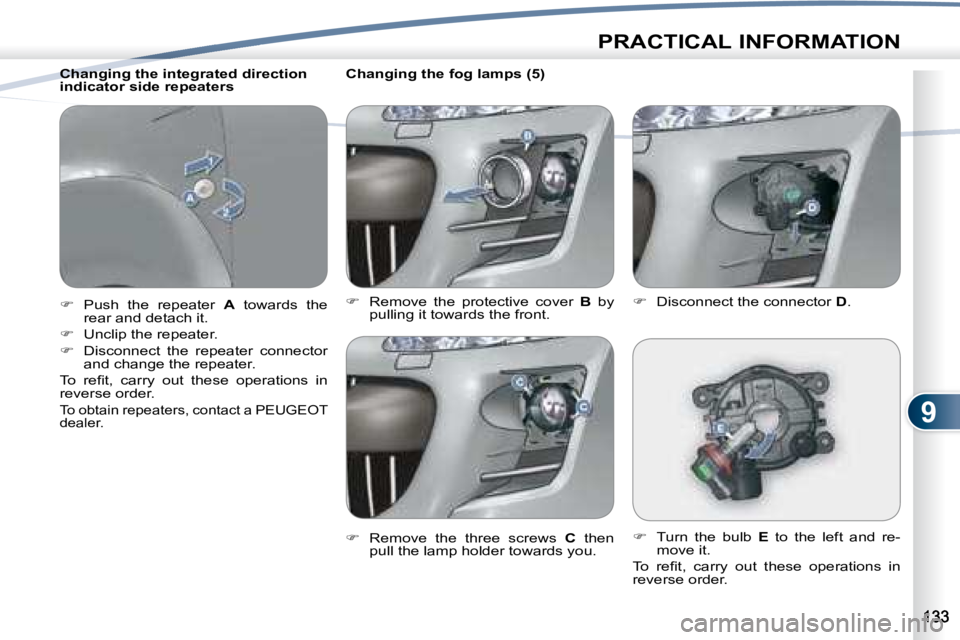

Changing the fog lamps (5)

 Remove the protective cover B by
pulling it towards the front.

 Remove the three screws C then
pull the lamp holder towards you.
 Turn the bulb E to the left and re-
move it.
To refi t, carry out these operations in
reverse order.

 Disconnect the connector D .
Changing the integrated direction
indicator side repeaters

 Push the repeater A towards the
rear and detach it.

 Unclip the repeater.

 Disconnect the repeater connector
and change the repeater.
To refi t, carry out these operations in
reverse order.
To obtain repeaters, contact a PEUGEOT
dealer.

9
i
PRACTICAL INFORMATION

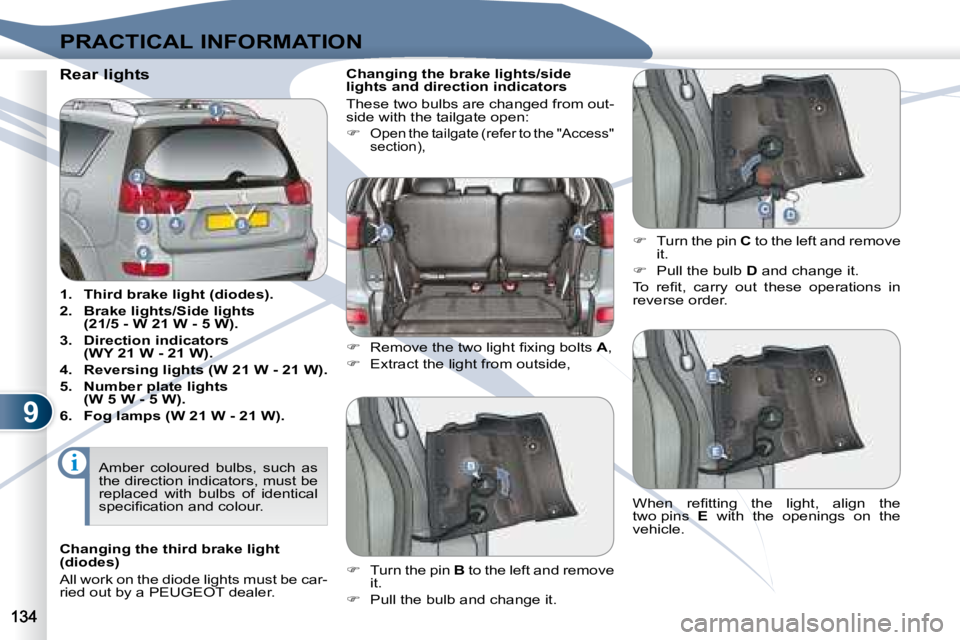

Rear lights

1. Third brake light (diodes).

2. Brake lights/Side lights
(21/5 - W 21 W - 5 W).

3. Direction indicators
(WY 21 W - 21 W).

4. Reversing lights (W 21 W - 21 W).

5. Number plate lights
(W 5 W - 5 W).

6. Fog lamps (W 21 W - 21 W). Changing the brake lights/side
lights and direction indicators
These two bulbs are changed from out-
side with the tailgate open:


Open the tailgate (refer to the "Access"
section),

 Remove the two light fi xing bolts A ,

 Extract the light from outside,
 Turn the pin C to the left and remove
it.

 Pull the bulb D and change it.
To refi t, carry out these operations in
reverse order.

 Turn the pin B to the left and remove
it.

 Pull the bulb and change it. When refi tting the light, align the
two pins
E with the openings on the
vehicle.
Amber coloured bulbs, such as
the direction indicators, must be
replaced with bulbs of identical
specifi cation and colour.
Changing the third brake light
(diodes)
All work on the diode lights must be car-
ried out by a PEUGEOT dealer.

9
PRACTICAL INFORMATION

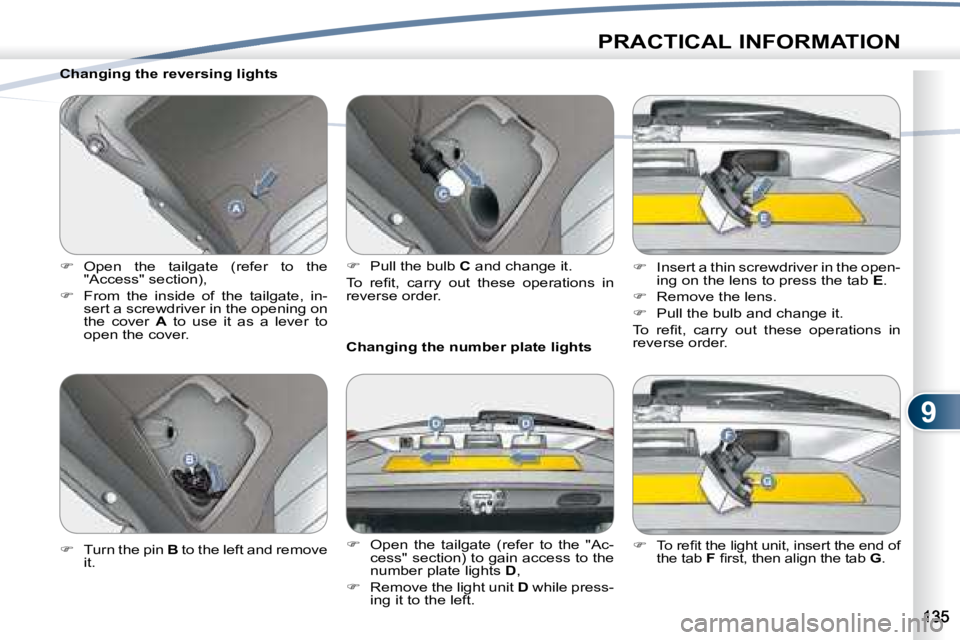

Changing the reversing lights

 Open the tailgate (refer to the
"Access" section),

 From the inside of the tailgate, in-
sert a screwdriver in the opening on
the cover A to use it as a lever to
open the cover. Changing the number plate lights

 Open the tailgate (refer to the "Ac-
cess" section) to gain access to the
number plate lights D ,

 Remove the light unit D while press-
ing it to the left.

 Turn the pin B to the left and remove
it.
 Pull the bulb C and change it.
To refi t, carry out these operations in
reverse order.
 Insert a thin screwdriver in the open-
ing on the lens to press the tab E .

 Remove the lens.

 Pull the bulb and change it.
To refi t, carry out these operations in
reverse order.


To refi t the light unit, insert the end of
the tab F fi rst, then align the tab G .

9
PRACTICAL INFORMATION
Changing the fog lamps

 Open the tailgate and the lower tail-
gate (refer to the "Access" section)
and fold down the cover A .

 Remove the 4 clips B using a screw-
driver to detach the light cover.

 Remove the bolts C and remove the
light unit.
 Turn the pin and bulb assembly D to
the left.

 Remove the bulb.
To refi t, carry out these operations in
reverse order.

 When refi tting the light unit, align
the clips E with the openings on the
bodywork.

9
i
i
PRACTICAL INFORMATION
CHANGING A FUSE CHANGING
Access to the tools
The extraction pliers are installed in the
engine compartment fuse box.
To gain access to them:

 Open the bonnet (refer to the "Ac-
cess" section),

 Press on the hook A and release
the catch,

 Remove the cover completely,

 Remove the pliers B .
PEUGEOT will not accept re-
sponsibility for the cost incurred in
repairing your vehicle or for rec-
tifying the malfunctions resulting
from the installation of accesso-
ries not supplied and not recom-
mended by PEUGEOT and not
installed in accordance with its in-
structions, in particular when the
consumption of all of the addition-
al equipment connected exceeds
10 milliamperes.
Your vehicle's electrical sys-
tem is designed to operate with
standard or optional equipment.
Before installing other electrical
equipment or accessories in your
vehicle, contact a PEUGEOT
dealer.
Changing a fuse
Before changing a fuse, the cause of
the failure must be identifi ed and recti-
fi ed.

 Identify the faulty fuse by checking
the condition of its fi lament.

 Use the special pliers to extract the
fuse from its location.

 Always replace the faulty fuse with
a fuse of the same rating.

 Check the correspondence between
the number etched on the box, the
rating etched on the top and the ta-
bles below. Correct
Incorrect
The spare fuses are located on
the engine compartment fuse
box cover.
Operating procedure for replacing a
faulty fuse with a new fuse to rectify a
failure in the corresponding function.

9
PRACTICAL INFORMATION
Fascia fuses
The fuse boxes are placed in the lower
part of the fascia behind the glove box.
Access to the fuses

 Open the glove box,

 Push the two opening guides A in-
wards to pass the fi rst notch,

 Remove the retaining tab B pulling
it outwards,

 Support the cover and tilt it downwards,
 Change the fuse (refer to the cor-
responding paragraph).
Fuse N° Rating Functions

1 * 30 A Heating.

2 15 A Brake lights, third brake light, built-in systems
interface.

3 10 A Rear fog lamps.

4 30 A Windscreen wipers and wash-wipe.

5 10 A Diagnostic socket.

6 20 A Central locking, exterior mirrors.

7 15 A Audio equipment, telematics, multifunction display,
hands-free kit, rear DVD player.

8 7.5 A Remote control key, air conditioning control unit,
instrument panel, controls bar, steering wheel
controls.

9 15 A Multifunction display, instrument panel.

10 15 A Built-in systems interface.

11 15 A Rear wiper.

12 7.5 A Instrument panel, 4 wheel drive control unit, air
conditioning control panel, ABS control unit,
multifunction display, automatic headlamp
adjustment, heated seats, air bags control unit,
steering wheel angle sensor, sunroof, rear screen
demisting, remote control.

13 - Not used.

14 10 A Ignition switch.

15 20 A Sunroof.

16 10 A Exterior mirrors, audio equipment, telematics,
rear DVD player.

9
PRACTICAL INFORMATION
Access to the fuses

 Open the glove box,

 Push the two opening guides A in-
wards to pass the fi rst notch,

 Remove the retaining tab B pulling
it outwards,

 Support the cover and tilt it down-
wards,

 Change the fuse (refer to the cor-
responding paragraph).
* The maxi-fuses provide additional protection for the el ectrical systems. All work on the maxi-fuses must be carried
out by a PEUGEOT dealer.
Fuse N° Rating Functions

17 10 A 4 wheel drive control unit.

18 7.5 A Reversing lights, parking assistance control unit,
reversing camera, air bags control unit.

19 15 A Accessories socket.

20* 30 A Electric window controls.

21 * 30 A Rear screen demisting.

22 7.5 A Heated exterior mirrors.

23 - Not used.

24 25 A Driver's electric seat, footwell lighting, releasing of
the rear bench seat.

25 30 A Heated seats.

9
PRACTICAL INFORMATION
Engine compartment fuses
The fuse box is placed in the engine compartment near the
battery (left-hand side).
Access to the fuses

 Open the bonnet (refer to the "Access" section),

 Press on the hook A to release the catch,

 Remove the cover completely,

 Change the fuse (refer to the corresponding paragraph),

 When you have fi nished, close the cover carefully to
guarantee the sealing of the fuse box.
Fuse N° Rating Functions

1 15 A Front fog lamps.

2 7 A 2.4 litre 16V engine control unit.

3 20 A
CVT automatic gearbox control unit,
CVT automatic gearbox control relay.

4 10 A Horn.

5 7.5 A 2.4 litre 16V alternator.

6 20 A Headlamp wash.

7 10 A Air conditioning.

8 15 A 2.4 litre 16V engine control unit.

9 - Not used.

10 15 A Demisting, wipers.

11 - Not used.

12 - Not used.

13 - Not used.

14 10 A Left-hand main beam headlamp.

15 10 A Right-hand main beam headlamp.

16 20 A Left-hand dipped headlamp (xenon).

17 20 A
Right-hand dipped headlamp (xenon).

18 10 A Left-hand dipped headlamp, manual
and automatic headlamp adjustment.

19 10 A Right-hand dipped headlamp.

20 - Not used.

21 10 A Ignition coils.
