FAMILIARISATION
4
Sunroof
This roof improves the ventilation and
light in the passenger compartment.
81
80
116
Audible rear parking
assistance
This equipment warns you if an ob-
stacle is detected behind the vehicle
when reversing. Reversing camera
This equipment is activated automati-
cally when reverse gear is engaged
providing a visual return on the colour
display.
Lower tailgate
This lower tailgate provides remarkable
accessibility and makes the loading of
bulky objects easier.
117
Page 7 of 226
FAMILIARISATION
10
INSTRUMENTS AND CONTROLS
1. Steering lock and ignition.
2. Exterior mirror controls.
Electric window and rear electric
window deactivation controls.
3. Lights and direction indicators
controls. Headlamp wash control.
4. Central adjustable and closing
vents.
5. Sunshine sensor.
6. Upper glove box with air
conditioning.
7. Lower glove box with lock.
Passenger air bag disarming.
Fuse box.
8. Heated seat controls.
9. Armrest with storage
compartments.
12 volt socket (120 W max).
10. Cup holder.
11. Four wheel drive system position
selector.
12. Removable ashtray/Lighter/
12 volt socket (120 W max).
13. Automatic air conditioning controls.
14. Temperature sensor.
15. Hazard warning lights switch.
16. Colour display/Audio equipment.
Page 11 of 226
FAMILIARISATION
14
SEEING CLEARLY

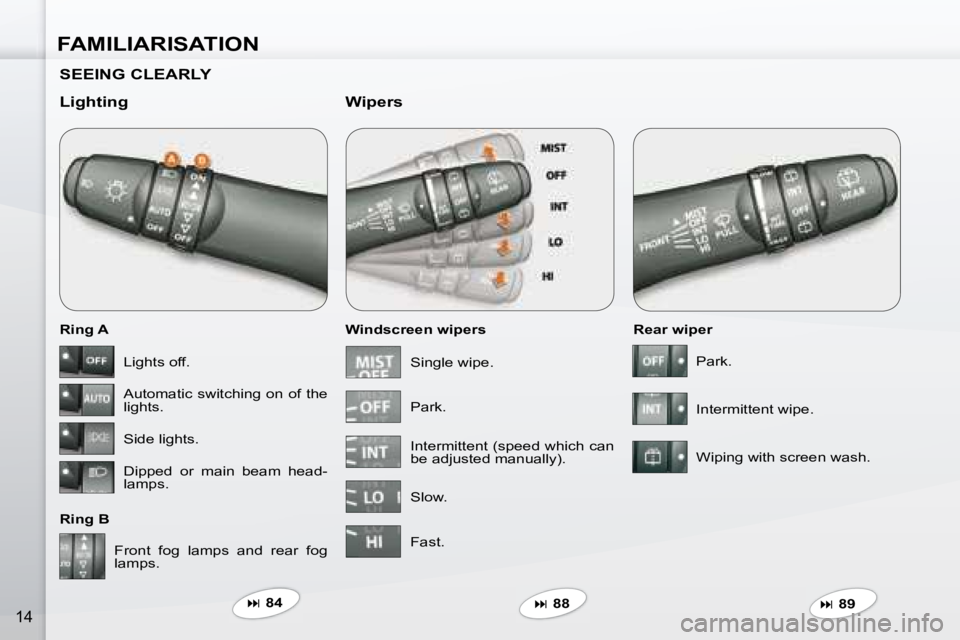

Lighting
Ring A
Ring B Windscreen wipers
Wipers
Rear wiper
Front fog lamps and rear fog
lamps.
84
88
89
Lights off.
Automatic switching on of the
lights.
Side lights.
Dipped or main beam head-
lamps.
Single wipe.
Park.
Intermittent (speed which can
be adjusted manually).
Slow.
Fast. Park.
Intermittent wipe.
Wiping with screen wash.
Page 13 of 226
FAMILIARISATION
16
MONITORING
Instrument panel Controls bar
A. Speedometer.
B. Instrument panel display.
C. Rev counter.
D. Fascia lighting rheostat. W h e n t h e i g n i t i o n i s o n , t h e o r a n g e a n d
red warning lights come on.
W h e n t h e e n g i n e i s r u n n i n g , t h e s e
warning lights should switch off.
I f w a r n i n g l i g h t s r e m a i n o n , r e f e r t o t h e
page concerned.
Warning lights
19
A. Passenger air bag disarmed warning
light.
106
B. Hazard warning lights switch.
99
C.
Front passenger's seat belt not
fastened or unfastened warning light.
103
20
Detection of fastening of the
driver's seat belt When the ignition is switched
on, the seat belt warning light
comes on accompanied by an
audible signal if the driver has
not fastened his seat belt.
The warning light switches off when the
seat belt is fastened.
22
Page 16 of 226
1
INSTRUMENTS and CONTROLS
1. Speedometer.
2. Left-hand direction indicator and
hazard warning lights indicator light.
3.
Main beam headlamps indicator light.
4. Diesel pre-heating indicator light.
5. Side lights indicator light.
6. Front fog lamps indicator light.
7. Seat belt not fastened/unfastened
warning light.
DIESEL MANUAL GEARBOX INSTRUMENT P DIESEL MANUAL GEARBOX INSTRUMENT PANEL
18. Instrument panel display:
- Warning and status displays.
- Total and trip distance recorders.
- Service indicator.
- Coolant temperature.
- Displaying of the trip computer information.
- Cruise control reference value.
- Fascia lighting and parameter settings.
- Fuel level.
- Exterior temperature.
- Transmission mode.
8. Rear fog lamps indicator light.
9.
Anti-lock braking system (ABS)
warning light.
10. Battery charge fault warning light.
11. H a n d b r a k e a p p l i e d a n d b r a k e fl u i d
level warning light.
12. Cruise control mode indicator light.
13. Air bags warning light.
14. Engine management warning light.
15. Indicator light for right-hand
direction indicator,
Hazard warning lights indicator light.
16. Rev counter.
17. Fascia lighting rheostat.
Panel grouping together the dials and
warning/indicator lights. These inform
the driver of the activation of a system
(operation or deactivation indicator
lights) or of the occurrence of a fault
(warning lights).
Page 17 of 226
1
CRUISE
INSTRUMENTS and CONTROLS
INSTRUMENT PANEL INDICATOR LIGHTS
Indicator lights is on Cause Observations
Left-hand
direction
indicator Flashing
with
buzzer T h i s fl a s h e s w h e n y o u
press the lights stalk
down. I f t h i s i n d i c a t o r l i g h t fl a s h e s a b n o r m a l l y q u i c k l y ,
this could indicate that the electric bulb of one of
the direction indicators has blown. Change the
bulb or contact a PEUGEOT dealer.
Right-hand
direction
indicator Flashing
with
buzzer T h i s fl a s h e s w h e n y o u
push the lights stalk up. I f t h i s i n d i c a t o r l i g h t fl a s h e s a b n o r m a l l y q u i c k l y ,
this could indicate that the electric bulb of one of
the direction indicators has blown. Change the
bulb or contact a PEUGEOT dealer.
Main beam
headlamps Fixed This comes on when
you pull the lights stalk
towards you. Pull the stalk to return to dipped headlamps.
Side lights Fixed This comes on when
the lights stalk is in the
"Side lights" or "Dipped
headlamps" position. T u r n t h e s t a l k t o t h e p o s i t i o n r e q u i r e d .
Front fog
lamps Fixed This comes on when you
use the front fog lamps. Turn the ring on the stalk forwards to switch on
the fog lamps.
Rear fog
lamps Fixed This comes on when you
use the rear fog lamps. Turn the ring on the stalk forwards to switch on
the fog lamps.
Cruise
control Fixed This comes on when the
mode is active. Press the "ON/OFF" button to activate/deactivate
the mode.
Page 18 of 226
1
INSTRUMENTS and CONTROLS
Indicator lights is on Cause Observations
Diesel
pre-heating Fixed This comes on when the
ignition switch is at ON. Wait until this light has switched off before
starting.
The duration for which this is displayed is
determined by the exterior climatic conditions.
Warning lights is on Cause Observations
Handbrake/
B r a k e fl u i d level Fixed This comes on for a
few seconds when the
ignition is turned to "ON"
then switches off.
It is accompanied by a message on the
instrument panel display.
The handbrake is
applied or has not been
released fully. It is accompanied by a message on the
instrument panel display. Release the handbrake
to switch off the warning light.
T h e b r a k e fl u i d l e v e l i s
too low. It is accompanied by a message on the
i n s t r u m e n t p a n e l d i s p l a y . T o p u p w i t h b r a k e fl u i d
and contact a PEUGEOT dealer.
Emission
control system Fixed or
fl a s h i n g This comes on or
fl a s h e s i f t h e s y s t e m
fails. Consult a PEUGEOT dealer.
It should switch off a few seconds after starting
the engine.
Battery
charge Fixed This comes on if a
charging circuit fault
occurs. It should switch off when the engine is started.
It is accompanied by a message on the
instrument panel display. Check the battery
terminals (refer to the "Battery" section).
Page 19 of 226
1
INSTRUMENTS and CONTROLS
Warning lights is on Cause Solution - action
Driver’s
seat belt not fastened Fixed The driver has not
fastened or has
unfastened his seat belt. This is accompanied by a message on the
instrument panel display.
Fasten the driver’s seat belt.
ABS Fixed This comes on if an
anti-lock braking system
failure occurs. It is accompanied by a message on the instrument
panel display. The vehicle retains conventional
braking without assistance but you are advised to
stop. Have it checked by a PEUGEOT dealer.
Air bags and
pretensioners Fixed This comes on for a
few seconds when the
ignition is turned to "ON"
then switches off.
It should switch off when the engine is started. If it
does not switch off, contact a PEUGEOT dealer.
This comes on if an air
bag or pretensioner
failure occurs. It is accompanied by a message on the instrument
panel display. Have the system checked by a
PEUGEOT dealer without delay.
