2008 PEUGEOT 4007 Owners Manual

11
i
AUDIO EQUIPMENT and TELEMATICS

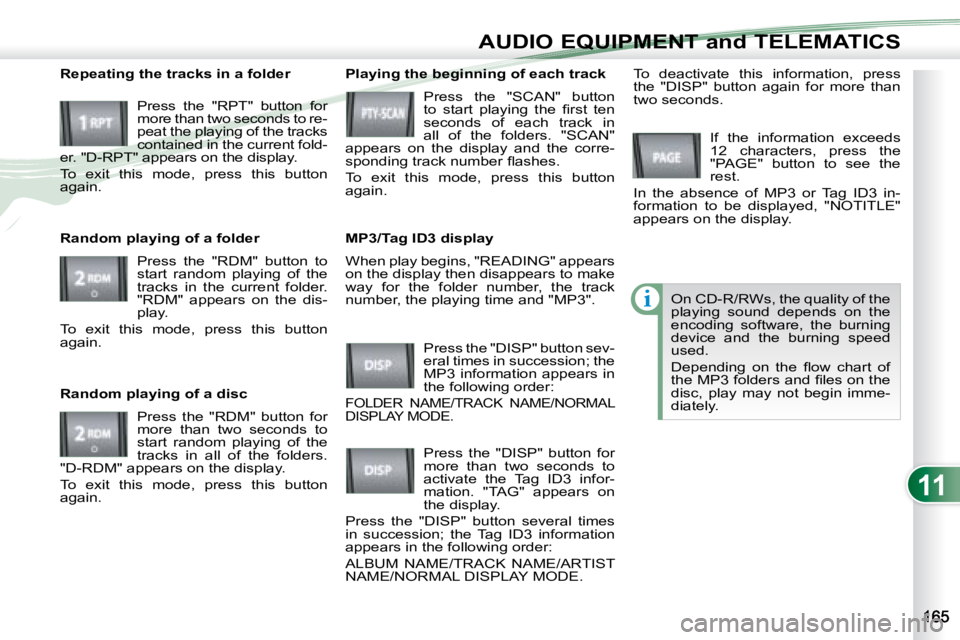

When play begins, "READING" appears
on the display then disappears to make
way for the folder number, the track
number, the playing time and "MP3".
Playing the beginning of each track
Press the "SCAN" button
to start playing the fi rst ten
seconds of each track in
all of the folders. "SCAN"
appears on the display and the corre-
sponding track number fl ashes.
To exit this mode, press this button
again.
MP3/Tag ID3 display
Press the "DISP" button sev-
eral times in succession; the
MP3 information appears in
the following order:
FOLDER NAME/TRACK NAME/NORMAL
DISPLAY MODE.
If the information exceeds
12 characters, press the
"PAGE" button to see the
rest.
In the absence of MP3 or Tag ID3 in-
formation to be displayed, "NOTITLE"
appears on the display.
Press the "DISP" button for
more than two seconds to
activate the Tag ID3 infor-
mation. "TAG" appears on
the display.
Press the "DISP" button several times
in succession; the Tag ID3 information
appears in the following order:
ALBUM NAME/TRACK NAME/ARTIST
NAME/NORMAL DISPLAY MODE. To deactivate this information, press
the "DISP" button again for more than
two seconds.
Repeating the tracks in a folder
Press the "RPT" button for
more than two seconds to re-
peat the playing of the tracks
contained in the current fold-
er. "D-RPT" appears on the display.
To exit this mode, press this button
again.
Random playing of a folder
Press the "RDM" button to
start random playing of the
tracks in the current folder.
"RDM" appears on the dis-
play.
To exit this mode, press this button
again.
Random playing of a disc
Press the "RDM" button for
more than two seconds to
start random playing of the
tracks in all of the folders.
"D-RDM" appears on the display.
To exit this mode, press this button
again. On CD-R/RWs, the quality of the
playing sound depends on the
encoding software, the burning
device and the burning speed
used.
Depending on the fl ow chart of
the MP3 folders and fi les on the
disc, play may not begin imme-
diately.

11
i
i
AUDIO EQUIPMENT and TELEMATICS
Selecting changer mode If the changer already con-
tains a disc, press the "CD"
button.
"CD", the disc and track
numbers and the playing time appear
on the display.
After inserting at least one disc, printed
face upwards, the changer starts auto-
matically.
Ejecting a disc Press this button briefl y to
remove the current disc
from the changer. Once ejected, if the compact
disc is not removed within fi f-
teen seconds it is re-loaded into
the changer.
Loading a disc
Press the "LOAD" button
briefl y. "WAIT" appears on
the display.
When the changer is ready,
the indicator light on the "LOAD" button
comes on and "LOAD DISC N° (1-6)"
appears on the display.
If several slots are empty, select one
using one of the "DISC" buttons.
The CD changer can hold up to 6 CDs.
Insert circular compact discs
only.
8 cm compact discs cannot be
played by the changer. Loading all of the discs Ejecting all of the discs
Press this button for more
than two seconds. The cur-
rent disc is ejected.
Once this disc has been
removed, the next disc is ejected auto-
matically in its turn.
Repeat these steps until unloading is
complete.
Selecting a disc Press one of the "DISC" but-
tons several times in suc-
cession until you reach the
disc required. The symbol
of the disc selected appears
on the display.
See also "CD-Text display" and "MP3/
Tag ID3 CD".
Press the "LOAD" button for
more than two seconds.
The changer selects an
empty slot number from the
lowest to the highest and switches to
waiting for loading mode.
"LOAD DISC N° (1-6)" appears on the
display; insert the disc in the corre-
sponding slot.
The changer automatically selects the
next empty slot number and returns to
waiting for loading mode.
Repeat these steps until loading is
complete. Play begins with the last disc
inserted.
CD CHANGER CD CHANGER

11
i
AUDIO EQUIPMENT and TELEMATICS

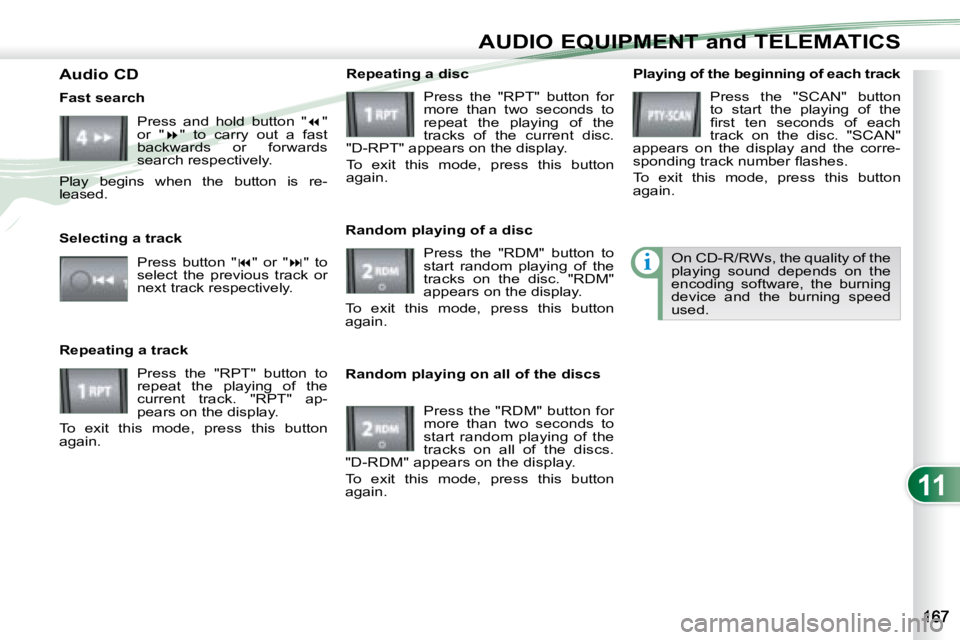

Playing of the beginning of each track Press the "SCAN" button
to start the playing of the
fi rst ten seconds of each
track on the disc. "SCAN"
appears on the display and the corre-
sponding track number fl ashes.
To exit this mode, press this button
again.
On CD-R/RWs, the quality of the
playing sound depends on the
encoding software, the burning
device and the burning speed
used.
Random playing on all of the discs Press the "RDM" button for
more than two seconds to
start random playing of the
tracks on all of the discs.
"D-RDM" appears on the display.
To exit this mode, press this button
again.
Fast search
Press and hold button "  "
or "  " to carry out a fast
backwards or forwards
search respectively.
Play begins when the button is re-
leased.
Selecting a track
Press button "  " or "  " to
select the previous track or
next track respectively.
Repeating a track Press the "RPT" button to
repeat the playing of the
current track. "RPT" ap-
pears on the display.
To exit this mode, press this button
again. Random playing of a disc
Press the "RDM" button to
start random playing of the
tracks on the disc. "RDM"
appears on the display.
To exit this mode, press this button
again. Repeating a disc
Press the "RPT" button for
more than two seconds to
repeat the playing of the
tracks of the current disc.
"D-RPT" appears on the display.
To exit this mode, press this button
again.
Audio CD

11
AUDIO EQUIPMENT and TELEMATICS

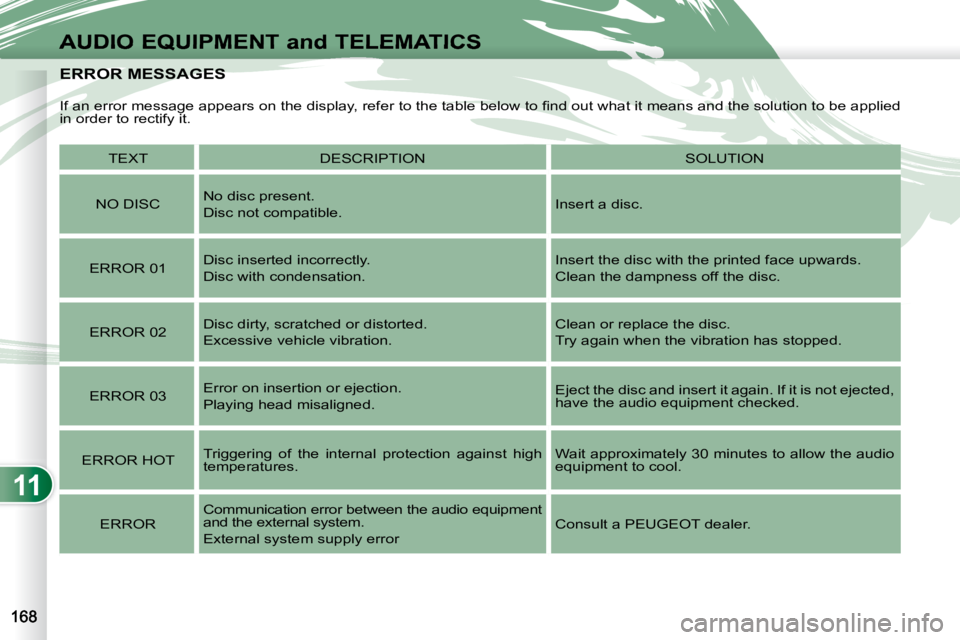

ERROR MESSAGES ERROR MESSAGES
If an error message appears on the display, refer to the table below to fi nd out what it means and the solution to be applied
in order to rectify it.
TEXT DESCRIPTION SOLUTION
NO DISC No disc present.
Disc not compatible. Insert a disc.
ERROR 01 Disc inserted incorrectly.
Disc with condensation. Insert the disc with the printed face upwards.
Clean the dampness off the disc.
ERROR 02 Disc dirty, scratched or distorted.
Excessive vehicle vibration. Clean or replace the disc.
Try again when the vibration has stopped.
ERROR 03 Error on insertion or ejection.
Playing head misaligned. Eject the disc and insert it again. If it is not ejected,
have the audio equipment checked.
ERROR HOT Triggering of the internal protection against high
temperatures. Wait approximately 30 minutes to allow the audio
equipment to cool.
ERROR Communication error between the audio equipment
and the external system.
External system supply error
Consult a PEUGEOT dealer.

11
AUDIO EQUIPMENT and TELEMATICS

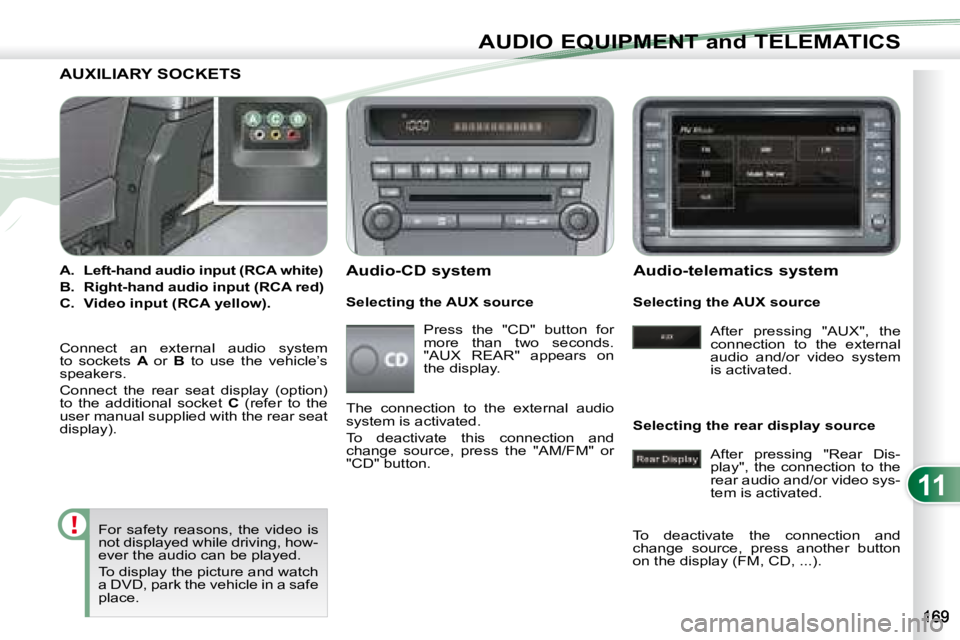

AUXILIARY SOCKETS

A. Left-hand audio input (RCA white)

B. Right-hand audio input (RCA red)

C. Video input (RCA yellow).
Connect an external audio system
to sockets A or B to use the vehicle’s
speakers.
Connect the rear seat display (option)
to the additional socket C (refer to the
user manual supplied with the rear seat
display). Audio-CD system Audio-telematics system
Selecting the AUX source
Press the "CD" button for
more than two seconds.
"AUX REAR" appears on
the display.
The connection to the external audio
system is activated.
To deactivate this connection and
change source, press the "AM/FM" or
"CD" button. After pressing "AUX", the
connection to the external
audio and/or video system
is activated.
Selecting the AUX source
To deactivate the connection and
change source, press another button
on the display (FM, CD, ...). After pressing "Rear Dis-
play", the connection to the
rear audio and/or video sys-
tem is activated.
For safety reasons, the video is
not displayed while driving, how-
ever the audio can be played.
To display the picture and watch
a DVD, park the vehicle in a safe
place. Selecting the rear display source

11
i
AUDIO EQUIPMENT and TELEMATICS
YOUR AUDIO-TELEMATICS SYSTEM YOUR AUDIO-TELEMATICS SYSTEM
This consists of the following components:
- a tilting 7’’ LCD colour touch screen,
- a GPS aerial located in your fascia,
- a radio aerial located at the rear, on the roof of the vehicle,
- 4 to 6 speakers (according to version),
- controls around the screen and at the steering wheel plu s touch buttons on the screen according to the display,
- a voice synthesiser (male or female) giving the directions duri ng navigation.
GPS aerial
It allows you to:
- be guided to the destination of your choice (European map on 30 Gb hard disc) taking traffi c conditions into account,
- listen to the radio,
- listen to audio CDs (CDDA, CD-Text, CD-R/RW) or CDs with MP3 and WMA fi les,
- copy audio CDs to a music server, up to 2,500 songs (coded i n MP3/WMA) on 10 Gb available on the hard disc,
- play DVDs (playing of video if the vehicle is stationary),
- make hands-free telephone calls.
For maintenance of the display, we recommend the use of a n on-abrasive soft cloth (spectacles cloth) without any
additional products.

11
AUDIO EQUIPMENT and TELEMATICS
AUDIO: selection of the Audio-
video (FM, CD, music server, ...)
or Navigation (map) display.

VOL: adjustment of the audio-video
volume. OPEN: tilts the dis-
play and permits ac-
cess to the CD/DVD.
A second press clos-
es the display. SCALE: changing of the scale of
the map.
ENTR: confi rms the choice of the
item selected on the screen.
For certain operations, confi rma-
tion is given by contact with the
touch screen.
Scrolling of the map displayed or
selection of an item.

For safety reasons, it is im-
perative that the driver carries
out operations which require
prolonged attention with the
vehicle stationary.
DESCRIPTION OF THE CONTROLS
Changing of the audio-video source
(FM, CD, music server, ...).
Activation/deactivation of the
mute.
Next or previous selection for:
- a radio station,
- an audio track (CD),
- a chapter (DVD).
Move a fi nger over the screen to oper-
ate the system.
Use the buttons offered on the screen.
POWER: audio system on/off
(only).
Setting of the audio volume.

11
AUDIO EQUIPMENT and TELEMATICS
DESCRIPTION OF THE CONTROLS - MENUS DESCRIPTION OF THE CONTROLS - MENUS
MODE: Audio-video menu for:
- the radio,
- the audio, MP3 or WMA CD,
- the music server,
- the DVD.
MENU: Navigation-guidance menu
for selecting:
- a destination,
- a point of interest (POI),
- an advanced search by POI,
-
one of the 20 previous destinations,
- an address stored in the address book,
- the return home,
- certain navigation settings,
- a route demonstration. NAVI: displaying of the current loca-
tion on the
map .
SET:
Settings menu for:
- switching off the display,
- selecting the sound setting,
- selecting the picture quality,
- selecting the language, the time zone or the units,
- selecting the size of the DVD picture,
- selecting the guidance voice, the display colour ranges or the
displaying of the audio-video
icon,
- setting certain equipment avail- able in your vehicle. INFO:
Information menu for the
consultation or setting of certain pa-
rameters of your vehicle.
