2008 PEUGEOT 4007 Owners Manual

4
VISIBILITY

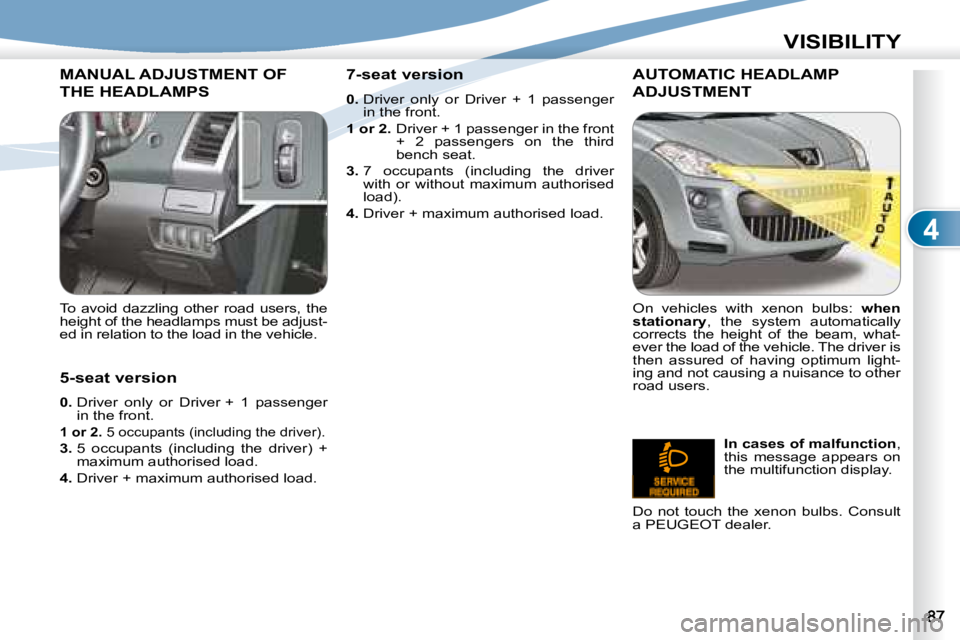

MANUAL ADJUSTMENT OF
THE HEADLAMPS
To avoid dazzling other road users, the
height of the headlamps must be adjust-
ed in relation to the load in the vehicle.
AUTOMATIC HEADLAMP
ADJUSTMENT
On vehicles with xenon bulbs: when
stationary , the system automatically
corrects the height of the beam, what-
ever the load of the vehicle. The driver is
then assured of having optimum light-
ing and not causing a nuisance to other
road users.

In cases of malfunction ,
this message appears on
the multifunction display.
7-seat version

0. Driver only or Driver + 1 passenger
in the front.

1 or 2. Driver + 1 passenger in the front
+ 2 passengers on the third
bench seat.

3. 7 occupants (including the driver
with or without maximum authorised
load).

4. Driver + maximum authorised load.
5-seat version

0. Driver only or Driver + 1 passenger
in the front.

1 or 2. 5 occupants (including the driver).

3. 5 occupants (including the driver) +
maximum authorised load.

4. Driver + maximum authorised load.
Do not touch the xenon bulbs. Consult
a PEUGEOT dealer.

4
i
VISIBILITY
WIPER CONTROLS WIPER CONTROLS
Manual controls
The wiper commands are issued direct-
ly by the driver by means of the lever A
and the ring B . single wipe.
Windscreen wipers

A. wiping speed selection lever:
park.
intermittent (the speed can be
set manually),
slow.
fast.

B. intermittence adjustment ring.
You can increase or decrease the wip-
ing frequency when the intermittent
mode is active. Windscreen wash
Pull the wipers stalk towards you. The
windscreen wash then the wipers oper-
ate for a set time.
The headlamp wash is also activated
if
the dipped headlamps are on .
Headlamp wash
Press the end of the lights stalk to ac-
tivate the headlamp wash, when the
dipped headlamps are on.
System for selection and control of the
various front and rear wiping modes for
the elimination of rain and cleaning.
The vehicle’s various front and rear wip-
ers are designed to improve the driver’s
visibility progressively in relation to the
climatic conditions.

Certain windscreen wiper func-
tions (intermittence, ...) can be
confi gured via the colour display
"Equipment" menu.

4
i
VISIBILITY

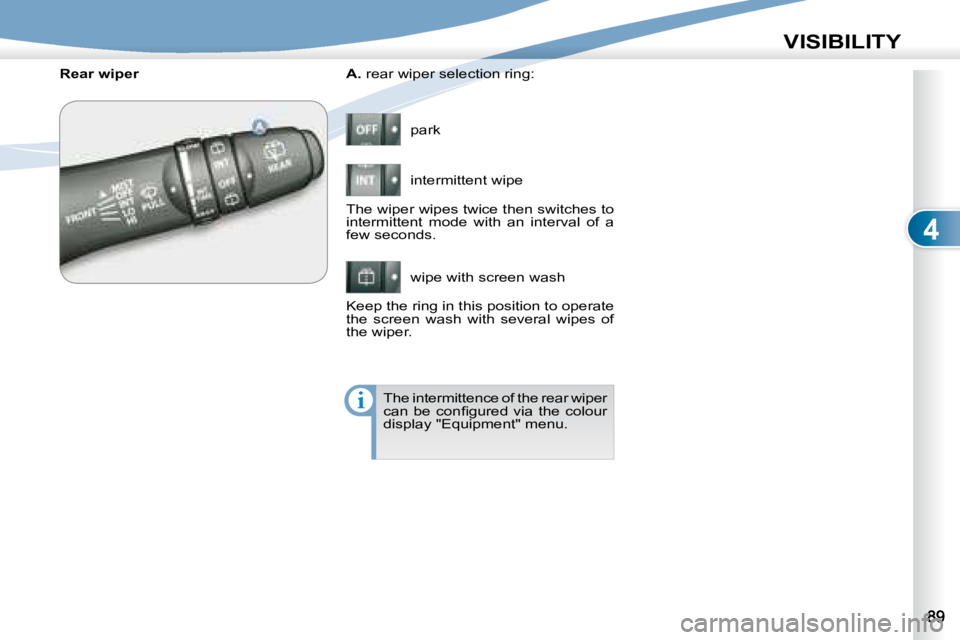

A. rear wiper selection ring:
park
intermittent wipe
wipe with screen wash
Rear wiper
The wiper wipes twice then switches to
intermittent mode with an interval of a
few seconds.
Keep the ring in this position to operate
the screen wash with several wipes of
the wiper. The intermittence of the rear wiper
can be confi gured via the colour
display "Equipment" menu.

4
i
VISIBILITY
COURTESY LIGHTS COURTESY LIGHTS Front courtesy light Map reading lights
There are two map reading lights, one
on each side of the courtesy light.
Press the corresponding transparent
block A .
Position 1
The courtesy light comes on when a
door or the tailgate is opened.
When the door or the tailgate is closed
again, the lighting gradually dims for a
few seconds before switching off.
However, the courtesy light is switched
off automatically in the following cases:
- When the doors and the tailgate
are closed and the ignition switch is
placed in the "ON" position.
- When the doors and the tailgate are closed and you lock the vehicle from
inside or using the remote control.
System for selection and control of the
various passenger compartment lights.
Position 2
The courtesy light is off, regardless of wheth-
er the doors or tailgate are open or closed.
The durations of lighting of the
front courtesy lights can be con-
fi gured via the colour display
"Equipment" menu.

4
i
VISIBILITY
Rear courtesy light
Position 1 "ON"
The courtesy light is permanently on. - When the doors and the tailgate are
closed and you lock the vehicle from
inside or using the remote control.

Automatic switching off of the
courtesy lights
To prevent discharging of the battery,
the courtesy lights and map reading
lights switch off automatically after
30 minutes.
The courtesy lights are switched on
again if the ignition switch is placed in
the "ON" or "ACC" position, if you open
then close a door or the tailgate or if
you use the remote control.
Boot courtesy light
Position 1 "ON"
The courtesy light is on, regardless of
whether the tailgate is open or closed.
Position 2 "

5
i

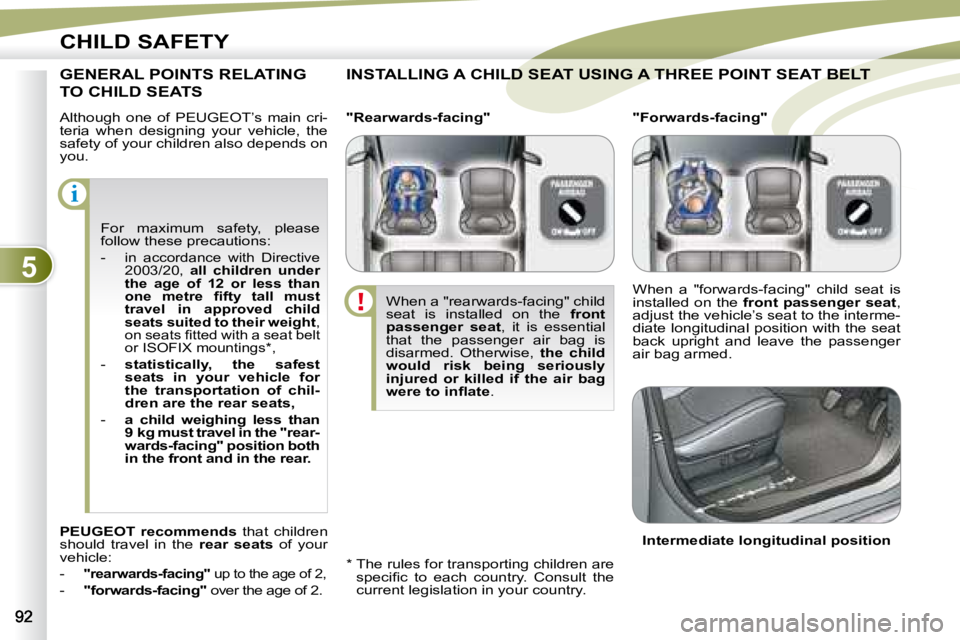

CHILD SAFETY
Although one of PEUGEOT’s main cri-
teria when designing your vehicle, the
safety of your children also depends on
you.
INSTALLING A CHILD SEAT USING A THREE POINT SEAT BEL CHILD SEAT USING A THREE POINT SEAT BELT
Intermediate longitudinal position
* The rules for transporting children are specifi c to each country. Consult the
current legislation in your country.
GENERAL POINTS RELATING
TO CHILD SEATS
"Forwards-facing"
"Rearwards-facing"
For maximum safety, please
follow these precautions:
-
in accordance with Directive
2003/20, all children under
the age of 12 or less than
one metre fi fty tall must
travel in approved child
seats suited to their weight ,
on seats fi tted with a seat belt
or ISOFIX mountings *
,
- statistically, the safest
seats in your vehicle for
the transportation of chil-
dren are the rear seats,
- a child weighing less than
9 kg must travel in the "rear-
wards-facing" position both
in the front and in the rear. When a "rearwards-facing" child
seat is installed on the
front
passenger seat , it is essential
that the passenger air bag is
disarmed. Otherwise, the child
would risk being seriously
injured or killed if the air bag
were to infl ate .

PEUGEOT
recommends that children
should travel in the rear seats of your
vehicle:
-

"rearwards-facing" up to the age of 2,
- "forwards-facing" over the age of 2. When a "forwards-facing" child seat is
installed on the
front passenger seat ,
adjust the vehicle’s seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
air bag armed.

5
CHILD SAFETY

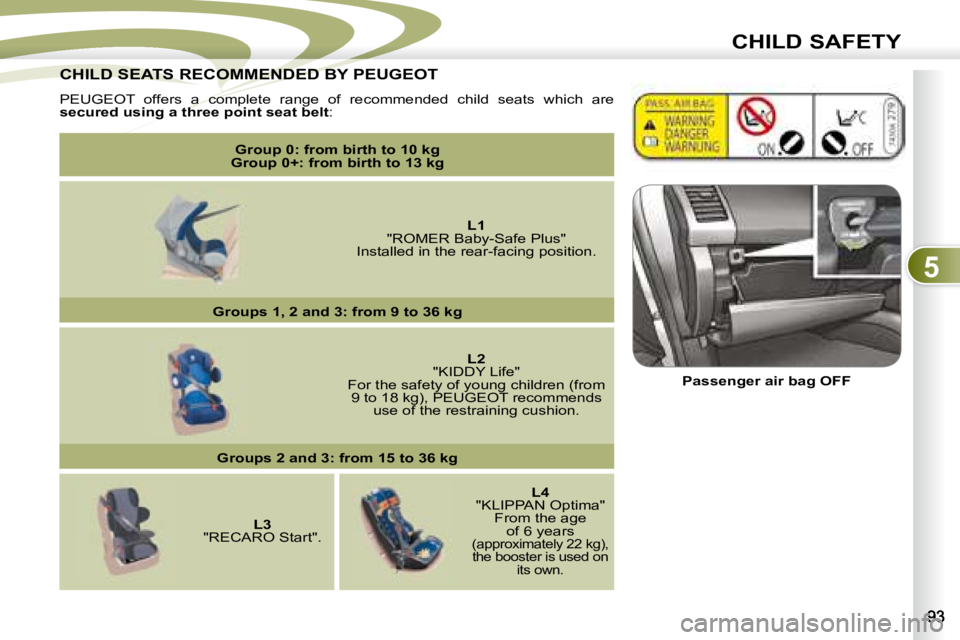

CHILD SEATS RECOMMENDED BY PEUGEOT CHILD SEATS RECOMMENDED BY
PEUGEOT offers a complete range of recommended child seats which are

secured using a three point seat belt :
Passenger air bag OFF

Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg

L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position.

Groups 1, 2 and 3: from 9 to 36 kg

L2
"KIDDY Life"
For the safety of young children (from 9 to 18 kg), PEUGEOT recommends use of the restraining cushion.

Groups 2 and 3: from 15 to 36 kg

L3
"RECARO Start ".
L4
"KLIPPAN Optima" From the age of 6 years
(approximately 22 kg), the booster is used on its own.

5
CHILD SAFETY

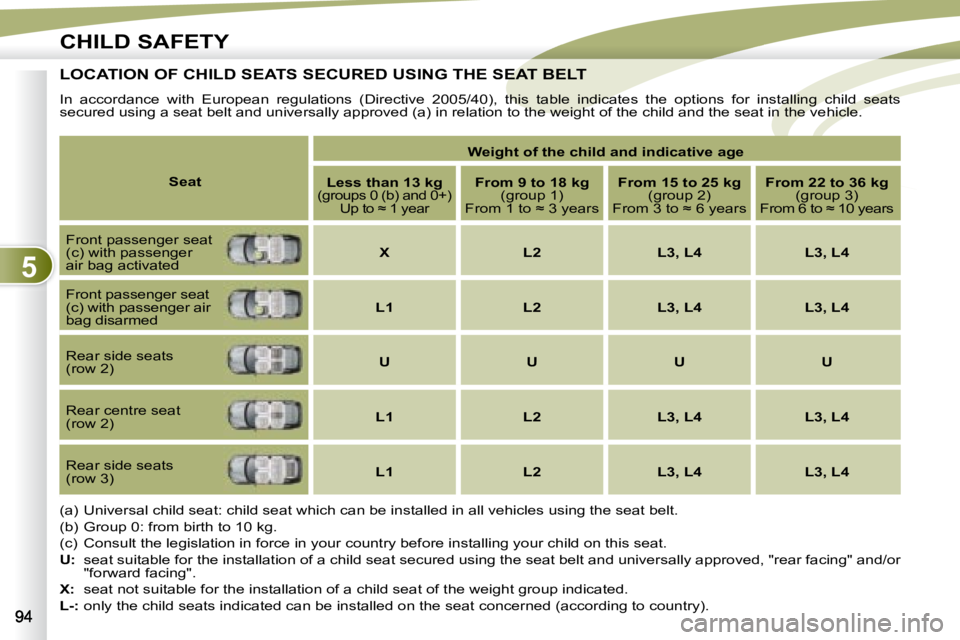

LOCATION OF CHILD SEATS SECURED USING THE SEAT BELTS SECURED USING THE SEAT BELT
In accordance with European regulations (Directive 2005/40), this table indicates the options for installing child seats
secured using a seat belt and universally approved (a) in relatio n to the weight of the child and the seat in the vehicle.
(a) Universal child seat: child seat which can be installed i n all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg.
(c) Consult the legislation in force in your country before in stalling your child on this seat.

U: seat suitable for the installation of a child seat secure d using the seat belt and universally approved, "rear facing" an d/or
"forward facing".

X: seat not suitable for the installation of a child seat of the weight group indicated.

L-: only the child seats indicated can be installed on the seat concerned (according to country).

Seat
Weight of the child and indicative age

Less than 13 kg
(groups 0 (b) and 0+)
Up to ≈ 1 year
From 9 to 18 kg
(group 1)
From 1 to ≈ 3 years
From 15 to 25 kg
(group 2)
From 3 to ≈ 6 years
From
22 to 36 kg
(group 3)
From 6 to ≈ 10 years
Front passenger seat
(c) with passenger
air bag activated

X L2 L3, L4 L3, L4
Front passenger seat
(c) with passenger air
bag disarmed

L1 L2 L3, L4 L3, L4
Rear side seats
(row 2)

U U U U
Rear centre seat
(row 2)

L1 L2 L3, L4 L3, L4
Rear side seats
(row 3)

L1 L2 L3, L4 L3, L4
