Page 25 of 226
1
INSTRUMENTS and CONTROLS
Prevention messages
I n f o r m a t i o n m e s s a g e s ( i g n i t i o n a t " O N " )
Message is on S t a t u s o f t h e s y s t e m
2WD two wheel
drive system
Flashing When the "2WD" (2 wheel drive) mode is selected using the tran
smission
mode selector.
4WD four wheel
drive system
Flashing When the "4WD" (4 wheel drive) mode is selected using the tran
smission
mode selector.
This mode is the default mode.
4WD LOCK four
wheel drive system
Flashing When the "LOCK" (4 wheel drive) mode is selected using the
transmission mode selector.
Dynamic stability
control system
(ASC)
Fixed When the dynamic stability control system (ASC) is active.
Exterior
temperature
Fixed This indicates the exterior temperature.
When the vehicle is stationary or if the speed is b
elow 12 mph (20 km/h) the
temperature displayed may not correspond to the ext erior temperature.
D i s p l a y is on Cause Solution - action Observations
Service
indicator
Fixed Informs the driver of the
time remaining before
the vehicle’s scheduled
service.
Consult a PEUGEOT
dealer. This is displayed for a few seconds
when the ignition is switched on.
Break
advised
Fixed Informs the driver that
he should stop to take
a break. You are advised to
take a break. This is displayed when the driving
time that you set previously is
reached.
An audible signal is heard 3 times
and is then heard every 5 minutes
until the vehicle stops.
Page 26 of 226
1
INSTRUMENTS and CONTROLS
The total distance is dis-
played in zone 1 of the
display and the trip dis-
tance in zone 2 (refer to
the "Distance recorders"
section).
Distance recorder (A and B)
INFORMATION ON THE INFORMATION ON THE
INSTRUMENT PANEL DISPLAY
D a t a d i s p l a y s
With the ignition on, press the
INFO
button, located on the fascia to the
right of the instrument panel, to display
the various information displays in
succession:
- the distance recorder A ,
- the distance recorder B ,
- the service indicator,
- the coolant temperature,
- the range,
- the trip computer,
- the setting menu.
This displays the distance
and the number of months
remaining before the next
service to be carried out in
accordance with the manu-
facturer’s servicing sched-
ule (refer to the "Service
indicator" section).
Service indicator
When the engine is run-
ning, this indicates the
temperature of the cool-
ant (refer to the "Coolant
temperature indicator"
section).
C o o l a n t t e m p e r a t u r e When the engine is run-
ning, this indicates the
number of miles (kilo-
metres) which can still
be travelled with the fuel
remaining in the tank in
relation to the average
consumption over the
last few miles (kilometres) travelled (re-
fer to the "Range" section).
Range
This indicates the aver-
age consumption, the
average speed and the
current consumption (re-
fer to the "Trip computer"
section).
T r i p c o m p u t e r
When the vehicle is sta-
t i o n a r y , this allows the user
to change the following pa-
rameters (refer to the "Func-
tion parameters" section):
- the display language,
- the temperature dis- play unit,
- the fuel consumption unit,
- the option to reinitialise the average consumption and the average speed,
- the break (rest) reminder display in- terval.
Setting menu
Page 27 of 226
1
i
INSTRUMENTS and CONTROLS
The total distance is
displayed in zone 1 of
the display and the trip
distance in zone 2 .
DISTANCE RECORDERS (A/B)
System for measuring the total distance
travelled by the vehicle during its
service life and the distance travelled in
a day or other period until it is reset to
zero by the driver.
Zero reset
With the ignition on, press the INFO
button for more than 2 seconds until
zeros appear. When the engine is run-
ning, this indicates the tem-
perature of the coolant
.
COOLANT TEMPERATURE
If the bar is close to the critical position
located on the right, the temperature is
too high.
T h e s y m b o l fl a s h e s w h e n y o u r e n g i n e
is overheating.
I t i s i m p e r a t i v e t h a t y o u s t o p y o u r
v e h i c l e s a f e l y .
W a i t a f e w m i n u t e s b e f o r e s w i t c h i n g
o f f t h e e n g i n e .
Wait for the engine to cool before
topping up the level. The cooling
system is pressurised.
When the engine is
running , this indicates
the distance which can
still be travelled with the
fuel remaining in the tank
in relation to the average
consumption over the
last few miles/kilometres
travelled.
RANGE RANGE
When the range is less than 30 miles
(50 km) , dashes are displayed.
Fill the fuel tank as soon as possible.
The display of the range is updated.
As the cooling system is pressurised, to
avoid any risk of scalding, unscrew the
cap by two turns to allow the pressure
to drop.
When the pressure has dropped,
remove the cap and top up the level, if
necessary.
Consult a PEUGEOT dealer. T h i s fi g u r e m a y i n c r e a s e f o l -
lowing a change in the style of
driving or the relief, resulting in
a reduction in the current con-
sumption.
If you only add a few litres, the
value displayed will be incorrect.
T h e r e f o r e , y o u m u s t fi l l t h e t a n k
whenever possible.
When you disconnect the bat-
tery, the previous consumption
data is lost and the value dis-
played will be different from that
displayed before the battery was
disconnected. The distance dis-
played must be considered an
approximate indication.
Page 28 of 226
1
i
i
INSTRUMENTS and CONTROLS
SERVICE INDICATOR SERVICE INDICATOR Resetting the service indicator
to zero
Your PEUGEOT dealer carries out this
operation after each service.
If you have carried out your vehicle’s
service yourself, the zero reset proce-
dure is the following:
switch off the ignition,
press the INFO button several times
in succession until the service indi-
cator is displayed.
press and hold the INFO button for
a few seconds until the s p a n n e r
fl a s h e s .
press the INFO button while the
s p a n n e r i s fl a s h i n g t o c h a n g e t h e
display "---" to "CLEAR" then the
time remaining before the next
service is due is displayed.
Service overdue
O p e r a t i o n
When the ignition is switched on, you
must press the INFO button several
times in succession until the service
indicator is displayed. The distance
recorder display line indicates the
number of miles (kilometres) remaining
and the time elapsed line indicates the
number of months remaining before the
next service is due.
After a certain distance and a cer-
tain time, the displaying of "---" is
reinitialised and the display indi-
cates the time remaining before
the next service is due.
System which informs the driver when
the next service is due in accordance
with the manufacturer’s servicing
schedule.
The point at which the next service is
due is calculated from the last service
indicator zero reset.
It is determined by two parameters:
- the distance travelled (in miles (km),
- the time elapsed since the last serv-
ice (in months).
The distance remaining to be travelled
may be weighted by the time factor,
depending on the user’s driving habits.
E x a m p l e : the display indicates that
7 300 miles (kilometres) remain before
the next service is due.
The symbol "---" remains dis-
p l a y e d u n t i l t h e fi r s t s e r v i c e o f a
new vehicle has been carried out.
E x a m p l e : the display indicates that the
service is overdue. This service must
be carried out by a PEUGEOT dealer.
Each time the ignition is switched on,
the display
"SCHEDULED SERVICE"
is displayed for a few seconds to
indicate that the service must be carried
out without delay.
Page 29 of 226
1
i
INSTRUMENTS and CONTROLS
The total distance is
displayed in zone 1 of
the display and the trip
distance in zone 2 .
DISTANCE RECORDERS (A/B)
System for measuring the total distance
travelled by the vehicle during its
service life and the distance travelled in
a day or other period until it is reset to
zero by the driver.
Zero reset
With the ignition on, press the INFO
button for more than 2 seconds until
zeros appear. When the engine is run-
ning, this indicates the tem-
perature of the coolant
.
COOLANT TEMPERATURE
If the bar is close to the critical position
located on the right, the temperature is
too high.
T h e s y m b o l fl a s h e s w h e n y o u r e n g i n e
is overheating.
I t i s i m p e r a t i v e t h a t y o u s t o p y o u r
v e h i c l e s a f e l y .
W a i t a f e w m i n u t e s b e f o r e s w i t c h i n g
o f f t h e e n g i n e .
Wait for the engine to cool before
topping up the level. The cooling
system is pressurised.
When the engine is
running , this indicates
the distance which can
still be travelled with the
fuel remaining in the tank
in relation to the average
consumption over the
last few miles/kilometres
travelled.
RANGE RANGE
When the range is less than 30 miles
(50 km) , dashes are displayed.
Fill the fuel tank as soon as possible.
The display of the range is updated.
As the cooling system is pressurised, to
avoid any risk of scalding, unscrew the
cap by two turns to allow the pressure
to drop.
When the pressure has dropped,
remove the cap and top up the level, if
necessary.
Consult a PEUGEOT dealer. T h i s fi g u r e m a y i n c r e a s e f o l -
lowing a change in the style of
driving or the relief, resulting in
a reduction in the current con-
sumption.
If you only add a few litres, the
value displayed will be incorrect.
T h e r e f o r e , y o u m u s t fi l l t h e t a n k
whenever possible.
When you disconnect the bat-
tery, the previous consumption
data is lost and the value dis-
played will be different from that
displayed before the battery was
disconnected. The distance dis-
played must be considered an
approximate indication.
Page 30 of 226
1
i
i
INSTRUMENTS and CONTROLS
SERVICE INDICATOR SERVICE INDICATOR Resetting the service indicator
to zero
Your PEUGEOT dealer carries out this
operation after each service.
If you have carried out your vehicle’s
service yourself, the zero reset proce-
dure is the following:
switch off the ignition,
press the INFO button several times
in succession until the service indi-
cator is displayed.
press and hold the INFO button for
a few seconds until the s p a n n e r
fl a s h e s .
press the INFO button while the
s p a n n e r i s fl a s h i n g t o c h a n g e t h e
display "---" to "CLEAR" then the
time remaining before the next
service is due is displayed.
Service overdue
O p e r a t i o n
When the ignition is switched on, you
must press the INFO button several
times in succession until the service
indicator is displayed. The distance
recorder display line indicates the
number of miles (kilometres) remaining
and the time elapsed line indicates the
number of months remaining before the
next service is due.
After a certain distance and a cer-
tain time, the displaying of "---" is
reinitialised and the display indi-
cates the time remaining before
the next service is due.
System which informs the driver when
the next service is due in accordance
with the manufacturer’s servicing
schedule.
The point at which the next service is
due is calculated from the last service
indicator zero reset.
It is determined by two parameters:
- the distance travelled (in miles (km),
- the time elapsed since the last serv-
ice (in months).
The distance remaining to be travelled
may be weighted by the time factor,
depending on the user’s driving habits.

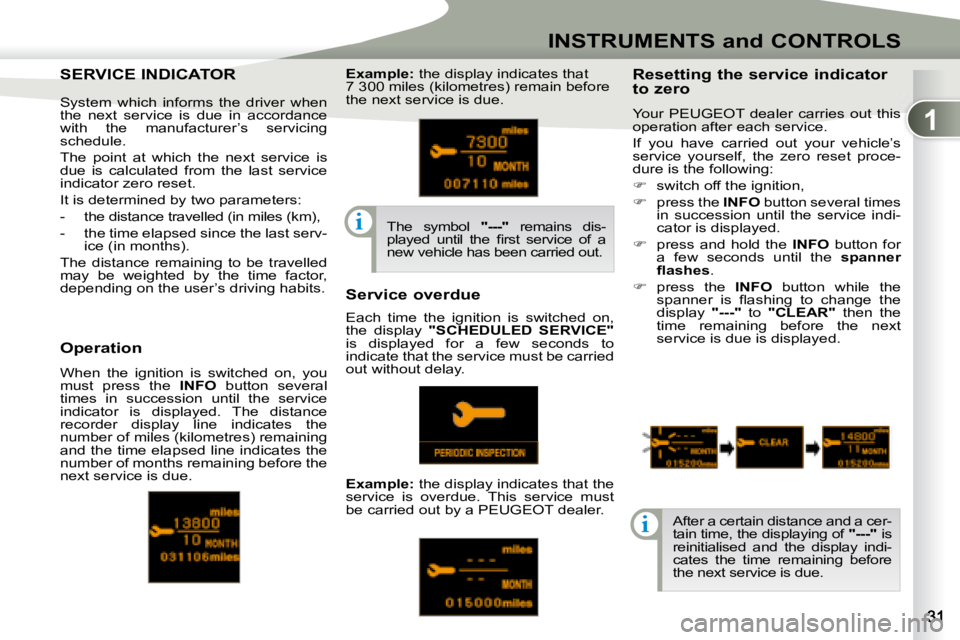

E x a m p l e : the display indicates that
7 300 miles (kilometres) remain before
the next service is due.
The symbol "---" remains dis-
p l a y e d u n t i l t h e fi r s t s e r v i c e o f a
new vehicle has been carried out.
E x a m p l e : the display indicates that the
service is overdue. This service must
be carried out by a PEUGEOT dealer.
Each time the ignition is switched on,
the display
"SCHEDULED SERVICE"
is displayed for a few seconds to
indicate that the service must be carried
out without delay.
Page 31 of 226
1
i
i
INSTRUMENTS and CONTROLS
System which provides current infor-
mation about the route travelled.

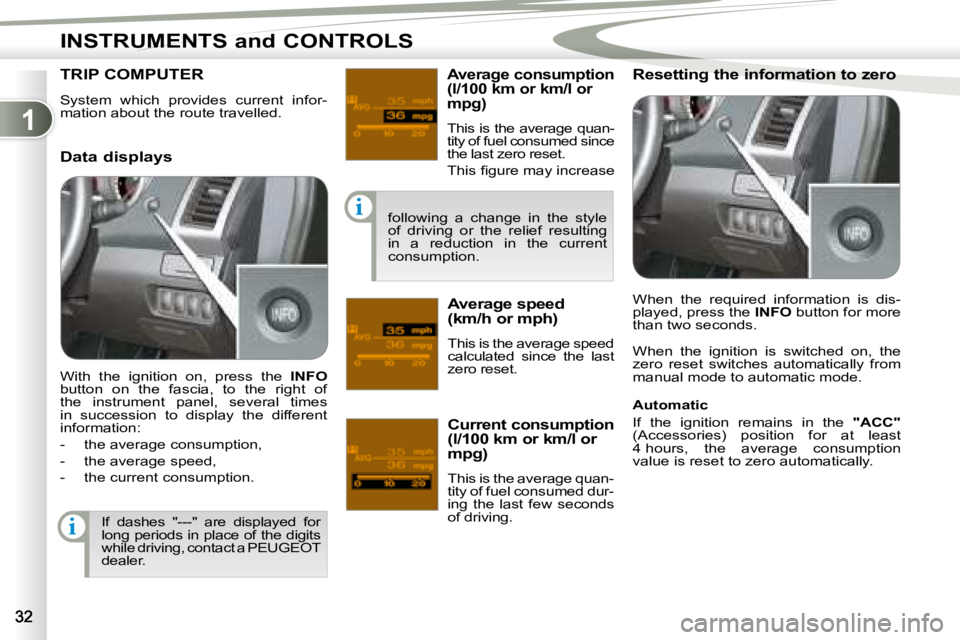

TRIP COMPUTER A v e r a g e c o n s u m p t i o n
(l/100 km or km/l or
m p g )
T h i s i s t h e a v e r a g e q u a n -
tity of fuel consumed since
the last zero reset.
T h i s fi g u r e m a y i n c r e a s e
following a change in the style
of driving or the relief resulting
in a reduction in the current
consumption.
A v e r a g e s p e e d
( k m / h o r m p h )
This is the average speed
calculated since the last
zero reset. R e s e t t i n g t h e i n f o r m a t i o n t o z e r o
When the ignition is switched on, the
zero reset switches automatically from
manual mode to automatic mode.
Automatic
If the ignition remains in the
"ACC"
(Accessories) position for at least
4 hours, the average consumption
value is reset to zero automatically.
If dashes "---" are displayed for
long periods in place of the digits
while driving, contact a PEUGEOT
dealer.
C u r r e n t c o n s u m p t i o n
(l/100 km or km/l or
m p g )
T h i s i s t h e a v e r a g e q u a n -
tity of fuel consumed dur-
ing the last few seconds
of driving.
D a t a d i s p l a y s
With the ignition on, press the
INFO
button on the fascia, to the right of
the instrument panel, several times
in succession to display the different
information:
- the average consumption,
- the average speed,
- the current consumption. W h e n t h e r e q u i r e d i n f o r m a t i o n i s d i s -
played, press the
INFO button for more
than two seconds.
Page 32 of 226
1
i
i
INSTRUMENTS and CONTROLS
When the vehicle is sta-
t i o n a r y , it allows the user
to change the following
parameters:
-
the choice of the reini-
tialisation of the average
consumption and aver-
age speed,
- the fuel consumption unit,
- the temperature display unit,
- the display language,
- activation/deactivation of the INFO
button sound,
-
the break (rest) reminder display interval,
-
restore the manufacturer’s parameters.
FUNCTION PARAMETERS FUNCTION PARAMETERS
System which provides access to cer-
tain function parameters.
In order to change the settings,
it is essential that you stop
the vehicle and switch on the
ignition.
Apply the handbrake and place
the gear lever in neutral.
When the vehicle is moving ,
the functions setting display is
not displayed when you press
the INFO button.
With the ignition on , press the INFO
button on the fascia, to the right of
the instrument panel, several times in
succession until the "SETTING MENU"
screen is displayed. O p e r a t i o n
press and hold the INFO button for
a few seconds to display the menus
screen. Press and hold the
INFO button
for a few seconds to return to
the previous screen.
When the menus screen is
displayed, if no operation is
carried out within 15 seconds,
the function parameters screen
is displayed.
on the menus screen, press the
INFO button to select a function
from the list:
MENU
1/2
:
- 1 - 2 (choice of the reinitialisation of
the average consumption and aver-
age speed),
- UNIT (choice of the fuel consump-
tion units),
- choice of the t e m p e r a t u r e d i s p l a y
unit ,
- LANGUAGE (choice of the display
language),
MENU
2 / 2 :
- a/b (choice of displaying a different
language on the instrument panel
display and the navigation display),
- a c t i v a t i o n / d e a c t i v a t i o n o f t h e
INFO
button sound ,
- ALERT (changing of the "BREAK
ADVISED "break reminder display
interval),
- REINITIALISE (restore the manu-
facturer’s parameters). C h o i c e o f t h e r e i n i t i a l i s a t i o n o f
t h e a v e r a g e c o n s u m p t i o n a n d
a v e r a g e s p e e d
You can choose between two average
consumption and average speed reini-
tialisation modes:
- automatic reinitialisation (
choice 1) ,
- manual reinitialisation (choice 2) .
On the menus screen:
press the INFO button to select:
press and hold the INFO button for
a few seconds to switch in succes-
sion from reinitialisation mode 1
(automatic) to reinitialisation mode
2 (manual) .
T h e m o d e s e l e c t e d i s c o n fi r m e d .
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
