Page 77 of 226
3
i
ACCESS

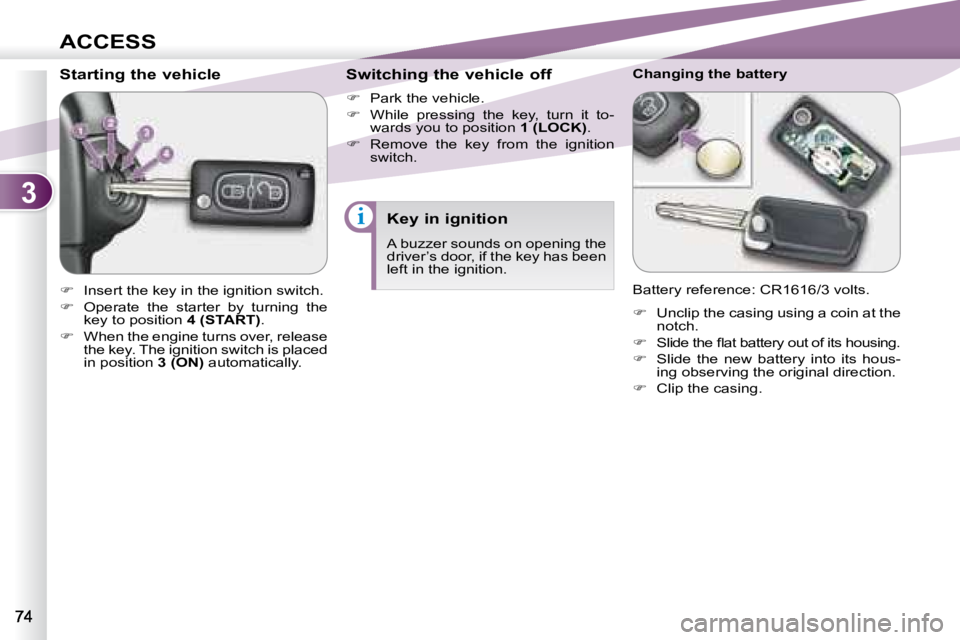

Starting the vehicle
Insert the key in the ignition switch.
Operate the starter by turning the
key to position 4 (START) .
When the engine turns over, release
the key. The ignition switch is placed
in position 3 (ON) automatically. Switching the vehicle off
Park the vehicle.
While pressing the key, turn it to-
wards you to position 1 (LOCK) .
Remove the key from the ignition
switch. Changing the battery
Battery reference: CR1616/3 volts.
Unclip the casing using a coin at the
notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s h o u s i n g .
Slide the new battery into its hous-
ing observing the original direction.
Clip the casing.
Key in ignition
A buzzer sounds on opening the
driver’s door, if the key has been
left in the ignition.
Page 81 of 226
3
i
ACCESS
Starting the vehicle
Insert the key in the ignition switch.
Operate the starter by turning the
key to position 4 (START) .
When the engine turns over, release
the key. The ignition switch is placed
in position 3 (ON) automatically. Switching the vehicle off
Park the vehicle.
While pressing the key, turn it to-
wards you to position 1 (LOCK) .
Remove the key from the ignition
switch. Changing the battery
Battery reference: CR1616/3 volts.
Unclip the casing using a coin at the
notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s h o u s i n g .
Slide the new battery into its hous-
ing observing the original direction.
Clip the casing.
Key in ignition
A buzzer sounds on opening the
driver’s door, if the key has been
left in the ignition.
Page 83 of 226
3
i
ACCESS

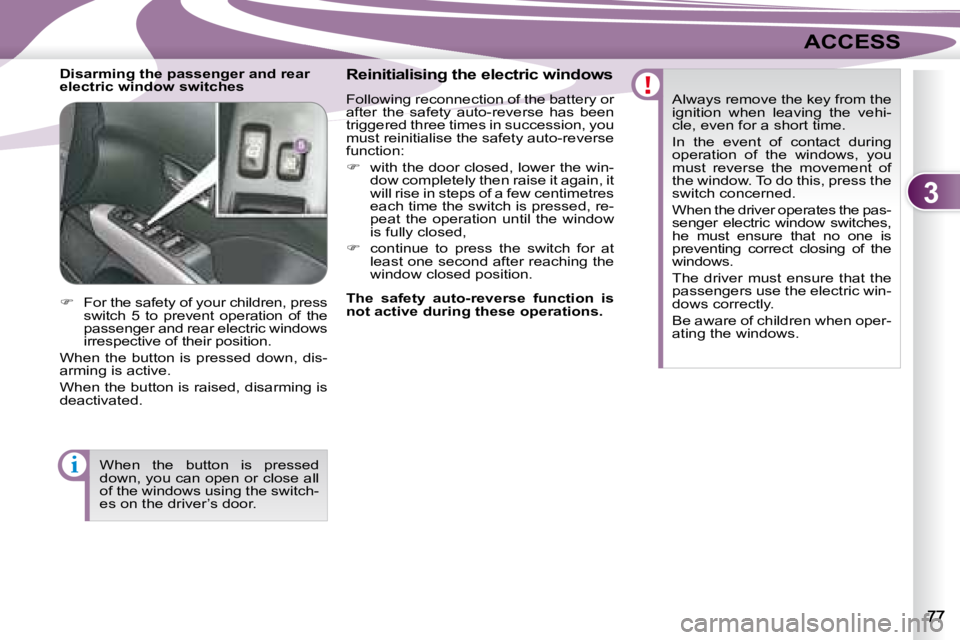

Disarming the passenger and rear
electric window switches Reinitialising the electric windows
Following reconnection of the battery or
after the safety auto-reverse has been
triggered three times in succession, you
must reinitialise the safety auto-reverse
function:
with the door closed, lower the win-
dow completely then raise it again, it
will rise in steps of a few centimetres
each time the switch is pressed, re-
peat the operation until the window
is fully closed,
continue to press the switch for at
least one second after reaching the
window closed position. Always remove the key from the
ignition when leaving the vehi-
cle, even for a short time.
In the event of contact during
operation of the windows, you
must reverse the movement of
the window. To do this, press the
switch concerned.
When the driver operates the pas-
senger electric window switches,
he must ensure that no one is
preventing correct closing of the
windows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when oper-
ating the windows.
For the safety of your children, press
switch 5 to prevent operation of the
passenger and rear electric windows
irrespective of their position.
When the button is pressed down, dis-
arming is active.
When the button is raised, disarming is
deactivated.
When the button is pressed
down, you can open or close all
of the windows using the switch-
es on the driver’s door.
The safety auto-reverse function is
not active during these operations.
Page 86 of 226
3
i
i
ACCESS
Opening
After unlocking the vehicle using the
remote control or the key, press the
handle A and raise the tailgate. Before opening the tailgate, en-
sure that no one is within the ra-
dius of opening.
For reasons of safety and cor-
rect operation, do not drive with
the tailgate open.
If the battery is disconnected,
the tailgate cannot be opened.
Do not climb onto the lower tail-
gate and do not subject it to heavy
knocks, it may be damaged.
Always close the lower tailgate
and check that it is secured cor-
rectly before closing the main
tailgate.
When closing the lower tailgate,
ensure that no person or object
is in the proximity of the moving
parts to avoid any risk of injury
or damage.
Do not open the lower tailgate
w h e n a t o w b a r i s fi t t e d .
"Tailgate open" warning
This warning light comes on on
the instrument panel display when
the tailgate is not closed correctly.
TAILGATE LOWER TAILGATE LOWER TAILGATE
Opening
Push the handle C to the right and
tilt the tailgate D gently.
Closing
Pull the handle B downwards to
guide the tailgate,
release the handle and press the ex-
terior surface of the tailgate gently to
close it. Closing
Raise the tailgate D , push it to close
it, then check that it is secured cor-
rectly. Maximum authorised weight on
the lower tailgate when open:
200 kg .
Page 88 of 226
3
i
i
ACCESS
Opening
After unlocking the vehicle using the
remote control or the key, press the
handle A and raise the tailgate. Before opening the tailgate, en-
sure that no one is within the ra-
dius of opening.
For reasons of safety and cor-
rect operation, do not drive with
the tailgate open.
If the battery is disconnected,
the tailgate cannot be opened.
Do not climb onto the lower tail-
gate and do not subject it to heavy
knocks, it may be damaged.
Always close the lower tailgate
and check that it is secured cor-
rectly before closing the main
tailgate.
When closing the lower tailgate,
ensure that no person or object
is in the proximity of the moving
parts to avoid any risk of injury
or damage.
Do not open the lower tailgate
w h e n a t o w b a r i s fi t t e d .
"Tailgate open" warning
This warning light comes on on
the instrument panel display when
the tailgate is not closed correctly.
TAILGATE LOWER TAILGATE LOWER TAILGATE
Opening
Push the handle C to the right and
tilt the tailgate D gently.
Closing
Pull the handle B downwards to
guide the tailgate,
release the handle and press the ex-
terior surface of the tailgate gently to
close it. Closing
Raise the tailgate D , push it to close
it, then check that it is secured cor-
rectly. Maximum authorised weight on
the lower tailgate when open:
200 kg .
