1
INSTRUMENTS and CONTROLS
Indicator lights is on Cause Observations
Diesel
pre-heating Fixed This comes on when the
ignition switch is at ON. Wait until this light has switched off before
starting.
The duration for which this is displayed is
determined by the exterior climatic conditions.
Warning lights is on Cause Observations
Handbrake/
B r a k e fl u i d level Fixed This comes on for a
few seconds when the
ignition is turned to "ON"
then switches off.
It is accompanied by a message on the
instrument panel display.
The handbrake is
applied or has not been
released fully. It is accompanied by a message on the
instrument panel display. Release the handbrake
to switch off the warning light.
T h e b r a k e fl u i d l e v e l i s
too low. It is accompanied by a message on the
i n s t r u m e n t p a n e l d i s p l a y . T o p u p w i t h b r a k e fl u i d
and contact a PEUGEOT dealer.
Emission
control system Fixed or
fl a s h i n g This comes on or
fl a s h e s i f t h e s y s t e m
fails. Consult a PEUGEOT dealer.
It should switch off a few seconds after starting
the engine.
Battery
charge Fixed This comes on if a
charging circuit fault
occurs. It should switch off when the engine is started.
It is accompanied by a message on the
instrument panel display. Check the battery
terminals (refer to the "Battery" section).
Page 19 of 226
1
INSTRUMENTS and CONTROLS
Warning lights is on Cause Solution - action
Driver’s
seat belt not fastened Fixed The driver has not
fastened or has
unfastened his seat belt. This is accompanied by a message on the
instrument panel display.
Fasten the driver’s seat belt.
ABS Fixed This comes on if an
anti-lock braking system
failure occurs. It is accompanied by a message on the instrument
panel display. The vehicle retains conventional
braking without assistance but you are advised to
stop. Have it checked by a PEUGEOT dealer.
Air bags and
pretensioners Fixed This comes on for a
few seconds when the
ignition is turned to "ON"
then switches off.
It should switch off when the engine is started. If it
does not switch off, contact a PEUGEOT dealer.
This comes on if an air
bag or pretensioner
failure occurs. It is accompanied by a message on the instrument
panel display. Have the system checked by a
PEUGEOT dealer without delay.
Page 20 of 226
1
INSTRUMENTS and CONTROLS
Each time the engine is started: a series of warning lights and/or messages come on applying a checking self test. They
switch off after a few seconds. Engine running: the warning light or the message becomes a warning if it remains on
c o n t i n u o u s l y o r fl a s h e s . T h i s i n i t i a l w a r n i n g m a y b e a c c o m p a n i e d b y a n a u d i b l e s i g n a l a n d a m e s s a g e o n t h e d i s p l a y . D o n o t
ignore these warnings.
W h e n t h e c a u s e o f t h e a p p e a r a n c e o f t h e w a r n i n g l i g h t o r w a r n i n g m e s s a g e h a s b e e n r e c t i fi e d , t h e w a r n i n g d i s a p p e a r s f r o m
t h e d i s p l a y a u t o m a t i c a l l y . I f t h e c a u s e o f t h e w a r n i n g i s n o t r e c t i fi e d , y o u c a n r e t u r n t o t h e p r e v i o u s s c r e e n a t a n y t i m e b y
pressing the INFO button on the fascia.
The symbol "!" is displayed.
To return to the previous screen (with the "!" symbol), you must press the INFO button several times.
INSTRUMENT PANEL DISPLAYS
Warning messages (ignition at "OFF")
You can shut down the warning messages which show these symbol
s in order to move on to the next screen.
To do this, press the INFO button according to the symbol displayed.
Press b r i e fl y . Press and hold .
S y m b o l s w h i c h a p p e a r i n t h e t o p r i g h t c o r n e r o f t h e d i s
p l a y .
Message is on
Associated
w a r n i n g l i g h t
Cause Solution - action Observations
K e y i n
ignition Fixed - The driver’s door
is open and you
have forgotten to
remove the key
from the ignition. Turn the ignition
switch to the LOCK
position and remove
the key.
Only if the engine has
been started.
An intermittent audible
signal is heard.
Lights
l e f t o n Fixed - You have
forgotten to
switch off your
lights. Switch off your lights
by placing the stalk at
OFF.
An intermittent audible
signal is heard.
Page 22 of 226
1
!
INSTRUMENTS and CONTROLS
Message is on
Associated
w a r n i n g l i g h t
Cause Solution - action Observations
Air bags Fixed
Fault in the
air bags or
pretensioners. Consult a PEUGEOT
dealer.
Service Fixed - Problem in one of
the systems which
does not have a
s p e c i fi c m e s s a g e . Stop the vehicle and
contact a PEUGEOT
dealer.
To identify the problem,
contact a PEUGEOT
dealer.
Engine oil
pressure
Fixed - Engine oil
pressure too low
or fault in the oil
circuit. Stop the vehicle and
contact a PEUGEOT
dealer.
Engine oil
level
Fixed - Engine oil level
too low. Stop the vehicle and
check the level using
the dipstick. If there is a lack of oil,
top up the level.
Fuel level
warning
Fixed - The fuel tank
level is low. Fill your fuel tank as
soon as possible.
Fuel circuit Fixed - Fuel circuit fault. Consult a PEUGEOT
dealer.
Accesses
not closed
correctly
Fixed - One of the doors
or the tailgate
is not closed
correctly. Close the door or the
tailgate.
The access concerned
is indicated on the
display.
Page 53 of 226
2
i
COMFORT
Head restraint height adjustment Front armrest
Heated seats adjustment
The adjustment is correct when
t h e t o p o f t h e h e a d r e s t r a i n t i s
a l i g n e d w i t h t h e t o p o f t h e h e a d
o f t h e s e a t e d p e r s o n .
N e v e r d r i v e w i t h t h e r e m o v e d
head restraints in the vehicle as
they could be thrown around the
v e h i c l e o n s h a r p b r a k i n g . T h e y
m u s t b e i n p l a c e a n d a d j u s t e d
c o r r e c t l y .
After installing the head restraint,
check that the height adjustment
b u t t o n i s l o c k e d c o r r e c t l y .
You can move the console housing cov-
e r i n o r d e r t o u s e i t a s a n a r m r e s t .
With the engine running , tilt the but-
t o n t o t h e p o s i t i o n r e q u i r e d .
T h e t e m p e r a t u r e o f t h e s e a t i s r e g u l a t -
e d a u t o m a t i c a l l y .
T h e r e a r e t w o s e t t i n g p o s i t i o n s :
- " H I " : H i g h h e a t i n g
- "LO": Low heating
When the button is in the intermediate
p o s i t i o n , t h e h e a t i n g i s s w i t c h e d o f f .
The indicator lights A comes on when
t h e s y s t e m i s a c t i v a t e d . T o r a i s e t h e h e a d r e s t r a i n t , p u l l i t u p -
w a r d s .
T o l o w e r t h e h e a d r e s t r a i n t , p u s h i t
d o w n w a r d s p r e s s i n g t h e h e i g h t a d j u s t -
m e n t b u t t o n a t t h e s a m e t i m e .
To remove the head restraint, bring it to
t h e u p p e r m o s t p o s i t i o n t h e n r e m o v e i t
p r e s s i n g t h e h e i g h t a d j u s t m e n t b u t t o n
a t t h e s a m e t i m e .
T o r e fi t t h e h e a d r e s t r a i n t , e n g a g e t h e
stems of the head restraint in the holes
p r e s s i n g t h e h e i g h t a d j u s t m e n t b u t t o n
a t t h e s a m e t i m e .
Page 111 of 226
6
SAFETY
101
The ASC/TCL systems offer
exceptional safety in normal
driving, but this should not en-
courage the driver to take extra
risks or drive at high speed.
The correct functioning of these
systems depends on observation
of the manufacturer's recommen-
dations regarding the wheels (tyres
and rims), the braking components,
the electronic components and the
PEUGEOT assembly and opera-
tion procedures
.
After an impact, have these sys-
tems checked by a PEUGEOT
dealer.
Disarming
In exceptional conditions (starting a
vehicle which is bogged down, stuck
in snow, on soft ground, ...), it may be
advisable to disarm the ASC system,
so that the wheels can move freely and
regain grip.
Press the "ASC OFF" button, locat-
ed to the right of the steering wheel,
until the ASC OFF symbol appears
on the instrument panel display.
The displaying of this symbol in the
top right corner of the instrument panel
display indicates that the ASC and TCL
systems are disarmed. Reactivation
These systems are not reactivated au-
tomatically above 30 mph (50 km/h).
Press the "ASC OFF" button again
to reactivate them manually.
The switching off of the symbol in the
top right corner of the instrument panel
display indicates the reactivation of the
ASC and TCL systems.
Operating fault
The displaying of this mes-
sage on the instrument
panel display indicates
a malfunction of these
systems.
Contact a PEUGEOT dealer to have
the ASC/TCL systems checked.
SYSTEMS
Activation
These systems are activated automati-
cally each time the vehicle is started.
They operate when the vehicle speed is
higher than 10 mph (15 km/h).
Anti-skid regulation and
electronic stability programme
The anti-skid regulation optimises trac-
tion to prevent skidding of the wheels,
by acting on the brakes of the driving
wheels and on the engine.
The electronic stability programme acts
on the brake of one or more wheels and
on the engine to keep the vehicle on the
trajectory required by the driver.
They come into operation in
the event of a grip or trajectory
problem.
T h i s i s i n d i c a t e d b y fl a s h i n g
of this symbol on the instrument panel
display.
Associated systems which guarantee
the directional stability of the vehicle
within the limits of the laws of physics:
- the anti-skid regulation (TCL),
- the electronic stability programme (ASC).

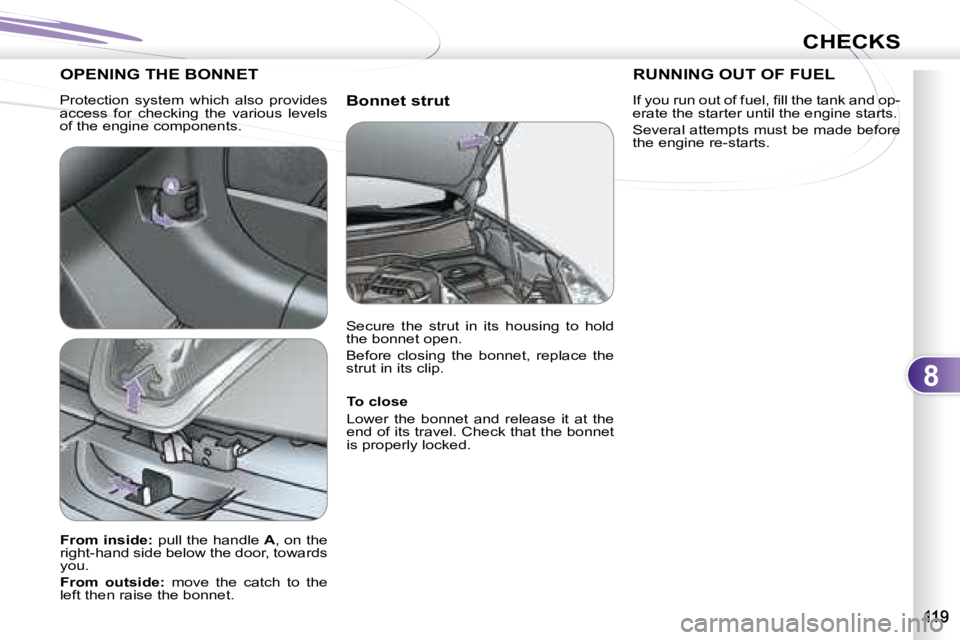

Page 130 of 226
8
CHECKS
Bonnet strut
OPENING THE BONNET
To close
Lower the bonnet and release it at the
end of its travel. Check that the bonnet
is properly locked.
From inside: pull the handle A , on the
right-hand side below the door, towards
you.
From outside: move the catch to the
left then raise the bonnet. Secure the strut in its housing to hold
the bonnet open.
Before closing the bonnet, replace the
strut in its clip.
RUNNING OUT OF FUEL
Protection system which also provides
access for checking the various levels
of the engine components.
I f y o u r u n o u t o f f u e l , fi l l t h e t a n k a n d o p -
erate the starter until the engine starts.
Several attempts must be made before
the engine re-starts.
Page 131 of 226
8
CHECKS
PETROL ENGINE PETROL ENGINE
1. Wash-wipe and headlamp wash
reservoir.
2. Coolant reservoir.
3. P o w e r s t e e r i n g fl u i d r e s e r v o i r .
4. B r a k e fl u i d r e s e r v o i r .
5. Fuse box.
6. Battery.
7. "CVT" gearbox gauge.
8. Radiator cap.
9. Dipstick.
10. E n g i n e o i l fi l l e r c a p .
11. A i r fi l t e r .
T h i s a l l o w s y o u a c c e s s t o c h e c k t h e l e v e l o f t h e v a r i o u s fl u i d s a
n d r e p l a c e c e r t a i n c o m p o n e n t s .
