2
COMFORT

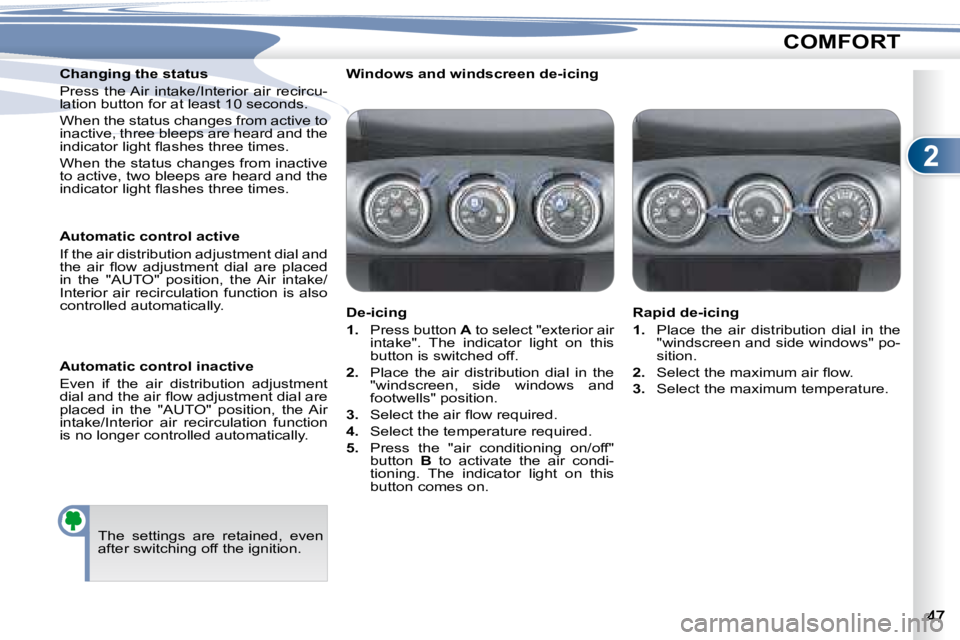

Windows and windscreen de-icing Rapid de-icing

1. Place the air distribution dial in the
"windscreen and side windows" po-
sition.

2. Select the maximum air fl ow.

3. Select the maximum temperature.
De-icing

1. Press button A to select "exterior air
intake". The indicator light on this
button is switched off.

2. Place the air distribution dial in the
"windscreen, side windows and
footwells" position.

3. Select the air fl ow required.

4. Select the temperature required.

5. Press the "air conditioning on/off"
button B to activate the air condi-
tioning. The indicator light on this
button comes on.
Changing the status
Press the Air intake/Interior air recircu-
lation button for at least 10 seconds.
When the status changes from active to
inactive, three bleeps are heard and the
indicator light fl ashes three times.
When the status changes from inactive
to active, two bleeps are heard and the
indicator light fl ashes three times.
Automatic control active
If the air distribution adjustment dial and
the air fl ow adjustment dial are placed
in the "AUTO" position, the Air intake/
Interior air recirculation function is also
controlled automatically.
Automatic control inactive
Even if the air distribution adjustment
dial and the air fl ow adjustment dial are
placed in the "AUTO" position, the Air
intake/Interior air recirculation function
is no longer controlled automatically.
The settings are retained, even
after switching off the ignition.

2
COMFORT
Windows and windscreen de-icing Rapid de-icing

1. Place the air distribution dial in the
"windscreen and side windows" po-
sition.

2. Select the maximum air fl ow.

3. Select the maximum temperature.
De-icing

1. Press button A to select "exterior air
intake". The indicator light on this
button is switched off.

2. Place the air distribution dial in the
"windscreen, side windows and
footwells" position.

3. Select the air fl ow required.

4. Select the temperature required.

5. Press the "air conditioning on/off"
button B to activate the air condi-
tioning. The indicator light on this
button comes on.
Changing the status
Press the Air intake/Interior air recircu-
lation button for at least 10 seconds.
When the status changes from active to
inactive, three bleeps are heard and the
indicator light fl ashes three times.
When the status changes from inactive
to active, two bleeps are heard and the
indicator light fl ashes three times.
Automatic control active
If the air distribution adjustment dial and
the air fl ow adjustment dial are placed
in the "AUTO" position, the Air intake/
Interior air recirculation function is also
controlled automatically.
Automatic control inactive
Even if the air distribution adjustment
dial and the air fl ow adjustment dial are
placed in the "AUTO" position, the Air
intake/Interior air recirculation function
is no longer controlled automatically.
The settings are retained, even
after switching off the ignition.

2
COMFORT
FRONT SEATS
Manual mode
Forwards-backwards adjustment
Raise the control bar and slide the seat
forwards or backwards.
When your seat is at the correct dis-
tance, move it forwards and backwards
slightly without using the control bar to
check that it is secured correctly. Driver’s seat cushion height and
angle adjustment
Pull and/or push the control several
times to adjust the height of the seat.
Seat back angle adjustment
Pull the control upwards to adjust the
seat back.
When the seat back is at the correct an-
gle, release the control.
To prevent the seat back from
moving forward sharply and
knocking you, press on it with
your back or push it with your
hand while operating the lever.
Seat consisting of a seat cushion, seat
back and head restraint which can all
be adjusted to your optimum driving
and comfort position.

2
i
COMFORT
Electric mode (driver’s seat only)
Forwards-backwards adjustment
Push the control forwards or rearwards to
move the seat to the position required.
Driver’s seat cushion height and
angle adjustment
Pull or push the front of the control to raise
or lower the front of the seat cushion.
Pull or push the rear of the control to raise
or lower the rear of the seat cushion.
Pull or push the entire control to raise or
lower the entire seat cushion. Seat back angle adjustment
Tilt the control forwards or rearwards to
straighten or tilt the seat back.
FRONT SEATS FRONT SEATS
Seat consisting of a seat cushion, seat
back and head restraint which can all
be adjusted to your optimum driving
and comfort position.
To avoid discharging the battery,
use the electric mode with the
engine running.

2
i
COMFORT
Head restraint height adjustment Front armrest
Heated seats adjustment
The adjustment is correct when
the top of the head restraint is
aligned with the top of the head
of the seated person.
Never drive with the removed
head restraints in the vehicle as
they could be thrown around the
vehicle on sharp braking. They
must be in place and adjusted
correctly.
After installing the head restraint,
check that the height adjustment
button is locked correctly.
You can move the console housing cov-
er in order to use it as an armrest.

With the engine running , tilt the but-
ton to the position required.
The temperature of the seat is regulat-
ed automatically.
There are two setting positions:
- "HI": High heating
- "LO": Low heating
When the button is in the intermediate
position, the heating is switched off.
The indicator lights A comes on when
the system is activated. To raise the head restraint, pull it up-
wards.
To lower the head restraint, push it
downwards pressing the height adjust-
ment button at the same time.
To remove the head restraint, bring it to
the uppermost position then remove it
pressing the height adjustment button
at the same time.
To refi t the head restraint, engage the
stems of the head restraint in the holes
pressing the height adjustment button
at the same time.

2
COMFORT
REAR SEATS (ROW 2) REAR SEATS (ROW 2)
Seat back angle adjustment
Pull the control and adjust.
When the seat back is at the correct
angle, release the control.
Sit in the centre of the rear bench seat
to check that the two seats are at the
same level and that the angle of their
seat backs is the same.
Forwards-backwards adjustment
Pull the control towards the outside and
adjust.
When your seat is at the correct dis-
tance, release the control.
To ensure that the seat is secured cor-
rectly, move it forwards and backwards
slightly without using the control. When manoeuvring the seats,
ensure that no person or object
is in the vicinity of the moving
parts to avoid any risk of injury
or damage.
To prevent the seat back from
moving forwards sharply and
knocking you, press on it with
your back or push it with your
hand while operating the lever.
The rear seats can be folded in two
parts (1/3 - 2/3).

2
COMFORT
Rear armrest
Lower the armrest to use it.
To return to the initial confi guration,
push the armrest until it locks in its ver-
tical position. Access to the third row
The passenger gains access to the
third row of seats by tilting a second
row seat.
To put this seat back in place, refer to
the following pages.

2
COMFORT

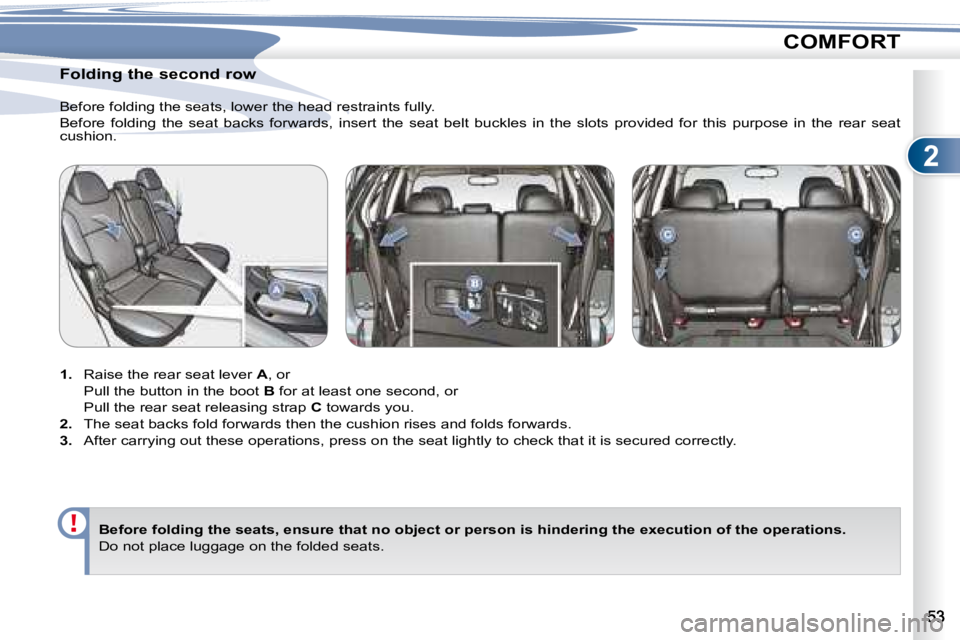

Folding the second row

1. Raise the rear seat lever A , or
Pull the button in the boot B for at least one second, or
Pull the rear seat releasing strap C towards you.

2. The seat backs fold forwards then the cushion rises and folds forwards.

3. After carrying out these operations, press on the seat lightly to check that it is secured correctly.
Before folding the seats, lower the head restraints fully.
Before folding the seat backs forwards, insert the seat belt b
uckles in the slots provided for this purpose in the rear seat
cushion.

Before
folding
the
seats
,
ensure that no object
or person is hindering
the execution of the operations.
Do not place luggage on the folded seats.
