1
i
i
INSTRUMENTS and CONTROLS
When the vehicle is sta-
t i o n a r y , it allows the user
to change the following
parameters:
-
the choice of the reini-
tialisation of the average
consumption and aver-
age speed,
- the fuel consumption unit,
- the temperature display unit,
- the display language,
- activation/deactivation of the INFO
button sound,
-
the break (rest) reminder display interval,
-
restore the manufacturer’s parameters.
FUNCTION PARAMETERS FUNCTION PARAMETERS
System which provides access to cer-
tain function parameters.
In order to change the settings,
it is essential that you stop
the vehicle and switch on the
ignition.
Apply the handbrake and place
the gear lever in neutral.
When the vehicle is moving ,
the functions setting display is
not displayed when you press
the INFO button.
With the ignition on , press the INFO
button on the fascia, to the right of
the instrument panel, several times in
succession until the "SETTING MENU"
screen is displayed. O p e r a t i o n
press and hold the INFO button for
a few seconds to display the menus
screen. Press and hold the
INFO button
for a few seconds to return to
the previous screen.
When the menus screen is
displayed, if no operation is
carried out within 15 seconds,
the function parameters screen
is displayed.
on the menus screen, press the
INFO button to select a function
from the list:
MENU
1/2
:
- 1 - 2 (choice of the reinitialisation of
the average consumption and aver-
age speed),
- UNIT (choice of the fuel consump-
tion units),
- choice of the t e m p e r a t u r e d i s p l a y
unit ,
- LANGUAGE (choice of the display
language),
MENU
2 / 2 :
- a/b (choice of displaying a different
language on the instrument panel
display and the navigation display),
- a c t i v a t i o n / d e a c t i v a t i o n o f t h e
INFO
button sound ,
- ALERT (changing of the "BREAK
ADVISED "break reminder display
interval),
- REINITIALISE (restore the manu-
facturer’s parameters). C h o i c e o f t h e r e i n i t i a l i s a t i o n o f
t h e a v e r a g e c o n s u m p t i o n a n d
a v e r a g e s p e e d
You can choose between two average
consumption and average speed reini-
tialisation modes:
- automatic reinitialisation (
choice 1) ,
- manual reinitialisation (choice 2) .
On the menus screen:
press the INFO button to select:
press and hold the INFO button for
a few seconds to switch in succes-
sion from reinitialisation mode 1
(automatic) to reinitialisation mode
2 (manual) .
T h e m o d e s e l e c t e d i s c o n fi r m e d .
Page 128 of 226
7
i
i
DRIVING
REVERSING CAMERA REVERSING CAMERA
Linked with the navigation option, a re-
versing camera is activated automatically
when reverse gear is engaged.
The colour visual return is provided on
the navigation display with indication of
the limit of the rear bumper and of the
general direction of the vehicle.
Operating fault
If an operating fault occurs, the indicator
light on button
A fl a s h e s w h e n r e v e r s e
gear is engaged.
Consult a PEUGEOT dealer.
In bad weather or in winter, check
that the sensors are not covered
with mud, ice or snow.
Deactivation
With reverse gear engaged, press
button A , the indicator light switches
off, the system is fully deactivated.
Reactivation
With reverse gear engaged, press
button A again, the indicator light
comes on, the system is reactivated.
M o d i fi c a t i o n o f t h e d e t e c t i o n z o n e s
Press button A to deactivate the system.
Press button A again for a few seconds
and release it.
T h e d e t e c t i o n z o n e m o d i fi c a t i o n i n f o r -
mation is indicated by an audible signal
which:
- is heard twice o n v e h i c l e s fi t t e d w i t h
a towbar,
- is heard once on vehicles which are
n o t fi t t e d w i t h a t o w b a r .
The red line indicates the distance
required to open the lower tailgate.
Page 129 of 226
7
i
i
DRIVING
REVERSING CAMERA REVERSING CAMERA
Linked with the navigation option, a re-
versing camera is activated automatically
when reverse gear is engaged.
The colour visual return is provided on
the navigation display with indication of
the limit of the rear bumper and of the
general direction of the vehicle.
Operating fault
If an operating fault occurs, the indicator
light on button
A fl a s h e s w h e n r e v e r s e
gear is engaged.
Consult a PEUGEOT dealer.
In bad weather or in winter, check
that the sensors are not covered
with mud, ice or snow.
Deactivation
With reverse gear engaged, press
button A , the indicator light switches
off, the system is fully deactivated.
Reactivation
With reverse gear engaged, press
button A again, the indicator light
comes on, the system is reactivated.
M o d i fi c a t i o n o f t h e d e t e c t i o n z o n e s
Press button A to deactivate the system.
Press button A again for a few seconds
and release it.
T h e d e t e c t i o n z o n e m o d i fi c a t i o n i n f o r -
mation is indicated by an audible signal
which:
- is heard twice o n v e h i c l e s fi t t e d w i t h
a towbar,
- is heard once on vehicles which are
n o t fi t t e d w i t h a t o w b a r .
The red line indicates the distance
required to open the lower tailgate.
Page 155 of 226
9
i
i
PRACTICAL INFORMATION
The batteries contain harmful
substances such as sulphuric
acid and lead. They must be
disposed of in accordance with
regulations and must not, in any
circumstances, be discarded
with household waste.
Take used remote control bat-
teries and vehicle batteries to a
special collection point.
Charging the battery using a
battery charger
Disconnect the battery from the ve-
hicle.
Remove the battery and place it in a
ventilated area.
Remove the top-up caps and top
up the level with distilled water if
necessary.
Connect the battery to the charger
observing the instructions for use
provided by the manufacturer and
start charging.
Disconnect the battery from the
charger and let it to cool.
If necessary, top up the level with
distilled water.
Clean the top of the battery care-
fully.
Put the top-up caps back in place.
Check that the terminals and con-
nectors are clean. If they are covered
with sulphate (whitish or greenish de-
posit), remove them and clean them.
Reconnect the battery starting with
the positive terminal (+). It is advisable to disconnect the
battery if the vehicle is to be
left unused for more than one
month.
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries with-
out disconnecting the terminals
fi r s t . Following reconnection of the
battery
Following reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to permit initialisation
of the electronic systems. However, if
s l i g h t d i f fi c u l t i e s a r e e n c o u n t e r e d f o l l o w -
ing this operation, contact a PEUGEOT
dealer.
Referring to the corresponding section,
you must yourself reinitialise:
- the one-touch electric windows,
- the sunroof,
- the satellite navigation system.
Avoid prolonged contact of the
electrolyte with the skin.
M o s t o f t h e s e fl u i d s a r e h a r m f u l
to health and very corrosive. When charging the battery, it is
normal to observe an increase
in temperature and bubbling of
the electrolyte.
Before disconnecting the battery
Wait 2 minutes after switching off the ig-
nition before disconnecting the battery.
Close the windows, the sunroof, the
doors and the tailgate before discon-
necting the battery.
Page 160 of 226
9
i
i
PRACTICAL INFORMATION
T h e fi t t i n g o f e l e c t r i c a l e q u i p -
ment or accessories which are
not recommended by PEUGEOT
may result in a failure of your ve-
hicle’s electronic system.
P l e a s e n o t e t h i s s p e c i fi c w a r n i n g .
You are advised to contact a rep-
resentative of the Marque to be
shown the range of recommend-
ed equipment and accessories.
ACCESSORIES ACCESSORIES
"Protection": "Touring":
"In-car technology": "Styling":
"Universal":
* To prevent any risk of jamming of the pedals:
- ensure that the mat is positioned and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r . Depending on the country in
which the vehicle is sold, it is com-
pulsory to have a safety jacket,
warning triangle and spare bulbs
available in the vehicle.
anti-theft alarm, window en-
g r a v i n g , w h e e l l o c k s , fi r s t a i d
kit, warning triangle, safety
jacket, stolen vehicle tracking
system, anti-skid envelopes,
t y r e u n d e r - i n fl a t i o n d e t e c t i o n ,
rear parking assistance. mats * , boot tray, dog guard,
P V C d o o r s i l l s , c o o l b o x .
For leisure pursuits: roof bars,
bicycle carrier on roof bars,
s k i c a r r i e r , r o o f b o x , b o o s t e r
seats and child seats, side
blinds.
T r a i l e r t o w b a r w h i c h m u s t b e fi t t e d b y
the PEUGEOT network.
MP3/USB audio systems,
a u d i o - t e l e p h o n e , a m p l i fi e r s ,
satellite navigation systems,
hands-free kit, speakers, DVD
player, connection kit for MP3
player or portable CD play-
er, rear parking assistance,
alarm. d o o r d e fl e c t o r s , r e a r s t y l i n g
strips, 18 inch alloy wheels,
c h r o m e d e x t e r i o r m i r r o r s h e l l s ,
chromed door handle shells,
diffuser on rear bumper, side
protection mouldings, alumin-
ium boot sill.
s c r e e n w a s h , i n t e r i o r a n d e x -
terior maintenance and clean-
ing products.
It is advisable to contact a
PEUGEOT dealer before install-
ing accessory radiocommunica-
t i o n t r a n s m i t t e r s w i t h a n e x t e r n a l
aerial on your vehicle.
The PEUGEOT network will
p r o v i d e t h e s p e c i fi c a t i o n s ( f r e -
q u e n c y b a n d , m a x i m u m o u t p u t
power, aerial position, special
installation conditions) of the
t r a n s m i t t e r s w h i c h c a n b e fi t t e d ,
in accordance with the Motor Ve-
hicle Electromagnetic Compat-
ibility Directive (2004/104/EC).
You can obtain a wide range of ac-
cessories and original parts from the
PEUGEOT network.
These accessories and parts have
been tested and approved for reliability
and safety.
They are all adapted to your vehicle
a n d b e n e fi t f r o m P E U G E O T ’ s r e c o m -
mendation and warranty.
The product range offered by PEUGEOT
Accessories is structured around
5 categories: PROTECTION - TOURING - IN-CAR TECHNOLOGY - STYLING -
UNIVERSAL.
Page 182 of 226
11
i
AUDIO EQUIPMENT and TELEMATICS
YOUR AUDIO-TELEMATICS SYSTEM YOUR AUDIO-TELEMATICS SYSTEM
This consists of the following components:
- a tilting 7’’ LCD colour touch screen,
- a GPS aerial located in your fascia,
- a radio aerial located at the rear, on the roof of the vehicle,
- 4 to 6 speakers (according to version),
- controls around the screen and at the steering wheel plu s touch buttons on the screen according to the display,
- a voice synthesiser (male or female) giving the directions duri ng navigation.
GPS aerial
It allows you to:
- b e g u i d e d t o t h e d e s t i n a t i o n o f y o u r c h o i c e ( E u r o p e a n m a p o n 3 0 G b h a r d d i s c ) t a k i n g t r a f fi c c o n d i t i o n s i n t o a c c o u n t ,
- listen to the radio,
- l i s t e n t o a u d i o C D s ( C D D A , C D - T e x t , C D - R / R W ) o r C D s w i t h M P 3 a n d W M A fi l e s ,
- copy audio CDs to a music server, up to 2,500 songs (coded i n MP3/WMA) on 10 Gb available on the hard disc,
- play DVDs (playing of video if the vehicle is stationary),
- make hands-free telephone calls.
For maintenance of the display, we recommend the use of a n on-abrasive soft cloth (spectacles cloth) without any
additional products.
Page 183 of 226

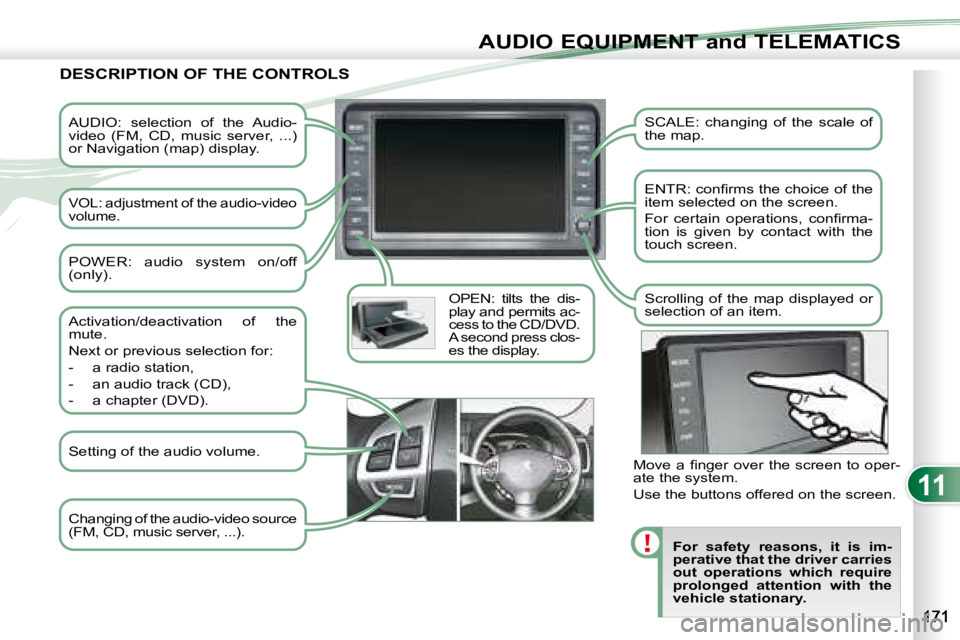

11
AUDIO EQUIPMENT and TELEMATICS
AUDIO: selection of the Audio-
video (FM, CD, music server, ...)
or Navigation (map) display.
VOL: adjustment of the audio-video
volume. OPEN: tilts the dis-
play and permits ac-
cess to the CD/DVD.
A second press clos-
es the display. SCALE: changing of the scale of
the map.
E N T R : c o n fi r m s t h e c h o i c e o f t h e
item selected on the screen.
F o r c e r t a i n o p e r a t i o n s , c o n fi r m a -
tion is given by contact with the
touch screen.
Scrolling of the map displayed or
selection of an item.
For safety reasons, it is im-
perative that the driver carries
out operations which require
prolonged attention with the
vehicle stationary.
DESCRIPTION OF THE CONTROLS
Changing of the audio-video source
(FM, CD, music server, ...).
Activation/deactivation of the
mute.
Next or previous selection for:
- a radio station,
- an audio track (CD),
- a chapter (DVD).
M o v e a fi n g e r o v e r t h e s c r e e n t o o p e r -
ate the system.
Use the buttons offered on the screen.
POWER: audio system on/off
(only).
Setting of the audio volume.
Page 185 of 226
11
AUDIO EQUIPMENT and TELEMATICS
NAVIGATION-GUIDANCE
What is the navigation system and
the GPS?
The satellite navigation system guides
the driver to the destination that he has
set in accordance with a chosen route.
Initially, it searches for the destination
required by the user, then it calculates
t h e r o u t e a n d fi n a l l y i t p r o v i d e s t h e v i s u a l
and audible guidance instructions. What precautions should be
observed in order to use the system
under good conditions?
Do not place anything on or near the
GPS aerial.
Do not use any digital communication
equipment (personal computers, etc.)
near the GPS aerial.
D o n o t a f fi x a n y r e fl e c t i v e fi l m s o r fi l m s
containing carbon to the window.
The GPS (Global Positioning
System) consists of several
satellites distributed around
the earth. They continuously
transmit digital signals which
travel at the speed of light, on 2 different
frequencies.
At any given time, the system receives
its position in relation to the satellites
detected and the time of transmission
of the signal.
This enables the telematic unit to de-
duce its position and therefore that of
the vehicle.
A repositioning process using the map
database stored on the hard disc permits
repositioning of the vehicle’s position on
the road network in order to improve the
accuracy of the locating function. What is a point of interest (POI)?
Up to 40 different icons may
be displayed (refer to the
section "Points of interest
icon").
T h e y a r e c l a s s i fi e d i n 5 g r o u p s a n d
i d e n t i fi e d b y o n e c o l o u r f o r e a c h g r o u p :
- S h o p s , fi n a n c e a n d b u s i n e s s e s (Green),
- Vehicles and travel (Dark blue),
- Restaurants (Orange),
- Public places and emergency services (Brown),
- Entertainment and attractions (Blue).
GPS
The system’s measurements may be
inaccurate if the vehicle is:
- in a tunnel or underground car park,
- underneath a two-level motorway,
- in an area with several very high buildings,
- surrounded by closely planted trees.
Depending on the vehicle’s situation and
the reception of the GPS information,
the displayed information may disappear
from the display temporarily. A point of interest (POI) is
represented by an icon on
the map, it represents an
airport, a station, a town
hall, ...
