FAMILIARISATION
10
INSTRUMENTS AND CONTROLS
1. Steering lock and ignition.
2. Exterior mirror controls.
Electric window and rear electric
window deactivation controls.
3. Lights and direction indicators
controls. Headlamp wash control.
4. Central adjustable and closing
vents.
5. Sunshine sensor.
6. Upper glove box with air
conditioning.
7. Lower glove box with lock.
Passenger air bag disarming.
Fuse box.
8. Heated seat controls.
9. Armrest with storage
compartments.
12 volt socket (120 W max).
10. Cup holder.
11. Four wheel drive system position
selector.
12. Removable ashtray/Lighter/
12 volt socket (120 W max).
13. Automatic air conditioning controls.
14. Temperature sensor.
15. Hazard warning lights switch.
16. Colour display/Audio equipment.

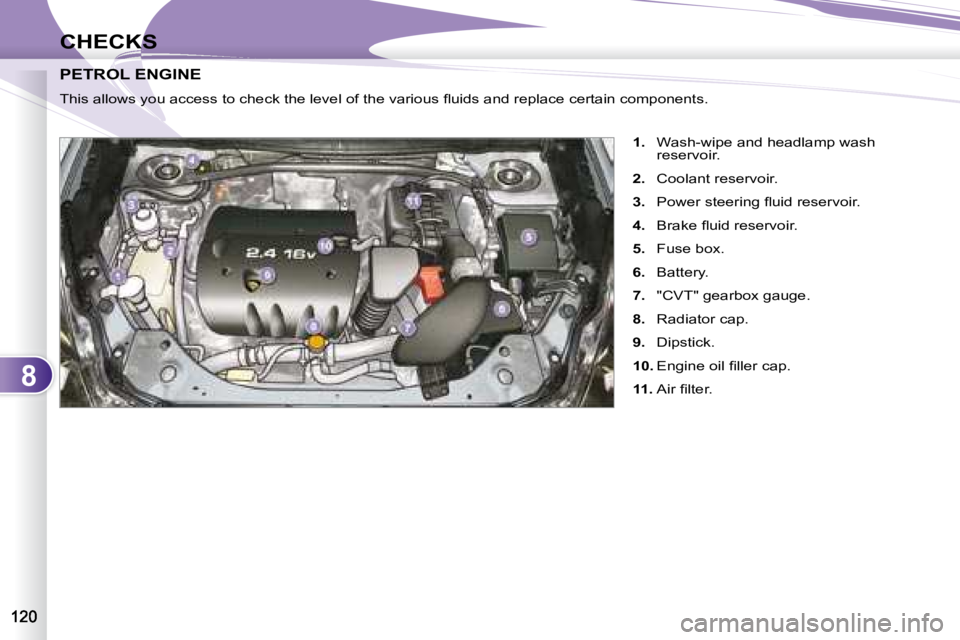

Page 131 of 226
8
CHECKS
PETROL ENGINE PETROL ENGINE
1. Wash-wipe and headlamp wash
reservoir.
2. Coolant reservoir.
3. P o w e r s t e e r i n g fl u i d r e s e r v o i r .
4. B r a k e fl u i d r e s e r v o i r .
5. Fuse box.
6. Battery.
7. "CVT" gearbox gauge.
8. Radiator cap.
9. Dipstick.
10. E n g i n e o i l fi l l e r c a p .
11. A i r fi l t e r .
T h i s a l l o w s y o u a c c e s s t o c h e c k t h e l e v e l o f t h e v a r i o u s fl u i d s a
n d r e p l a c e c e r t a i n c o m p o n e n t s .
Page 132 of 226
8
CHECKS
DIESEL ENGINE
T h i s a l l o w s y o u a c c e s s t o c h e c k t h e l e v e l o f t h e v a r i o u s fl u i d s a n d r e p l a c e c e r t a i n c o m p o n e n t s .
1. Coolant reservoir.
2. P o w e r s t e e r i n g fl u i d r e s e r v o i r .
3. Wash-wipe and headlamp wash
reservoir.
4. B r a k e fl u i d r e s e r v o i r .
5. Fuse box.
6. Battery.
7. Dipstick.
8. E n g i n e o i l fi l l e r c a p .
9. A i r fi l t e r .

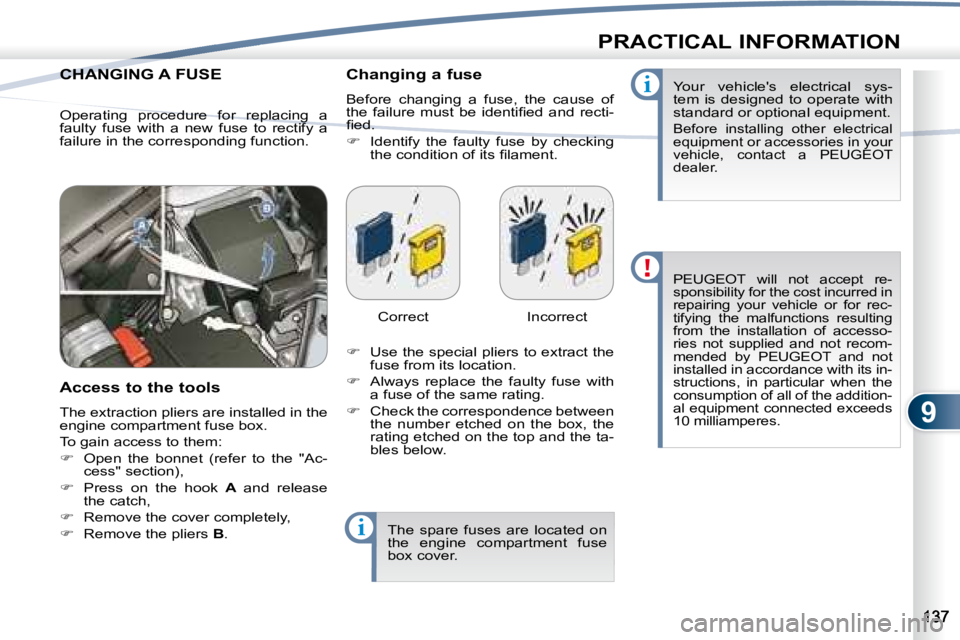

Page 149 of 226
9
i
i
PRACTICAL INFORMATION
CHANGING A FUSE CHANGING
Access to the tools
T h e e x t r a c t i o n p l i e r s a r e i n s t a l l e d i n t h e
e n g i n e c o m p a r t m e n t f u s e b o x .
To gain access to them:
Open the bonnet (refer to the "Ac-
cess" section),
Press on the hook A and release
the catch,
Remove the cover completely,
Remove the pliers B .
PEUGEOT will not accept re-
sponsibility for the cost incurred in
repairing your vehicle or for rec-
tifying the malfunctions resulting
from the installation of accesso-
ries not supplied and not recom-
mended by PEUGEOT and not
installed in accordance with its in-
structions, in particular when the
consumption of all of the addition-
a l e q u i p m e n t c o n n e c t e d e x c e e d s
10 milliamperes.
Your vehicle's electrical sys-
tem is designed to operate with
standard or optional equipment.
Before installing other electrical
equipment or accessories in your
vehicle, contact a PEUGEOT
dealer.
Changing a fuse
Before changing a fuse, the cause of
t h e f a i l u r e m u s t b e i d e n t i fi e d a n d r e c t i -
fi e d .
Identify the faulty fuse by checking
t h e c o n d i t i o n o f i t s fi l a m e n t .
U s e t h e s p e c i a l p l i e r s t o e x t r a c t t h e
fuse from its location.
Always replace the faulty fuse with
a fuse of the same rating.
Check the correspondence between
t h e n u m b e r e t c h e d o n t h e b o x , t h e
rating etched on the top and the ta-
bles below. Correct
Incorrect
The spare fuses are located on
the engine compartment fuse
b o x c o v e r .
Operating procedure for replacing a
faulty fuse with a new fuse to rectify a
failure in the corresponding function.
Page 150 of 226
9
PRACTICAL INFORMATION
Fascia fuses
T h e f u s e b o x e s a r e p l a c e d i n t h e l o w e r
p a r t o f t h e f a s c i a b e h i n d t h e g l o v e b o x .
Access to the fuses
O p e n t h e g l o v e b o x ,
Push the two opening guides A in-
w a r d s t o p a s s t h e fi r s t n o t c h ,
Remove the retaining tab B pulling
it outwards,
Support the cover and tilt it downwards,
Change the fuse (refer to the cor-
responding paragraph).
Fuse N° Rating Functions
1 * 30 A Heating.
2 15 A Brake lights, third brake light, built-in systems
interface.
3 10 A Rear fog lamps.
4 30 A Windscreen wipers and wash-wipe.
5 10 A Diagnostic socket.
6 20 A C e n t r a l l o c k i n g , e x t e r i o r m i r r o r s .
7 15 A Audio equipment, telematics, multifunction display,
hands-free kit, rear DVD player.
8 7.5 A Remote control key, air conditioning control unit,
instrument panel, controls bar, steering wheel
controls.
9 15 A Multifunction display, instrument panel.
10 15 A Built-in systems interface.
11 15 A Rear wiper.
12 7.5 A Instrument panel, 4 wheel drive control unit, air
conditioning control panel, ABS control unit,
multifunction display, automatic headlamp
adjustment, heated seats, air bags control unit,
steering wheel angle sensor, sunroof, rear screen
demisting, remote control.
13 - Not used.
14 10 A Ignition switch.
15 20 A Sunroof.
16 10 A E x t e r i o r m i r r o r s , a u d i o e q u i p m e n t , t e l e m a t i c s ,
rear DVD player.

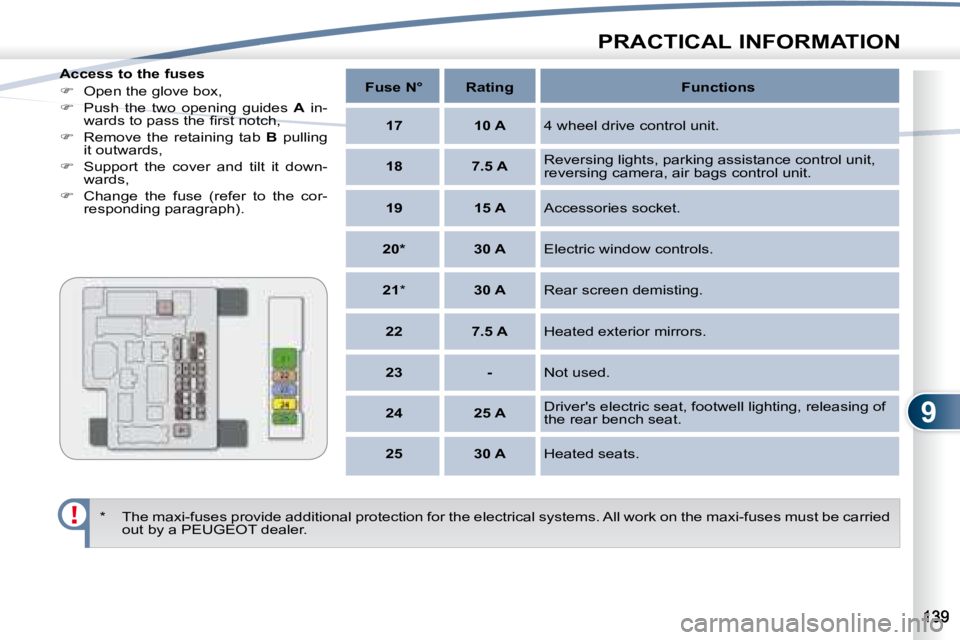

Page 151 of 226
9
PRACTICAL INFORMATION
Access to the fuses
O p e n t h e g l o v e b o x ,
Push the two opening guides A in-
w a r d s t o p a s s t h e fi r s t n o t c h ,
Remove the retaining tab B pulling
it outwards,
Support the cover and tilt it down-
wards,
Change the fuse (refer to the cor-
responding paragraph).
* T h e m a x i - f u s e s p r o v i d e a d d i t i o n a l p r o t e c t i o n f o r t h e e l e c t r i c a l s y s t e m s . A l l w o r k o n t h e m a x i - f u s e s m u s t b e c a r r i e d
out by a PEUGEOT dealer.
Fuse N° Rating Functions
17 10 A 4 wheel drive control unit.
18 7.5 A Reversing lights, parking assistance control unit,
reversing camera, air bags control unit.
19 15 A Accessories socket.
20* 30 A Electric window controls.
21 * 30 A Rear screen demisting.
22 7.5 A H e a t e d e x t e r i o r m i r r o r s .
23 - Not used.
24 25 A Driver's electric seat, footwell lighting, releasing of
the rear bench seat.
25 30 A Heated seats.

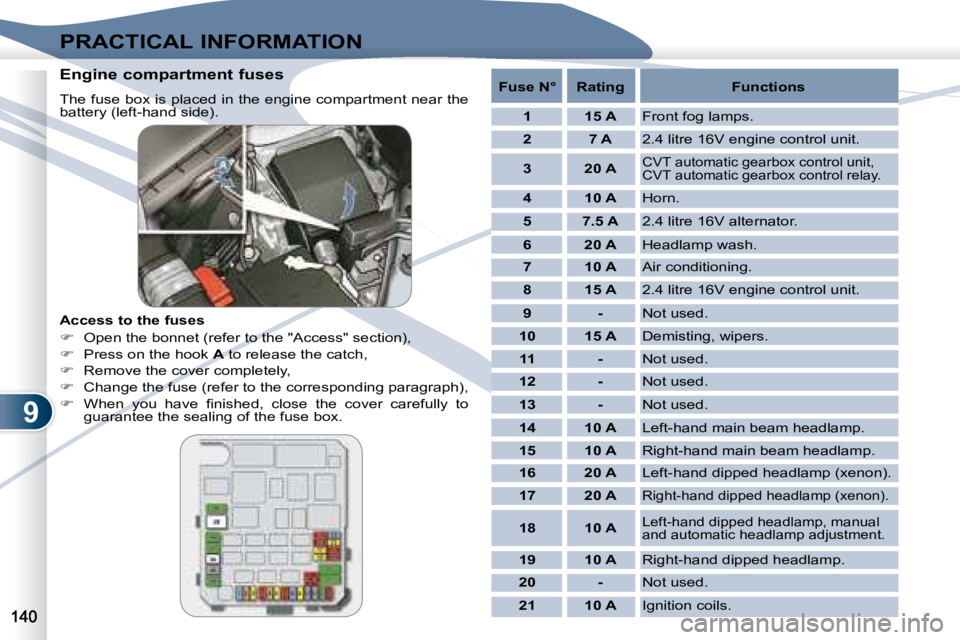

Page 152 of 226
9
PRACTICAL INFORMATION
Engine compartment fuses
T h e f u s e b o x i s p l a c e d i n t h e e n g i n e c o m p a r t m e n t n e a r t h e
battery (left-hand side).
Access to the fuses
Open the bonnet (refer to the "Access" section),
Press on the hook A to release the catch,
Remove the cover completely,
Change the fuse (refer to the corresponding paragraph),
W h e n y o u h a v e fi n i s h e d , c l o s e t h e c o v e r c a r e f u l l y t o
g u a r a n t e e t h e s e a l i n g o f t h e f u s e b o x .
Fuse N° Rating Functions
1 15 A Front fog lamps.
2 7 A 2.4 litre 16V engine control unit.
3 20 A
C V T a u t o m a t i c g e a r b o x c o n t r o l u n i t ,
C V T a u t o m a t i c g e a r b o x c o n t r o l r e l a y .
4 10 A Horn.
5 7.5 A 2.4 litre 16V alternator.
6 20 A Headlamp wash.
7 10 A Air conditioning.
8 15 A 2.4 litre 16V engine control unit.
9 - Not used.
10 15 A Demisting, wipers.
11 - Not used.
12 - Not used.
13 - Not used.
14 10 A Left-hand main beam headlamp.
15 10 A Right-hand main beam headlamp.
16 20 A L e f t - h a n d d i p p e d h e a d l a m p ( x e n o n ) .
17 20 A
R i g h t - h a n d d i p p e d h e a d l a m p ( x e n o n ) .
18 10 A Left-hand dipped headlamp, manual
and automatic headlamp adjustment.
19 10 A Right-hand dipped headlamp.
20 - Not used.
21 10 A Ignition coils.
Page 153 of 226
9
i
PRACTICAL INFORMATION
Spare fuses
The spare fuses are located under the engine compartment
f u s e b o x c o v e r . The cover does not contain spare fuses with an am-
perage of 7.5 A, 25 A or 30 A. If one of the fuses with
these amperages develops a fault, replace it with the
following fuse:
A 7.5 A fuse must be replaced with the 10 A spare
fuse , a 25 A fuse with a 20 A spare fuse and a 30 A
fuse with the audio system fuse (N° 31) .
* T h e m a x i - f u s e s p r o v i d e a d d i t i o n a l p r o t e c t i o n f o r t h e e l
e c t r i c a l s y s t e m s . A l l w o r k o n t h e m a x i - f u s e s m u s t b e c a r r i e d
out by a PEUGEOT dealer.
Fuse N° Rating
Functions
22 20 A E n g i n e c o n t r o l u n i t , w a t e r i n d i e s e l d e t e c t o r , i n j e c t i o n
p u m p ( D i e s e l ) , a i r fl o w s e n s o r , w a t e r
p r e s e n c e s e n s o r s , o x y g e n s e n s o r , c a m s h a f t p o s i t i o n s e n s o r , p u r g e c a n i s t e r s o l e n o i d v a l v e ,
vehicle speed sensor, variable timing (VTC) solenoid valve, EGR so lenoid valve.
23 15 A Petrol pump, fuel gauge.
24 * 30 A Starter.
25 - Not used.
26 * 40 A ABS control unit, ASC control unit.
27* 30 A ABS control unit, ASC control unit.
28 * 30 A Condenser fan.
29 * 40 A Radiator fan.
30 30 A P a s s e n g e r c o m p a r t m e n t f u s e b o x .
31 30 A A u d i o a m p l i fi e r .
32 30 A Diesel engine control unit.
Fuse N° Rating
33 10 A
34 15 A
35 20 A
