2008 PEUGEOT 4007 Owners Manual

11
AUDIO EQUIPMENT and TELEMATICS

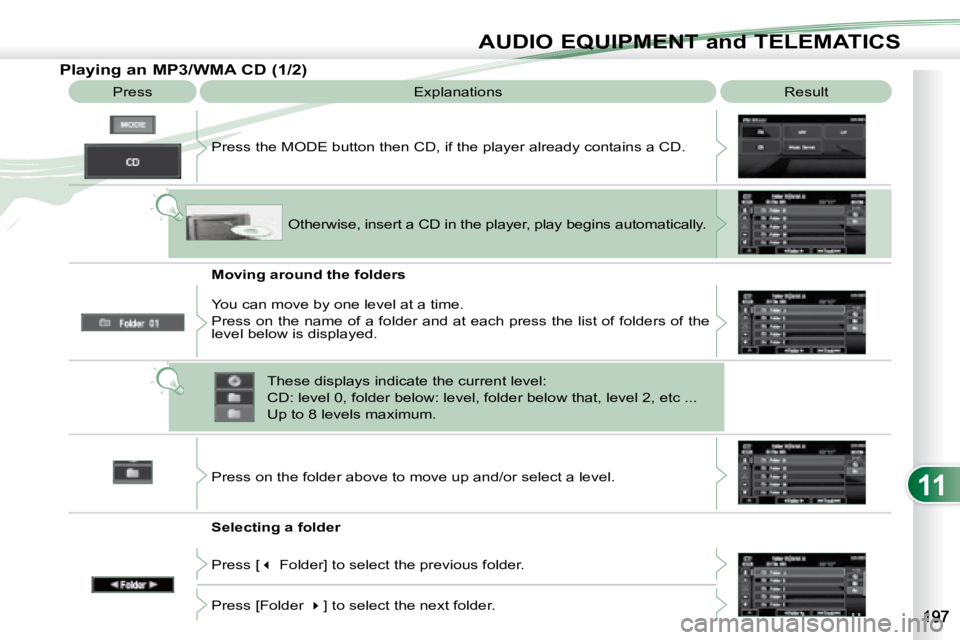

Playing an MP3/WMA CD (1/2) Press Explanations Result
Press the MODE button then CD, if the player already contains a CD.
Moving around the folders
Selecting a folder Otherwise, insert a CD in the player, play begins
automatically.
You can move by one level at a time.
Press on the name of a folder and at each press the list of f olders of the
level below is displayed.
Press on the folder above to move up and/or select a level.
Press [  Folder] to select the previous folder.
Press [Folder  ] to select the next folder.
These displays indicate the current level:
CD: level 0, folder below: level, folder below that, l
evel 2, etc ...
Up to 8 levels maximum.

11
AUDIO EQUIPMENT and TELEMATICS
Changing the playing mode
Press [
 Track] to select the previous track or return to the beginning of
the track currently being played.
Press and hold for fast backwards play.
Selecting a track
Press [Track
 ] to select the next track.
Press and hold for fast forwards play.
Press [Repeat] to play the track selected in a loop (repetitio n).
Press [Repeat] again to play all of the tracks in the selecte d folder in a
loop.
Press again to stop.
Press [Scan] to play the beginning of each track in each folde r for approxi-
mately 10 seconds (scanning).
Press [Scan] again the play the beginning of each track in th e selected
folder in a loop.
Press again to stop or press on the current track (during the 10 seco nds)
and play begins.
Press [Random] to play all of the tracks in the selected folde r in random
order.
Press [Random] again to play all of the tracks on the CD in random order.
Press again to stop.
Press [^] to access the secondary menu.
Press
Explanations Result

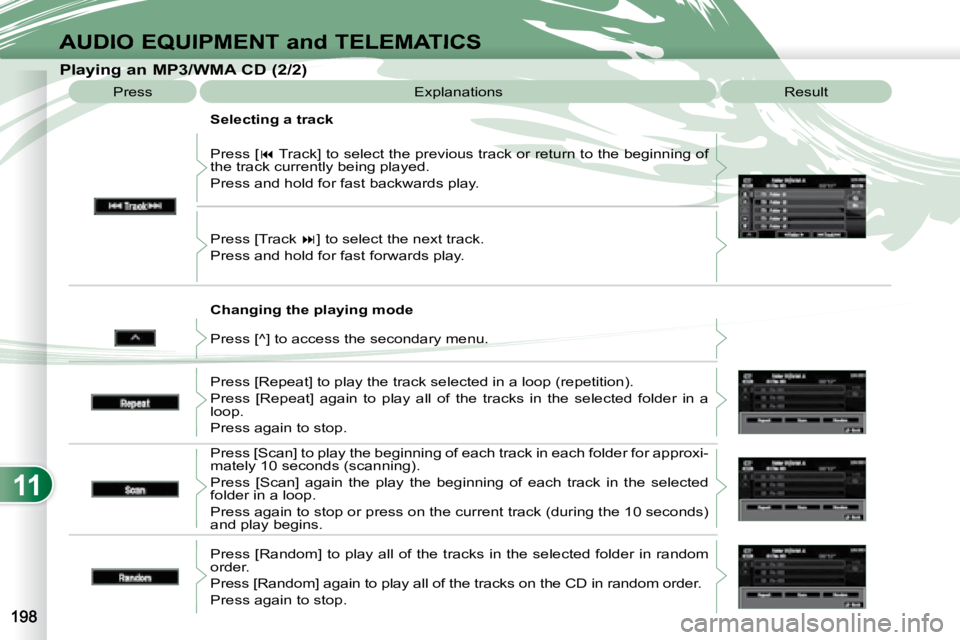

Playing an MP3/WMA CD (2/2)

11
ABCDE
FGHIJ
KLM
RQPON
AUDIO EQUIPMENT and TELEMATICS

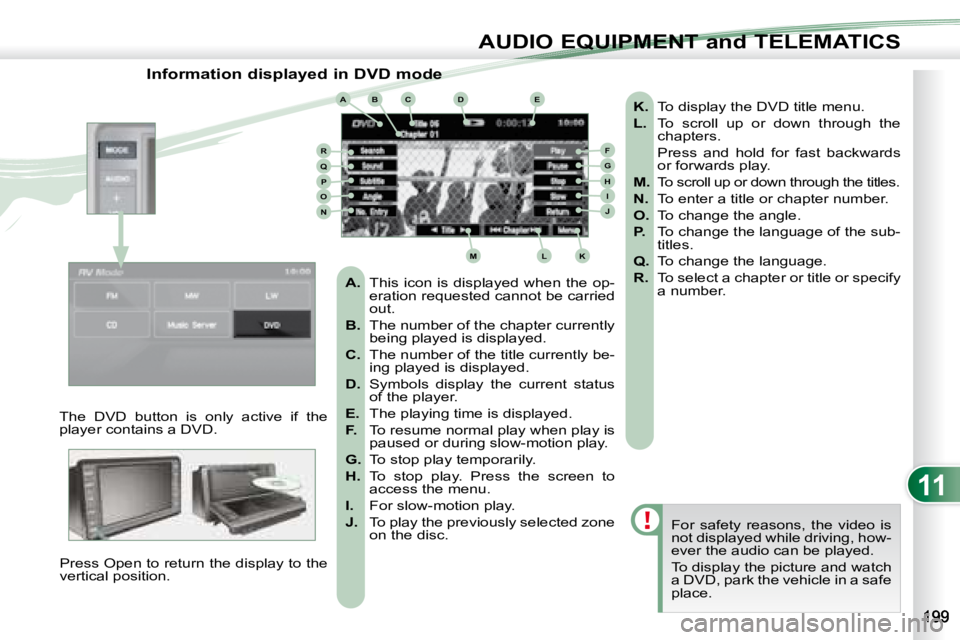

Information displayed in DVD mode
The DVD button is only active if the
player contains a DVD. Press Open to return the display to the
vertical position. For safety reasons, the video is
not displayed while driving, how-
ever the audio can be played.
To display the picture and watch
a DVD, park the vehicle in a safe
place.

K. To display the DVD title menu.

L. To scroll up or down through the
chapters.
Press and hold for fast backwards or forwards play.

M. To scroll up or down through the titles.

N. To enter a title or chapter number.

O. To change the angle.

P. To change the language of the sub-
titles.

Q. To change the language.

R. To select a chapter or title or specify
a number.

A. This icon is displayed when the op-
eration requested cannot be carried
out.

B. The number of the chapter currently
being played is displayed.

C. The number of the title currently be-
ing played is displayed.

D. Symbols display the current status
of the player.

E. The playing time is displayed.

F. To resume normal play when play is
paused or during slow-motion play.

G. To stop play temporarily.

H. To stop play. Press the screen to
access the menu.

I. For slow-motion play.

J. To play the previously selected zone
on the disc.

11
AUDIO EQUIPMENT and TELEMATICS

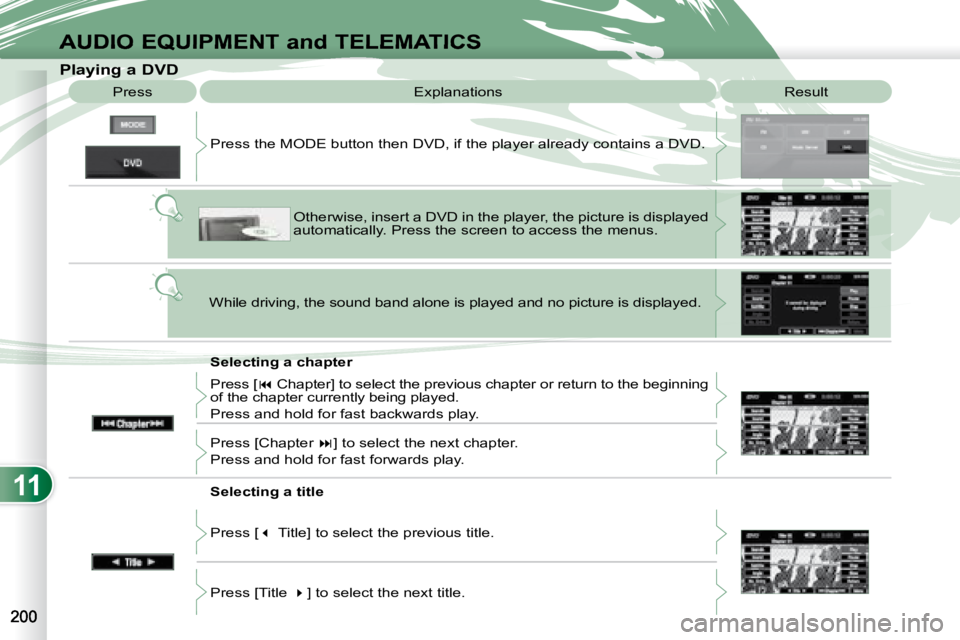

Playing a DVD Result
Explanations
Selecting a chapter
Press the MODE button then DVD, if the player already contains
a DVD.
Otherwise, insert a DVD in the player, the picture is displa yed
automatically. Press the screen to access the menus.
While driving, the sound band alone is played and no picture is displayed.
Press [  Chapter] to select the previous chapter or return to the beginning
of the chapter currently being played.
Press and hold for fast backwards play.
Press [Chapter  ] to select the next chapter.
Press and hold for fast forwards play.
Selecting a title
Press [  Title] to select the previous title.
Press [Title  ] to select the next title.
Press

11
ABCB1B2
B3
C1C2C3C4C5
AUDIO EQUIPMENT and TELEMATICS
A - Choose to switch off the display. To switch it back on, touch the screen or press any button.
B - Choose the settings of the sound in the vehicle, if an audio source is
selected (FM, CD, ...), for:
B1 - the sound distribution or the vol- ume such as the front-rear bal-
ance, the bass, the medium, the
treble, the volume adjustment in
relation to the vehicle speed,
B2 - the type of music (with surround option) such as classic, jazz, pop,
rock, hip hop, country, normal, ...
B3 - the sound fi eld (with surround option) such as stage, live, hall,
normal, ...
C - Choose the quality of the picture for:
C1 - the colour (when playing DVDs),
C2 - the intensity of the colours (when playing DVDs),
C3 - the brightness,
C4 - the contrast,
C5 - the level of black.

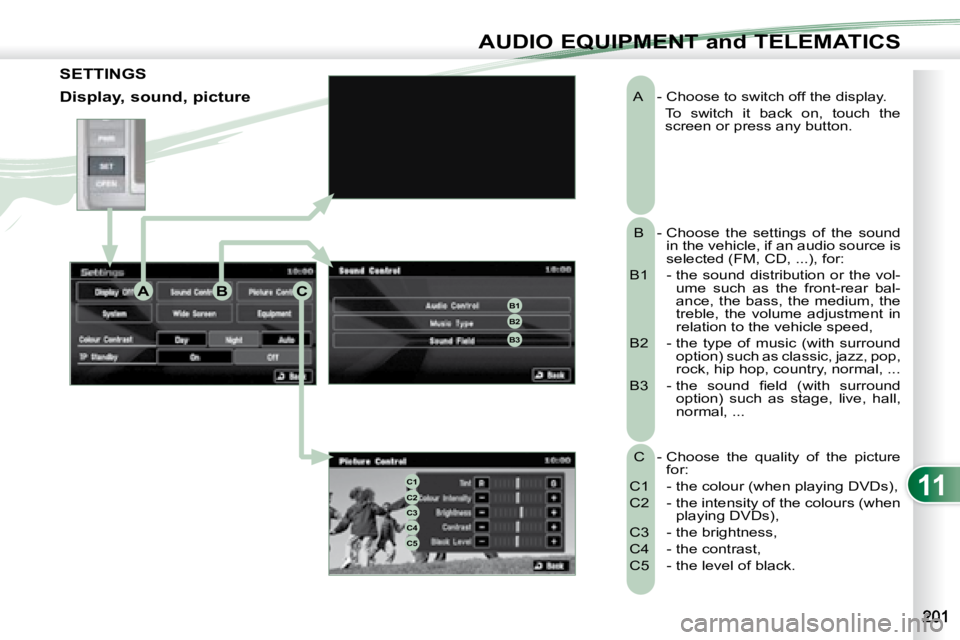

SETTINGS
Display, sound, picture

11
DE
E1E2E3E4
D1D2
D3D4
AUDIO EQUIPMENT and TELEMATICS
Time and date, language, unit,
picture size
E - Choose the size of the DVD picture for:
E1 - normal 4/3,
E2 - extends the picture evenly to the right and to the left in wide screen mode,
E3 - extends the right and left parts only leaving the centre as it stands in
wide screen mode,
E4 -
enlarges the picture in 4/3 format. The top
and the bottom are outside the frame.
D - Choose the base settings of the sys- tem for:
D1 - setting of the time by the RDS signal, time zone, summer time,
D2 - the language (English, Français, Deutsch, Nederlands, Portuguese,
Español, Svenska, Italiano, Dansk),
D3 - the units for calculation of the dis- tances (km or miles and °C or °F),
D4 - other settings such as:
- the voice guidance volume,
- the type of voice guidance voice (female or male),
- the volume of the operation bleeps (1 to 3 and 0 = no bleep),
- the type of inputting keypad (alphabet or PC),
- the range of menu colours (red or blue),
- the displaying or not of the audio playing icons on the map screen,
- the reinitialisation of the vehicle sensor,
- the interruption or not of the display when the air conditioning is used.

11
H
G
F
F1
F2
F3
AUDIO EQUIPMENT and TELEMATICS

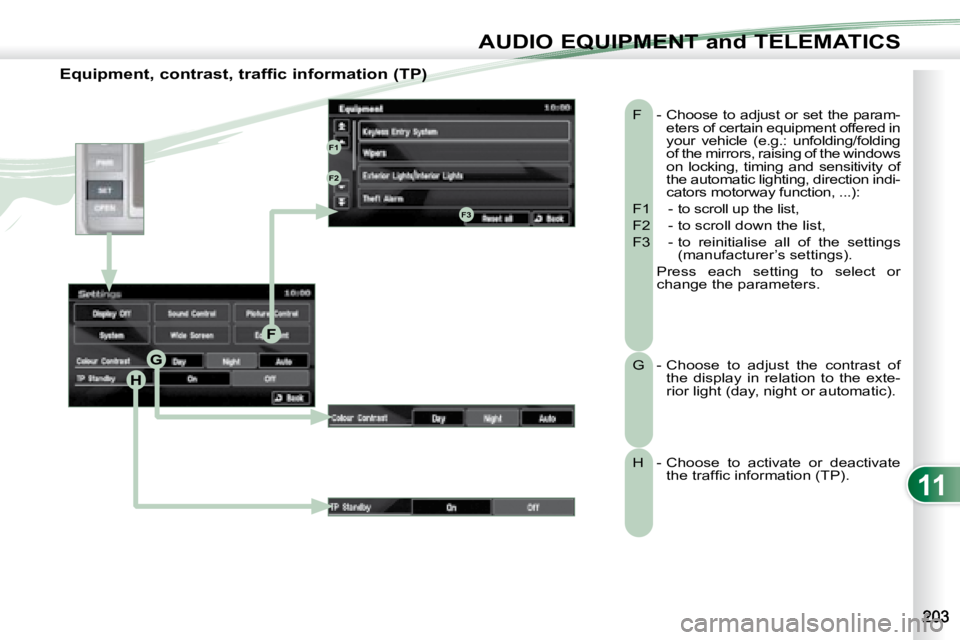

Equipment, contrast, traffic information (TP) F - Choose to adjust or set the param-eters of certain equipment offered in
your vehicle (e.g.: unfolding/folding
of the mirrors, raising of the windows
on locking, timing and sensitivity of
the automatic lighting, direction indi-
cators motorway function, ...):
F1 - to scroll up the list,
F2 - to scroll down the list,
F3 - to reinitialise all of the settings (manufacturer’s settings).
Press each setting to select or change the parameters.
G - Choose to adjust the contrast of the display in relation to the exte-
rior light (day, night or automatic).
H - Choose to activate or deactivate the traffi c information (TP).

11
AB
A2A1
A3
B1B2
B3B4
B5B6B7B8
AUDIO EQUIPMENT and TELEMATICS

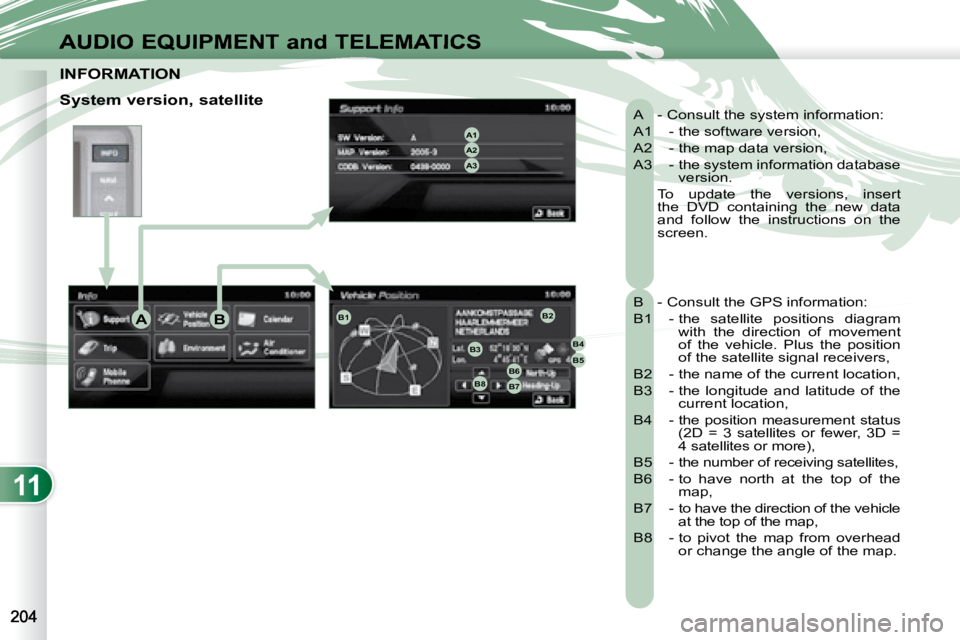

INFORMATION INFORMATION
A - Consult the system information:
A1 - the software version,
A2 - the map data version,
A3 - the system information database version.
To update the versions, insert the DVD containing the new data
and follow the instructions on the
screen.
B - Consult the GPS information:
B1 - the satellite positions diagram with the direction of movement
of the vehicle. Plus the position
of the satellite signal receivers,
B2 - the name of the current location,
B3 - the longitude and latitude of the current location,
B4 - the position measurement status (2D = 3 satellites or fewer, 3D =
4 satellites or more),
B5 - the number of receiving satellites,
B6 - to have north at the top of the map,
B7 - to have the direction of the vehicle at the top of the map,
B8 - to pivot the map from overhead or change the angle of the map.
System version, satellite
