2008 PEUGEOT 4007 bluetooth

11
i
G
EFF1F2
F3F4
F5
F6
E1
E2
E3
G1G2
G3
AUDIO EQUIPMENT and TELEMATICS
F - Consult the air conditioning con-ditions:
F1 - the fan speed indicator,
F2 - the air selection indicator,
F3 - the windscreen demisting indicator light,
F4 - the air conditioning indicator,
F5 - the rear screen demisting indicator light,
F6 - the AUTO mode indicator.
E - Consult the environment infor-
mation:
E1 - the altitude,
E2 - the atmospheric pressure,
E3 - the exterior temperature. The ice symbol fl ashes if there is a risk of
ice.
G - Make and receive telephone calls:
G1 - enter the telephone number,
G2 - delete a character,
G3 - make the call. Refer to the hands-free tele-
phone section to connect your
Bluetooth ®
mobile telephone.
Environment, air conditioning,
telephone

11
AUDIO EQUIPMENT and TELEMATICS

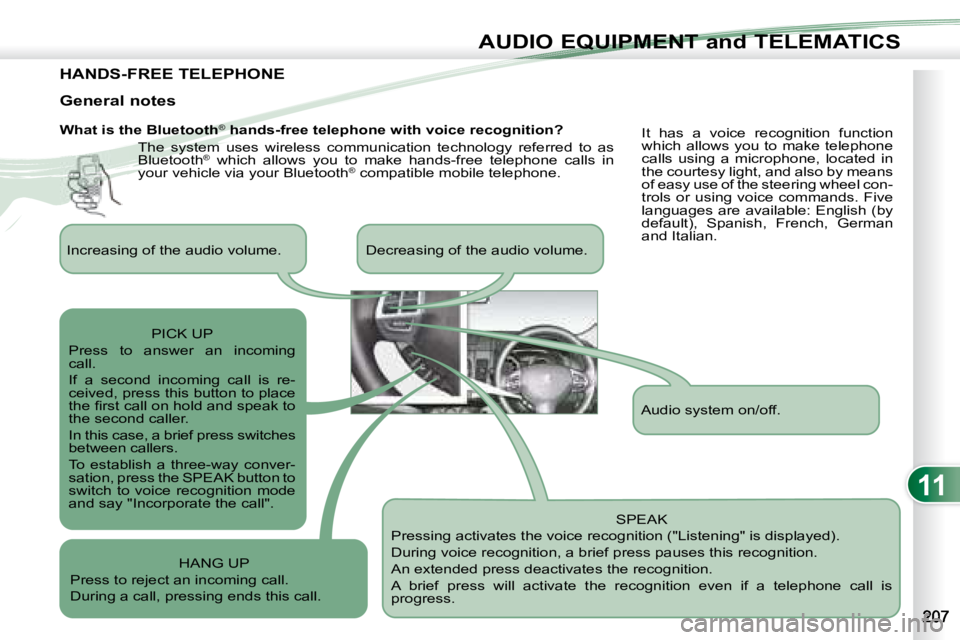

HANDS-FREE TELEPHONE
What is the Bluetooth®
hands-free telephone with voice recognition?
The system uses wireless communication technology referred to as
Bluetooth ®
which allows you to make hands-free telephone calls in
your vehicle via your Bluetooth ®
compatible mobile telephone.
SPEAK
Pressing activates the voice recognition ("Listening" is displayed).
During voice recognition, a brief press pauses this recognition.
An extended press deactivates the recognition.
A brief press will activate the recognition even if a telep hone call is
progress.
General notes
It has a voice recognition function
which allows you to make telephone
calls using a microphone, located in
the courtesy light, and also by means
of easy use of the steering wheel con-
trols or using voice commands. Five
languages are available: English (by
default), Spanish, French, German
and Italian.
Audio system on/off.
Increasing of the audio volume. Decreasing of the audio vo
lume.
PICK UP
Press to answer an incoming
call.
If a second incoming call is re-
ceived, press this button to place
the fi rst call on hold and speak to
the second caller.
In this case, a brief press switches
between callers.
To establish a three-way conver-
sation, press the SPEAK button to
switch to voice recognition mode
and say "Incorporate the call".
HANG UP
Press to reject an incoming call.
During a call, pressing ends this call.

11
i
i
AUDIO EQUIPMENT and TELEMATICS
Matching your Bluetooth®

telephone
The system can register up to 7 Blue-
tooth ®
compatible mobile telephones.
The telephone which has the highest
level of priority is matched automati-
cally.
It is absolutely essential that the vehicle
is parked in a safe place with the hand-
brake applied.
1 - Press the SPEAK button. 7 - Say a 4-digit number which will
be recorded as the matching
code. 12 - After the audible signal, allocate
a name to the telephone
by saying the name of your
choice.
13 - The system says "Allocate an order of priority between 1 and 7. One is
the highest level of priority".
If the system does not detect the
Bluetooth ®
compatible mobile
telephone, the matching proc-
ess stops accompanied by an
audible signal.
If you select a level of priority
which has already been allo-
cated to another telephone, the
system asks you if you wish to
replace this level of priority.
You can choose any 4-digit
number.
Remember this matching code as
you must enter it in the telephone
in one of the following steps of the
matching procedure.
9 - The system says "Start the matching
procedure on the telephone. Consult
the instructions in the telephone
manual".
2 - Say "Confi gure".
3 - Say "Matching options".
5 - Say "Match a telephone". 8 - The system confi rms the validity
of the number spoken, answer
"Yes". Say "No" to return to
step 7.
10 - Consult your mobile telephone’s user manual
and enter the matching
code recorded in step 7
in the telephone.
11 - When it detects a Bluetooth ®

compatible mobile telephone, the
system says "Please say the name
of the telephone after the bleep". 14 - Say a number between 1
and 7 to establish the level
of priority of the mobile
telephone.
15 - The system says and confi rms the and the
of its priority.
16 - Answer "Yes" or say "No" to return to step 13.
17 - The systems says "Matching complete" then emits an
audible signal and deactivates
the voice recognition.
4 - The system says "Do you wish to match a telephone, delete a
telephone or obtain the list of
matched telephones?".
6 - The systems says "Please say the 4 digits of a matching code".

11
i
AUDIO EQUIPMENT and TELEMATICS
Making a telephone call using a number, phone book
A Bluetooth® compatible mobile telephone
must be matched with the system.
Using a telephone number
If your vehicle is fi tted with the
audio-telematics display, you
can use the press buttons to dial
a number then make a call. Recording a name in the system’s
phone book
The system has its own phone book,
independent of that of the mobile tele-
phone.
It can contain up to 32 names for each
language.
Each name in the phone book is asso-
ciated with 4 locations: HOME, WORK,
MOBILE and PAGER.
1 - Press the SPEAK button. 7 - The system says "HOME, WORK,
MOBILE OR PAGER".
2 - Day "Dial".
4 - Say the telephone number.
5 - The system asks you to confi rm this number, answer "Yes". Say
"No" to return to the previous
step. 2 - Say "Phone book".
4 - Say "New entry".
6 - Say the name of your choice. 8 - Say the location which
corresponds to the number
that you wish to record.
10 - Answer "Yes" or say "No" to return to step 7.
12 - If you do not wish to change the telephone number, repeat
the original number to retain
it, otherwise say the new
number.
14 - Answer "Yes" or say "No" to return to step 11.
1 - Press the SPEAK button.
3 - The system says "Number please".
3 - The system says "Select one of the following items: New Entry, Change,
List of names, Delete or Clear all,
or say Cancel to return to the main
menu".
5 - The system says "Name please".
To enter a new number: 9 - The system asks you to confi rm the
location.
11 - If a telephone number has already been recorded for this location, the
system says "The current number
is , number please".
13 - The system asks you to confi rm the number.
