2008 NISSAN TEANA sensor

EXL-190
< ON-VEHICLE REPAIR >[XENON TYPE]
AUTO LEVELIZER CONTROL UNIT
AUTO LEVELIZER CONTROL UNIT
Exploded ViewINFOID:0000000003774377
Removal and InstallationINFOID:0000000003774378
Removal
1. Remove the auto levelizer control unit bolt.
2. Remove the sensor lever link bracket bolt.
3. Disconnect the auto levelizer control unit connector.
4. Remove the auto levelizer control unit.
Installation
Install in the reverse order of removal.
CAUTION:
 Be sure to perform sensor initialization if auto levelizer control unit is removed. Refer to EXL-10,
"SENSOR INITIALIZE : Special Repair Requirement (HEADLAMP AIMING CONTROL SYSTEM)".
 Be sure to perform “WRITE CONFIGURATION” with CONSULT-III when replacing the auto levelizer
control unit. Refer to EXL-9, "
CONFIGURATION (HEADLAMP LEVELIZER) : Special Repair Require-
ment".
1. Auto levelizer control unit
A. Auto levelizer control unit bolt B. Sensor lever link bracket bolt
JPLIA1147ZZ

EXL-202
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
AUTO LIGHT SYSTEM
AUTO LIGHT SYSTEM
System DiagramINFOID:0000000003894281
System DescriptionINFOID:0000000003894282
OUTLINE
 Auto light system is controlled by each function of BCM and IPDM E/R.
Control by BCM- Combination switch reading function
- Headlamp control function
- Auto light function
- Delay timer function
Control by IPDM E/R- Relay control function
 Auto light system has the auto light function and the delay timer function.
- Auto light function turns the exterior lamps* and each illumination ON/OFF automatically according to the
outside brightness.
- When auto light system turns the exterior lamps ON with the ignition switch OFF, delay timer function turns
the exterior lamps OFF depending on the vehicle condition with the auto light function after a certain period
of time.
*: Headlamp (LO/HI), parking lamp, tail lamp and front fog lamp (Headlamp HI and front fog lamp depend on
the combination switch condition.)
AUTO LIGHT FUNCTION
 BCM detects the combination switch condition with the combination switch reading function.
 BCM supplies voltage to optical sensor when the ignition switch is turned ON or ACC.
 Optical sensor converts outside brightness (lux) to voltage and transmits the optical sensor signal to BCM.
 BCM judges outside brightness from the optical sensor signal and judges ON/OFF condition of the exterior
lamp and each illumination according to the outside brightness.
 BCM transmits each request signal to IPDM E/R with CAN communication according to ON/OFF condition
by the auto light function.
NOTE:
ON/OFF timing differs based on the sensitivity from the setting. The setting can be set by CONSULT-III. Refer
to EXL-215, "
HEADLAMP : CONSULT-III Function (BCM - HEAD LAMP)".
DELAY TIMER FUNCTION
BCM turns the exterior lamp OFF depending on the vehicle condition with the auto light function when the igni-
tion switch is turned OFF.
 Turns the exterior lamp OFF 5 minutes after detecting that any door opens (Door switch ON).
 Turns the exterior lamp OFF a certain period of time* after closing all doors (Door switch ON→OFF).
JPLIA0804GB

AUTO LIGHT SYSTEM
EXL-203
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
 Turns the exterior lamp OFF with the ignition switch ACC or the light switch OFF.
*: The preset time is 45 seconds. The timer operating time can be set by CONSULT-III. Refer to EXL-215,
"HEADLAMP : CONSULT-III Function (BCM - HEAD LAMP)".
NOTE:
When any position other than the light switch AUTO is set, the auto light system function switches to the exte-
rior lamp battery saver function.

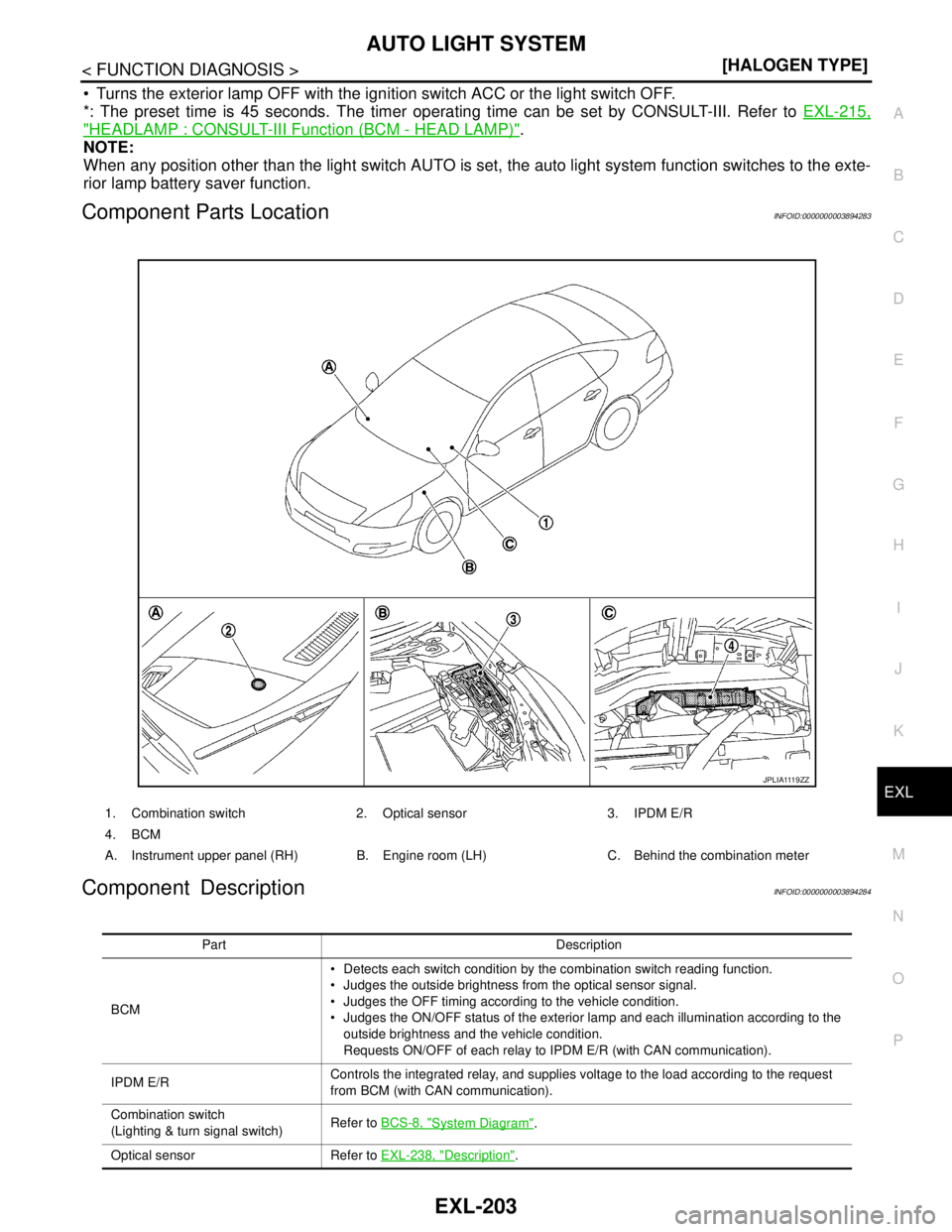

Component Parts LocationINFOID:0000000003894283
Component DescriptionINFOID:0000000003894284
1. Combination switch 2. Optical sensor 3. IPDM E/R
4. BCM
A. Instrument upper panel (RH) B. Engine room (LH) C. Behind the combination meter
J P L I A 111 9 Z Z
Part Description
BCM Detects each switch condition by the combination switch reading function.
 Judges the outside brightness from the optical sensor signal.
 Judges the OFF timing according to the vehicle condition.
 Judges the ON/OFF status of the exterior lamp and each illumination according to the
outside brightness and the vehicle condition.
Requests ON/OFF of each relay to IPDM E/R (with CAN communication).
IPDM E/RControls the integrated relay, and supplies voltage to the load according to the request
from BCM (with CAN communication).
Combination switch
(Lighting & turn signal switch)Refer to BCS-8, "
System Diagram".
Optical sensor Refer to EXL-238, "
Description".

DIAGNOSIS SYSTEM (BCM)
EXL-217
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
ACTIVE TEST
FLASHER
FLASHER : CONSULT-III Function (BCM - FLASHER)INFOID:0000000003894309
WORK SUPPORT
*: Factory setting
DATA MONITOR
DOOR SW-RR
[On/Off]The switch status input from rear door switch RH
DOOR SW- RL
[On/Off]The switch status input from rear door switch LH
DOOR SW-BK
[On/Off]NOTE:
The item is indicated, but not monitored.
OPTICAL SENSOR
[V]The value of exterior brightness voltage input from the optical sensor Monitor item
[Unit]Description
Test item Operation Description
TA I L L A M POnTransmits the position light request signal to IPDM E/R with CAN com-
munication to turn the tail lamp ON.
Off Stops the position light request signal transmission.
HEAD LAMPHiTransmits the high beam request signal with CAN communication to turn
the headlamp (HI).
LowTransmits the low beam request signal with CAN communication to turn
the headlamp (LO).
Off Stops the high & low beam request signal transmission.
FR FOG LAMPOnTransmits the front fog lights request signal to IPDM E/R with CAN com-
munication to turn the front fog lamp ON.
Off Stops the front fog lights request signal transmission.
RR FOG LAMPOn Outputs the voltage to turn the rear fog lamp ON.
 Transmits the rear fog lamp status signal to the combination meter with
CAN communication to turn the rear fog lamp indicator lamp ON.
Off Stops the voltage to turn the rear fog lamp OFF.
 Stops the rear fog lamp status signal transmission.
DAYTIME RUNNING LIGHTOn
NOTE:
The item is indicated, but cannot be tested.
Off
CORNERING LAMPRH
NOTE:
The item is indicated, but cannot be tested. LH
Off
ILL DIM SIGNALOn
NOTE:
The item is indicated, but cannot be tested.
Off
Service item Setting item Setting
HAZARD ANSWER
BACKLock Only* With locking only
Sets the hazard warning lamp answer back function
when the door is lock/unlock with the request switch or
the key fob. Unlk Only With unlocking only
Lock/Unlk With locking/unlocking
Off Without the function

EXL-238
< COMPONENT DIAGNOSIS >[HALOGEN TYPE]
OPTICAL SENSOR
OPTICAL SENSOR
DescriptionINFOID:0000000003894326
Optical sensor converts the outside brightness (lux) to voltage and transmits the optical sensor signal to BCM.
Component Function CheckINFOID:0000000003894327
1.CHECK OPTICAL SENSOR SIGNAL BY CONSULT-III
CONSULT-III DATA MONITOR
1. Turn the ignition switch ON.
2. Select "OPTICAL SENSOR" of BCM (HEADLAMP) data monitor item.
3. Turn the lighting switch AUTO.
4. With the optical sensor illuminating, check the monitor status.
*: Illuminates the optical sensor. The value may be less than the standard value if brightness is weak.
Is the item status normal?
YES >> Optical sensor is normal.
NO >> Refer to EXL-238, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000003894328
1.CHECK OPTICAL SENSOR POWER SUPPLY INPUT
1. Turn the ignition switch ON.
2. Turn the lighting switch AUTO.
3. Check the voltage between the optical sensor harness connector and the ground.
Is the measurement value normal?
YES >> GO TO 2.
NO >> GO TO 4.
2.CHECK OPTICAL SENSOR GROUND INPUT
Check the voltage between the optical sensor harness connector and the ground.
Is the measurement value normal?
YES >> GO TO 3.
NO >> GO TO 6.
3.CHECK OPTICAL SENSOR SIGNAL OUTPUT
Monitor item Condition Voltage (Approx.)
OPTICAL SENSOR Optical sensorWhen illuminating 3.1 V or more *
When shutting off light 0.6 V or less
Te r m i n a l s
Voltag e
(Approx.) (+) (−)
Optical sensor
Ground Connector Terminal
M17 1 5 V
Te r m i n a l s
Voltag e
(Approx.) (+) (−)
Optical sensor
Ground Connector Terminal
M17 3 0 V

OPTICAL SENSOR
EXL-239
< COMPONENT DIAGNOSIS >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
With illuminating the optical sensor, check the voltage between the optical sensor harness connector and the
ground.
*: Illuminate the optical sensor. The value may be less than the standard if brightness is weak.
Is the measurement value normal?
YES >> GO TO 7.
NO >> Replace the optical sensor.
4.CHECK OPTICAL SENSOR OPEN CIRCUIT
1. Turn the ignition switch OFF.
2. Disconnect the optical sensor connector and BCM connector.
3. Check continuity between the optical sensor harness connector and the BCM harness connector.
Does continuity exist?
YES >> GO TO 5.
NO >> Repair the harnesses or connectors.
5.CHECK OPTICAL SENSOR SHORT CIRCUIT
Check the continuity between the optical sensor harness connector and the ground.
Does continuity exist?
YES >> Repair the harnesses or connectors.
NO >> Replace BCM.
6.CHECK OPTICAL SENSOR GROUND OPEN CIRCUIT
1. Turn the ignition switch OFF.
2. Disconnect the optical sensor connector and BCM connector.
3. Check continuity between the optical sensor harness connector and the BCM harness connector.
Does continuity exist?
YES >> Replace BCM.
NO >> Repair the harnesses or connectors.
7.CHECK OPTICAL SENSOR SIGNAL OPEN CIRCUIT
1. Turn the ignition switch OFF.
2. Disconnect the optical sensor connector and BCM connector.
Te r m i n a l s
Condition
Vo l ta g e
(Approx.) (+) (−)
Optical sensor
GroundOptical sen-
sor
Connector Terminal
M17 2When illumi-
nating3.1 V or
more *
When shut-
ting off light0.6 V or less
Optical sensor BCM
Continuity
Connector Terminal Connector Terminal
M17 1 M123 138 Existed
Optical sensor
GroundContinuity
Connector Terminal
M17 1 Not existed
Optical sensor BCM
Continuity
Connector Terminal Connector Terminal
M17 3 M123 137 Existed

EXL-240
< COMPONENT DIAGNOSIS >[HALOGEN TYPE]
OPTICAL SENSOR
3. Check continuity between the optical sensor harness connector and the BCM harness connector.
Does continuity exist?
YES >> GO TO 8.
NO >> Repair the harnesses or connectors.
8.CHECK OPTICAL SENSOR SHORT CIRCUIT
Check the continuity between the optical sensor harness connector and the ground.
Does continuity exist?
YES >> Repair the harnesses or connectors.
NO >> Replace BCM.
Optical sensor BCM
Continuity
Connector Terminal Connector Terminal
M17 2 M123 113 Existed
Optical sensor
GroundContinuity
Connector Terminal
M17 2 Not existed

BCM (BODY CONTROL MODULE)
EXL-281
< ECU DIAGNOSIS >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
DOOR SW-RLRear LH door closed Off
Rear LH door opened On
DOOR SW-BKNOTE:
The item is indicated, but not monitored. Off
CDL LOCK SWOther than power door lock switch LOCK Off
Power door lock switch LOCK On
CDL UNLOCK SWOther than power door lock switch UNLOCK Off
Power door lock switch UNLOCK On
KEY CYL LK-SWNOTE:
The item is indicated, but not monitored. Off
KEY CYL UN-SWNOTE:
The item is indicated, but not monitored. Off
KEY CYL SW-TRNOTE:
The item is indicated, but not monitored. Off
HAZARD SWHazard switch is OFF Off
Hazard switch is ON On
REAR DEF SW
NOTE:
At model with BOSE au-
dio system this item is in-
dicated, but is not
monitored.Rear window defogger switch is OFF Off
Rear window defogger switch is ON On
TR CANCEL SWNOTE:
The item is indicated, but not monitored. Off
TR/BD OPEN SWTrunk lid opener switch OFF Off
While the trunk lid opener switch is turned ON On
TRNK/HAT MNTRTrunk lid closed Off
Trunk lid opened On
RKE-LOCKLOCK button of the key is not pressed Off
LOCK button of the key is pressed On
RKE-UNLOCKUNLOCK button of the key is not pressed Off
UNLOCK button of the key is pressed On
RKE-TR/BDTRUNK OPEN button of the key is not pressed Off
TRUNK OPEN button of the key is pressed On
RKE-PANICNOTE:
The item is indicated, but not monitored. Off
RKE-P/W OPENNOTE:
The item is indicated, but not monitored. Off
RKE-MODE CHGLOCK/UNLOCK button of the key is not pressed and held simulta-
neouslyOff
LOCK/UNLOCK button of the key is pressed and held simulta-
neouslyOn
OPTICAL SENSORBright outside of the vehicle Close to 5 V
Dark outside of the vehicle Close to 0 V
REQ SW -DRDriver door request switch is not pressed Off
Driver door request switch is pressed On
REQ SW -ASPassenger door request switch is not pressed Off
Passenger door request switch is pressed On Monitor Item Condition Value/Status
