SYSTEM SYMPTOM
TM-295
< SYMPTOM DIAGNOSIS >[CVT: RE0F10A]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
24
OthersVehicle runs with CVT
in “N” position.ON vehicle1. PNP switchTM-213
2. CVT fluid level and stateTM-304
3. CVT positionTM-314
OFF vehicle4. Gear system
TM-3325. Forward clutch
6. Reverse brake
7. Control valve
25 Engine stall.ON vehicle1. CVT fluid level and stateTM-304
2. Engine speed signalTM-226
3. Primary speed sensorTM-218
4. Torque converter clutch solenoid valveTM-230
5. CAN communication lineTM-208
6. Stall testTM-306
7. Secondary pressure sensorTM-242
OFF vehicle8. Torque converterTM-3359. Control valveTM-332
26Engine stalls when
selector lever is shift-
ed “N”→“D” or “R”.ON vehicle1. CVT fluid level and stateTM-304
2. Engine speed signalTM-226
3. Primary speed sensorTM-218
4. Torque converter clutch solenoid valveTM-230
5. CAN communication lineTM-208
6. Stall testTM-306
OFF vehicle7. Torque converterTM-3358. Control valveTM-332
27Engine speed does
not return to idle.ON vehicle1. CVT fluid level and stateTM-304
2. Accelerator pedal position sensorTM-252
3. Secondary speed sensorTM-222
4. CAN communication lineTM-208
OFF vehicle 5. Control valveTM-332
28 CVT does not shift.ON vehicle1. CVT fluid level and stateTM-304
2. CVT positionTM-314
3. Line pressure testTM-308
4. Engine speed signalTM-226
5. Accelerator pedal position sensorTM-252
6. CAN communication lineTM-208
7. Primary speed sensorTM-218
8. Secondary speed sensorTM-222
9. Step motorTM-261
OFF vehicle10. Control valve
TM-33211. Oil pump assembly
29Engine does not start
in “N” or “P” position.ON vehicle1. Ignition switch and starterPG-55
,
STR-10
2. CVT positionTM-314
3. PNP switchTM-213
No
.Item Symptom Condition Diagnostic Item Reference

TM-296
< SYMPTOM DIAGNOSIS >[CVT: RE0F10A]
SYSTEM SYMPTOM
30
OthersEngine starts in posi-
tions other than “N” or
“P”.ON vehicle1. Ignition switch and starterPG-55
,
STR-10
2. CVT positionTM-314
3. PNP switchTM-213
31When brake pedal is
depressed with igni-
tion switch ON, selec-
tor lever cannot be
shifted from “P” posi-
tion to other position.ON vehicle1. Stop lamp switch
TM-267
2. Shift lock solenoid
3. Control device
32When brake pedal is
not depressed with ig-
nition switch ON, se-
lector lever can be
shifted from “P” posi-
tion to other position.ON vehicle1. Stop lamp switch
TM-267
2. Shift lock solenoid
3. Control device
33Cannot be changed to
sport mode.ON vehicle1. Sport mode switchTM-272
2. CAN communication lineTM-208
3. Combination metersMWI-42
33CVT indicator lamp is
not turned ON.ON vehicle1. CAN communication lineTM-2082. Combination metersMWI-42
3. TCM power supply and groundTM-249
No
.Item Symptom Condition Diagnostic Item Reference

TM-298
< PRECAUTION >[CVT: RE0F10A]
PRECAUTIONS
Precaution for Procedure without Cowl Top Cover
INFOID:0000000003901480
When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.
Precaution for On Board Diagnosis (OBD) System of CVT and EngineINFOID:0000000003806496
The ECM has an on board diagnostic system. It will light up the Malfunction Indicator Lamp (MIL) to warn the
driver of a malfunction causing emission deterioration.
CAUTION:
 Be sure to turn the ignition switch OFF and disconnect the battery cable from the negative terminal
before any repair or inspection work. The open/short circuit of related switches, sensors, solenoid
valves, etc. will cause the MIL to light up.
 Be sure to connect and lock the connectors securely after work. A loose (unlocked) connector will
cause the MIL to light up due to an open circuit. (Be sure the connector is free from water, grease,
dirt, bent terminals, etc.)
 Be sure to route and secure the harnesses properly after work. Interference of the harness with a
bracket, etc. may cause the MIL to light up due to a short circuit.
 Be sure to connect rubber tubes properly after work. A misconnected or disconnected rubber tube
may cause the MIL to light up due to a malfunction of the EVAP system or fuel injection system, etc.
 Be sure to erase the unnecessary malfunction information (repairs completed) from the TCM and
ECM before returning the vehicle to the customer.
Precaution for TCM and CVT Assembly ReplacementINFOID:0000000003806497
CAUTION:
 Check if new data (Unit ID) are entered correctly after replacing CVT assembly and erasing data in
TCM. (Connect CONSULT-III, and then turn ignition switch OFF.)
 When replacing CVT assembly or TCM, refer to the pattern table below and erase the EEPROM in the
TCM if necessary.
EEPROM ERASING PATTERNS
Removal and Installation Procedure for CVT Unit ConnectorINFOID:0000000003806498
REMOVAL
PIIB3706J
CVT assembly TCM Erasing EEPROM in TCM Remarks
Replaced Replaced Not requiredNot required because the EEPROM in the TCM is in
the default state. (CVT assembly must be replaced
first.)
Not replaced Replaced Not requiredNot required because the EEPROM in the TCM is in
the default state.
Replaced Not replaced RequiredRequired because data has been written in the EE-
PROM in the TCM and because the TCM cannot write
data from the ROM assembly in the transmission.

TM-304
< ON-VEHICLE MAINTENANCE >[CVT: RE0F10A]
CVT FLUID
ON-VEHICLE MAINTENANCE
CVT FLUID
InspectionINFOID:0000000003806504
CHECKING CVT FLUID
The fluid level should be checked with the fluid warmed up to 50 to 80°C (122 to 176°F). The fluid level check
procedure is as follows:

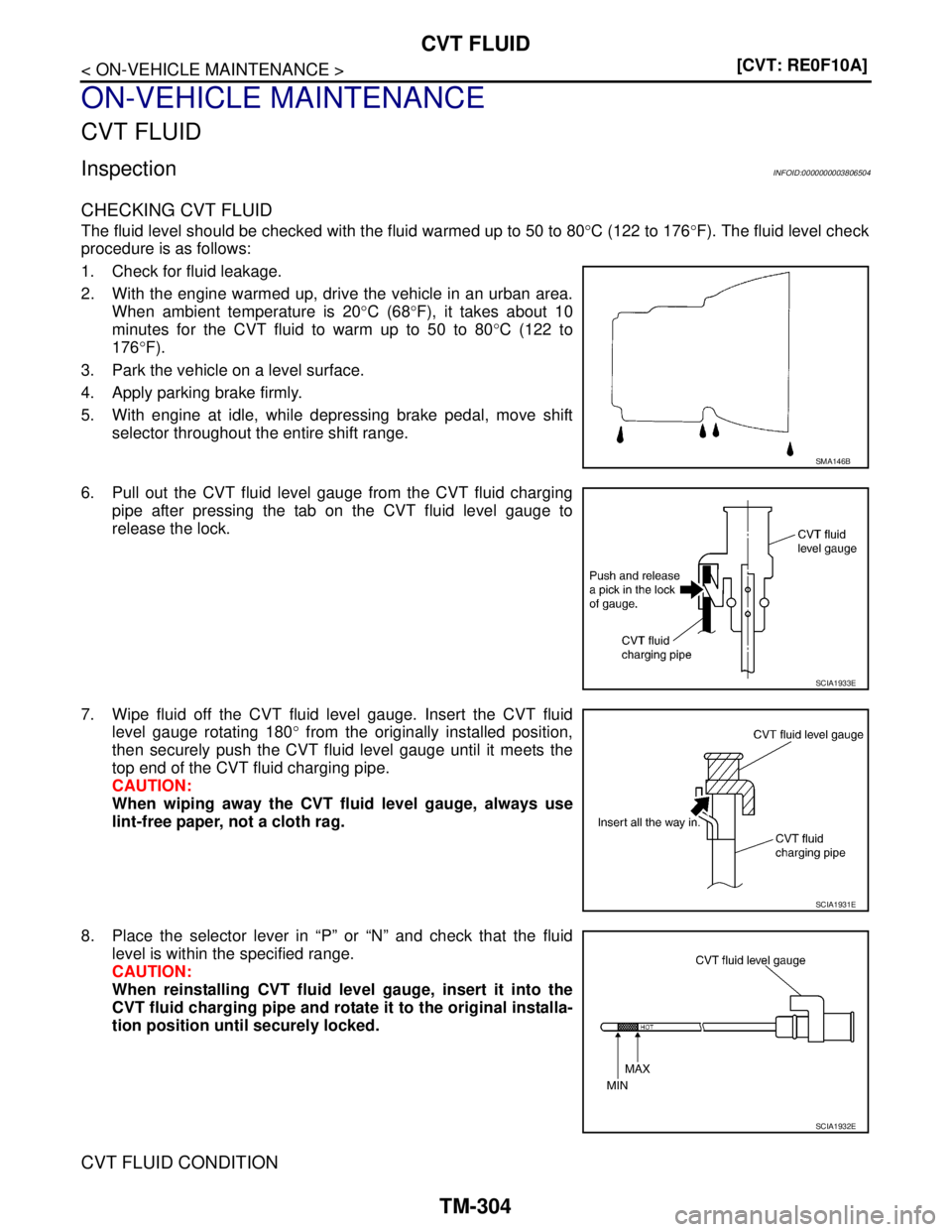

1. Check for fluid leakage.
2. With the engine warmed up, drive the vehicle in an urban area.
When ambient temperature is 20°C (68°F), it takes about 10
minutes for the CVT fluid to warm up to 50 to 80°C (122 to
176°F).
3. Park the vehicle on a level surface.
4. Apply parking brake firmly.
5. With engine at idle, while depressing brake pedal, move shift
selector throughout the entire shift range.
6. Pull out the CVT fluid level gauge from the CVT fluid charging
pipe after pressing the tab on the CVT fluid level gauge to
release the lock.
7. Wipe fluid off the CVT fluid level gauge. Insert the CVT fluid
level gauge rotating 180° from the originally installed position,
then securely push the CVT fluid level gauge until it meets the
top end of the CVT fluid charging pipe.
CAUTION:
When wiping away the CVT fluid level gauge, always use
lint-free paper, not a cloth rag.
8. Place the selector lever in “P” or “N” and check that the fluid
level is within the specified range.
CAUTION:
When reinstalling CVT fluid level gauge, insert it into the
CVT fluid charging pipe and rotate it to the original installa-
tion position until securely locked.
CVT FLUID CONDITION
SMA146B
SCIA1933E
SCIA1931E
SCIA1932E

CVT FLUID
TM-305
< ON-VEHICLE MAINTENANCE >[CVT: RE0F10A]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
Check CVT fluid condition.
 If CVT fluid is very dark or smells burned, check operation of CVT.
Flush cooling system after repair of CVT.
 If CVT fluid contains frictional material (clutches, brakes, etc.),
replace radiator and flush cooler line using cleaning solvent and
compressed air after repair of CVT. Refer to CO-13, "
Exploded
View".
ChangingINFOID:0000000003806505
CAUTION:
Replace O-ring with new ones at the final stage of the operation when installing.
1. Remove drain plug from oil pan.
2. Remove drain plug gasket from drain plug.
3. Install drain plug gasket to drain plug.
CAUTION:
Never reuse drain plug gasket.
4. Install drain plug to oil pan. Refer to TM-321, "
Exploded View".
5. Fill CVT fluid from CVT fluid charging pipe to the specified level.
CAUTION:
 Use only Genuine NISSAN CVT Fluid NS-2. Never mix with other fluid.
 Using CVT fluid other than Genuine NISSAN CVT Fluid NS-2 will deteriorate in driveability and
CVT durability, and may damage the CVT, which is not covered by the warranty.
 When filling CVT fluid, take care not to scatter heat generating parts such as exhaust.
 Sufficiently shake the container of CVT fluid before using.
 Delete CVT fluid deterioration date with CONSULT-III after changing CVT fluid.
6. With the engine warmed up, drive the vehicle in an urban area.
NOTE:
When ambient temperature is 20°C (68°F), it takes about 10 minutes for the CVT fluid to warm up to 50 to
80°C (122 to 176°F).
7. Check CVT fluid level and condition.
8. Repeat steps 1 to 5 if CVT fluid has been contaminated.
Fluid status Conceivable cause Required operation
Varnished (viscous
varnish state)CVT fluid become
degraded due to
high temperatures.Replace the CVT fluid and check the
CVT main unit and the vehicle for
malfunctions (wire harnesses, cool-
er pipes, etc.)
Milky white or
cloudyWater in the fluidReplace the CVT fluid and check for
places where water is getting in.
Large amount of
metal powder mixed
inUnusual wear of
sliding parts within
CVTReplace the CVT fluid and check for
improper operation of the CVT.
ATA0022D
CVT fluid : Refer to TM-337, "General Specifica-
tion".
Fluid capacity : Refer to TM-337, "
General Specifica-
tion".

TM-306
< ON-VEHICLE MAINTENANCE >[CVT: RE0F10A]
STALL TEST
STALL TEST
Inspection and JudgmentINFOID:0000000003806506
INSPECTION
1. Inspect the amount of engine oil. Replenish the engine oil if necessary.
2. Drive for about 10 minutes to warm up the vehicle so that the
CVT fluid temperature is 50 to 80°C (122 to 176°F). Inspect the
amount of CVT fluid. Replenish if necessary.
3. Securely engage the parking brake so that the tires do not turn.

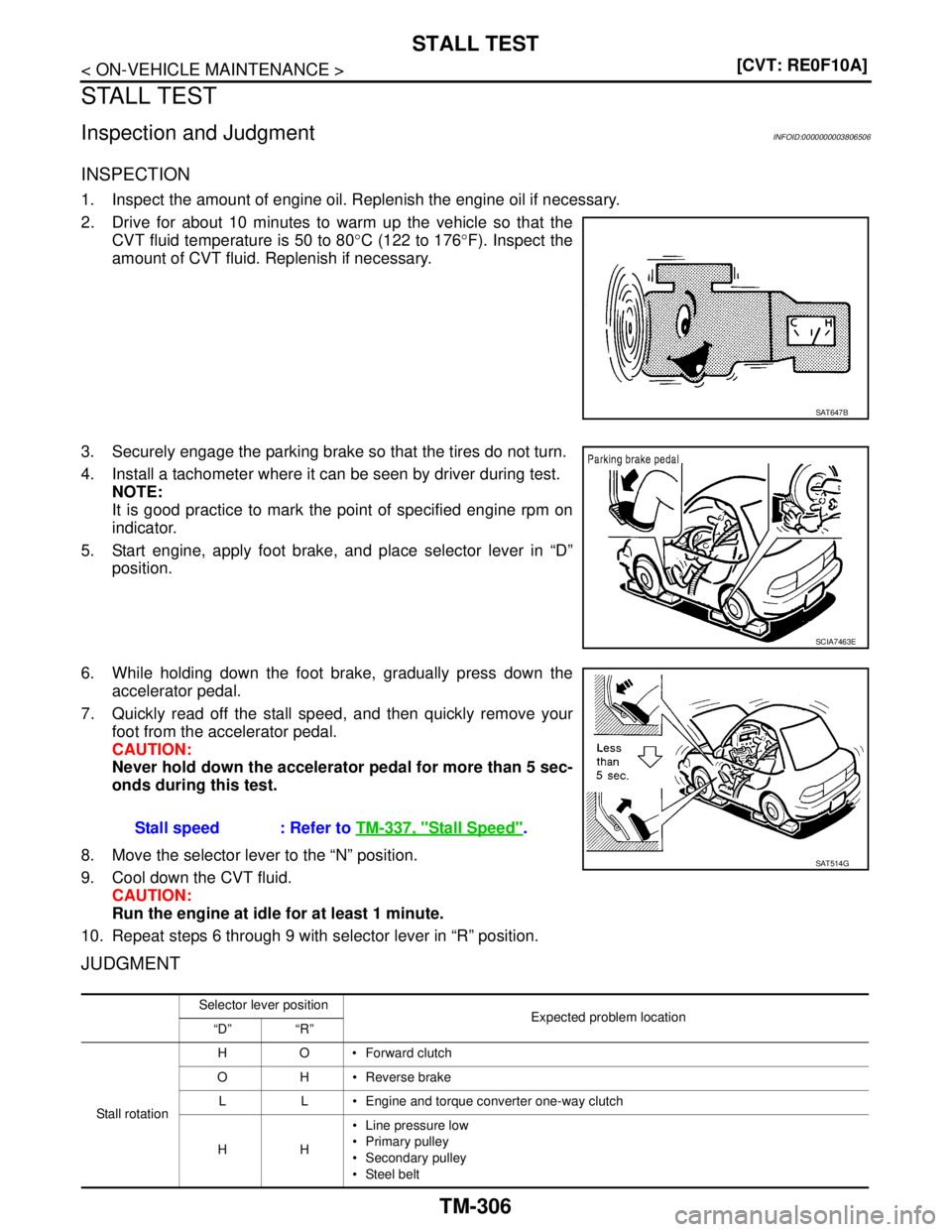

4. Install a tachometer where it can be seen by driver during test.
NOTE:
It is good practice to mark the point of specified engine rpm on
indicator.
5. Start engine, apply foot brake, and place selector lever in “D”
position.
6. While holding down the foot brake, gradually press down the
accelerator pedal.
7. Quickly read off the stall speed, and then quickly remove your
foot from the accelerator pedal.
CAUTION:
Never hold down the accelerator pedal for more than 5 sec-
onds during this test.
8. Move the selector lever to the “N” position.
9. Cool down the CVT fluid.
CAUTION:
Run the engine at idle for at least 1 minute.
10. Repeat steps 6 through 9 with selector lever in “R” position.
JUDGMENT
SAT647B
SCIA7463E
Stall speed : Refer to TM-337, "Stall Speed".
SAT514G
Selector lever position
Expected problem location
“D” “R”
Stall rotation HOForward clutch
O H  Reverse brake
L L  Engine and torque converter one-way clutch
HH Line pressure low
 Primary pulley
 Secondary pulley
 Steel belt

TM-308
< ON-VEHICLE MAINTENANCE >[CVT: RE0F10A]
LINE PRESSURE TEST
LINE PRESSURE TEST
Inspection and JudgmentINFOID:0000000003806507
INSPECTION
Line Pressure Test Procedure
1. Inspect the amount of engine oil and replenish if necessary.
2. Drive the car for about 10 minutes to warm it up so that the CVT fluid reaches in the range of 50 to 80°C
(122 to 176°F), then inspect the amount of CVT fluid and replenish if necessary.
NOTE:
The CVT fluid temperature rises in the range of 50 to 80°C (122 to 176°F) during 10 minutes of driv-
ing.

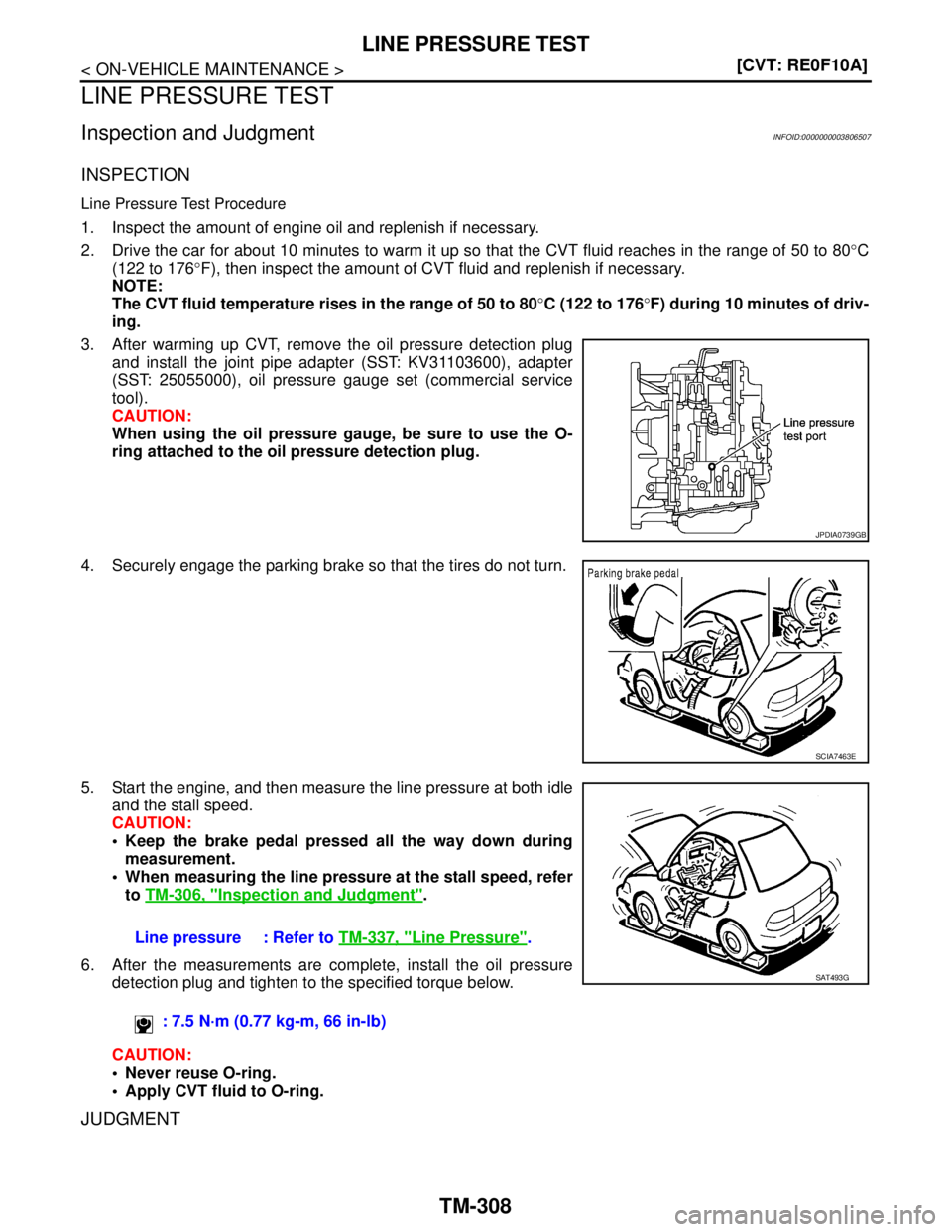

3. After warming up CVT, remove the oil pressure detection plug
and install the joint pipe adapter (SST: KV31103600), adapter
(SST: 25055000), oil pressure gauge set (commercial service
tool).
CAUTION:
When using the oil pressure gauge, be sure to use the O-
ring attached to the oil pressure detection plug.
4. Securely engage the parking brake so that the tires do not turn.
5. Start the engine, and then measure the line pressure at both idle
and the stall speed.
CAUTION:
 Keep the brake pedal pressed all the way down during
measurement.
 When measuring the line pressure at the stall speed, refer
to TM-306, "
Inspection and Judgment".
6. After the measurements are complete, install the oil pressure
detection plug and tighten to the specified torque below.
CAUTION:
 Never reuse O-ring.
 Apply CVT fluid to O-ring.
JUDGMENT
JPDIA0739GB
SCIA7463E
Line pressure : Refer to TM-337, "Line Pressure".
: 7.5 N·m (0.77 kg-m, 66 in-lb)
SAT493G

LINE PRESSURE TEST
TM-309
< ON-VEHICLE MAINTENANCE >[CVT: RE0F10A]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
Judgment Possible cause
Idle speedLow for all positions
(“P”, “R”, “N”, “D”, “L”)Possible causes include malfunctions in the pressure supply system and low oil pump output.
For example
Oil pump wear
 Pressure regulator valve or plug sticking or spring fatigue
 Oil strainer ⇒ oil pump ⇒ pressure regulator valve passage oil leak
 Engine idle speed too low
Only low for a specific
positionPossible causes include an oil pressure leak in a passage or device related to the position after
the pressure is distributed by the manual valve.
HighPossible causes include a sensor malfunction or malfunction in the line pressure adjustment
function.
For example
 Accelerator pedal position signal malfunction
 CVT fluid temperature sensor malfunction
 Pressure control solenoid A (line pressure solenoid) malfunction (sticking in OFF state, filter
clog, cut line)
 Pressure regulator valve or plug sticking
Stall speedLine pressure does not
rise higher than the
line pressure for idle.Possible causes include a sensor malfunction or malfunction in the pressure adjustment func-
tion.
For example
 Accelerator pedal position signal malfunction
TCM malfunction
 Pressure control solenoid A (line pressure solenoid) malfunction (shorting, sticking in ON
state)
 Pressure regulator valve or plug sticking
The pressure rises,
but does not enter the
standard position.Possible causes include malfunctions in the pressure supply system and malfunction in the
pressure adjustment function.
For example
 Accelerator pedal position signal malfunction
 Pressure control solenoid A (line pressure solenoid) malfunction (sticking, filter clog)
 Pressure regulator valve or plug sticking
Only low for a specific
positionPossible causes include an oil pressure leak in a passage or device related to the position after
the pressure is distributed by the manual valve.
