2008 HONDA ODYSSEY Owners Manual

There may also be other geographic
situations or structures that could
af f ect satellite radio reception.If your XM Radio service has expired
or you purchased your vehicle f rom
a previous owner, you can listen to a
sampling of the broadcasts available
on XM satellite radio. With the
ignition switch in the ACCESSORY
(I) or the ON (II) position, push the
PWR/VOL knob to turn on the audio
system and press the XM RADIO
button. A variety of music types and
styles will play.
If you decide to purchase XM
satellite radio service, contact XM
Radio at , or at
1-800-852-9696. In Canada, contact
XM Canada at , or at
1-877-438-9677. You will need to give
them your radio I.D. number and
your credit card number. To get your
radio I.D. number, turn the TUNE
knob until ‘‘0’’ appears in the display.
Your I.D. will appear in the display.After you’ve registered with XM
Radio, keep your audio system in the
satellite radio mode while you wait
f or activation. This should take about
30 minutes.
While waiting f or activation, make
sure your vehicle remains in an open
area with good reception. Once your
audio system is activated, ‘‘category’’
or ‘‘CH’’ will appear in the display,
andyou’llbeabletolistentoXM
radio broadcasts. XM Radio will
continue to send an activation signal
to your vehicle for at least 12 hours
from the activation request. If the
service has not been activated after
36 hours, contact XM Radio.
As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
www.xmradio.comwww.xmradio.ca
Playing the XMSatellite Radio (Models with navigation system)
Receiving Satellite Radio Service
262
——yy
(yy
2008 Odyssey

µ´
CONT INUED
Playing Discs (Models with navigation system)
Features
263

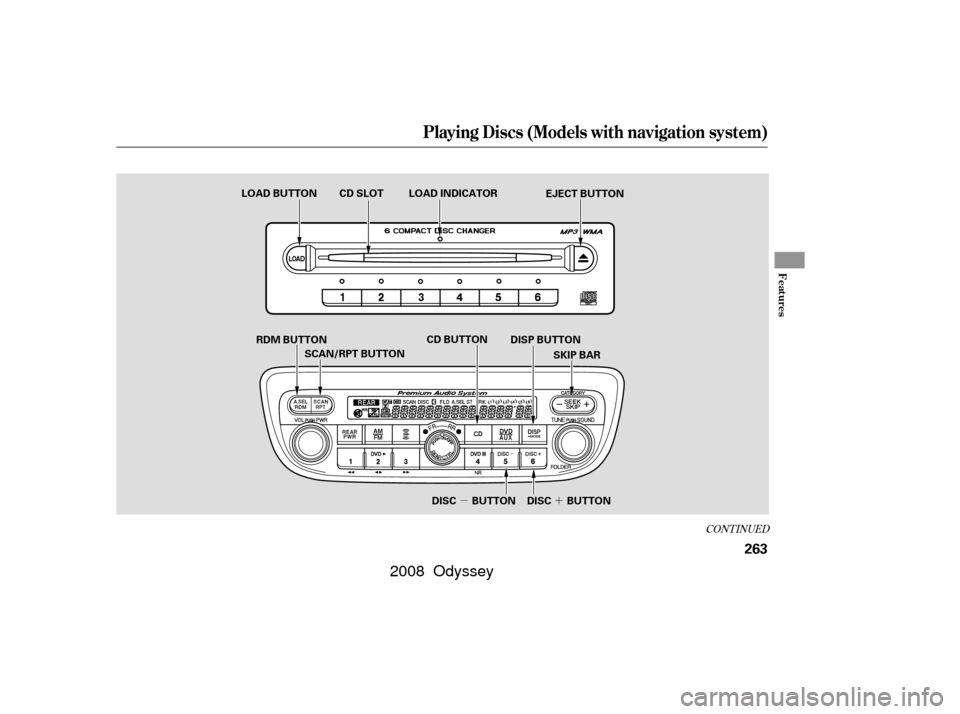

LOAD BUTTONLOAD INDICATOR
CD SLOT
EJECT BUTTON
SCAN/RPT BUTTON
RDM BUTTON
DISP BUTTON
SKIP BAR
DISC BUTTON DISC BUTTON
CD BUTTON
——yy
(yy
2008 Odyssey

µ
µ
µ
µ
µ
µ
µ
µ
Your vehicle’s audio system has an
in-dash disc changer that holds up to
six discs. You operate this disc
changer with the same controls used
f or the radio. To operate the disc
changer, the ignition switch must be
in the ACCESSORY (I) or ON (II)
position.
This audio system can also play
CD-Rs and CD-RWs compressed in
MP3 or WMA f ormats. When
playing a disc in MP3, you will see
‘‘MP3’’ in the display. In WMA
f ormat, ‘‘WMA’’ will appear in the
display. You can select up to 99
f olders, or up to 255 tracks/f iles.
Video CDs and DVD discs do not
work in this unit.The specif ications of the compatible
MP3 f ile are:
Sampling f requency:
32/44.1/48 kHz (MPEG1)
24/22.05/16 kHz (MPEG2)
Bit rate:
32/40/48/56/64/80/96/112/128/
160/192/224/256/320 kbps
(MPEG1)
8/16/24/32/40/48/56/64/80/96/
112/128/160 kbps (MPEG2)
Compatible with variable bit rate
and multi-session
Maximum layers
(including ROOT): 8 layers
The specif ications of the compatible
WMA f ile are: Sampling f requency:
32/44.1/48 kHz
Compatible with variable bit rate
and multi-session
Maximum layers
(including ROOT): 8 layers Bit rate:
48/64/80/96/128/160/192 kbps
NOTE:
If a f ile on an MP3 or WMA disc is
protected by digital rights
management (DRM), the audio unit
displays UNSUPPORTED FORMAT,
andthenskipstothenextfile.
Operating the CD Changer
Playing Discs (Models with navigation system)
264
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
——yy
(yy
2008 Odyssey

The CD changer is behind the
navigation system screen. To use the
CD changer, press the OPEN button
beside the screen. The screen f olds
back, and the CD changer appears.To load multiple discs in one
operation:Press and hold the LOAD button
beside the CD slot until you see
‘‘LOAD’’ in the display, then
release the button. The indicators above the disc
buttons of the empty positions will
blink, and the green load indicator
above the CD slot comes on.
Insert a disc into the CD slot.
Insert it only about halfway; the
drive will pull it in the rest of the
way. You will see ‘‘BUSY’’ in the
display. The CD load indicator
turns red and blinks as the disc is
loaded.
Repeat this until all six positions
are loaded. The system will then
begin playing the f irst disc loaded. When ‘‘LOAD’’ appears again in
the display, insert the next disc
into the CD slot.
If you stop loading discs bef ore all
six positions are f illed, the system
will wait f or 10 seconds, then stop
the load operation and begin playing
the last disc loaded.
To return the screen to the upright
position, press the OPEN button
again. Do not use the f olded screen
as a tray. If you put a cup, f or
example, on the screen, the liquid
inside the cup may spill on the
screen when you go over a bump.
1.2.
3.
4.
5.
CONT INUED
Playing Discs (Models with navigation system)
L oading Discs in the In-dash Disc
Changer
Features
265
LOAD BUTTON LOAD INDICATOR
OPEN BUTTON
——yy
(yy
2008 Odyssey

To load a single disc:Press and release the LOAD
button.
TheindicatorsabovetheDisc
buttons of the empty positions will
blink, and the green CD load
indicator comes on. When you see
‘‘LOAD’’ in the display, insert the
disc into the CD slot. Insert it only
about half way; the drive will pull it
in the rest of the way.
The system will load the disc and
begin playing it. If you press the LOAD button while
a disc is playing, the system will stop
playing that disc and start the
loading sequence. It will then play
the disc just loaded.
You can also load a disc into an
empty position while a disc is playing
by pressing the appropriate disc
button. Select an empty disc button
(the indicator above the button is
of f ), and press the button. The
system will stop playing the current
disc and start the loading sequence.
It will then play the disc just loaded.
You cannot load and play 3-inch
(8-cm)discsinthissystem. Each time you press the DISP button,
the display shows you the text data
on a disc, if the disc was recorded
with text data.
You can see the album, artist, and
track name in the display. If a disc is
recorded in MP3 or WMA, you can
see the f older and f ile name, and the
album, artist, and track tag.
With the f older name, you will see
the FOLDER indicator in the display.
The TRACK indicator is shown with
the file or track name.
When you press and release the
DISP button while a disc without text
data is playing, you will see ‘‘NO
INFO’’ on the display.
The display shows up to about 16
characters of selected text data (the
f older name, f ile name, etc.).
2. 1.
3.
Playing Discs (Models with navigation system)
T ext Data Display Function
266
——y

y
(y
y
2008 Odyssey

µ´
µ
¼
If the text data has more than 16
characters, you will see the first 15
characters and the indicator in
the display. Press and hold the DISP
button until the next 16 characters
are shown. You can see up to about
31 characters of the text data.
If youpressandholdtheDISP
button again, the display shows the
f irst 16 characters again.
If any letter is not available, it is
replaced with ‘‘ . ’’ (dot) in the display.
When the disc has no text data, you
will see ‘‘NO INFO’’ on the display.
You will also see some text data
under these conditions:
When a new f older, f ile, or track is
selected.
When you change the audio mode
to play a disc with text data or in
MP3 or WMA. When you insert a disc, and the
system begins to play.
When playing a CD-DA with text
data, the album and track name are
showninthedisplay.Withadiscin
MP3 or WMA, the display shows the
f older and f ile name.
When you turn on the audio system
next time, the system keeps your
selection with the DISP button. You can use the SKIP bar while a
disc is playing to select passages and
change tracks (f iles in MP3/WMA
mode).
Each time you press and
release the SKIP bar, the player
skips forward to the beginning of the
next track (f ile in MP3 or WMA
mode). Press and release the to
skip backward to the beginning of
the current track. Press it again to
skip to the beginning of the previous
track.
To move rapidly within a track, press
andholdthe or SKIPbar.
Playing Discs (Models with navigation system)
T o Change or Select T racks/Files
SK IPFeatures
267
——yy
(yy
2008 Odyssey

µµ µ
µ
In MP3 or WMA mode
In MP3 or WMA mode
To
select a different folder, turn the
TUNE knob to move to the
beginning of the next f older. Turn
the knob to the right until it clicks
once to skip to the next folder, and to
the lef t to move to the beginning of
the current f older. Turn it again to
skip to the beginning of the previous
f older. Turning the TUNE knob
more than two clicks skips several
folders.
The scan f unction samples all tracks
(f iles in MP3 or WMA) on the disc in
the order they are recorded on the
disc. To activate scan, press and hold
the SCAN/RPT button. You will see
SCAN in the display. You will get a
10 second sampling of each track/
f ile on the disc. Press and hold the
SCAN/RPT button f or about 2
seconds to get out of scan mode and
play the last track/f ile sampled. This
feature, when activated, samples the
f irst f ile of each f older on the disc.
To activate f older scan, press and
hold the SCAN/RPT button to select
SCAN, then press and release the
button again to select f older scan.
You will see F-SCAN in the display.
The system plays the f irst f ile in the
f irst f older f or about 10 seconds. If
you do nothing, the system will then
play the f irst f iles in the remaining
f olders f or 10 seconds each. Af ter
playing the f irst f ile of the last f older,
the system plays normally.
Press and hold the SCAN/RPT
button f or 2 seconds to get out of
scan mode and play the last f ile
sampled. This f eature, when
activated, samples the first track (file
in MP3 or WMA) in each disc. To
activate the DISC SCAN feature,
press and hold the SCAN/RPT
button to select SCAN, then press
and release the button twice to select
disc scan. You will see D-SCAN in
the display. The system will then
play the f irst track/f ile in the disc f or
about 10 seconds. If you do nothing,
the system will then play the first
track/f ile in the remaining discs f or
10 seconds each. Af ter playing the
f irst track/f ile of the last disc, the
system plays normally.
Each time you press and release the
SCAN/RPT button, the mode
changes f rom scan, to f older scan, to
disc scan, then to normal playing.
Playing Discs (Models with navigation system)
FOLDER SELECTION
SCA N (T RA CK /FIL E SCA N) F-SCAN (FOLDER SCAN)
DISC SCAN
268
——yy
(yy
2008 Odyssey

µµ
µ µ
µ
To continuously replay
a track (f ile in MP3 or WMA mode),
press and release the SCAN/RPT
button. You will see RPT in the
display. Press and hold the SCAN/
RPT button for 2 seconds to turn it
off. This
feature, when activated, plays all
f iles on the selected f older in random
order. To activate f older random,
press the RDM button. You will see
F-RDM in the display. The system
will then select and play f iles
randomly. This continues until you
deactivate f older random by pressing
and holding the RDM button f or 2
seconds.
Each time you press and release the
RDM button, the mode changes
f rom f older random play to random
play (within a disc random play),
then to normal playing.
This feature,
when activated, replays all f iles on
the selected f older in the order they
are compressed. To activate folder
repeat, press the SCAN/RPT button
twice. You will see F-RPT in the
display. The system continuously
replays the current f older. Press and
hold the SCAN/RPT button for 2
seconds to turn it off. Each time you press and release the
SCAN/RPT button, the mode
changes f rom f ile repeat, to f older
repeat, to disc repeat, then to normal
playing.To activate the
DISC REPEAT f eature, press the
SCAN/RPT button three times. You
will see ‘‘D-RPT’’ in the display as a
reminder. The system continuously
replays the current disc. Press the
SCAN/RPT button again to turn it
off.
This f eature plays the
tracks (the files in MP3 or WMA
mode) within a disc in random order.
To activate random play, press and
release the RDM button. In MP3 or
WMA mode, press the RDM button
twice to select RDM (within a disc
random play). You will see RDM in
the display. Press the RDM button
again to turn it off.
In MP3 or WMA mode In MP3 or WMA mode
Playing Discs (Models with navigation system)
REPEAT (TRACK/FILE
REPEAT) FOLDER-RANDOM
FOL DER-REPEA TDISC REPEAT
RANDOM (Random within a
disc)
Features
269
——yy
(yy
2008 Odyssey
