2008 HONDA ODYSSEY Owners Manual

µµµ
If you are
traveling far from home and can no
longer receive your preset stations,
you can use the auto select feature to
find stations in the local area.
Press the A. SEL button. ‘‘A. SEL’’
appears in the display, and the
system goes into scan mode f or
several seconds. It stores the
f requencies of six AM and twelve
FM stations in the preset buttons.
You will see a ‘‘0’’ displayed af ter
pressing a preset button if auto
select cannot f ind a strong station f or
that preset button.
If you do not like the stations auto
select has stored, you can store
other f requencies on the preset
buttons (icons) as previously
described. press the
A.SEL button or touch the AUTO
SELECTicon.Thisrestoresthe
presets you originally set.
For inf ormation on AM/FM radio
f requencies and reception, see page . Press the SOUND (TUNE) knob
repeatedly to display the bass, treble,
balance, and f ader settings.
Use the TRE/BAS
modes to adjust the tone to your
liking.
These two
modes adjust the strength of the
sound coming f rom each speaker.
BAL adjusts the side-to-side strength,
while FAD adjusts the f ront-to-back
strength. Eachmodeisshowninthedisplayas
it changes. Turn the SOUND
(TUNE) knob to adjust the setting to
your liking. When the level reaches
the center, you will see ‘‘C’’ in the
display. The system will
automatically return the display to
the selected audio mode about 5
seconds af ter you stop adjusting a
mode.
275To turn of f auto select,
Playing the A M/FM Radio (Models with navigation system)
AUTO SELECT
Adjusting the Sound
Treble/Bass
Balance/Fader
254
——yy
(yy
2008 Odyssey

µ
µ
In addition to the knobs and buttons
on the radio control panel, you can
operate some of the radio controls
on the navigation system screen. While you are listening to the radio,
you can change to another band by
pressing the AUDIO button next to
the navigation system screen, and
then touching the desired band icon
(FM1, FM2, or AM).
AUTO SELECT, SCAN, and SEEK
are adjustable f rom the navigation
screen. For an explanation of these
f unctions, see pages and .
Touch the
AUTO SELECT icon to activate the
auto select f unction. You will see
AUTO SEL in the upper display.
Touch the SCAN icon to
activate the scan function. You will
see SCAN on the display. Touch the
icon again to deactivate it.
253 254
CONT INUED
On models with navigation system
Operating the Radio on the
Navigation System Screen
AUTO SELECT
SCAN
Playing the A M/FM Radio (Models with navigation system)
Features
255
AUDIO BUTTON
——yy
(yy
2008 Odyssey

µ
µ ´µ
You can use the instrument panel
brightness control knob to adjust the
illumination of the audio system (see
page ). The audio system
illuminates when the parking lights
are on, even if the system is turned
of f .
To adjust the treble
and bass, touch or on each
side of the treble or bass adjustment
bar. The adjustment bar shows you
the current setting.
These modes adjust
the strength of the sound coming
f rom each speaker. Lef t/Right
balance adjusts the side-to-side
strength, while Front/Rear f ader
adjust the f ront-to-back strength. To
adjust the left/right balance, touch
the ‘‘L’’ or ‘‘R’’ icon.
To adjust the front/rear fader, touch
the ‘‘FR’’ or ‘‘RR’’ icon.
To see the audio display when you
are f inished adjusting the sound,
wait 5 seconds.

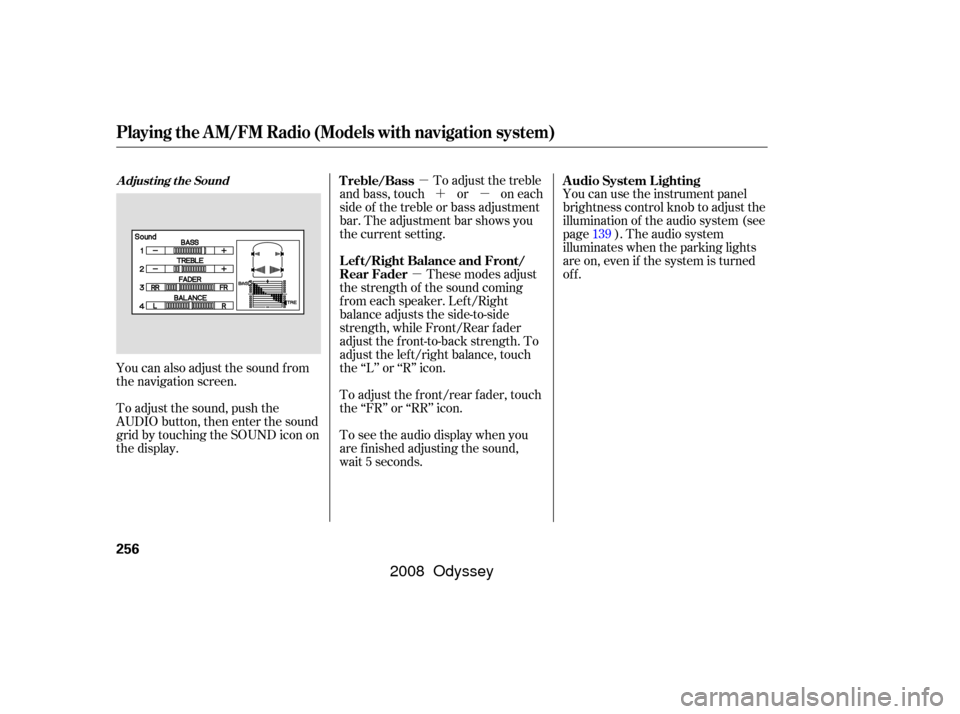

You can also adjust the sound from
the navigation screen.
To adjust the sound, push the
AUDIO button, then enter the sound
grid by touching the SOUND icon on
the display. 139
A udio System L ighting
Treble/Bass
L ef t/Right Balance and Front/
Rear FaderA djust ing t he Sound
Playing the A M/FM Radio (Models with navigation system)
256
——yy
(y
y
2008 Odyssey

CONT INUED
Playing the XMSatellite Radio (Models with navigation system)
Features
257

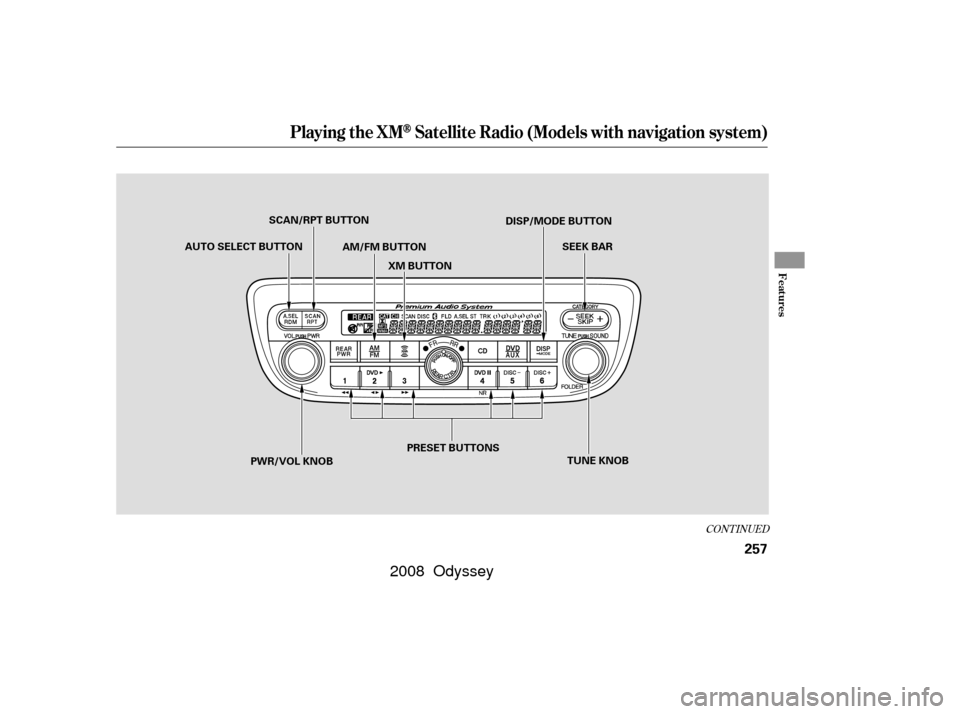

AM/FM BUTTONPRESET BUTTONS
AUTO SELECT BUTTON
TUNE KNOB
PWR/VOL KNOB SCAN/RPT BUTTON
XM BUTTON SEEK BAR
DISP/MODE BUTTON
——yy
(yy
2008 Odyssey

µYou may experience periods when
XM Radio does not transmit the
artist’s name and song title
inf ormation. If this happens, there is

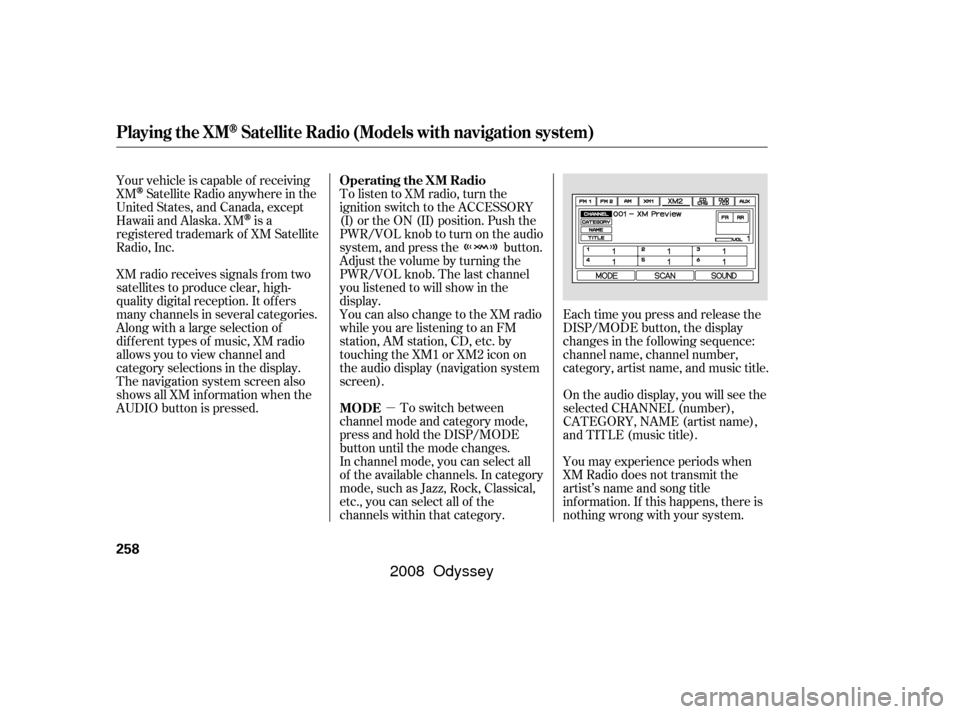

nothing wrong with your system. On the audio display, you will see the
selected CHANNEL (number),
CATEGORY, NAME (artist name),
and TITLE (music title).
In channel mode, you can select all
of the available channels. In category
mode, such as Jazz, Rock, Classical,
etc., you can select all of the
channels within that category. You can also change to the XM radio
while you are listening to an FM
station, AM station, CD, etc. by
touching the XM1 or XM2 icon on
the audio display (navigation system
screen). To switch between
channel mode and category mode,
press and hold the DISP/MODE
button until the mode changes. To listen to XM radio, turn the
ignition switch to the ACCESSORY
(I) or the ON (II) position. Push the
PWR/VOL knob to turn on the audio
system, and press the button.
Adjust the volume by turning the
PWR/VOL knob. The last channel
you listened to will show in the
display. Each time you press and release the
DISP/MODE button, the display
changes in the f ollowing sequence:
channel name, channel number,
category, artist name, and music title.
Your vehicle is capable of receiving
XM
Satellite Radio anywhere in the
United States, and Canada, except
Hawaii and Alaska. XM
is a
registered trademark of XM Satellite
Radio, Inc.
XM radio receives signals f rom two
satellites to produce clear, high-
quality digital reception. It of f ers
many channels in several categories.
Along with a large selection of
dif f erent types of music, XM radio
allows you to view channel and
category selections in the display.
The navigation system screen also
shows all XM inf ormation when the
AUDIO button is pressed. Operating the XM Radio
MODE
Playing the XMSatellite Radio (Models with navigation system)
258
——yy
(yy
2008 Odyssey

µµ
µ´ µ
µ
On models with a rear entertainment
system and a navigation system, you
cannot listen to XM Radio and a disc
at the same time. For example, when
XM Radio is playing on the f ront
speakers, you cannot listen to a disc
on the rear speakers, or vice versa.
The scan f unction gives
you a sampling of all channels while
in the channel mode. In the category
mode, only the channels within that
category are scanned. To activate
scan, press the SCAN/RPT button or
touch the SCAN icon on the audio
display. The system plays each
channel in numerical order f or a f ew seconds, then selects the next
channel. When you hear a channel
you want to continue listening to,
press the button or touch the icon
again.
Press either side of
the bar ( or ) to select another
category. To store a channel:Youcanstoreupto12
preset channels using the six preset
buttons or preset icons on the audio
display. Each button stores one
channel f rom the XM1 band and one
channel f rom the XM2 band.
Turn the tune knob lef t or
right to select channels. In the
category mode, you can only select
channels within that category. In category mode, only channels
within that category can be selected.
In channel mode, all channels can be
selected.
Pick the preset button (icon) you
want f or that channel. Press and
hold the button (icon) until you
hear a beep.
Use the TUNE knob, the
CATEGORY bar, or the SCAN
button to tune to a desired channel.
You can also touch the SCAN icon
on the audio display. Repeat steps 2 and 3 to store the
f irst six channels.
Once a channel is stored, press and
release the proper preset button
(icon) to tune to it.
Press the button. Either
XM1 or XM2 will show in the
display. Press the button again or
touch the other XM icon (XM1 or
XM2) on the audio display. Store
the next six channels using steps 2
and 3.
1.
2. 3.
4.
5.
SCAN CATEGORY Preset
TUNE
Playing the XMSatellite Radio (Models with navigation system)
Features
259
——y

y
(yy
2008 Odyssey

µ
µ µ
µ µ
µ µ
XM is loading the
audio or program
inf ormation.
The channel currently selected is
no longer
broadcasting. The signal is
currently too
weak. Move the
vehicle to an area
away from tall
buildings, and
with an
unobstructed view
of the southern
horizon.
The encryption
code is being
updated. Wait
until the
encryption code is
f ully updated.
Channels 0 and 1
should still work
normally. There is a problem
with the XM
antenna. Please
consult your dealer.
The selected channel
number does not exist, or
isnotpartofyour
subscription, or this
channel has no artist or
title information at this
time.
This channel has no
artist or title
inf ormation at this
time.
XM Radio Display Messages
‘‘L OA DING’’
‘‘OFF A IR’’
‘‘NO SIGNA L ’’
‘‘UPDA T ING’’ ‘‘CHECK
A NT ENNA ’’
‘‘----’’
‘‘NO INFO’’
Playing the XMSatellite Radio (Models with navigation system)
260
——y
y
(yy
2008 Odyssey

CONT INUED

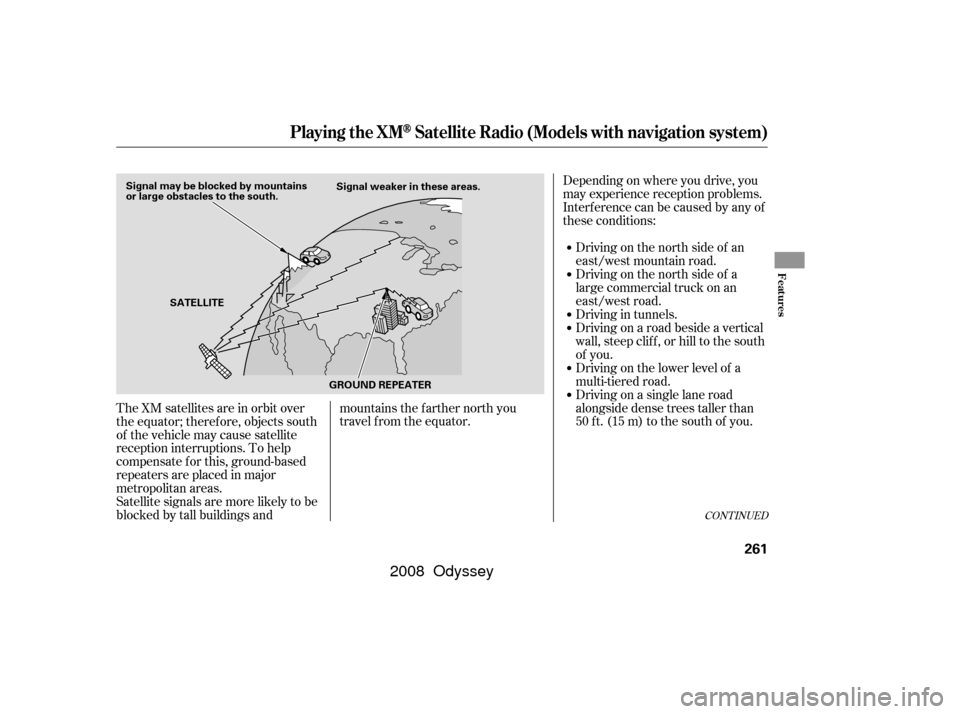

The XM satellites are in orbit over
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate f or this, ground-based
repeaters are placed in major
metropolitan areas.
Satellite signals are more likely to be
blocked by tall buildings andmountains the f arther north you
travel from the equator.Depending on where you drive, you
may experience reception problems.
Interf erence can be caused by any of
these conditions:
Driving on the north side of a
large commercial truck on an
east/west road.
Driving in tunnels.
Driving on a road beside a vertical
wall, steep clif f , or hill to the south
of you.
Driving on the lower level of a
multi-tiered road. Driving on the north side of an
east/west mountain road.
Driving on a single lane road
alongside dense trees taller than
50 ft. (15 m) to the south of you.
Playing the XMSatellite Radio (Models with navigation system)
Features
261
SATELLITE
GROUND REPEATER
Signal may be blocked by mountains
or large obstacles to the south.
Signal weaker in these areas.
