2008 HONDA ODYSSEY Owners Manual

Properly adjusted head restraints
will help protect occupants f rom
whiplash and other crash injuries.
Adjust the driver’s head restraint so
the center of the back of your head
rests against the center of the
restraint.
Reclining a seat-back so that the
shoulder part of the belt no longer
rests against the occupant’s chest
reduces the protective capability of
the belt. It also increases the chance
of sliding under the belt in a crash
and being seriously injured. The
farther a seat-back is reclined, the
greater the risk of injury.
See pages and for how to
adjust the seat-backs.
Have passengers adjust their head
restraints properly as well. Taller
persons should adjust their restraint
as high as possible.See page f or how to adjust the
head restraints and how the driver’s
and f ront passenger’s active head
restraints work.
168 170 171
A djust the Head Restraints
4.
Protecting A dults and Teens
14
Improperly positioning head
restraints reduces their
effectiveness and you can be
seriously injured in a crash.
Make sure head restraints are
in place and positioned properly
before driving.
Reclining the seat-back too far
can result in serious injury or
death in a crash.
Adjust the seat-back to an
upright position, and sit well
back in the seat.
——yy
(y
y
2008 Odyssey

Position the lap part of the belt as
low as possible across your hips,
then pull up on the shoulder part of
the belt so the lap part f its snugly.
This lets your strong pelvic bones
take the force of a crash and reduces
the chance of internal injuries.
Insert the latch plate into the buckle,
then tug on the belt to make sure the
belt is securely latched. Check that
the belt is not twisted, because a
twisted belt can cause serious
injuries in a crash.
The center seating position of the
third row has a detachable seat belt
that can be unlatched and retracted
into the ceiling to allow the seat to be
f olded down. See page f or how to
unlatch and relatch the seat belt.
This spreads the f orces of a crash
over the strongest bones in your
upper body.
If the seat belt touches or crosses
your neck, or if it crosses your arm
instead of your shoulder, you need to
adjust the seat belt anchor height.
If necessary, pull up on the belt again
to remove any slack, then check that
the belt rests across the center of
your chest and over your shoulder.
Theplus-oneseatthatcanbe
installed in the center seating
position of the second row also has a
detachable seat belt. 16
CONT INUED
Except U.S. LX and Canadian DX
models
Fasten and Position the Seat
Belts
5.
Protecting A dults and Teens
Driver and Passenger Saf ety
15
Improperly positioning the seat
belts can cause serious injury
or death in a crash.
Make sure all seat belts are
properly positioned before
driving.
—

—y
y
(yy
2008 Odyssey

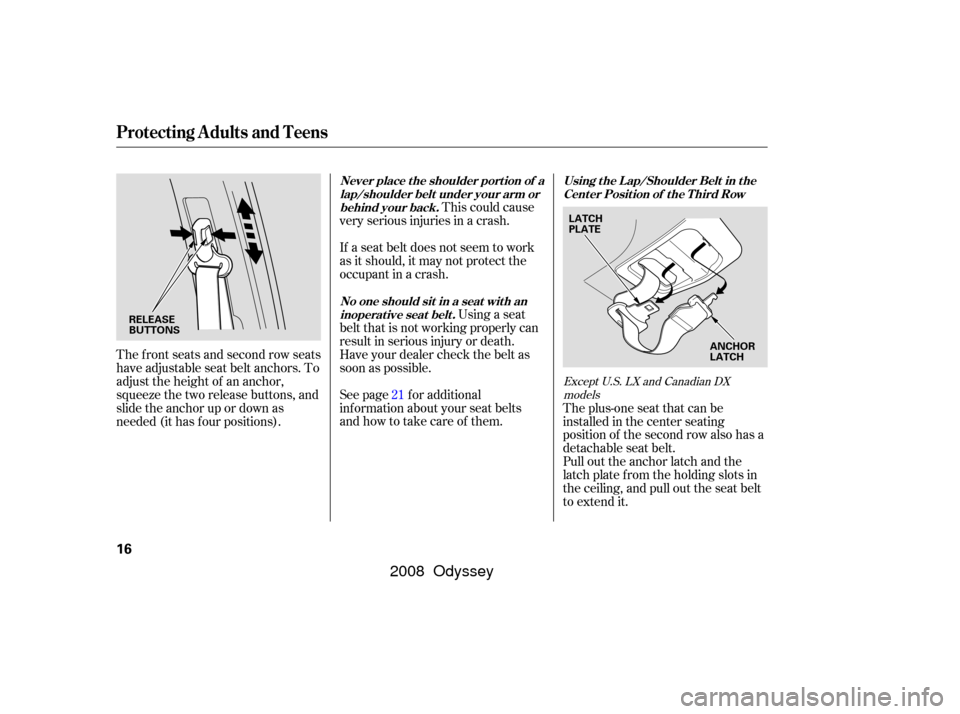

The f ront seats and second row seats
have adjustable seat belt anchors. To
adjust the height of an anchor,
squeeze the two release buttons, and
slide the anchor up or down as
needed (it has f our positions).This could cause
very serious injuries in a crash.
If a seat belt does not seem to work
as it should, it may not protect the
occupant in a crash.
Using a seat
belt that is not working properly can
result in serious injury or death.
Have your dealer check the belt as
soon as possible.
See page f or additional
inf ormation about your seat belts
and how to take care of them.
Pull out the anchor latch and the
latch plate from the holding slots in
the ceiling, and pull out the seat belt
to extend it. Theplus-oneseatthatcanbe
installed in the center seating
position of the second row also has a
detachable seat belt.
21
Except U.S. LX and Canadian DX
models
Using t he L ap/Shoulder Belt in t he
Cent er Posit ion of t he T hird Row
Never place t he shoulder port ion of a
lap/shoulder belt under your arm orbehind your back.
No one should sit in a seat wit h aninoperat ive seat belt .
Protecting A dults and Teens
16
RELEASE
BUTTONS LATCH
PLATE
ANCHOR
LATCH
—

—y
y
(y
y
2008 Odyssey

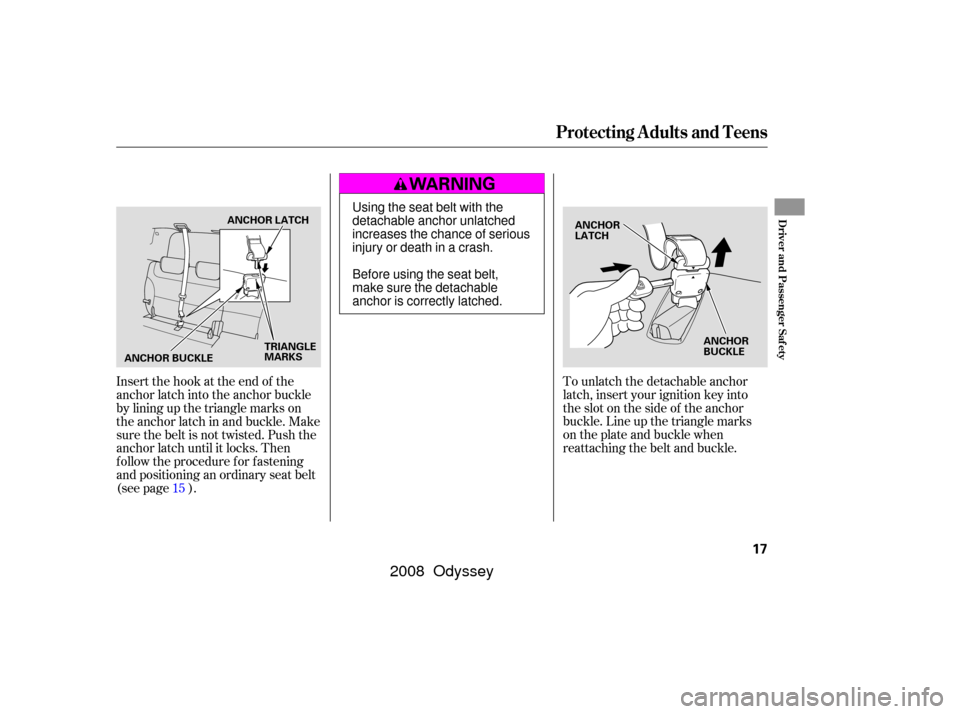

Insert the hook at the end of the
anchor latch into the anchor buckle
by lining up the triangle marks on
the anchor latch in and buckle. Make
sure the belt is not twisted. Push the
anchor latch until it locks. Then
f ollow the procedure f or f astening
and positioning an ordinary seat belt
(see page ).To unlatch the detachable anchor
latch, insert your ignition key into
the slot on the side of the anchor
buckle. Line up the triangle marks
on the plate and buckle when
reattaching the belt and buckle.
15
Protecting A dults and Teens
Driver and Passenger Saf ety
17
TRIANGLE
MARKS ANCHOR
BUCKLE
ANCHOR
LATCH
ANCHOR LATCH
ANCHOR BUCKLE
Using the seat belt with the
detachable anchor unlatched
increases the chance of serious
injury or death in a crash.
Before using the seat belt,
make sure the detachable
anchor is correctly latched.
——yy
(yy
2008 Odyssey

After all occupants have adjusted
their seats and head restraints, and
put on their seat belts, it is very
important that they continue to sit
upright, well back in their seats, with
their feet on the floor, until the
vehicle is parked and the engine is
off.In addition, an occupant who is out of
position in the f ront seat can be
seriously or f atally injured in a crash
by striking interior parts of the
vehicle or being struck by an
inflating front airbag.
Sitting improperly can increase the
chance of injury during a crash. For
example, if an occupant slouches,
lies down, turns sideways, sits
forward, leans forward or sideways,
or puts one or both f eet up, the
chance of injury during a crash is
greatly increased. Maintain a Proper Sitting
Position
6.
Protecting A dults and Teens
18
Sitting improperly or out of
position can result in serious
injury or death in a crash.
Always sit upright, well back in
the seat, with your feet on the
floor.
——yy
(yy
2008 Odyssey

If you are pregnant, the best way to
protect yourself and your unborn
child when driving or riding in a
vehicle is to always wear a seat belt,
and keep the lap part of the belt as
low as possible across the hips.When driving, remember to sit
upright and adjust the seat as f ar
back as possible while allowing f ull
control of the vehicle. When riding
as a f ront passenger, adjust the seat
as far back as possible.
This will reduce the risk of injuries
to both you and your unborn child
that can be caused by a crash or an
inflating front airbag.
Each time you have a checkup, ask
your doctor if it’s okay f or you to
drive.
If they do, they
could be very seriously injured in a
crash.
A passenger who is not
wearing a seat belt during a crash
or emergency stop can be thrown
against the inside of the vehicle,
against other occupants, or out of
the vehicle.
If they do, they
could be very seriously injured in a
crash.
CONT INUED
Advice f or Pregnant Women Additional Saf ety Precautions
Never let passengers ride in t he
cargo area or on t op of a f olded-down back seat .
Passengers should not stand up orchange seats while the vehicle ismoving.
T wo people should never use t hesame seat belt .
Protecting A dults and Teens
Driver and Passenger Saf ety
19
——y
y
(yy
2008 Odyssey

Carrying hard or sharp
objects on your lap, or driving with
a pipe or other sharp object in
your mouth, can result in injuries
if your f ront airbag inf lates.
If your
hands or arms are close to an
airbag cover, they could be injured
if the airbag inf lates. Objects on
the covers marked ‘‘SRS AIRBAG’’
could interf ere with the proper
operation of the airbags or be
propelled inside the vehicle and
hurt someone if the airbags inf late.
If a side airbag or a
side curtain airbag inf lates, a cup
holder or other hard object
attached on or near the door could
be propelled inside the vehicle and
hurt someone.
Devices intended to improve
occupant comf ort or reposition the
shoulder part of a seat belt can
reduce the protective capability of
thebeltandincreasethechanceof
serious injury in a crash.
Do not place hard or sharp object s
bet ween yourself and a f rontairbag.
K eep your hands and arms awayf rom t he airbag covers. Do not at t ach or place object s on
the f ront airbag covers.
Do not at t ach hard object s on ornear a door.
Do not put any accessories on seat
belts.
Protecting A dults and Teens
20
——yy
(yy
2008 Odyssey

This system uses the same sensors
as the front airbags to monitor
whether the f ront seat belts are
latched or unlatched, and how much
weight is on the f ront passenger’s
seat (see pages and).If either the driver or a f ront
passenger does not f asten their seat
belt while driving, the beeper will
sound and the indicator will f lash
again at regular intervals.
This system monitors the f ront seat
belts. If you turn the ignition switch
to the ON (II) position bef ore your
seat belt is f astened, the beeper will
sound and the indicator will f lash. If
your seat belt is not f astened bef ore
the beeper stops, the indicator will
stop f lashing but remain on.
If a f ront passenger does not f asten
their seat belt, the indicator will
come on about 6 seconds af ter the
ignition switch is turned to the ON
(II) position. The seat belt system
includes an indicator on the
instrument panel and a beeper to
remind you and your passengers to
f asten your seat belts.
You will also see a ‘‘FASTEN SEAT
BELT’’ or ‘‘FASTEN PASSENGER
SEAT BELT’’ message on the multi-
inf ormation display (see page ).
When no one is sitting in the f ront
passenger’s seat, or a child or small
adult is riding there, the indicator
should not come on and the beeper
should not sound.
Your seat belt system includes lap/
shoulder belts in all seating positions.
The f ront seat belts are also
equipped with automatic seat belt
tensioners.
88
30 31
CONT INUED
On Touring model
Seat Belt System Components
Additional Inf ormation About Your Seat Belts
Driver and Passenger Saf ety
21
——y
y
(yy
2008 Odyssey
