2008 HONDA ODYSSEY Owners Manual

µ
As required by the FCC:This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
If you have a f lat tire, the low tire
pressure indicator will come on.
Replace the flat tire with the
compact spare tire (see page ).
Each wheel (except the compact
sparetirewheel)isequippedwitha
tire pressure sensor mounted inside
the tire behind the valve stem. You
must use TPMS specif ic wheels. It is
recommended that you always have
your tires serviced by your dealer or
qualif ied technician.
After you replace the flat tire with
thecompactsparetire,thelowtire
pressure indicator stays on. This is
normal; the system is not monitoring
the spare tire pressure. Manually
check the spare tire pressure to be
sure it is correct. Af ter several miles
(kilometers) driving with the
compact spare tire, the TPMS
indicator comes on and the low tire
pressure indicator goes of f . The low tire pressure indicator or
the TPMS indicator will go off, after
several miles (kilometers) driving,
when you replace the spare tire with
the specif ied regular tire equipped
with the tire pressure monitor sensor.
Never use a puncture-repairing agent
in a f lat tire. If used, you will have to
replace the tire pressure sensor.
Havetheflattirerepairedbyyour
dealer as soon as possible.
457
Changing a T ire with T PMS
Tire Pressure Monitoring System (TPMS) Except Touring models
390
——yy
(yy
2008 Odyssey

µ
Your vehicle is equipped with a tire
pressure monitoring system (TPMS)
that turns on every time you start the
engine and monitors the pressure in
your tires while driving.
Each tire has its own pressure
sensor. If the air pressure of a tire
becomes signif icantly low, the
sensor in that tire immediately sends
a signal that causes the low tire
pressure/TPMS indicator in the
instrumental panel and the
appropriate tire position indicator on
thetirepressuremonitoronthe
multi-inf ormation display (see page)tocomeon. Refer to page for tire inflation
guidelines.
If there is a problem with the TPMS,
this indicator begins to f lash. It stops
flashing after approximately 1
minute, then stays on. You will also
see a ‘‘CHECK TPMS SYSTEM’’
message on the multi-information
display (see page ). For example, if you check and f ill
your tires in a warm area, then drive
in extremely cold weather, the tire
pressure will be lower than
measured and could be underinflated
and cause the low tire pressure/
TPMS indicator to come on. Or, if
youcheckandadjustyourtire
pressure in cooler conditions, and
drive into extremely hot conditions,
the tire may become overinf lated.
However, the low tire pressure/
TPMS indicator will not come on if
the tires are overinflated.
When the low tire pressure/TPMS
indicator is on, one or more of your
tires is signif icantly underinf lated.
The multi-inf ormation display also
shows a ‘‘CHECK TIRE PRESSURE’’
message (see page ). You should
stop and check your tires as soon as
possible, and inflate them to the
proper pressure as indicated on the
vehicle’s tire inf ormation placard.
Driving on a signif icantly under-
inf lated tire causes the tire to
overheat and can lead to tire failure.
Under-inf lation also reduces f uel
efficiency and tire tread life, and may
af f ect the vehicle’s handling and
stopping ability.
Becausetirepressurevariesby
temperature and other conditions,
the low tire pressure/TPMS
indicator may come on unexpectedly.
393
442
395
393
CONT INUED
Low Tire Pressure/
TPMS Indicator
Tire Pressure Monitoring System (TPMS) Touring models
Driving
391
——y
y
(yy
2008 Odyssey

µ
Although your tire pressure is
monitored, you must manually check
thetirepressuresmonthly.
Each tire, including the spare, should
be checked monthly when the
vehicle is cold, and set to the
recommended inf lation pressure as
specif ied on the vehicle placard and
intheowner’smanual(seepage).
If the tire is f lat, or if the tire
pressure is too low to continue
driving, replace the tire with the
compact spare tire (see page ). If you think you can saf ely drive a
short distance to a service station,
proceed slowly to the station, then
inflate the tire to the recommended
pressure. If you have a f lat tire, the low tire
pressure/TPMS and tire monitor
indicators will come on. Replace the
indicated f lat tire with the compact
sparetire(seepage ).
After the flat tire is replaced with the
spare tire, the low tire pressure/
TPMS indicator stays on while
driving. Af ter several miles
(kilometers) driving, this indicator
begins to f lash, then stays on again.
You will also see a ‘‘CHECK TPMS
SYSTEM’’ message on the multi-
inf ormation display. This is normal;
the system cannot monitor the spare
tire pressure. Manually check the
spare tire pressure to be sure it is
correct.
This indicator and the warning
message on the multi-inf ormation
display will go of f , af ter several miles
(kilometers) driving, when the spare
tire is replaced with the specifiedregular tire equipped with the tire
pressure monitor sensor.
Never use a puncture-repairing agent
in a f lat tire. If used, you will have to
replace the tire pressure sensor.
Havetheflattirerepairedbyyour
dealer as soon as possible.
Each wheel is equipped with a tire
pressure sensor mounted inside the
tire behind the valve stem. You must
use TPMS specif ic wheels. It is
recommended that you always have
your tires serviced by your dealer or
a qualif ied technician.
458
443
457Changing a T ire with T PMS
Tire Pressure Monitoring System (TPMS) Touring models
392
——y
y
(yy
2008 Odyssey

µ
When all tire pressures are normal,
the tire pressure monitor will show a
‘‘TIRE PRESS. OK SYSTEM FUNC
NORMAL’’ message. To display the tire pressure monitor,
press the INFO button until it
appears on the multi-inf ormation
display.When the TPMS is functioning
normally, you can see the tire
pressure readings of each tire in psi
(U.S. models) or kPa (Canadian
models) by pressing the SEL/
RESET button while the multi-
inf ormation display shows the tire
pressure monitor.When any of the tires have low
pressure, the low tire pressure/
TPMS indicator on the instrument
panel comes on, and the multi-
inf ormation display also interrupts
the current display and shows a
‘‘CHECK TIRE PRESSURE’’
message. You can see one or more of
the low pressure tire positions
highlighted in the display along with
this message.
On Touring models
Tire Pressure Monitor
Tire Pressure Monitoring System (TPMS) Touring models
Driving
393
U.S. EX-L model is shown.
——yy
(yy
2008 Odyssey

µ
It is possible that the pressures
shown on the multi-inf ormation
display and the pressures you
manually measure are slightly
dif f erent.
If the dif f erence is signif icant or you
cannot make the low tire pressure/
TPMS indicator and message on the
multi-inf ormation display go out af ter
inf lating the tires to the specif ied
values, have your dealer check the
system as soon as possible.Because your vehicle is equipped
with the Michelin PAX system, you
can continue to drive up to about 125
miles (200 km). If you have a f lat tire,
take your vehicle to the nearest
Honda dealer or authorized Michelin
PAX system dealer.
The tires on your vehicles are PAX
tires, and you cannot replace or
repair a f lat tire. Replacement or
repair of tires must be perf ormed by
a Honda dealer or an authorized
Michelin PAX system dealer.
For more inf ormation on the
Michelin PAX system, ref er to page
.

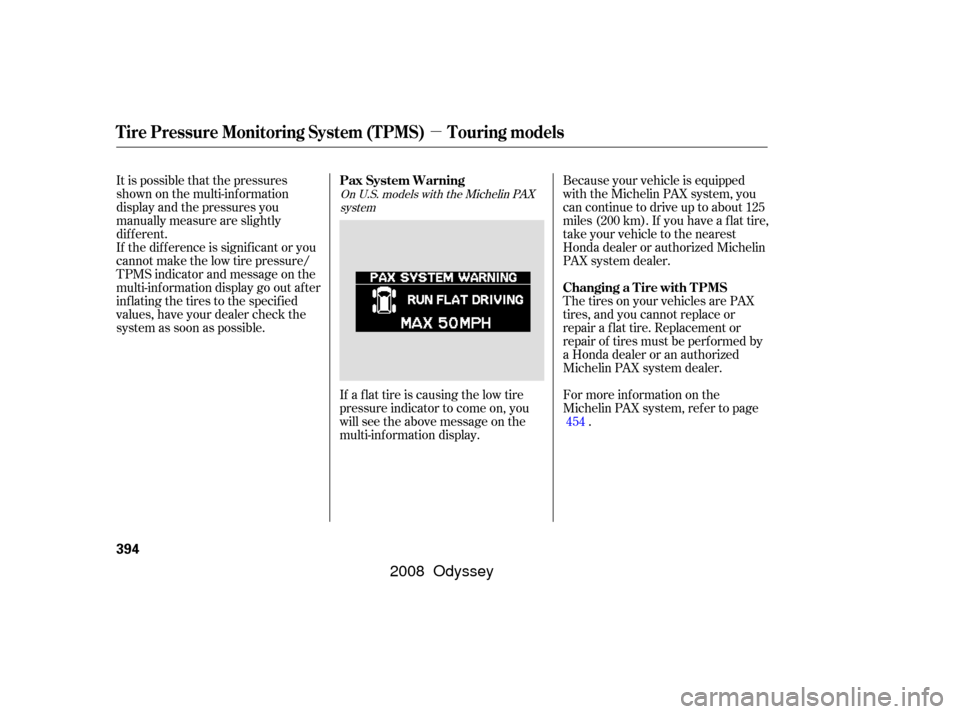

If a f lat tire is causing the low tire
pressure indicator to come on, you
will see the above message on the
multi-inf ormation display.
454
On U.S. models with the Michelin PAX
system
Pax System Warning
Changing a T ire with T PMS
Tire Pressure Monitoring System (TPMS) Touring models
394
——yy
(yy
2008 Odyssey

µ
As required by the FCC:This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.If you see this message, the system
may not be able to detect or signal
low tire pressure as intended. Also,
the tire pressure readings will not be
displayed. Have your vehicle
checked by a dealer as soon as
possible.
If the low tire pressure/TPMS
indicator comes on, or the multi-
inf ormation display shows a
‘‘CHECK TPMS SYSTEM’’ message,
the VSA system automatically turns
on even when the VSA system is
turned of f by pressing the VSA OFF
switch (see page).If this
happens, you cannot turn the VSA
system of f by pressing the VSA OFF
switch again.

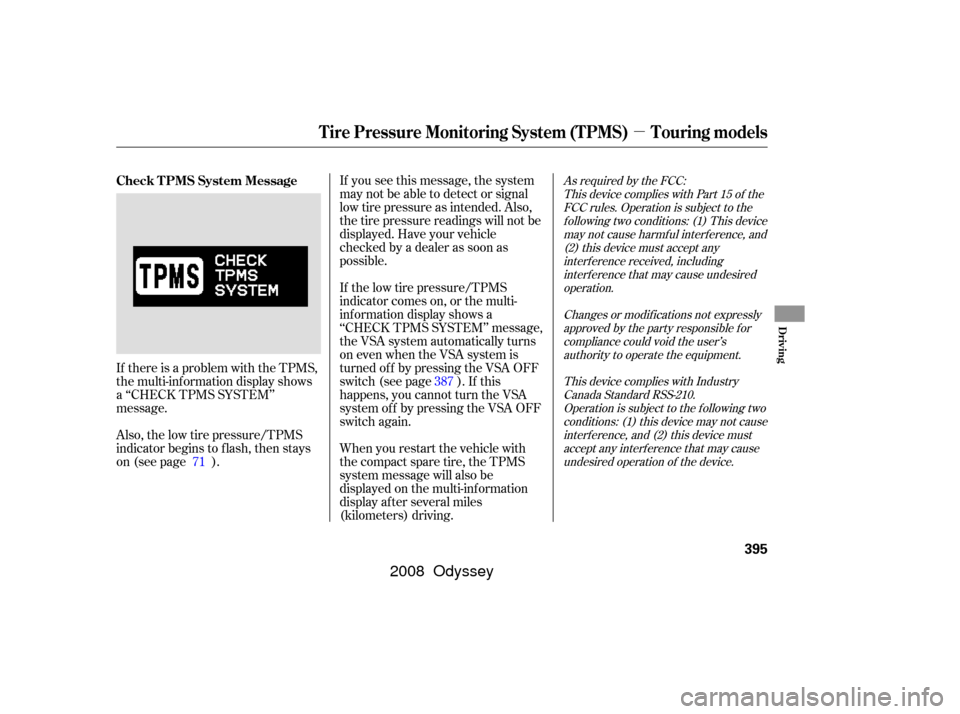

If there is a problem with the TPMS,
the multi-information display shows
a ‘‘CHECK TPMS SYSTEM’’
message.
Also, the low tire pressure/TPMS
indicator begins to f lash, then stays
on (see page ).
When you restart the vehicle with
thecompactsparetire,theTPMS
system message will also be
displayed on the multi-inf ormation
display af ter several miles
(kilometers) driving.
71 387
Check T PMS System Message
Tire Pressure Monitoring System (TPMS) Touring models
Driving
395
——y
y
(yy
2008 Odyssey

Your vehicle has been designed
primarily to carry passengers and
their cargo. You can also use it to
tow a trailer if you caref ully observe
the load limits, use the proper
equipment, and f ollow the guidelines

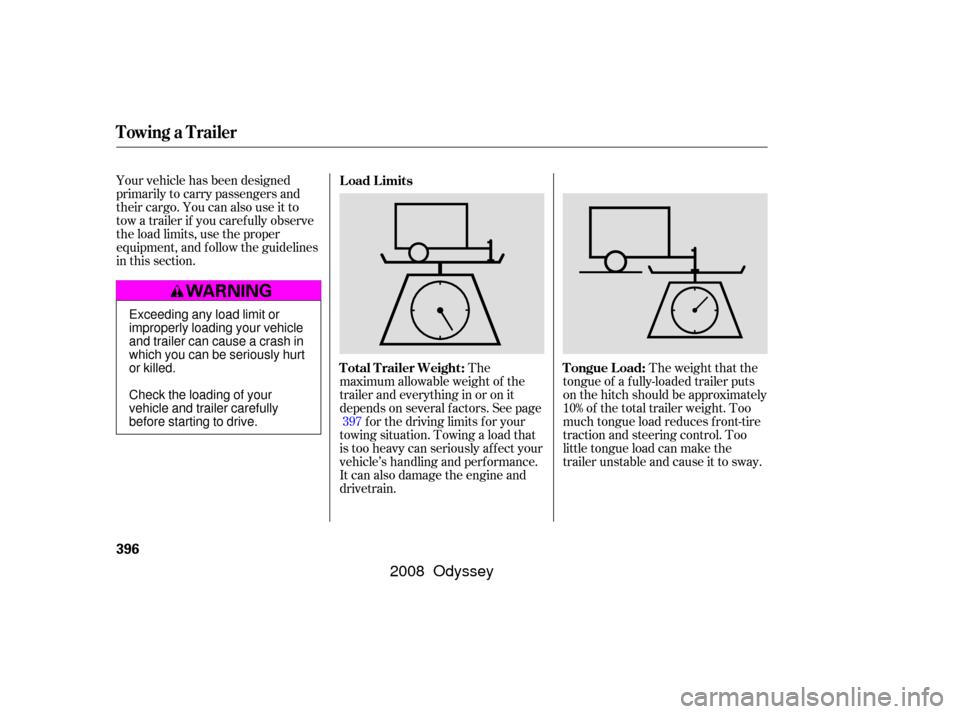

in this section.The
maximum allowable weight of the
trailer and everything in or on it
depends on several f actors. See page f or the driving limits f or your
towing situation. Towing a load that
is too heavy can seriously af f ect your
vehicle’s handling and perf ormance.
It can also damage the engine and
drivetrain. Theweightthatthe
tongue of a f ully-loaded trailer puts
on the hitch should be approximately
10% of the total trailer weight. Too
much tongue load reduces f ront-tire
traction and steering control. Too
little tongue load can make the
trailer unstable and cause it to sway.
397
Load Limits
T otal T railer Weight:
T ongue L oad:
Towing a Trailer
396
Exceeding any load limit or
improperly loading your vehicle
and trailer can cause a crash in
which you can be seriously hurt
or killed.
Check the loading of your
vehicle and trailer carefully
beforestartingtodrive.
——yy
(y
y
2008 Odyssey

Î
ÎÎ
Î
Î
Î
Î
Î
Î
Î Maximum Total Trailer Weight
Equipped with transmission coolerand power steering fluid cooler 3,500 lbs (1,580 kg)
3,350 lbs (1,520 kg)
3,200 lbs (1,450 kg)
3,050 lbs (1,380 kg)
2,900 lbs (1,310 kg)
2,750 lbs (1,250 kg)
2,600 lbs (1,180 kg) 1,550 lbs (700 kg) 650 lbs (290 kg)
Including driver. Based on 150 lbs (70 kg) per occupant.
See page for information about fluid coolers. Number of
Occupants 1
2
3
4
5
6
7
8
1:
2:
3:
4: 399
U.S. LX and Canadian DX models
EX, EX-L, Touring and Canadian LX models
2
34
1
3
4
The maximum allowable weight of
the vehicle, all occupants, all cargo,
and the tongue load must not exceed
2,910 lbs (1,320 kg) on the f ront axle,
and 3,197 lbs (1,450 kg) on the rear
axle.
The maximum allowable weight of
the f ully loaded vehicle and trailer is
8,410 lbs (3,815 kg).
To achieve a proper tongue load, start by loading 60% of the load toward the
f ront of the trailer and 40% toward the rear, then re-adjust the load as needed. The maximum allowable weight of
the vehicle, all occupants, all cargo,
and the tongue load is 6,019 lbs
(2,730 kg).
Towing a Trailer
Gross Axle Weight Rating
(GA WR):
Gross Combined Weight Rating
(GCWR): Gross Vehicle Weight Rating
(GVWR):
Driving
397
—

—y

y
(yy
2008 Odyssey
